Peristaltic Pump for Industrial and Water Treatment Applications

Customer demand

A large chemical company needs a batch of pumps to transfer liquid through a constant current:

1) The liquid has particulate impurities and is light and viscous.

2) The flow rate is about 8L in one minute, and it is bigger and better.

3) The cost control is strict, easy to move, easy to install, and requires long service life.

4) The head requirement is about 8 meters. With 220V AC, the accuracy requirement is not very high.

Solution

1) The user's liquid has impurities, and it is necessary to use industrial series products. The thick wall thickness of the hose is more conducive to the delivery of liquid.

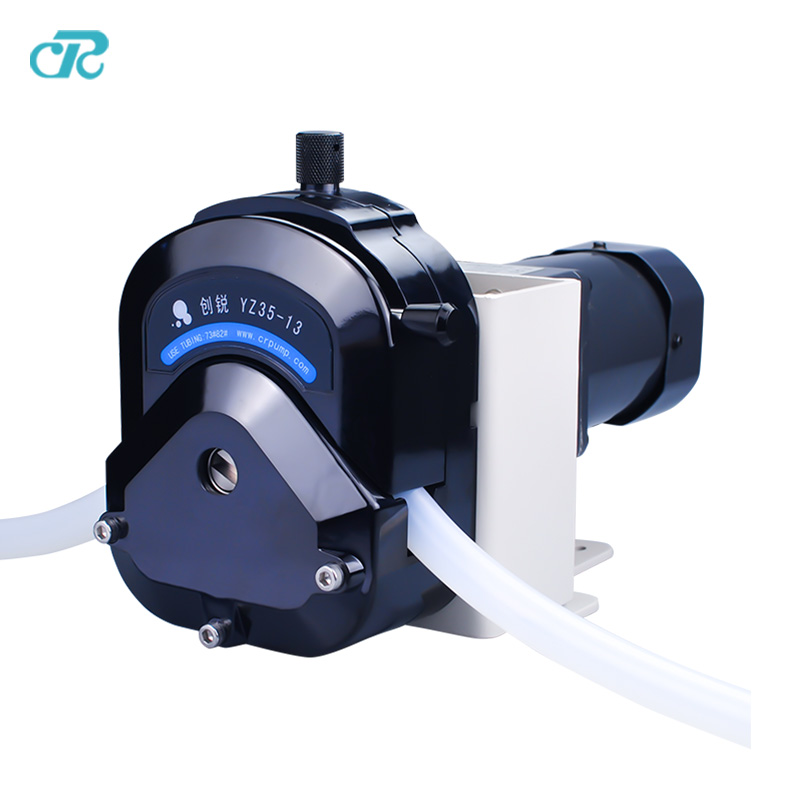

2) Use our OEM100-JL350T/YZ35-13 products to meet customer flow requirements up to 10L/min.

3) The installation volume of the product is smaller than that of the whole machine, and it is more suitable for nesting into the customer equipment.

4) The pump head adopts a PPS+304 stainless steel roller, which has superior corrosion resistance and is the longest service life in the same series, and the pressure can be adjusted.

Generate value

1) Peristaltic pump material is super corrosion resistant and can transport most chemical raw materials, corrosive and aggressive liquids.

2) High-power AC gear motor + YZ35-13 product, with the perfect combination of code speed box, is the most cost-effective product in high-flow products.

3) The pump head adopts PPS material + 304 stainless steel roller for long service life.

4) The pressure can be adjusted and the lift can be up to 15 meters.

5) Flow rate and accuracy: the flow rate is 0-10000ml/min, the adjustable transmission accuracy can reach 1-2%

6) The hose is used to transport the liquid, and the raw liquid does not need to pass through the pump body, so the user does not have to worry about the pump body being clogged or difficult to clean.

7) This product can be equipped with a stepper or servo motor, which can be used with the customer's central control system equipment.

8) Chuangrui peristaltic pump provides a one-year free warranty.
