Intelligent transfer peristaltic pump

BT600LC, suitable for higher precision transmission liquid, touch screen operation, simple intelligence, support for external control and series, four working modes available for selection (transmission mode, timing mode, timing quantitative mode), to meet the fluid processing needs of a variety of.


Quick description

* Drive Model: BT600LC

* Pump Head:YZ1515x,YZ2515x, ZN series

* Speed range : 0.1-600 rpm（reversible）

* Flow range : 0.007~2280ml/min

* Max channels :2

* Remote control : optional

* Foot pedal : optional

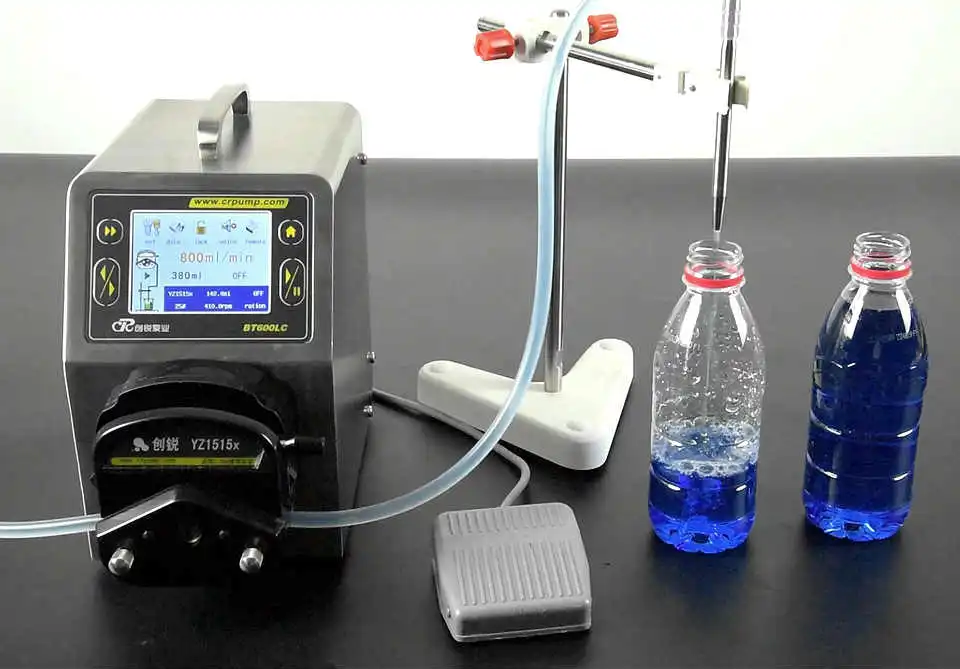

The video shows that the product can be filled by foot switch in transmission mode.The filling capacity is 380ml/ bottle.


Product introduction

·Storage function-user data storage function:(9 sets of data) .

·External control function-Multiple mode selection: communication mode, analog mode，foot switch control.Provide customized services.

·Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.

· Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the system will automatically carry out flow calibration to ensure the flow accuracy

· Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc

·Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.

·lock screen function-lock screen design, error proof touch, application more secure.

·Display function-real-time animation of the operation interface shows the running state and working parameter.

·Touch-screen function-3.5-inch color LCD screen, (English and Chinese optional) , touch-screen operation, intuitive and intelligent.

·Whole housing design-stainless steel housing，sturdy and durable , multi-face seamless whole housing design, Long service life, high cost performanc

 Flexible control mode: with touch screen, key and external control mode, convenient for users to choose to use.

The pump can install a variety of pump heads: YZ series, ZN series, can be in series to meet different flow requirements.

Transmission mode+filling mode; one-button switching of transmission and filling operation interface, making transmission and filling smarter and more convenient.
