Our company provide oversea customers 1 year warranty(do not include the silicone tube ) and life time repair. Within the 1 year warranty ,Not man-made cause damage, our company will provide free repair service. If beyond the warranty time, our company will only pay the maintenance cost.
- Pressure:Low Pressure
- Theory:Peristaltic pump
- Usage:Water, fluid, mixed pump
- Application:Environmental project, cement grinding aid industry
- Fuel:Electric
- Structure:Water, fluid, mixed pump
- Material:Silicone
- Place of Origin:CN;HEB
- Brand Name:Chuangrui
- Model Number:Silicon Tubing
- Specification:optional
- Length:optional
- Thickness:1.6mm,2.4mm,3.3mm optional
- Standard:yes
Product Description

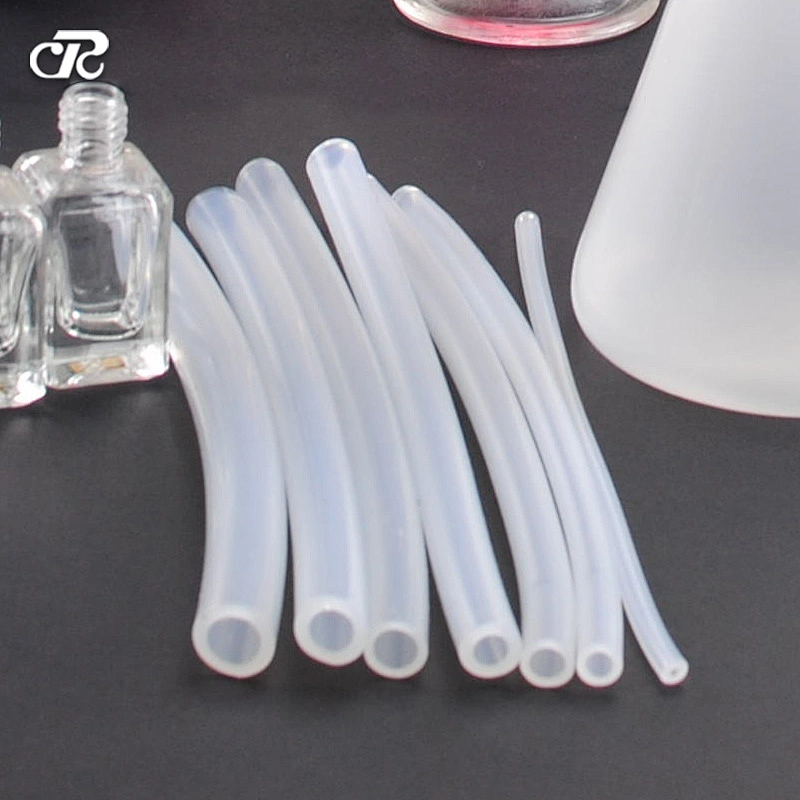

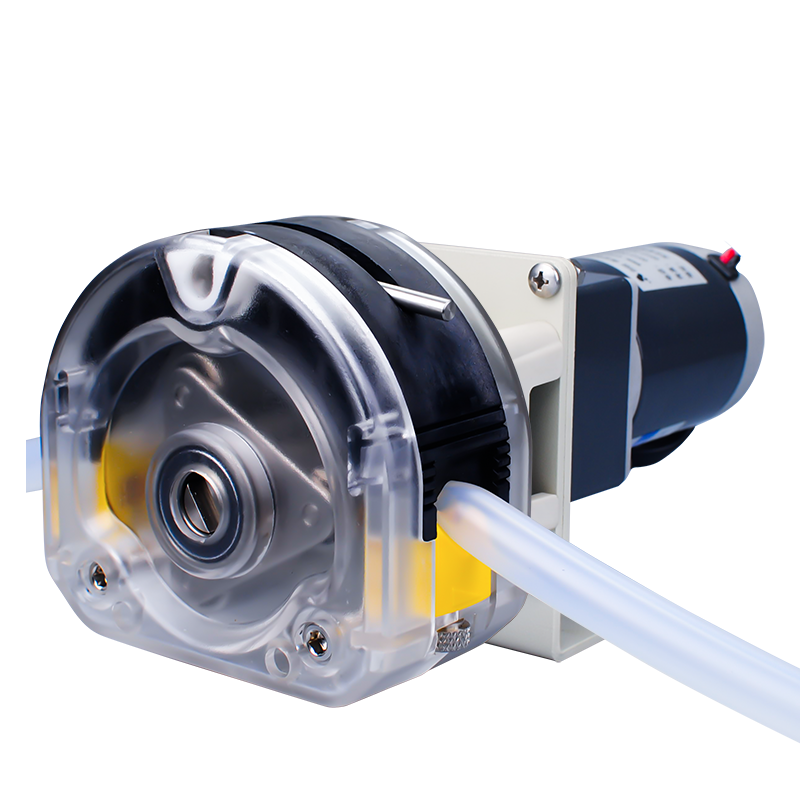

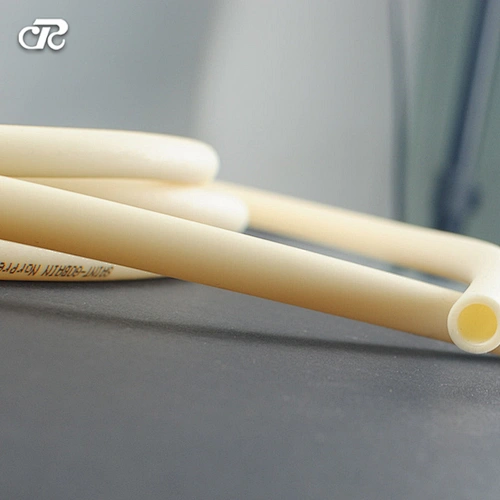

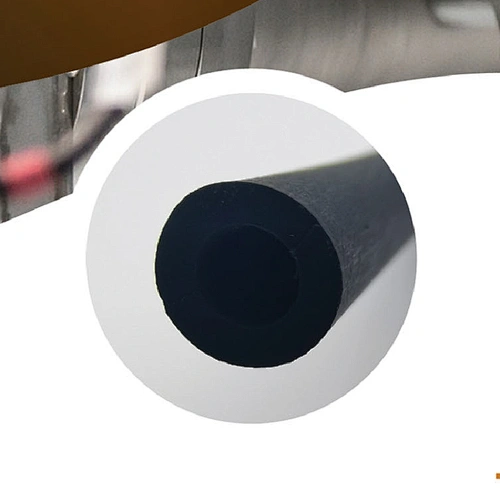

Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose
1.The best way to select a tube is to first decide which materials are chemically suitable, and then choose the one which best meets the physical demands of the application.
2.For maximum tube life, use a large bore tube at low speed. For maximum flow rate use the largest tube at maximum speed. For maximum accuracy, use a small bore tube at maximum speed.
3.Suction lift depends on the tube restituting fully before the advance of the next roller. If it does not, the flow rate will be reduced. For maximum suction lift or pressure, use the smallest practicable bore size of tubing and run the pump at the slowest possible speed.
Tube material:Platinum vulcanized silicone
About Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose Technical Parameters
Hose | ID* Wall thickness |
13# | 0.8*1.6mm |
14# | 1.6*1.6mm |
19# | 2.4*1.6mm |
16# | 3.1*1.6mm |
25# | 4.8*1.6mm |
17# | 6.4*1.6mm |
18# | 7.9*1.6mm |
15# | 4.8*2.4mm |
24# | 6.4*2.4mm |
35# | 7.9*2.4mm |
36# | 9.6*2.4mm |
73# | 9.6*3.3mm |
82# | 13*3.3mm |
92# | 25.4*4.8mm |
Order Guide
Dear All ,
Welcome to our website ,wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable pump. can you help me to confirm some details as below :
1,what's the application of the pump ? bottle filling or constant transfer ?
2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?
3,for constant transfer ,what's flowrate you need? ml/min
4,for bottle filling ,what's your bottle's volume? mlHow many bottles you want to filling in 1 min ?
Pls send these answers or most details to us, then we will help u to choose the best pump and tube .
Thanks for your time .
Related Products
OEM204/ZN25
OEM206/WP300
OEM208/KZ25

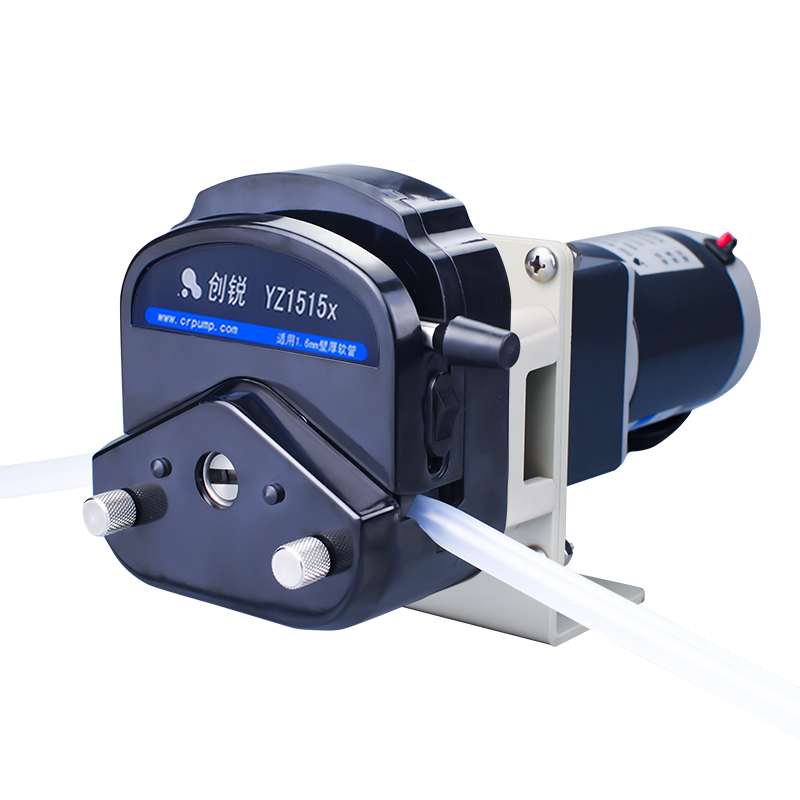

OEM201/YZ1515X

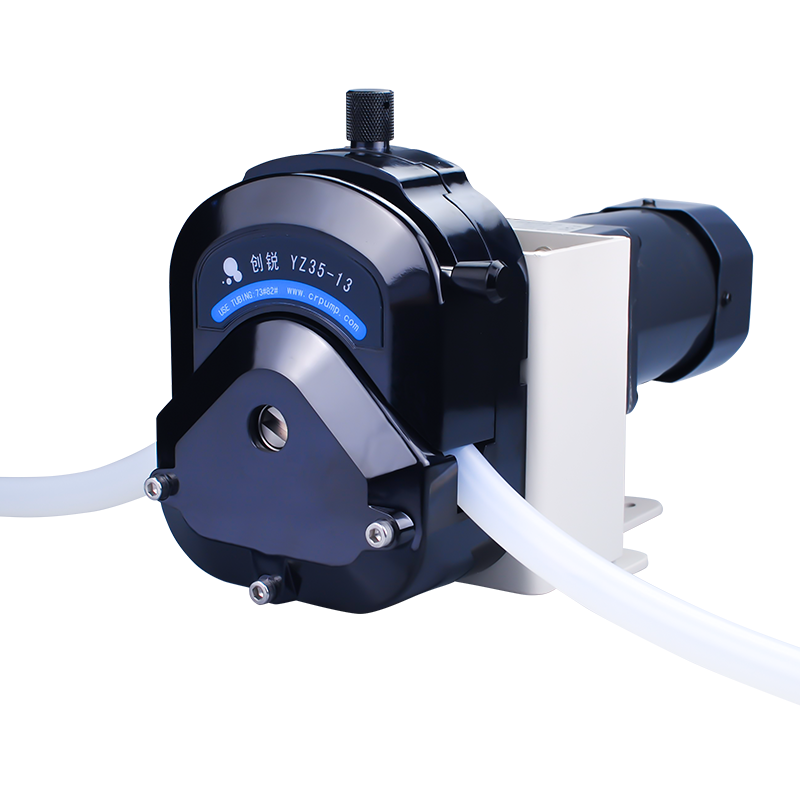

OEM200/YZ35-13

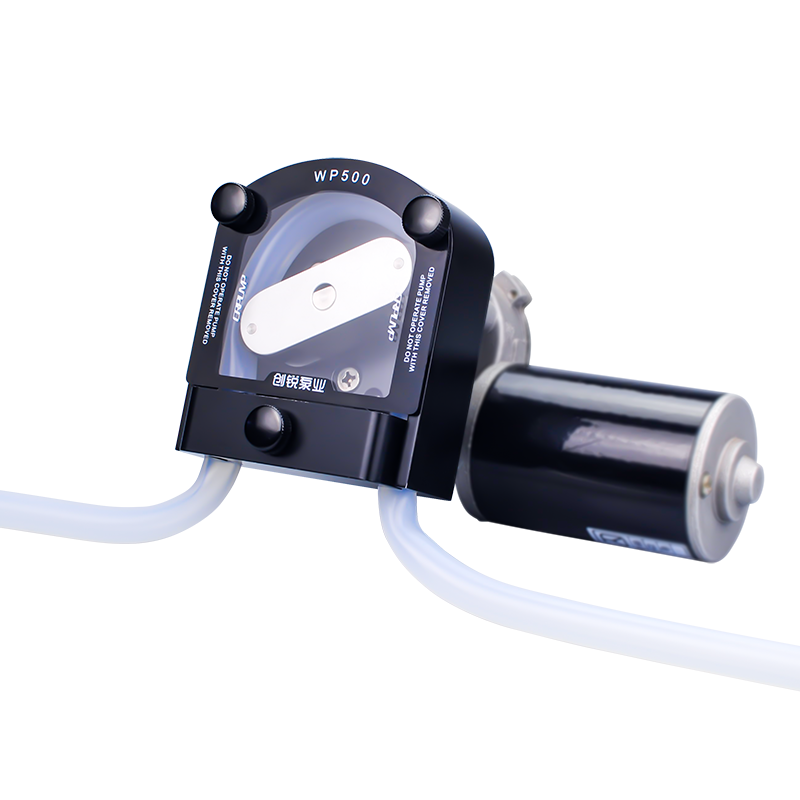

OEM210/WP500
Why Choose Us

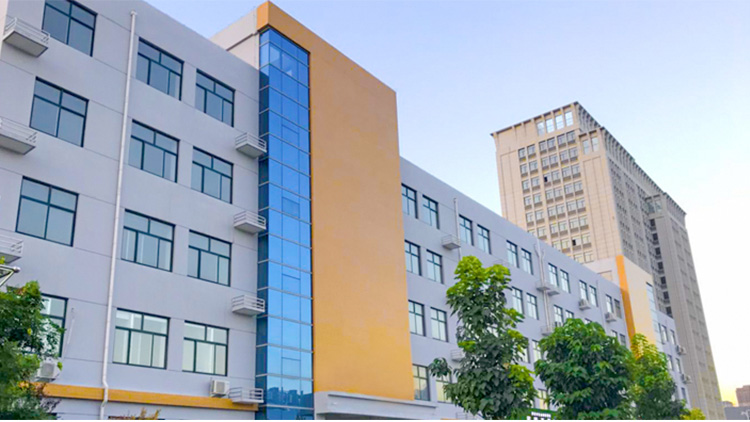

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
Warranty
1 year warranty & lifetime maintenance

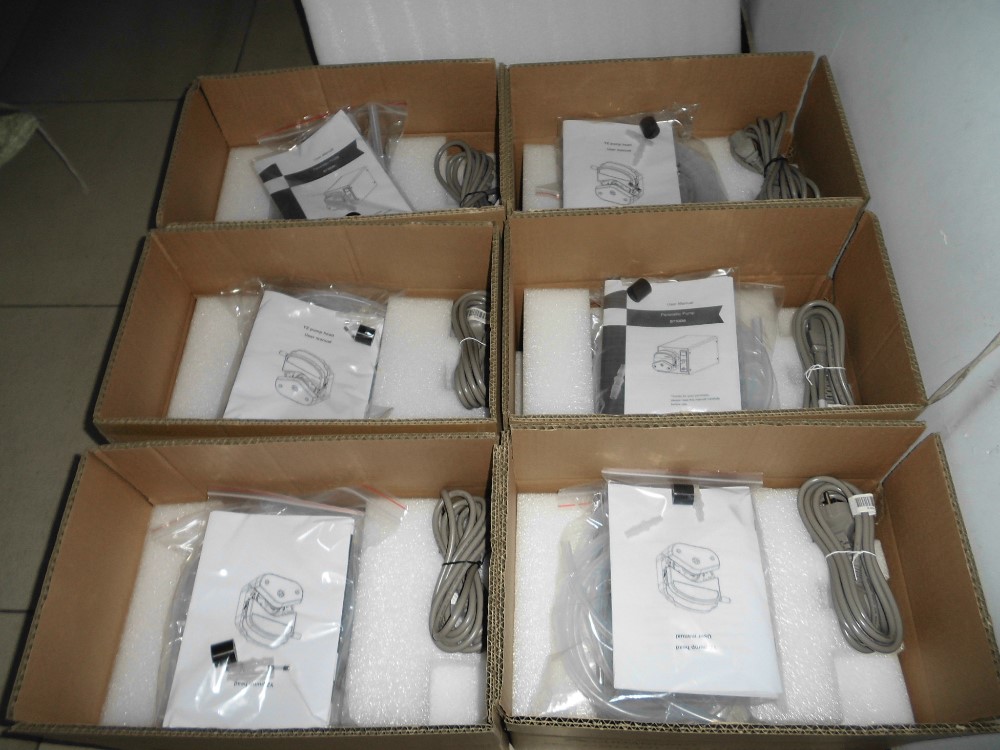

Package & Delivery
Package details:
1.The product is carton with plastic foam.
2.Carton with plastic foam, make sure the product is safe during shipping.
3.The product can also be packed strictly according to the customer's requirements.
Delivery details:
1.Air express such as EMS, DHL, TNT, UPS etc. If you would like any other's, please contact us.
2.Shipped in 3-7 days after payment.
Home
Send Message
Related Products
Model NO. 13#,16#,25#
Model NO. 13#,14#,16#,25#,17#,18#,35#,36#,73#,82#
Model NO. 14#,19#,16#,25#,17#,36#,73#,82#

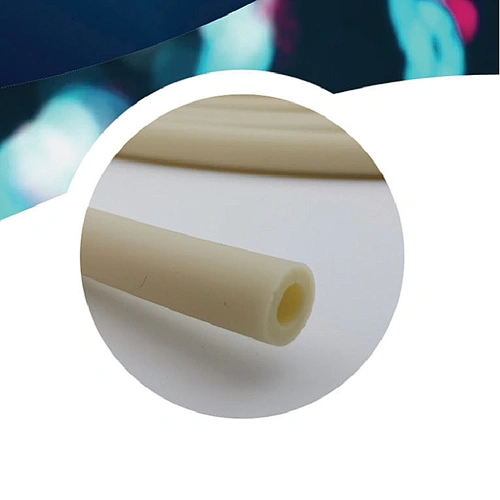

Model NO. Silicone tubing
