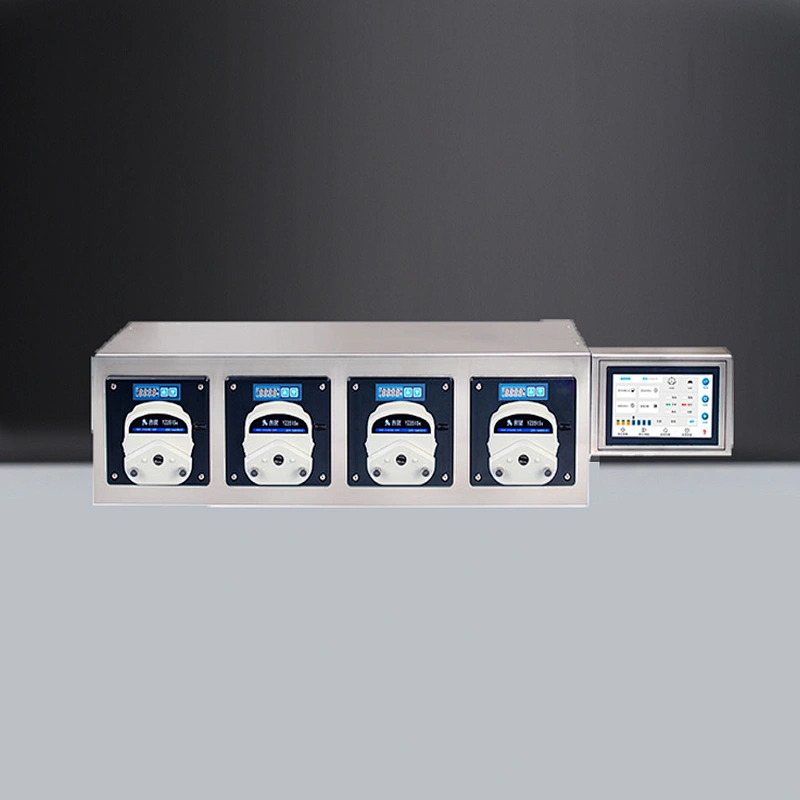

Multi-channel PLC control 5ml 10ml 20ml 30ml 50ml 4 nozzles Peristaltic pump filling system for packing production line

Multi-channel PLC control 5ml 10ml 20ml 30ml 50ml 4 nozzles Peristaltic pump filling system for packing production line

Model NO.: UTF01
Price:: US $ 1000.00-3000.00

Quantity:

Product Description

Quick Details

Warranty:1 year, 1 Year

Customized support:OEM, ODM, OBM

Brand Name:Chuangrui

Model Number:UTF01/YZ1515x

Place of Origin:Hebei, China

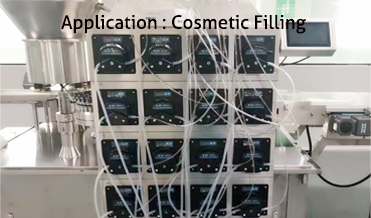

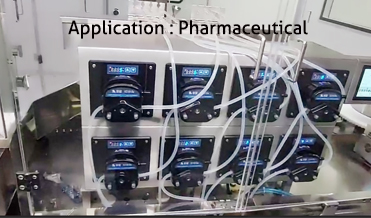

Application:Food and Beverage Industry, Pharmaceutical industry, Liquid Dispensing

Horsepower:none

Power Source:Electric

Pressure:Low Pressure

Structure:peristaltic pump filling system

Cable Length:none

Outlet Size:Max 6.4mm

Voltage:AC110V or AC220V

Power:<100W

Model:UTF01

Pump head:YZ1515x

Channel number:4

Max flow:2280ml/min per channels

Filling speed:150-3000 per hour

Power supply:AC220v or AC110v

Certification:ce, TUV, ISO9001

Packaging & Delivery

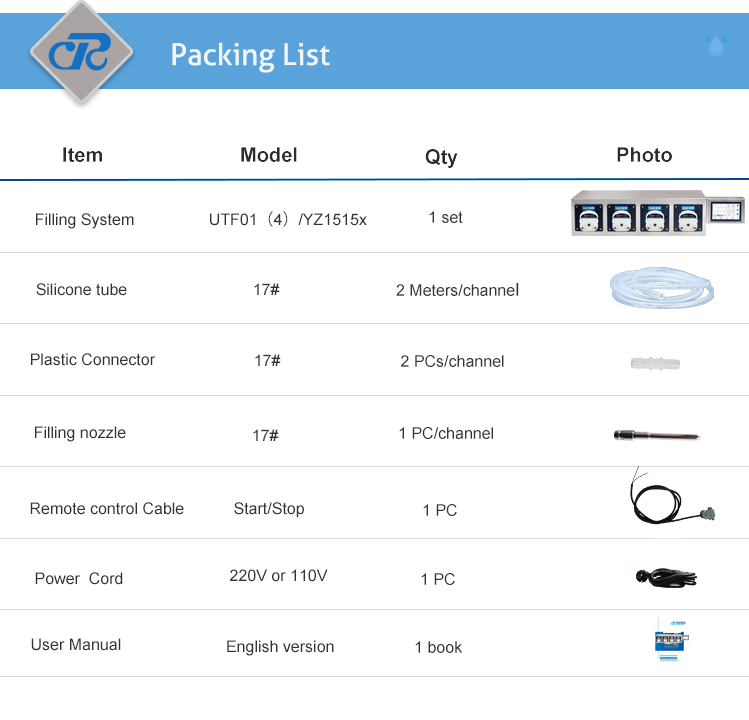

Packaging Details 1.1 set of peristaltic pump/carton 2.Carton with plastic foam, make sure the peristaltic pump is safe during shipping.

Port Tianjin,Shanghai,Guangzhou Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	10	To be negotiated

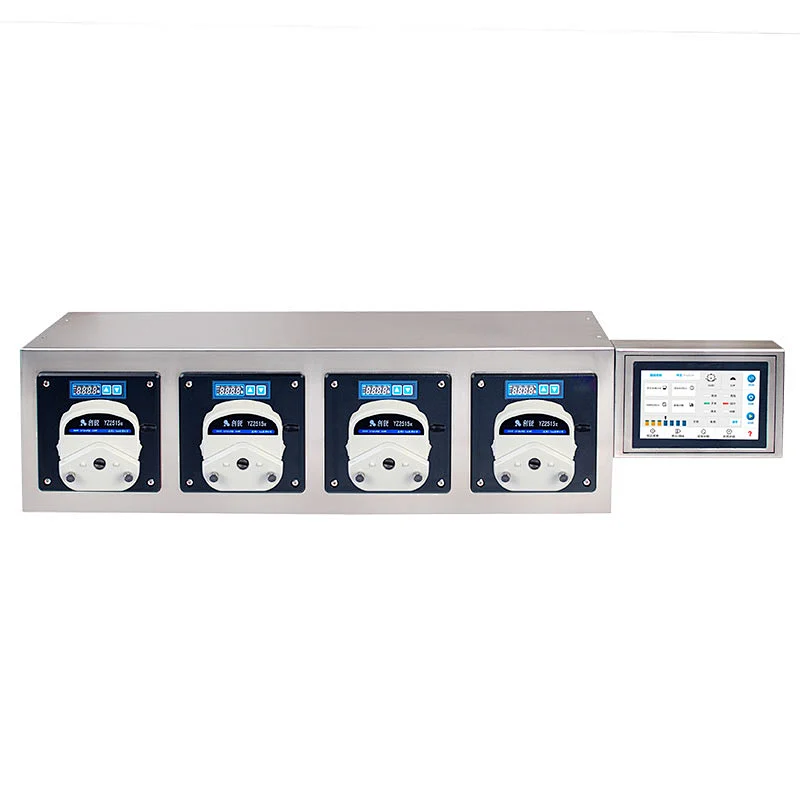

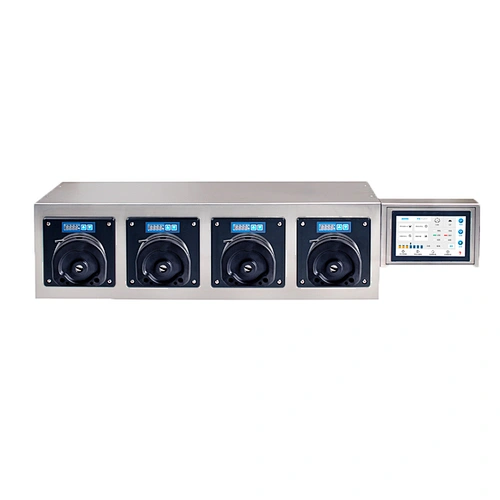

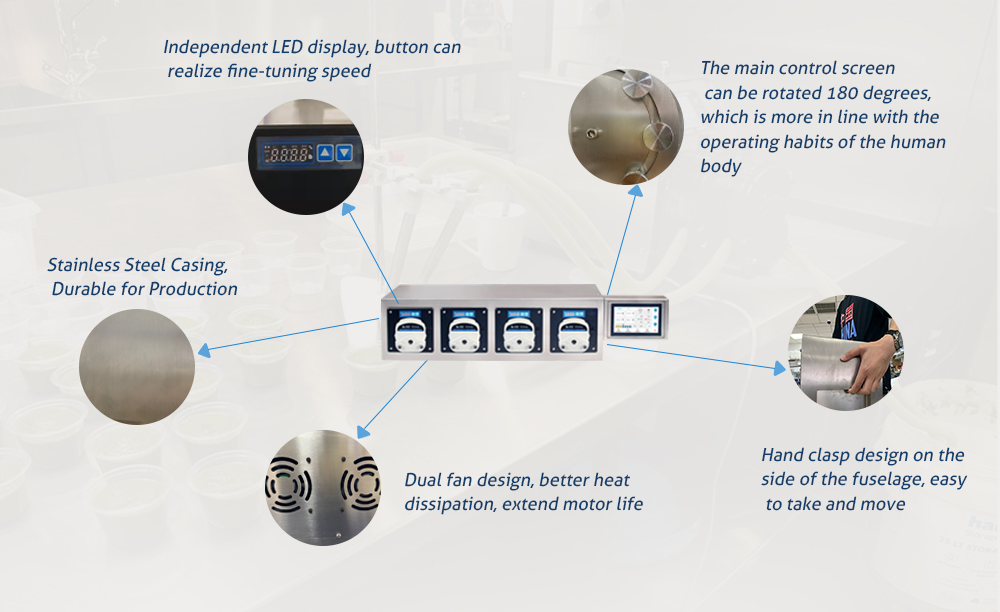

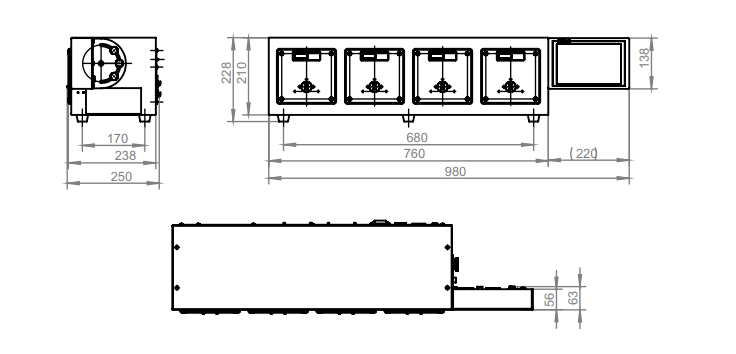

Multi-channel peristaltic pump filling system

UTF01 is a filling peristaltic pump independently developed by Chuangrui Precision Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels,which can be expanded up to 32 channels. UTF01/YZ1515x can be adapted to 7 different tubes, which can fully meet customer application needs and provide more flow selection.

Model	UTF01/YZ1515x
Channel	41/ 42 /43 / 44 /45 /46 /47/ 48 (standard) Noted: For 2N 3N 5N 6N . We accept customization, Production time is about 7-15 days.
Filling capacity	1-50 ml per time per channel
Remote signal	Start/stop(default) RS485 (optional)

Drive Model : UTF01	Pump Head Model : YZ1515x
Channel Number :4 channels is standard , Other options pls contact us
Speed range : 0.1-600rpm	Flow range : 0.007-2280ml/min
Filling volume : 0.1ml-9999.99ml	Filling time : 0.1-9999.9s
Interval time : 0.5-9999.9s	Copy number :0-9999 times"0"means an infinite loop
Such back speed : 0-300rpm	Suck back angle : 0-1000°
Data Storage : 20 groups	Display : LCD+4-LED

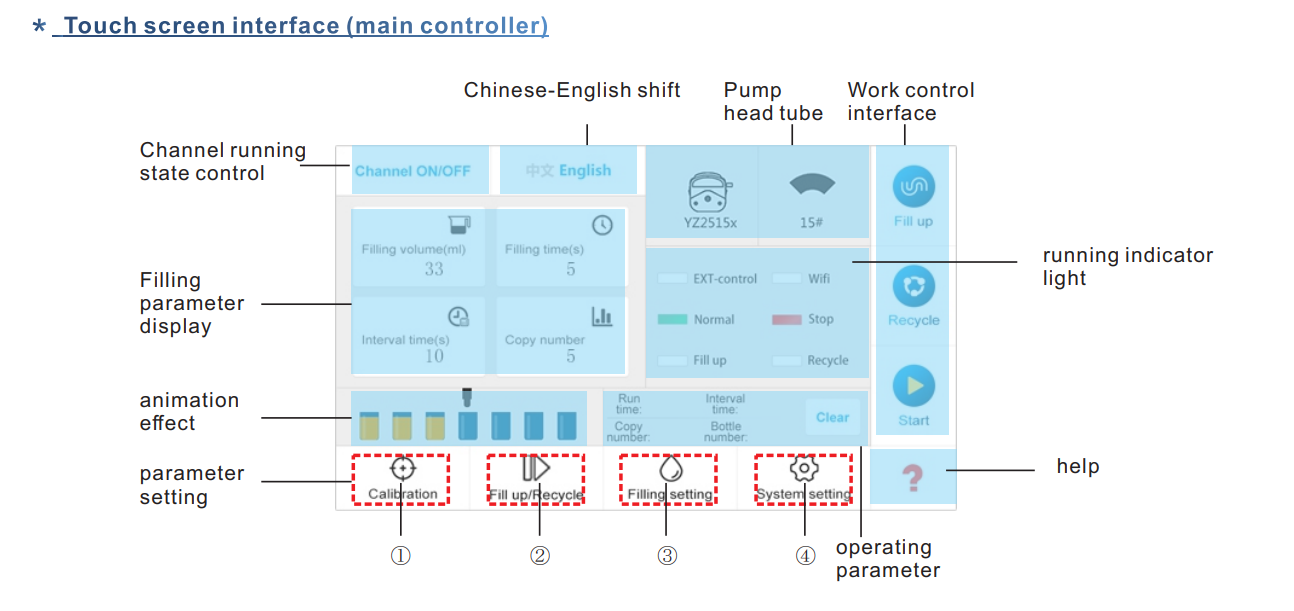

Setting method : Touch screen + Keypad + Remote Control
Communication interface: Support RS485 communication protocol
Start/Stop Signal Input : a pair of dry contact input
No bottle No Filling Signal Input : 4 pairs of dry contact input (for 4channels)
Work environment :0℃-40℃	Casing IP rate : IP31

Tube Model	ID (mm)	Wall Thickness (mm)	Max Flow (ml/min)	Filling Capacity (ml/bottle)	Filling Time (s)
13#	0.8	1.6	42	0.5-2	1-2
14#	1.6	1.6	162	0.5-5	1-2
19#	2.4	1.6	306	1-10	1-2
16#	3.1	1.6	492	5-15	1-2
25#	4.8	1.6	1020	10-20	1-2
17#	6.4	1.6	1740	20-40	1-2
18#	7.9	1.6	2280	40-60	1-2
The above data is for reference only.

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
