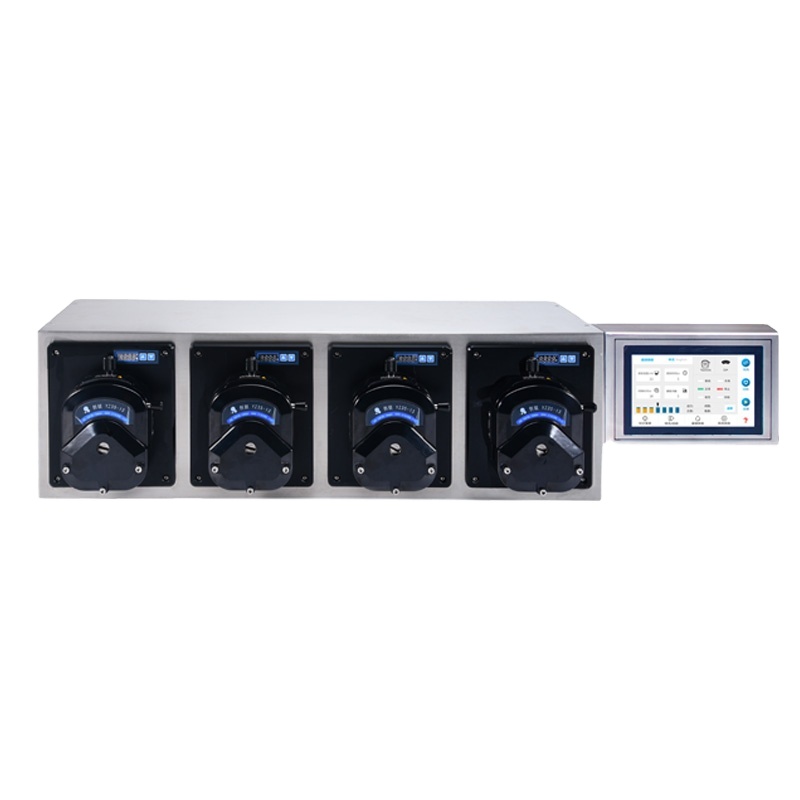

Industrial Chemical Liquid Dispensing And Filling System Peristaltic Dosing Pump With Silicone Tubing

Model NO.: UTF03
Price:: US $ 2850.00-2850.00

Type:peristaltic pump filling system
Maximum Head:5--10m
Maximum Flow Rate:12000ml/min/channel

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 year

Customized support: OEM, ODM

Brand Name: Chuangrui

Model Number: UTF03/YZ35-13

Place of Origin: Hebei, China

Application: Automotive Industry, Food and Beverage Industry, Machining, Mining industry, Pharmaceutical industry, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions

Horsepower: None

Power Source: Electric

Pressure: Low Pressure

Structure: peristaltic pump filling system

Cable Length: none

Voltage: AC220V or AC110V

Power: <500W

Model: UTF03

Applicable pump head: YZ35-13

Speed Resolution: 0.1rpm

Power supply: AC220v or AC110v

Max flow for each channel:12000 ml/min

Rotating speed: 0.1-600 rpm,reversible

Certification: ce

Supply Ability

Supply Ability 2000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details 1.1 set of peristaltic pump/carton 2.Carton with plastic foam, make sure the peristaltic pump is safe during shipping.

Port Tianjin,Shanghai,Guangzhou

Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	10	To be negotiated

Multi-channel peristaltic pump filling system

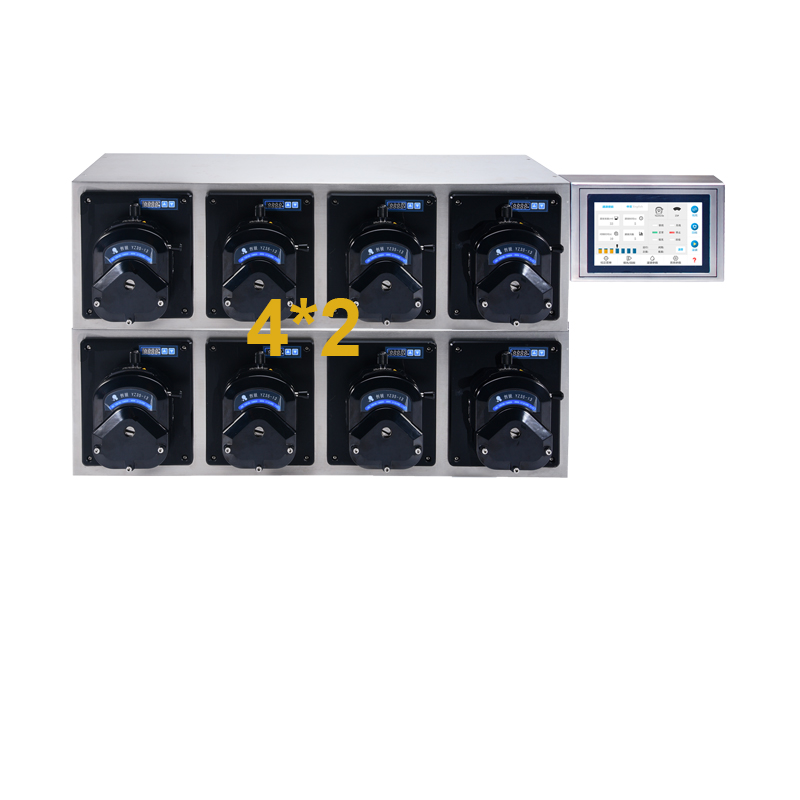

UTF03 is a filling peristaltic pump independently developed by Chuangrui Precision Pump. It consists of an intelligent filling system and the main controller. The standard drive unit is 4 channels,which can be expanded up to 32 channels. UTF03/YZ35-13 can be adapted to 2 different tubes, which can fully meet customer application needs and provide more flow selection.

Model	UTF03/YZ35-13
Channel	41/ 42 /43 / 44 /45 /46 /47/ 48 (standard) Max : 32 Channels Noted: For 2N 3N 5N 6N . We accept customization, Production time is about 7-15 days.
Filling capacity	200-1000 ml per time per channel
Remote signal	Start/stop(default) RS485

Drive Model : UTF03	Pump Head Model :YZ35-13
Channel Number :4 channels is standard , Other options pls contact us
Speed range : 0.1-600rpm	Flow range : 1.3-12000 ml/min
Filling volume : 0.1ml-9999.99ml	Filling time : 0.1-9999.9s
Interval time : 0.5-9999.9s	Copy number :0-9999 times"0"means an infinite loop
Such back speed : 0-300rpm	Suck back angle : 0-1000°
Data Storage : 20 groups	Display : LCD+4-LED

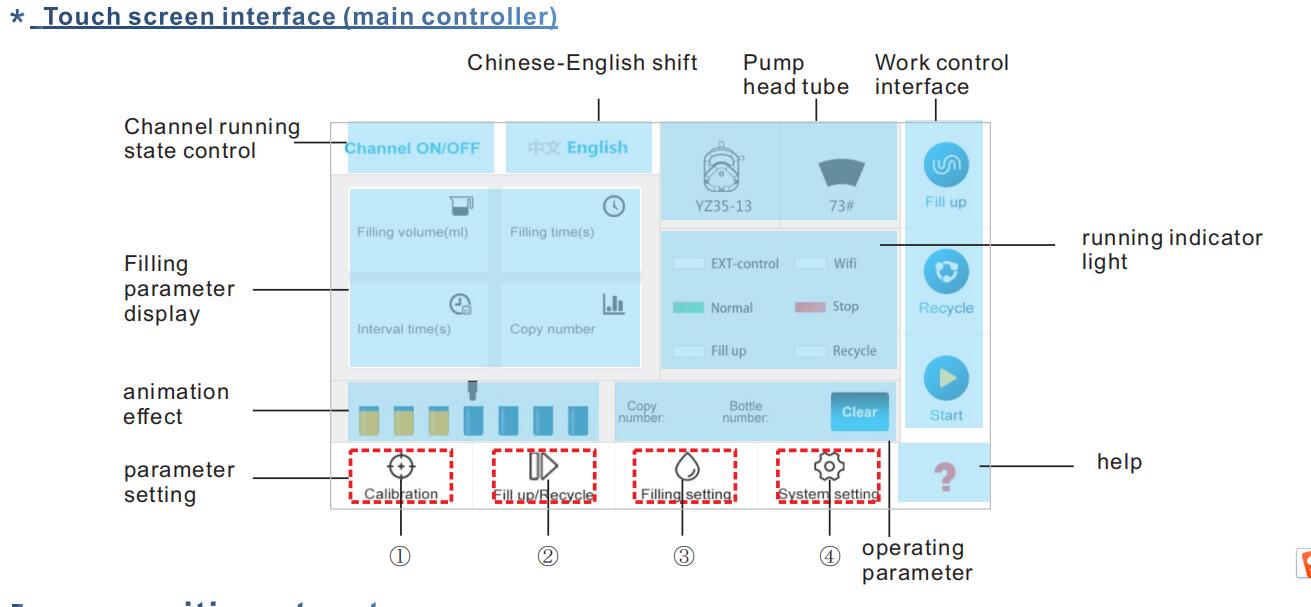

Setting method : Touch screen + Keypad + Remote Control
Communication interface : Support RS485 communication protocol
Start/Stop Signal Input : a pair of dry contact input
No bottle No Filling Signal Input : 4 pairs of dry contact input (for 4channels)
Work environment : 0℃-40℃	Casing IP rate : IP31

Tube Model	ID (mm)	Max Flow (ml/min)	Filling Capacity (ml/bottle)	Filling Time (s)	Filing error
73#	9.6	7400	200-500	2-5	≤±2%
82#	13	12000	200—1000	1-5	≤±2%
The above data is for reference only.

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
