liquid additive precision transfer peristaltic pump

liquid additive precision transfer peristaltic pump

Model NO.: BG600-S
Price:: US $ 600.00-1000.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 2000 piece / Month
Country of Origin: tianjin

Quantity:

Product Description

Place of Origin:CN;HEB
Pressure:Low Pressure
Structure:Peristaltic Pump
Usage:for various additive transfer
Application:liquid transfer
Power:<500W
Fuel:Electric
Brand Name:CR
Model Number:BG600-S
Model:BG600-S
Theory:Peristaltic Pump
Speed:0.1-600rpm
Speed Resolution:0.1rpm
Flowrate:1.3-12000ml/min
Flow Accuracy:<0.5%
Speed control mode:Digital knob to adjust speed
Display mode:4-LED display
Power supply:AC220V±10% (standard); or AC110V±10% (optional)
External control:RS232 and RS485 , support MODBUS protocol mode

Product Description

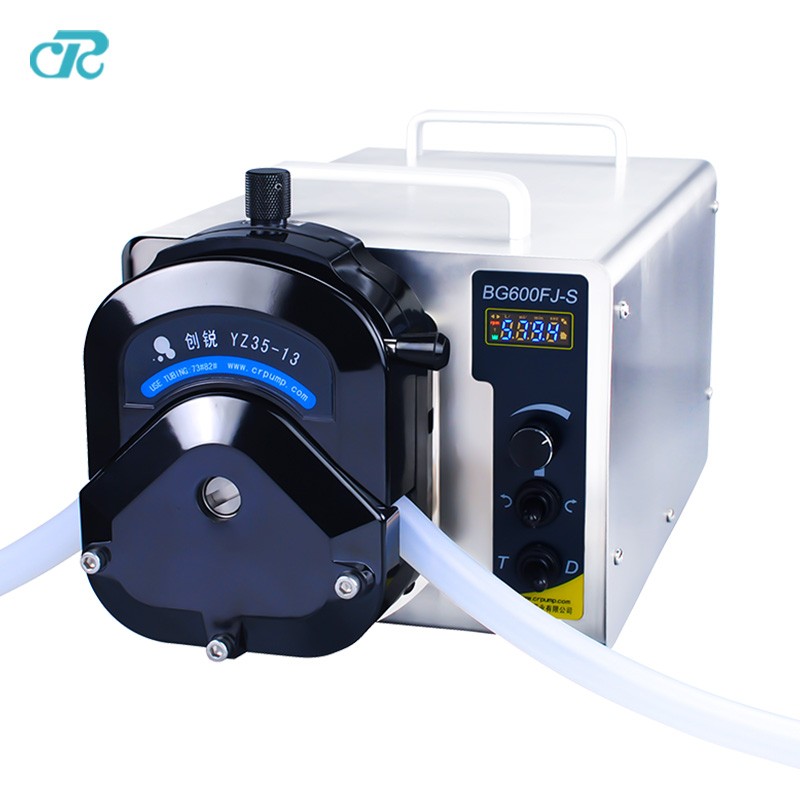

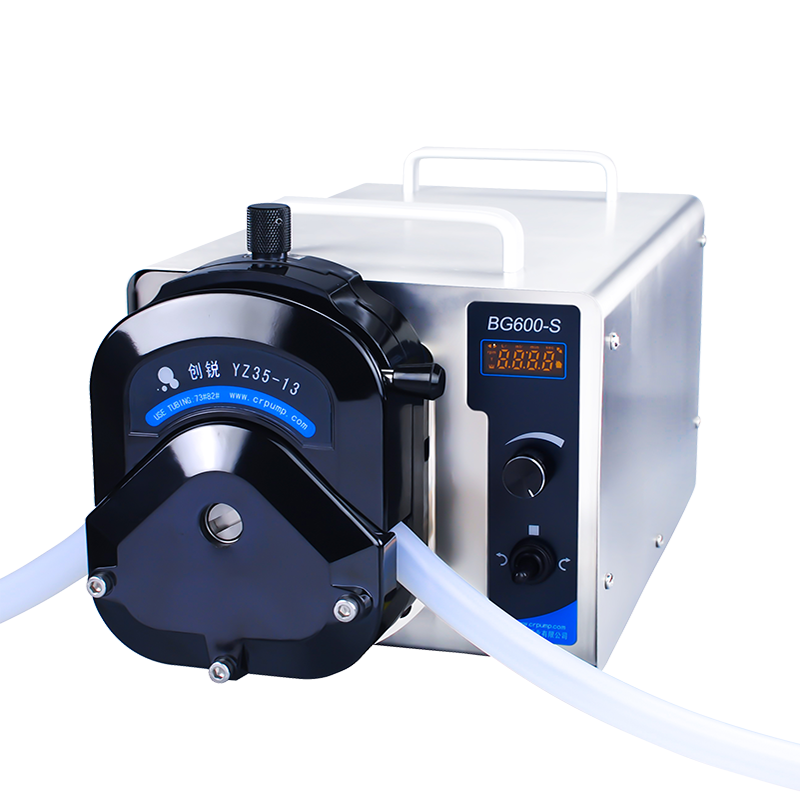

Model :BG600-S/YZ35-13 with max flow 12 L/min

Additive precision transfer peristaltic pump

CR peristaltic pump BG600-S can be installed by YZ35 YZ35-13, pump heads, with flow rate from 1.3-12000 ml/min. Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers.

Technical Parameters

Parameter

Model: BG600-S

Suitable pump head :YZ35 YZ35-13
Max flow rate: 12000ml/min

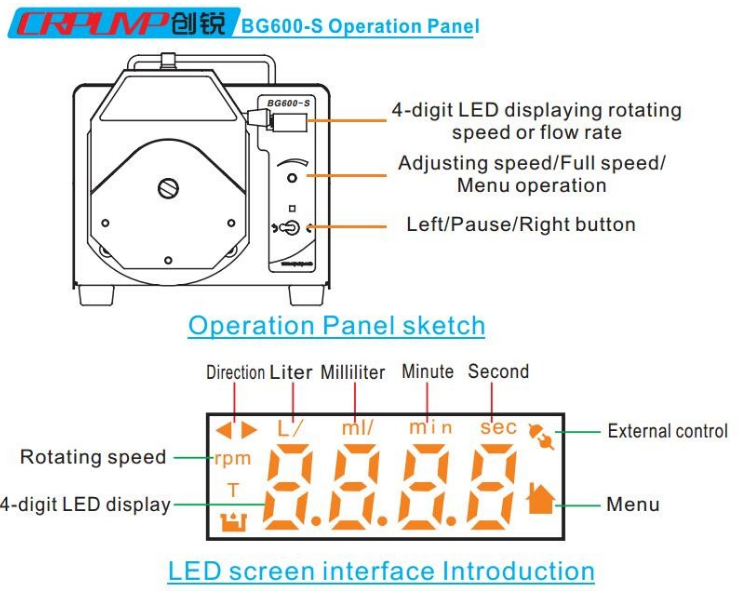

Display mode: 4-digit LED displays current rotating speed or flow rate
Speed Control Method: Rotary encoded knob to adjust rotating speed
Power consumption: <400W
Weight: 19KG
IP rating: IP31
Speed: 0.1-600rpm
Speed resolution: 0.1rpm
Power supply: AC220V±10%(standard) or AC110V ±10%(optional)
External Control: Start & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA option )
RS232 and RS485 Communication interface, support MODUBUS Communication Protocol

Work Environment: Temperature 0-40℃, <80% relative humidity, no condensation.

Function & characteristics:

1. Applicable pump heads: YZ35 YZ35-13

2. Two ways of changing flow speeds: by hand through switching knobs/ automatic control through external controller interface

3. Switching knobs excel membrane keypad in reducing failure rates during the operation

4. FULL SPEED button available for filling in & emptying out

5. Memory function available in case of power off

6. Good capability price rate

7. Not suitable when used in the open air.

Application for the peristaltic pump

Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; biopharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.

Practical application case

Research laboratory to do drop experiment, organic liquid timing quantitative transmission

Pharmaceutical industry : Pharmaceutical factory . Diagnostic reagent dispensing . machinery supporting for Filling machine / Dry granulation / Coating machine / Fermenter / Centrifuge, etc.

Food industry: filling machine/coffee machine/vending machine

Cosmetics Industry: For filling Perfume/Essential Oils/Lotion/Mask/ nail polish etc.

Construction industry: quantitative addition of water-based additives such as cement foaming agent/cement grinding aid/water reducing agent, small batch cement mortar transportation

Ceramic Industry Ceramic Ingredients / Slurry Transfer

Environmental protection: Flue gas analysis/Water quality monitoring/ COD/BOD etc.

Analytical Instruments: Atomic Fluorescence/Ion Chromatography/Liquid Chromatography /Biochemical Analyzer

Packaging, protection:sealing and gelatinize machine, For adding glass fiber antistatic agent/ Wire coating/mechanical parts oiling .etc.

Mining and Metallurgy : Precious Metal Flotation / Metallurgy Quantitative Additives /Gem Cutting Fluid Quantitative Addition /Polishing Fluid Delivery

Chemical synthesis: Glass reactor additive /Electroplating dosing /PH value control

Medical: Intestinal cleaning (endoscope matching) /Washing machine matching/ Liposuction surgery (for swelling anesthesia)

Cleaning: Washing machine Dishwasher (delivering detergent, etc.) etc.

Agriculture: fertilizer addition Dosing of animal feed additives

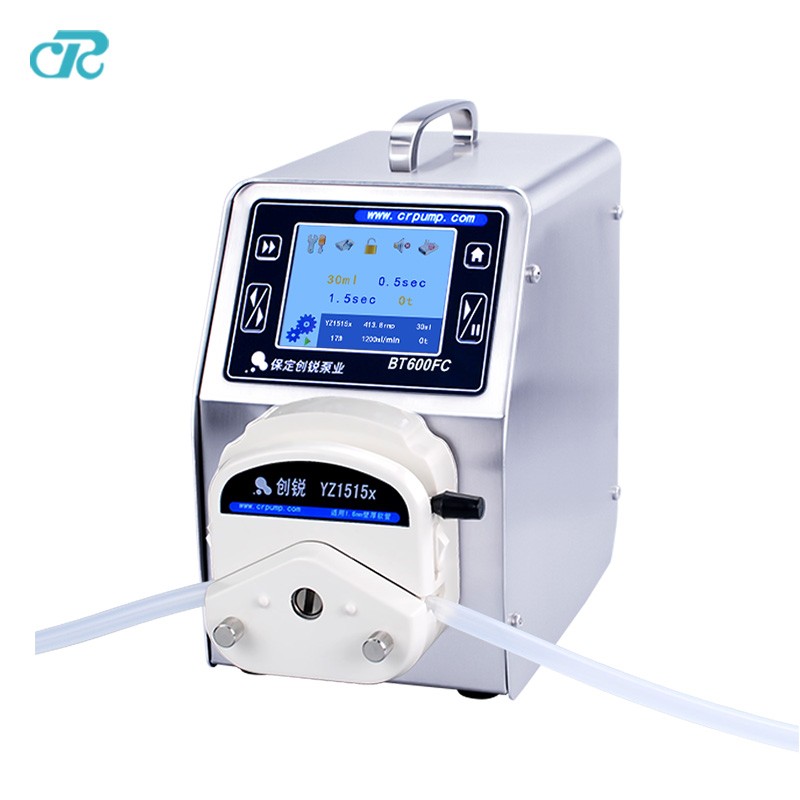

BT600FC/YZ1515x

Flow range : 0.007-2280 ml/min

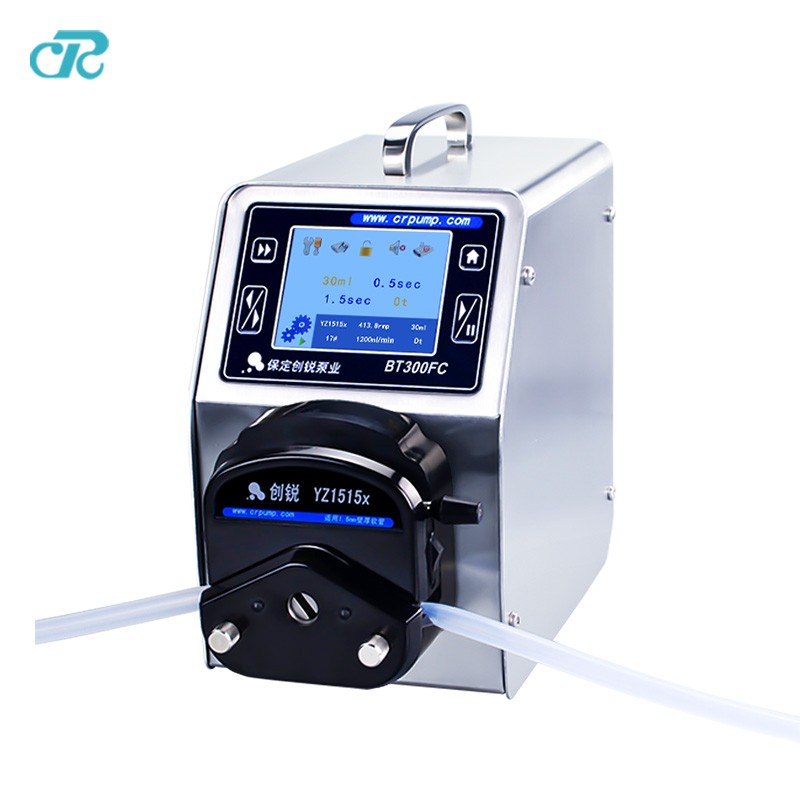

BT300FC/YZ1515x

Flow range : 0.007-1140 ml/min

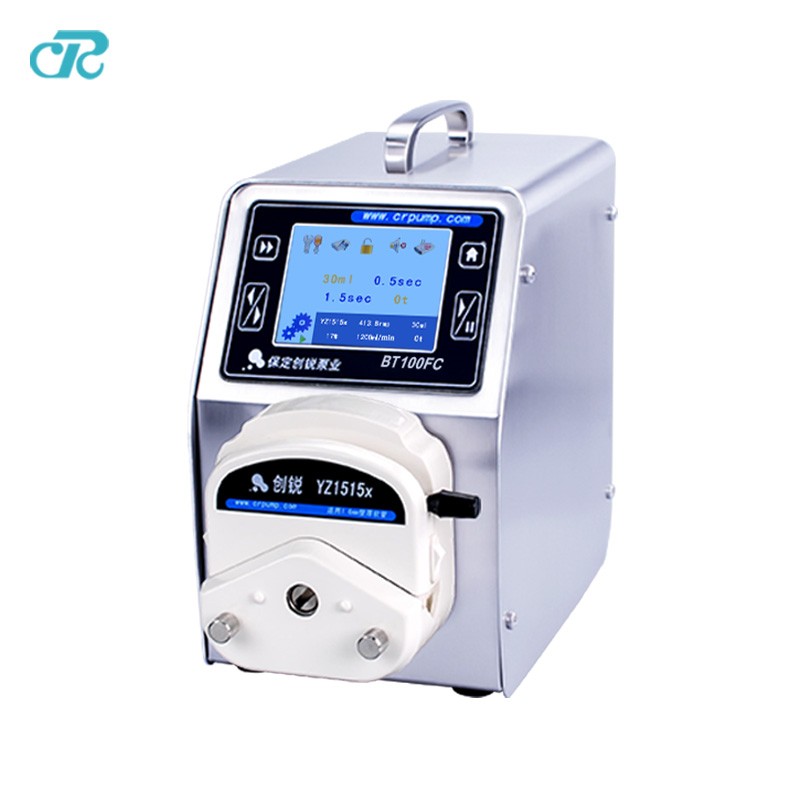

BT100FC/YZ1515x

Flow range : 0.007-380 ml/min

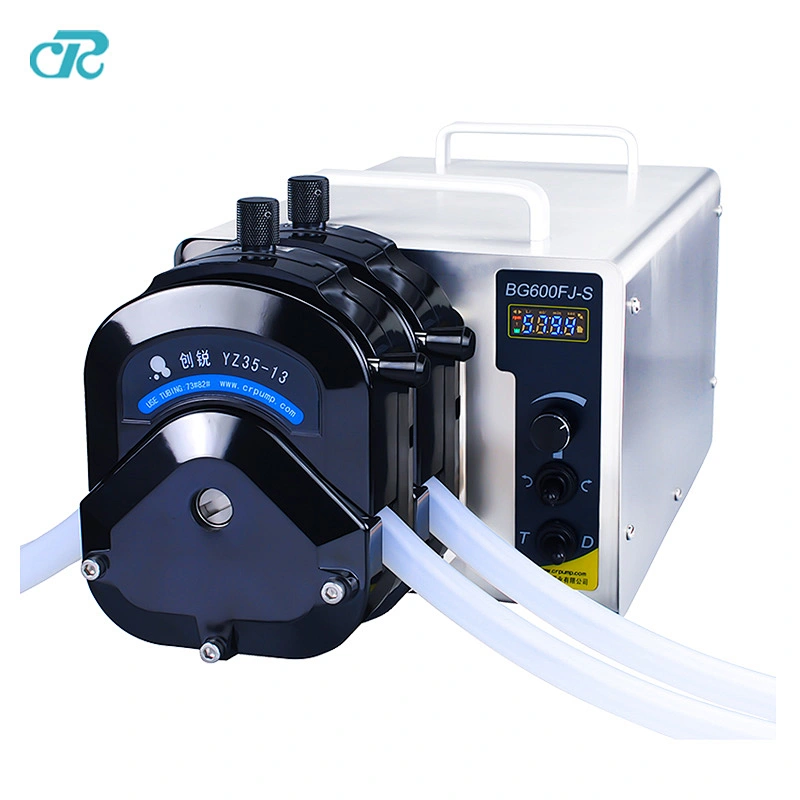

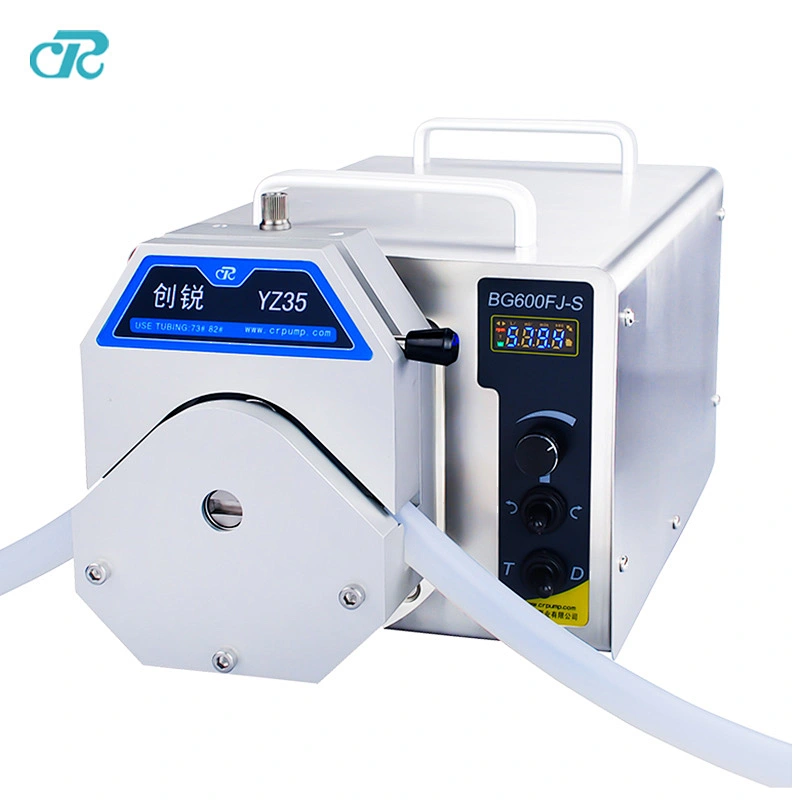

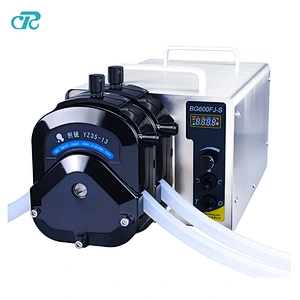

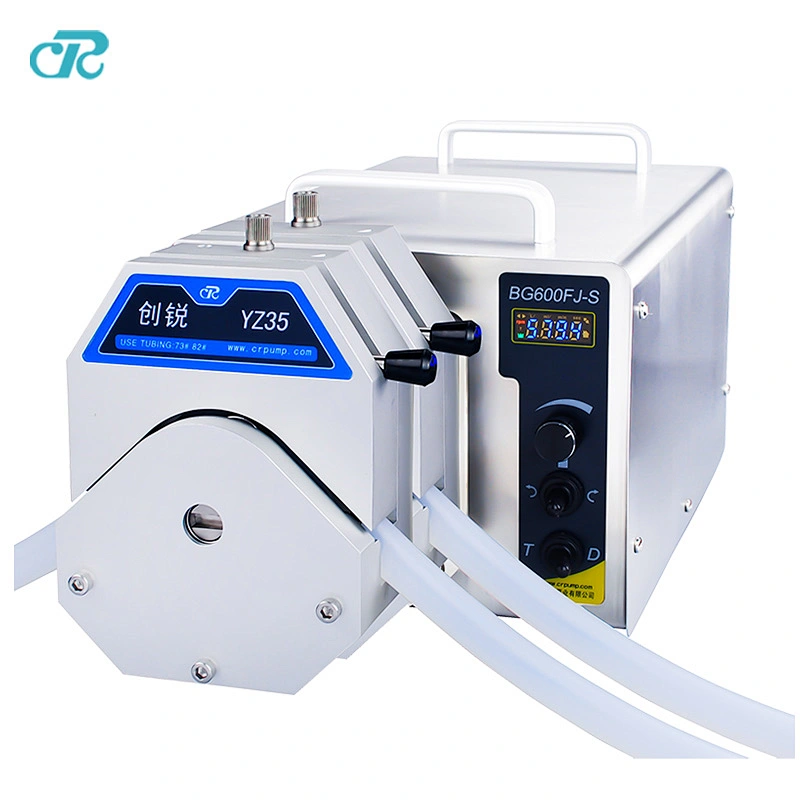

BG600FJ-S/YZ35-13

flow range : 1.3-12000 ml/min

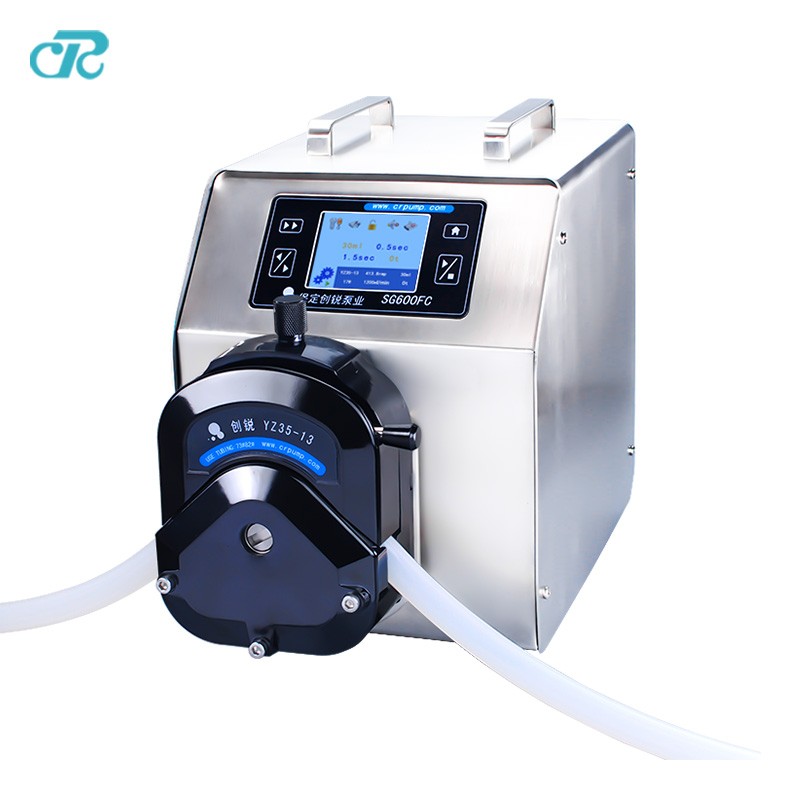

SG600FC/YZ35-13

Flow range : 1.3-12000 ml/min

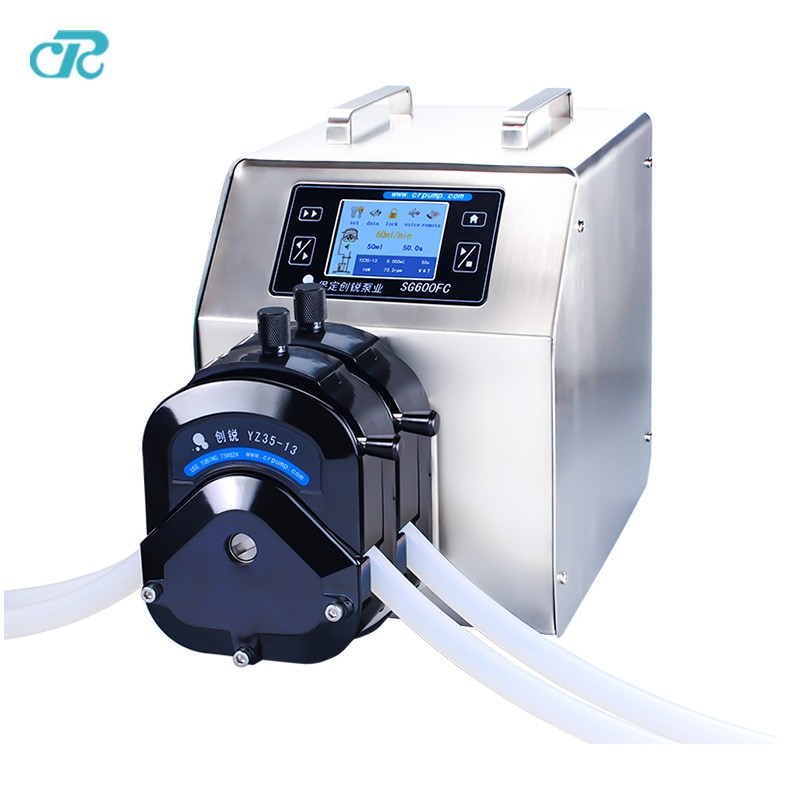

SG600FC/2*YZ35-13

Flow range : 1.3-24000 ml/min

Why choose us

Baoding chuangrui precision pump Co., Ltd Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..

We aim to"Produce CR pump to the easier life"

With 10 years professional experience of peristaltic pump/peristaltic hose pump/lab peristaltic pump/industrial peristaltic pump/peritaltic dosing pumpemical dosing pump/peristaltic filling pump/dispensing peristaltic pump/OEM peristlatic pump/ liquid transfer pump etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.

We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.Our professional team can insure fluent communication, as well as perfect after-sale serviceChuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Package & Delivery

Package details:

1.The product is carton with plastic foam.

2.Carton with plastic foam, make sure the product is safe during shipping.

3.The product can also be packed strictly according to the customer's requirements.

Delivery details:

1.Air express such as EMS, DHL, TNT, UPS etc. If you would like any other's, please contact us.

2.Shipped in 3-7 days after payment.
