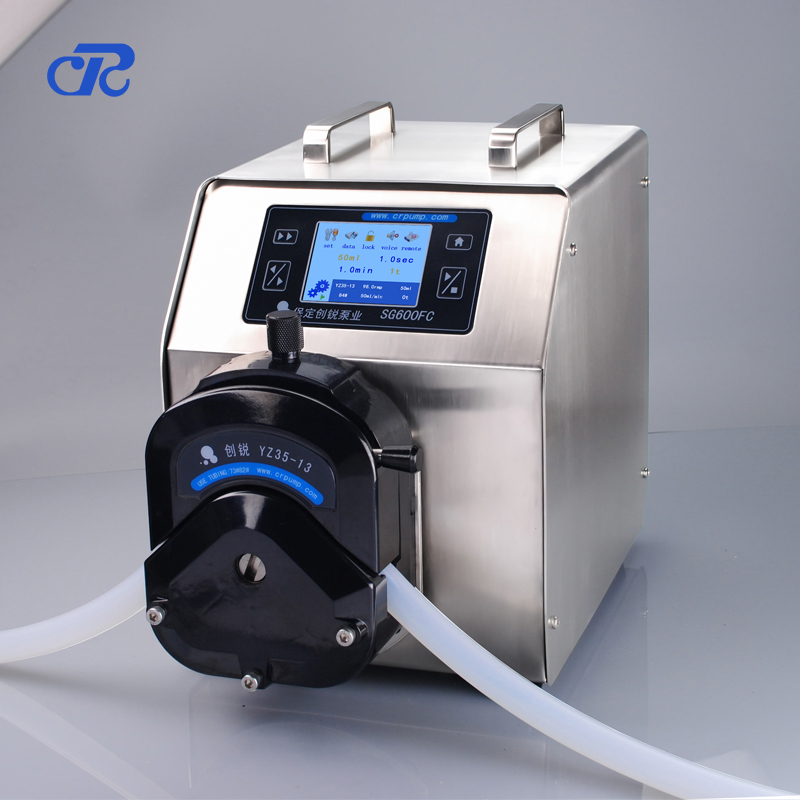

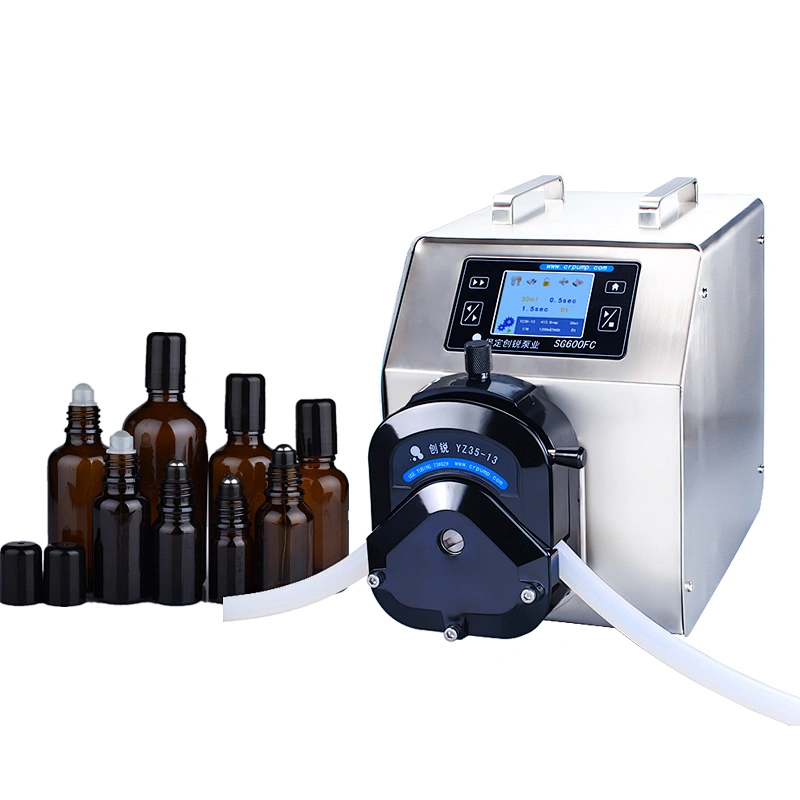

Intelligent Industrial Dispensing Peristaltic Pump

Warranty:                         1 year, 1 Year

Customized support:       OEM, ODM, OBM

Brand Name:                    CR

Model Number:               SG600FC

Place of Origin:                Hebei, China

Application:                      liquid filling

Horsepower:                    other

Power Source:                  Electric

Pressure:                          low pressure

Structure:                         peristaltic pump

Cable Length:                  other

Outlet Size:                      Max 13mm

Voltage:                           AC220V or AC110V

Power:                             <500W, <500W

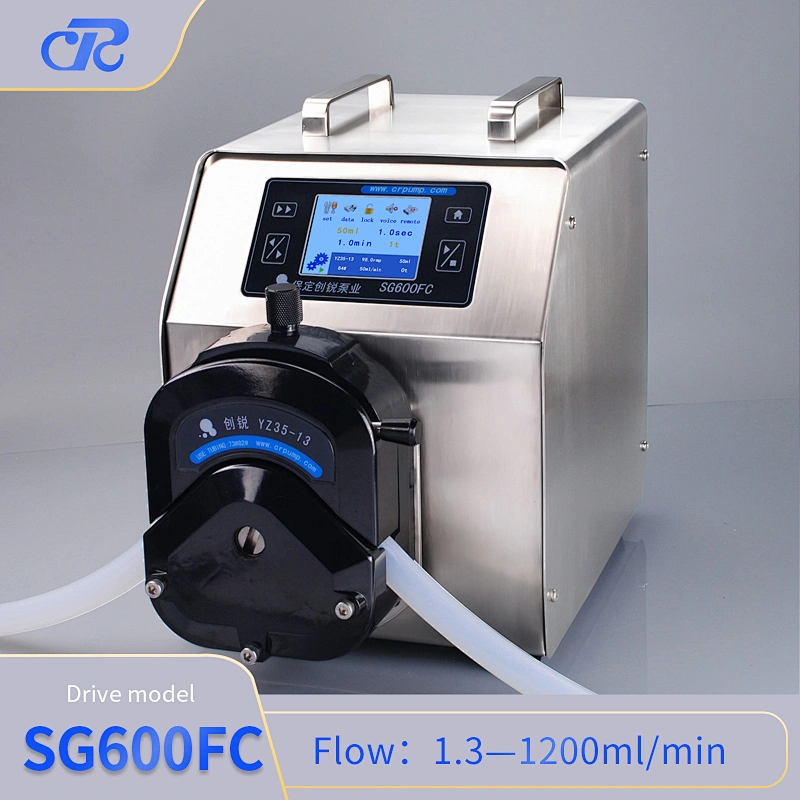

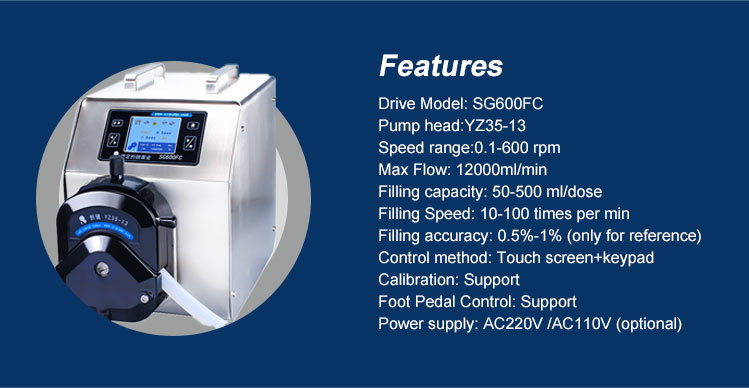

Model:                             SG600FC

Pump head:                     YZ35-13

Speed Range:                  0.1-600 rpm

Max Flow:                        12L/min

Display:                            LCD screen

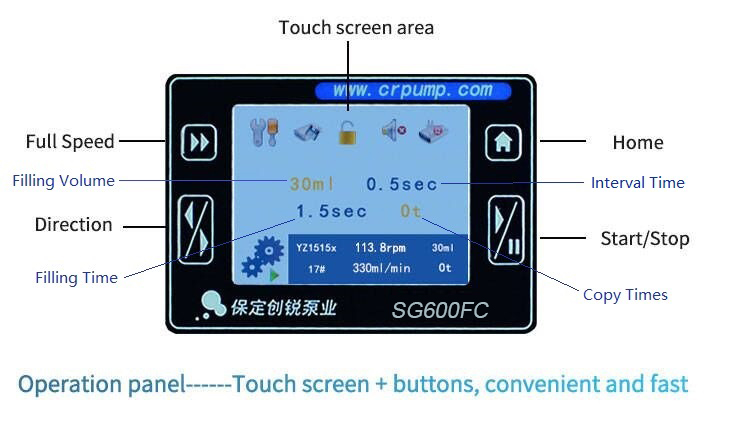

Operation:                       Touch screen + button

MOQ:                               1 Set

Certification:                    ce, TUV, ISO9001

Packaging & Delivery

Selling Units:                    Single item

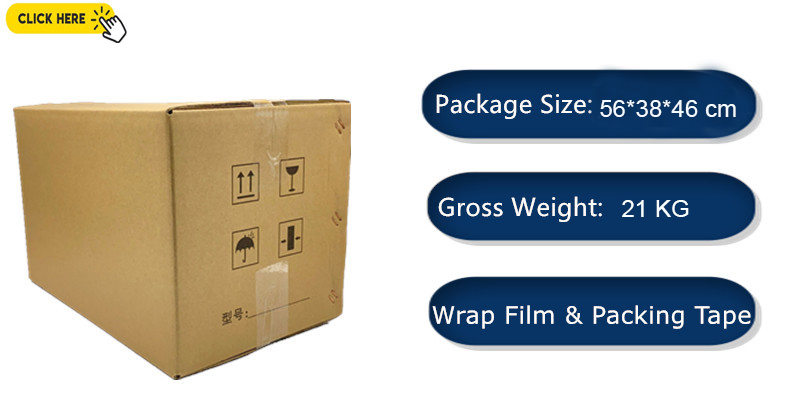

Single package size:         56X38X46 cm

Single gross weight:         21.000 kg

Package Type:                   1. The package contains a peristaltic pump and its accessories.
                                            2. Carton and foam packaging can protect the peristaltic pump during transportation.
                                            3. If you have special packaging requirements, please contact us in time.
Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	7	To be negotiated

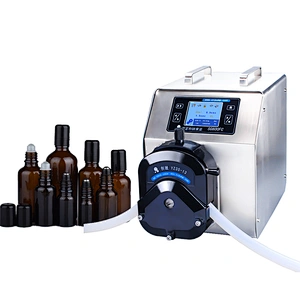

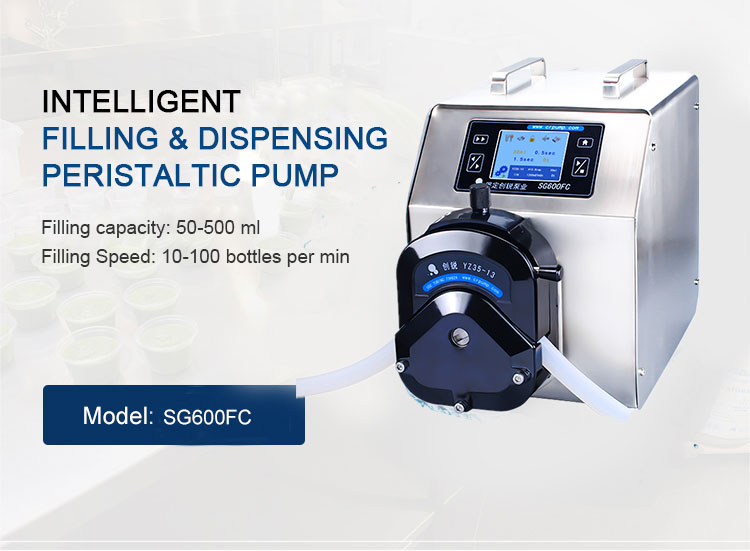

Intelligent Industrial Dispensing Peristaltic Pump



Lab scale Filling & Dispensing Peristaltic Pump is a simple operating dispensing pump that can set the Filling volume/Filling time/ Pause time/ Copy number on the touch screen directly. No need to count the tube flow and time. Like the auto smart camera replaced the traditional camera. Which can improve your work efficiency. This pump with compact structure and Desktop design that is suitable for manual semi-auto & small batch filling. Typical Case:

Essential oil filling/glue filling/Nail polish filling/Medium filling/Lab scale vials/Vessels filling/E-liquid filling etc.

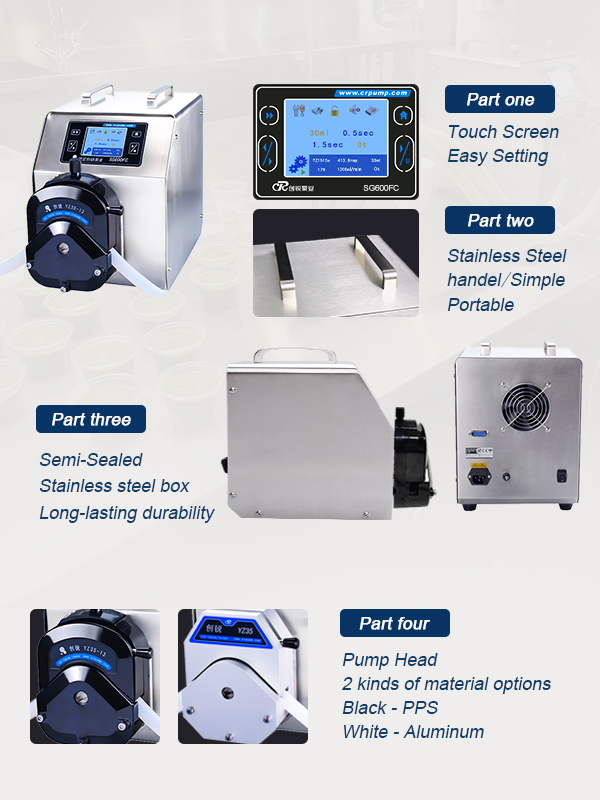

Detailed Images

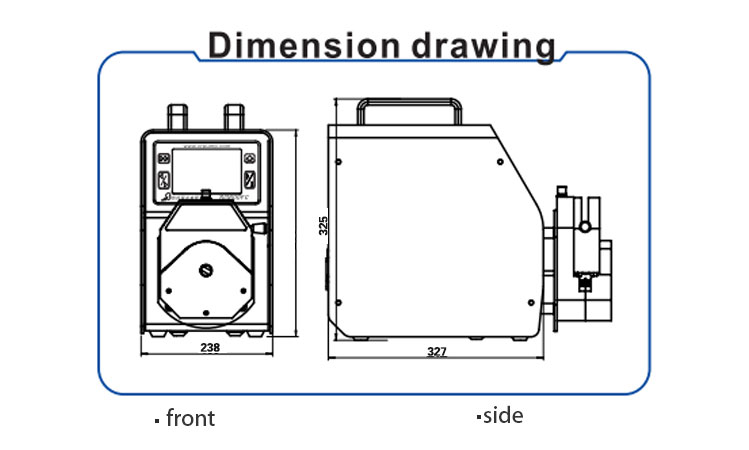

Dimension

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID (mm)	Max Speed (rpm)	Max Flow Rate  (ml/min)	Suggest Capacity(ml)
73#	9.6	600	7400	10-300
82#	13	600	12000	20-500

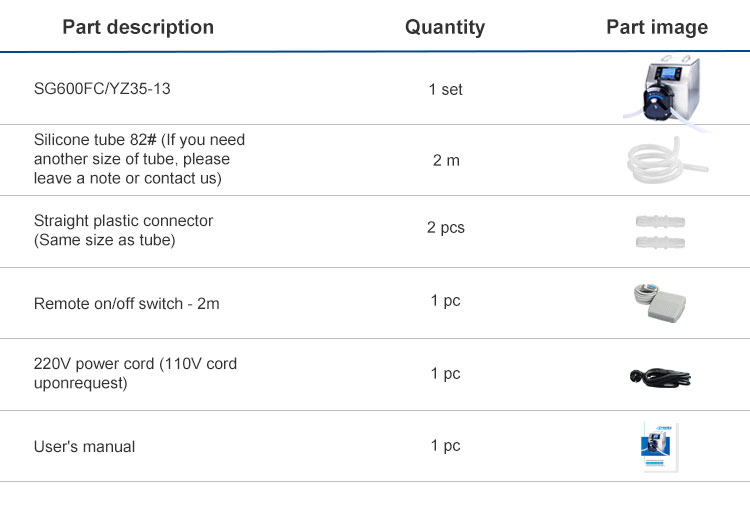

Packing List

Package Details

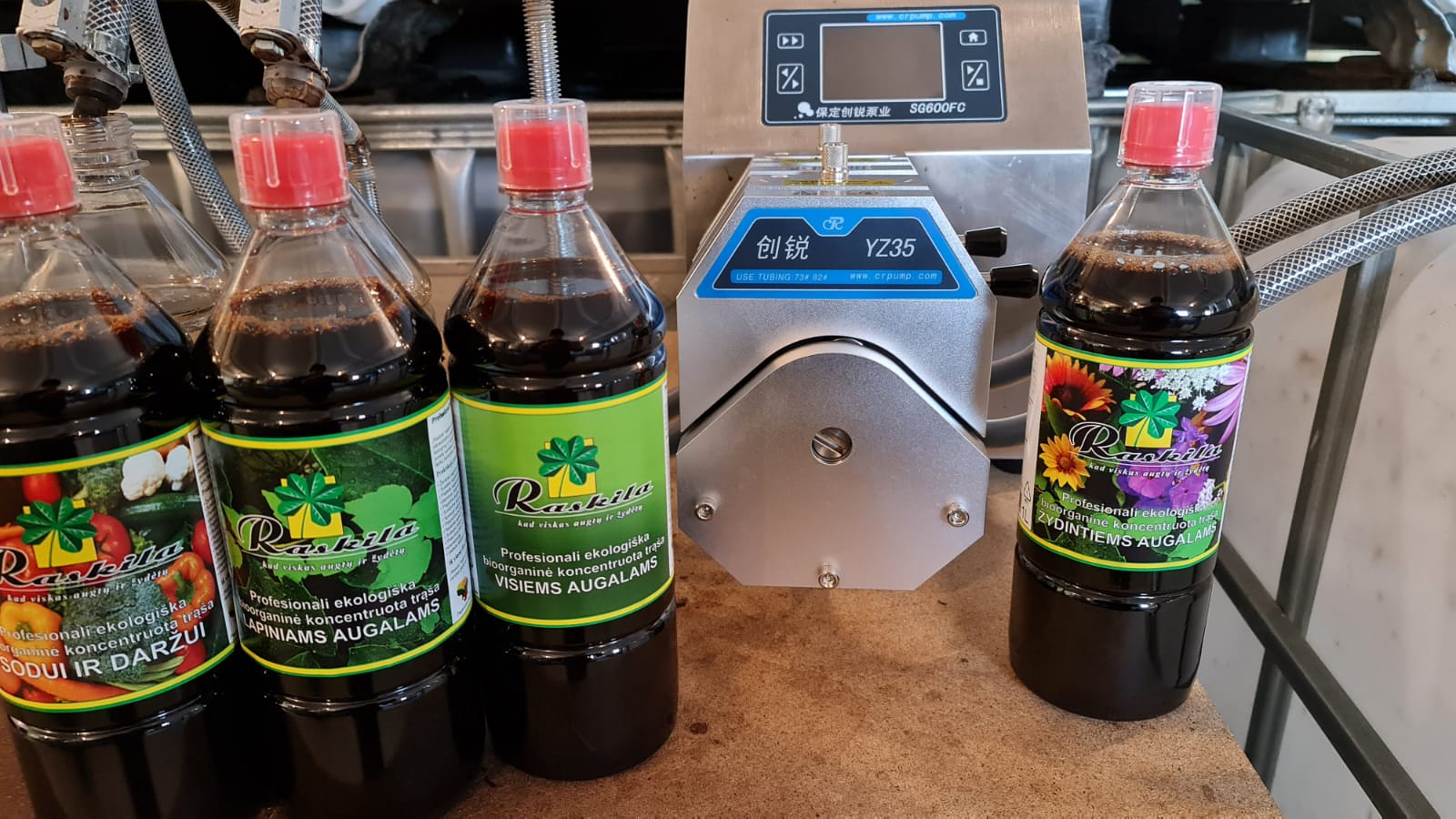

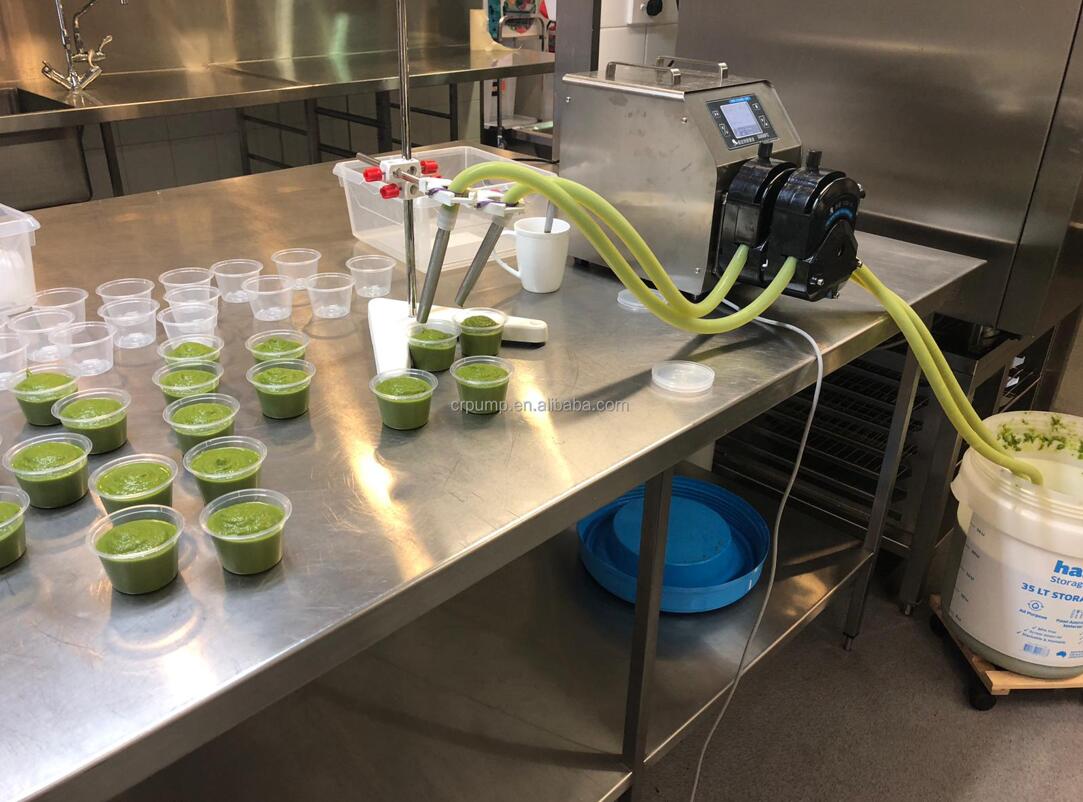

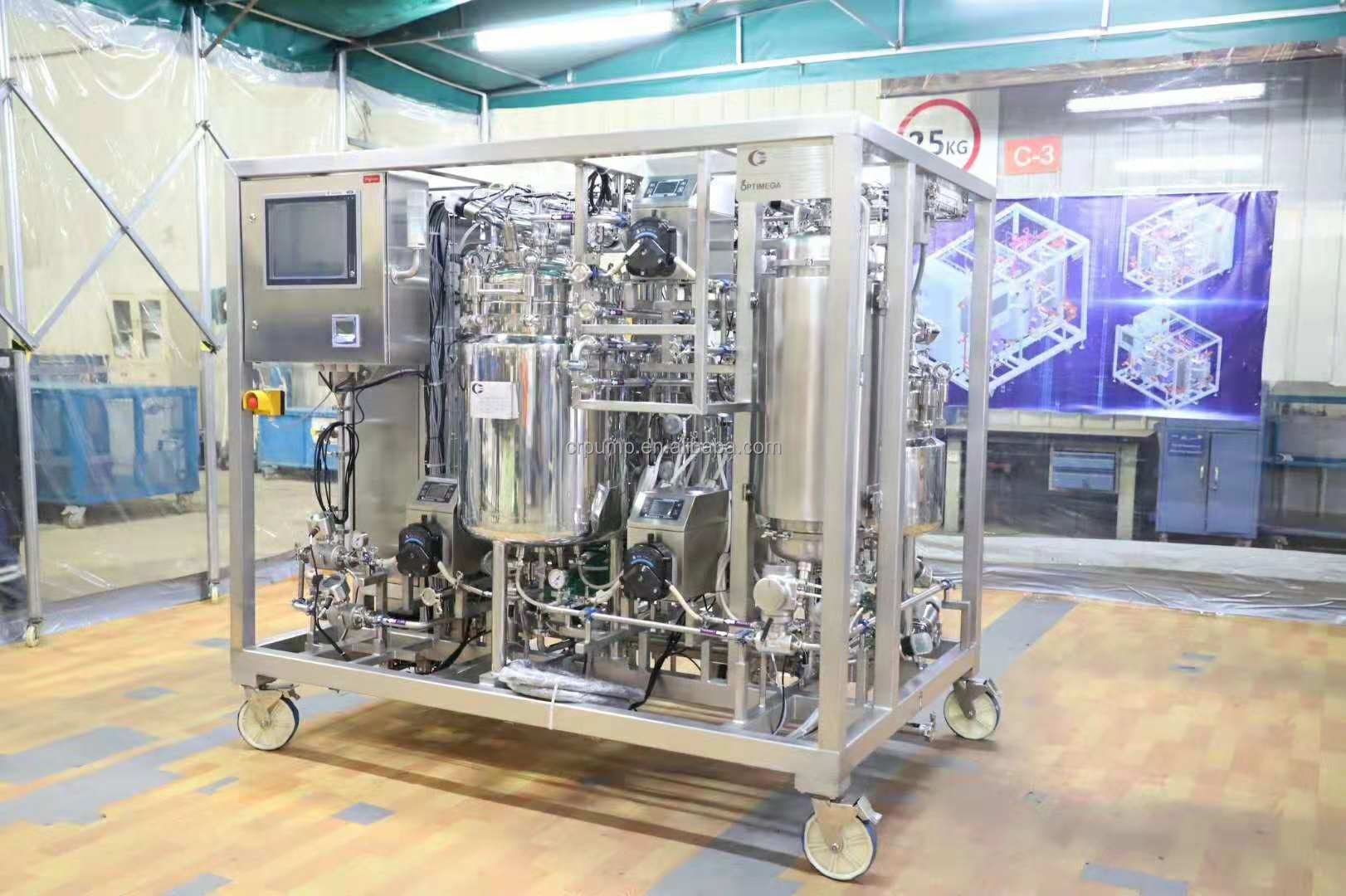

Application Case


Certification



Customer Visit
