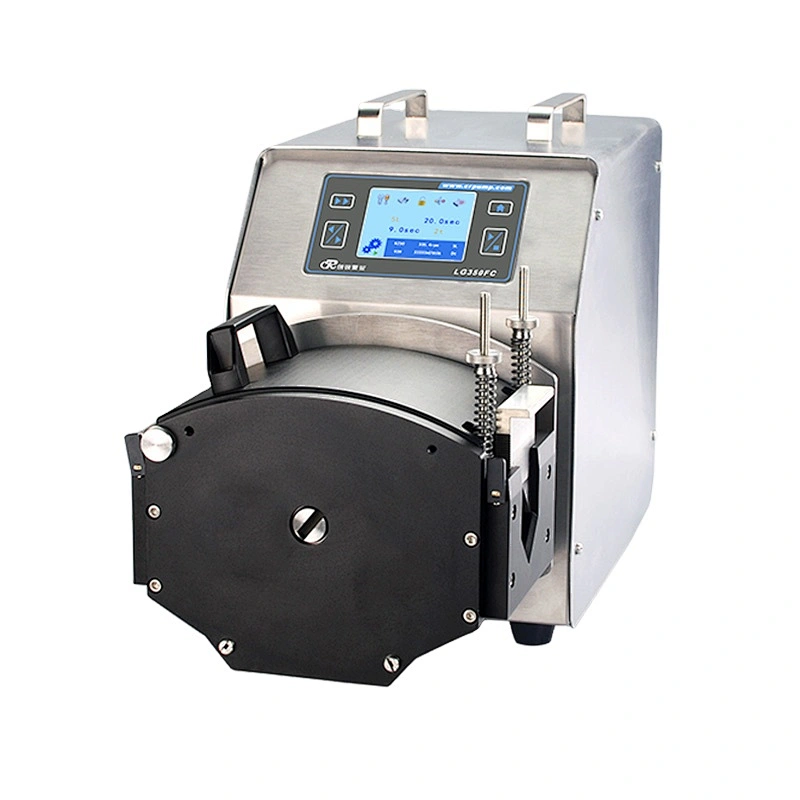

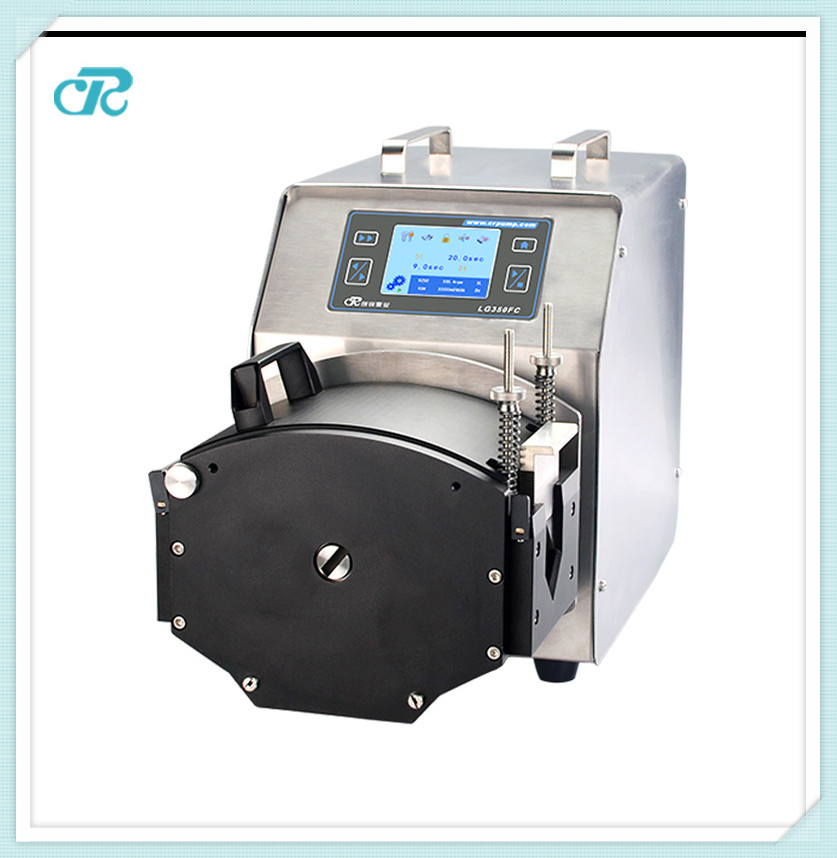

Large Flow Rate Intelligent Filling Peristaltic Pump

Warranty:                                  1 year

Customized support:                OEM, ODM, OBM

Brand Name:                             CR

Model Number:                         LG350FC

Place of Origin:                          Hebei, China

Application:                               Large Flow Rate filling pump

Horsepower:                             Other

Power Source:                           Electric

Pressure:                                   Other

Structure:                                  peristaltic pump

Outlet Size:                               Max 25.4mm

Voltage:                                     AC 220V or AC 110V

Model:                                       LG350FC

Pump head:                              KZ50

Speed:                                      0.1-350 rpm

Flow rate:                                 Max 33L/min

Display Mode:                          LCD screen

MOQ:                                        1 Piece

Usage:                                     filling peristaltic pump

Certification:                            ce, ISO9001

Packaging & Delivery

Selling Units:                           Single item

Single package size:                72X37X47 cm

Single gross weight:                31.000 kg

Package Type:                         1. The package contains a peristaltic pump and its accessories.
                                                  2. Carton and foam can protect the safety of the product during transportation.
                                                  3. If you have packaging requirements, please contact us in time.

Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	10	To be negotiated



Products Description



1. Intelligent industrial displaying peristaltic pump can be installed by KZ50 pump heads.etc.. 2. With both-way large torque, high power motor. It can be connected with 2 pump heads to satisfy the different demands of flow rates. 3. Long life, Touch screen control, easy to operate, 4. Color LCD display in English and Chinese version 5. Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.

Model	LG350FC/KZ50
Speed Range	0.1-350 rpm
speed resolution	0.1 rpm
Max Flow	33L
Display Mode	LCD screen
Control Method	Touch screen + keypad
Power supply	AC220V or AC110V

Function&Charateristics 1, Best Choice for vial filling. 2,human-pump interactive interface. 3, CR smart filling peristaltic pump is the Best Choice for vial filling. 4, With Calibration function that can ensure the filling accuracy. 5, Can save 9 sets of data that can help customers fastly find the original filling data. 6,Support RS485/RS232/MODBUS communication protocol , analog quantity control (0-5v 0-10v 4-20mA ...)footswitch control ,Offer multi Language customized 7, Memory function available in case of power off and it will continue the work once the power was restarted. 8, Long-range control is available through the DB15 interface of the drive: speed control, start-stop control, direction control 9, A variety of work modes: transfer mode, filling model. 10, The user data storage function: can store 9 sets of data for the user.


Certification
