Adjustable Peristaltic Pump Liquid Flow Range 0.007-380 ml/min

Adjustable Peristaltic Pump Liquid Flow Range 0.007-380 ml/min

Model NO.: BT100M/YZ1515x
Price:: US $ 200.00-500.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 20000.0 piece / Month
Country of Origin: Tianjin ,Beijing ,Guangzhou ,Shanghai etc...

Quantity:

Product Description

Model:BT100M
Pump head:YZ1515X
Rotating speed:0.1-100 rpm,reversible
Flow range:Max 380 ml/min
Display:4-digit LED
Power:AC220 /AC110v
MOQ:1 Set
Customized support:OEM
Customized support:ODM
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:BT100M/YZ1515x
Application:Lab Dosing Peristaltic Hose Pump
Horsepower:None
Pressure:Low Pressure
Cable Length:none
Outlet Size:Max 7.9mm
Voltage:AC220V or AC110V
Power:<50W

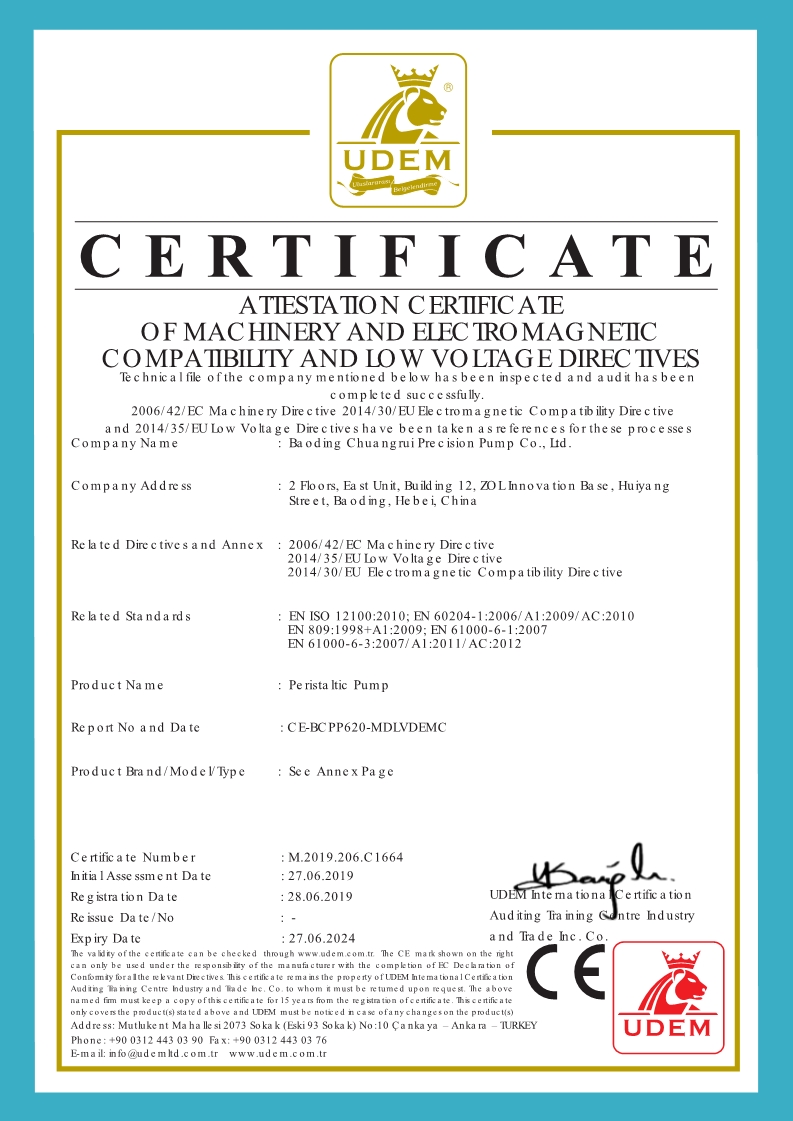

Certification:ce
Certification:TUV
Certification:ISO9001

Product Description

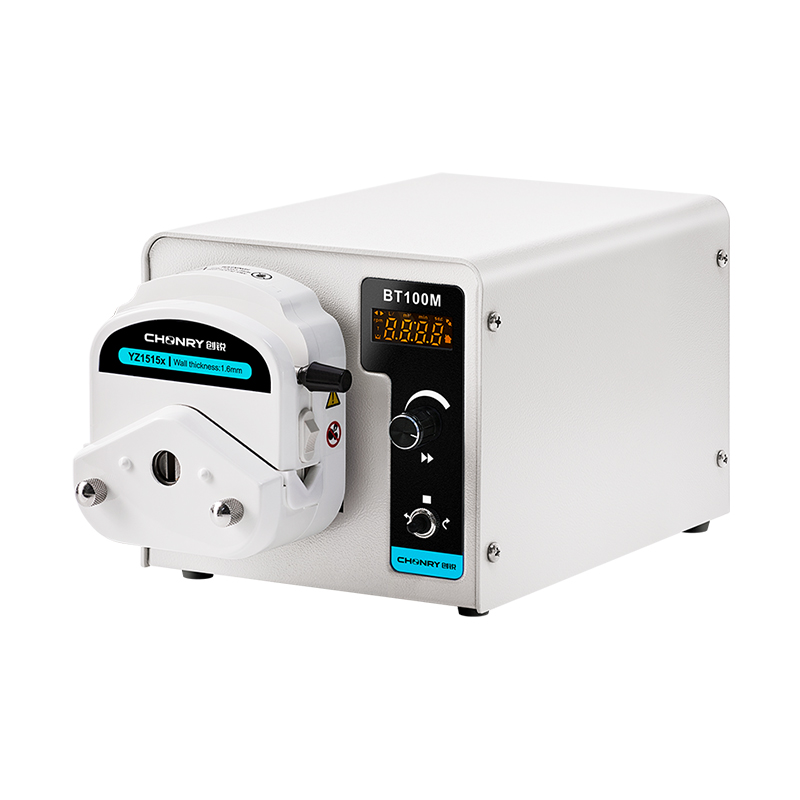

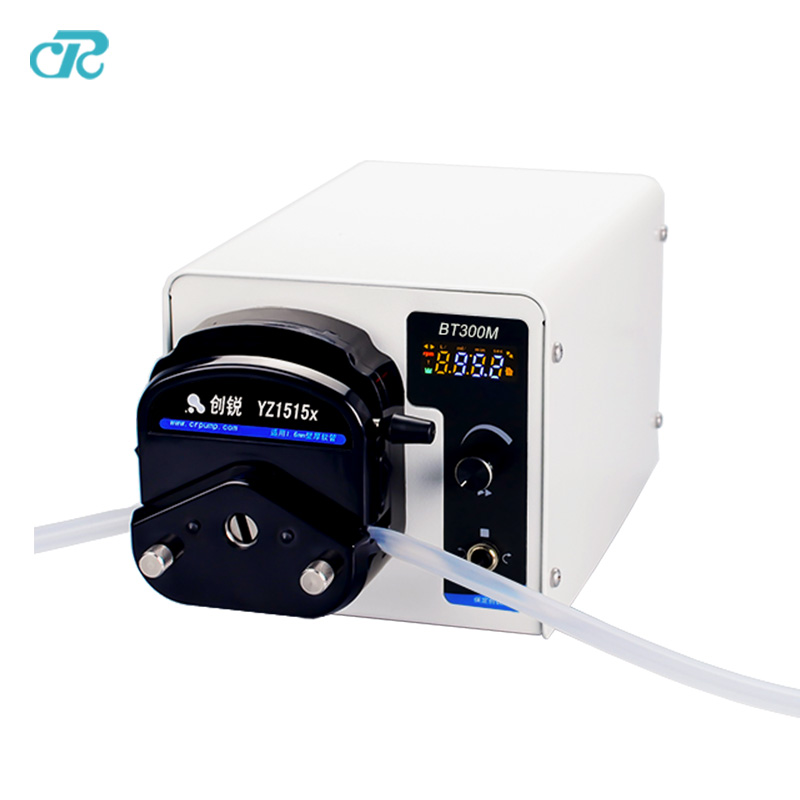

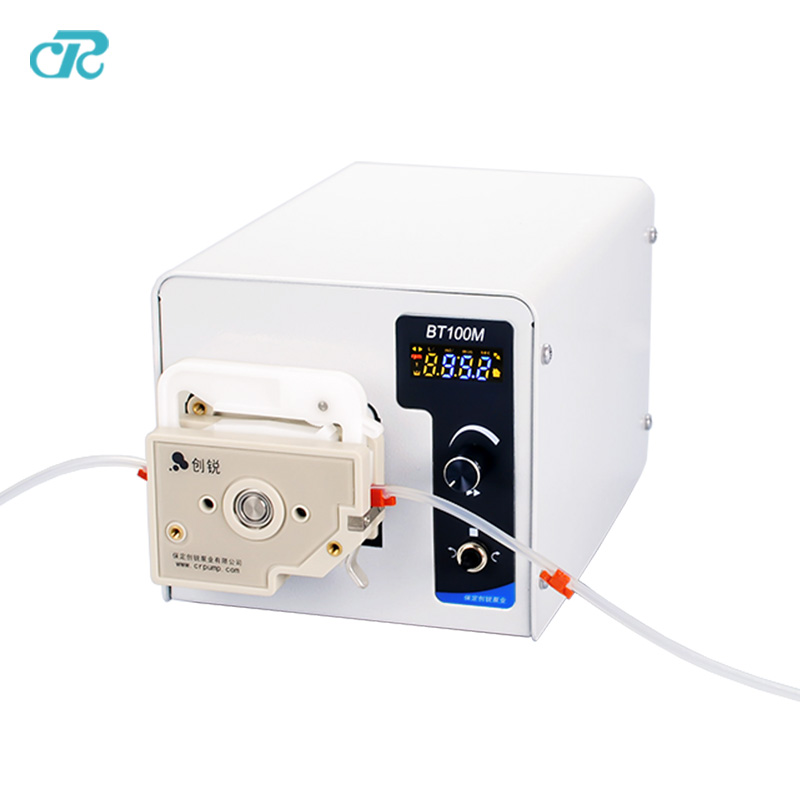

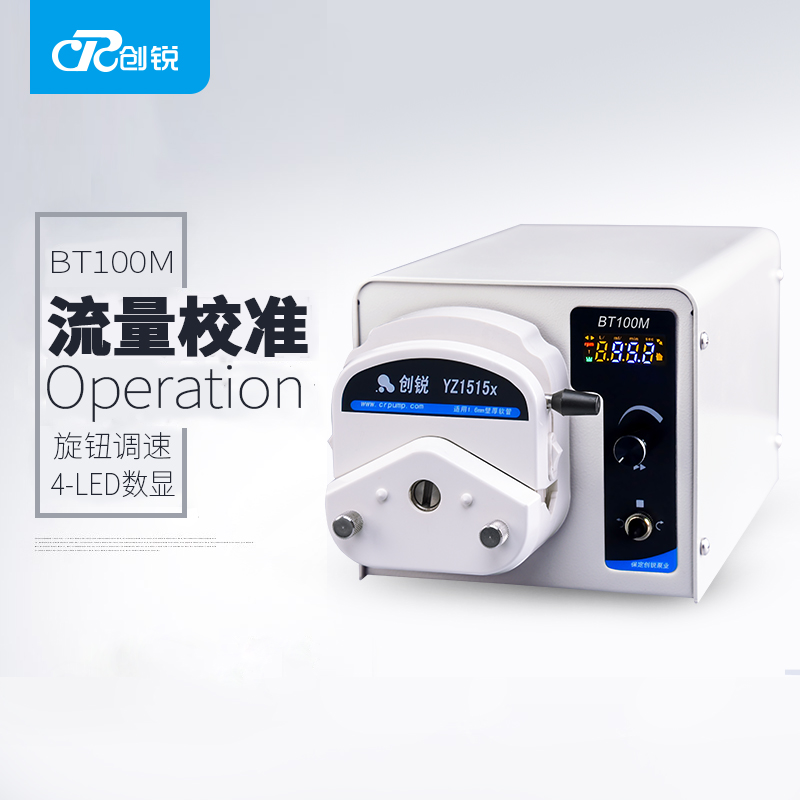

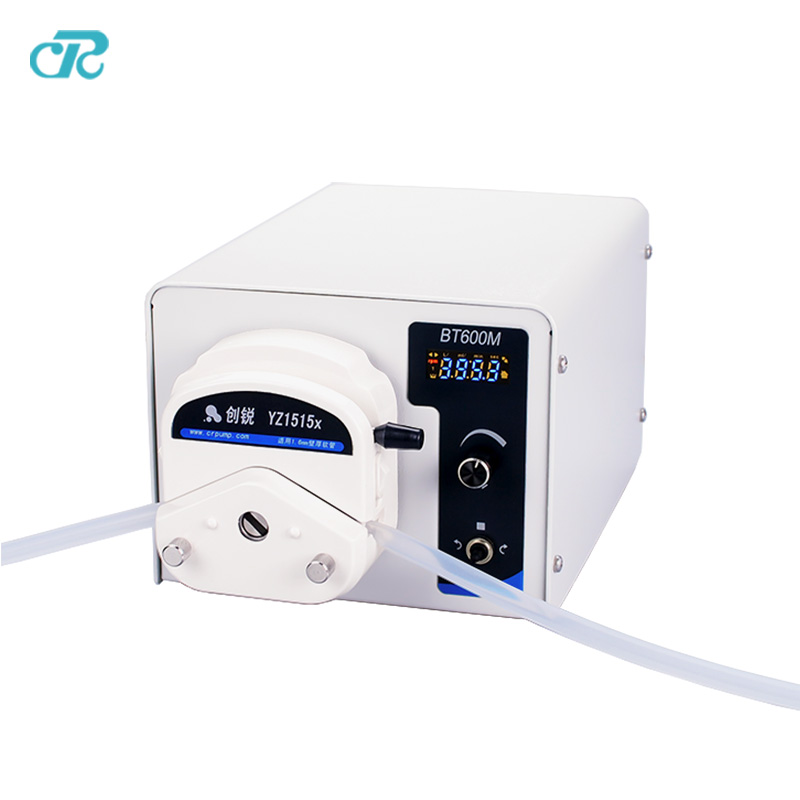

Model: BT100M/YZ1515x

Speed range: 0.1-100 rpm Flow range : 0.007-380ml/min Max Number of Channel: 2 Power supply: AC110V or AC220V Basic type liquid constant peristaltic pump with Flow reversible Metal housing with anti-corrosion paint treatment, prolong pump life time. Good electromagnetic compatibility, ensure stable and reliable operation CE certified product based on request.

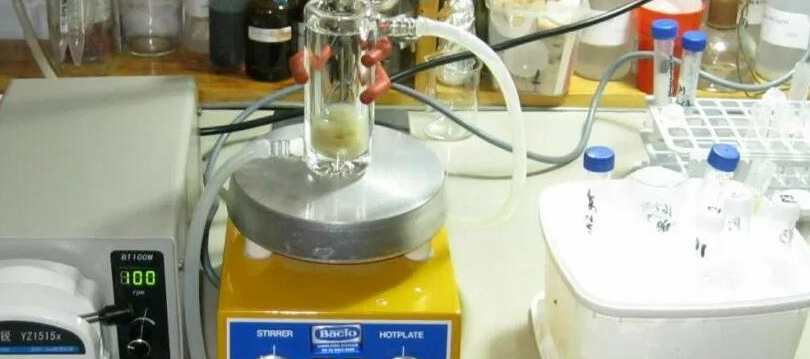

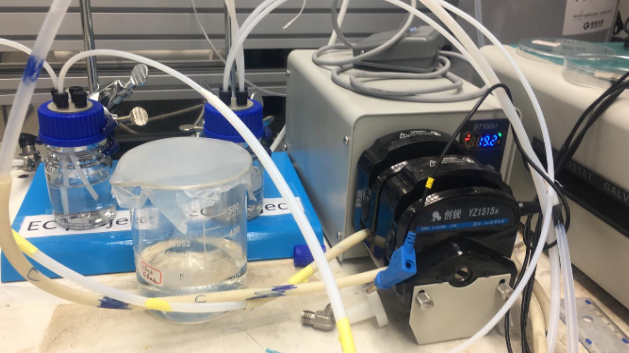

Peristaltic pump application 1 Lab

Parameter Model : BT100M/YZ1515x Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.
		Model	BT100M/YZ1515x
Speed	0.1-100rpm
Speed resolution	0.1rpm
Flow rate	0.007-380ml/min

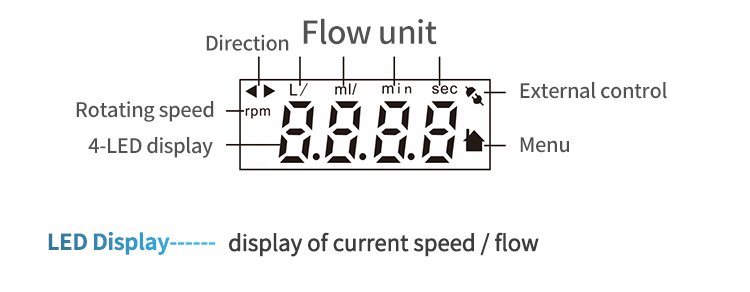

Display	4-LED display
Speed control model	Rotary encoded switch control speed
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
Flow accuracy	≤±0.5%
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
IP rate	IP31
Power	<22W

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow with 100 rpm(ml/min)
18#	7.9	11.1	Silicon tube	380
17#	6.4	9.6	Silicon tube	290
25#	4.8	8	Silicon tube	170
16#	3.2	6.4	Silicon tube	82
19#	2.4	5.6	Silicon tube	51
14#	1.6	4.8	Silicon tube	27
13#	0.8	4	Silicon tube	7

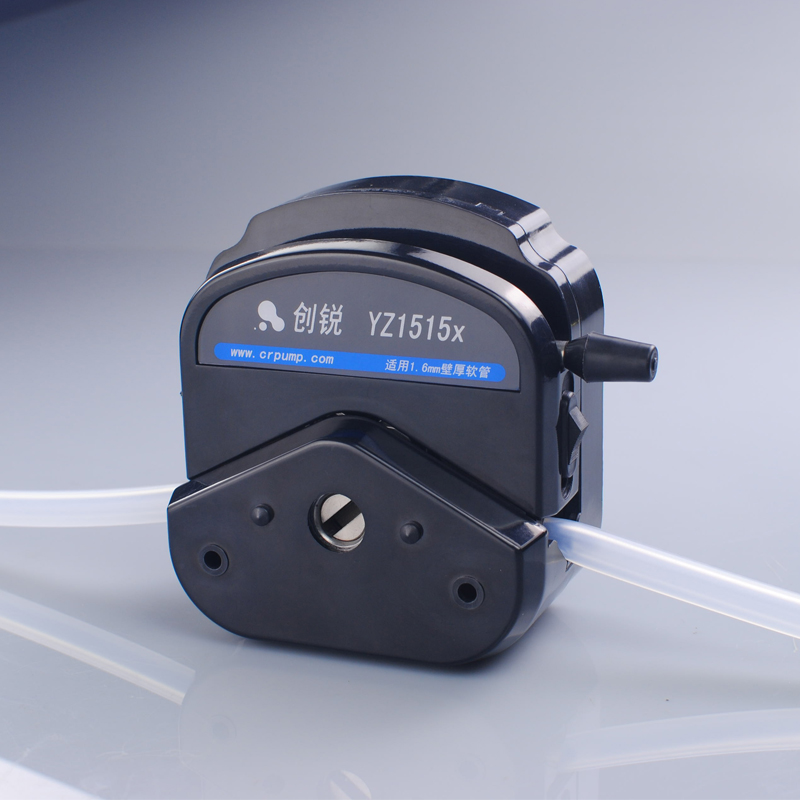

Pump head with PPS material (Black)

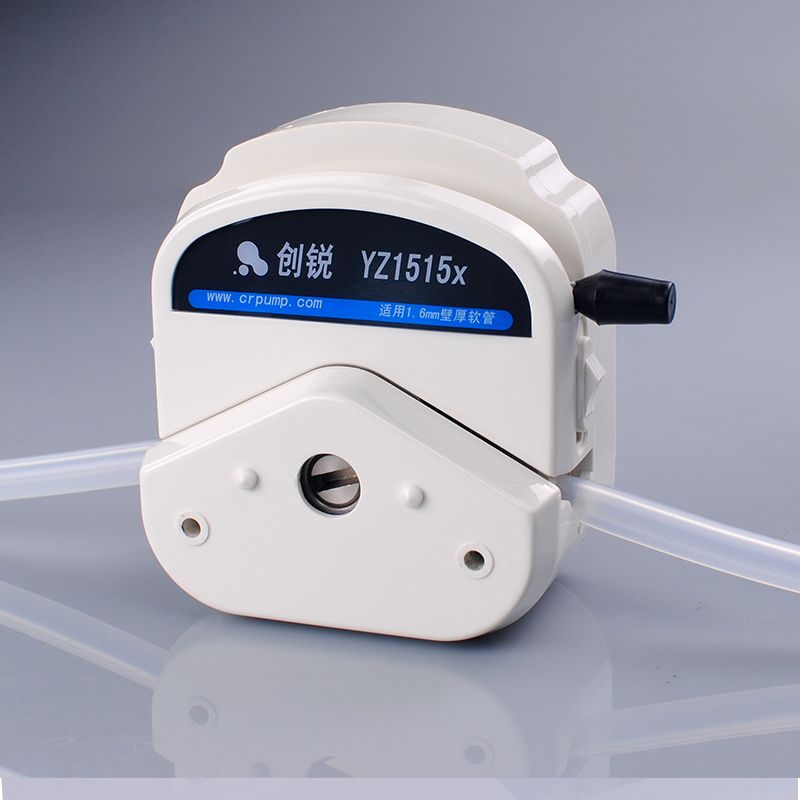

Pump head with PSF material (White)

Why choose this model for the laboratory?

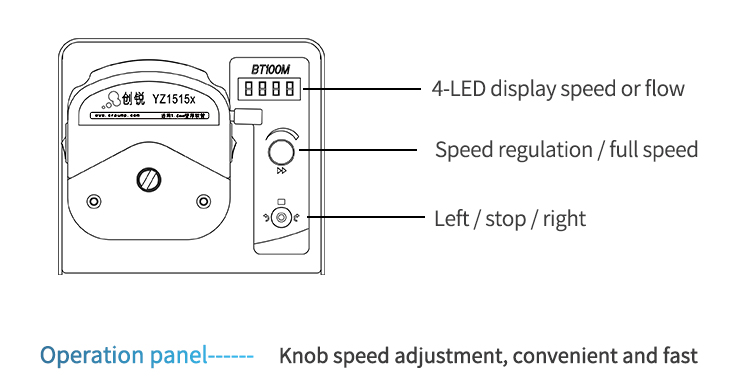

1, Easy operate only need to power on, then you can use it 2, Easy load pump head, you can install and change the tube fast. 3, If you want to change the flow, only need to rotate the control knob on the panel. 4, Easy to control the direction by the switch on the panel 5, 4-Led display the current speed and work status 6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.

Order guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What’s Flow rate you need ? ( )ml/min 2, How many channels you need?( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted: The defaulted model we will send is 100MB21 or 100MB11.
Order number	Model	Pump head	Power supply	Channel number	Flow range with 18#tube
100MB21	BT100M	YZ1515x(black)	AC220V	1	0.38-380ml/min
100MB11			OEM201-1			AC110V	1
100MB22			OEM201-1			AC220V	2
100MB12			OEM201-1			AC110V	2

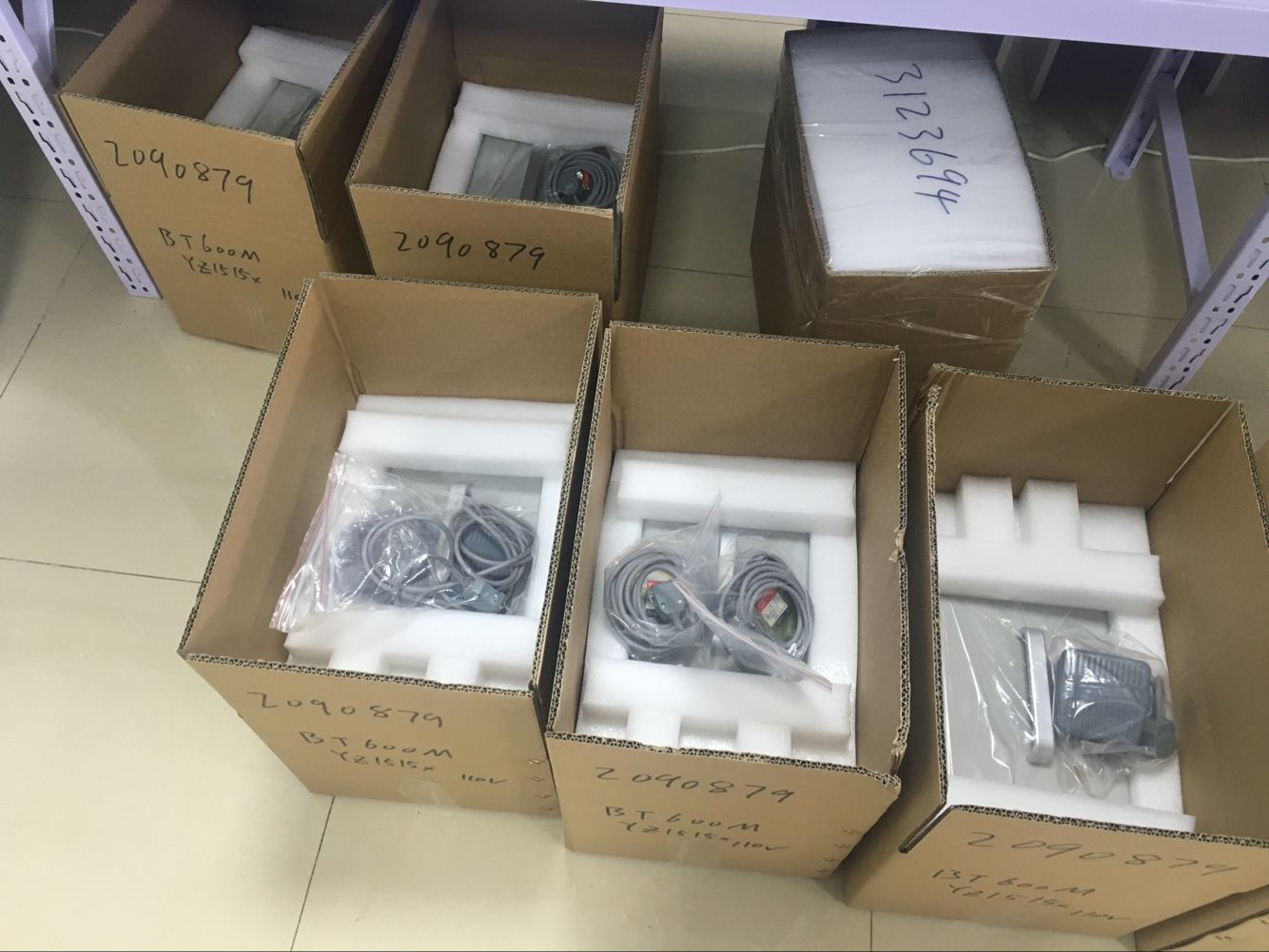

Packing list
1	Pump :BT100M/YZ1515x(black)
2	Silicon tube: 18# 2 meters
3	Power plug
4	User manual
Weight	6KG
CTN MEAS	392525CM

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why Choose Us

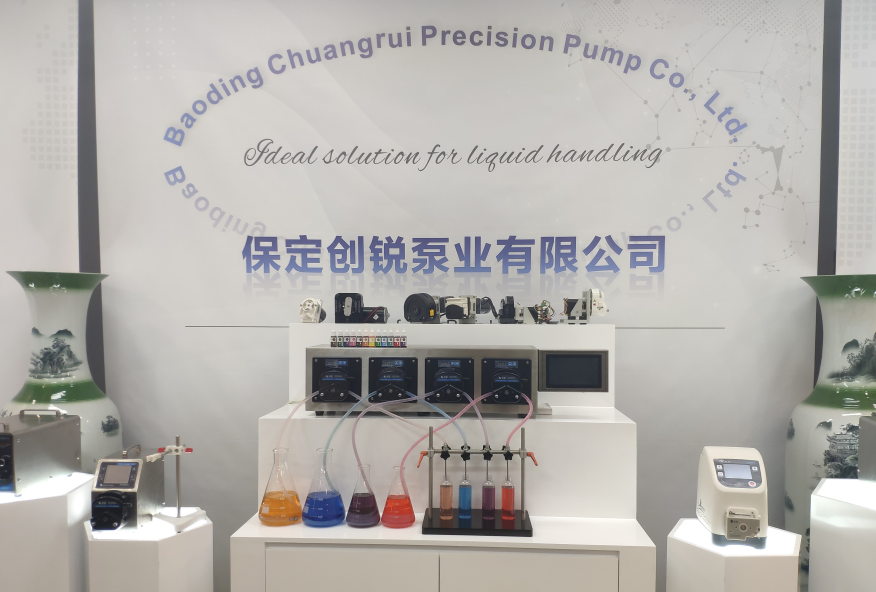

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
