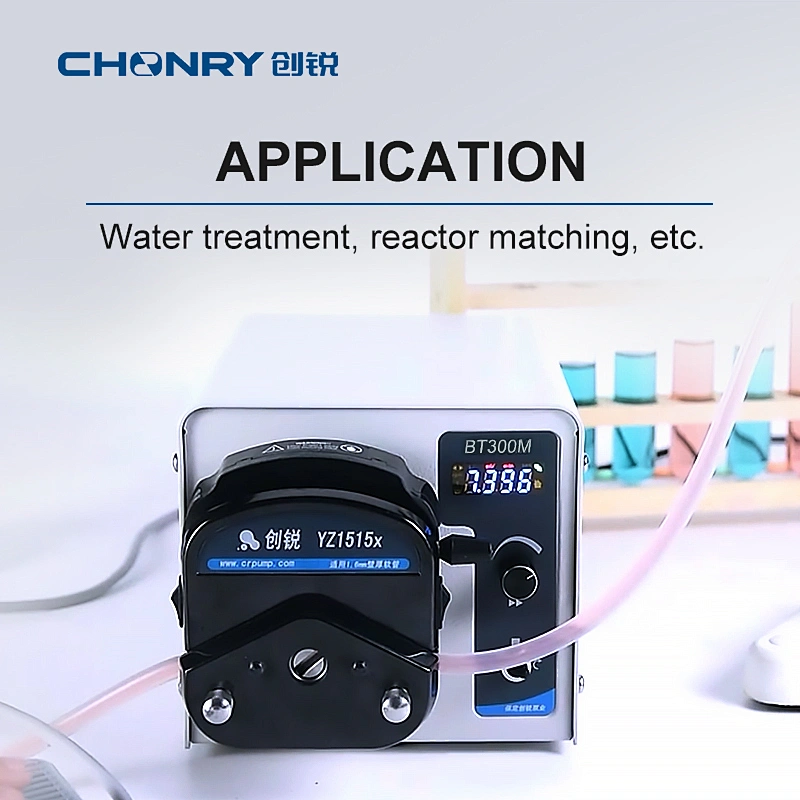

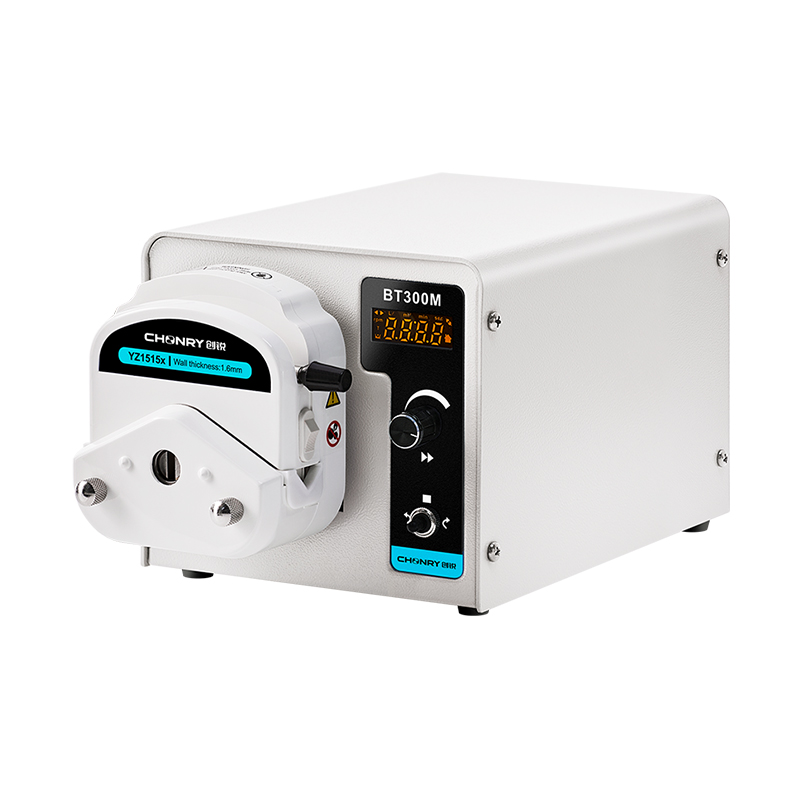

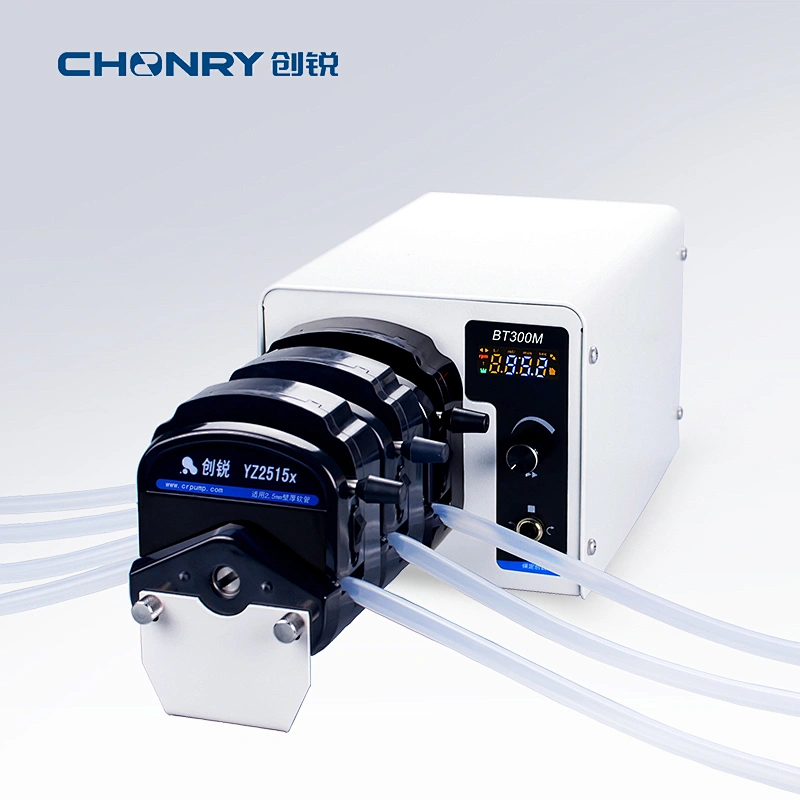

Peristaltic Pump Liquid Transfer Liposuction Pump Flushing

Quick Details

Customized support:        OEM, ODM, OBM

Brand Name:                     ChuangRui

Model Number:                 BT300M/YZ1515x

Place of Origin:                  Hebei, China

Application:                       Liposuction infusion flushing

Horsepower:                     <50w

Power Source:                   Electric

Pressure:                           low

Structure:                          peristaltic pump

Cable Length:                   none

Outlet Size:                       Max 7.9mm

Voltage:                             AC220V or AC110V

Power:                              <50W

Model:                               BT300M

Pump head:                      YZ1515x

Speed Range:                   0.1-300 rpm

Speed resolution:             0.1 rpm

Flow rate:                          0.007- 1140ml/min

MOQ:                                1 Piece

Certification:                     ce

      Packaging & Delivery

Selling Units:               Single item

Single package size:    39X25X25 cm

Single gross weight:    6.000 kg

Package Type:              1.The peristaltic pump is carton with plastic foam.
                                       2. The peristaltic pump can also be packed strictly according to the customer's requirements.


Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated





Chuangrui Liposuction infusion Flushing Dosing Metering Peristaltic Saline Pump

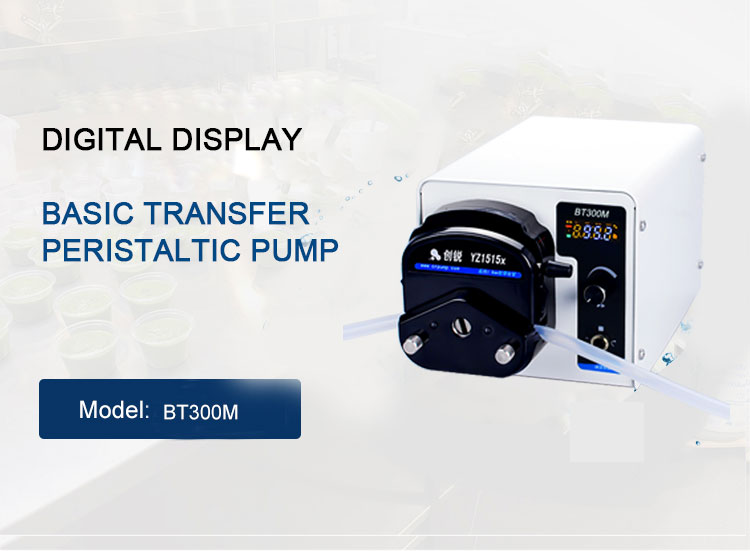

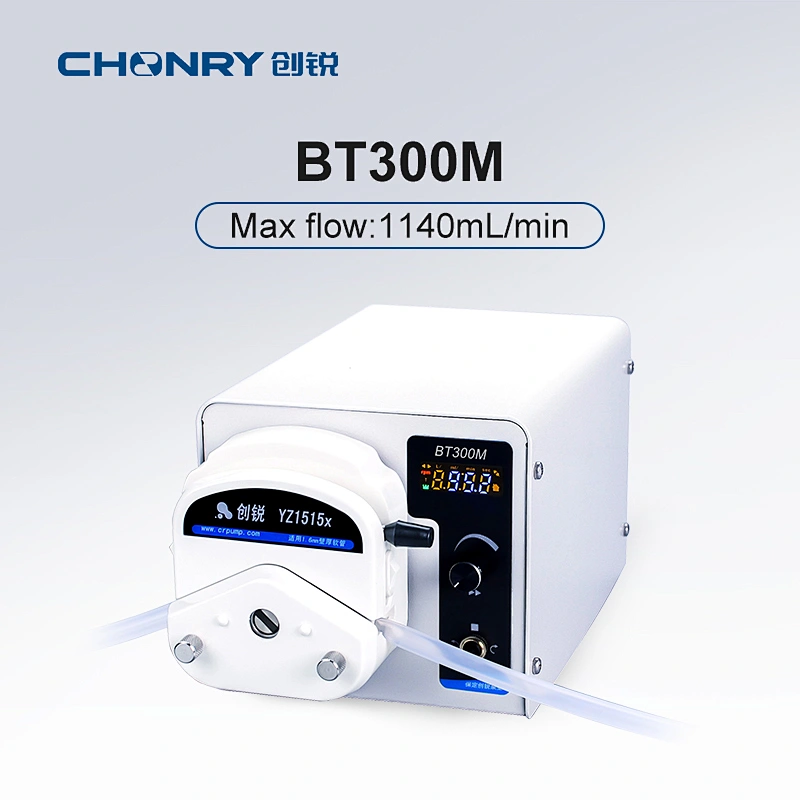

Basic peristaltic pump BT300M is widely used as a chemical peristaltic pump and perfusion pump, with a max flowrate 1140ml/min, the intuitive display and simple operation have been loved by many customers. As a medium peristaltic pump, a variety of tubes can be installed to meet the needs of different flow rates, portable peristaltic pump, the shell can be added with brackets, tool racks, etc. Multiple pump heads can be connected in series to achieve multichannel peristaltic pumps. the super high performance is destined to become one of the most popular models.
Typical Case:

Mollusk breeding/color masterbatch production/pharmaceutical factory, laboratory delivery of liquid/ plant wax transmission, etc

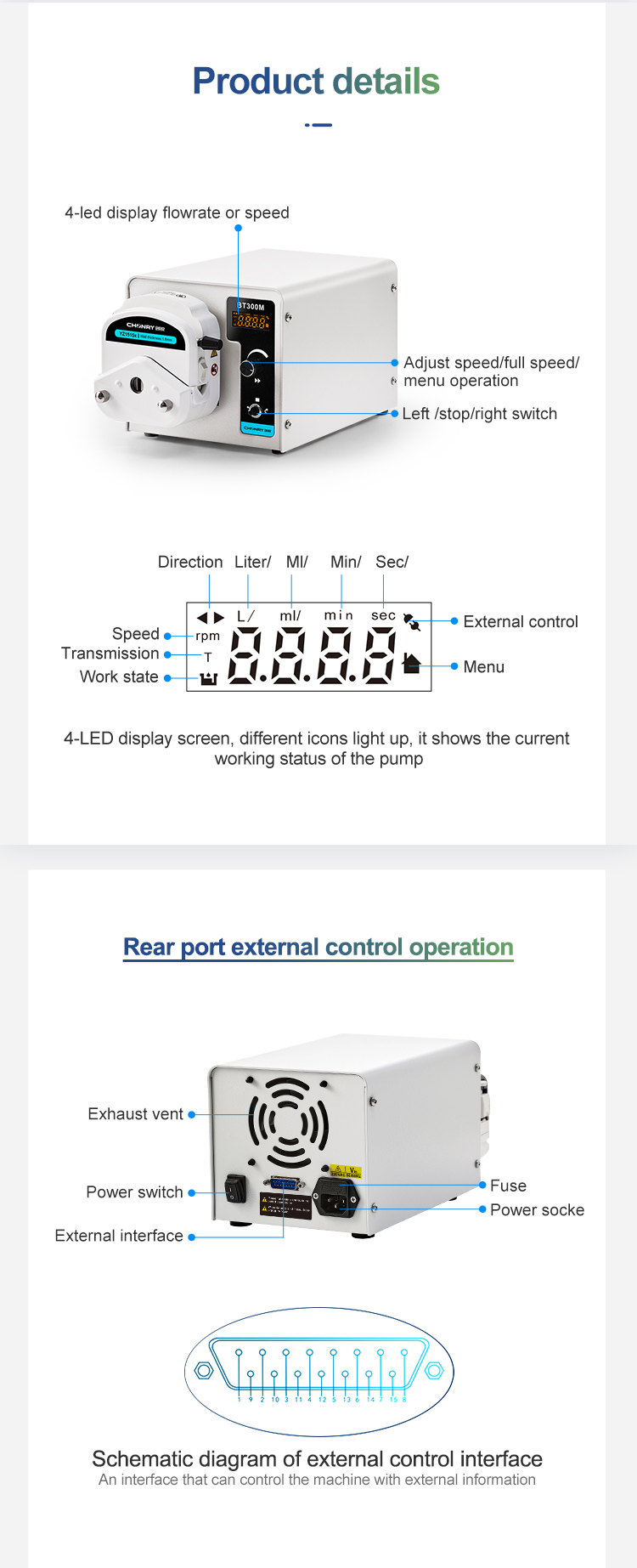

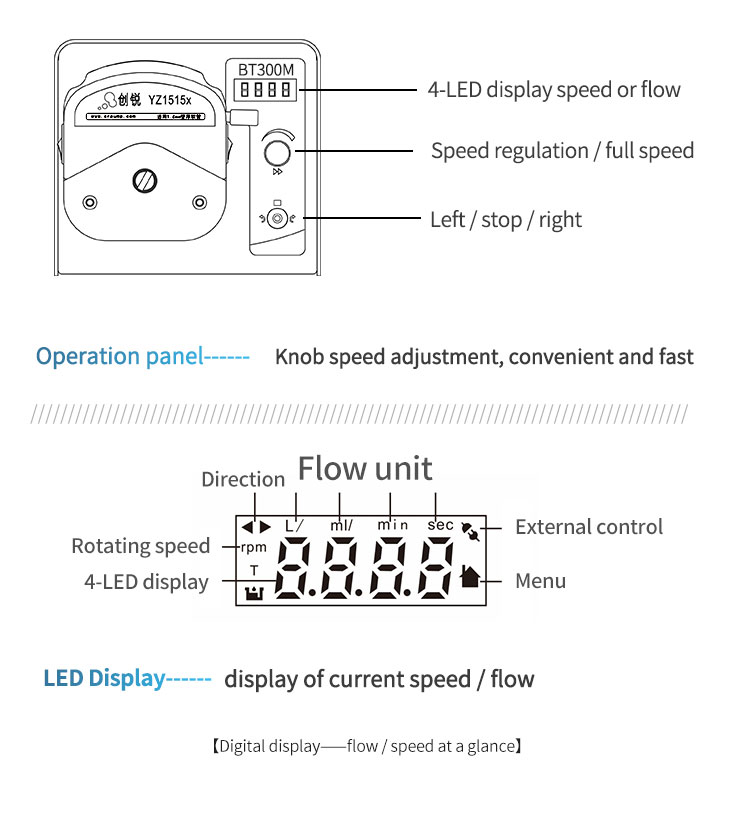

Detailed Images

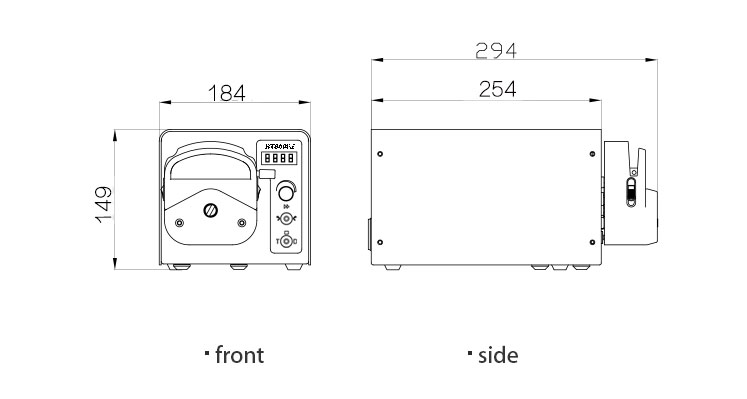

Dimension

                 Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

Tube	ID (mm)	Max Speed(rpm)	Max Flow Rate (ml/min)
13#	0.8	300	21
14#	1.6	300	81
19#	2.4	300	153
16#	3.1	300	246
25#	4.8	300	510
17#	6.4	300	870
18#	7.9	300	1140

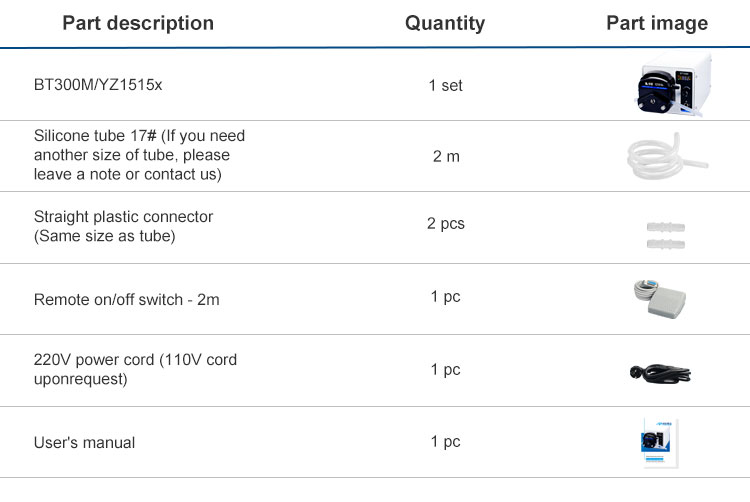

Packing List



Package Details

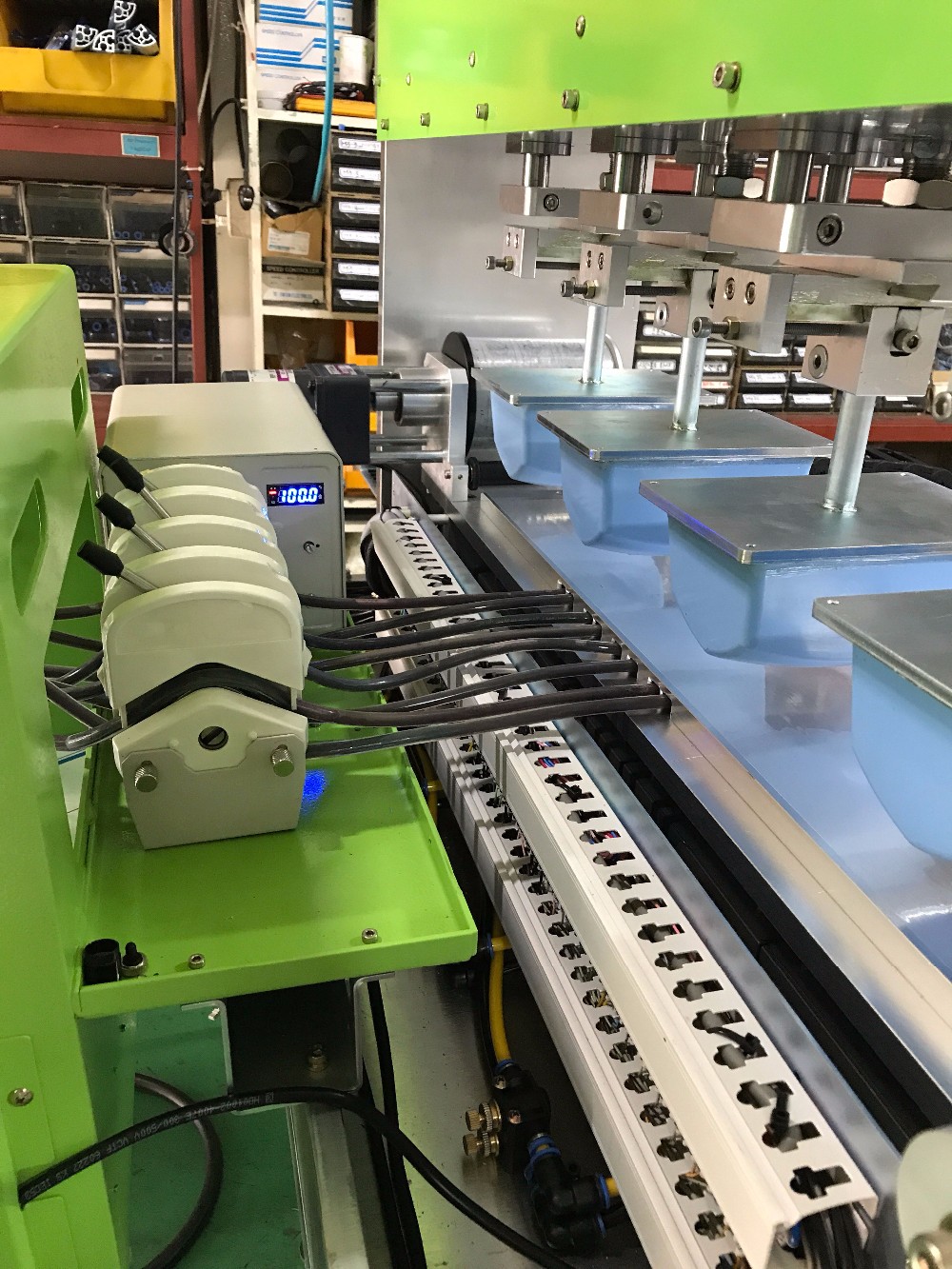

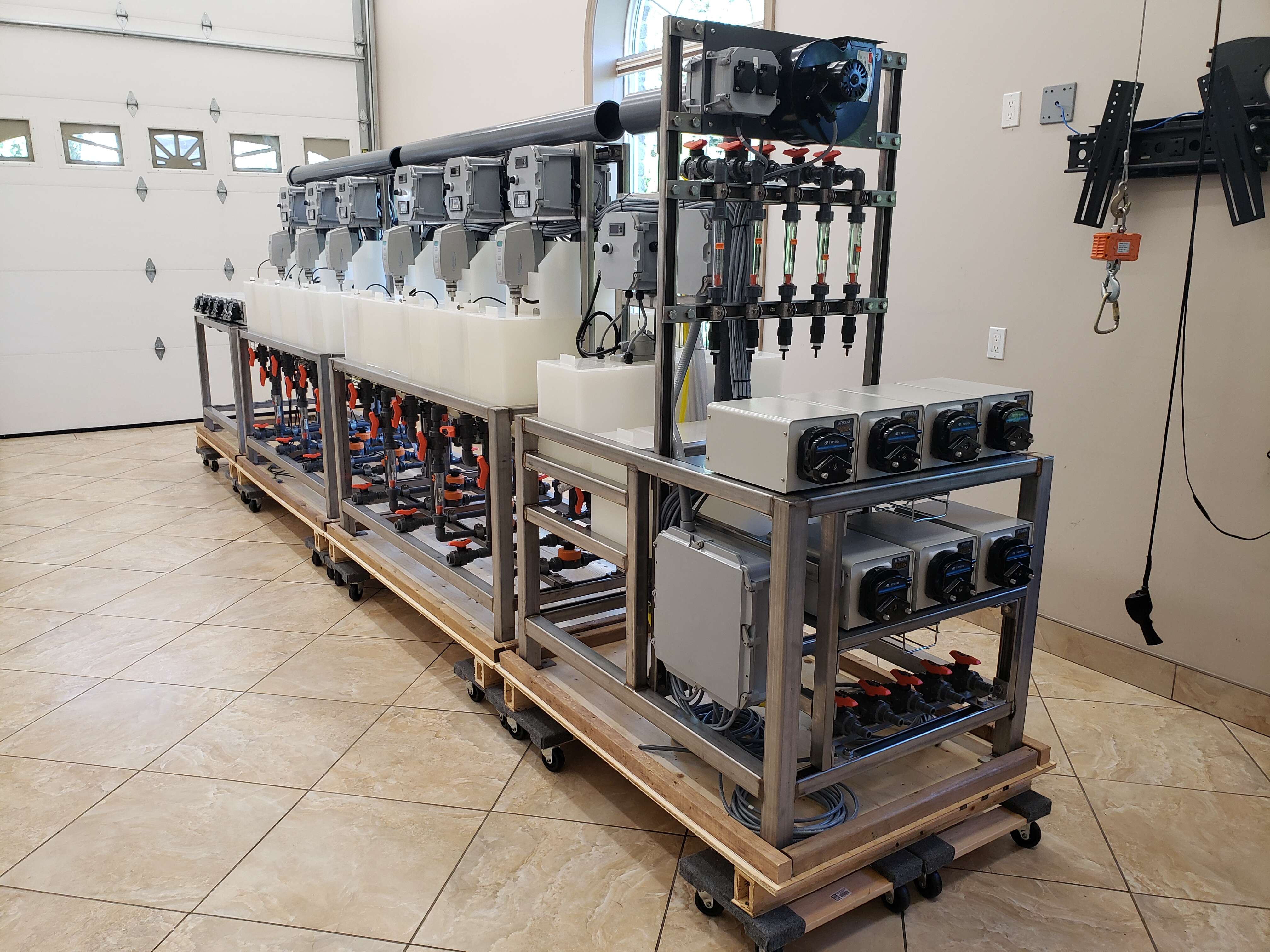

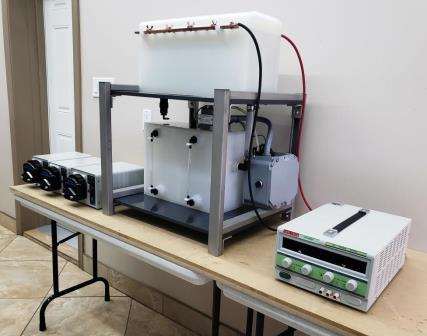

Application Case

 Certification

Customer Visit
