Quick Details
- Customized support: OEM, ODM, OBM
- Brand Name: Chonry
- Model Number: BT100M/YZ1515x
- Place of Origin: Hebei, China
- Application: Water Treatment Solutions, Laboratory
- Horsepower: other
- Power Source: Electric
- Pressure: Low pressure
- Structure: Peristaltic Pump
- Cable Length: other
- Outlet Size: Max 7.9mm
- Voltage: AC220V or AC110V
- Power: <50W
- Model: BT100M
- Pump: YZ1515X(Black) default
- Flow Rate: Max 380ml/min
- Speed: 0.1-100rpm
- MOQ: 1 Set
- Usage: lab scale fluid delivery
- Certification: ce, ISO9001
Packaging & Delivery
Selling Units: Single item - Single package size: 39X25X25 cm
- Single gross weight: 6.000 kg

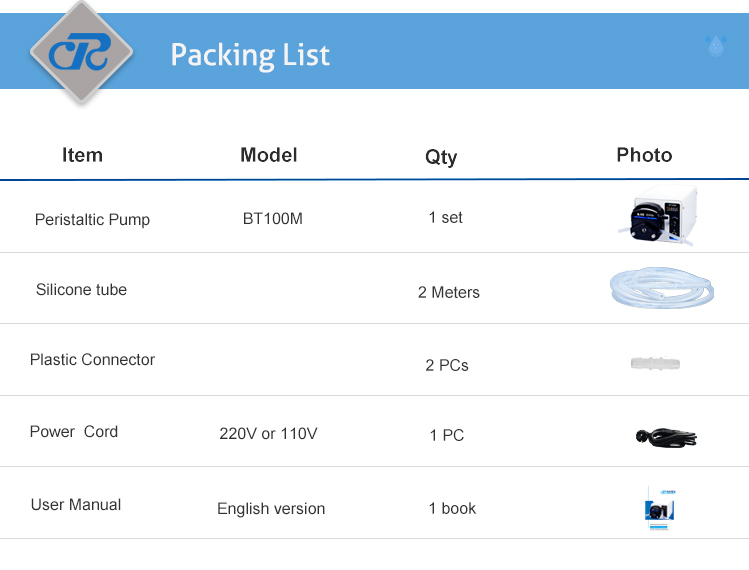

- Package Type: 1. The package contains a peristaltic pump and its accessories.
2. foam and carton packaging can protect the safety of the peristaltic pump
during transportation.
3. If you have other packaging needs, please contact our sales staff in time.

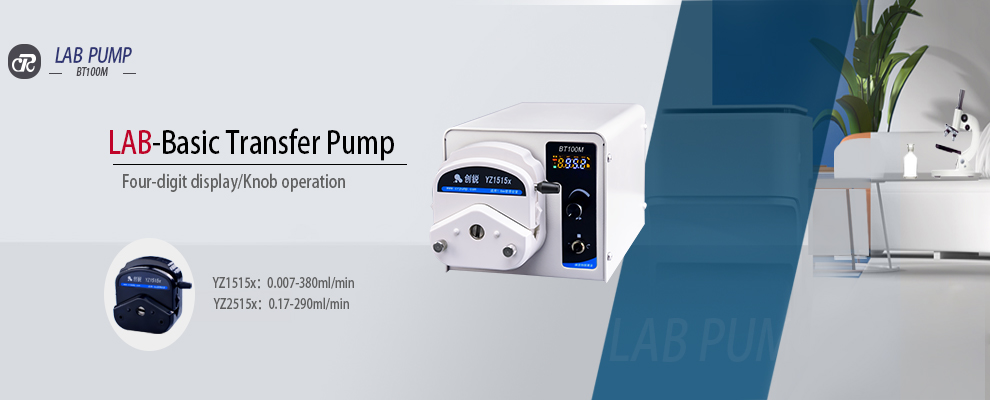

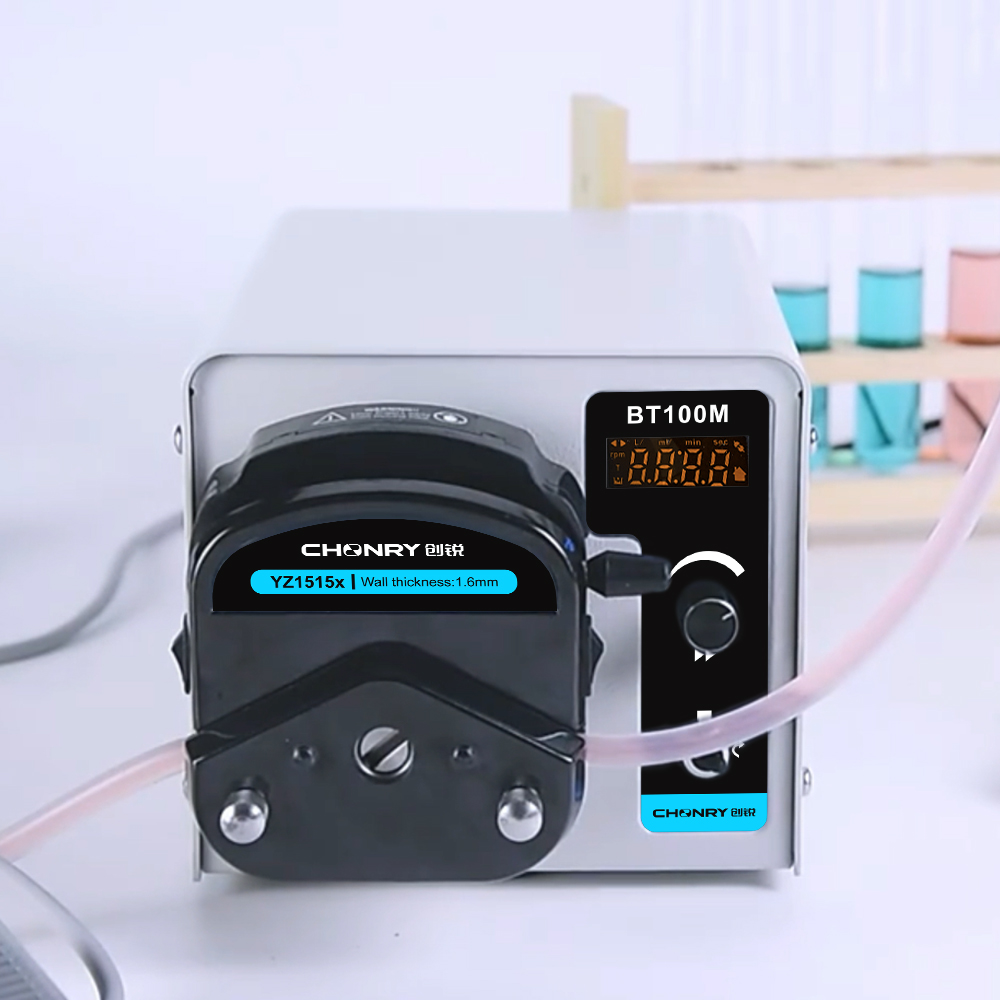

Basic Transfer Peristaltic Pump
Peristaltic Pump BT100M has excellent repeatability as Laboratory Peristaltic Pumps, as a LAB Peristaltic Pump, it can match various pump heads, to realize different pump head and drive combinations. The transfer peristaltic pump will not touch the liquid, ensuring the pollution-free operation, and the low shear force will not damage the carrier cells. it is an ideal tool for aggressive fluids. The constant flow peristaltic pump has a good self-priming ability, can be idling, can prevent backflow, has no valves and seals, and is simple to maintain.

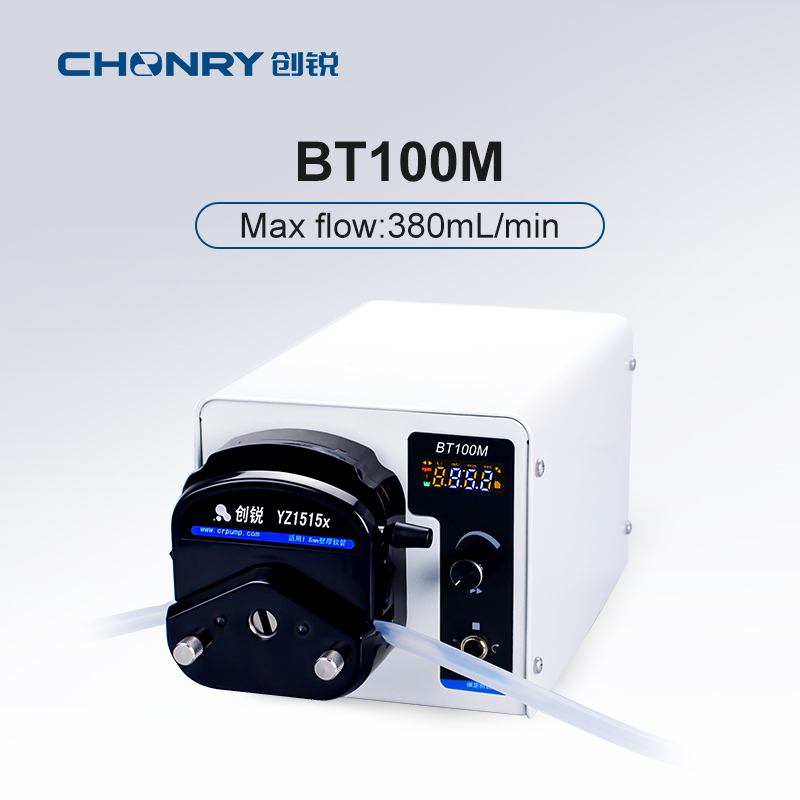

Name :Lab scale Peristaltic PumpModel: BT100M/YZ1515x
Speed range: 0.1-100 rpm
Flow range : 0.007-380ml/min
Max Number of Channel: 2
Power supply: AC110V or AC220V
Basic type liquid constant peristaltic pump with Flow reversible
Metal housing with anti-corrosion paint treatment, prolong pump life time.
Good electromagnetic compatibility, ensure stable and reliable operation
CE certified product based on request.

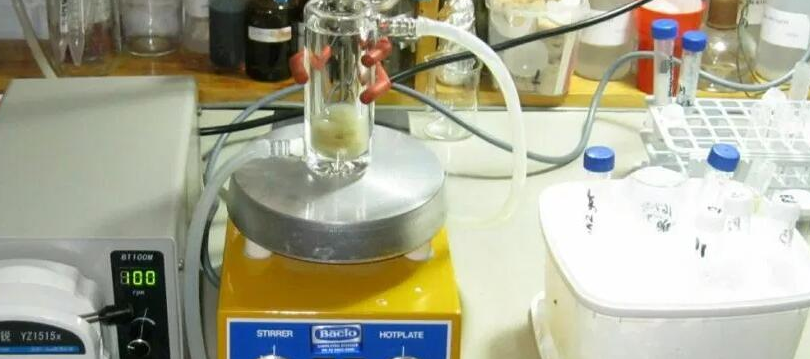

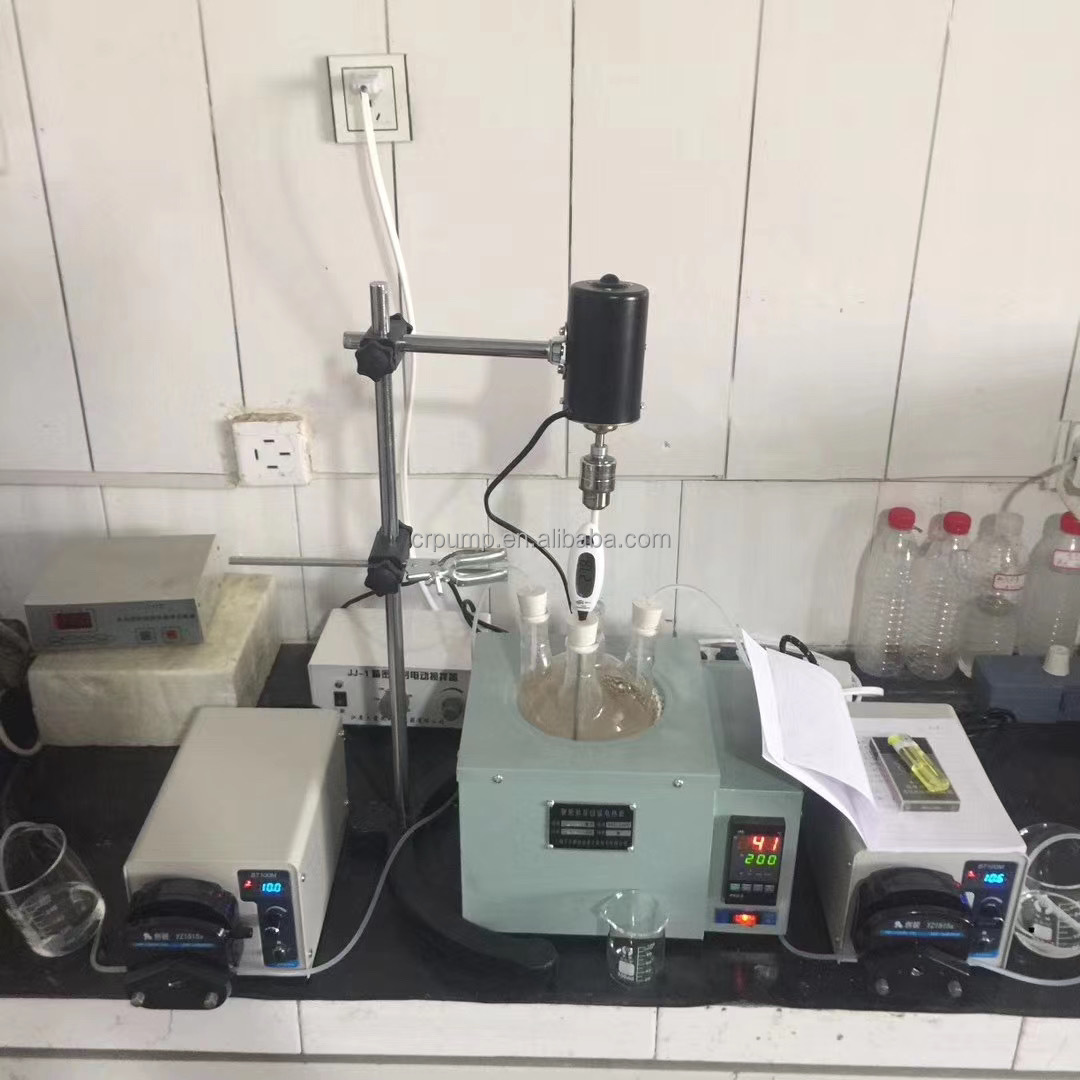

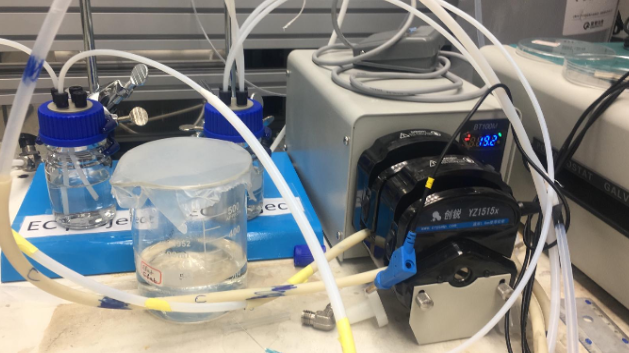

Typical Application of customer case : Laboratory
Technical Parameters
About Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose Technical Parameters
Application
Modern LPLC systems consist of a column, injector, low-pressure pump, detector, and often a fraction collector. The mobile phase is pulled into the chromatography system by the action of the pump. From there, it travels to the injector where the sample to be tested is added. The injector may also act as a controller, switching between many connected mobile phases throughout the assay. After the injector, the sample is carried into the column where separation occurs. From the column, analyte passes into a detector. The detector analyzes the effluent to identify different chemical species and to generate data as a result. From the detector, the mobile phase is pumped into the waste receptacle or collected for further study. (The machine which collects eluent from the column is called a fraction collector and organizes the collected samples based on their time of elution.) A peristaltic pump is commonly used when performing an LPLC assay. Peristaltic pumps use a rotor to pinch tubing and generate a vacuum. The vacuum pulls liquid from the reagent source, and the rollers move the reagent along the tubing pathway. The reagent only touches the tubing. The rollers move the fluid by collapsing the tubing from the outside surface and pushing the fluid captured between adjacent rollers over the roller head and away from the pump. After an assay is complete, the tubing can then be removed and cleaned, or replaced. Tubing is available in many formulations to achieve the right balance of chemical compatibility, tubing size, operating temperature, pressure, and tubing lifespan. The major advantage of peristaltic pumping for chromatography applications is the ability to create an entirely self-contained system that allows for easy changeover and maintenance.Why choose BT100M Laboratory peristaltic pump?

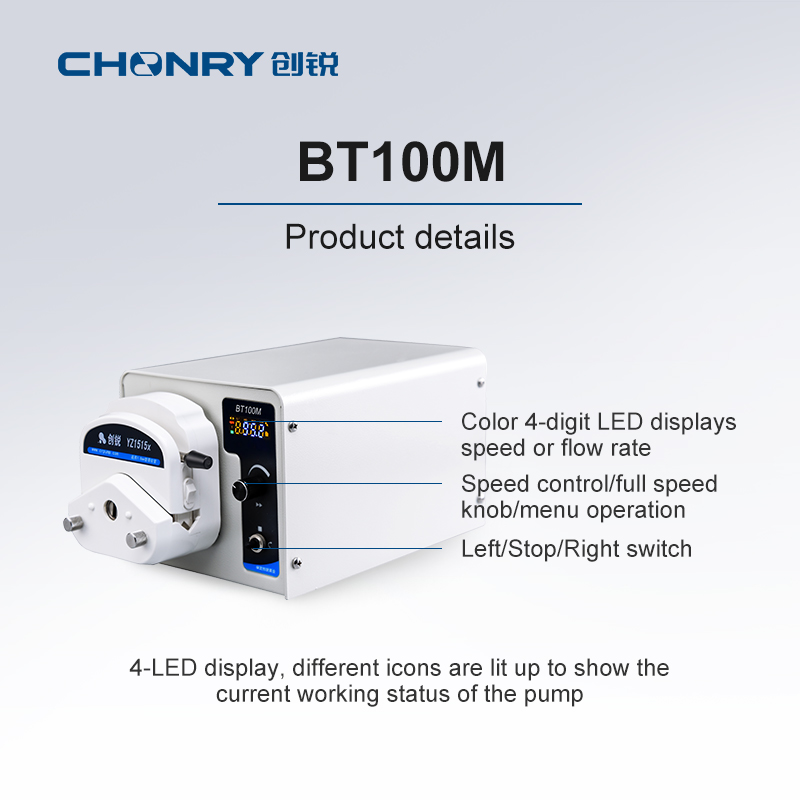

1, Easy operate only need to power on, then you can use it
2, Easy load pump head, you can install and change the tube fast.

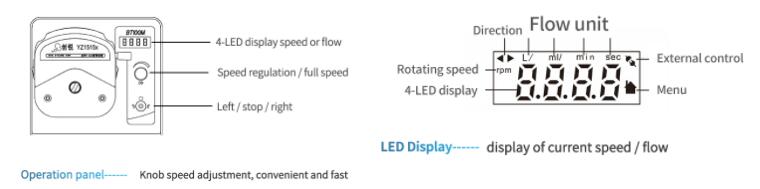

3, If you want to change the flow, only need to rotate the control knob on the panel.
4, Easy to control the direction by the switch on the panel
5, 4-Led display the current speed and work status
6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.
Why Choose Us
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
The competitive advantage of product line:
Our professional team can insure to interact and connect friendly and smoothly, as well as after- sale service. Ourexperienced staff are ready to get your requirements at any time and ensure customer satisfaction completely.We also offer you multi-level reliability, friendly business relationship, service and timely delivery; To be ourpartner, you will be full of confidence for your market expansion and get satisfied feedback from your customers.Production Capacity:
Product Line Name Production Line Capacity Actual Units Produced(Previous Year) We are an innovative company focused on research and development, production and marketing of peristaltic pump Peristaltic Pump: 60000 Sets/Year;Syringe Pump: 25000 Sets/Year;Filling System: 25000 Sets/Year 50000 Sets;20000 Sets;20000 Sets
