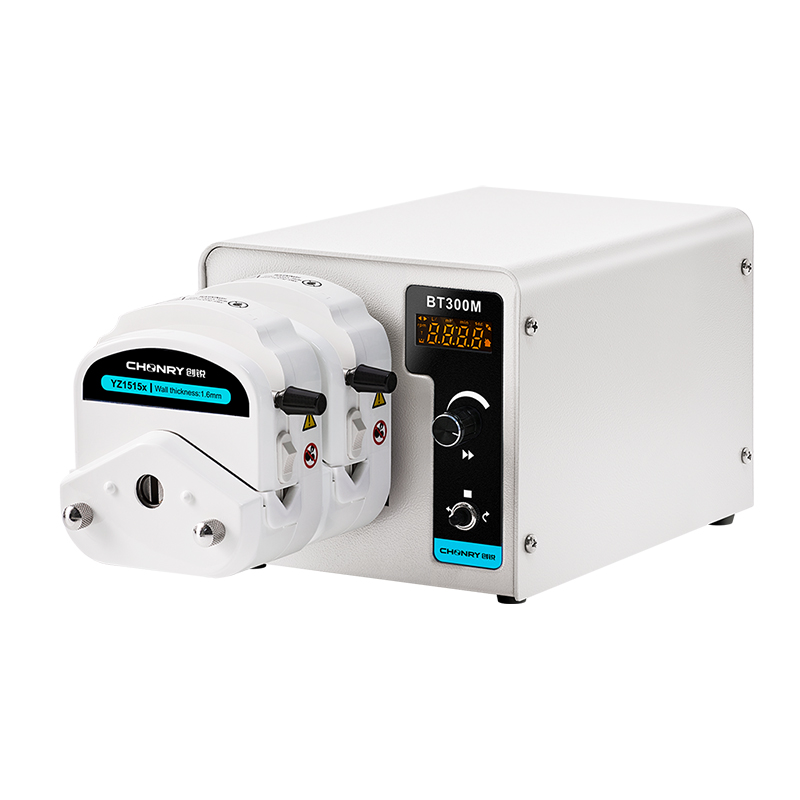

Peristaltic Pump Solvent Extraction Plant Pump Double Head Peristaltic Pump

Peristaltic Pump Solvent Extraction Plant Pump Double Head Peristaltic Pump

Model NO.: BT300M/YZ1515x
Price:: US $ 365.00-365.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 3000.0 piece / Month
Country of Origin: Tianjin,Shanghai,Guangzhou

Quantity:

Product Description

Theory:peristaltic pump
Model:BT300M/YZ1515x
Speed range:0.1-300 rpm
Flow range:0.007-1140 ml/min
Voltage:110v or 220v
Warranty:1 year
MOQ:1 Set
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Application:Food and Beverage Industry
Application:Pharmaceutical industry
Application:Semiconductor Manufacturing
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 7.9mm
Voltage:AC220V or AC110V
Power:<50W

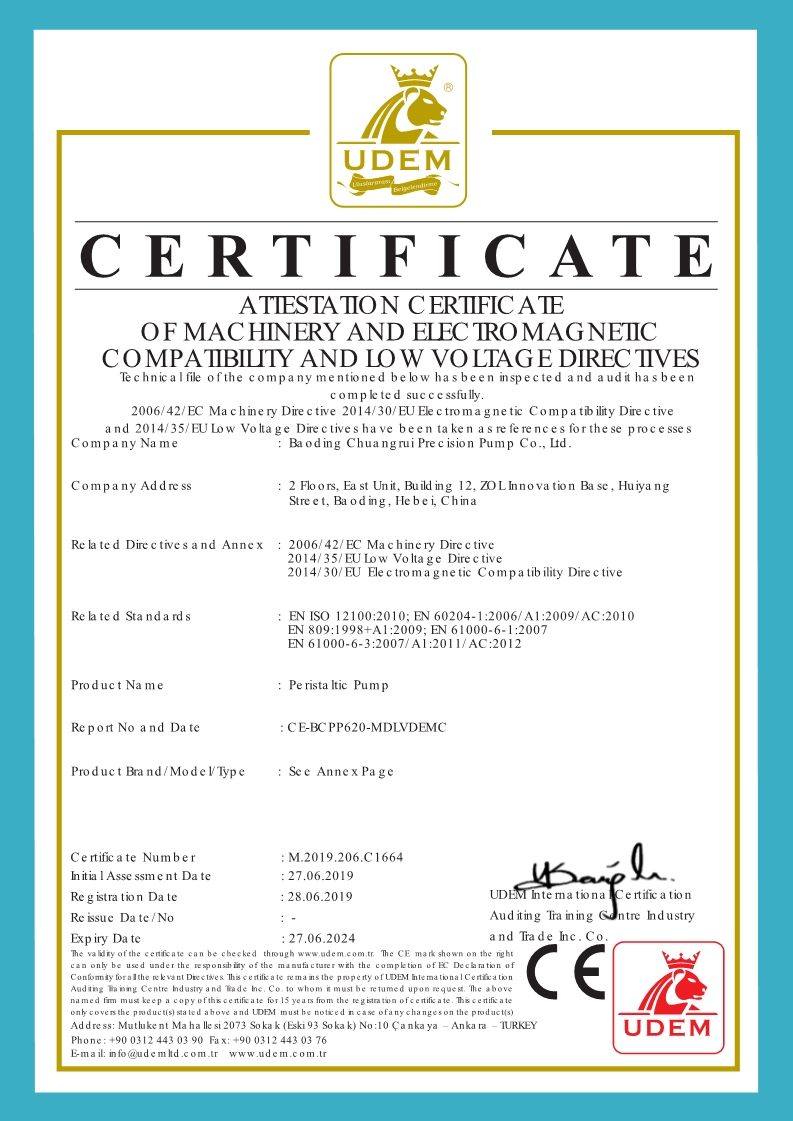

Certification:ce

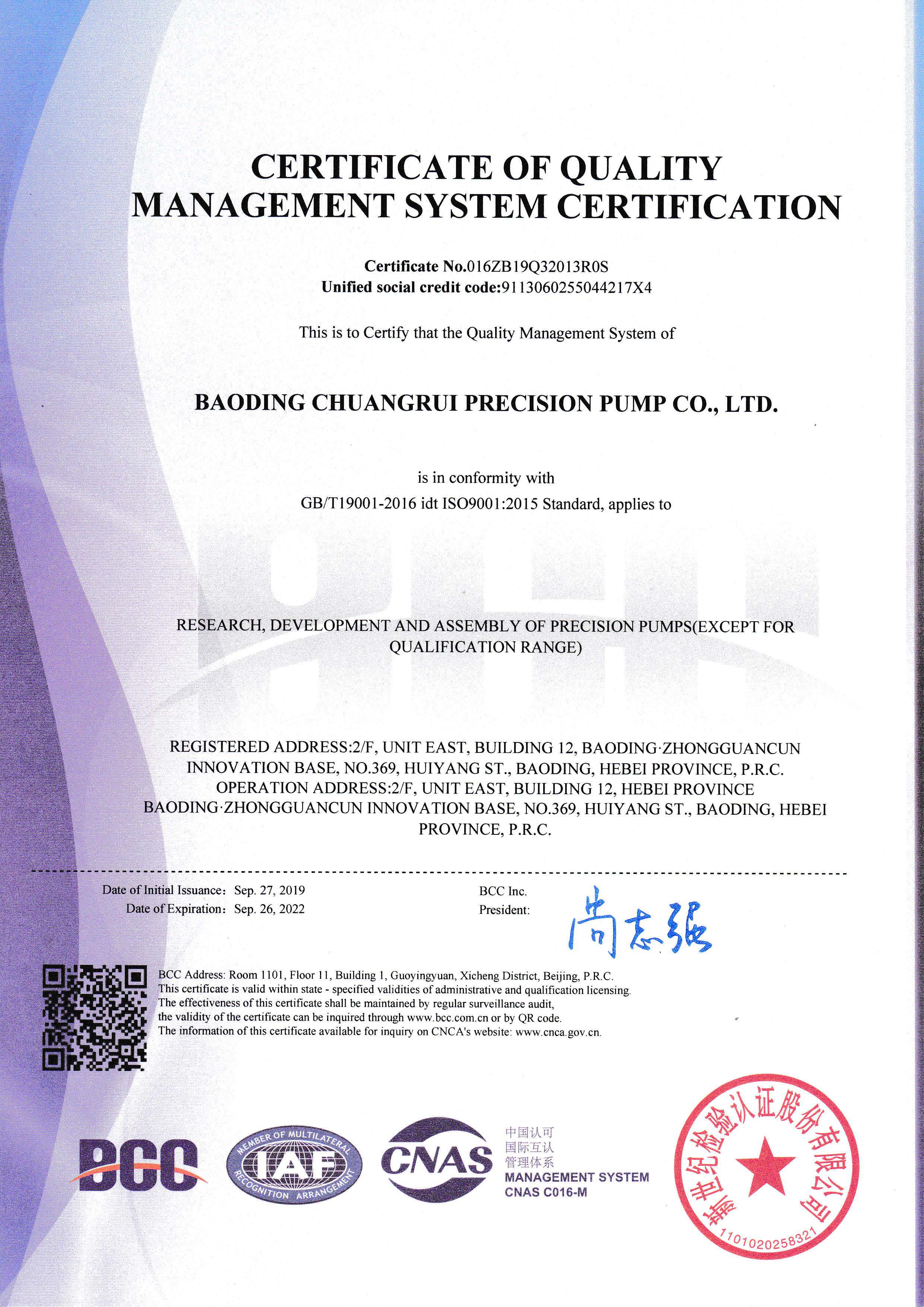

Certification:ISO9001

Product Description

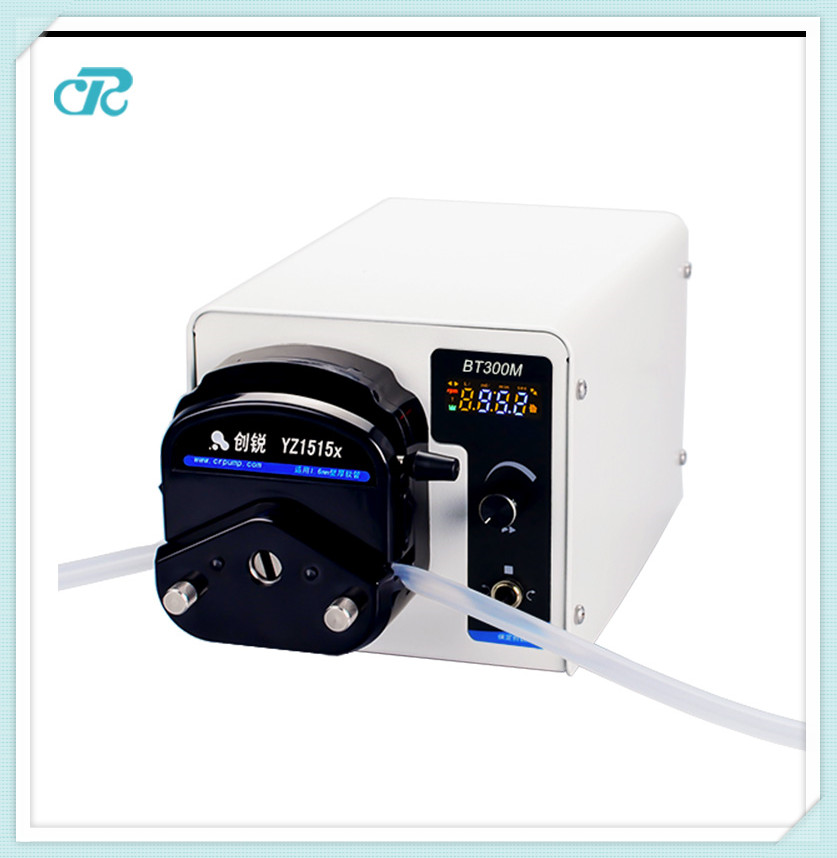

Model: BT300M/YZ1515x

Speed range: 0.1-300 rpm Flow range : 0.007-1140ml/min Max Number of Channel: 2 Power supply: AC110V or AC220V Basic type liquid constant peristaltic pump with Flow reversible Metal housing with anti-corrosion paint treatment, prolong pump life time. Good electromagnetic compatibility, ensure stable and reliable operation CE certified product based on request.

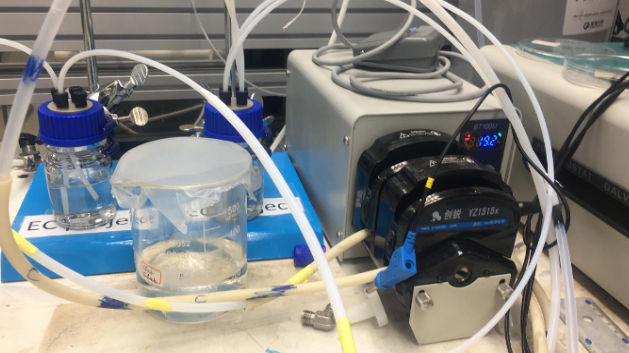

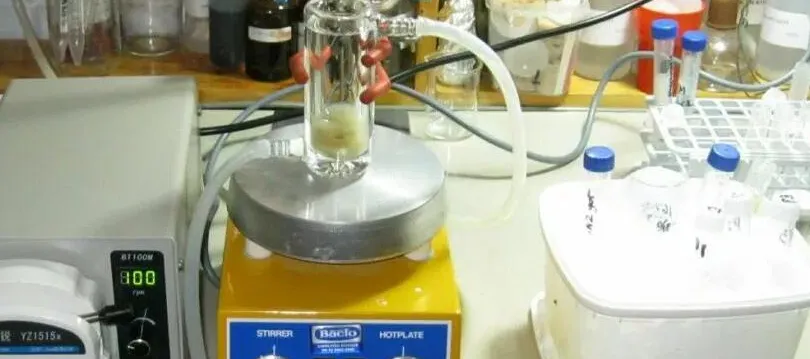

Peristaltic pump application 1 Lab

Parameter Model : BT300M/YZ1515x Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.
		Model	BT100M/YZ1515x
Speed	0.1-300rpm
Speed resolution	0.1rpm
Flow rate	0.007-1140ml/min

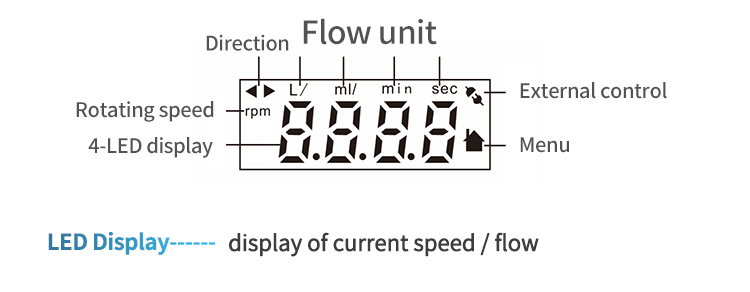

Display	4-LED display
Speed control model	Rotary encoded switch control speed
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
Flow accuracy	≤±0.5%
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
IP rate	IP31
Power	<22W

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow with 300 rpm(ml/min)
18#	7.9	11.1	Silicon tube	1140
17#	6.4	9.6	Silicon tube	870
25#	4.8	8	Silicon tube	510
16#	3.2	6.4	Silicon tube	246
19#	2.4	5.6	Silicon tube	153
14#	1.6	4.8	Silicon tube	81
13#	0.8	4	Silicon tube	21

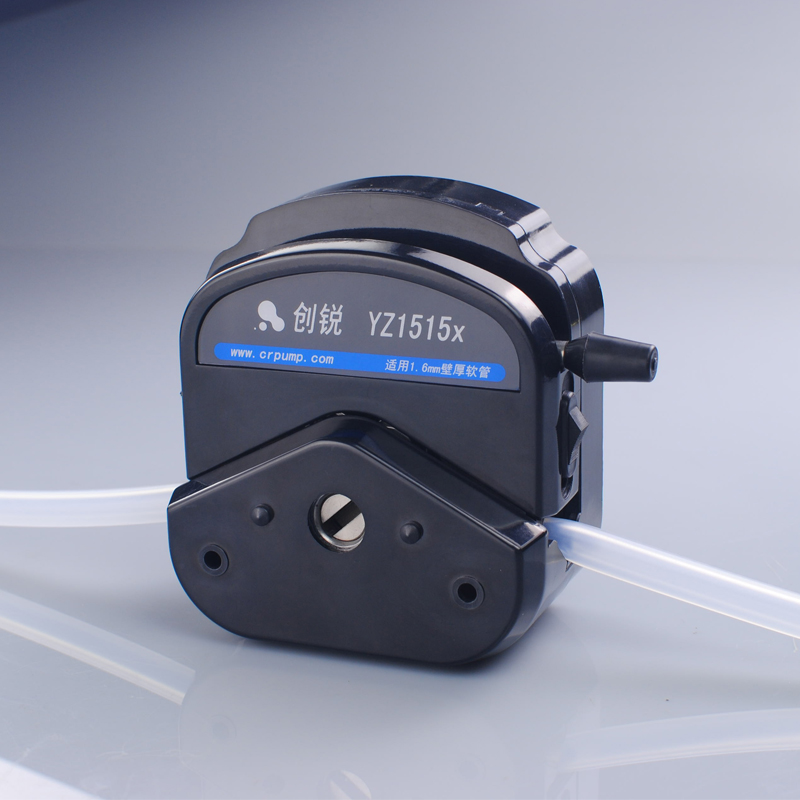

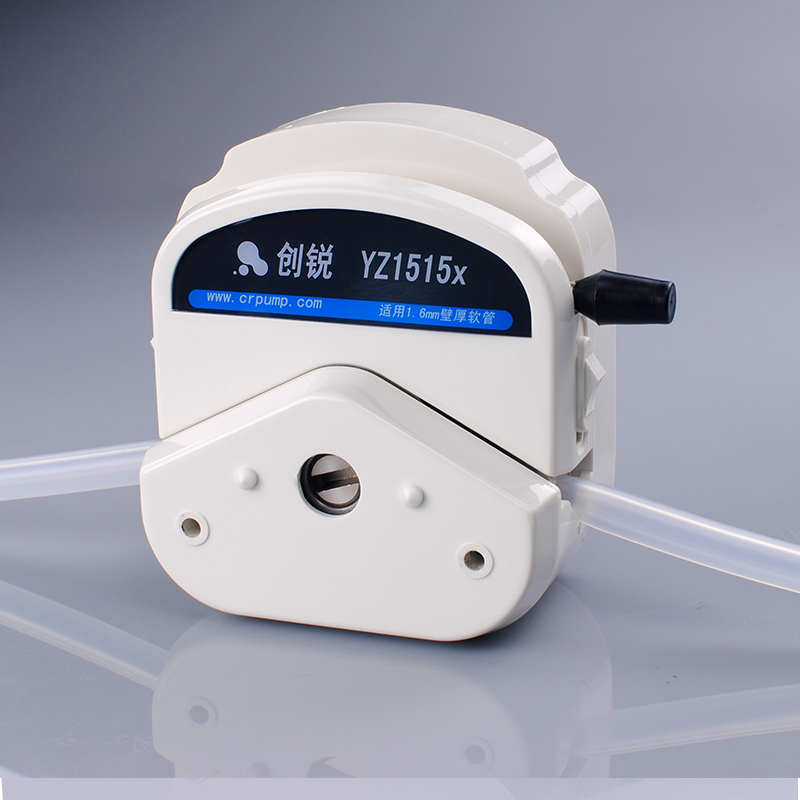

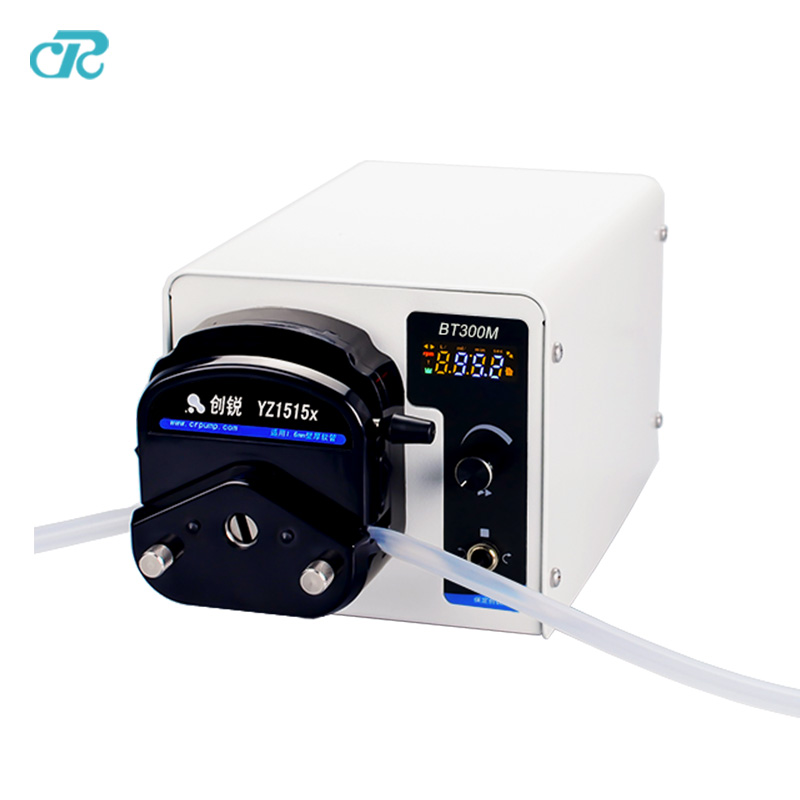

Pump head with PPS material (Black)

Pump head with PSF material (White)

Why choose this model for your application?

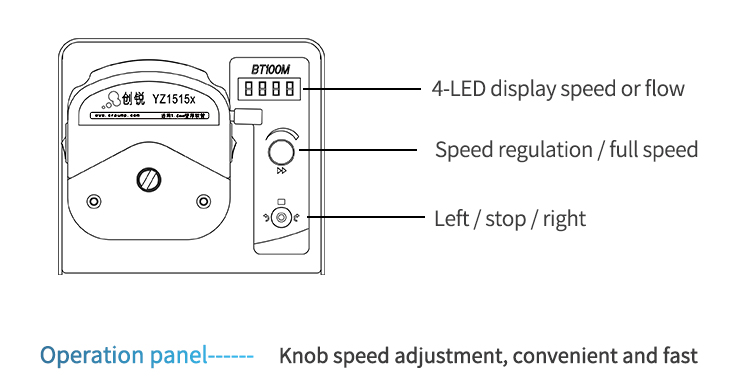

1, Easy operate only need to power on, then you can use it 2, Easy load pump head, you can install and change the tube fast. 3, If you want to change the flow, only need to rotate the control knob on the panel. 4, Easy to control the direction by the switch on the panel 5, 4-Led display the current speed and work status 6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.

Order guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What’s Flow rate you need ? ( )ml/min 2, How many channels you need?( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted: The defaulted model we will send is 100MB21 or 100MB11.
Order number	Model	Pump head	Power supply	Channel number	Flow range with 18#tube
300MB21	BT300M	YZ1515x(black)	AC220V	1	0.38-1140ml/min
300MB11			OEM201-1			AC110V	1
300MB22			OEM201-1			AC220V	2
300MB12			OEM201-1			AC110V	2

Packing list
1	Pump :BT300M/YZ1515x(black)
2	Silicon tube: 18# 2 meters
3	Power plug
4	User manual
Weight	6KG
CTN MEAS	392525CM

Related Product

Model:BT100M/DG

Channel: 1-12

Flow range: 0.002-36ml/min/ channel

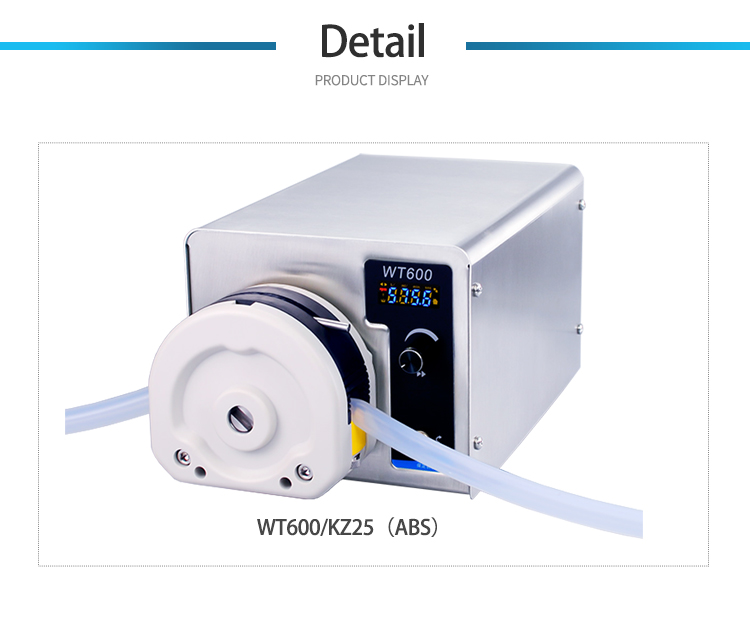

Model:WT600/KZ25

Channel: 1-2

Flow range:10-6000 ml/min

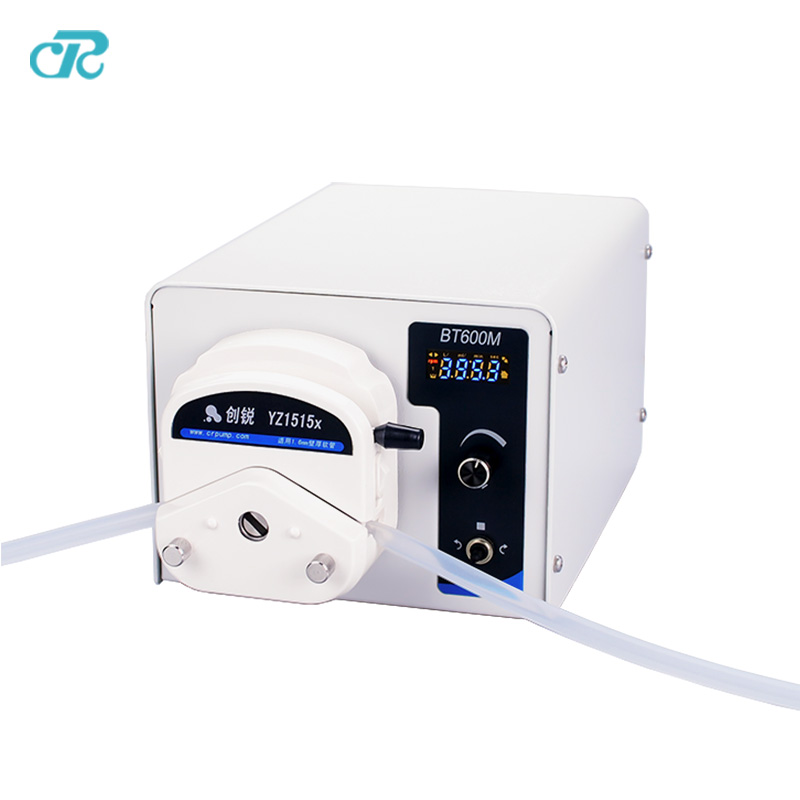

Model:BT600M/YZ1515x

Channel: 1-2

Flow range :0.007-2280 ml/min

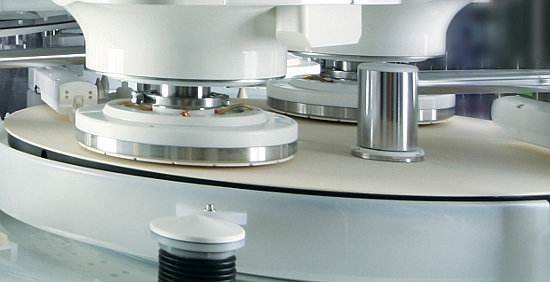

Chemical mechanical planarization (CMP) tools each of which uses a system of peristaltic pumps for process fluid delivery. At various times during each CMP process, these pumps may be delivering tungsten or oxide slurries, DI water, or ammonium hydroxide.These fluids are dispensed onto the polishing substrate, and mechanical force is applied to create the desired planarized surface.The chemical interaction and the mechanical force combine to achieve the desired effect on each wafer. Peristaltic pumps have been used to dispense the necessary chemicals since the development of CMP tools. Before the advent of fab wide chemical delivery systems, many chipmakers simply pumped slurry and other chemicals out of nonpressurized drums, and the peristaltic pumps provided the necessary pressure to dispense the slurry onto the wafers. However, with the coming of state-of-the-art pressurized chemical delivery systems, pressure no longer needs to be provided by each tool. Semiconductor manufacturing requires that the liquid flow in the process tool is always controlled, and one of the harsh applications is chemical mechanical planarization (CMP). When a CMP tool cannot distribute a consistent slurry rate to the polished substrate, it can have a huge negative impact on throughput, chemical use, and material integrity. Variations in wafer thickness, increased defect density, tool downtime, and increased wafer waste are just some of the problems that may be caused by poor process control. The peristaltic pump is very suitable for the high purity and corrosive chemical environment of the semiconductor industry. For CMP, it provides the linearity and repeatability required for the distribution of slurry flow to the wafer at the best point of use during the polishing process. Low shear force is effective for CMP. The slurry is gentle, and its variable speed operation allows the flow or pressure to be controlled within a wide operating range to maintain the integrity of the process. If the flow rate of the polishing liquid is too high, it will cause orange peel. The flow rate of the CMP slurry pump is adjustable, and it can be controlled by knob speed control, touch screen speed control, and external control speed control. The performance of the slurry can achieve excellent wafer flatness, and the peristaltic pump can help achieve this goal by controlling the slurry delivery and distribution. The non-invasive design of the peristaltic pump provides a straight flow path with no dead-flow areas, allowing the slurry to coalesce, harden and contaminate the process. The flow rate accuracy is ±0.5%. The stable fluid delivery not only ensures the continuous flow of slurry to the polishing pad, but also reduces the waste of slurry, chemicals, and deionized water. The conveyed medium does not contact the peristaltic pump body, which is conducive to conveying some media that are corrosive to metals, such as various acid and alkali solutions, or some salt solutions containing chloride ions. It is simple and quick to clean and disassemble. Since the medium only flows in the hose, cleaning is only for the hose, and the installation and disassembly of the peristaltic pump hose are relatively simple The CMP slurry pump has the same flow capacity in both directions. It will not cause damage to any parts of the peristaltic pump under the condition of no liquid and dry operation. It can generate up to 98% vacuum. Without valves, mechanical seals, and packing seals, there will be no such production. Leakage and maintenance factors can easily transport liquids or gas-liquid mixed fluids, allowing the fluid to contain solids up to 40% of the inner diameter of the hose, and can transport all kinds of materials or fluids that are abrasive, corrosive, and oxygen-sensitive.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
