Big Flow Rate peristaltic Pump Head YZ35-13

Big Flow Rate peristaltic Pump Head YZ35-13

Model NO.: YZ35-13

Quantity:

Product Description

Model:YZ35-13
Flow rate:Max 12L/min
Material:PPS
Roller number:3
MOQ:1 Piece
Usage:liquid handling
Warranty:1 year
Theory:Peristaltic Pump Head
Color:black
Speed:max 600 rpm
Customized support:OEM
Customized support:ODM
Customized support:OBM
Application:Developing World Water Solutions
Application:Machining
Application:Mining industry
Application:Pharmaceutical industry
Application:Wastewater Transport and Flood Control
Application:wastewater treatment
Application:Water Distribution
Application:Water Treatment Solutions
Power Source:Electric
Structure:Peristaltic Pump Head
Place of Origin:CN;HEB
Warranty:1 YEAR
Brand Name:CR
Model Number:YZ35-13
Pressure:0.17mpa
Cable Length:none
Outlet Size:13mm
Voltage:none
Power:none
Certification:ce
Certification:ISO9001

Products Description

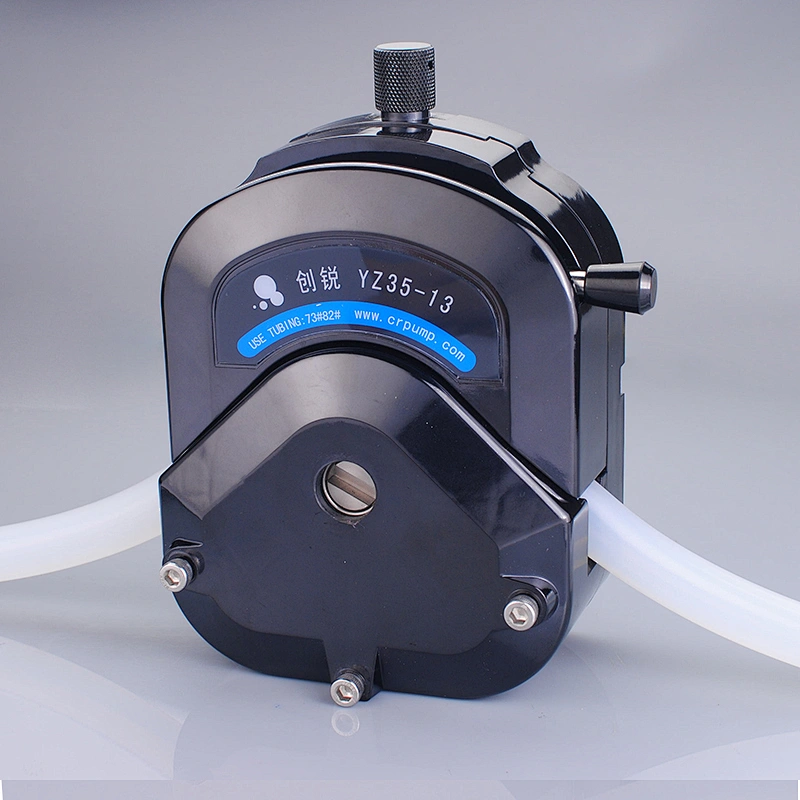

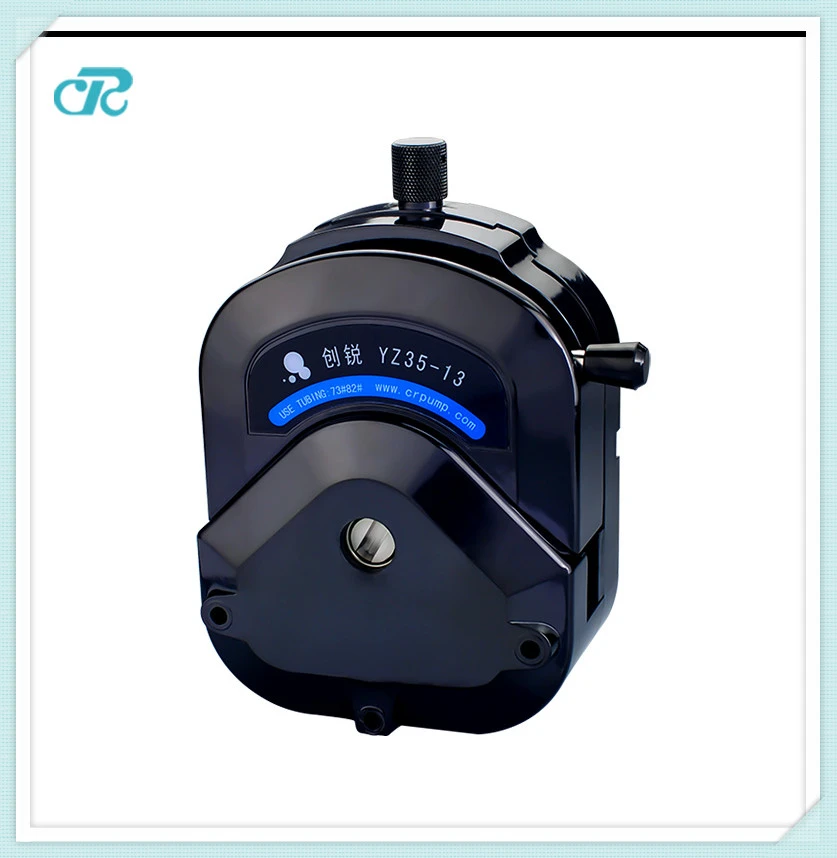

Big Flow Rate peristaltic Pump Head YZ35-13

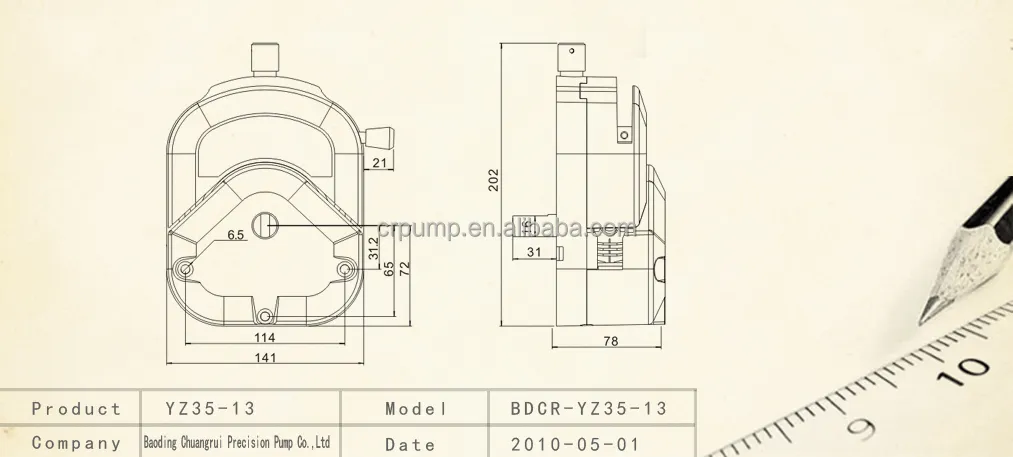

Peristaltic Pump head

^{The YZ35-13 pump head is made of PPS(polyphenylene sulfide ether) materials, so its rigidity and structure are more excellent.
Its strong capabilities of baring high temperature and erosion, especially the excellent performance in the aspects of strongchemical resistance, such as resisting organic solvent, effectively reducing the damage rate of the pump heads and the customers'cost in maintaining and reparing.}

Model	Housing material	Material of the roller	Tube	Max Flow Range
YZ35-13	PPS	Stainless steel	73#, 82#	12L/min

Guide

Dear All ,

Welcome to our website ,we are peristaltic pump manufacturer .wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable peristaltic pump. could you help me to confirm some details as below :

1,what's the application of the peristaltic pump ? bottle filling pump or constant transfer pump?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best peristaltic pump and silicon tube.

Thanks for your time .

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

Hot Sale

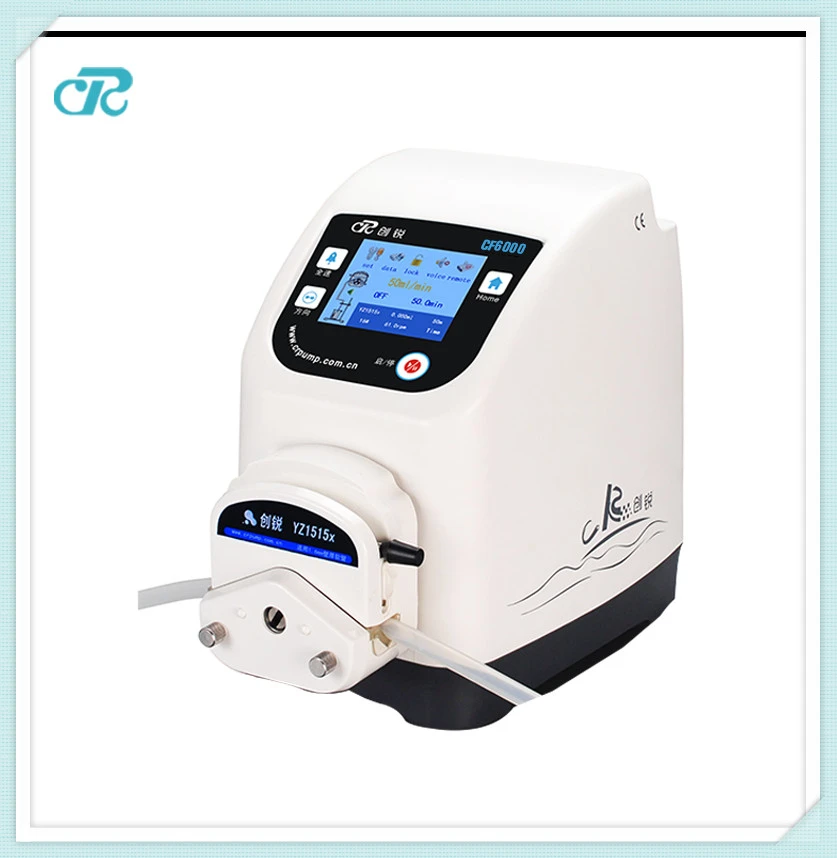

CF6000/YZ1515X

Max 2280ml/min

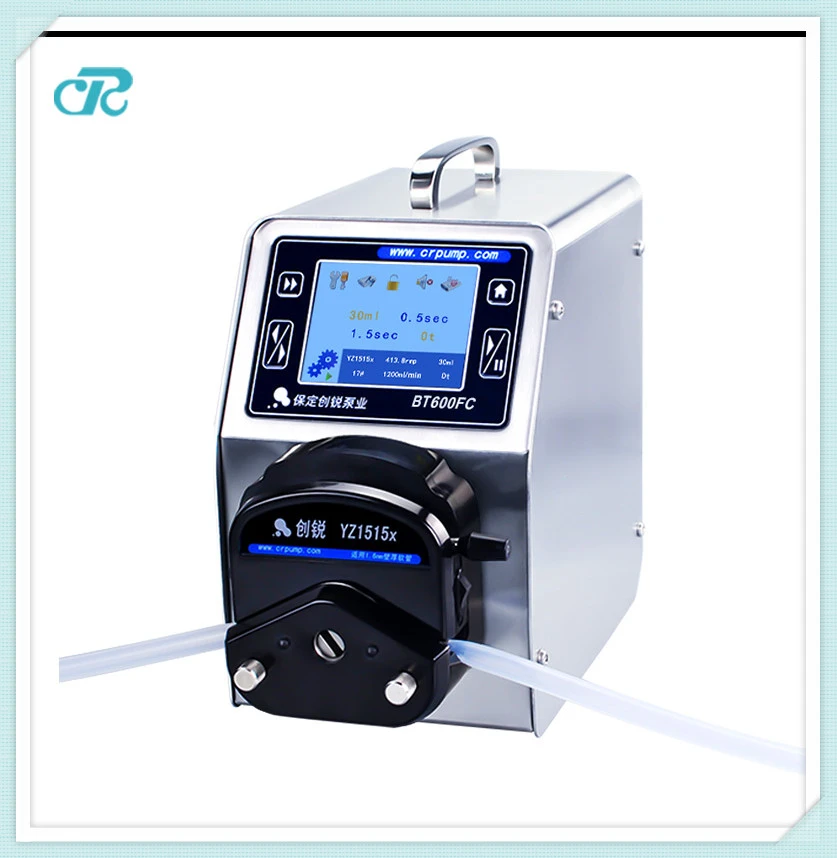

BT600FC/YZ1515X

Max 2280ml/min

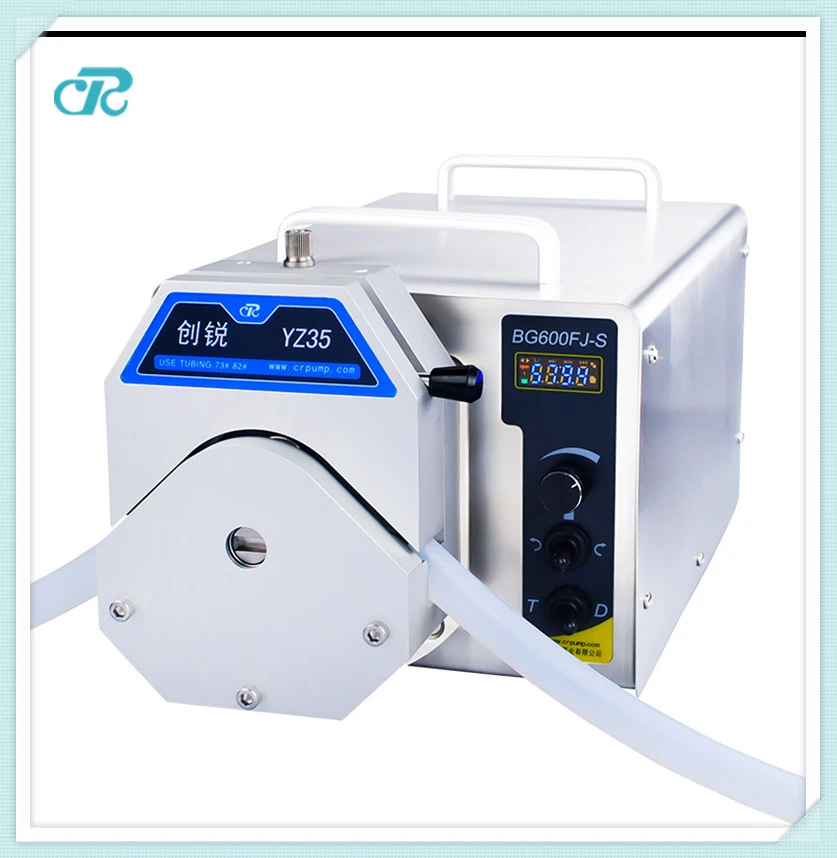

BG600FJ-S/YZ35

Max 12L/min

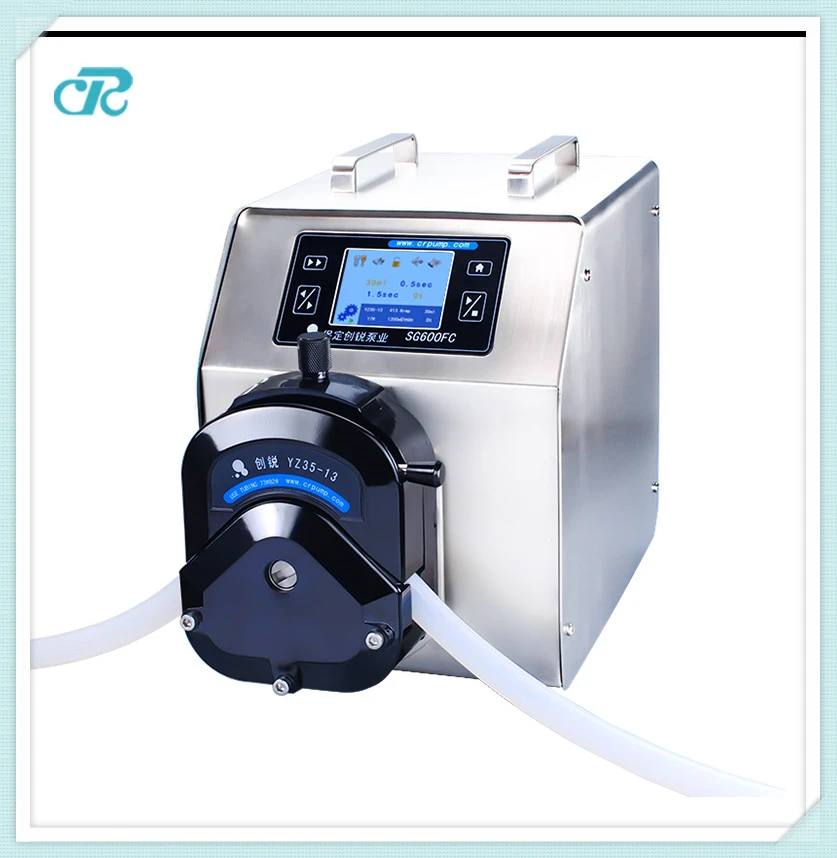

SG600FC/YZ35-13

Max 12L/min

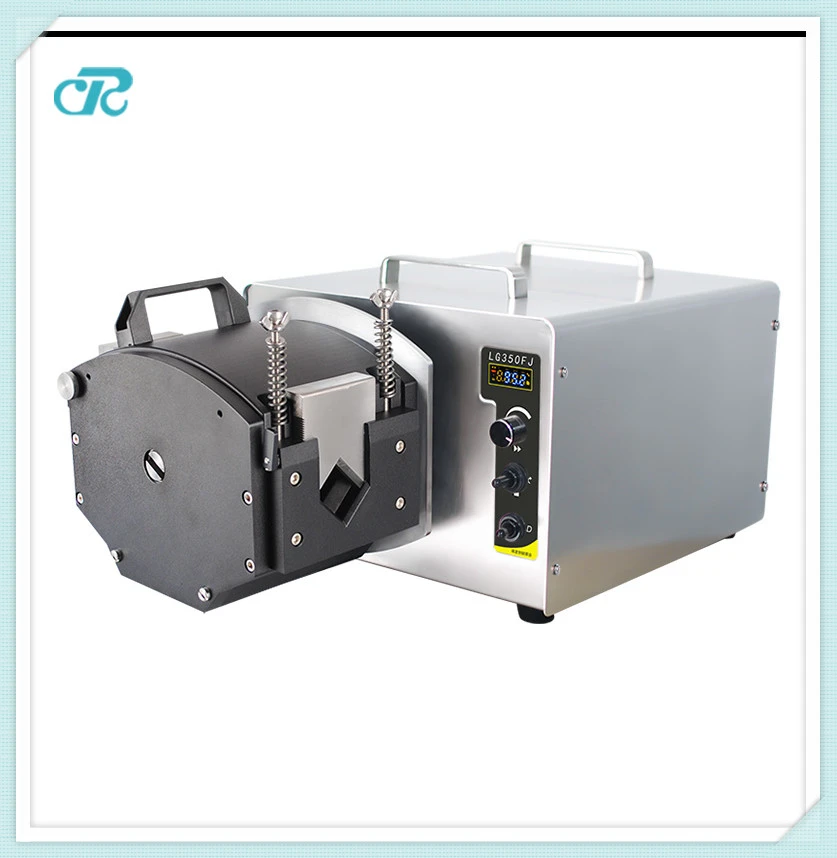

LG350FJ/KZ50

Max 33L/min

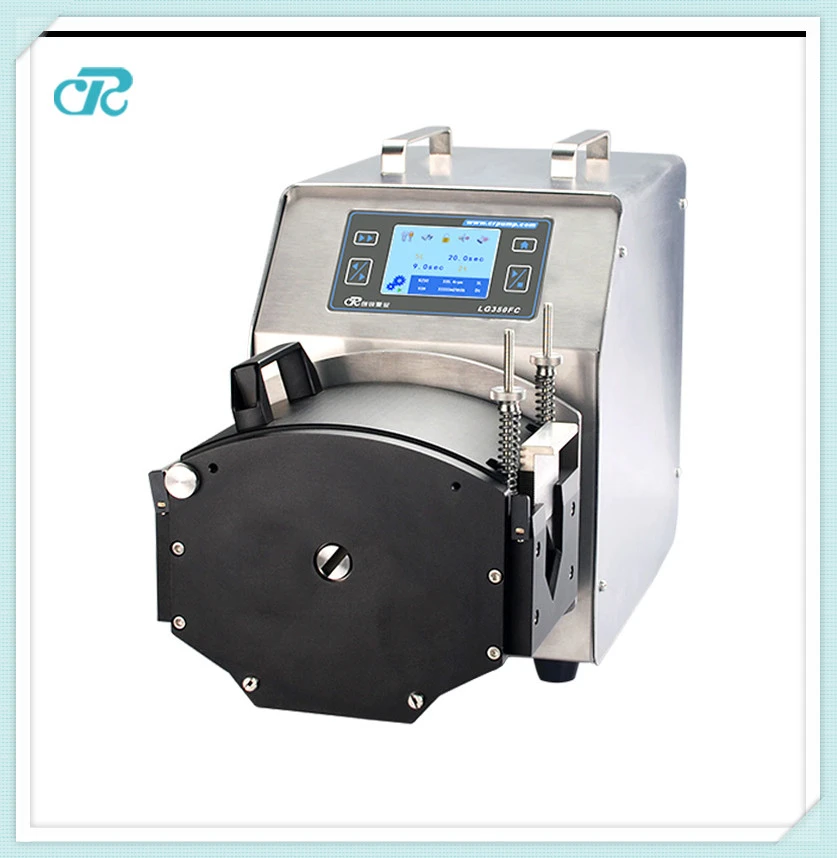

LG350FC/KZ50

Max 33L/min

About shipping

Fast and safe delivery

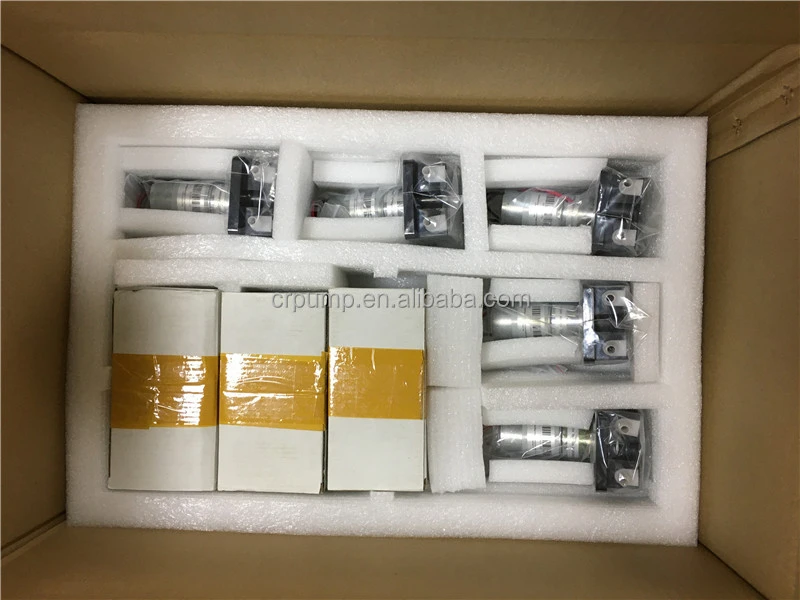

1.The package contains a peristaltic pump and its accessories.

2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3.If you have other packaging needs, please contact us in time.

Things To Note

Hi, My dear customer ,Good day!
Here are some tips for your reference before purchase our pumps.
1, About Delivery time :
For standard pump less than 10 sets the delivery time is 3-5 days after get your payment.
For customized pump ,the production time is about 7-15 days.
For bulk purchase, Pls contact our customer service staff to get the exact delivery time.
2, About Power supply and power plug:
For standard pump is AC220V or AC110V ,which produce based on your local power supply standard.
For the power plug, we have most of the power plug types based on different counties' requirement.
PS :The power supply and power plug will based on your shipping country's standard(defaulted). If you have different requirement,Pls contact our sales .
3, About the flowrate :
All the flowrate we showed are test based on water,Only for your reference.
4,About Return Policy and after sale service:
a . Before purchasing, please carefully understand the product (peristaltic pump) function details. If you are not sure about the product function, please contact our customer service staff for detailed communication and confirmation before purchasing. Our technical staff will give you detailed information. Answer to ensure that you find the most suitable product.
b . After receiving the goods, if the packaging is damaged due to express delivery and the product is also damaged due to gravity,such as shell deformation, pump head damage, etc., please send the damaged packaging photos and product photos to our customer service staff within three days.Our company will negotiate compensation with the express as soon as possible and provide you with a solution within three working days.
c . If there is a problem with the product due to the quality of the product within one year after receipt (the warranty period),please feel free to contact our customer service staff, we will provide you with a solution within three days of receiving your information.
d . If the product has exceeded the warranty period and the product cannot be used due to improper operation by the customer,please contact our customer service staff. We only charge the cost of the accessories and the courier fee. And the customer service staff will answer your questions free of charge and assist you with repairs in the form of text, pictures or videos.
5,About Warranty:
1 Year warranty and lifetime matainence.(Do not including the Consumables such as tubing and connectors.etc.）
