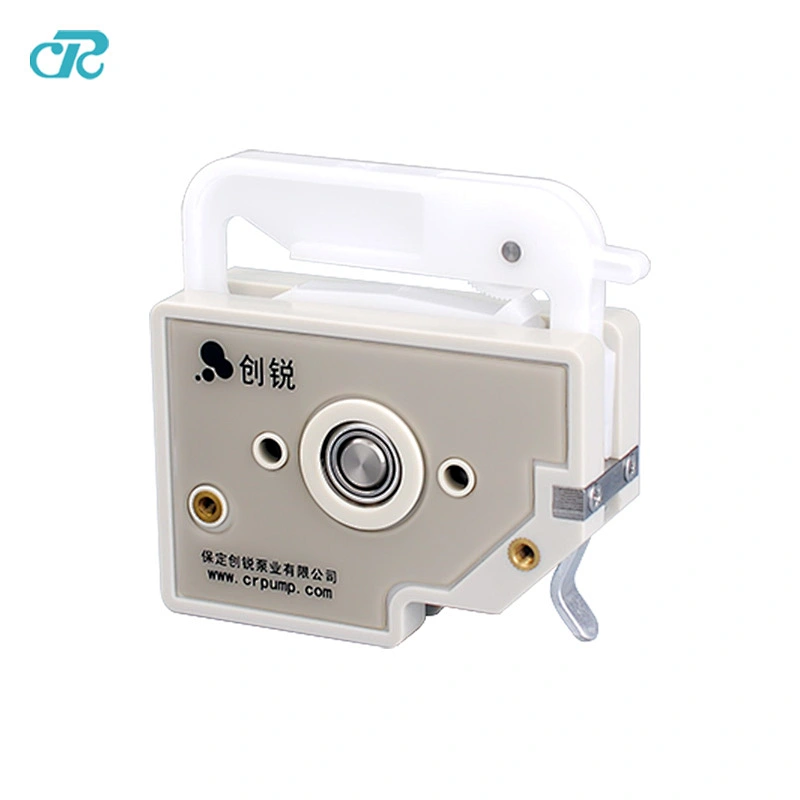

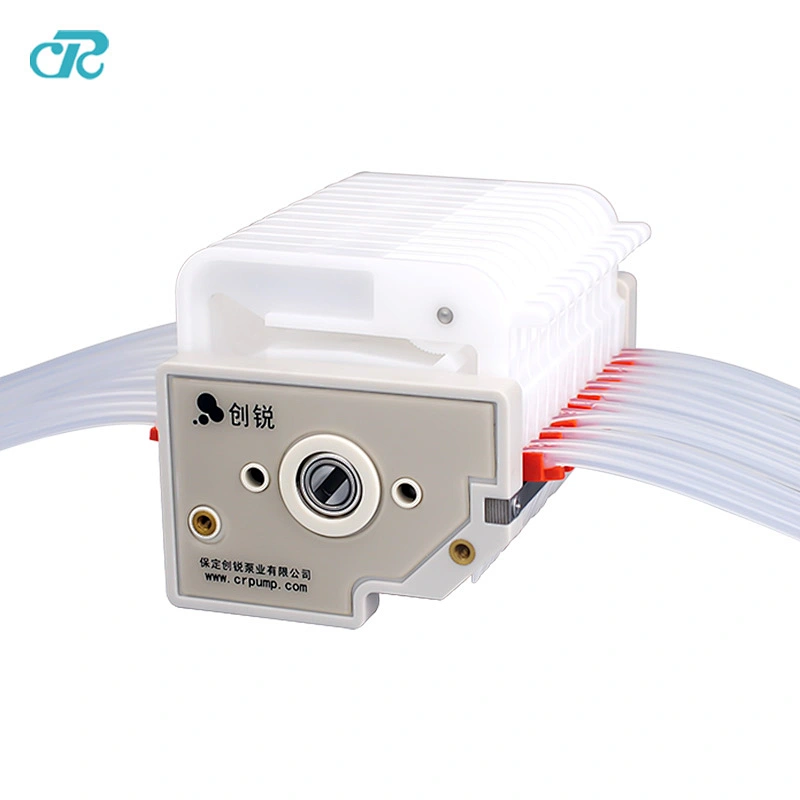

Micro Flow Peristaltic Pump Head DG Series

Micro Flow Peristaltic Pump Head DG Series

Model NO.: DG
Price:: US $ 70.00-300.00 / set
Minimum order quantity: 1 set
Supply Ability: 10000.0 set / Year
Country of Origin: tianjin

Quantity:

Product Description

Model:DG
Product name:peristaltic pump head
roller:6/10
channel:1/2/4/6/8/12 optional
Flow:0.0015-36 ML/MIN
SPEED:0-100 RPM
Application:micro flow liquid transfer
Customized support:OEM
Customized support:ODM
Power Source:Electric
Structure:Peristaltic Pump Head
Place of Origin:CN;HEB
Warranty:1 year
Model Number:DG
Application:Mining industry
Application:Pharmaceutical industry
Application:Water Treatment Solutions
Application:LAB
Horsepower:None
Pressure:Low Pressure
Cable Length:none
Outlet Size:Max 3mm
Voltage:None
Power:None

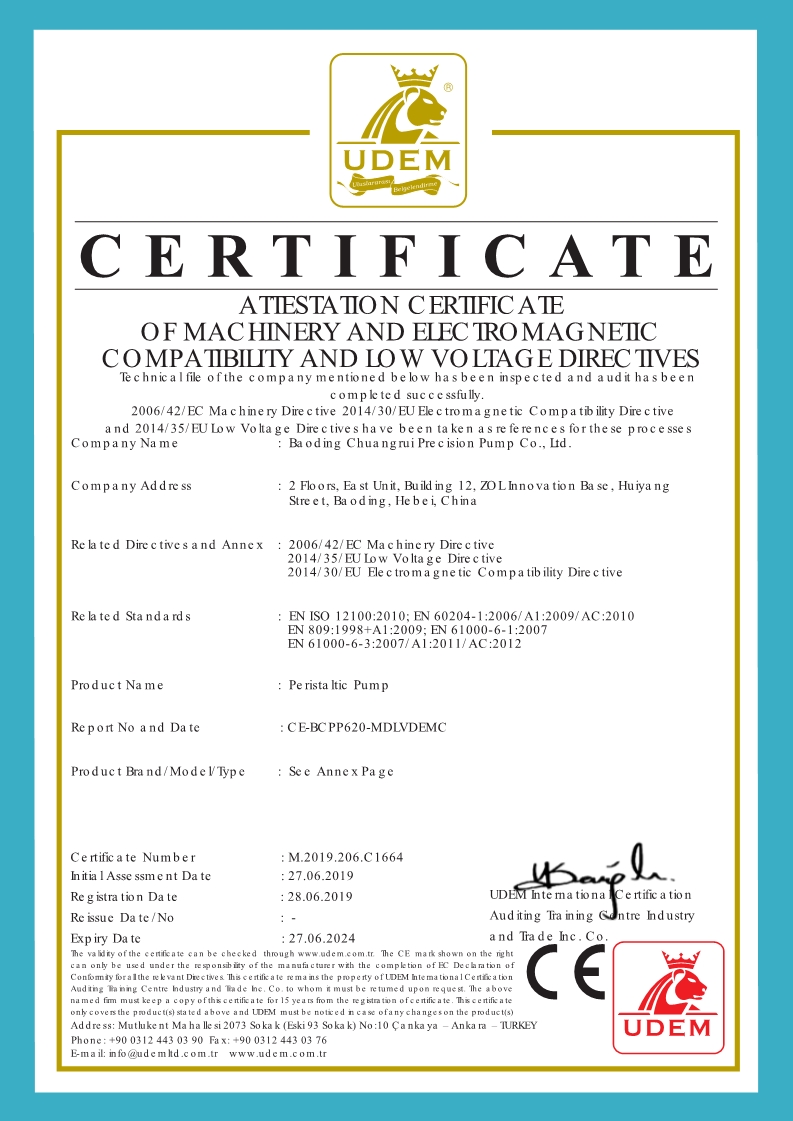

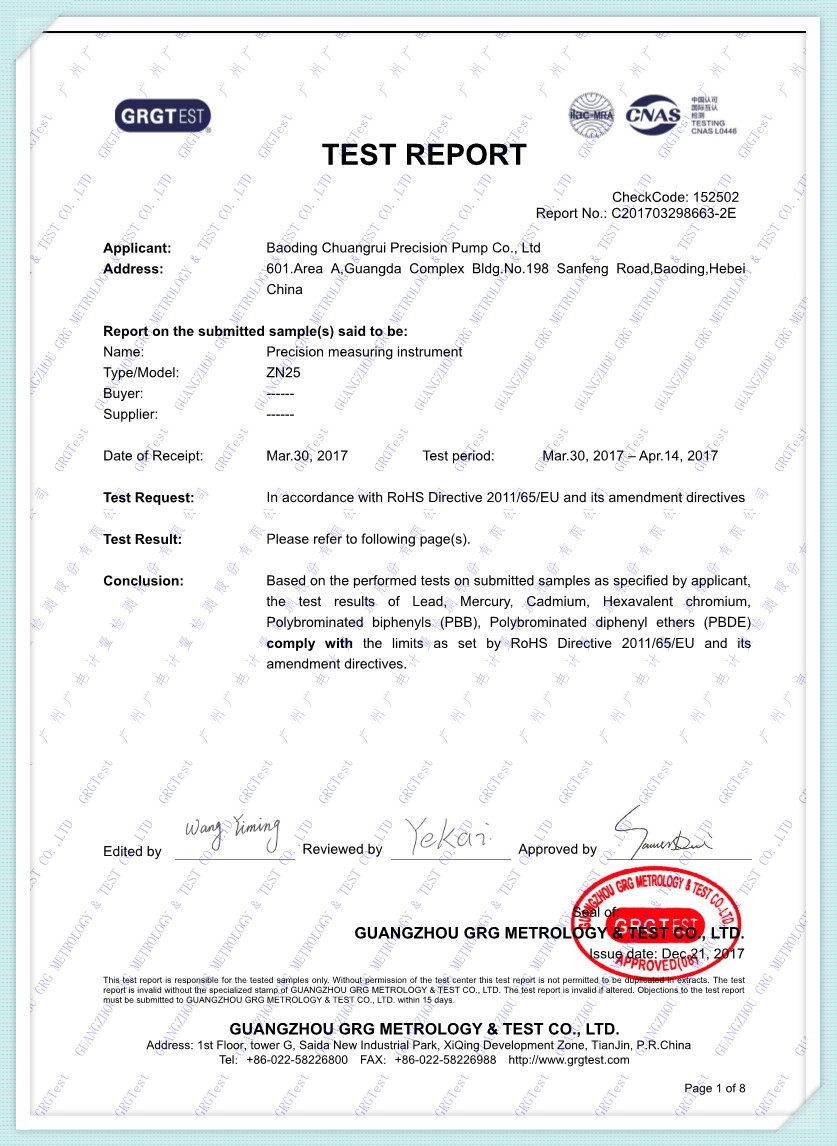

Certification:ce
Certification:ISO

Product Description

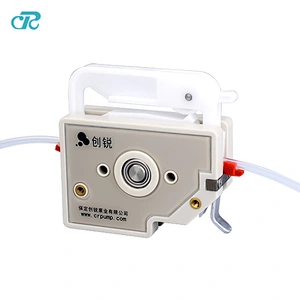

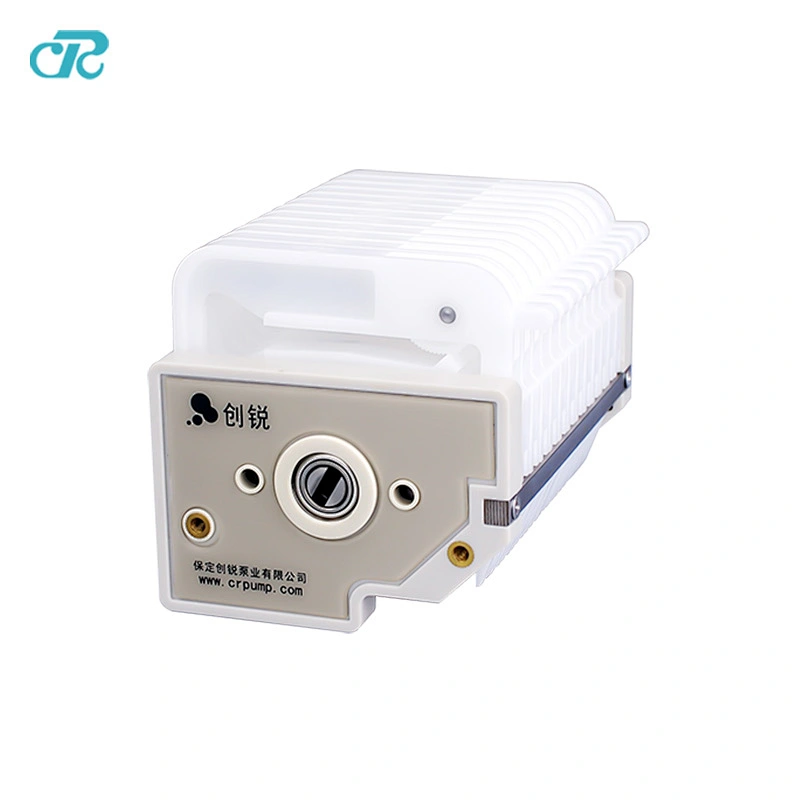

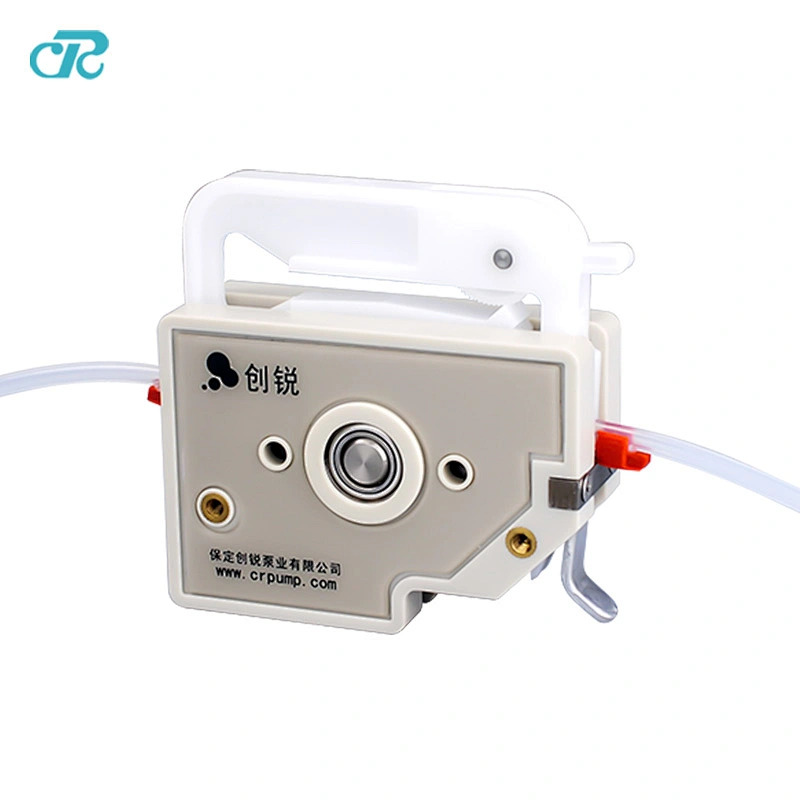

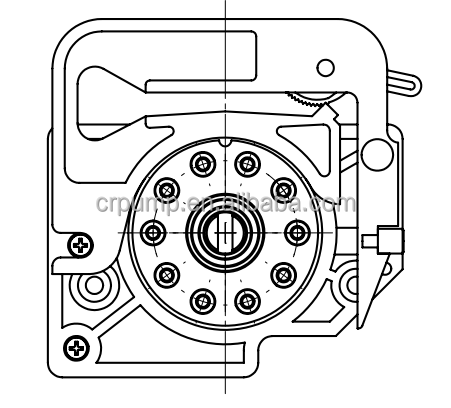

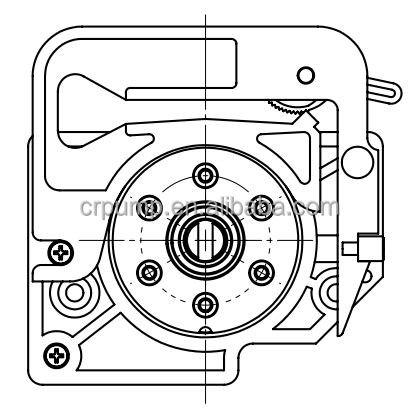

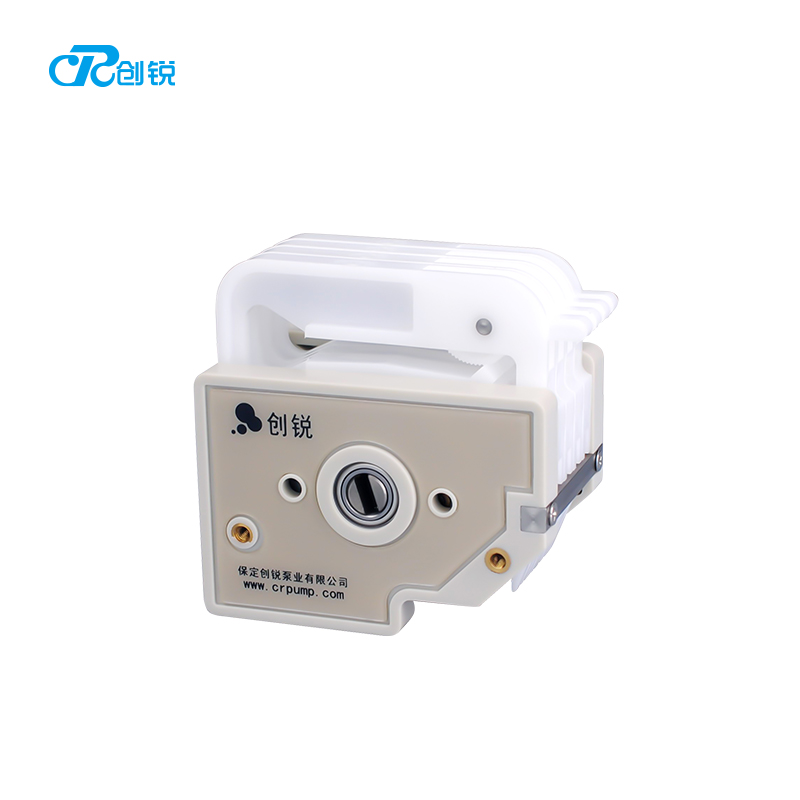

Micro Flow Lab design Multiple Channels Peristaltic pump head

The DG series micro-flow multi-channel peristaltic pump head is a separate card installation and special hose; the pressure tube
gap can be fine-tuned to adapt to different wall thickness hoses. Designed for small flow, multi-channel fluid delivery.

Specifications

DG pump heads with 6 rollers

Flow range : 0.002-36 ml/min

DG pump heads with 10 rollers

Flow range :0.0015-27ml/min

Model explanation

EX : DG-1(6) means 1 channel with 6 rollers

DG-2(10) means 2 channels with 10 rollers

Model	Roller number	Channel number	Model	Roller number	Channel number
DG-1(6)	6	1	DG-1(10)	10	1
DG-2(6)	6	2	DG-2(10)	10	2
DG-4(6)	6	4	DG-4(10)	10	4
DG-6(6)	6	6	DG-6(10)	10	6
DG-8(6)	6	8	DG-8(10)	10	8
DG-12(6)	6	12	DG-12(10)	10	12

Tube model	ID(mm)	OD(mm)	Speed(rpm)	Flow range for 6 rollers (ml/min)	Flow range for 10 rollers (ml/min)
0.5*0.8	0.5	2.1	0.1-100	0.002-0.2	0.0015-1.5
1*1	1	3	0.1-100	0.006-6	0.004-4
2*1	2	4	0.1-100	0.019-19	0.013-13
2.4*0.8	2.4	4	0.1-100	0.024-24	0.017-17
3*1	3	5	0.1-100	0.036-36	0.0.027-27

Order guide OEM

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

5, For the OEM pump. pls tell me the model no. you want ? Thanks

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact :Ella Xu

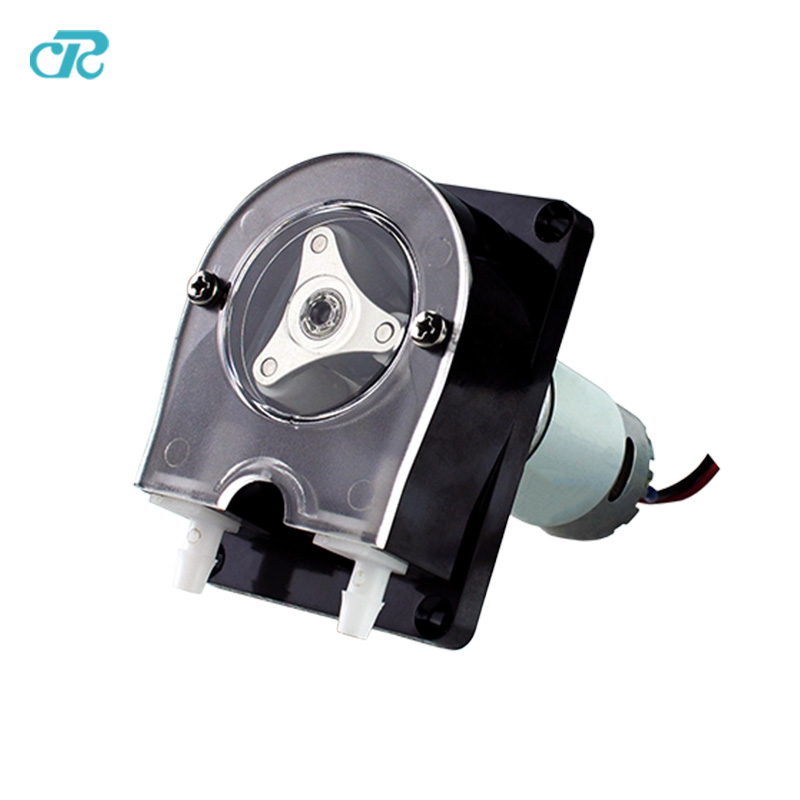

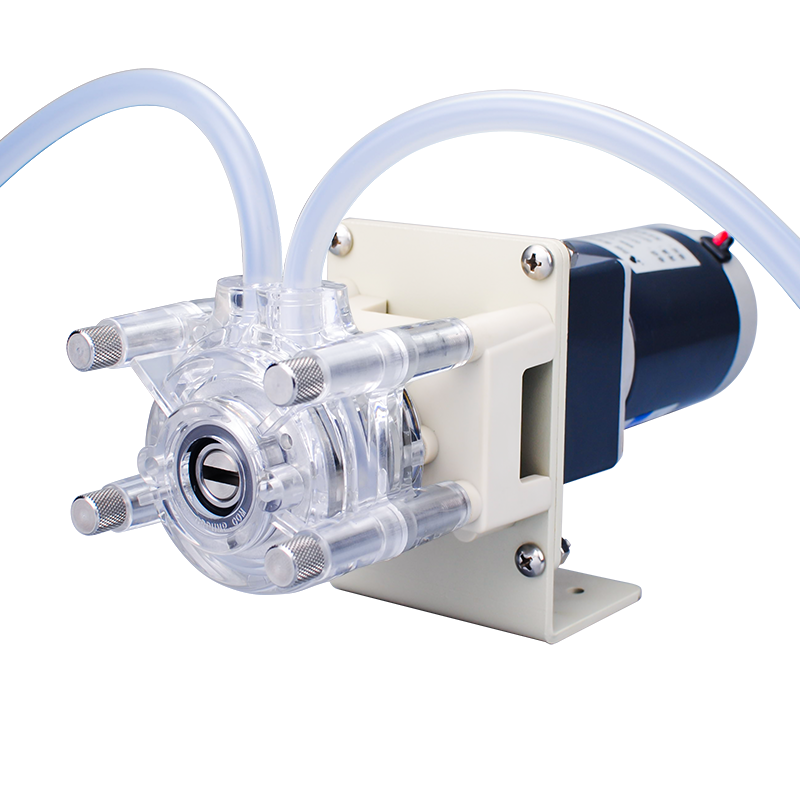

OEM204/ZN25

Max flow : 1740 ml/min

OEM206/WP300

Max flow : 1000 ml/min

OEM208/KZ25

Max flow : 6000 ml/min

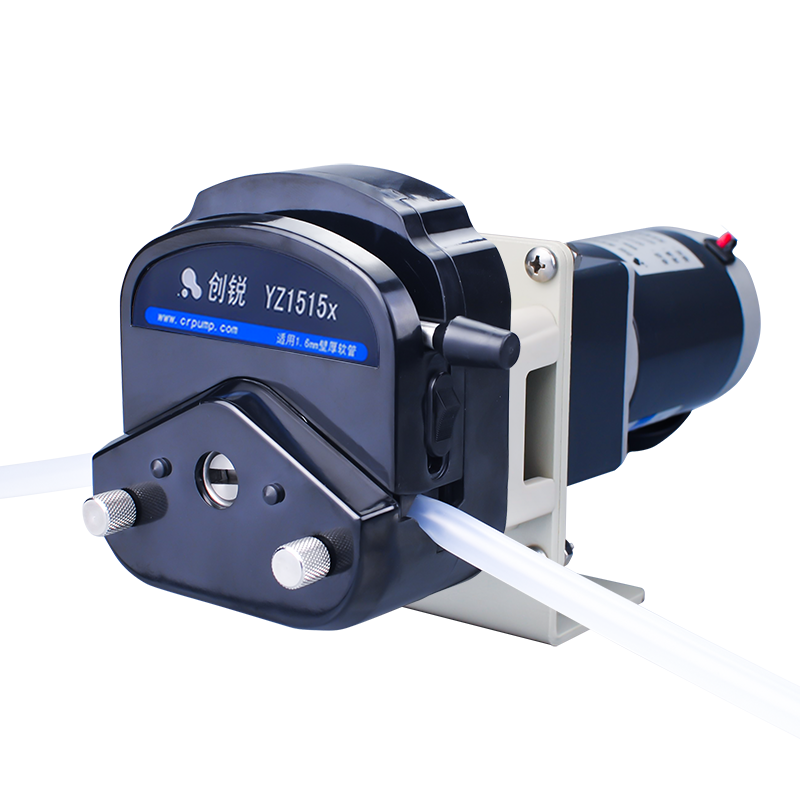

OEM201/YZ1515x

Max flow : 2280 ml/min

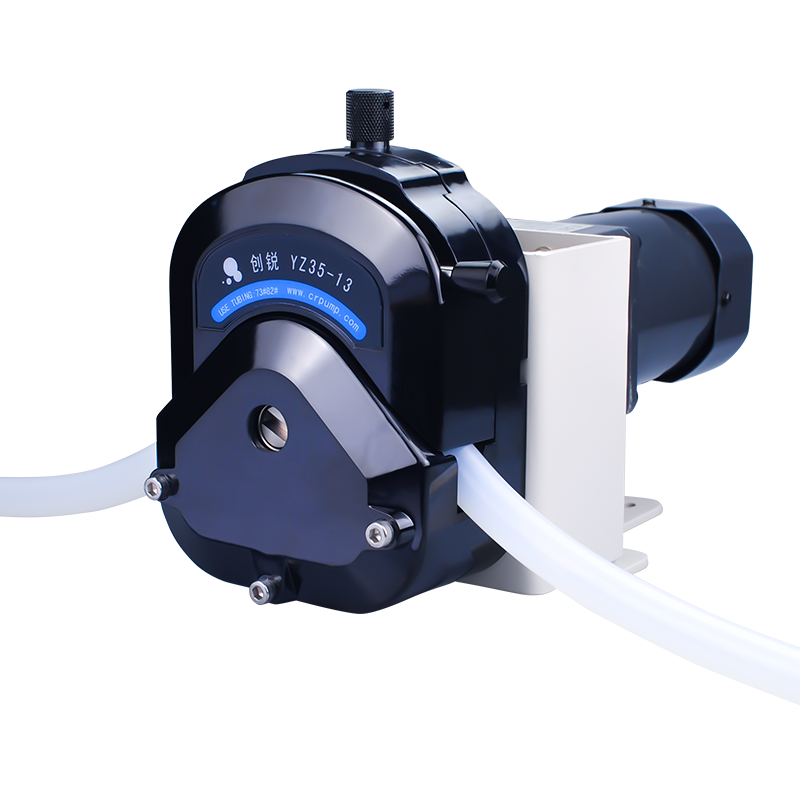

OEM200/YZ35-13

Max flow : 12000 ml/min

OEM209/WP110

Max Flow : 18ml/min

About shipping

1，The package contains a peristaltic pump and its accessories.

2, foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3，If you have other packaging needs, please contact our sales staff in time.

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
