Chuangrui medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head

Chuangrui medical flushing Filling packing machine pump YZ1515x Peristaltic Pump Head

Quantity:

Product Description

Peristaltic pump head:YZ1515x
Rollers material:304 stainless steel
Tube model:13# 14# 19# 16# 25#17# 18#
warranty:1 year
Type:Filling Machine
Applicable Industries:Building Material Shops
Applicable Industries:Food & Beverage Factory
Applicable Industries:Home Use
Applicable Industries:Food Shop
Applicable Industries:Food & Beverage Shops
After Warranty Service:No service
Local Service Location:Egypt
Local Service Location:Pakistan
Local Service Location:India
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:South Korea
Local Service Location:None
Showroom Location:None
Condition:New
Application:Beverage
Application:Chemical
Application:Commodity
Application:Food
Application:Machinery & Hardware
Packaging Type:Bags
Packaging Type:Barrel
Packaging Type:Bottles
Packaging Type:CANS
Packaging Material:Glass
Packaging Material:Plastic
Packaging Material:Other
Automatic Grade:Semi-automatic
Driven Type:Electric
Warranty:1 Year
After-sales Service Provided:Online support
After-sales Service Provided:Video technical support
After-sales Service Provided:Free spare parts
Key Selling Points:Easy to Operate
Machinery Capacity:Other
Filling Material:Other
Marketing Type:Hot Product 2019
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Place of Origin:CN;HEB
Voltage:0
Brand Name:cr
Dimension(L*W*H):10*15*8
Weight:500g
Certification:CE ISO9001
Core Components:pump head

Product Description

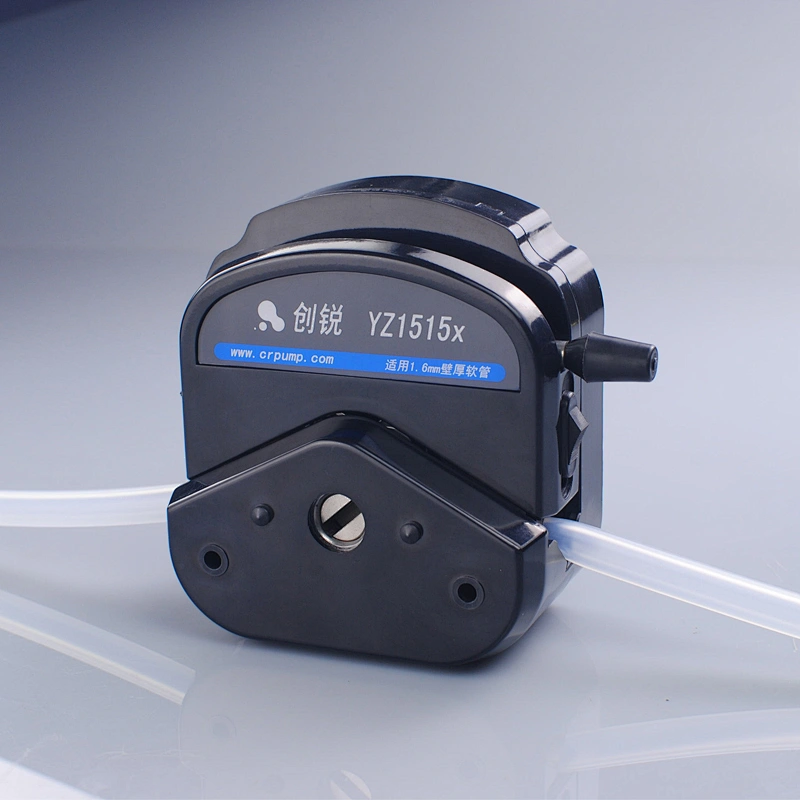

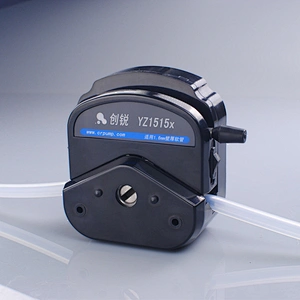

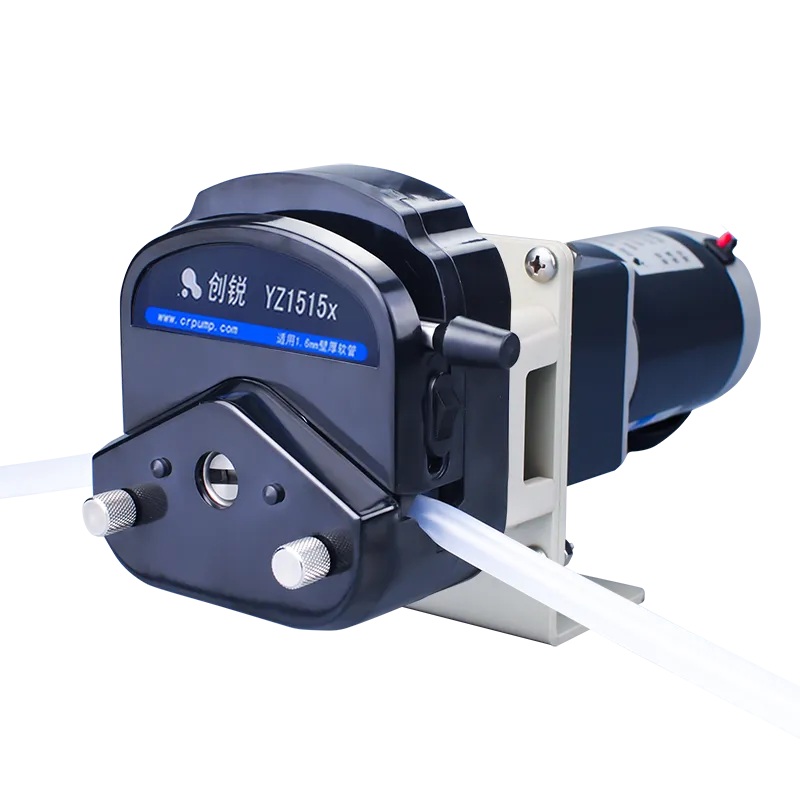

Model:YZ1515x-Black

High hardness, good heat resistance

Good corrosion resistance

The black housing of YZ1515x type of pump head is made of Polyphenylene sulfide (PPS) has excellent heat resistance, flame retardancy, insulation, high strength and hardness, excellent mechanical properties, good product dimensional stability, can be processed by a variety of molding methods, and can be precise forming. Because PPS has good affinity with inorganic fillers, reinforcing fibers and compatibility with other polymer materials, it can be made into different reinforcing filler materials and polymer alloys.

Typical application : Chemical industry/ packing machine/printing /fine chemical...etc.

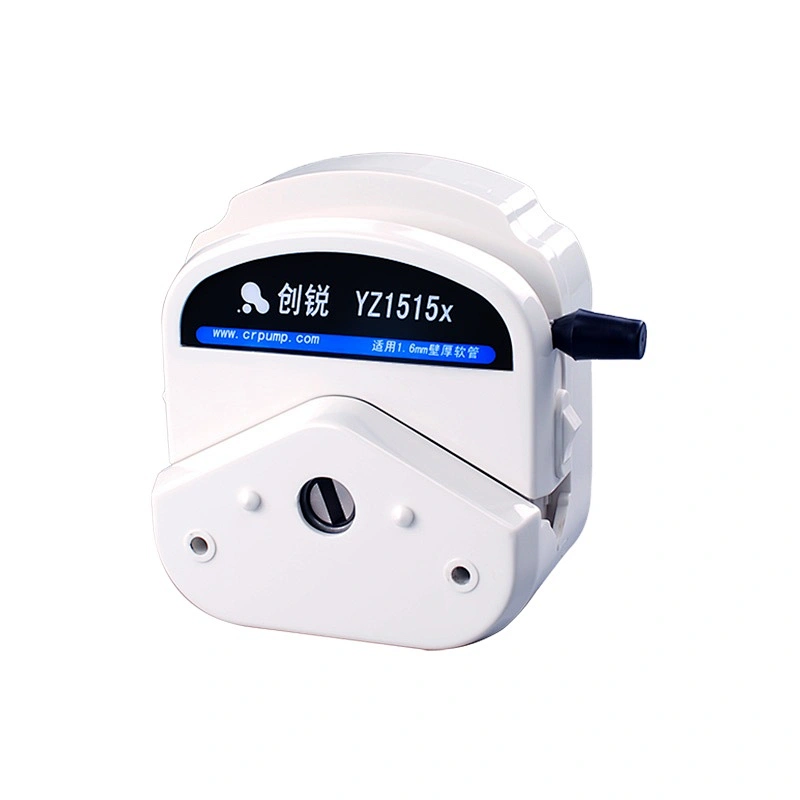

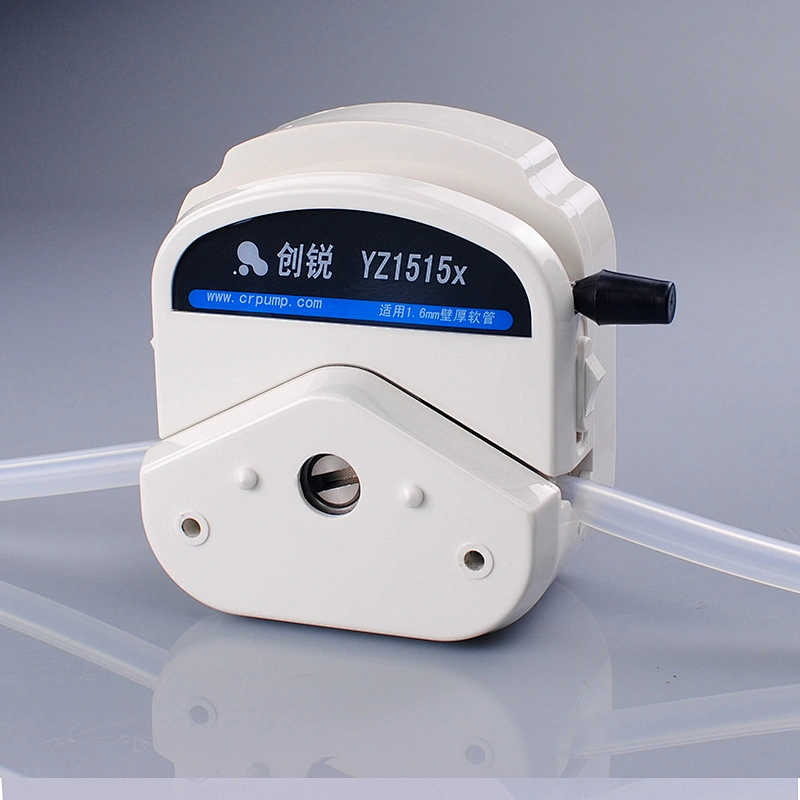

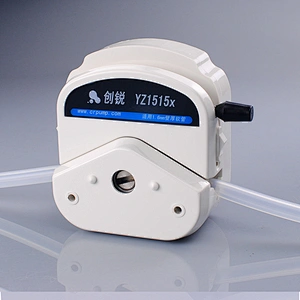

Model :YZ1515x-White

clean and easy operate

The white housing of YZ1515x type of pump head is made of Polysulfone (PSF) resin has good rigidity and toughness, high temperature resistance, heat oxidation resistance, long-term use in the temperature range of -100℃~150℃, excellent creep resistance, and corrosion resistance of inorganic acids, alkalis, and salt solutions. Resistance to ionizing radiation, non-toxic, good insulation and self-extinguishing, easy to form and process

Typical application : Medical/ Lab/ Analytical Instruments..etc.

YZ series pump heads are designed for easy-to-use peristaltic pump system. With these pump heads, tubing loading becomes very easy and fast. The pump heads can be stackable for multi-channel pumping and adapt easily to OEM applications. PPS housing of Pump head is steady, autoclavable (150℃), but organic solvent non-resistance. While PPS housing of pump head is organic solvent resistance. The rotor material is stainless steel.

Specification

Tube For pump head MODEL ; YZ1515x
Tube	ID(mm)	Wall thickness(mm)	OD(mm)	Flow rate ml/min
13#	0.8	1.6	4	0.007-42
14#	1.6	1.6	4.8	0.027-162
19#	2.4	1.6	5.6	0.051-306
16#	3.1	1.6	6.3	0.082-492
25#	4.8	1.6	8	0.17-1020
17#	6.4	1.6	9.6	0.29-1740
18#	7.9	1.6	11.1	0.38-2280

Application

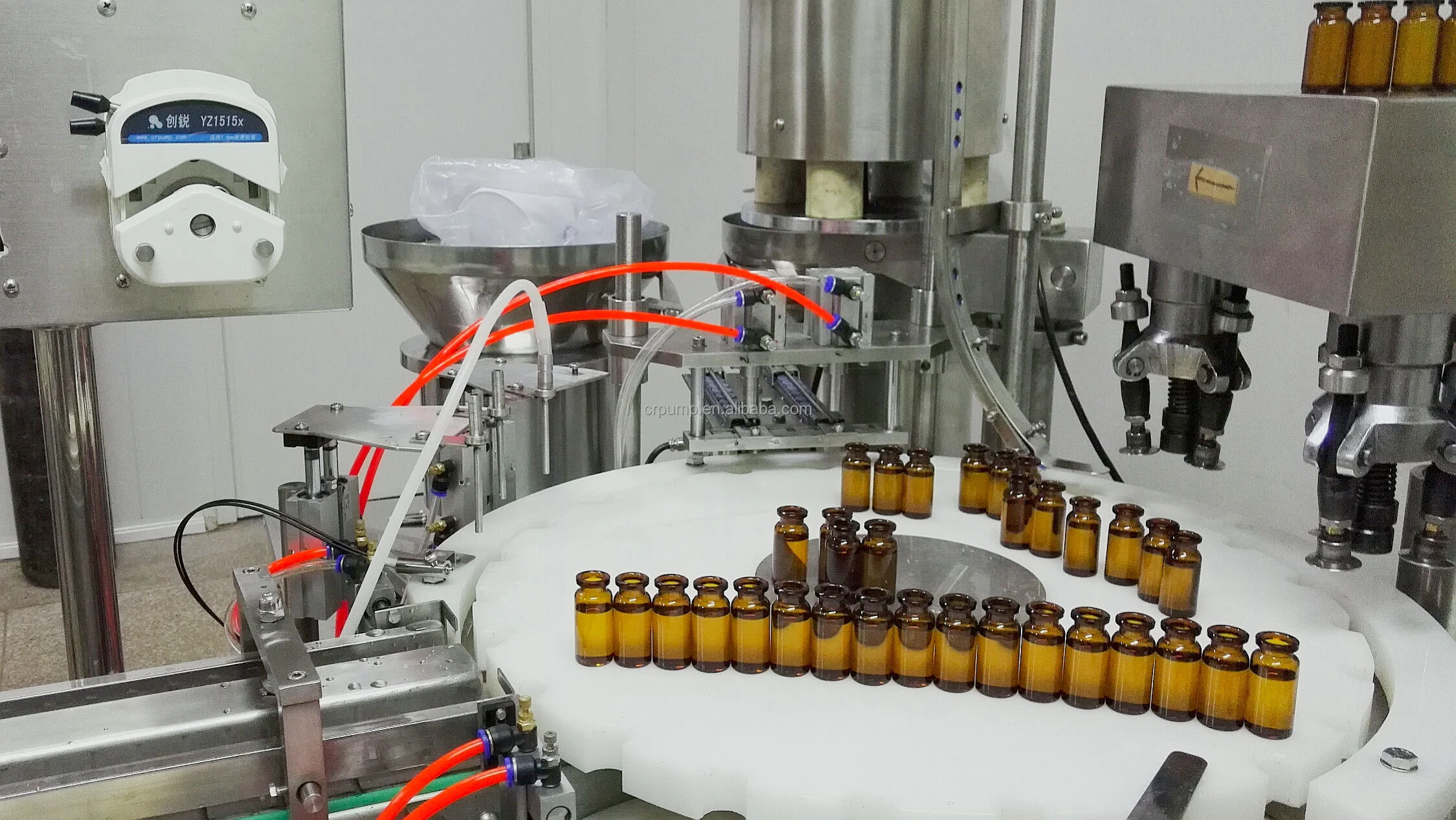

Typical application for packing machine

Features :1. Clean and pollution-free: fluid only passes through and touches the peristaltic pump hose.2. High precision: constant current, reproducibility of up to 0.5%, flow can be accurately adjusted.

Typical application for Medical flushing pump

3. Low shear force: It is an ideal tool for conveying shear sensitive and aggressive fluids.

4. Corrosion resistance: it can
transport various fluids, such as organic solvents and corrosive liquids.

Order guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact :Ella Xu

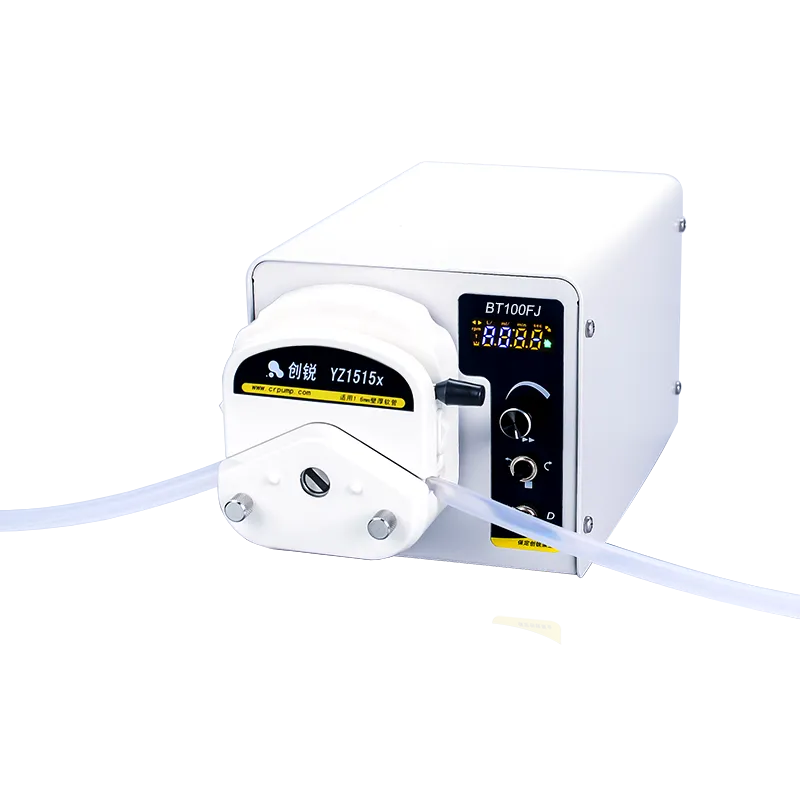

BT100FJ/YZ1515X

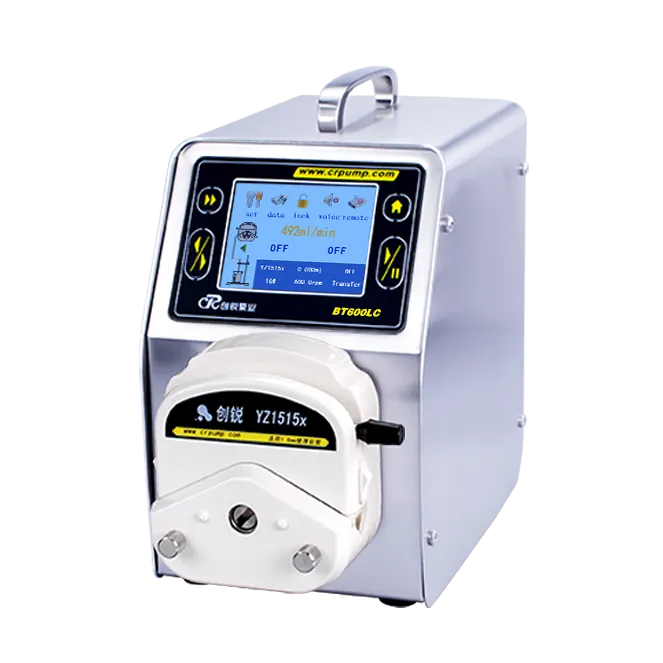

BT600LC/YZ1515

OEM208/KZ25

OEM201/YZ1515X

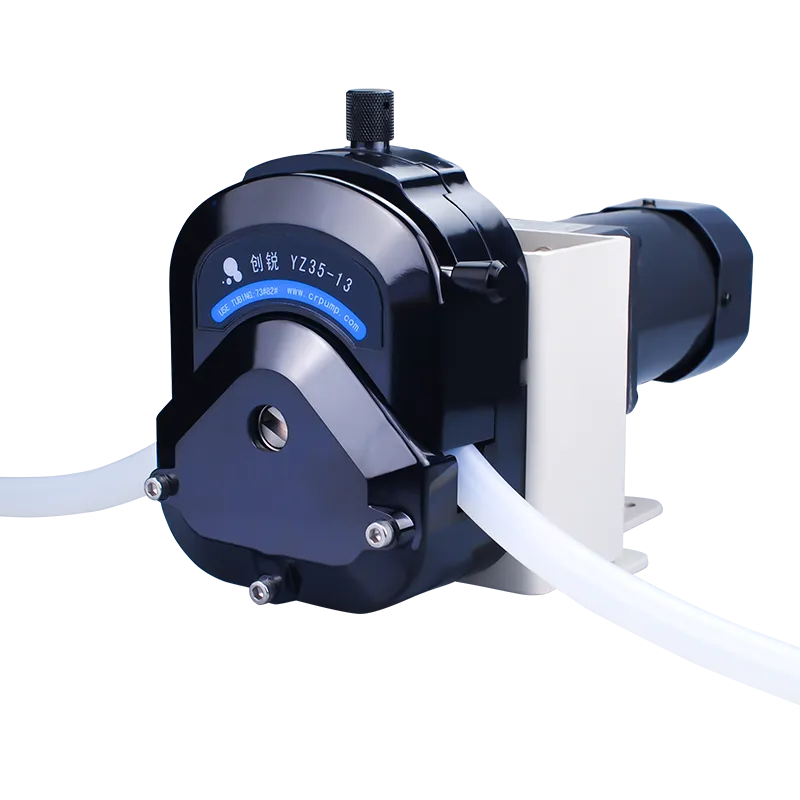

OEM200/YZ35-13

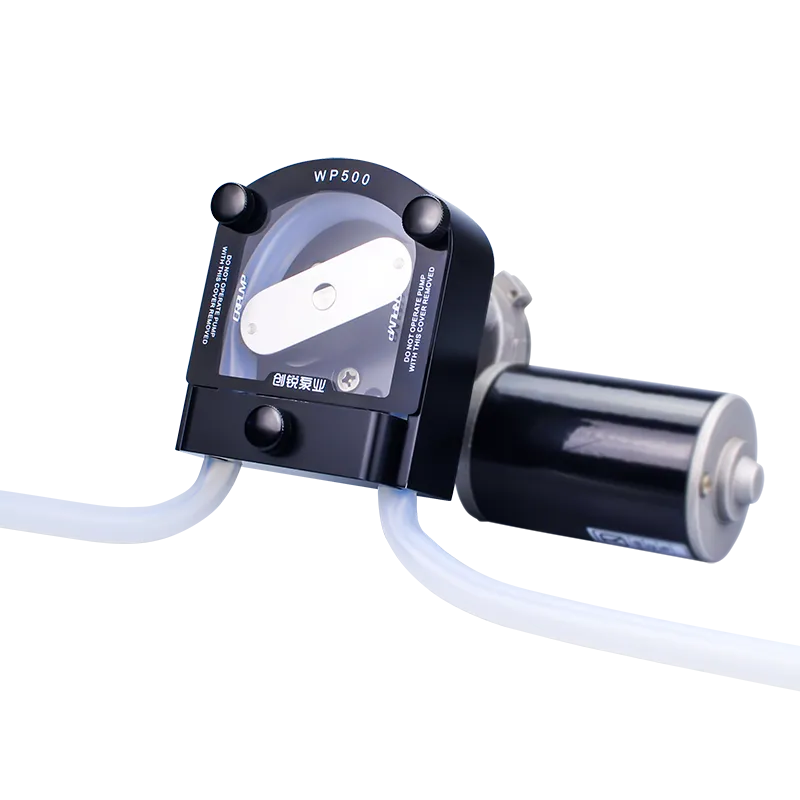

OEM210/WP500

Why choose us

Baoding chuangrui precision pump Co., Ltd Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..

We aim to"Produce CR pump to the easier life"

With 10 years professional experience of peristaltic pump/peristaltic hose pump/lab peristaltic pump/industrial peristaltic pump/peritaltic dosing pumpemical dosing pump/peristaltic filling pump/dispensing peristaltic pump/OEM peristlatic pump/ liquid transfer pump etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.

We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.Our professional team can insure fluent communication, as well as perfect after-sale serviceChuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

We often participate in a variety of trade fairs and our experience is very rich.We will certainly choose the products that meet your requirements.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

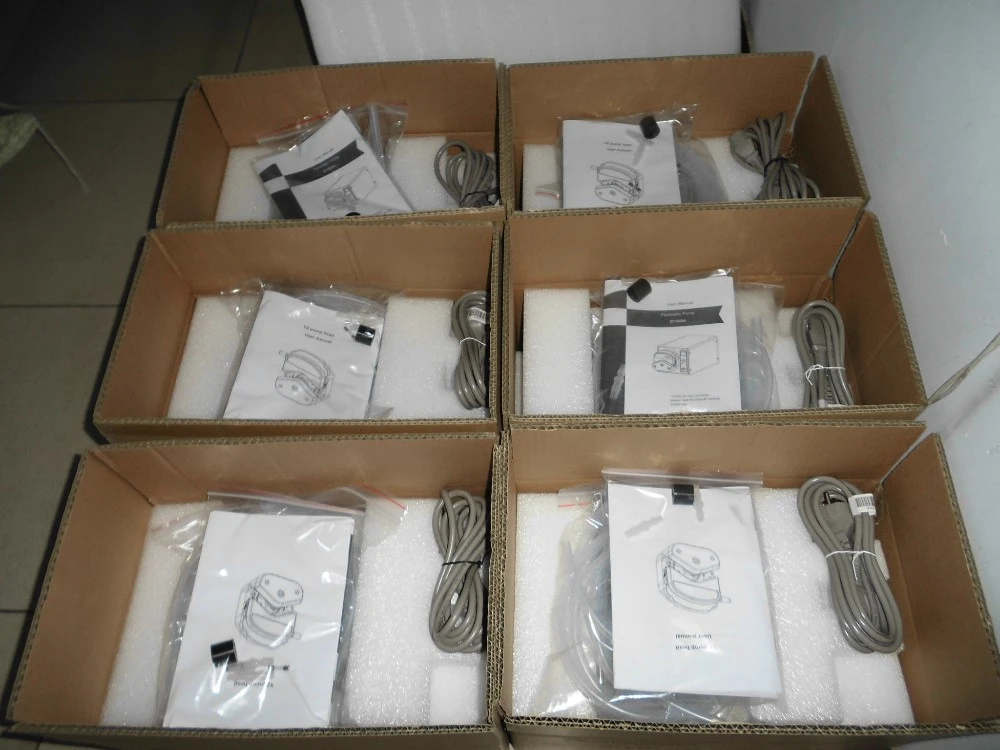

Package & Delivery
