Chuangrui High Quality Peristaltic Pump Head YZ1515X

Chuangrui High Quality Peristaltic Pump Head YZ1515X

Model NO.: YZ1515x

Quantity:

Product Description

Theory:peristaltic pump head yz1515x
Pump Housing Material:PPS
Roller Material:304 Stainless steel
Flow Rate Range:0.007~2280ml/min
Suitable Hose:13# 14# 19# 16# 25# 17# 18#
Pressure:0.14mpa
Color:black
Warranty:1 Year
Customized support:OEM
Customized support:ODM
Customized support:OBM
Application:Automotive Industry
Application:Developing World Water Solutions
Application:Food and Beverage Industry
Application:Machining
Application:Mining industry
Application:Pharmaceutical industry
Application:Washing and Cleaning
Application:Wastewater Transport and Flood Control
Application:Water Treatment Solutions
Power Source:Electric
Structure:peristaltic pump

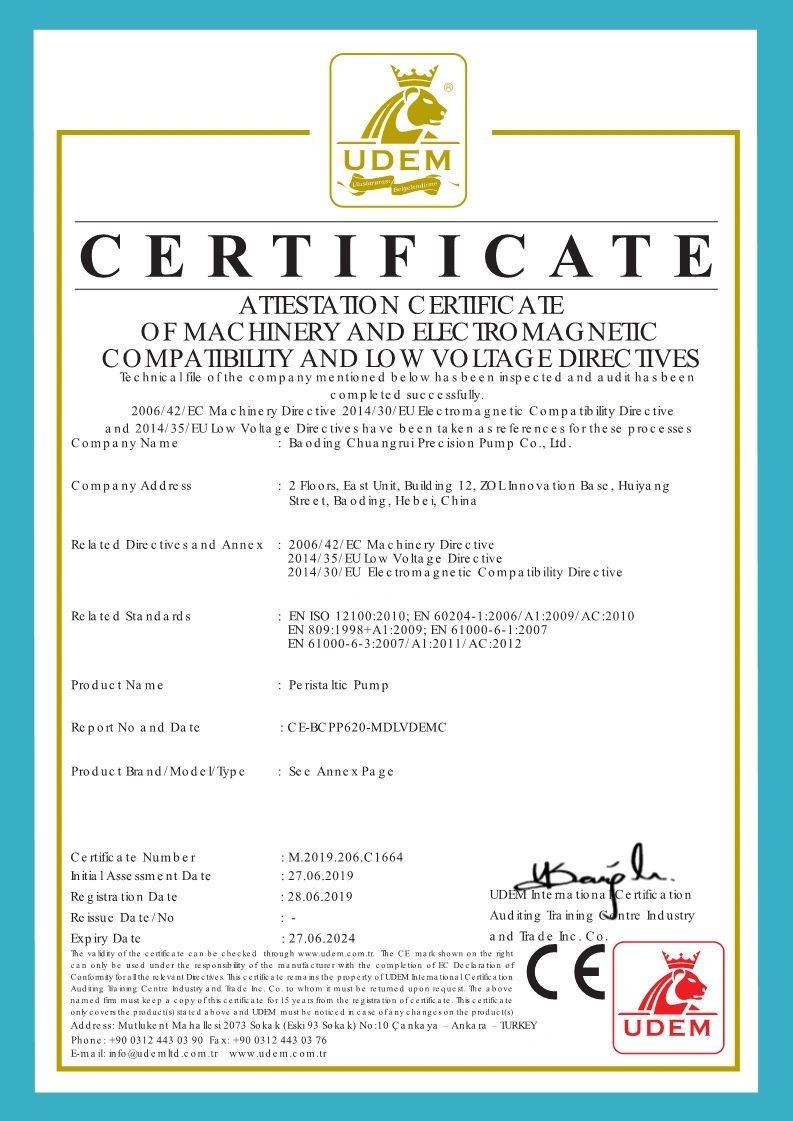

Certification:ce
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:YZ1515x
Horsepower:none
Pressure:low
Cable Length:none
Outlet Size:n
Voltage:n
Power:n

Product Description

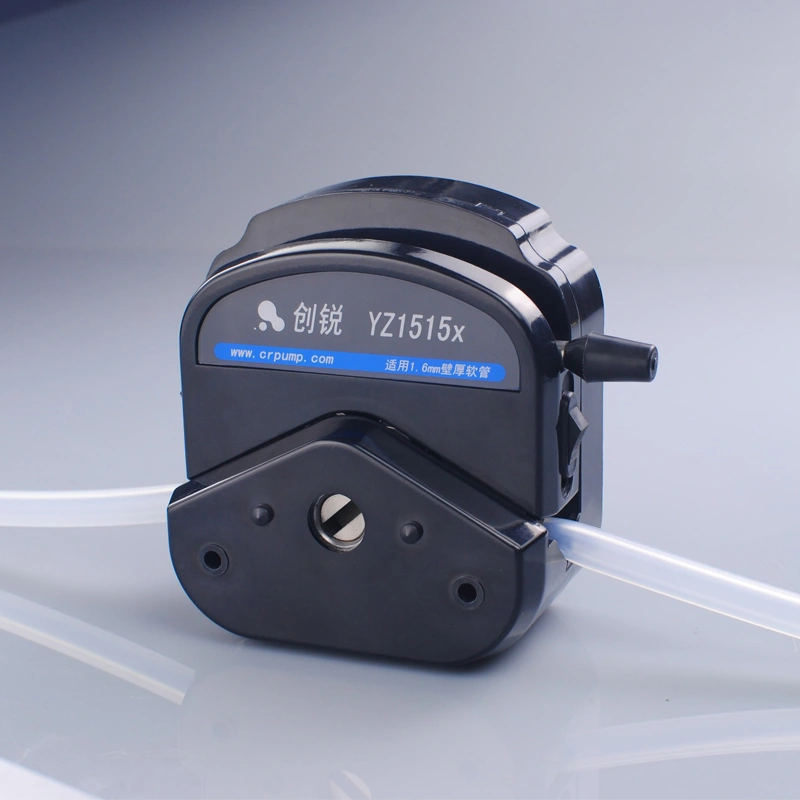

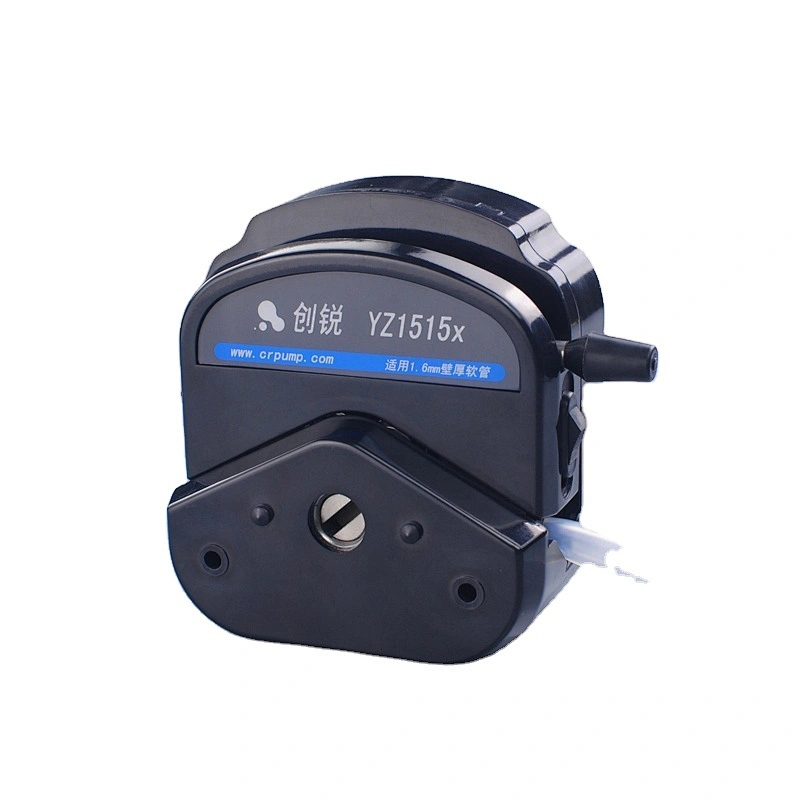

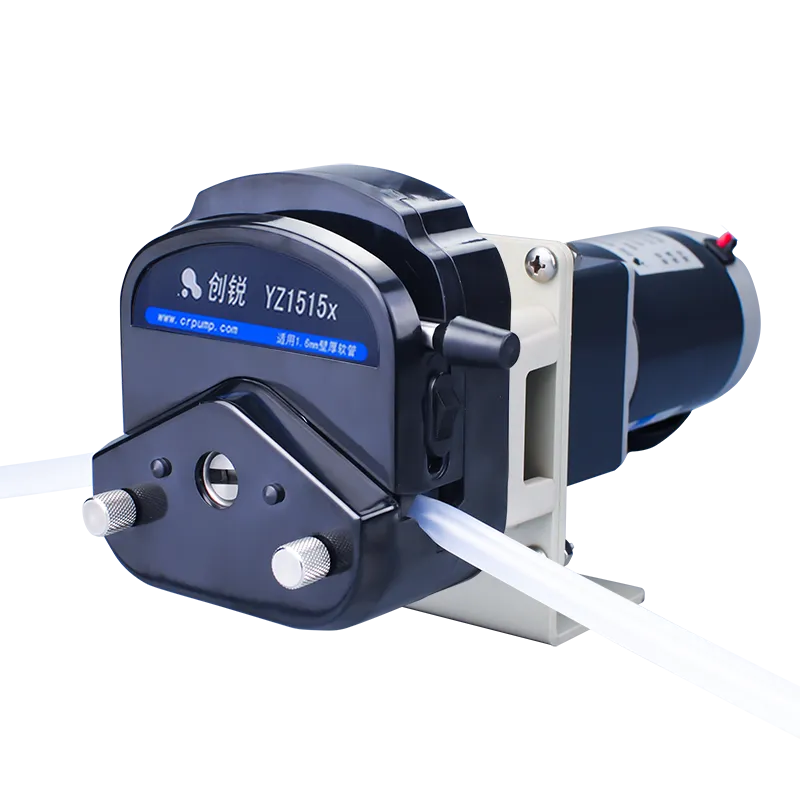

Model:YZ1515x-Black

High hardness, good heat resistance

Good corrosion resistance

The black housing of YZ1515x type of pump head is made of Polyphenylene sulfide (PPS) has excellent heat resistance, flame retardancy, insulation, high strength and hardness, excellent mechanical properties, good product dimensional stability, can be processed by a variety of molding methods, and can be precise forming. Because PPS has good affinity with inorganic fillers, reinforcing fibers and compatibility with other polymer materials, it can be made into different reinforcing filler materials and polymer alloys.

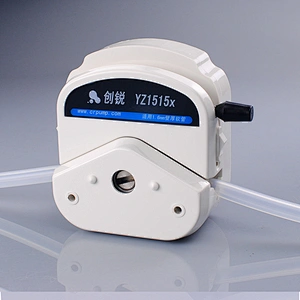

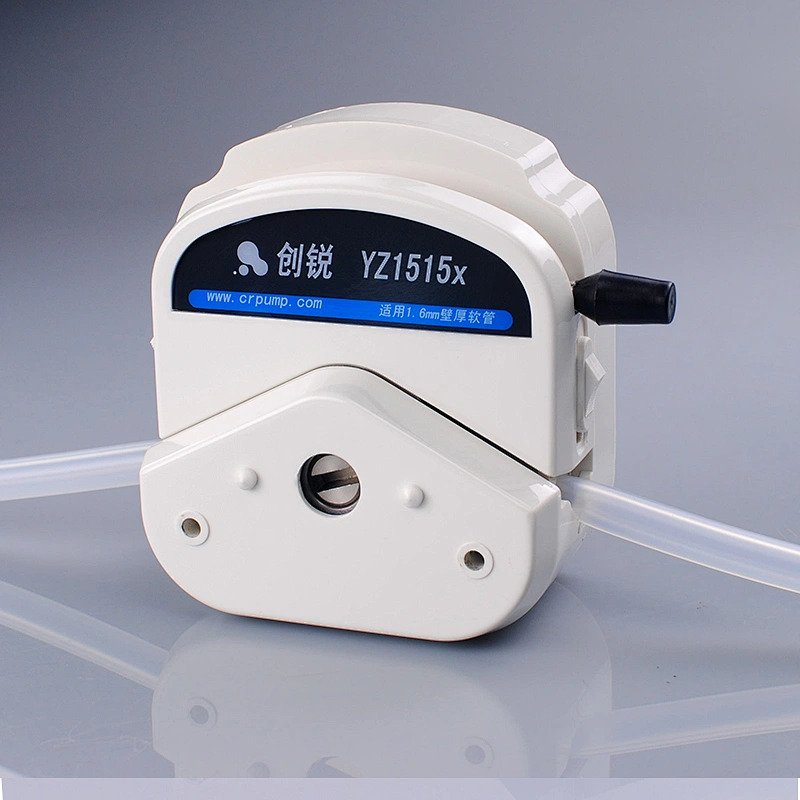

Model :YZ1515x-White

clean and easy operate

The white housing of YZ1515x type of pump head is made of Polysulfone (PSF) resin has good rigidity and toughness, high temperature resistance, heat oxidation resistance, long-term use in the temperature range of -100℃~150℃, excellent creep resistance, and corrosion resistance of inorganic acids, alkalis, and salt solutions. Resistance to ionizing radiation, non-toxic, good insulation and self-extinguishing, easy to form and process

Tube For pump head MODEL ; YZ1515x					based on speed : 100 rpm
Tube	ID(mm)	Wall thickness(mm)	OD(mm)	Flow rate ml/min
13#	0.8	1.6	4	0.007-7
14#	1.6	1.6	4.8	0.027-27
19#	2.4	1.6	5.6	0.051-51
16#	3.1	1.6	6.3	0.082-82
25#	4.8	1.6	8	0.17-170
17#	6.4	1.6	9.6	0.29-290
18#	7.9	1.6	11.1	0.38-380

Typical Application

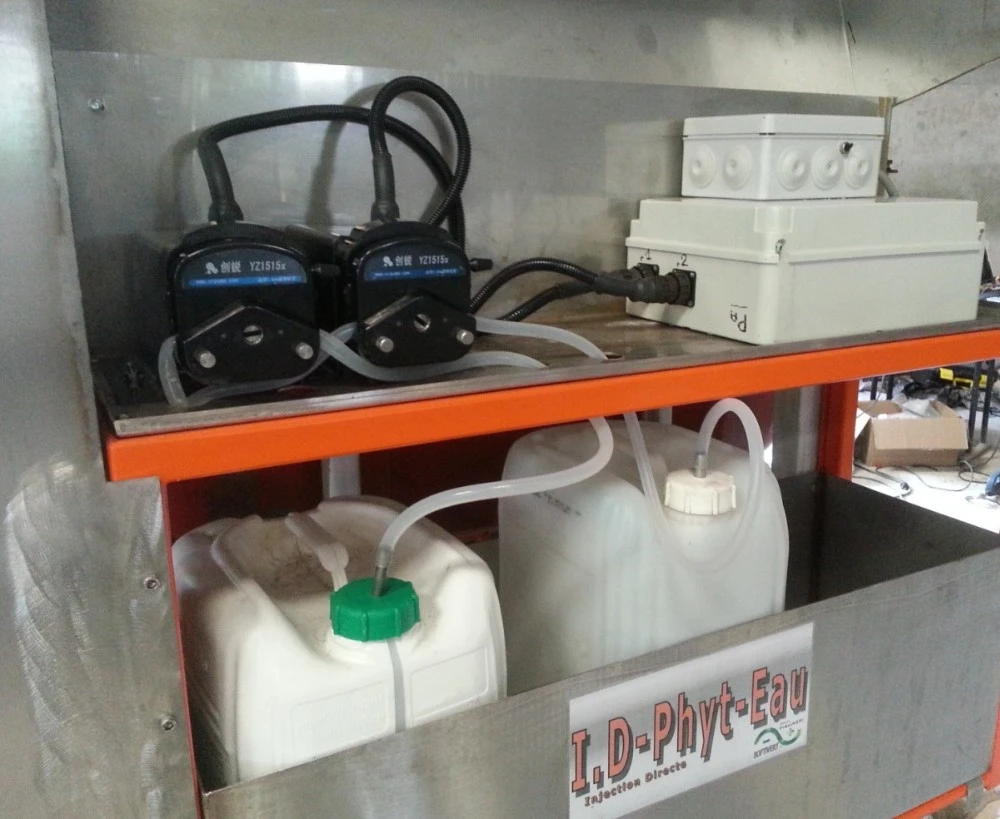

Swimming pool chlorine adding

Our customer use peristaltic pump head for chlorine adding on the swimming pool .

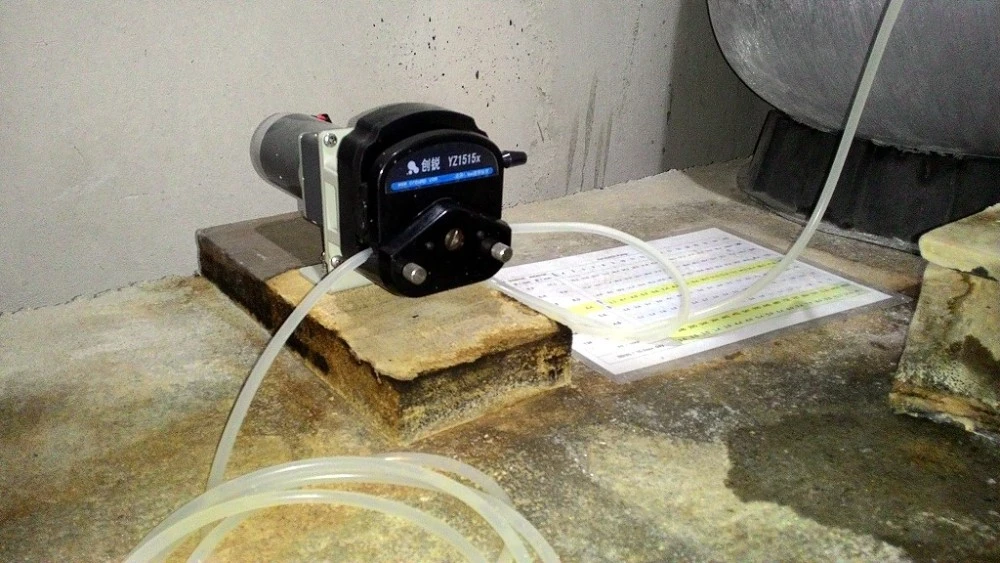

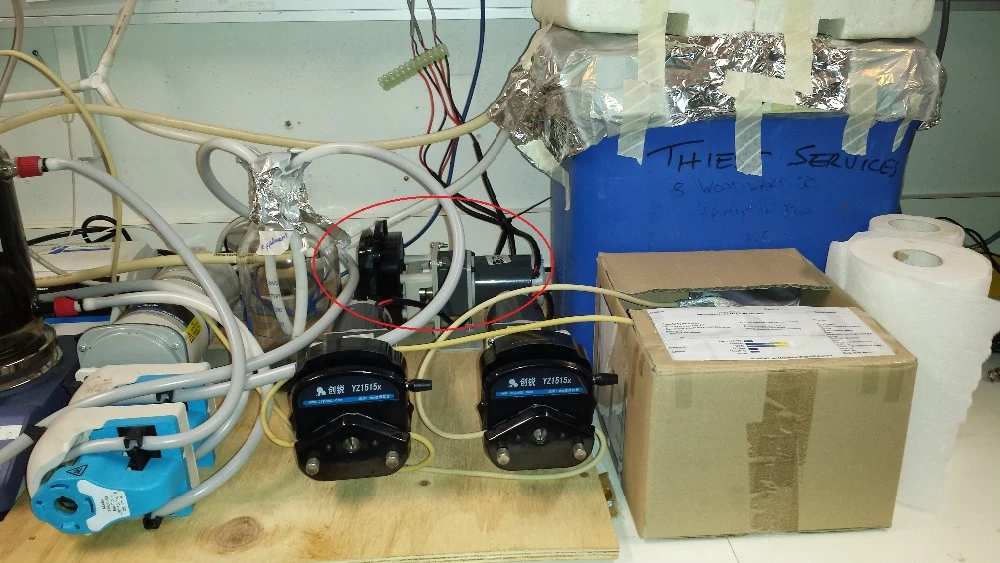

water treatment

Customer use that pump to make an machine to transfer the waste water .

Chemical transfer

With our chemical resistant tube and the pump head to transfer the chemicals .

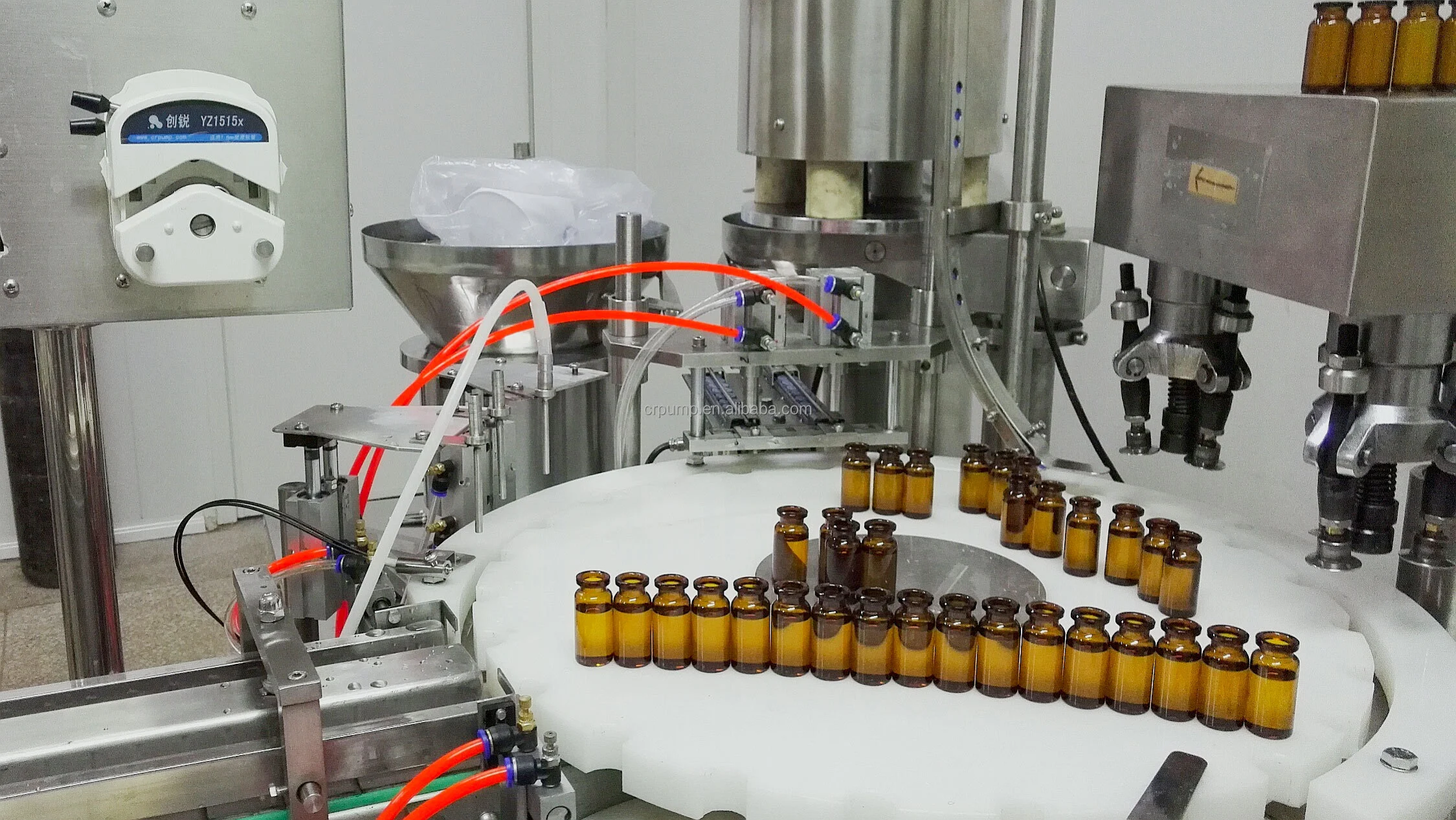

Peristaltic pump head for packing machine supporting

Because the peritaltic pump head run with silicon tube . it's widely used in the food /cosmetic /Pharmarcy packing machine .which for the liquid transfer function .

Always sell the pump head with stepper motor and driver .

More applications :

Commercial Dishwashing / Chemical Dispensing-Vending Machine / Post Mix Syrups- Beverage Dispensing / Dispense juice, chocolate, etc. Refrigeration / Condensate Removal-Analytical / Fluid Transfer, Wastes-Commercial Exercise Eqpt. / Lubrication-Grease Trap Control / Timed Dispense of Enzymes-Fluid Sampling / Water Sampling, DC Powered-Water Conditioning / Chlorination/PH control .etc.

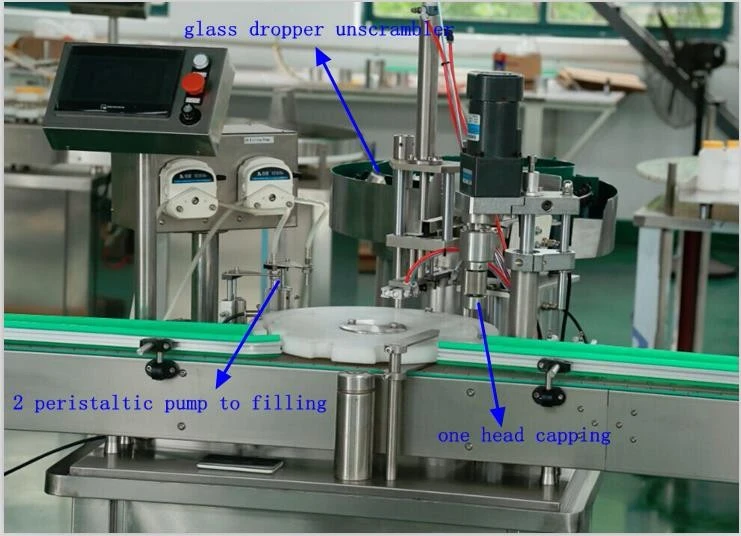

Typical application for packing machine

Features :1. Clean and pollution-free: fluid only passes through and touches the peristaltic pump hose.2. High precision: constant current, reproducibility of up to 0.5%, flow can be accurately adjusted.

Typical application for Medical flushing pump

3. Low shear force: It is an ideal tool for conveying shear sensitive and aggressive fluids.

4. Corrosion resistance: it can
transport various fluids, such as organic solvents and corrosive liquids.

Order guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact :Ella Xu

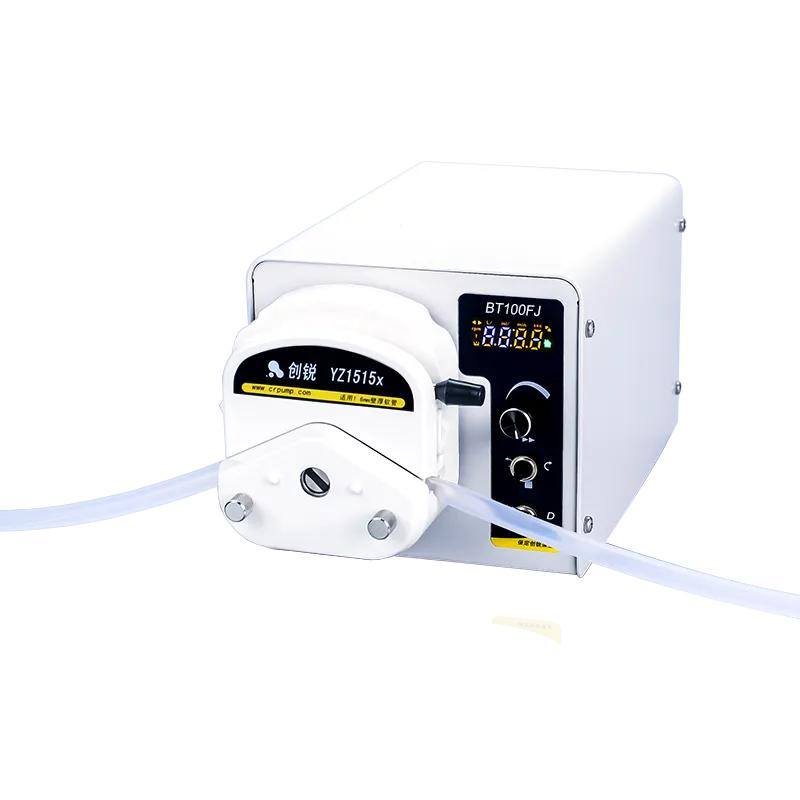

BT100FJ/YZ1515X

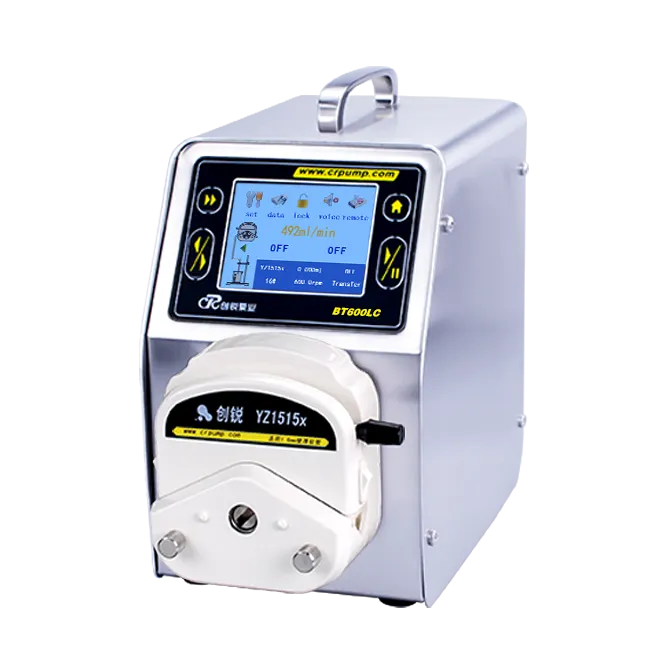

BT600LC/YZ1515

OEM208/KZ25

OEM201/YZ1515X

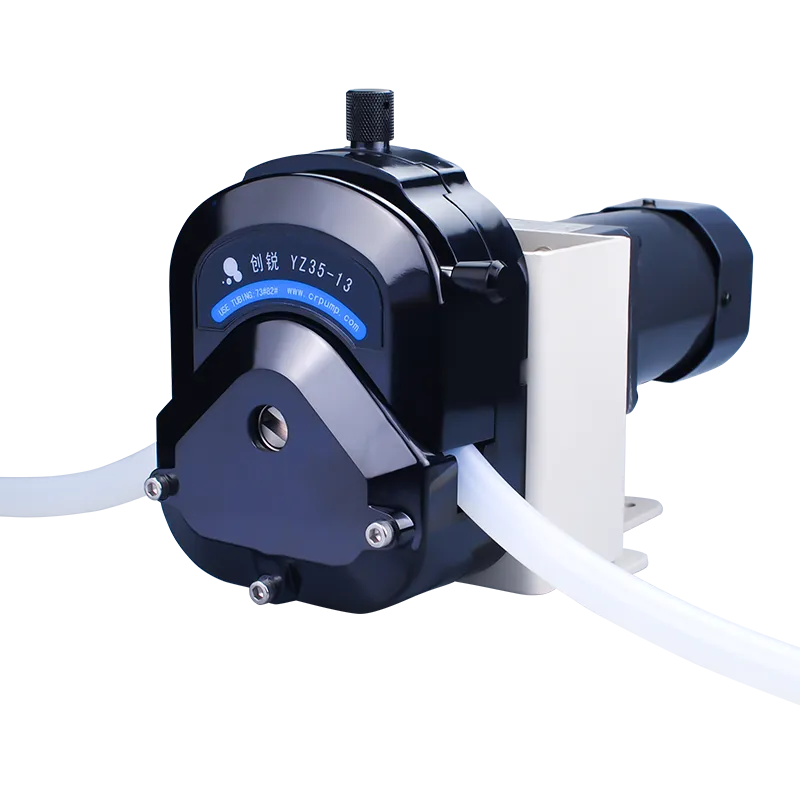

OEM200/YZ35-13

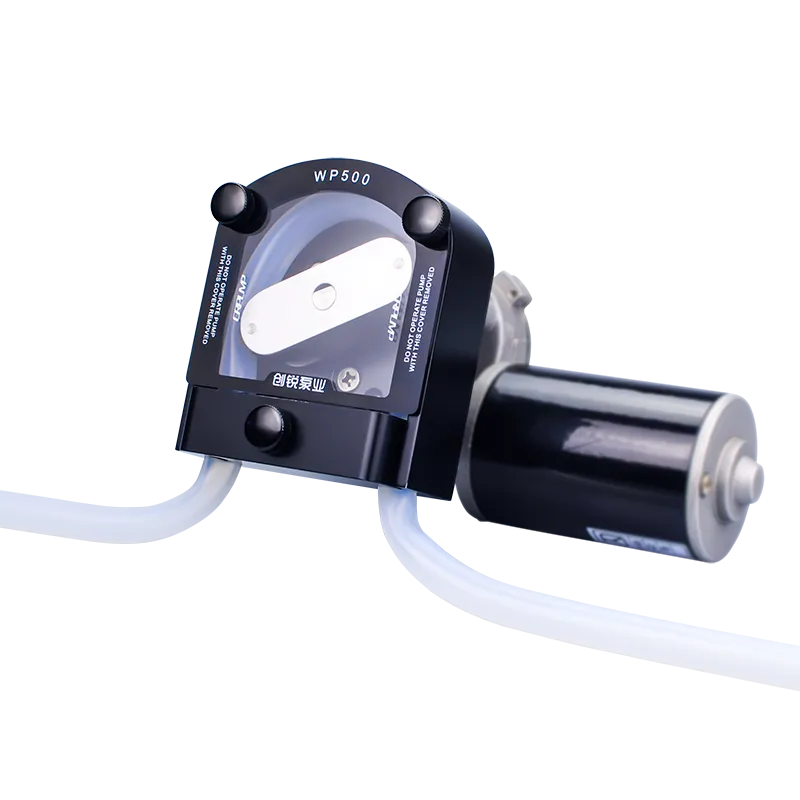

OEM210/WP500

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

About shipping

Fast and safe delivery

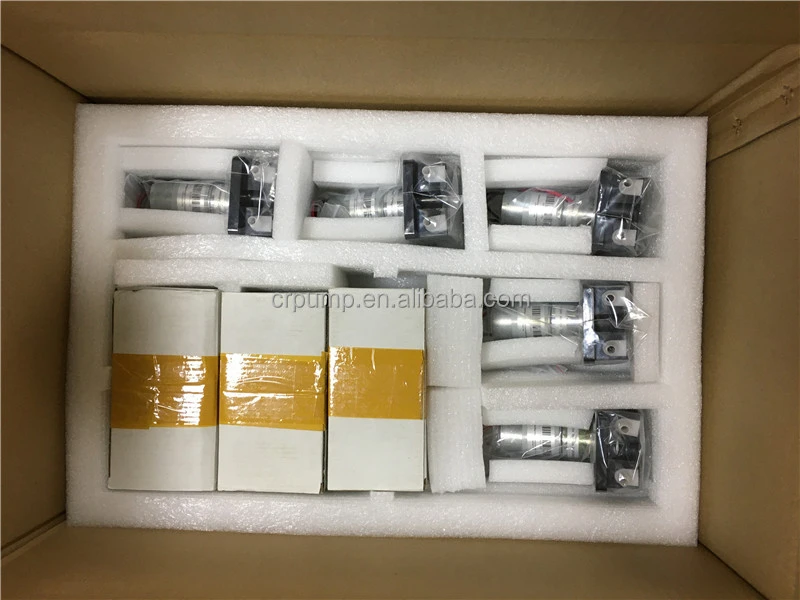

1.The package contains a peristaltic pump and its accessories.

2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3.If you have other packaging needs, please contact us in time.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
