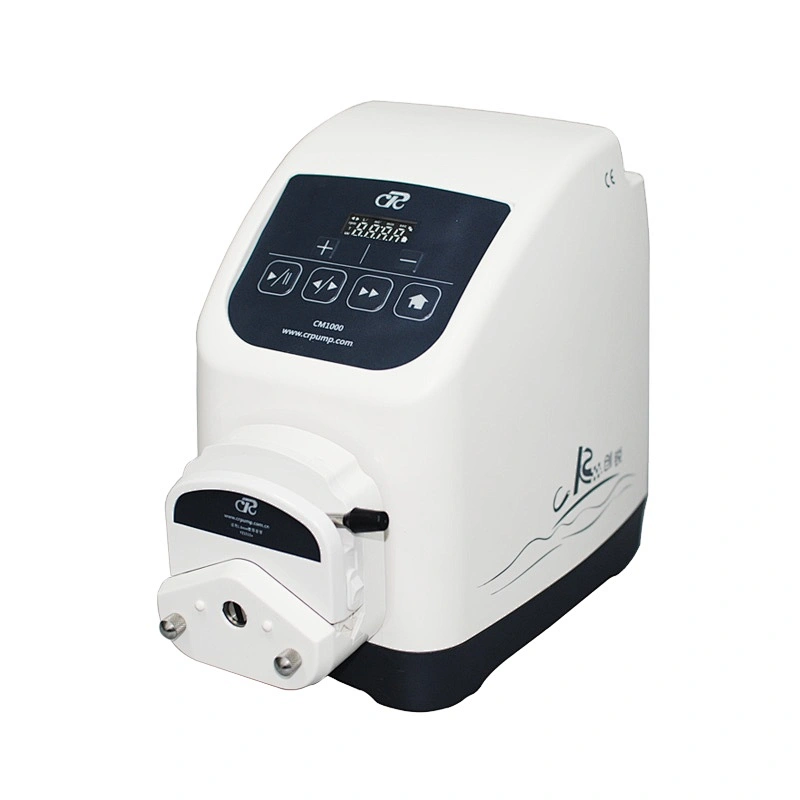

Chuangrui Laboratory Simple Operation Liquid Transfer Peristaltic Pump

Model NO.: CM1000

Quantity:

Product Description

Model:CM1000
Pump head:YZ1515X
Speed Range:0.1-100 rpm
speed resolution:0.1 rpm
Flow rate:Max 380ml/min/channel
Warranty:1 Year
MOQ:1 Piece
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:peristaltic pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:CR
Model Number:CM1000
Application:Liquid Transfer Peristaltic Pump
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 7.9mm
Voltage:AC220V or AC110V
Power:<50W
Certification:ce
Certification:ISO9001

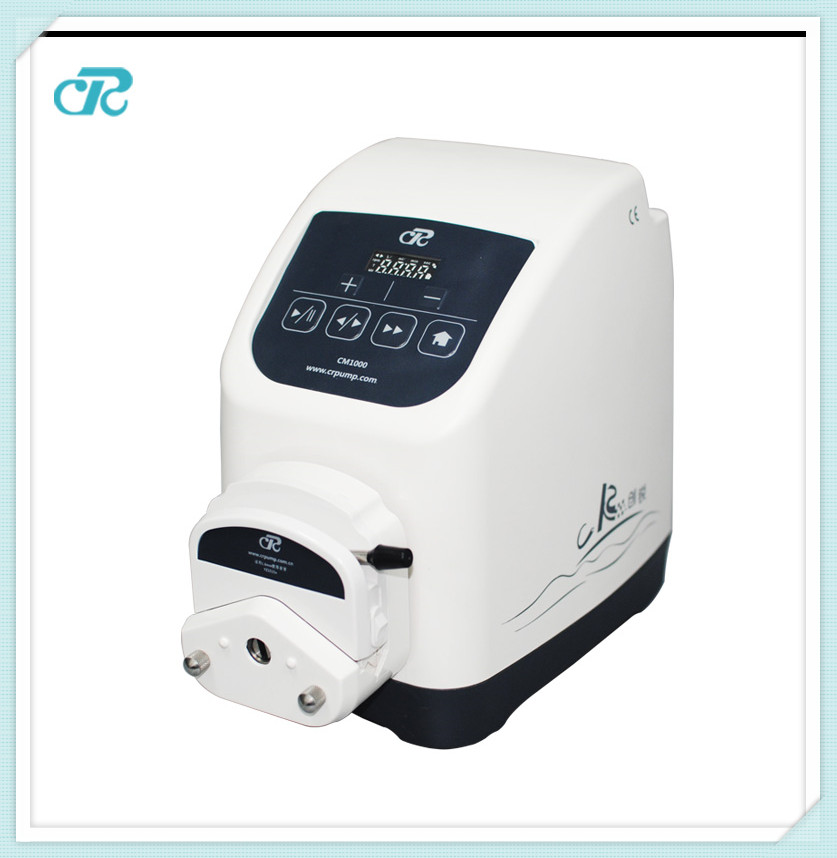

Chuangrui Laboratory Simple Operation Liquid Transfer Peristaltic Pump

Product Description

Peristaltic pump CM1000/YZ1515X Flow range is 0.007~380ml/min/channel. Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers. FULL SPEED button available for filling in & emptying out. Good capability price rate. Not suitable when used in the open air.

Parameter

Model	CM1000	Display Mode	4-LED
Speed Range	0.1-100 rpm	Control Method	button
speed resolution	0.1 rpm	Motor Type	Stepper motor
Flow range	0.007—380ml/min/channel	External control Start & stop, direction control, speed control ( Analog control :0-5v, 0-10v, 4-20mA optionl ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Environment Temperature	0-40℃
Relatively Humidity	<80%
Power consumption	<50W
Power supply	AC220V or AC110V

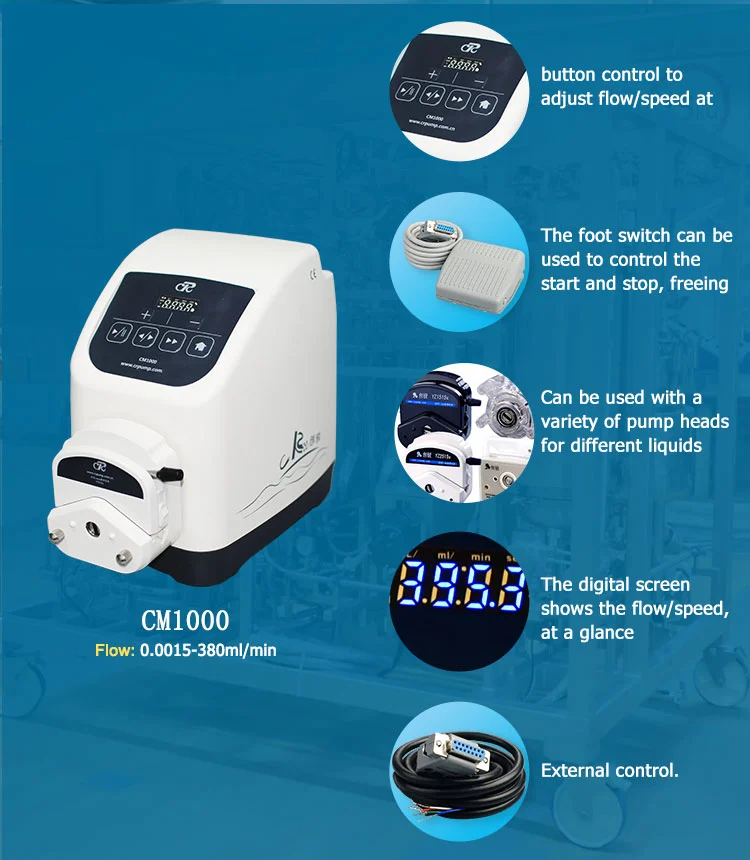

Function & Characteristics

1. With liquid calibration function to ensure the high accurancy liquid transfer.
2. With both-way large torque high power motor. It can be connected with several pump heads to meet different flow rates.
3. Long life digital rotary knob easy to operate high control precision and ensure to transfer the high precision fluid.
4. FULL SPEED button is available to fill in & empty out the tubing.
5. Memory function available in case of power off and it will continue working once the power was restarted.
6. Long-range control is available through the DB15 interface of the drive: speed control start-stop control direction control.
7. With RS485 communication interface supports MODBUS communication protocol. And communication protocols customized is available.

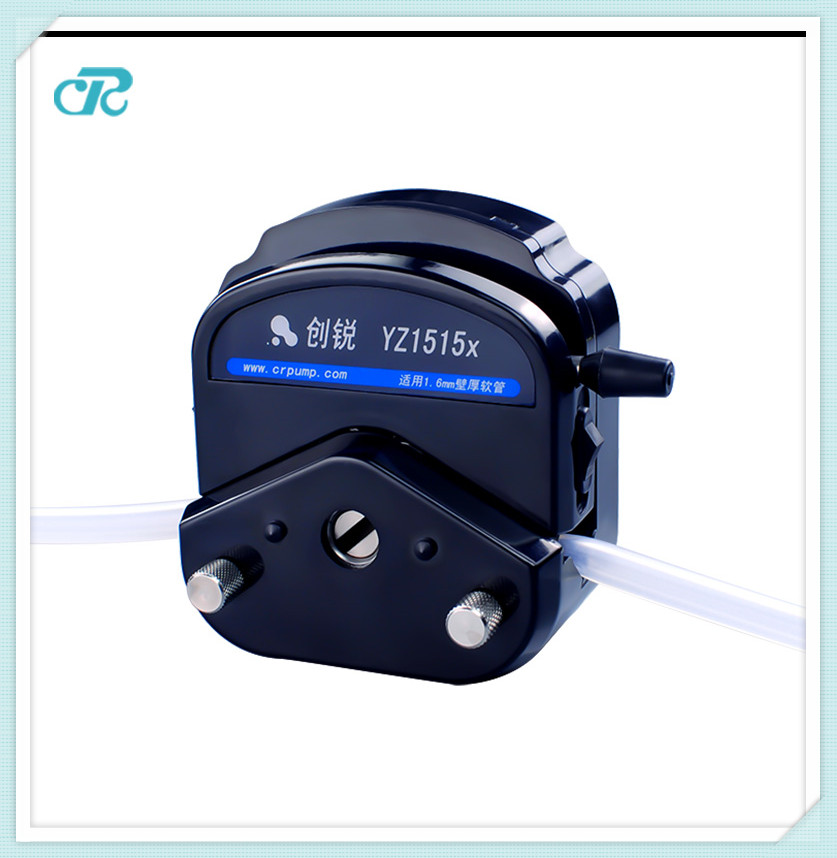

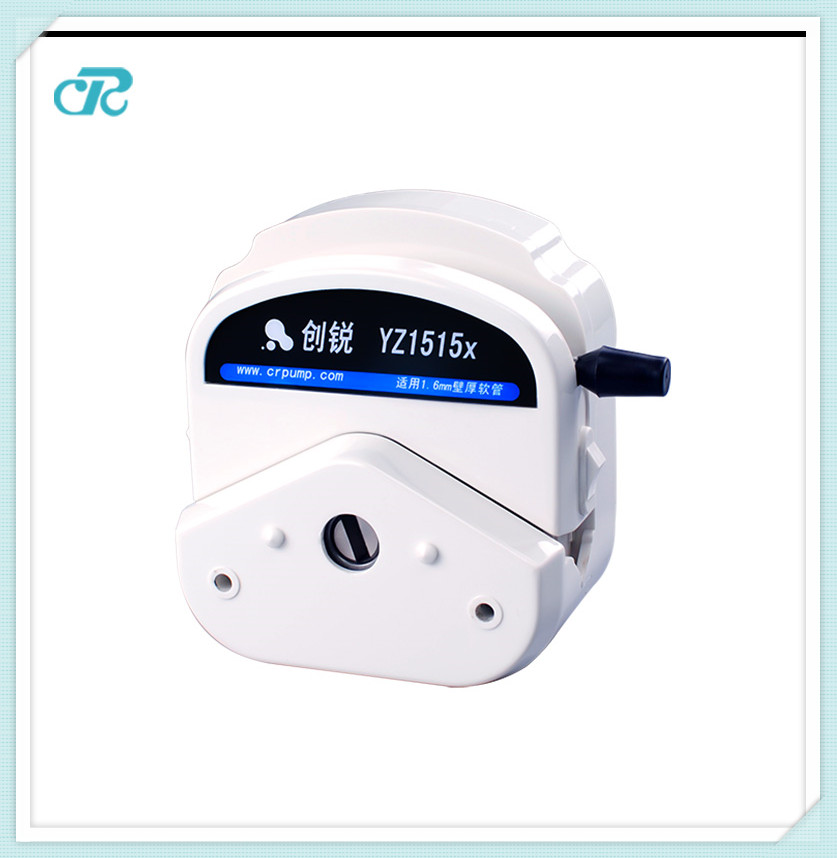

YZ1515x peristaltic pump heads are the most commonly used pump head models. The YZ1515x can be used with 7 different types of pipe diameters. The flow range is 0.007-2280 ml/min, which greatly improves the pump head usage. Kinds of laboratories, packaging machinery and medical equipment. YZ1515x can be applied to two different types of pipe diameters, the flow range is 0.17-1740 ml/min, and the hose wall thickness is 2.4mm. It is suitable for liquid transfer with slight viscosity, such as acrylic acid, water reducing agent, flocculant, etc. The pump head shell is made of PESU/PPS material. The strength and corrosion resistance of the shell are strong. The classic structure design, simple operation mode and 304 stainless steel roller design can prolong the life of the pump head.

Pump head	Tube	ID(mm)	Wall thickness	Speed	Flow rate
Pump head	Tube	ID(mm)	(mm)	(rpm)	(ml/min)
YZ1515x	13#	0.8	1.6	0.1-600	0.007-42
	14#	1.6	1.6	0.1-600	0.027-162
	19#	2.4	1.6	0.1-600	0.051-306
	16#	3.1	1.6	0.1-600	0.082-492
	25#	4.8	1.6	0.1-600	0.17-1020
	17#	6.4	1.6	0.1-600	0.29-1740
	18#	7.9	1.6	0.1-600	0.38-2280
YZ2515x	15#	4.8	2.4	0.1-600	0.17-1020
YZ2515x	24#	6.4	2.4	0.1-600	0.29-1740

Order Guide

Dear All ,

Welcome to our website ,we are peristaltic pump manufacturer .wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable peristaltic pump. could you help me to confirm some details as below :

1,what's the application of the peristaltic pump ? bottle filling pump orconstant transfer pump?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best peristaltic pump and silicon tube .

Thanks for your time .

Ella Xu

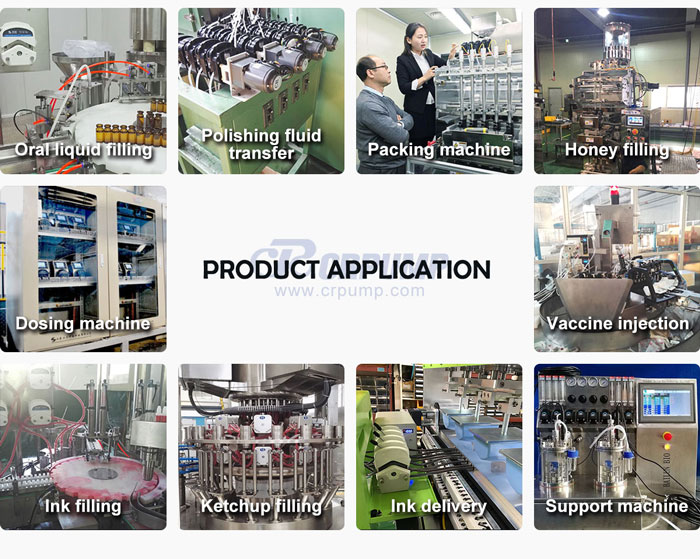

Application

Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; biopharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.
