Speed range: 0.1-300 rpmFlow range : 0.007-1140ml/min/channelMax Number of Channel: 2Power supply: AC110V or AC220V Basic type liquid constant peristaltic pump with Flow reversibleMetal housing with anti-corrosion paint treatment, prolong pump life time.Good electromagnetic compatibility, ensure stable and reliable operationCE certified product based on request.
- Model:BT300M
- Pump head:YZ1515x*2
- Speed Range:0.1-300 rpm
- Speed resolution:0.1 rpm
- Flow rate:0.007- 1140ml/min/channel

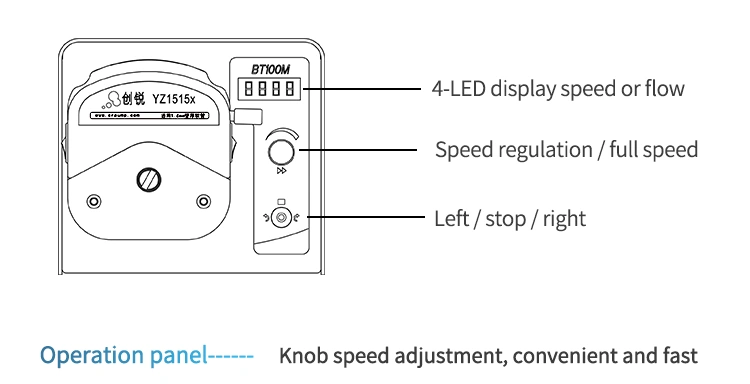

- Display Mode:4-LED
- Control Method:Knob
- Warranty:1 year
- MOQ:1 set
- Customized support:OEM
- Customized support:ODM
- Customized support:OBM
- Application:Food and Beverage Industry
- Application:Machining
- Application:Metal and Equipment Manufacturers
- Application:Mining industry
- Application:Pharmaceutical industry
- Application:Washing and Cleaning
- Application:Wastewater Transport and Flood Control
- Application:wastewater treatment
- Application:Water Distribution
- Application:Water Treatment Solutions
- Power Source:Electric
- Structure:peristaltic pump
- Place of Origin:CN;HEB
- Warranty:1 year
- Brand Name:ChuangRui
- Model Number:BT300M/2*YZ1515x
- Horsepower:<50w
- Pressure:low
- Cable Length:none
- Outlet Size:Max 7.9mm
- Voltage:AC220V or AC110V
- Power:<50W
- Certification:ce

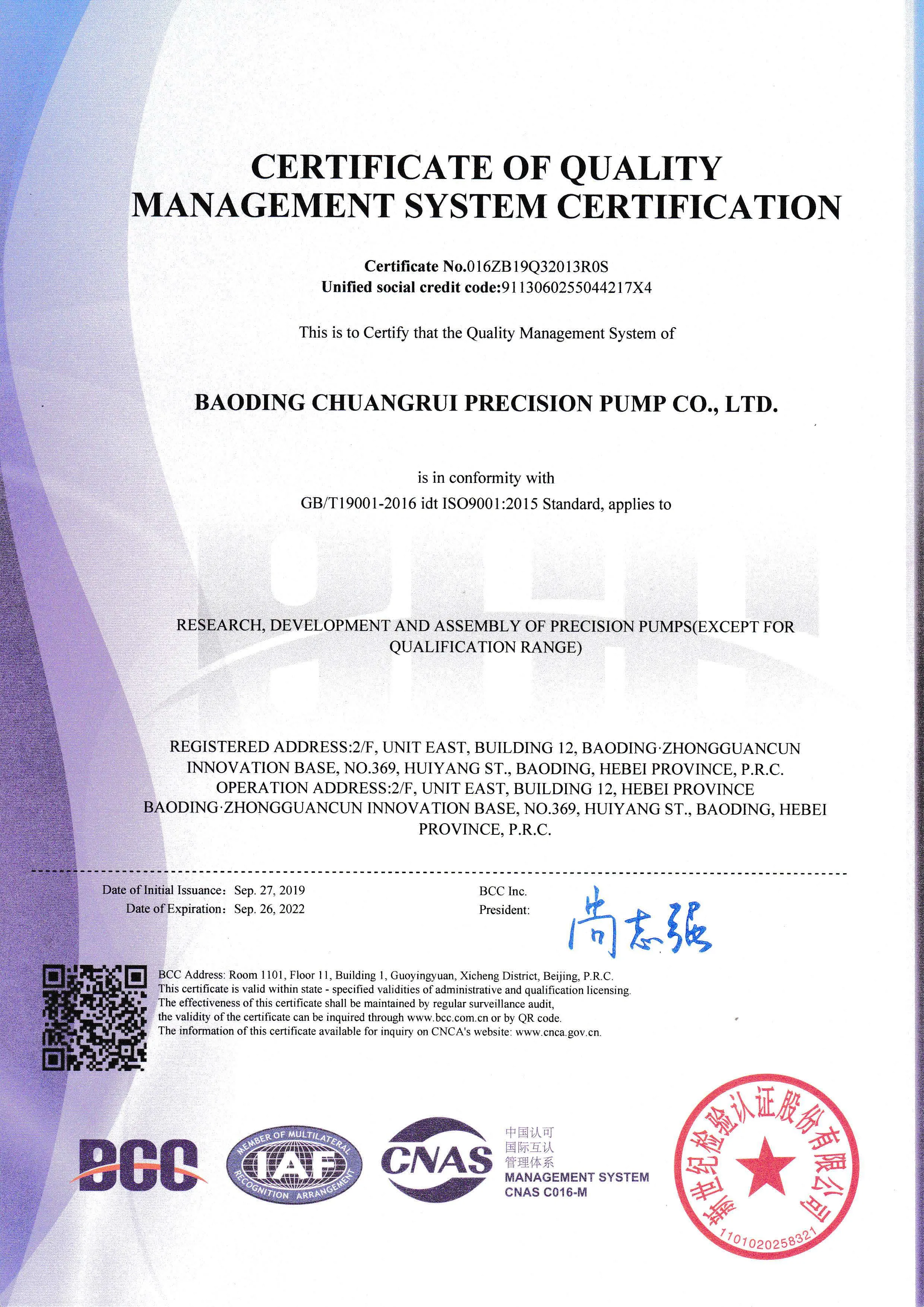

- Certification:ISO9001
Product Description

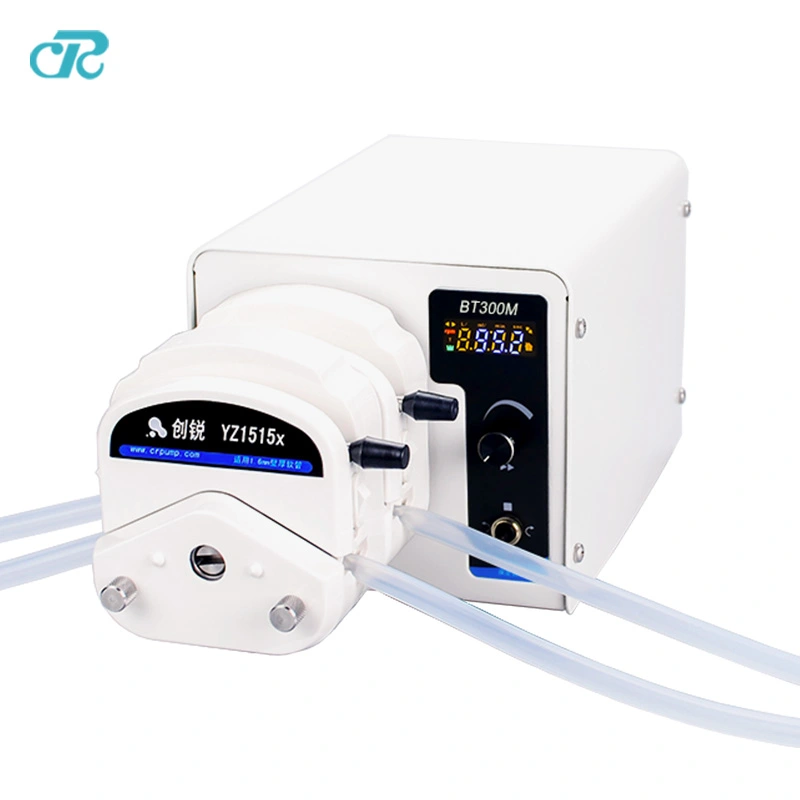

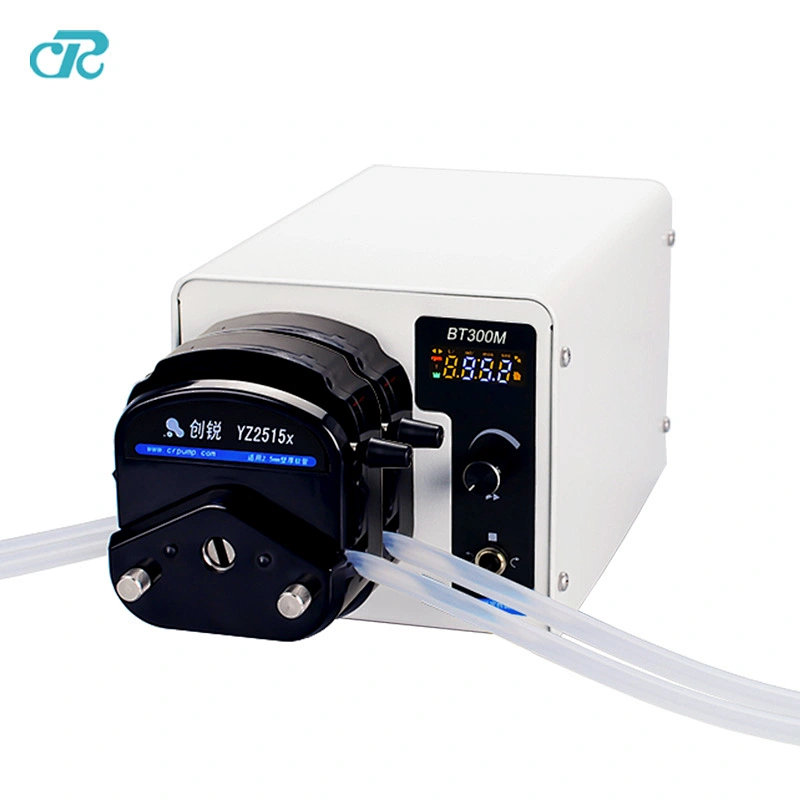

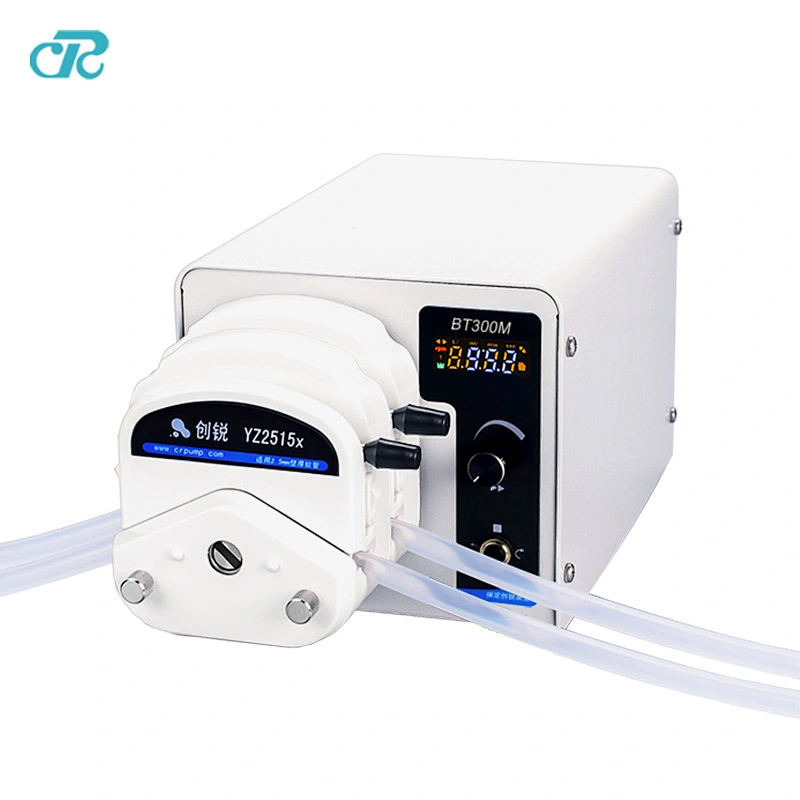

Model: BT300M/YZ1515x

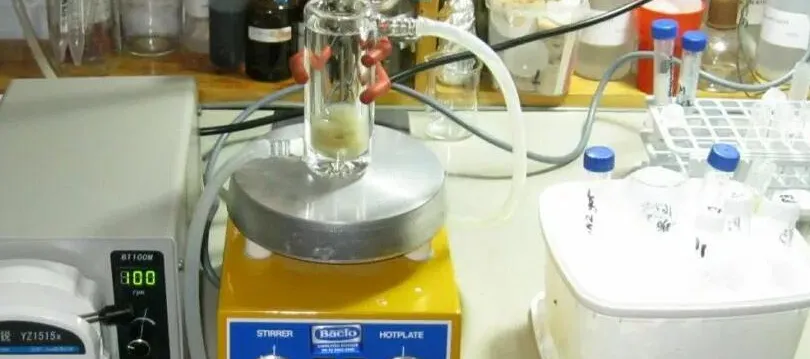

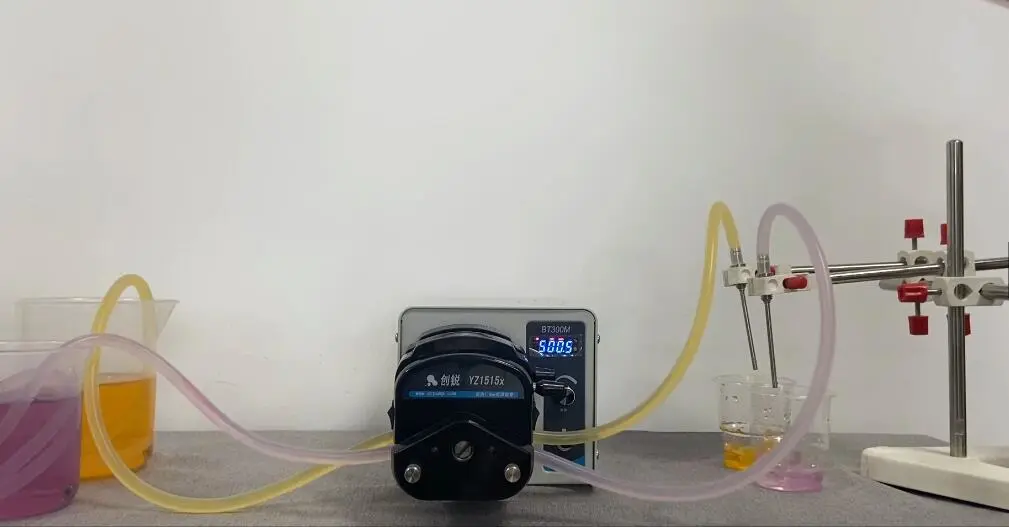

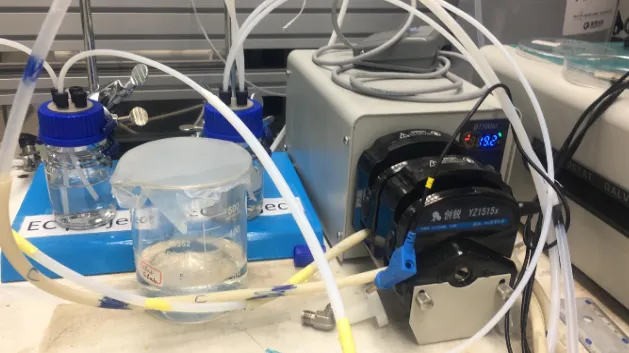

Peristaltic pump application 1 Lab
Peristaltic pump application 1 Lab
Basic peristaltic pump BT300M is widely used as a chemical peristaltic pump and perfusion pump, with a max flowrate 1140ml/min/channel, the intuitive display and simple operation have been loved by many customers.As a medium peristaltic pump, a variety of tubs can be installed to meet the needs of different flow rates, portable peristaltic pump, the shell can be added with brackets, tool racks, etc.Multiple pump heads can be connected in series to achieve multichannel peristaltic pumps. the super high performance is destined to become one of the most popular models.
Parameter Model : BT300M/YZ1515x *2 Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program. | ||
Model | BT100M/YZ1515x | |
Speed | 0.1-300rpm | |
Speed resolution | 0.1rpm | |
Flow rate | 0.007-1140ml/min/channel | |

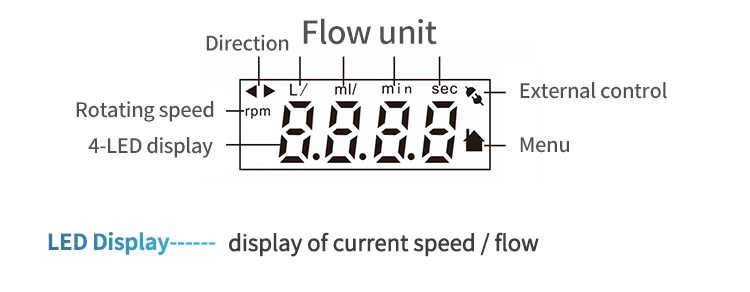

Display | 4-LED display | |
Speed control model | Rotary encoded switch control speed | |
Power supply | AC220V±10%(standard) or AC110V±10%(optional) | |
Flow accuracy | ≤±0.5% | |
External control | Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional ) | |
Communication interface | RS232 and RS485, support MODBUS protocol mode | |
IP rate | IP31 | |
Power | <35W | |
Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance. | ||||||||
Tube model | ID(mm) | OD(mm) | Standard material | Flow with 300 rpm(ml/min/channel) | ||||
18# | 7.9 | 11.1 | Silicon tube | 1140 | ||||
17# | 6.4 | 9.6 | Silicon tube | 870 | ||||
25# | 4.8 | 8 | Silicon tube | 510 | ||||
16# | 3.2 | 6.4 | Silicon tube | 246 | ||||
19# | 2.4 | 5.6 | Silicon tube | 153 | ||||
14# | 1.6 | 4.8 | Silicon tube | 81 | ||||
13# | 0.8 | 4 | Silicon tube | 21 | ||||

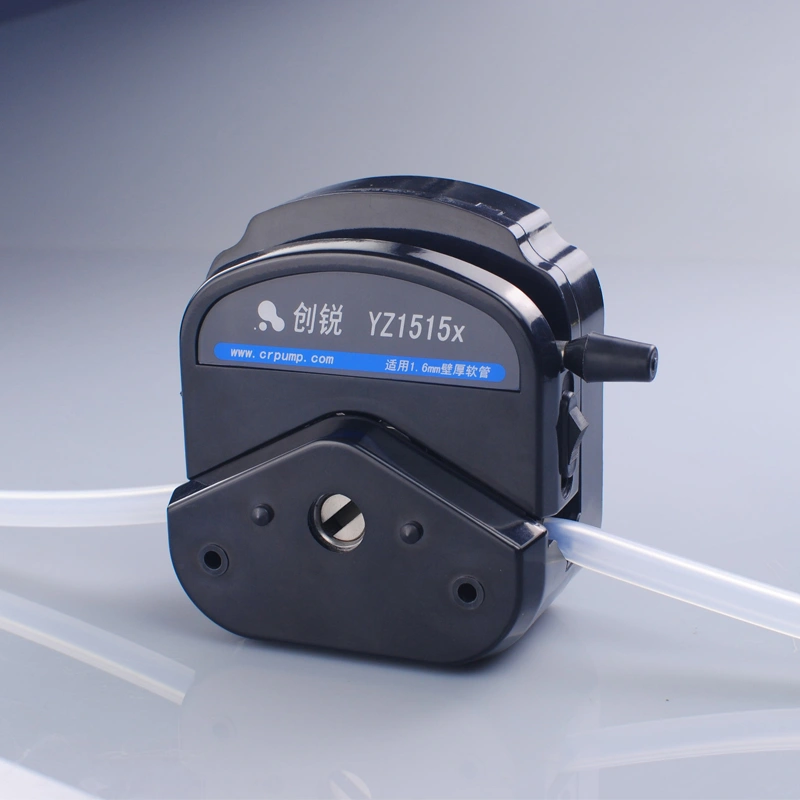

Pump head with PPS material (Black)

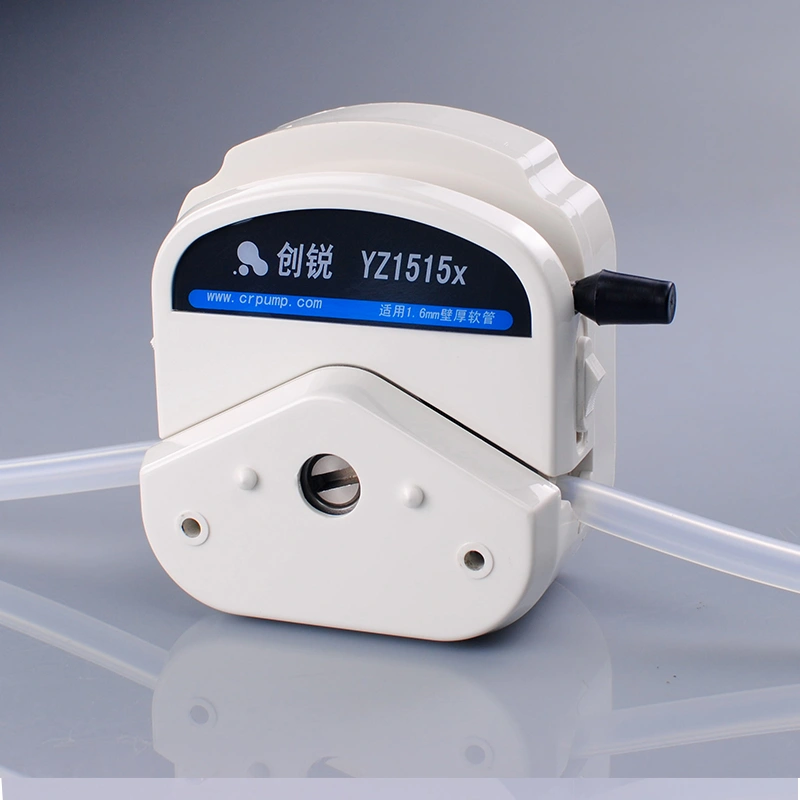

Pump head with PSF material (White)
Why choose this model for your application?
1, Easy operate only need to power on, then you can use it 2, Easy load pump head, you can install and change the tube fast.3, If you want to change the flow, only need to rotate the control knob on the panel.4, Easy to control the direction by the switch on the panel5, 4-Led display the current speed and work status6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.
Order guide
How to choose the suitable pump for your application ?Can you first to confirm some details as below :
1, What’s Flow rate you need ? ( )ml/min 2, How many channels you need?( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )
Noted: The defaulted model we will send is 300MB22 or 300MB12. | |||||||||
Order number | Model | Pump head | Power supply | Channel number | Flow range with 18#tube | ||||
300MB21 | BT300M | YZ1515x(black) | AC220V | 1 | 0.38-1140ml/min/channel | ||||
300MB11 | OEM201-1 | AC110V | 1 | ||||||
300MB22 | OEM201-1 | AC220V | 2 | ||||||
300MB12 | OEM201-1 | AC110V | 2 | ||||||
Packing list | ||
1 | Pump :BT300M/2*YZ1515x(black) | |
2 | Silicon tube: 18# 4 meters | |
3 | Power plug | |
4 | User manual | |
Weight | 7KG | |
CTN MEAS | 39*25*25CM | |
Related Product

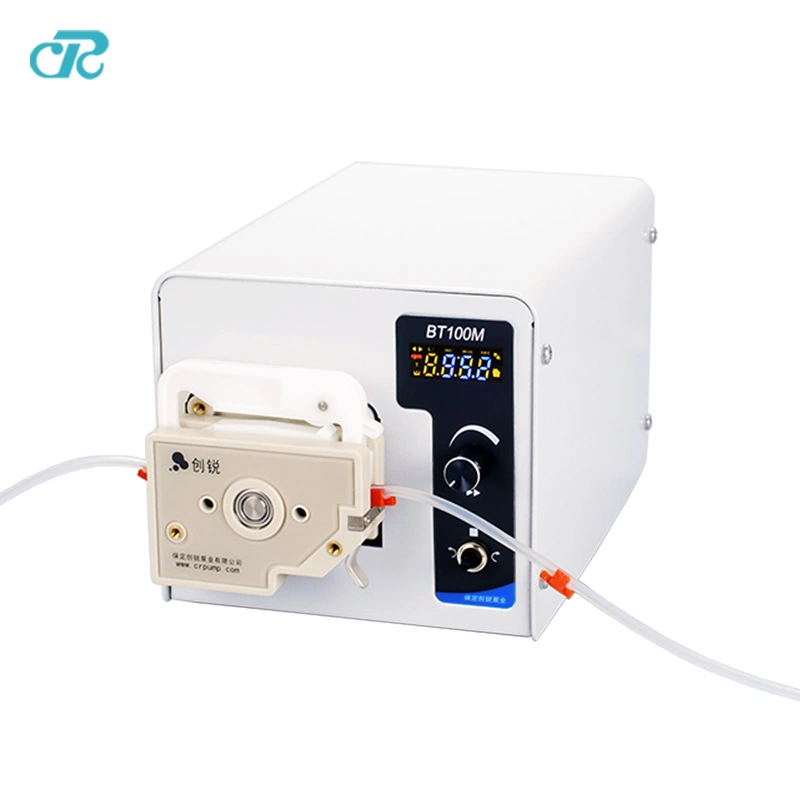

Model:BT100M/DG
Channel: 1-12
Flow range: 0.002-36ml/min/ channel

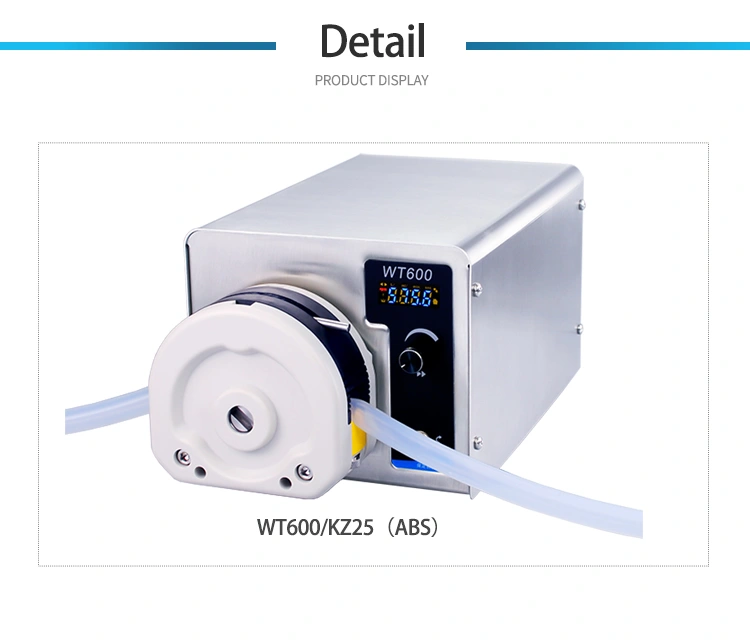

Model:WT600/KZ25
Channel: 1-2
Flow range:10-6000 ml/min

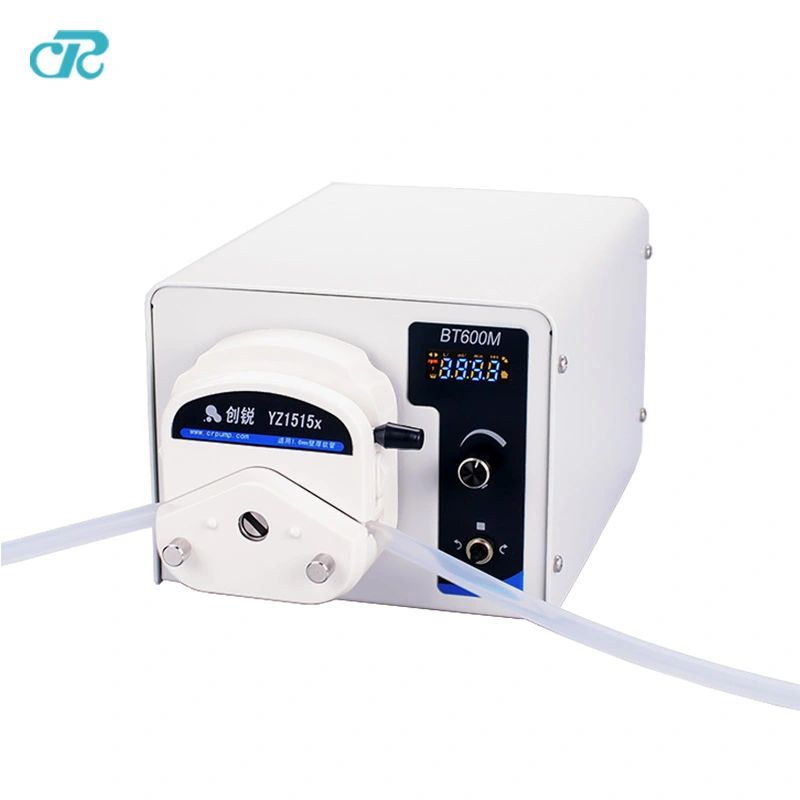

Model:BT600M/YZ1515x
Channel: 1-2
Flow range :0.007-2280 ml/min
Why Choose Us
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
About shipping
Fast and safe delivery
- 1.The package contains a peristaltic pump and its accessories.
2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.
3.If you have other packaging needs, please contact us in time.
FAQ
We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
Things To Note
Hi, My dear customer ,Good day!
Here are some tips for your reference before purchase our pumps.
1, About Delivery time :
For standard pump less than 10 sets the delivery time is 3-5 days after get your payment.
For customized pump ,the production time is about 7-15 days.
For bulk purchase, Pls contact our customer service staff to get the exact delivery time.
2, About Power supply and power plug:
For standard pump is AC220V or AC110V ,which produce based on your local power supply standard.
For the power plug, we have most of the power plug types based on different counties' requirement.
PS :The power supply and power plug will based on your shipping country's standard(defaulted). If you have different requirement,Pls contact our sales .
3, About the flowrate :
All the flowrate we showed are test based on water,Only for your reference.
4,About Return Policy and after sale service:
a . Before purchasing, please carefully understand the product (peristaltic pump) function details. If you are not sure about the product function, please contact our customer service staff for detailed communication and confirmation before purchasing. Our technical staff will give you detailed information. Answer to ensure that you find the most suitable product.
b . After receiving the goods, if the packaging is damaged due to express delivery and the product is also damaged due to gravity,such as shell deformation, pump head damage, etc., please send the damaged packaging photos and product photos to our customer service staff within three days.Our company will negotiate compensation with the express as soon as possible and provide you with a solution within three working days.
c . If there is a problem with the product due to the quality of the product within one year after receipt (the warranty period),please feel free to contact our customer service staff, we will provide you with a solution within three days of receiving your information.
d . If the product has exceeded the warranty period and the product cannot be used due to improper operation by the customer,please contact our customer service staff. We only charge the cost of the accessories and the courier fee. And the customer service staff will answer your questions free of charge and assist you with repairs in the form of text, pictures or videos.
5,About Warranty:
1 Year warranty and lifetime matainence.(Do not including the Consumables such as tubing and connectors.etc.）
Here are some tips for your reference before purchase our pumps.
1, About Delivery time :
For standard pump less than 10 sets the delivery time is 3-5 days after get your payment.
For customized pump ,the production time is about 7-15 days.
For bulk purchase, Pls contact our customer service staff to get the exact delivery time.
2, About Power supply and power plug:
For standard pump is AC220V or AC110V ,which produce based on your local power supply standard.
For the power plug, we have most of the power plug types based on different counties' requirement.
PS :The power supply and power plug will based on your shipping country's standard(defaulted). If you have different requirement,Pls contact our sales .
3, About the flowrate :
All the flowrate we showed are test based on water,Only for your reference.
4,About Return Policy and after sale service:
a . Before purchasing, please carefully understand the product (peristaltic pump) function details. If you are not sure about the product function, please contact our customer service staff for detailed communication and confirmation before purchasing. Our technical staff will give you detailed information. Answer to ensure that you find the most suitable product.
b . After receiving the goods, if the packaging is damaged due to express delivery and the product is also damaged due to gravity,such as shell deformation, pump head damage, etc., please send the damaged packaging photos and product photos to our customer service staff within three days.Our company will negotiate compensation with the express as soon as possible and provide you with a solution within three working days.
c . If there is a problem with the product due to the quality of the product within one year after receipt (the warranty period),please feel free to contact our customer service staff, we will provide you with a solution within three days of receiving your information.
d . If the product has exceeded the warranty period and the product cannot be used due to improper operation by the customer,please contact our customer service staff. We only charge the cost of the accessories and the courier fee. And the customer service staff will answer your questions free of charge and assist you with repairs in the form of text, pictures or videos.
5,About Warranty:
1 Year warranty and lifetime matainence.(Do not including the Consumables such as tubing and connectors.etc.）
