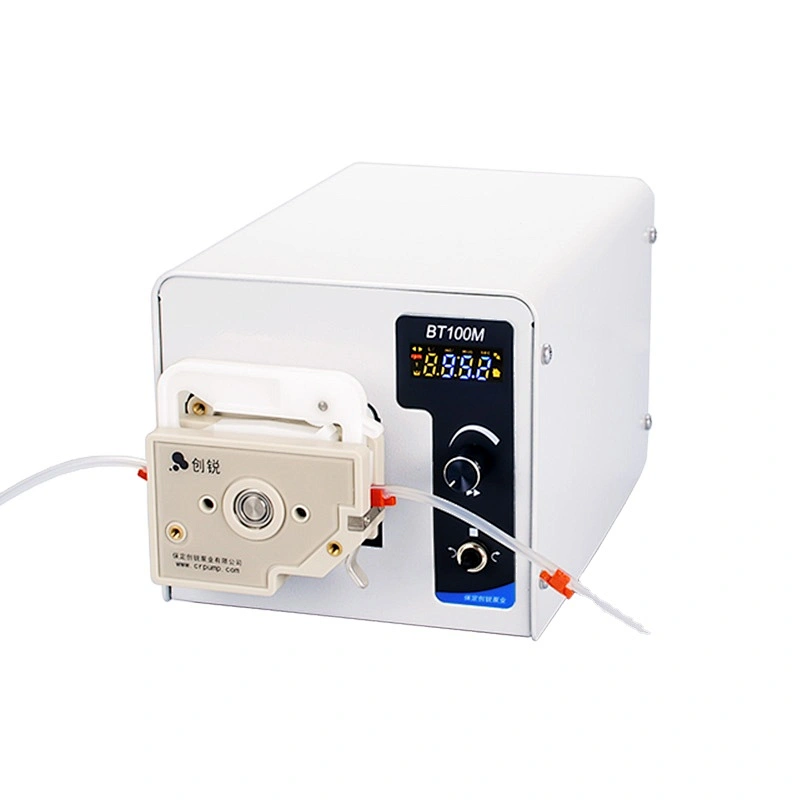

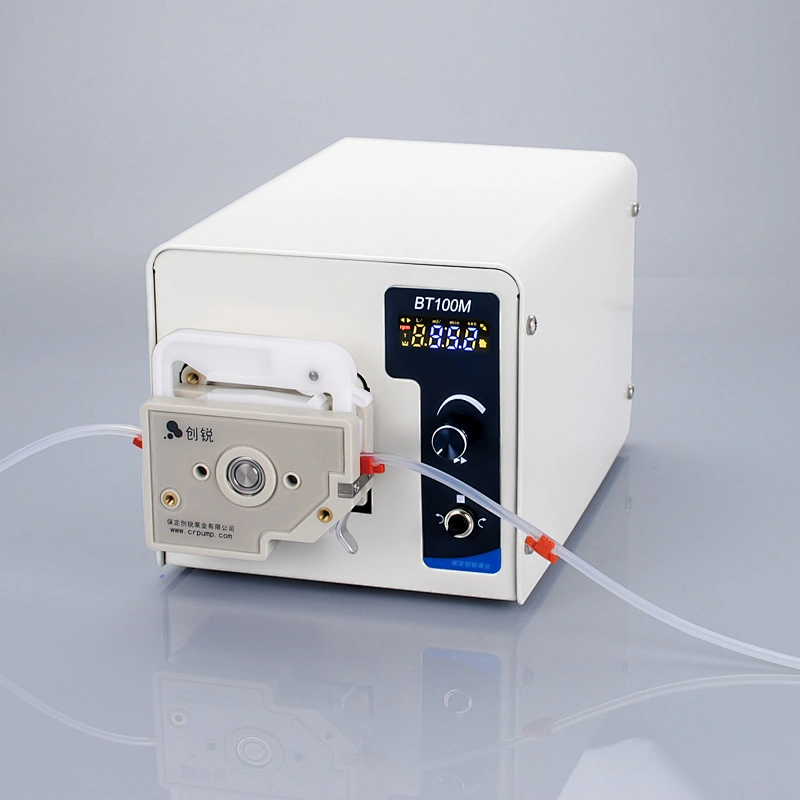

Multi-channel Small Flow Rate Transfer Peristaltic Pump

Multi-channel Small Flow Rate Transfer Peristaltic Pump

Model NO.: BT100M
Price:: US $ 230.00-800.00 / piece
Minimum order quantity: 1 piece
Supply Ability: 3000.0 piece / Month
Country of Origin: Tianjin,Shanghai,Guangzhou

Quantity:

Product Description

Product name:Multi-channel Small Flow Rate Transfer Peristaltic Pump
Model:BT100M
Pump head:DG series
speed resolution:0.1 rpm
Speed:0.1-100rpm
Flow rate:Max 36ml/min/channel
Motor:Stepper motor
Warranty:1 Year
MOQ:1 Piece
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:peristaltic pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:CR
Model Number:BT100M
Application:Multi-channel Transfer Peristaltic Pump
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 3mm
Voltage:AC220V or AC110V
Power:<50W
Certification:ce
Certification:TUV
Certification:ISO9001

Multi-channel Small Flow Rate Transfer Peristaltic Pump

Product Description

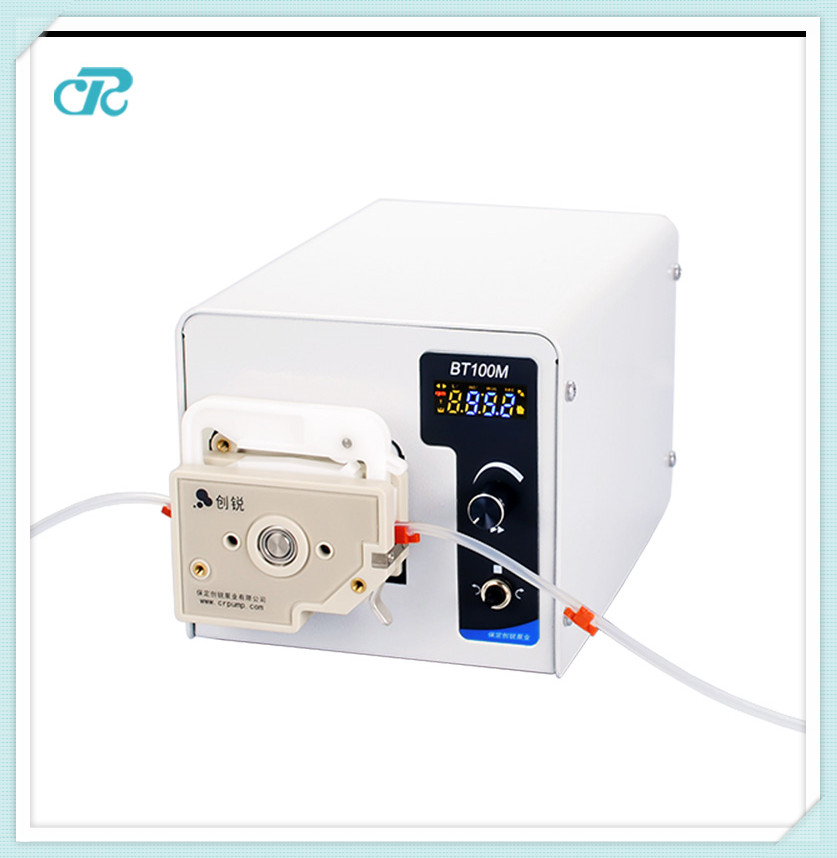

Peristaltic pump BT100M/DG Flow range is 0.0015~36ml/min/channel. Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers. FULL SPEED button available for filling in & emptying out. Good capability price rate. Not suitable when used in the open air.

Parameter

Model	BT100M	Display Mode	4-LED
Speed Range	0.1-100 rpm	Control Method	Rotary encoded knob
speed resolution	0.1 rpm	Motor Type	Stepper motor
Flow range	0.0015-36 ml/min/channel	External control Start & stop, direction control, speed control ( Analog control :0-5v, 0-10v, 4-20mA optionl ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Environment Temperature	0-40℃
Relatively Humidity	<80%
Power consumption	<50W
Power supply	AC220V or AC110V

Function & Characteristics

1. With liquid calibration function to ensure the high accurancy liquid transfer.
2. With both-way large torque high power motor. It can be connected with several pump heads to meet different flow rates.
3. Long life digital rotary knob easy to operate high control precision and ensure to transfer the high precision fluid.
4. FULL SPEED button is available to fill in & empty out the tubing.
5. Memory function available in case of power off and it will continue working once the power was restarted.
6. Long-range control is available through the DB15 interface of the drive: speed control start-stop control direction control.
7. With RS485 communication interface supports MODBUS communication protocol. And communication protocols customized is available.

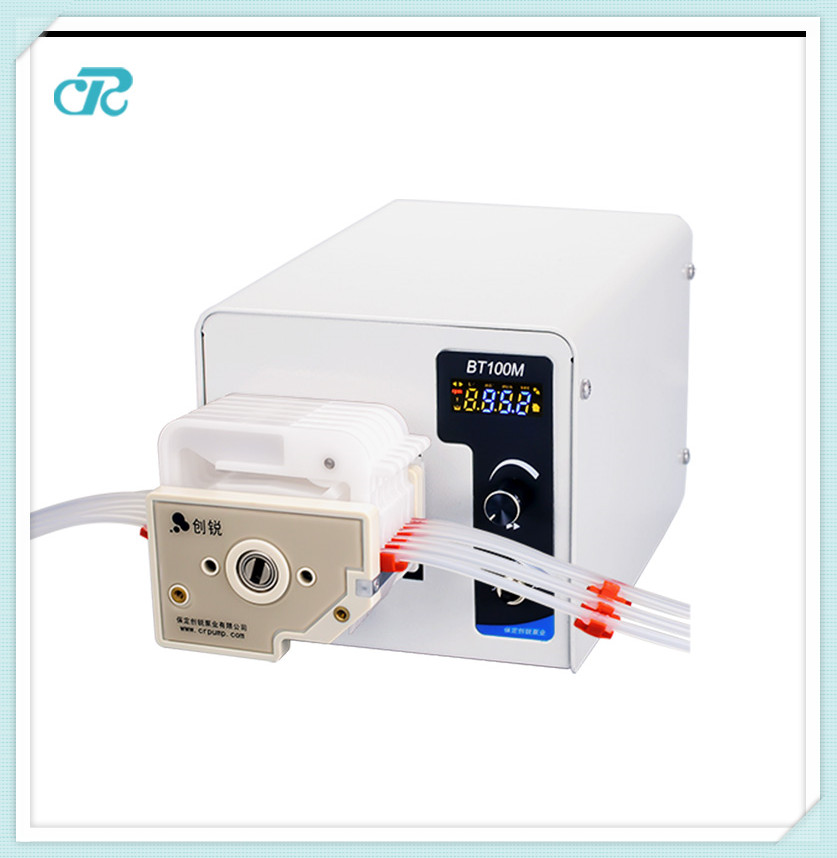

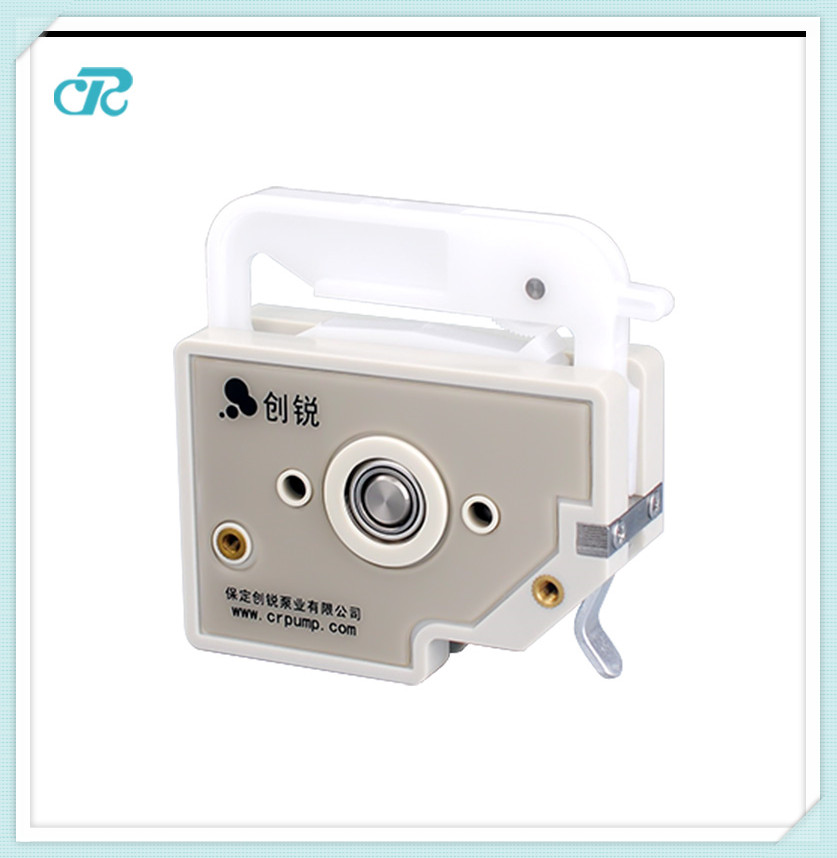

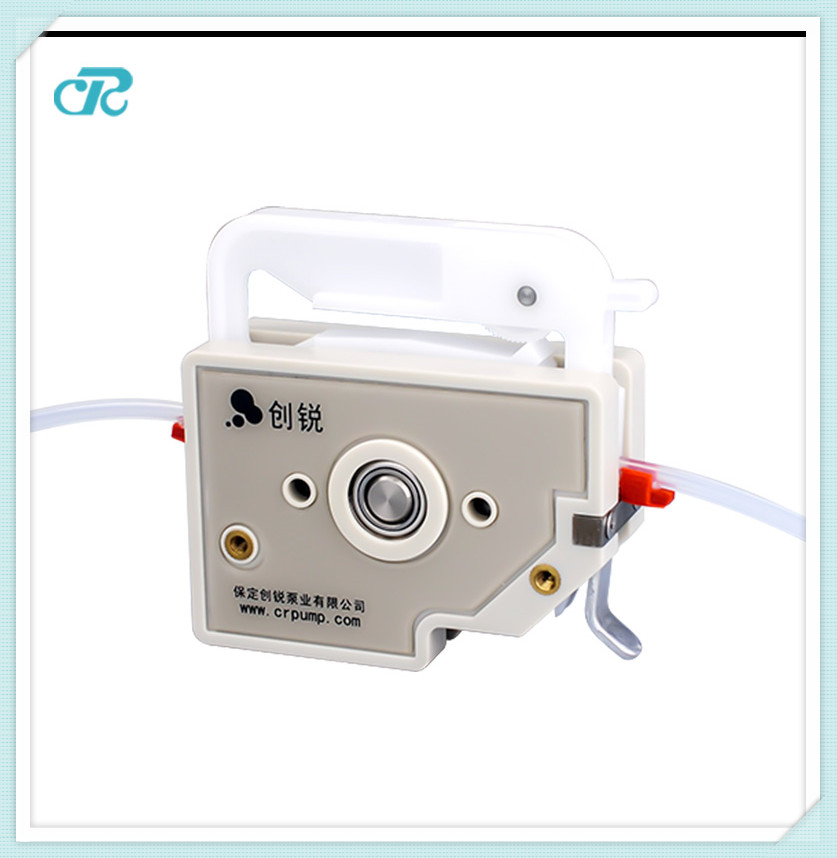

The DG series micro-flow multi-channel peristaltic pump head is a separate card installation and special hose; the pressure tube gap can be fine-tuned to adapt to different wall thickness hoses. Designed for small flow, multi-channel fluid delivery.

DG-N(6)	Standard model	DG-N(10)	Standared model
	DG-1(6)		DG-1(10)
	DG-2(6)		DG-2(10)
	DG-4(6)		DG-4(10)
	DG-6(6)		DG-6(10)
	DG-8(6)		DG-8(10)
	DG-12(6)		DG-12(10)

DG N (6)

(1) (2) (3)

(1)Pump head model (2) channel number (3)roller number

Channel number means How many tubes you want to run in the same time .

Noted : There will be some error between each channel. If you can not accept error between each channel pls order carefully.

Roller number : More roller means less pulse and flow

For the channel number the options as above

Noted : Standard head with 1 channel /2 channels/4 channels /6 channels /8 channels /12 channels .other requirement pls contact our sales department .

Pump head	Tube	ID (mm)	Wall thickness (mm)	OD (mm)	Speed (rpm)	Flow rate (ml/min)
DG-N(6)	0.5*0.8	0.5	0.8	2.4	0.1-100	0.002-2
	1*1	1	1	3	0.1-100	0.006-6
	2*1	2	1	4	0.1-100	0.019-19
	2.4*0.8	2.4	0.8	4	0.1-100	0.024-24
	3*1	3	1	5	0.1-100	0.036-36
DG-N(10)	0.5*0.8	0.5	0.8	2.4	0.1-100	0.0015-1.5
	1*1	1	1	3	0.1-100	0.004-4
	2*1	2	1	4	0.1-100	0.013-13
	2.4*0.8	2.4	0.8	4	0.1-100	0.017-17
	3*1	3	1	5	0.1-100	0.0.027-27

Order Guide

Dear All ,

Welcome to our website ,we are peristaltic pump manufacturer .wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable peristaltic pump. could you help me to confirm some details as below :

1,what's the application of the peristaltic pump ? bottle filling pump orconstant transfer pump?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best peristaltic pump and silicon tube .

Thanks for your time .

Ella Xu

whatsapp :+0086 15633705132

skype : ella-crpump QQ :507183200

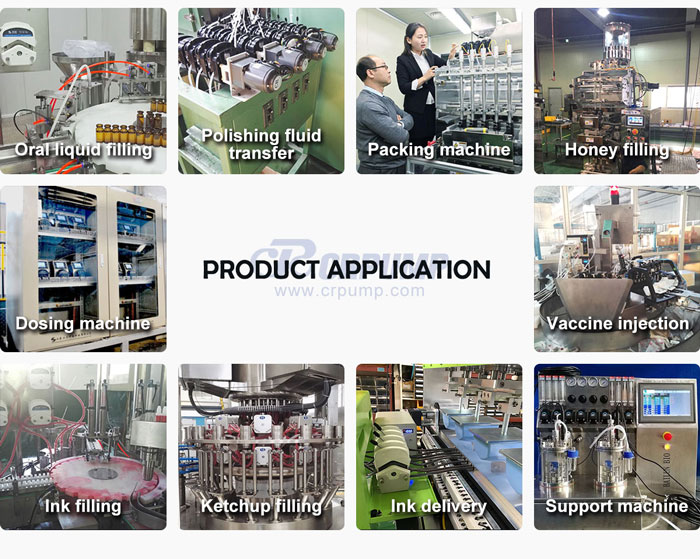

Application

Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; biopharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.
