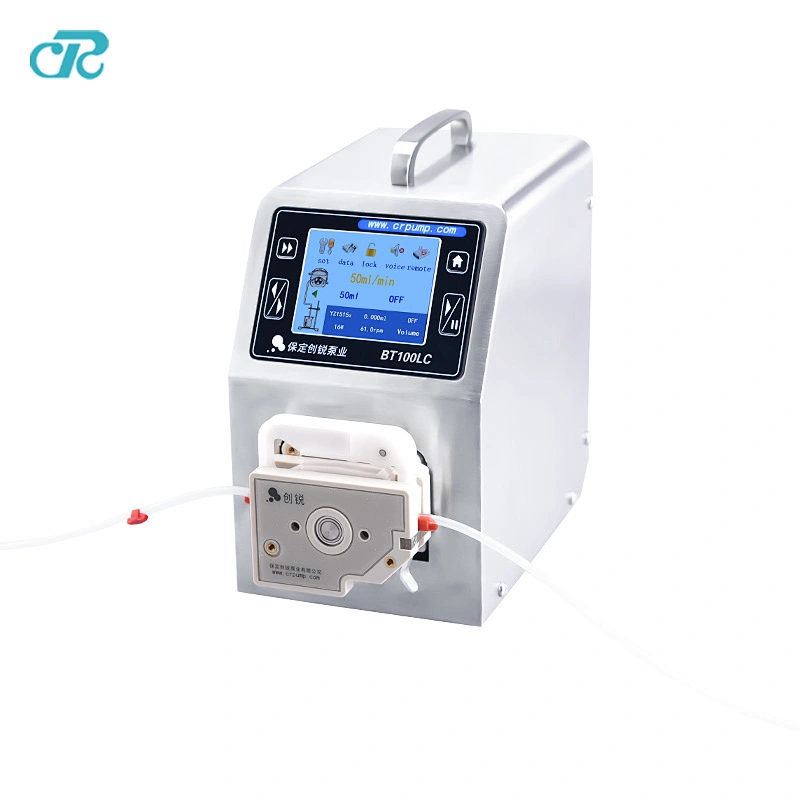

CR 0.5 ml 1ml 2 ml 5ml 10ml 15ml micro flow peristaltic pump for laboratory

CR 0.5 ml 1ml 2 ml 5ml 10ml 15ml micro flow peristaltic pump for laboratory

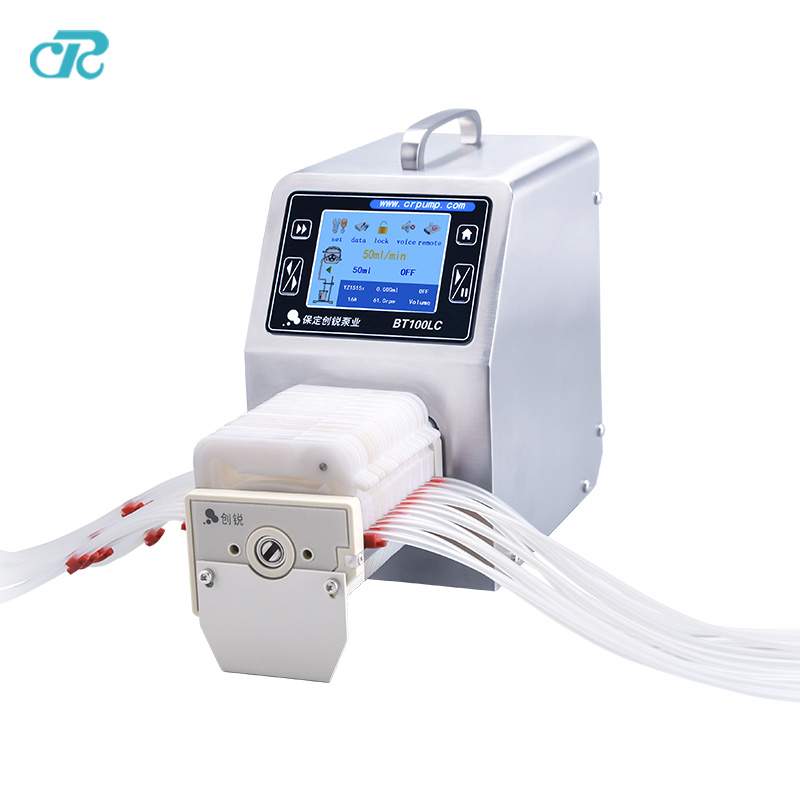

Model NO.: BT100LC

Quantity:

Product Description

Model:BT100LC
pump head:DG series
Speed:0.1-100 rpm
Flow range:0.0015-36 ml/min
channels:1/2/4/6/8/12/24 optional
Voltage:110V/ 220V
Warranty:1 Year
Feature:micro fluid transfer
Usage:laboratory micro fluid transfer
Power:<22,W
Customized support:OEM
Customized support:ODM
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:CR
Model Number:BT100LC
Application:laboratory
Horsepower:none
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 7.9mm
Voltage:110V or 220V
Power:<50w
Certification:ce
Certification:TUV
Certification:ISO9001

Product Description

CR Peristaltic pump

★Flowrate:0.0015-36 ml/min

Automatic dosing system

Water treatment system

Laboratory precision transfer

Product Features

With 3.5 inches capability enables products to transfer more accurate flow rates.

Four models of operation: transfer mode, timing mode, quantitative mode, timing quantitative mode,

304 stainless steel housing corrosion protection rust prevention and easy to be cleaning.

Micro flow peristaltic dosing pump

Model : DG series

Channels : 1/2/4/8/12/24 optional

Max speed : 100 rpm .

Flow range : 0.0015-36 ml/min

Suitable for micro flow application .

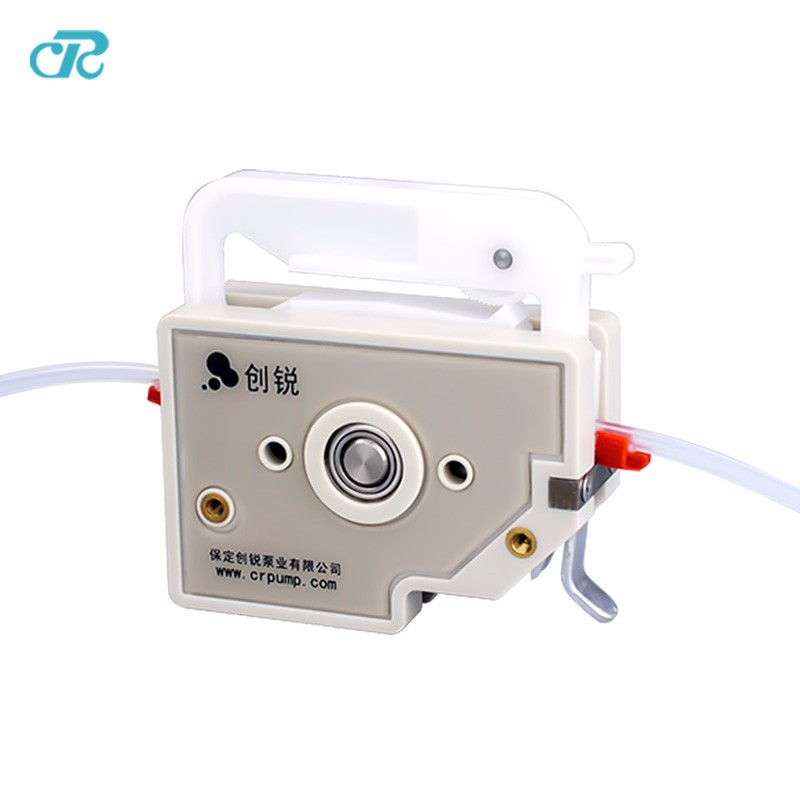

micro flow peristaltic pump head

Pump head: DG series
Material of pump head: abs
Silicone tube: 0.5*0.8 1*1 2*1 3*1

★Technical Parameter
Drive model	BT100LC
Speed	0.1-100rpm is reversible
Power consumption	<50W
Speed resolution	0.1rpm
Display	LCD screen
Drive dimension	212135240(mm)
Speed control mode	Touch screen control
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
Work environment	Temperature 0-40℃, relative humidity, no condensation
Timing range	0.1s-9999min
Quantitative range	0.001ml-9999L
External control	Start&stop, direction control, speed control(0-5v,0-10v,4-20mA optional)
Communication Interface	RS232 and RS485, support MODBUS protocol mode
Suction angle	10°-720°(1°stepping)

Tube for peristaltic pump head DG head with 6 rollers
Tube	ID(mm)	Wall thickness(mm)	OD(mm)	Flow rate(ml/min)
0.5*0.8	0.5	0.8	2.4	0.002-2
1*1	1	1	3	0.006-6
2*1	2	1	4	0.019-19
2.4*0.8	2.4	0.8	4	0.0245-24.5
3*1	3	1	5	0.0366-36.6

Tube for peristaltic pump head DG head with 10 rollers
Tube	ID(mm)	Wall thickness(mm)	OD(mm)	Flow rate(ml/min)
0.5*0.8	0.5	0.8	2.4	0.0015-1.5
1*1	1	1	3	0.004-4
2*1	2	1	4	0.013-13
2.4*0.8	2.4	0.8	4	0.0178-17.8

Peristaltic hose pump application

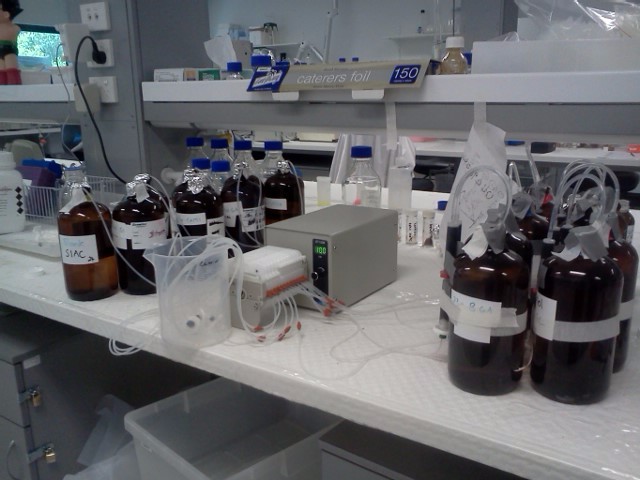

One of our customer who use this peristaltic hose pump for the laboratory

advantage :

1, Peristaltic pump hose Clean and hygienic. and easy to change ,reduce the maintenance of the peristaltic hose pump .

2, the pump easy operate .

Order guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact :Ella Xu

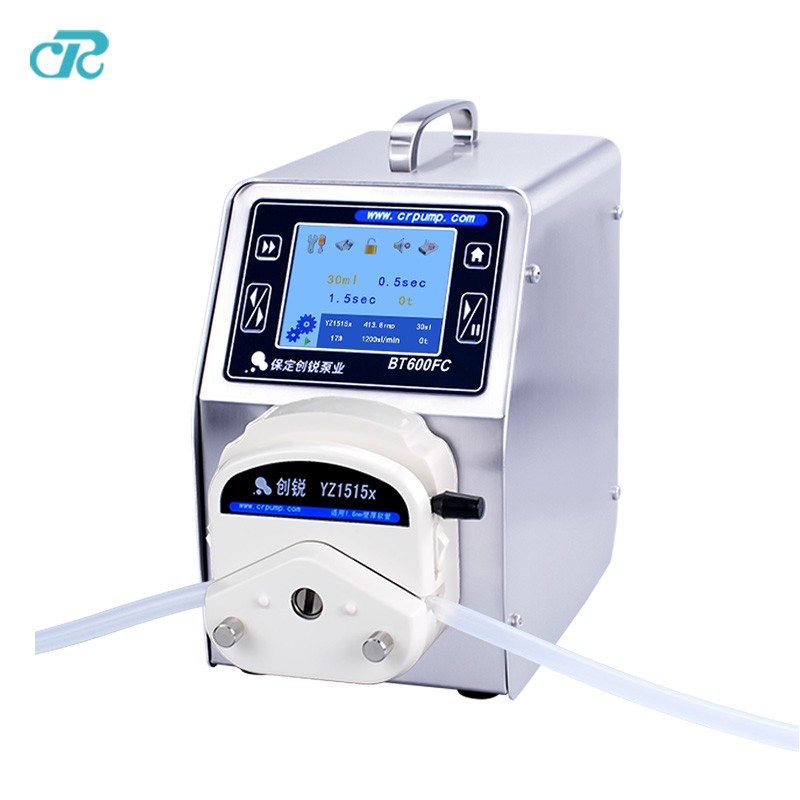

BT600FC/YZ1515x

Flow range : 0.007-2280 ml/min

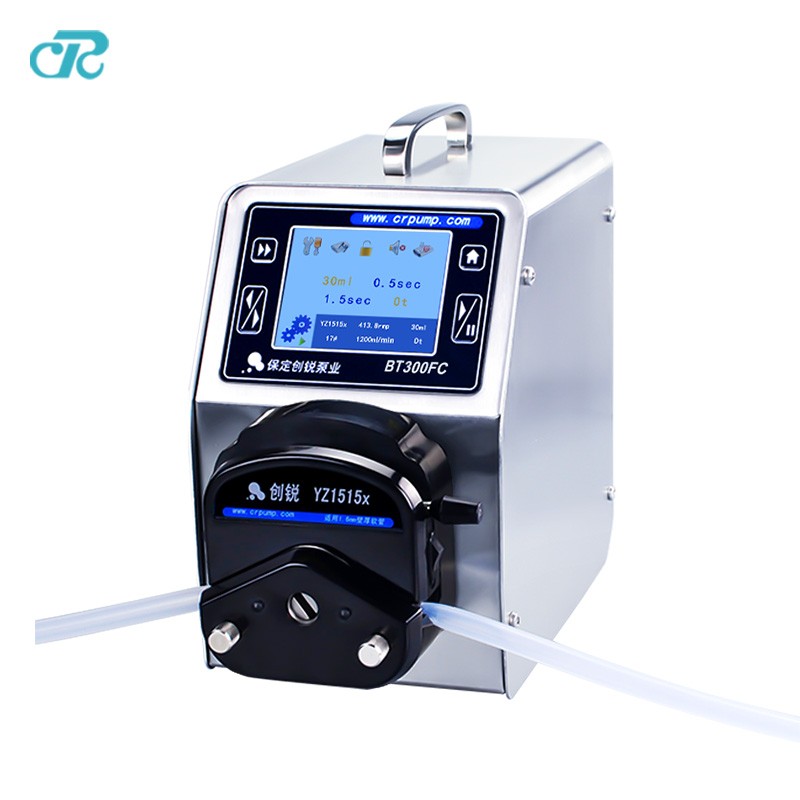

BT300FC/YZ1515x

Flow range : 0.007-1140 ml/min

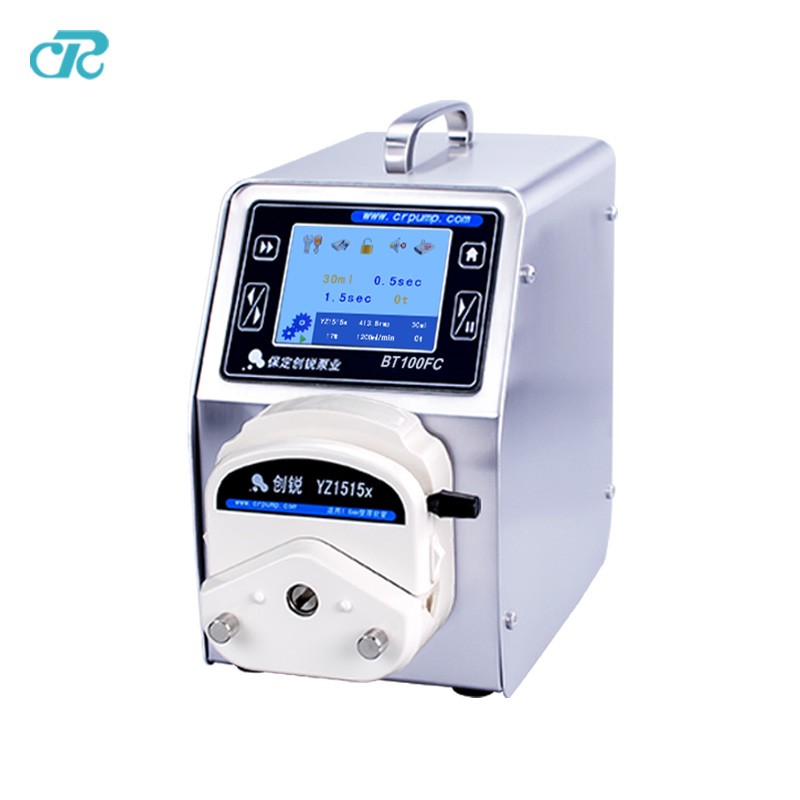

BT100FC/YZ1515x

Flow range : 0.007-380 ml/min

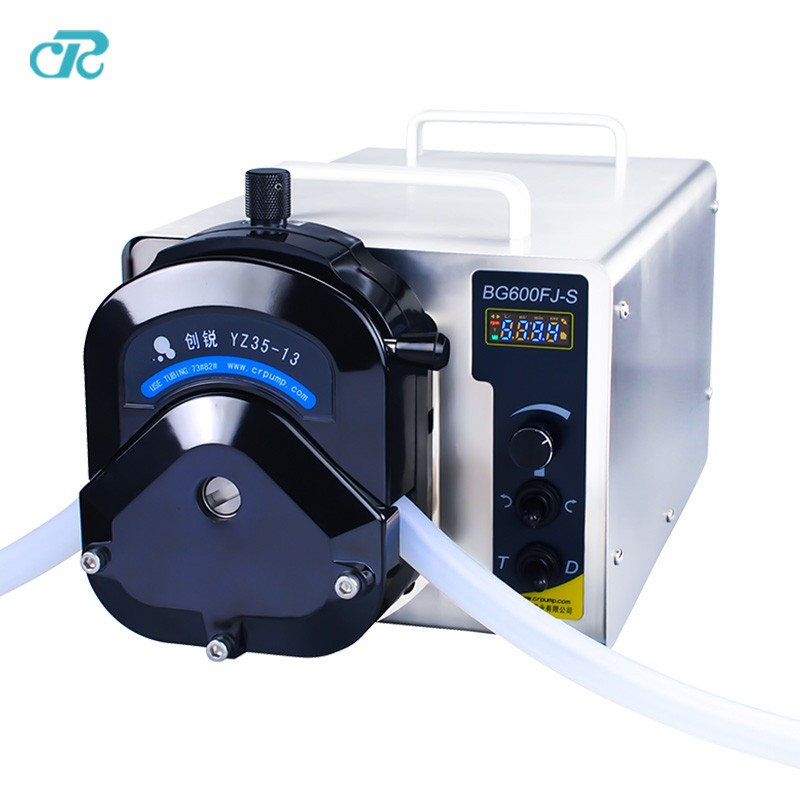

BG600FJ-S/YZ35-13

flow range : 1.3-12000 ml/min

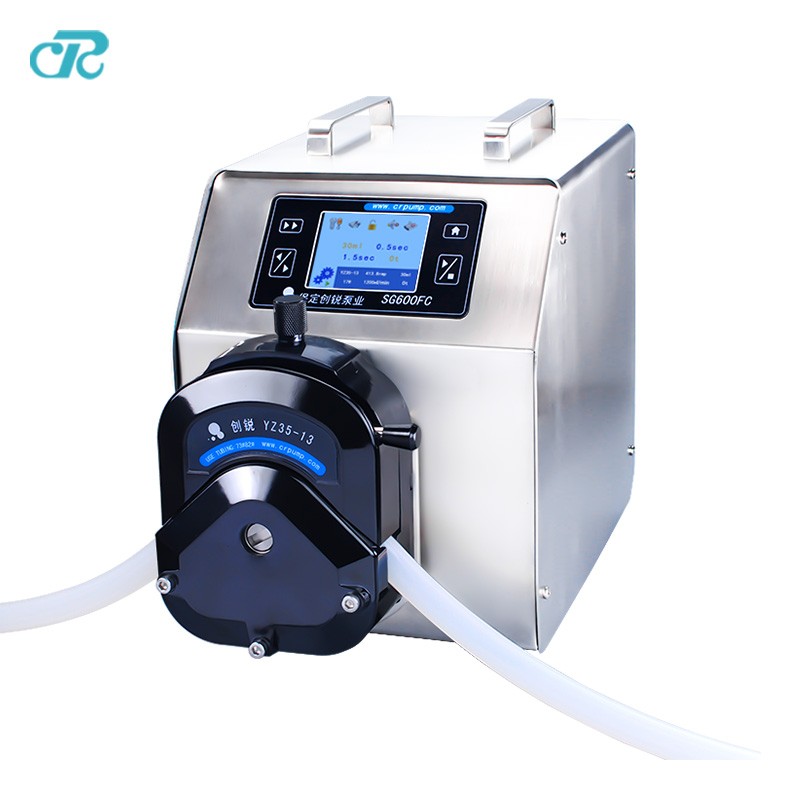

SG600FC/YZ35-13

Flow range : 1.3-12000 ml/min

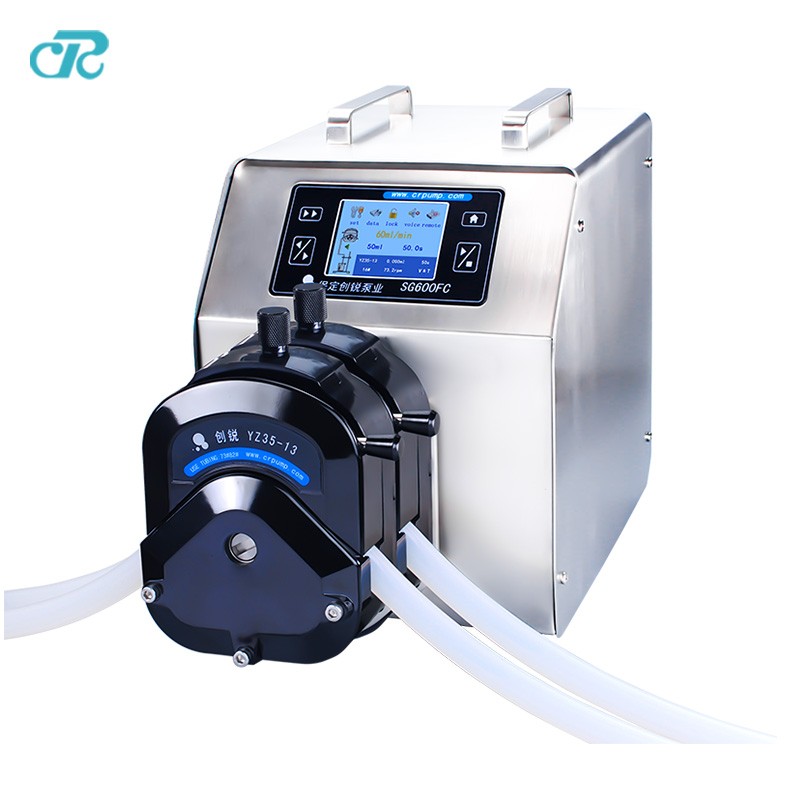

SG600FC/2*YZ35-13

Flow range : 1.3-24000 ml/min

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why choose us

Baoding chuangrui precision pump Co., Ltd Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..

We aim to"Produce CR pump to the easier life"

With 10 years professional experience of peristaltic pump/peristaltic hose pump/lab peristaltic pump/industrial peristaltic pump/peritaltic dosing pumpemical dosing pump/peristaltic filling pump/dispensing peristaltic pump/OEM peristlatic pump/ liquid transfer pump etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.

We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.Our professional team can insure fluent communication, as well as perfect after-sale serviceChuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
