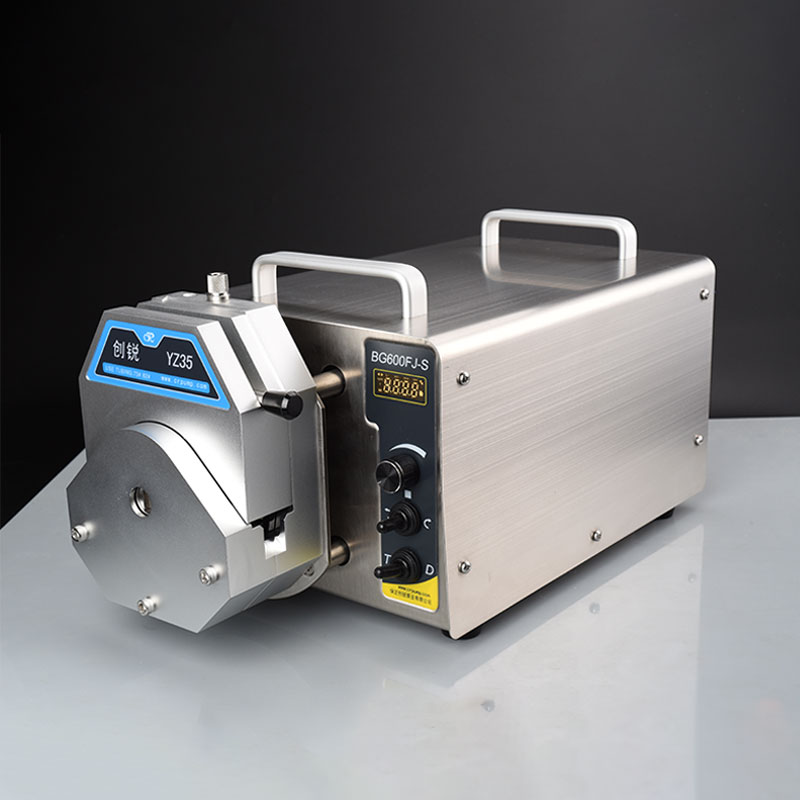

Industrial Polishing Liquid And Additive Transfer Peristaltic Pump

Model NO.: BG600FJ-S/YZ35

Quantity:

Product Description

Model:BG600FJ-S
Pump head:YZ35
Speed range:0.1-600 rpm
Flow range:1.3-12000 ml/min
speed resolution:0.1 rpm
Display:4-led
Operating:Knob
Warranty:1 year
MOQ:1set
Customized support:OEM
Customized support:ODM
Power Source:Electric
Structure:peristaltic pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:CR
Model Number:BG600FJ-S/YZ35
Application:Transfer Peristaltic Pump
Horsepower:Other
Pressure:Low Pressure
Cable Length:other
Outlet Size:Max 13mm
Voltage:AC220V or AC110V
Power:<500W
Certification:ce
Certification:ISO9001

Product Description

industry peristaltic pump

CR peristaltic pump BG600FJ-S with 2 work mode . one is for liquid constant transfer ,another is for bottle filling . that can run
with YZ35 pump head , with flow rate from 1.3-12000 ml/min. Flow speeds can be adjusted either by hand through switching
knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control
through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available
in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers.

Model	BG600FJ-S/YZ35-13	Display Mode	4-LED
Speed Range	0.1-600 rpm	Control Method	Rotary encoded knob
speed resolution	0.1 rpm	Environment Temperature	0-40℃
Max Flow	12000ml/min	Relatively Humidity	<80%
Filling Accuracy	<±0.5%	Power consumption	<400w
Filling time range	0.1-9999min	Power supply	AC220V or AC110V
Pause Time range	0.1s~9999min	Motor Type	Stepper motor
copy number range	0~9999t	External control Start & stop, direction control, speed control( Analog control :0-5v, 0-10v, 4-20mA optionl ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Suckback angle	10°~720° (1° Stepping)
Suchback speed	10-300 rpm

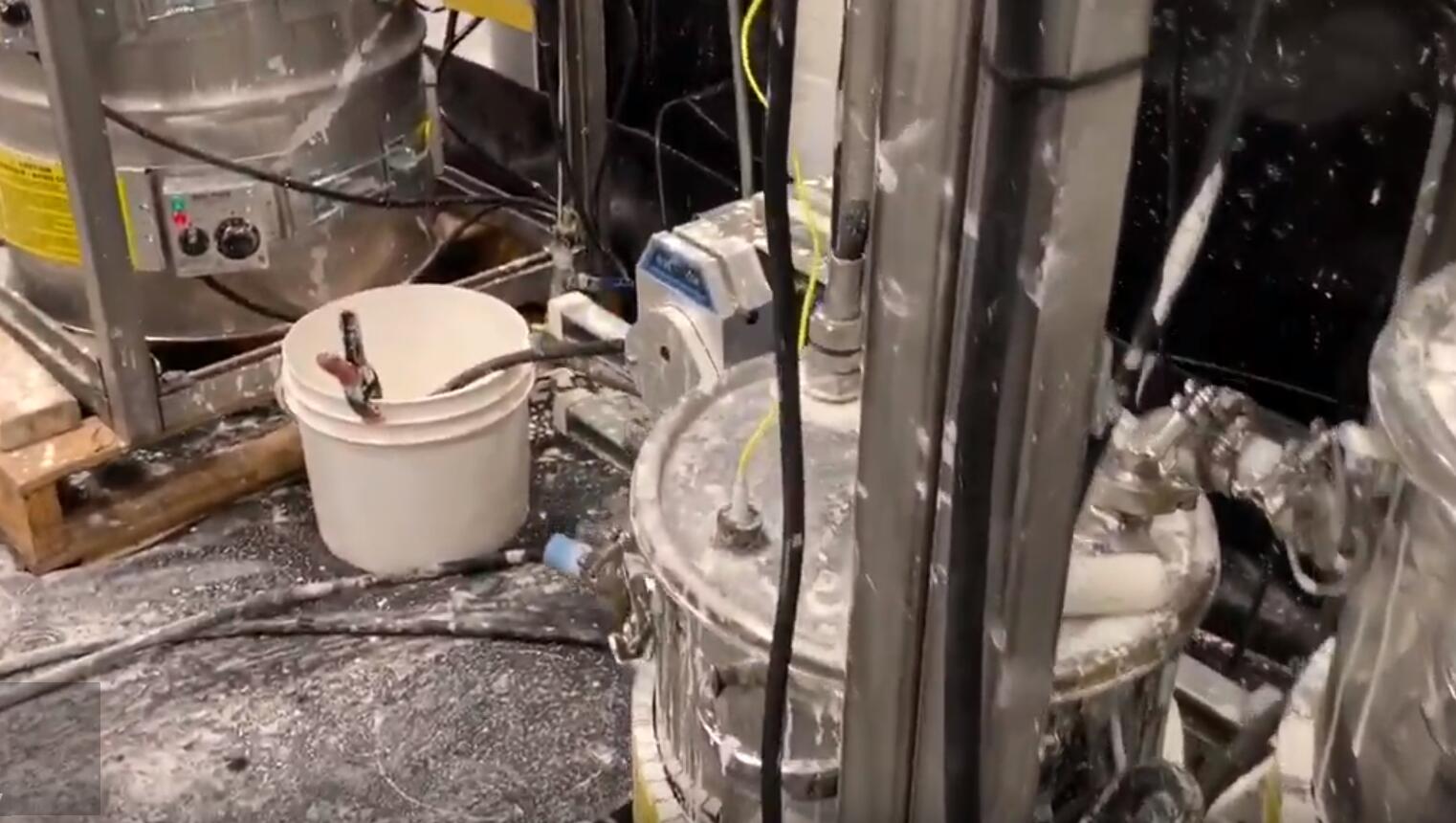

Application 1

Industry : Hard material processing

Model : BG600FJ-S/YZ35
Liquid : Grinding fluid
Function : constant transfer
Tube : Norprene Chemical tube 82#
External control : start/stop

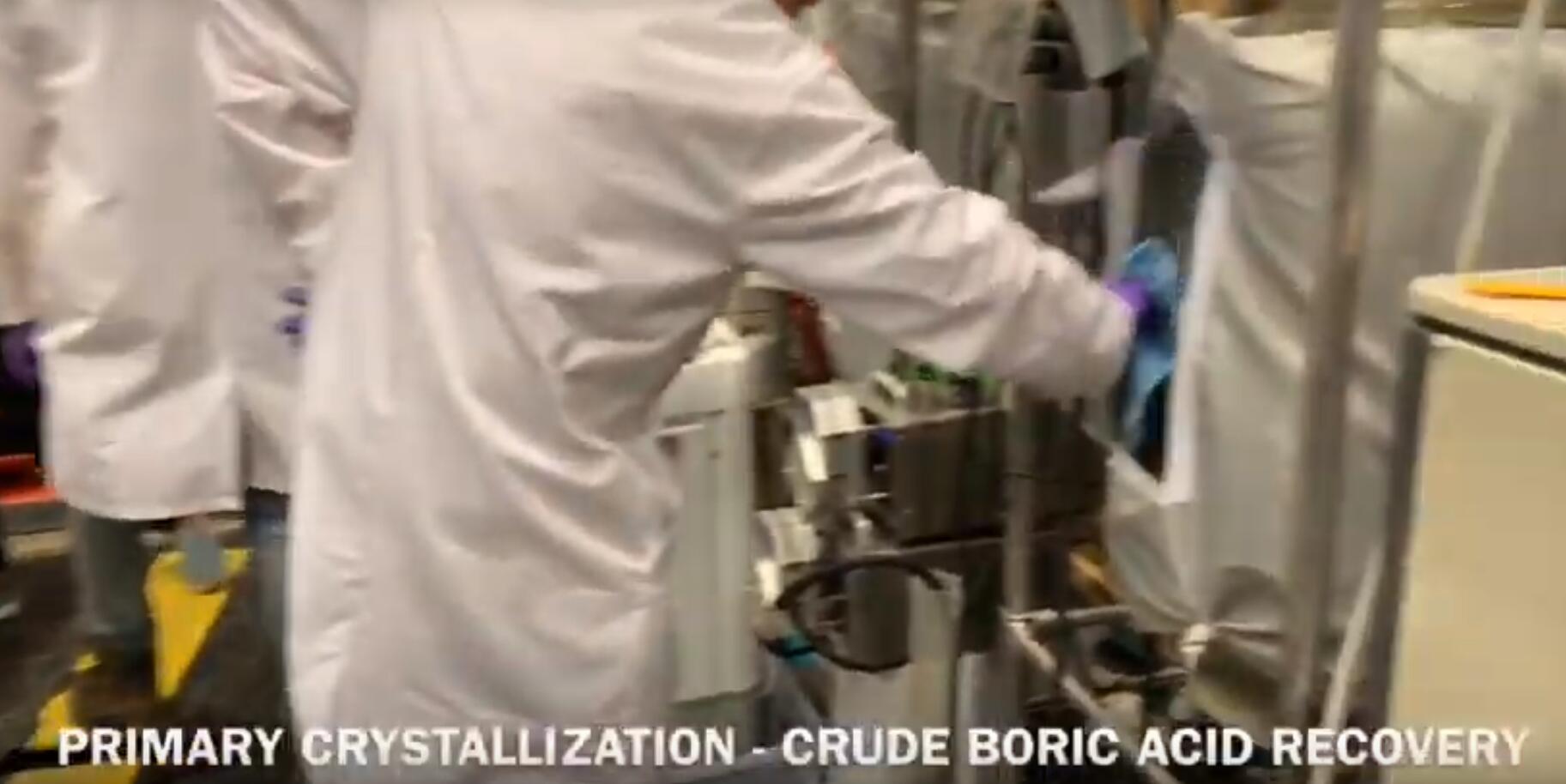

Application 2

Industry : Lithium mining

Model : BG600FJ-S/YZ35
Liquid : chemical additive
Function : constant transfer
Tube : Norprene Chemical tube 82#
External control : start/stop

Function & characteristics:

1. FULL SPEED button is available to fill in & empty out the tubing.
2. Memory function available in case of power off and it will continue working once the power was restarted.
3. Long-range control is available through the DB15 interface of the drive: speed control start-stop control direction control.
4. With RS485 communication interface supports MODBUS communication protocol. And communication protocols customized is available
5. Long life digital rotary knob easy to operate high control precision and ensure to transfer the high precision fluid.
6. With both-way large torque low power motor. It can be connected with several pump heads to meet different applications.
7. With liquid calibration function to ensure the high accurancy for the transfer

Advantage of CR peristsaltic pump.

CR Peristaltic pump are easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precisio
The calibration function can ensure the filling accuracy for each dose .The suckback function prevents liquid (reverse): in the
dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the
pump tube during the stop.
CR peristaltic pump are non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristasltic pump are easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other
parameter ).
CR peristaltic pump with good sealing: It has good self-priming ability and can be idling to prevent backflow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

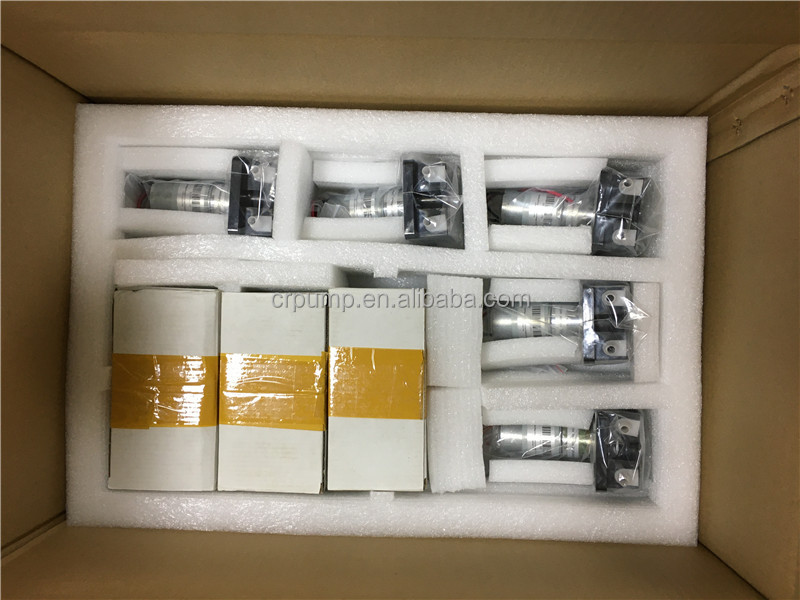

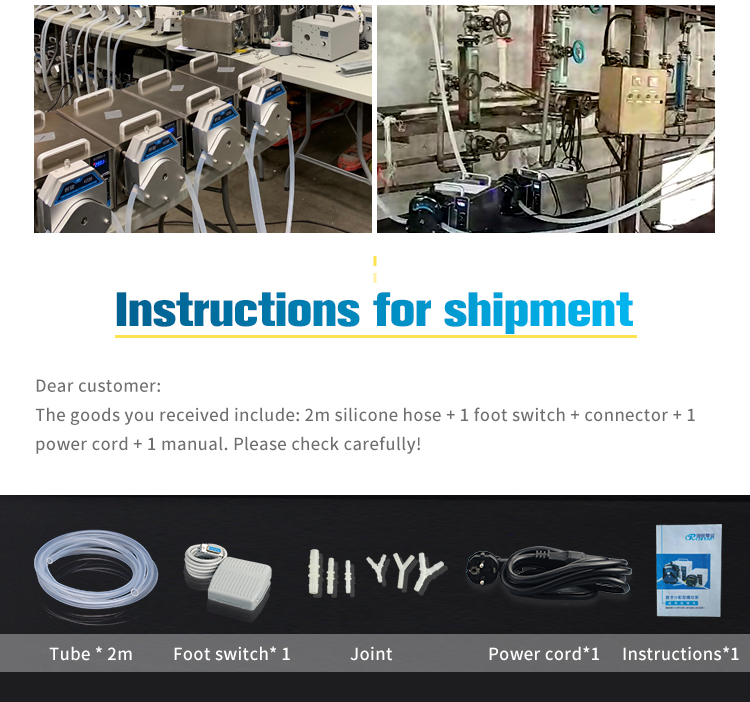

About shipping
