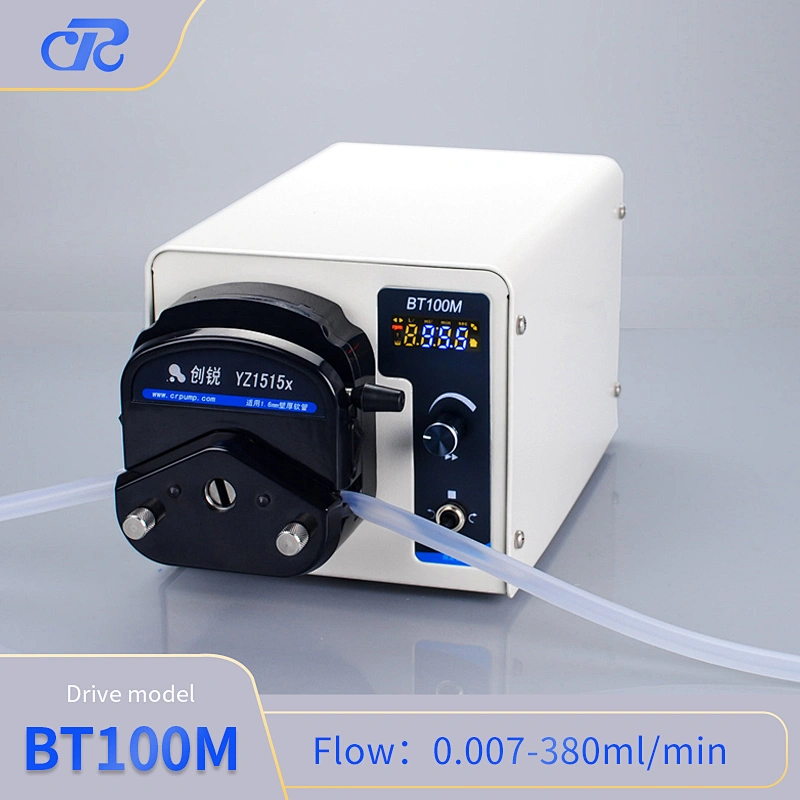

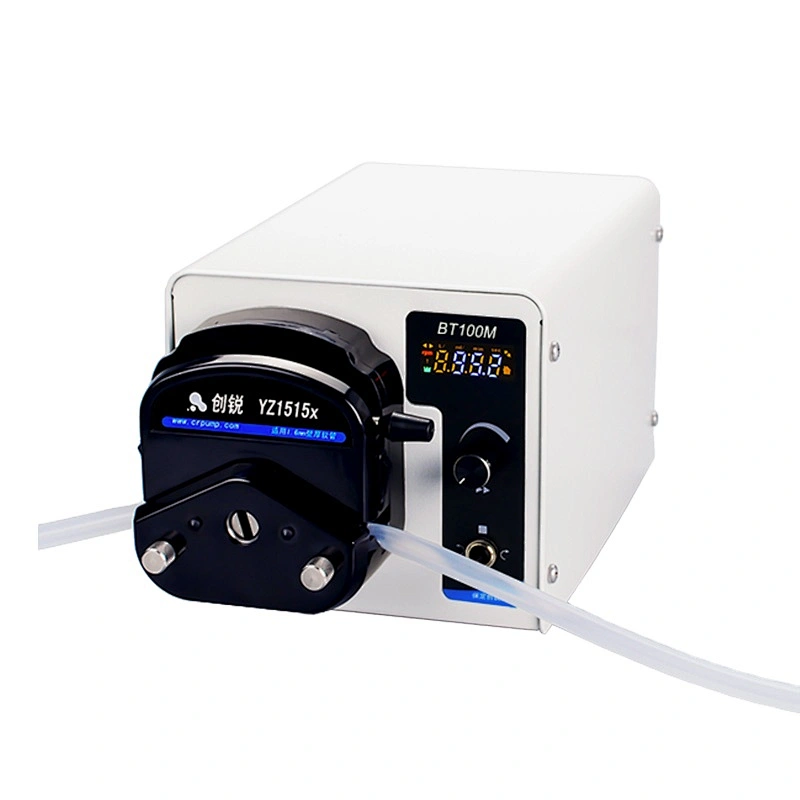

Model: BT100M/YZ1515x
Speed range: 0.1-100 rpm
Flow range : 0.007-380ml/min
Max Number of Channel: 2
Power supply: AC110V or AC220V
Basic type liquid constant peristaltic pump with Flow reversible
Metal housing with anti-corrosion paint treatment, prolong pump life time.
Good electromagnetic compatibility, ensure stable and reliable operation
CE certified product based on request.
- Model:BT100M
- Pump:YZ1515X(Black) default
- Flow Rate:Max 380ml/min
- Speed:0.1-100rpm
- Application:laboratory pump
- MOQ:1 Set
- Warranty:1 Year
- Customized support:OEM
- Customized support:ODM
- Customized support:OBM
- Power Source:Electric
- Structure:Peristaltic Pump
- Place of Origin:CN;HEB
- Warranty:1 year
- Brand Name:Chuangrui
- Model Number:BT100M
- Application:Laboratory
- Horsepower:other
- Pressure:Low pressure
- Cable Length:other
- Outlet Size:Max 7.9mm
- Voltage:AC220V or AC110V
- Power:<50W
- Certification:ce
- Certification:ISO9001
Product Description

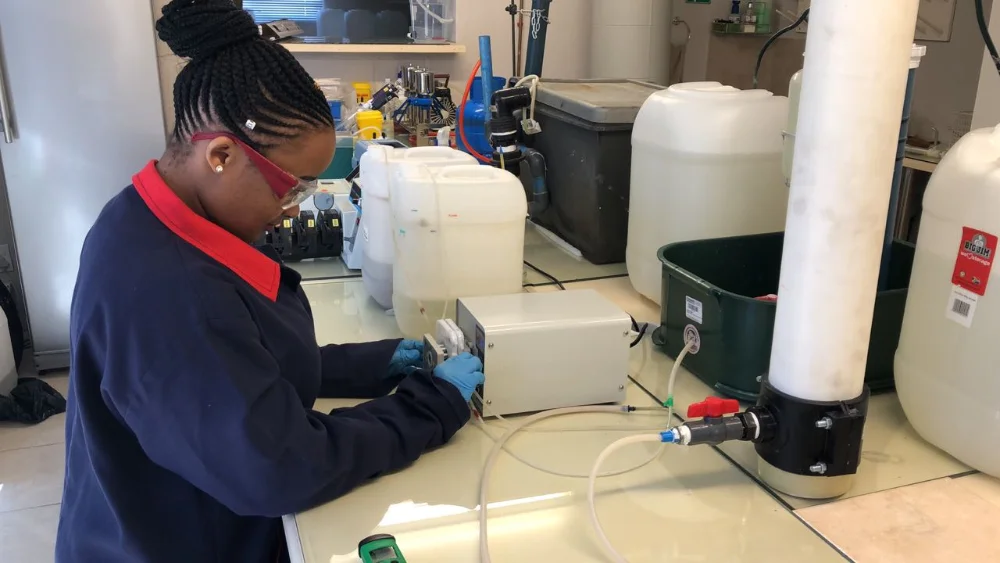

Typical Application of customer case : Laboratory
Technical Parameters
Model | BT100M |
Pump Head | YZ1515X |
Speed range | 0.1-100 rpm（reversible） |
Speed resolution | 0.1rpm |
Flow Rate | Max 380ml/min |
Flow Accuracy | ＜±0.5% |
Con Method | Digital knob |
Display | 4-LED display speed or flow |
Power Supply | AC220V±10% （Standard）or AC110V±10%（Optional） |
Environment Temperature | 0~40℃ |
IP grade | IP31 |
External control interface | DB-15 |
About Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose Technical Parameters
Hose | ID* Wall thickness | Flow rate(ml/min) | Speed |
13# | 0.8*1.6mm | 7 | 100rpm |
14# | 1.6*1.6mm | 27 | |
19# | 2.4*1.6mm | 51 | |
16# | 3.1*1.6mm | 82 | |
25# | 4.8*1.6mm | 170 | |
17# | 6.4*1.6mm | 290 | |
18# | 7.9*1.6mm | 380 |
Application
Why choose this model for the laboratory?
1, Easy operate only need to power on, then you can use it
2, Easy load pump head, you can install and change the tube fast.
3, If you want to change the flow, only need to rotate the control knob on the panel.
4, Easy to control the direction by the switch on the panel
5, 4-Led display the current speed and work status
6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.
1, Easy operate only need to power on, then you can use it
2, Easy load pump head, you can install and change the tube fast.
3, If you want to change the flow, only need to rotate the control knob on the panel.
4, Easy to control the direction by the switch on the panel
5, 4-Led display the current speed and work status
6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.
Guide
How to choose the suitable pump for your application ?Can you first to confirm some details as below :
1, What’s Flow rate you need ? ( )ml/min
2, How many channels you need?( )
3,What kind of liquid you will dose ?is it corrosive ? ( )
Related Product

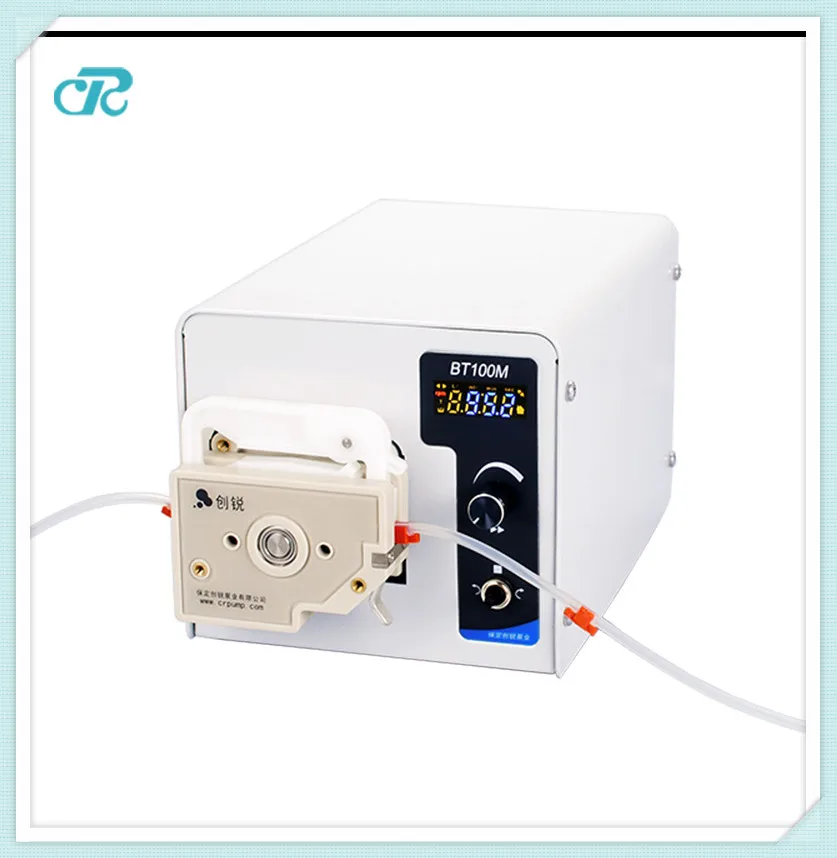

Model:BT100M/DG-1(6)
Flow range:0.002-36 ml/min

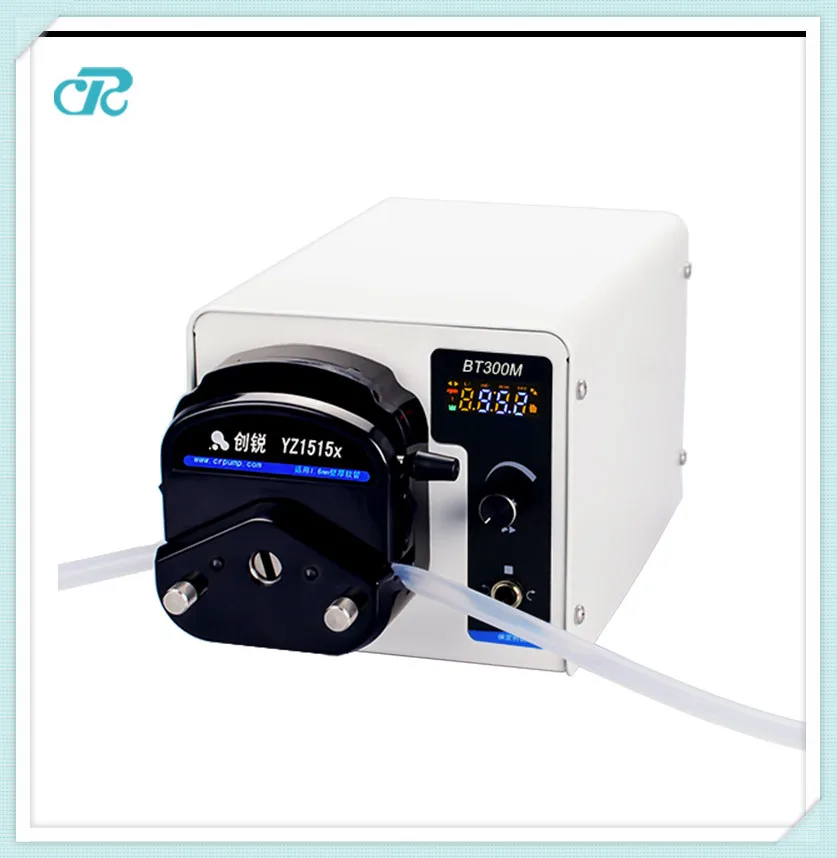

Model :BT300M/YZ1515x
Flow range:0.07-1140ml/min

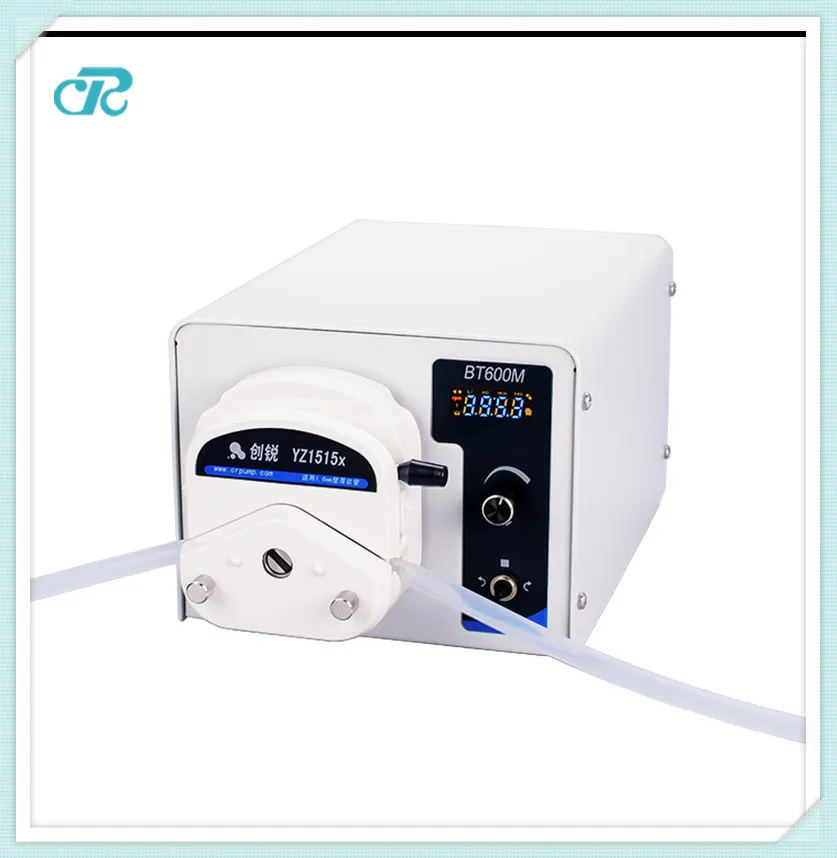

Model: BT600M/YZ1515x
Flow range:0.07-2280ml/min
Why Choose Us
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
About shipping
- 1.The package contains a peristaltic pump and its accessories.
2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.
3.If you have other packaging needs, please contact our sales staff in time.

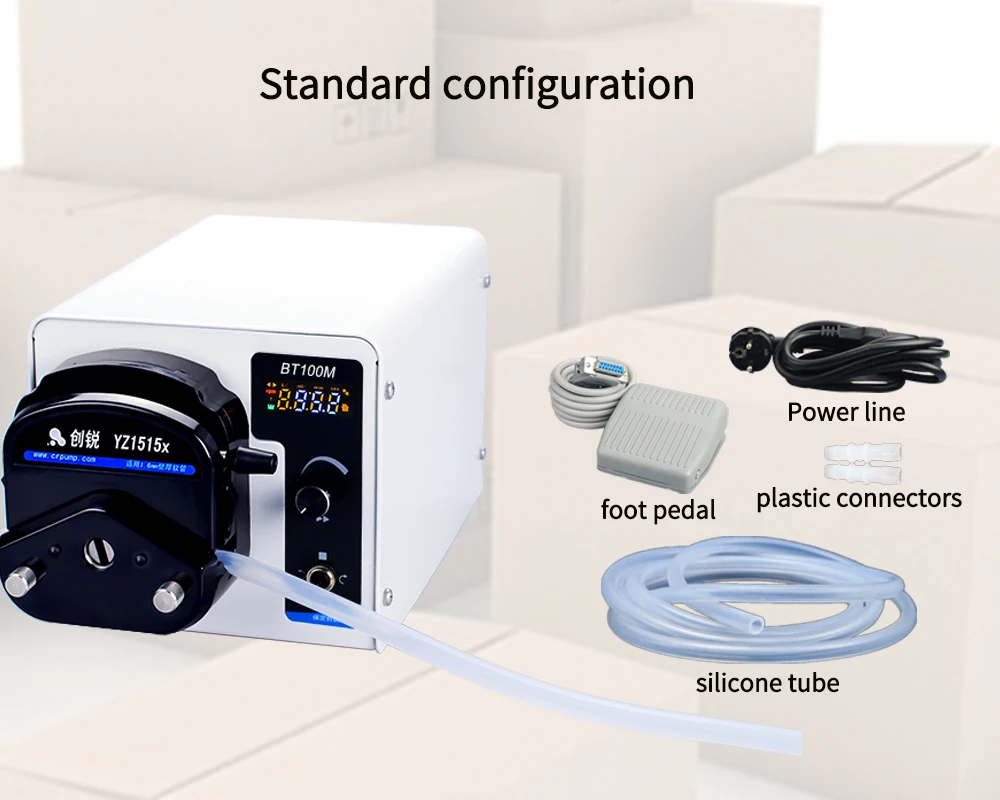

Default accessories
1、BT100M/YZ1515X(黑)
2、17# silicone tube 2m
3、17# plastic connectors 2pcs
4、foot pedal 1pc + Power line 1pc
Noted:
If you have other needs, please contact us in time
If you have other needs, please contact us in time
FAQ
Question 1: Can I order custom peristaltic pump with my own design & logo?
Answer: Definitely yes.
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For simple design sample, it generally takes about 3-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.
Question 4:What is the product transportation method?
Answer: the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.
Question 5: Can I buy the tube separately?
Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
