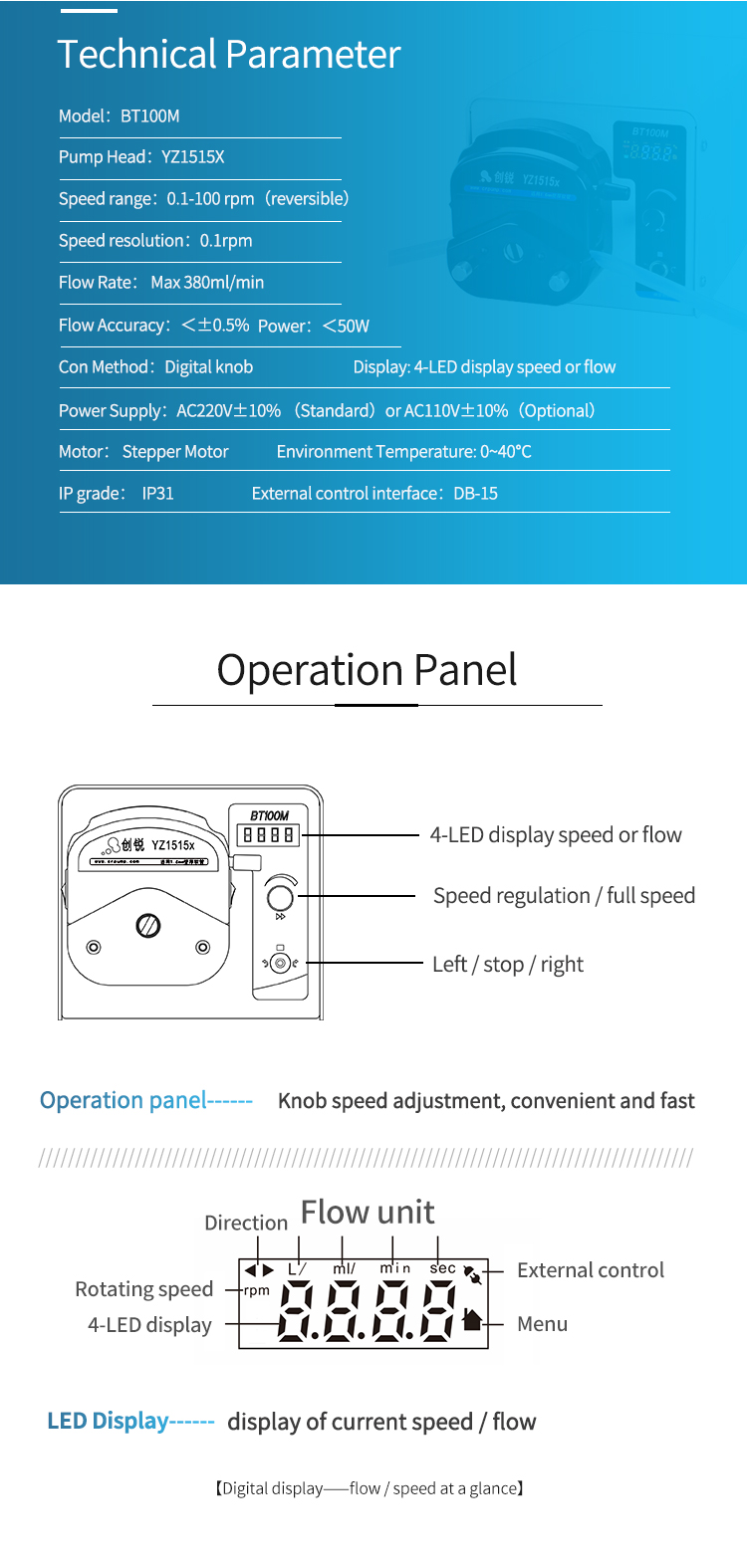

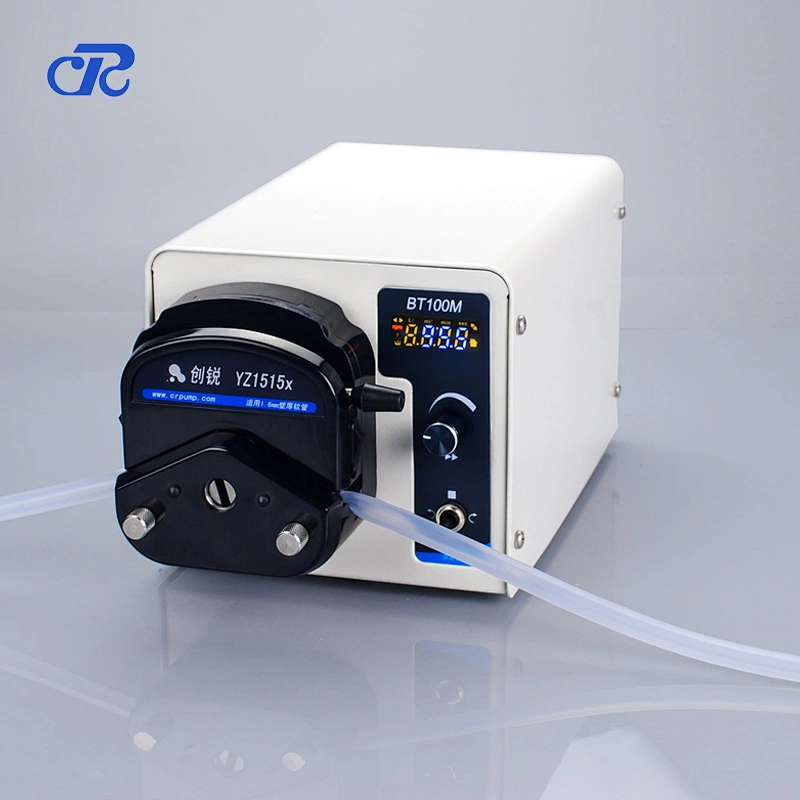

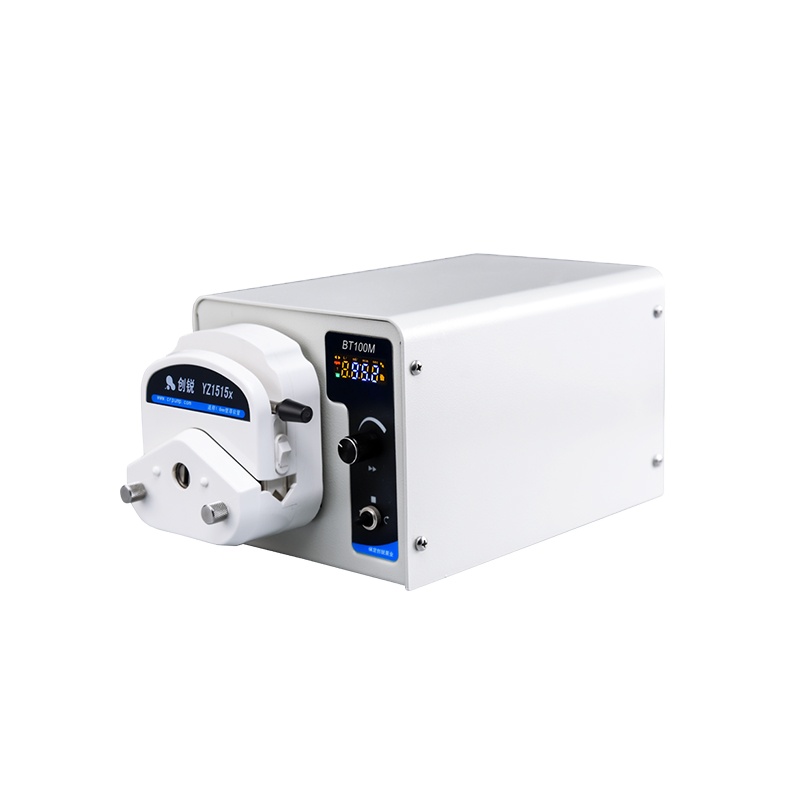

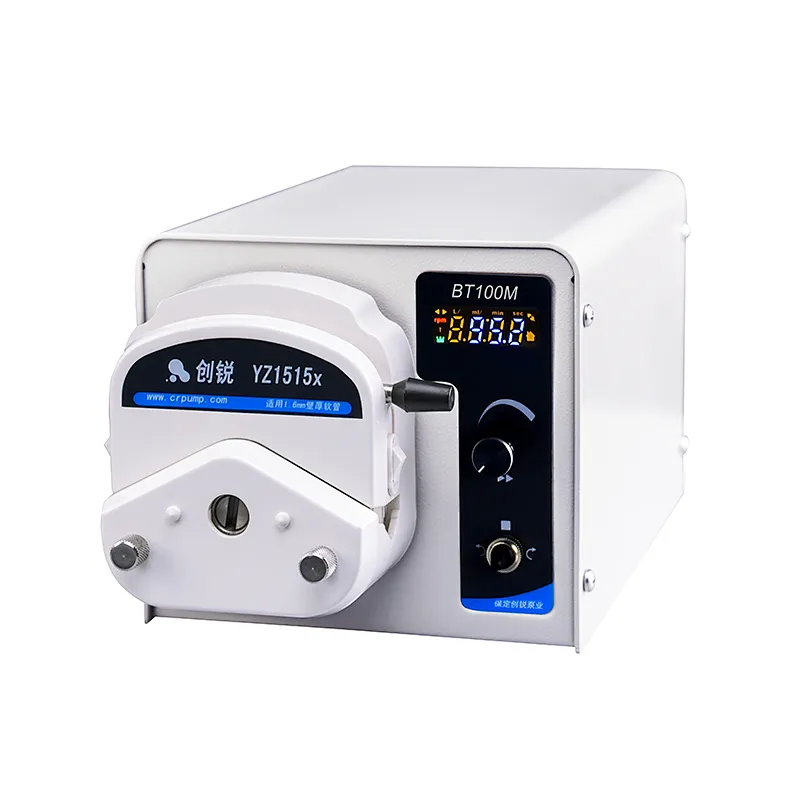

lab dosing peristaltic hose pump

Model NO.: BT100M/YZ1515x

* Drive Model: BT100M
* Pump Head :YZ1515x,YZ2515x, ZN series
* Speed range : 0.1-100 rpm（reversible）
* Flow range : 0.0015~380ml/min
* Max channels :2
* Remote control : optional

Quantity:

Product Description

Theory:small Peristaltic pump
Model:BT100M
Pump head:YZ1515x,
Rotating speed:0.1-100 rpm,reversible
Flow range:0.007-380 ml/min
Display:4-digit LED
Voltage:110V/ 220V
Warranty:1 Year Warranty(except Wearing Parts)
MOQ:1 Set
Customized support:OEM
Customized support:ODM
Customized support:OBM
Power Source:Electric
Structure:220v Peristaltic pump
Place of Origin:CN;HEB
Warranty:1 YEAR
Brand Name:Chuangrui
Model Number:BT100M/YZ1515x
Application:Automotive Industry
Application:Food and Beverage Industry
Application:Mining industry
Application:Pharmaceutical industry
Application:Wastewater Transport and Flood Control
Application:wastewater treatment
Application:Water Distribution
Application:Water Treatment Solutions
Application:Lab
Horsepower:none
Pressure:low pressure
Cable Length:2
Outlet Size:Max 7.9mm
Voltage:AC 220V or AC 110V
Power:<50W
Certification:ce
Certification:TUV

Product Description

Order guide

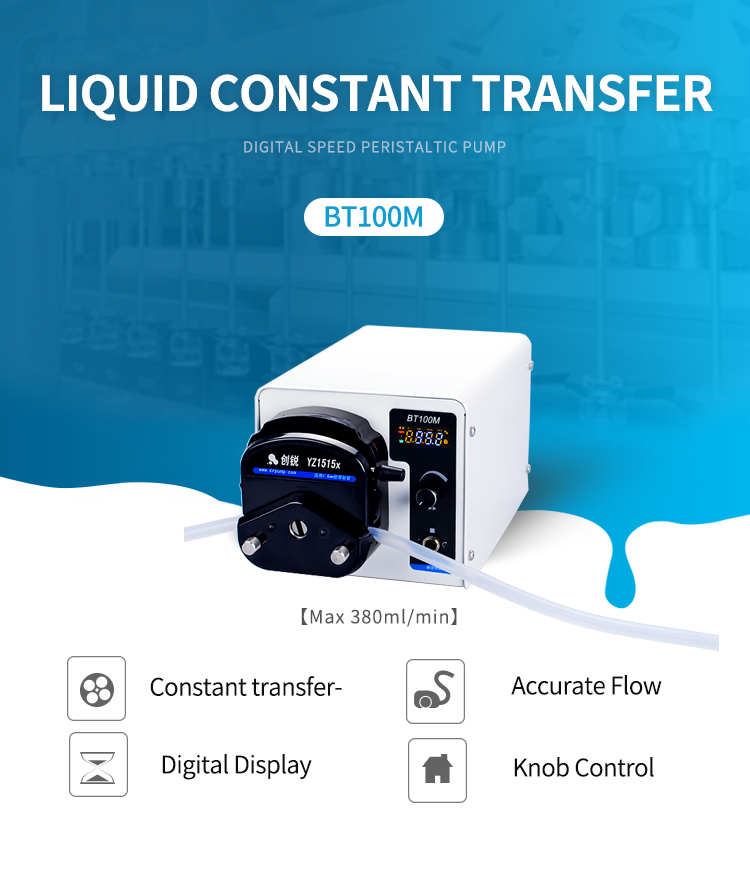

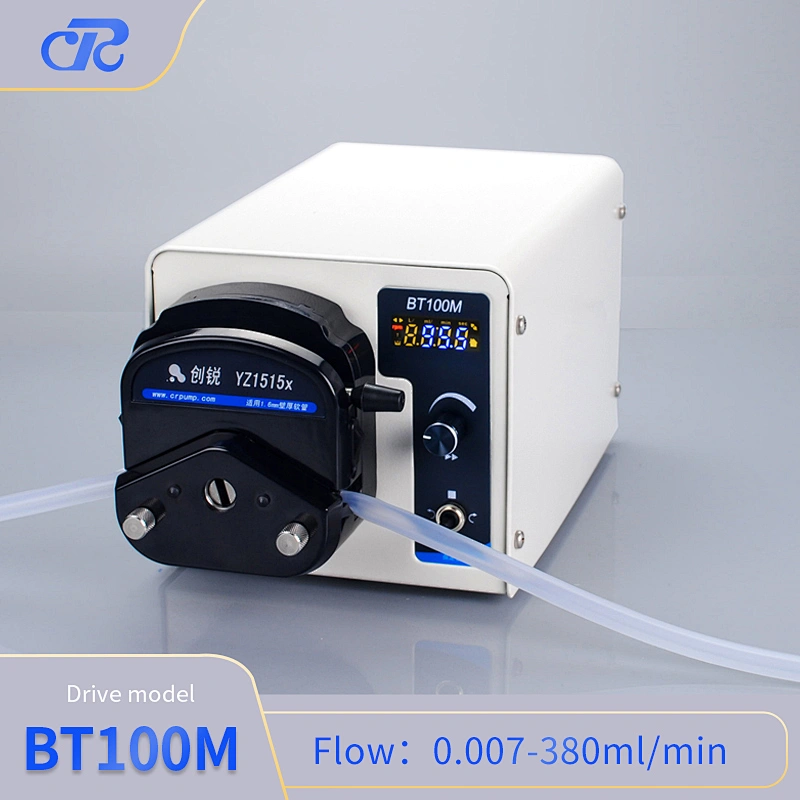

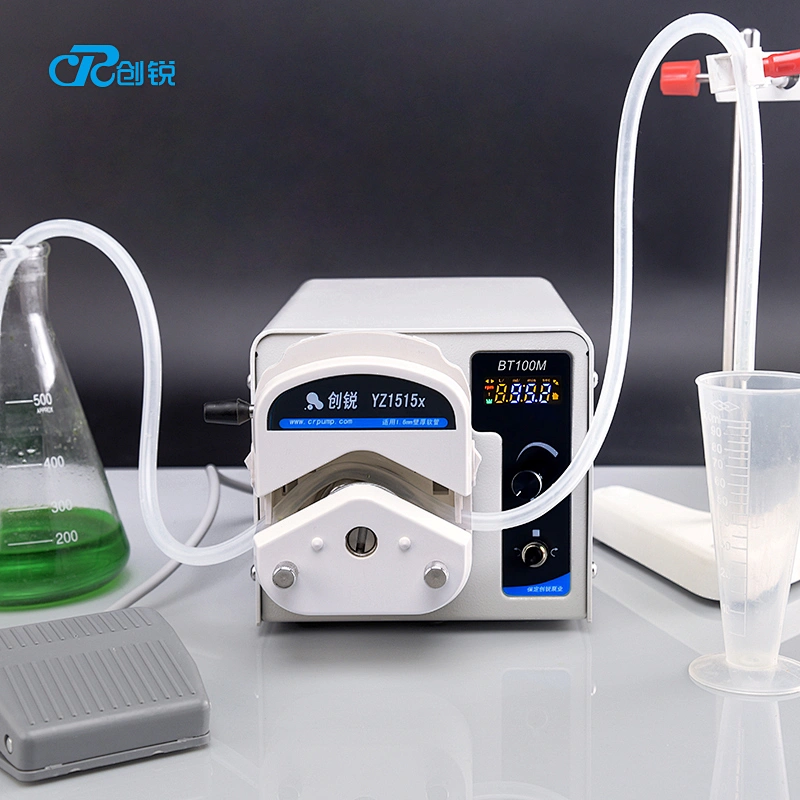

Lab scale peristaltic pump

The BT100M LAB scale peristaltic pump with speed adjustable function . Easy operation , Can work with 7 different size tube which can meet 0.007-380 ml/min Flow range.

Also support PLC control.

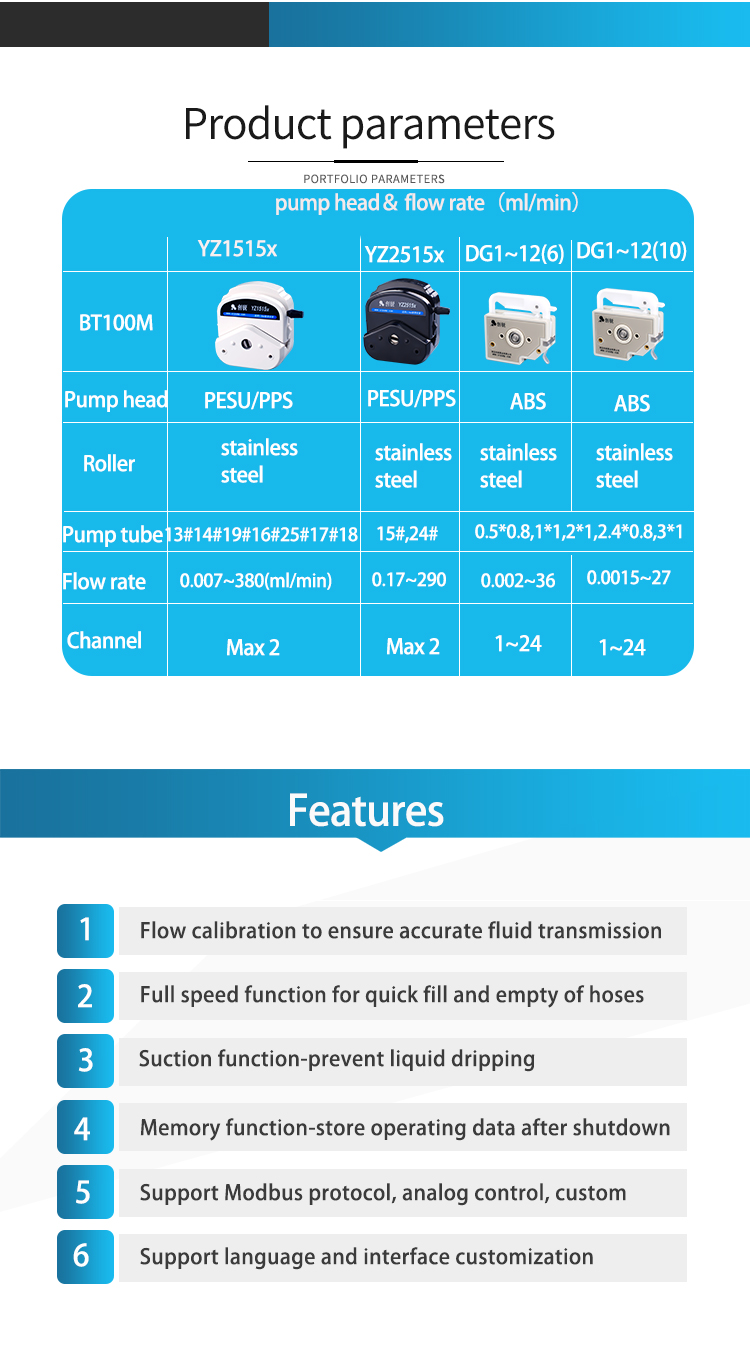

Tube specifications for the pump YZ1515x
Tube model	ID(mm)	OD(mm)	Max flow ml/min	Standard material	Optional material
18#	7.9	11.1	380	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
17#	6.4	9.6	290	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
25#	4.8	8	170	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
16#	3.2	6.4	82	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
19#	2.4	5.6	51	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
14#	1.6	4.8	27	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
13#	0.8	4	7	Silicon tube	pharmed BPT/Norprene A-60-F..etc.

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? mlHow many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

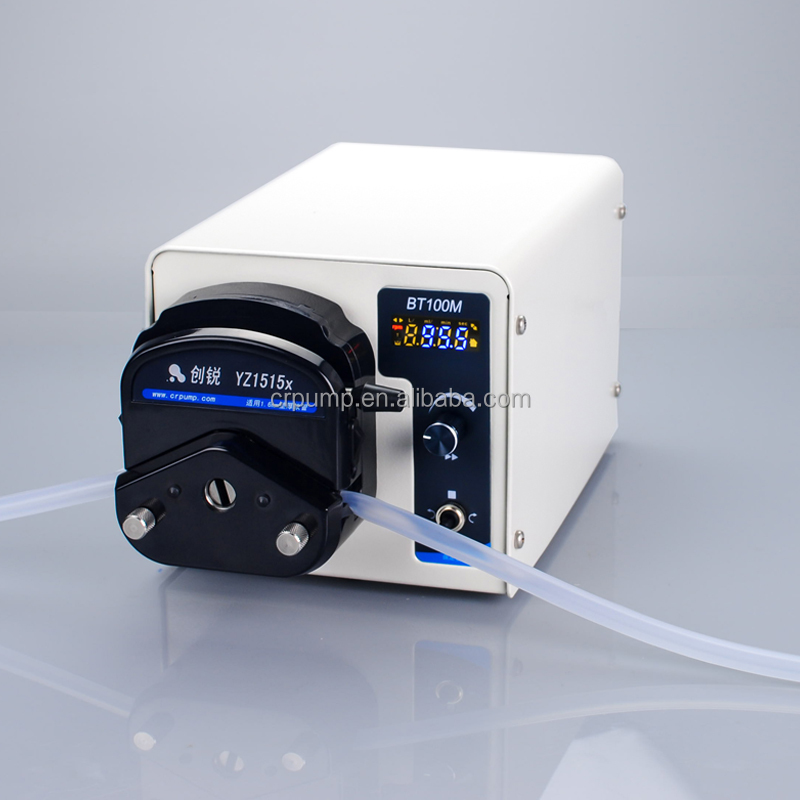

Pump head with PPS material (Black)

Typical application : Chemical industry/ packing machine/printing /fine chemical, laboratory, food canning, chemical reagent filling, Dispense juice, chocolate,
etc.- Refrigeration / Condensate Removal- Analytical / Fluid Transfer, Wastes- Commercial Exercise Eqpt. / Lubrication- Grease Trap Control /etc..

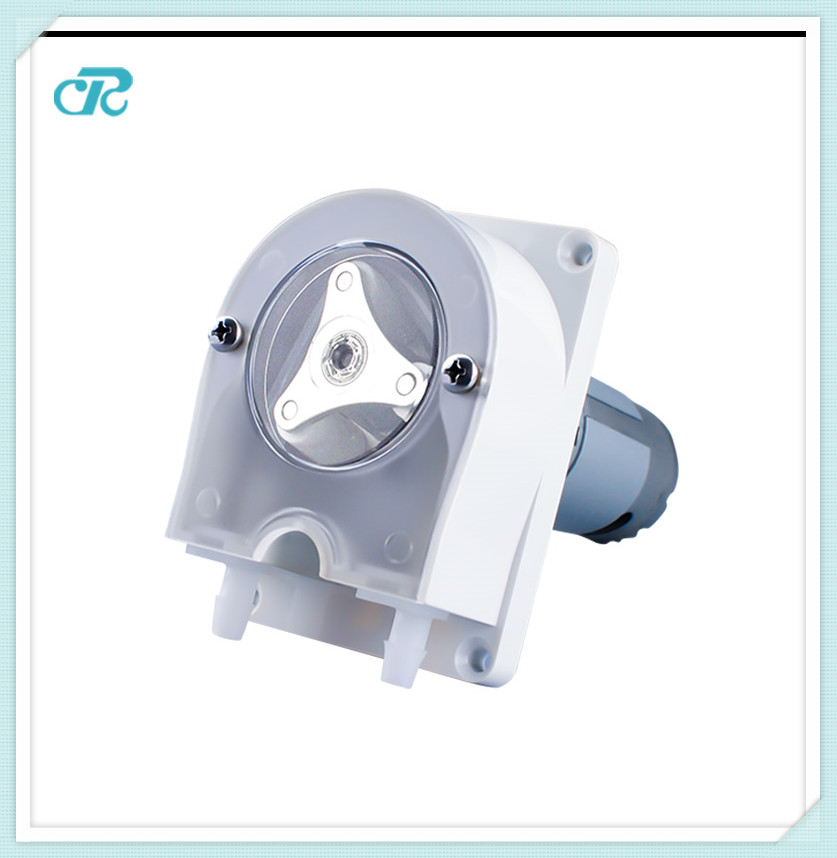

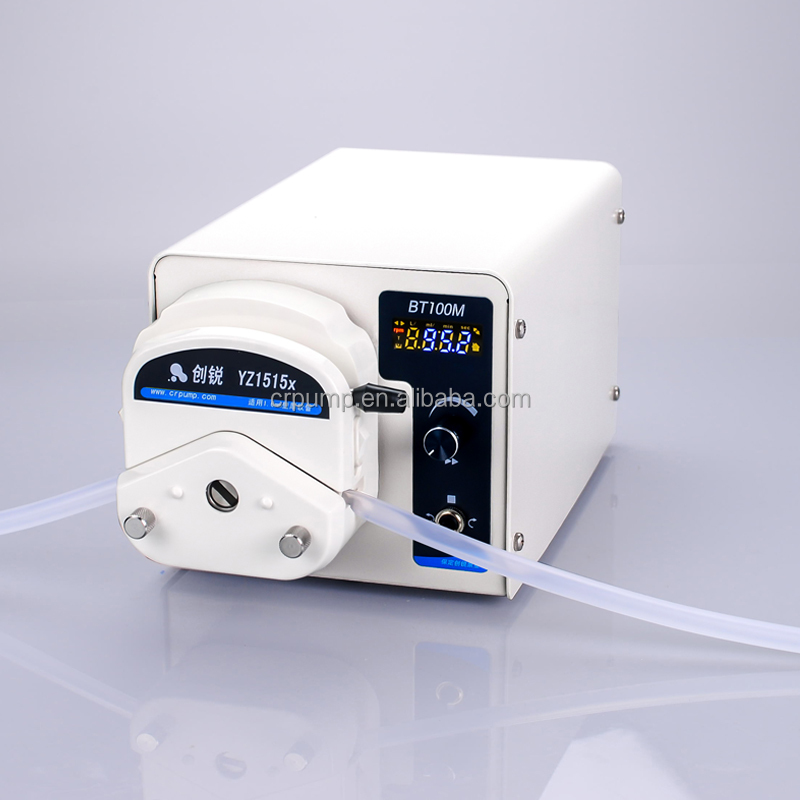

Pump head with PSF material (White)

Typical application : Packing machine/Medical/ Lab/ Analytical Instruments ,Commercial Dish washing / Chemical Dispensing- Vending Machine / Post Mix Syrups- Beverage Dispensing /Timed Dispense of Enzymes- Fluid Sampling / Water Sampling, DC Powered- Water Conditioning / Chlorination/PH control..etc.

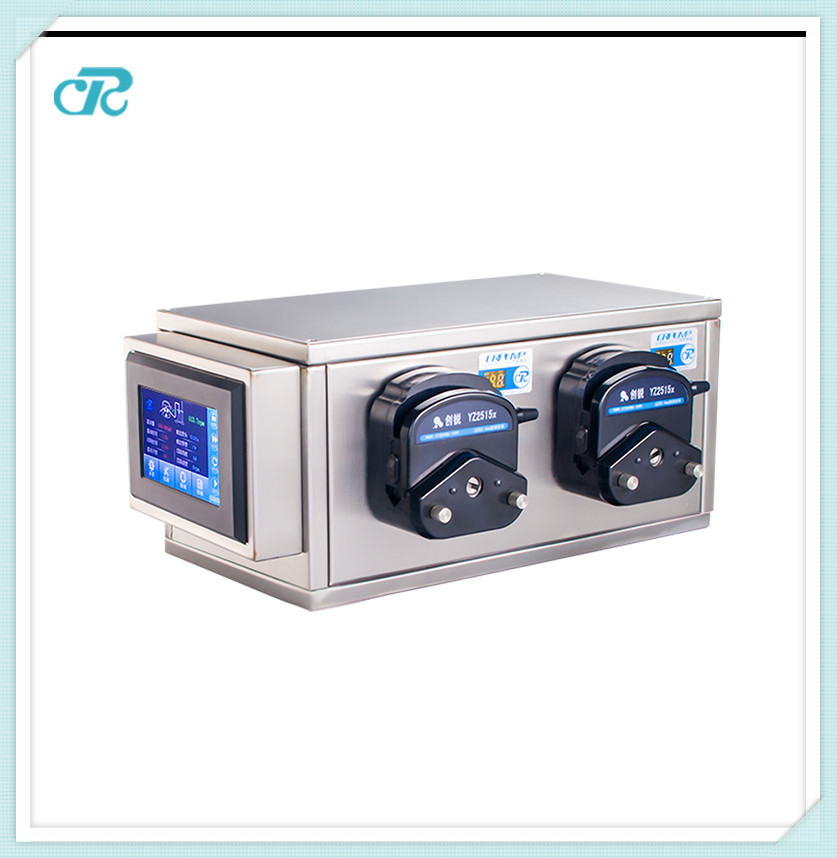

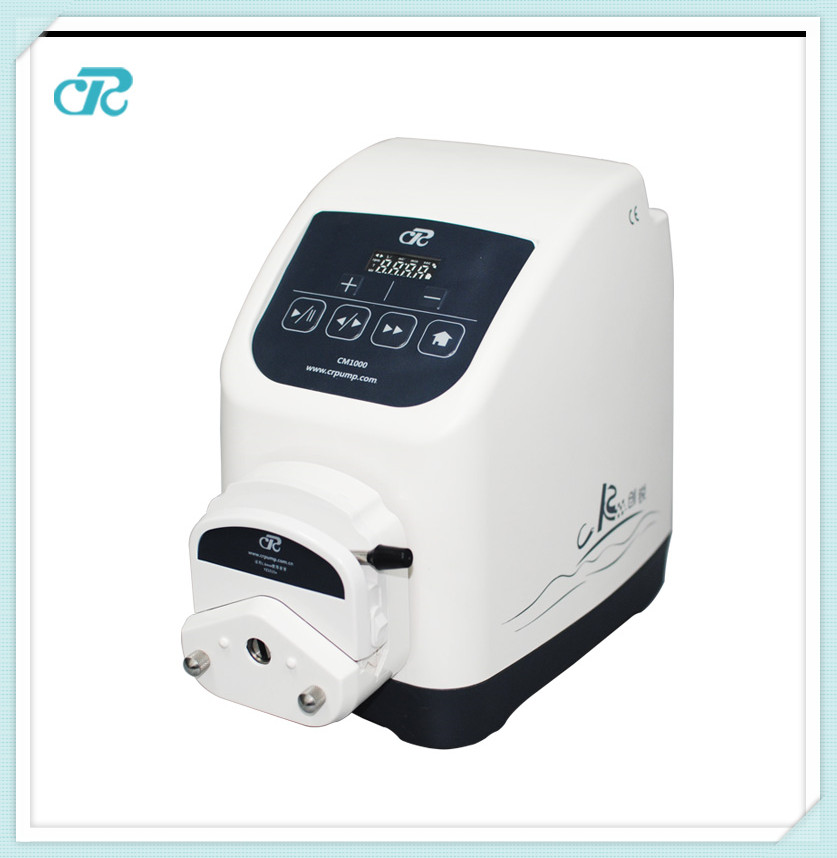

Popular Peristaltic Pump

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Packing & Delivery

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd.Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump.Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
