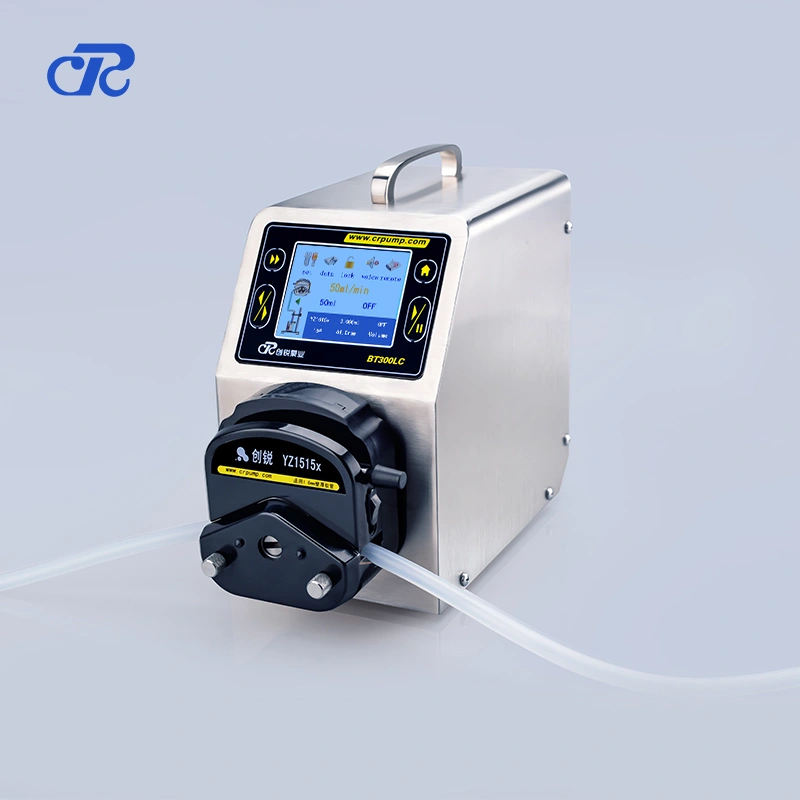

chuangrui Transfer Liquid Dosing Peristaltic Pump

chuangrui Transfer Liquid Dosing Peristaltic Pump

Model NO.: BT300LC/YZ1515X

* Drive Model: BT300LC
* Pump Head:YZ1515x,YZ2515x, ZN series
* Speed range : 0.1-300 rpm（reversible）
* Flow range : 0.007~1140ml/min
* Max channels :2
* Remote control : optional
* Foot pedal : optional

Quantity:

Product Description

Model:BT300LC
Pump head:YZ1515X
Revolving speed range:0.1-300rpm, reversible
Speed resolution:0.1rpm
Flow rate:0.007-1140 ml/min
Display Mode:LCD(English and Chinese optional)
Control Method:Control Method
Warranty:1 Year
MOQ:1 Set
Customized support:OEM
Customized support:ODM
Customized support:OBM
Application:Automotive Industry
Application:Food and Beverage Industry
Application:Machining
Application:Pharmaceutical industry
Application:Wastewater Transport and Flood Control
Application:wastewater treatment
Application:Water Treatment Solutions
Power Source:Electric
Structure:Peristaltic Pump
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:BT300LC/YZ1515X
Horsepower:None
Pressure:Low Pressure
Cable Length:none
Outlet Size:Max 7.9mm
Voltage:AC220V or AC110V

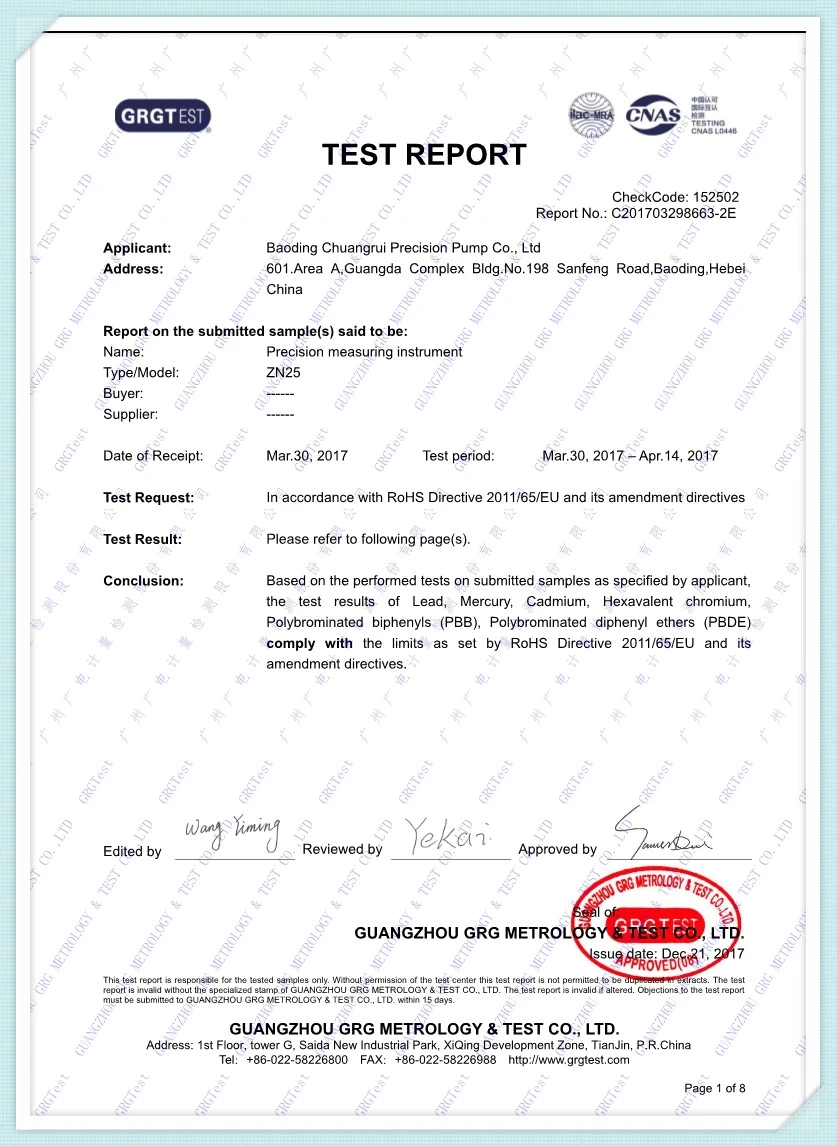

Certification:ce
Certification:ISO

Product Description

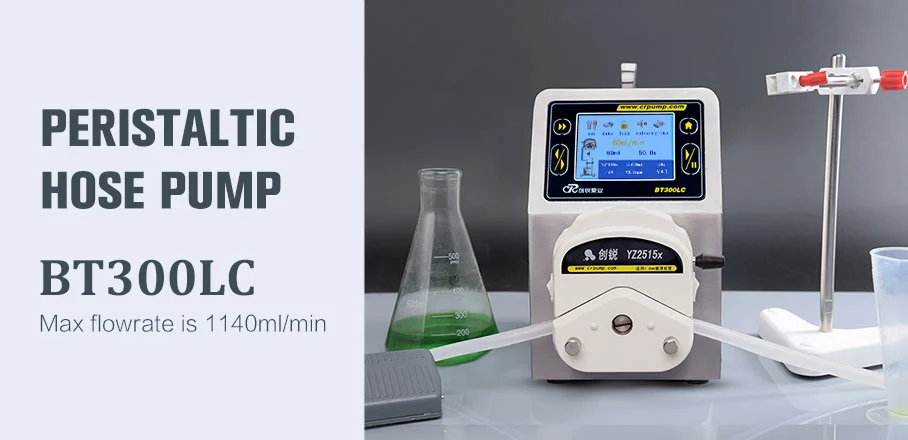

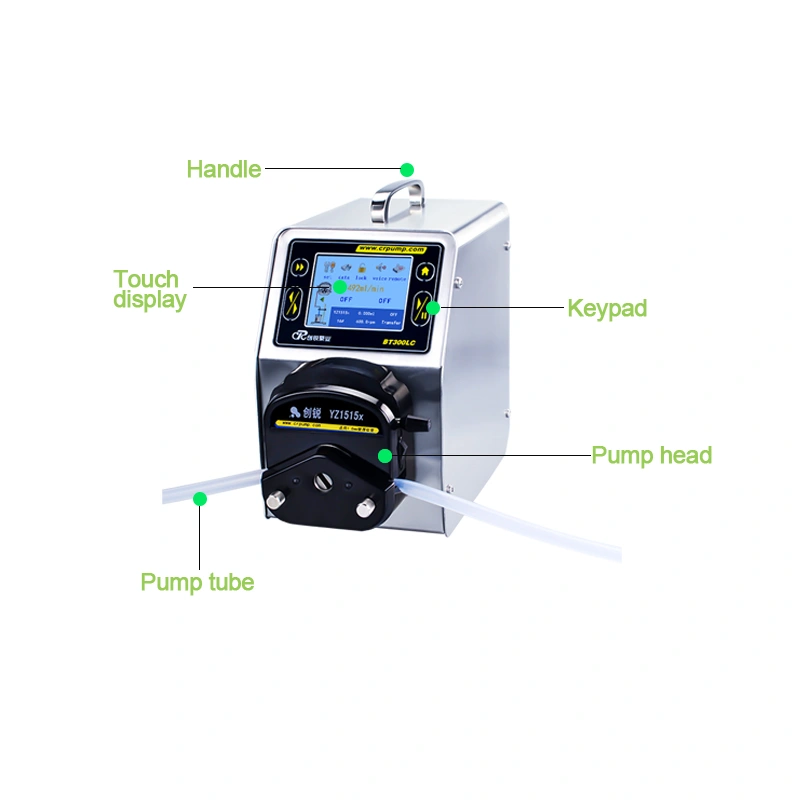

Model: BT300LC/YZ1515x

Speed range: 0.1-300 rpmFlow range : 0.007-1140ml/minMax Number of Channel: 2Power supply: AC 110V or AC 220V Ideal lab transfer pump

With touch screen setting

With Calibration function to ensure the precise

Support foot pedal Control

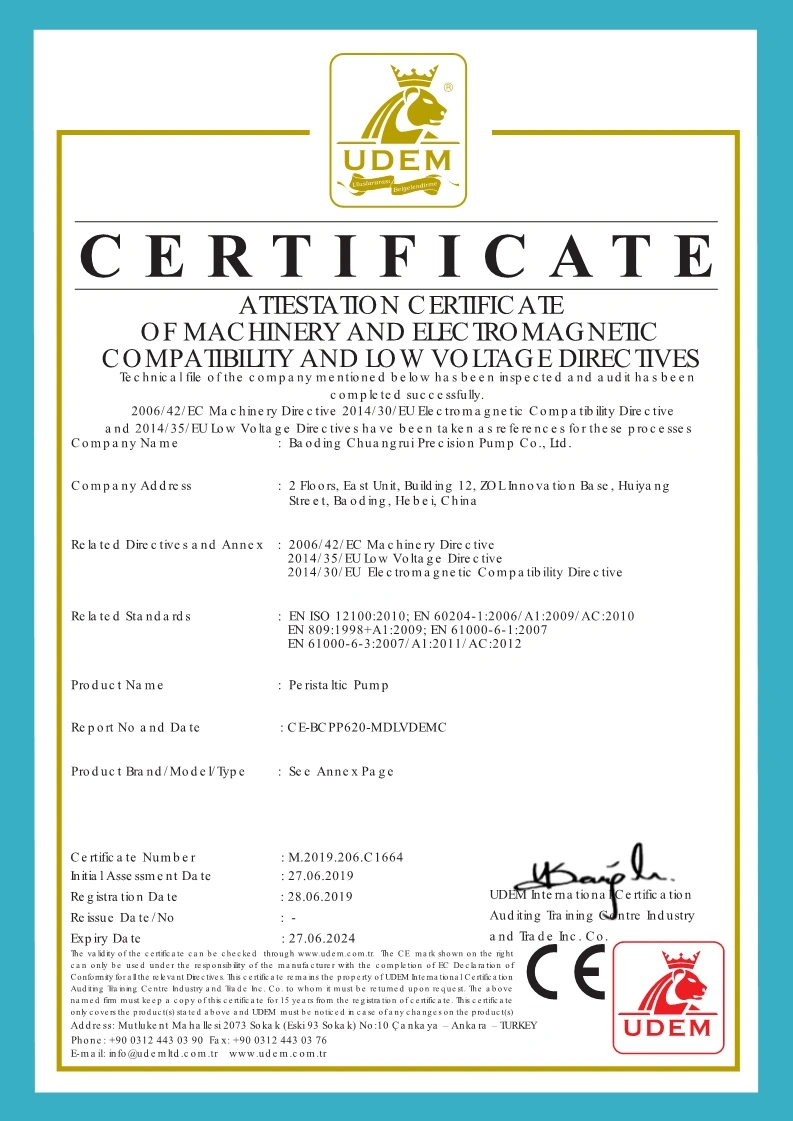

CE certified product based on request.

Four working modes

The peristaltic pump hose, has one substantial benefit: accurate dispensing or metering without risk of cross-contamination. Peristaltic metering pumps became ideal for a wide range of industries and applications because of this advantage.For example, in medical or laboratory devices, peristaltic pumps can be used for processing of sterile fluids, dialysis,filtration, or bio-processing, Our model BT300LC peristaltic infusion pump is very popular in hospital, it has high accuracy as it’s also stepper Motor Peristaltic Pump. In food, agriculture, or disinfection processes, they can be used for dispensing food or
beverages, vitamins or chemicals. It also can be used for wastewater treatment or other environmental application such as condensate removal in gas analysis. So if you want variable peristaltic pump with high flow/medium flow/micro flow, choose
Chuangrui brand is the best choice.

Parameter Model : BT300LC/YZ1515x
Parameter Model : BT300LC/YZ1515x		Model	BT100M/YZ1515x
Speed	0.1-300rpm
Speed resolution	0.1rpm
Flow rate	0.007-1140ml/min
Control Method	Touch screen + keypad
Display Mode	LCD（English and Chinese optional）
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow range(ml/min)
18#	7.9	11.1	Silicon tube	0.38-1140
17#	6.4	9.6	Silicon tube	0.29-870
25#	4.8	8	Silicon tube	0.17-510
16#	3.2	6.4	Silicon tube	0.082-246
19#	2.4	5.6	Silicon tube	0.051-153
14#	1.6	4.8	Silicon tube	0.027-81
13#	0.8	4	Silicon tube	0.007-21

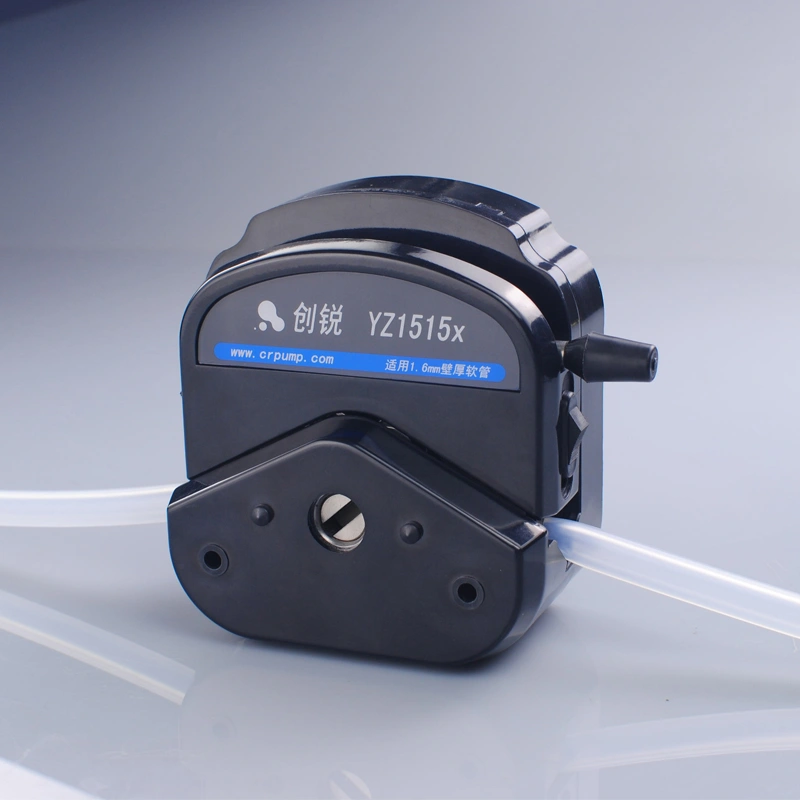

Pump head with PPS material (Black)

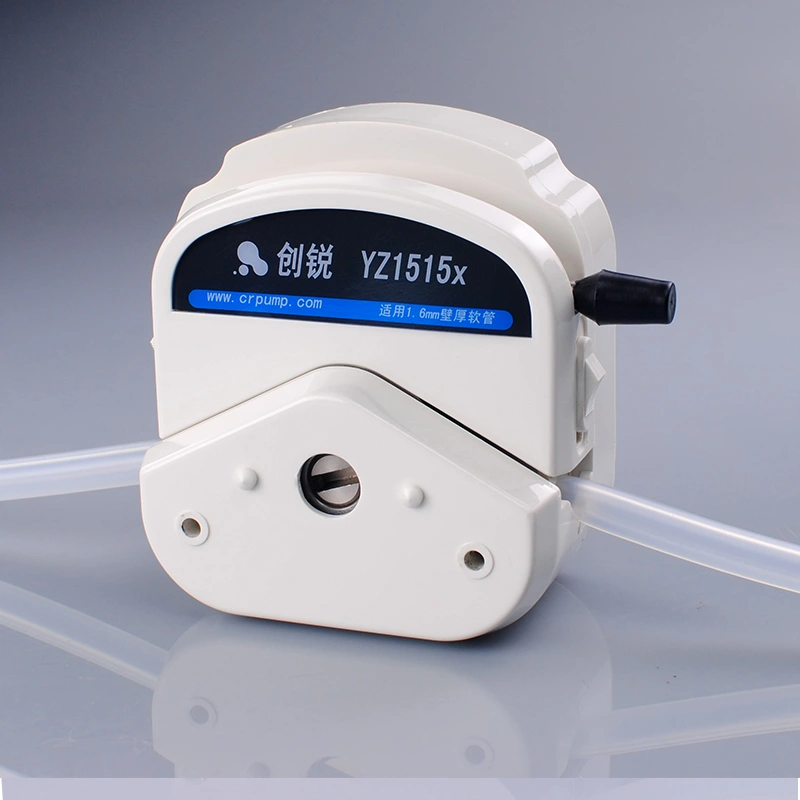

Pump head with PSF material (White)

Order guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What's your bottle's volume? ( )ml2, How many channels you need? ( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted: The defaulted model we will send is 300LCB21 or 300LCB11.
Order number	Model	Pump head	Power supply	Channel number	Flow range with 18#tube
300LCB21	BT300LC	YZ1515x(black)	AC220V	1	0.38-1140ml/min
300LCB11			OEM201-1			AC110V	1
300LCB22			OEM201-1			AC220V	2
300LCB12			OEM201-1			AC110V	2

Packing list
1	Pump :BT300LC/YZ1515x(black)
2	Silicon tube: 18# 2 meters
3	Power plug
4	User manual
Weight	8 KG
CTN MEAS	362536CM

Why choose this transfer pump?

·1.Storage function-user data storage function:(9 sets of data) .
·2.External control function-Multiple mode selection: communication mode, analog mode，foot switch control.Provide customized services.
·3.Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
·4.Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the system will automatically carry out flow calibration to ensure the flow accuracy
5.Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc
6.Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.
7.lock screen function-lock screen design, error proof touch, application more secure.

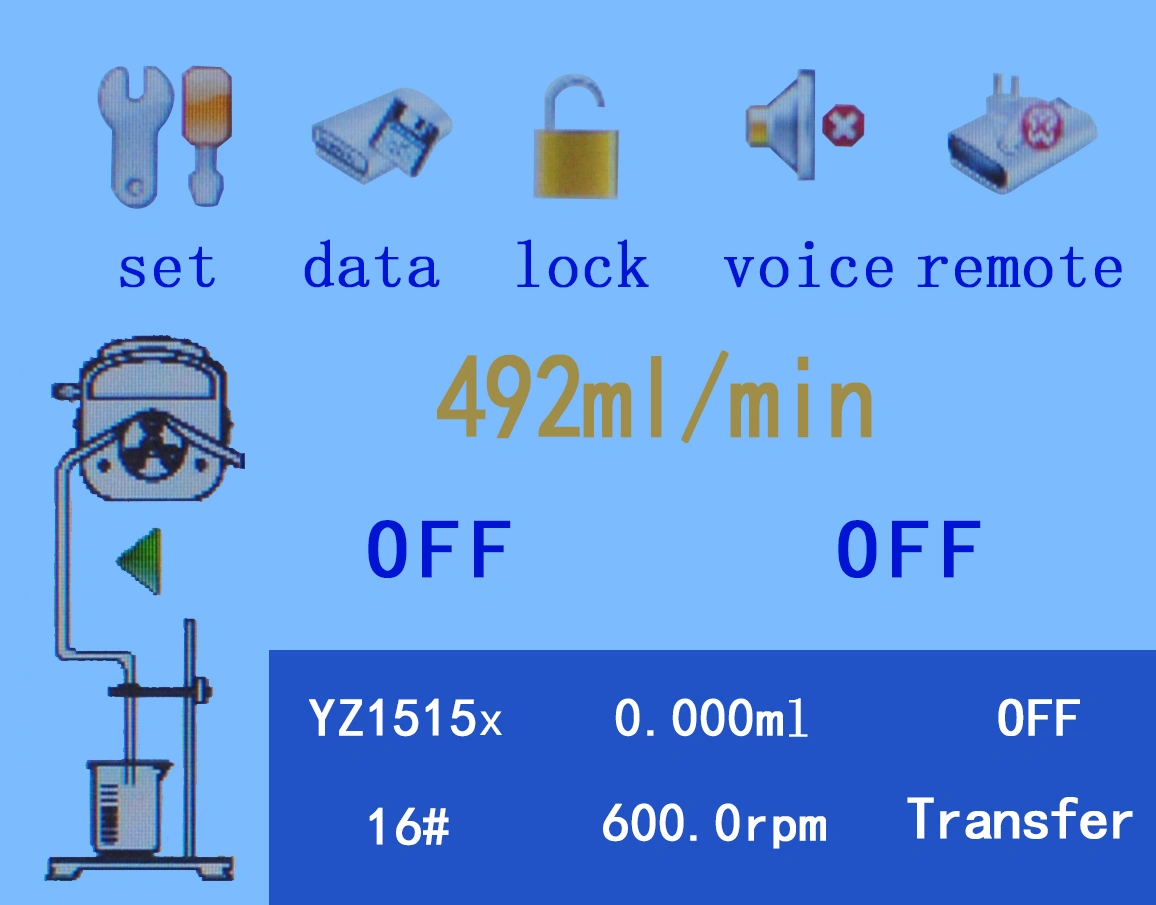

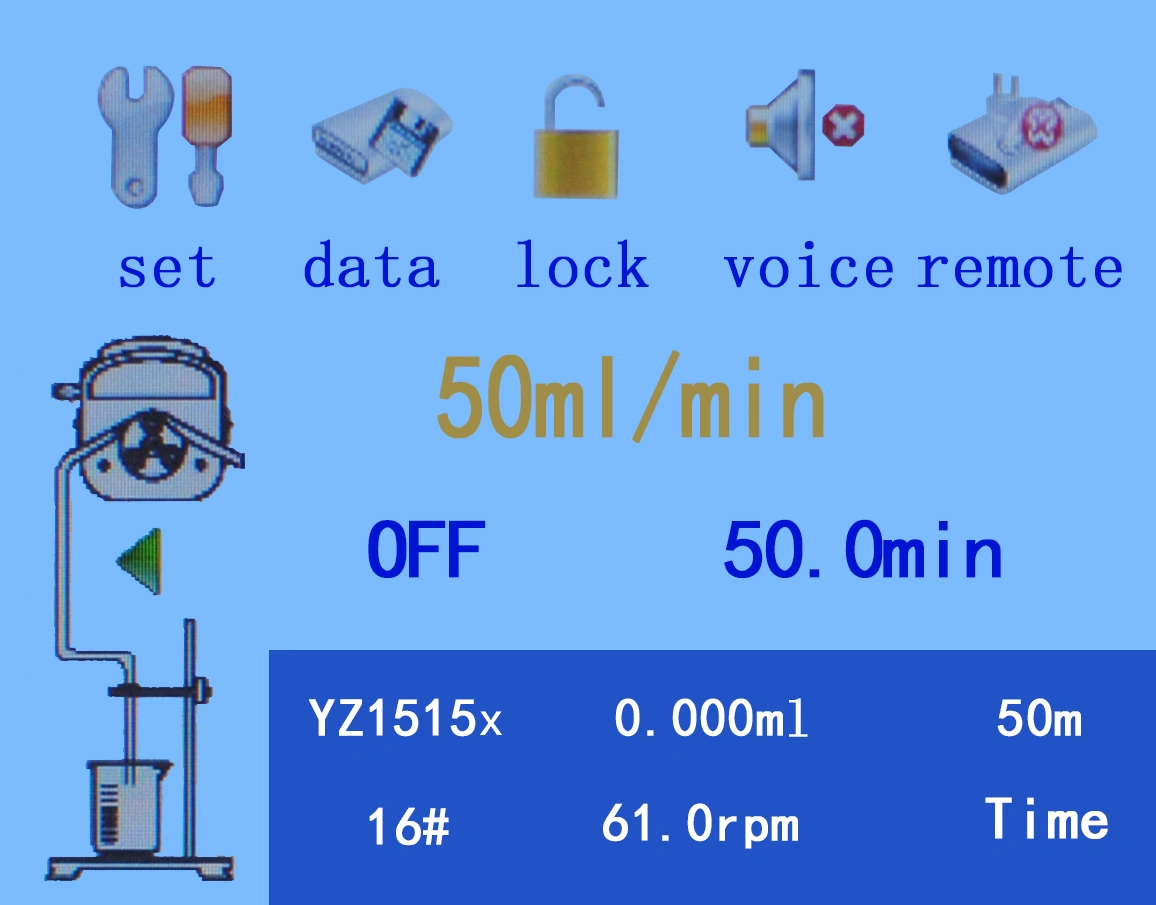

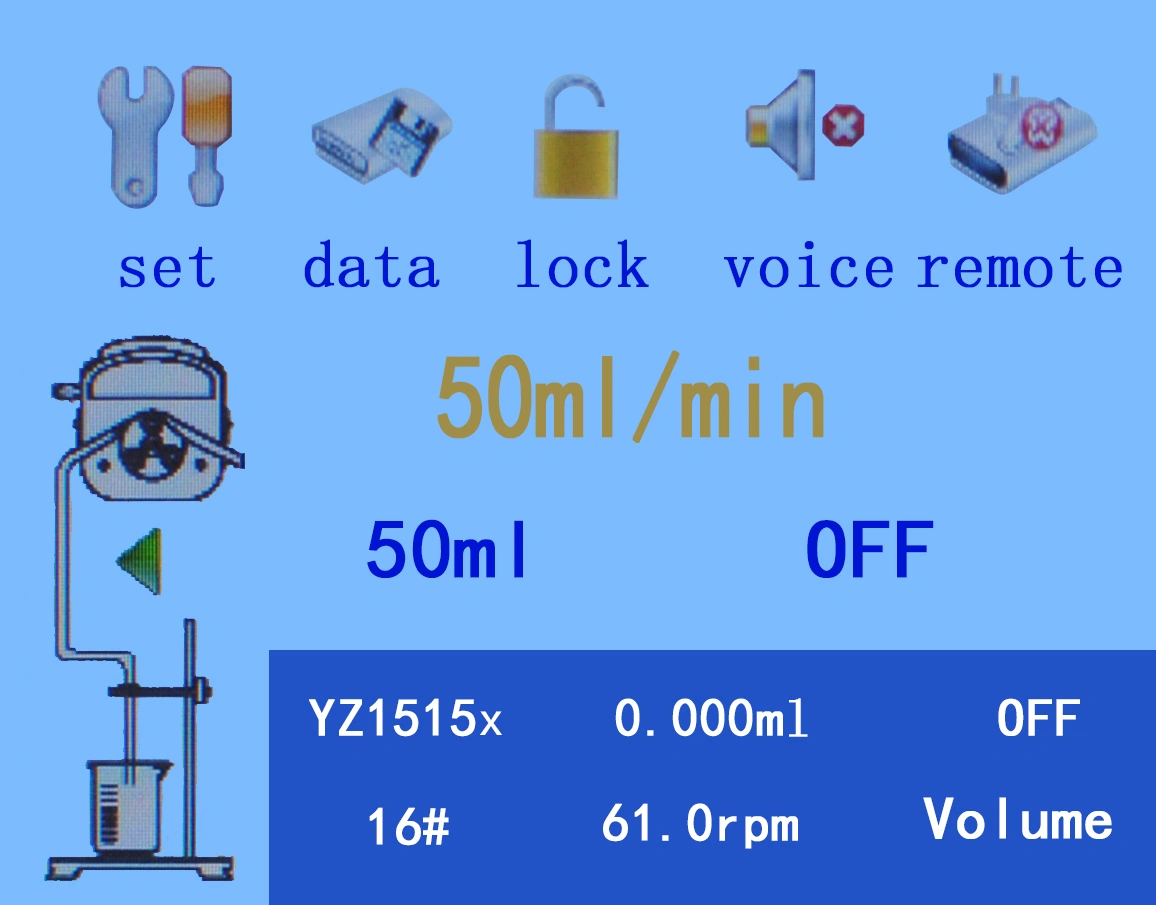

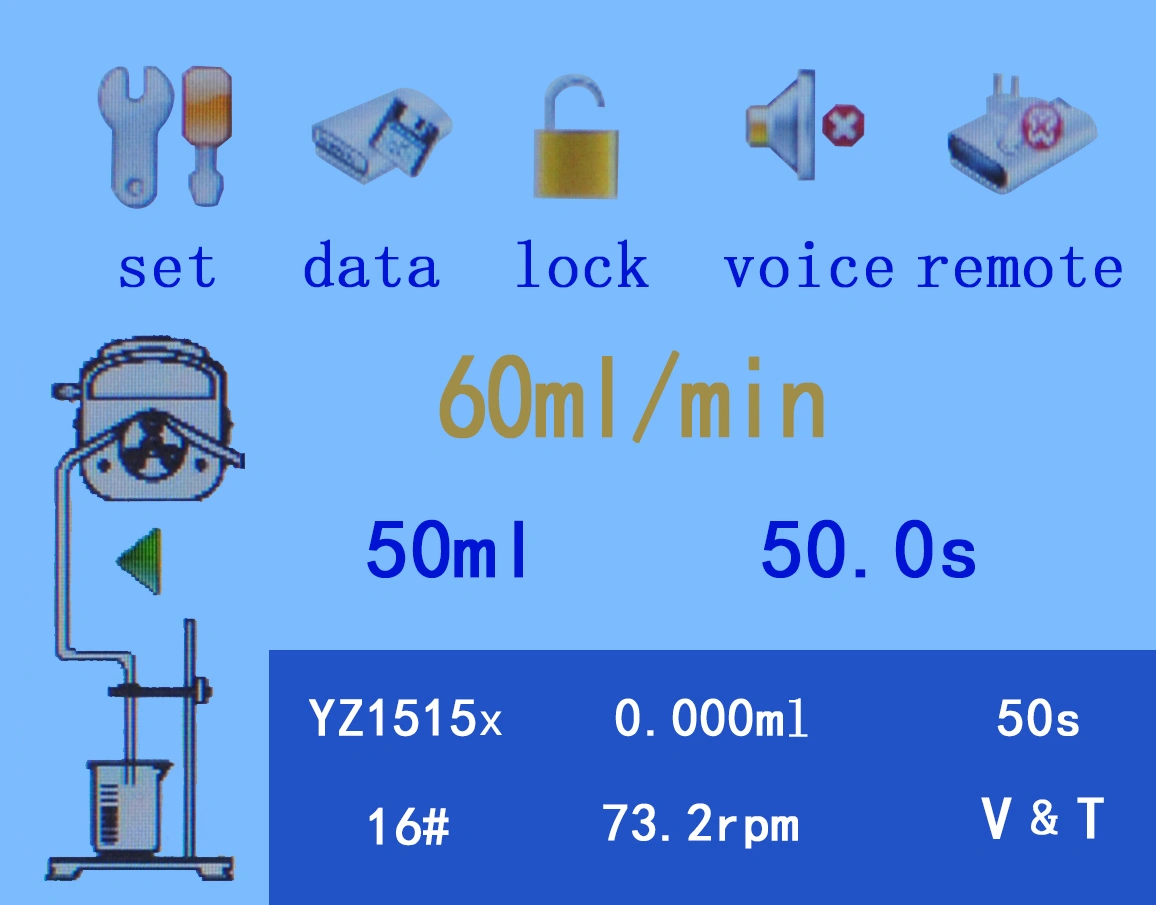

8.Display function-real-time animation of the operation interface shows the running state and working parameter.

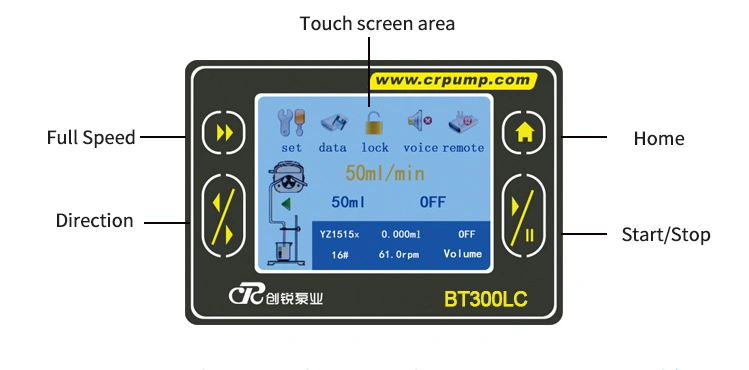

9.Touch-screen function-3.5-inch color LCD screen, (English and Chinese optional) , touch-screen operation, intuitive and intelligent.
10.Whole housing design-stainless steel housing，sturdy and durable , multi-face seamless whole housing design, Long service life, high cost performanc

Application

Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; bio pharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.

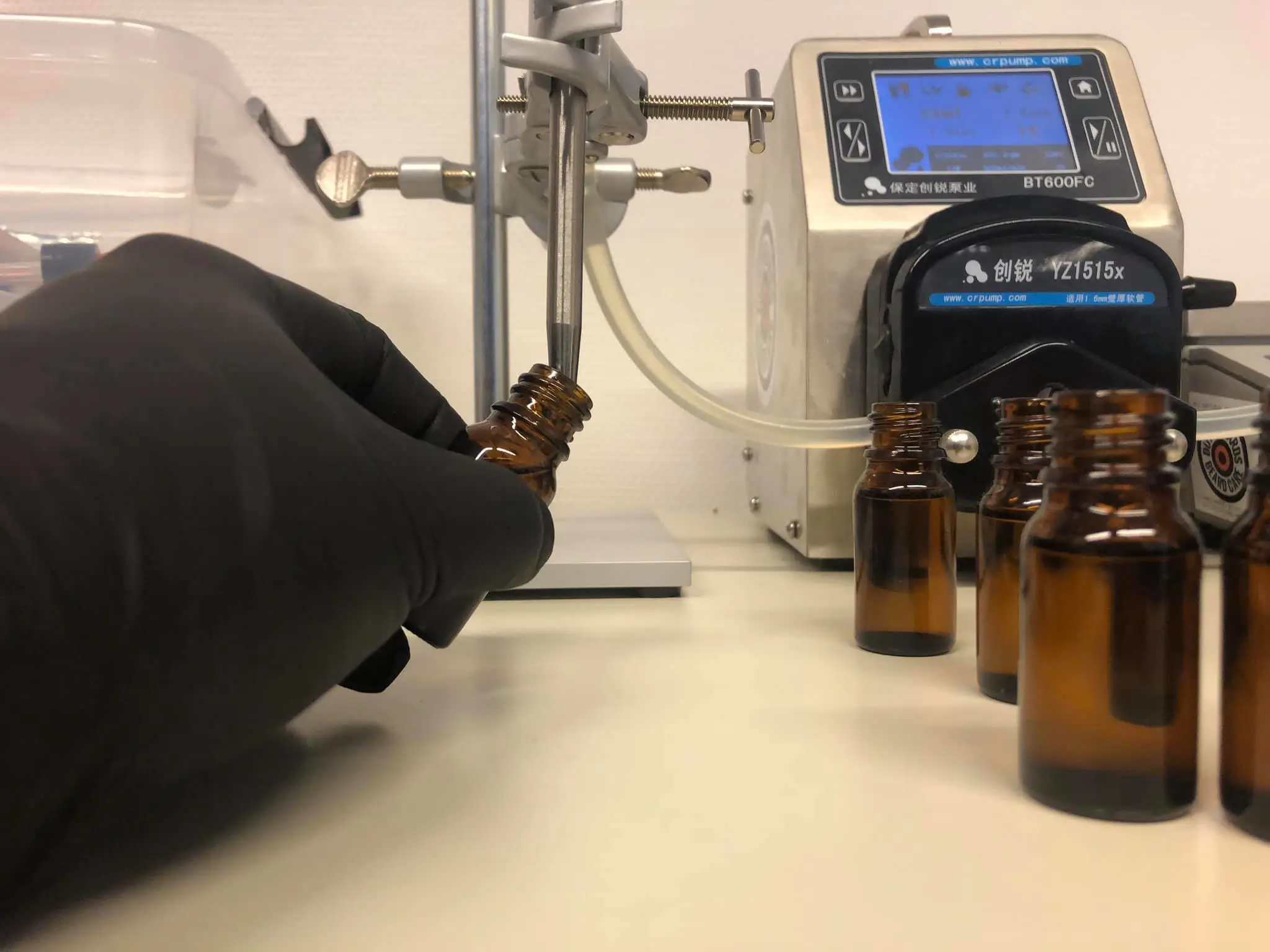

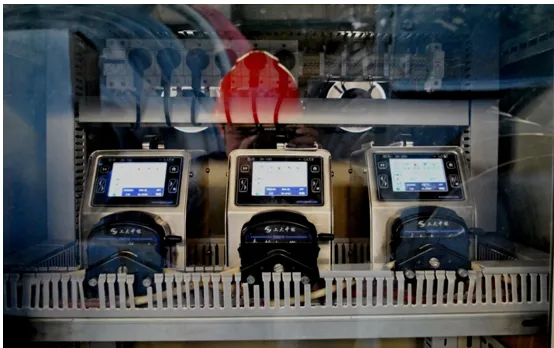

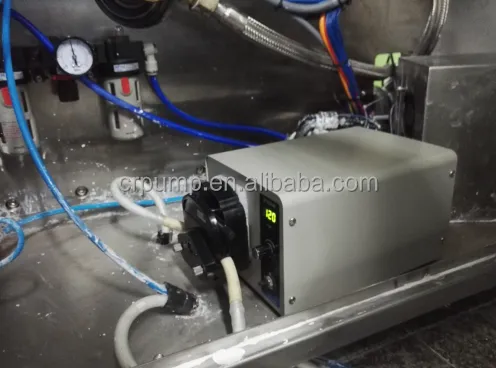

Typical application for dosing machine

Peristaltic pump for quantitative additionWhich with touch screen can set the quantitative/ time you want to transfer.Support foot pedal easy control.

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

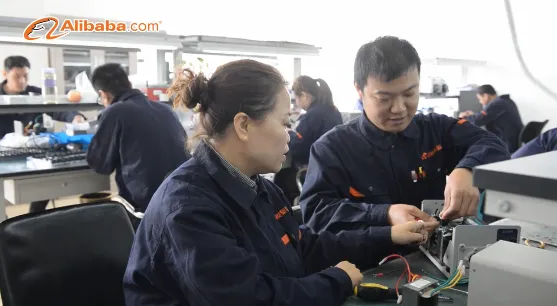

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

About shipping

Fast and safe delivery

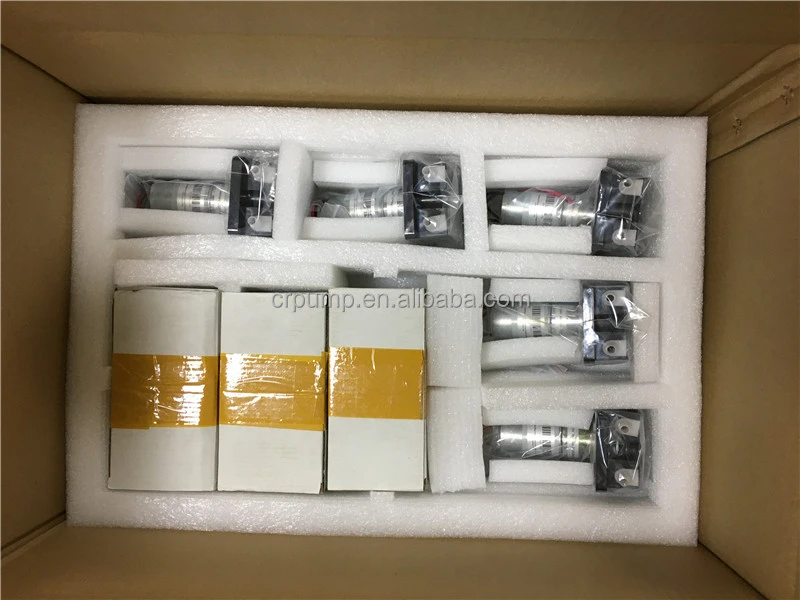

1.The package contains a peristaltic pump and its accessories.

2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3.If you have other packaging needs, please contact us in time.

Things To Note

Hi, My dear customer ,Good day!
Here are some tips for your reference before purchase our pumps.
1, About Delivery time :
For standard pump less than 10 sets the delivery time is 3-5 days after get your payment.
For customized pump ,the production time is about 7-15 days.
For bulk purchase, Pls contact our customer service staff to get the exact delivery time.
2, About Power supply and power plug:
For standard pump is AC220V or AC110V ,which produce based on your local power supply standard.
For the power plug, we have most of the power plug types based on different counties' requirement.
PS :The power supply and power plug will based on your shipping country's standard(defaulted). If you have different requirement,Pls contact our sales .
3, About the flowrate :
All the flowrate we showed are test based on water,Only for your reference.
4,About Return Policy and after sale service:
a . Before purchasing, please carefully understand the product (peristaltic pump) function details. If you are not sure about the product function, please contact our customer service staff for detailed communication and confirmation before purchasing. Our technical staff will give you detailed information. Answer to ensure that you find the most suitable product.
b . After receiving the goods, if the packaging is damaged due to express delivery and the product is also damaged due to gravity,such as shell deformation, pump head damage, etc., please send the damaged packaging photos and product photos to our customer service staff within three days.Our company will negotiate compensation with the express as soon as possible and provide you with a solution within three working days.
c . If there is a problem with the product due to the quality of the product within one year after receipt (the warranty period),please feel free to contact our customer service staff, we will provide you with a solution within three days of receiving your information.
d . If the product has exceeded the warranty period and the product cannot be used due to improper operation by the customer,please contact our customer service staff. We only charge the cost of the accessories and the courier fee. And the customer service staff will answer your questions free of charge and assist you with repairs in the form of text, pictures or videos.
5,About Warranty:
1 Year warranty and lifetime matainence.(Do not including the Consumables such as tubing and connectors.etc.）
