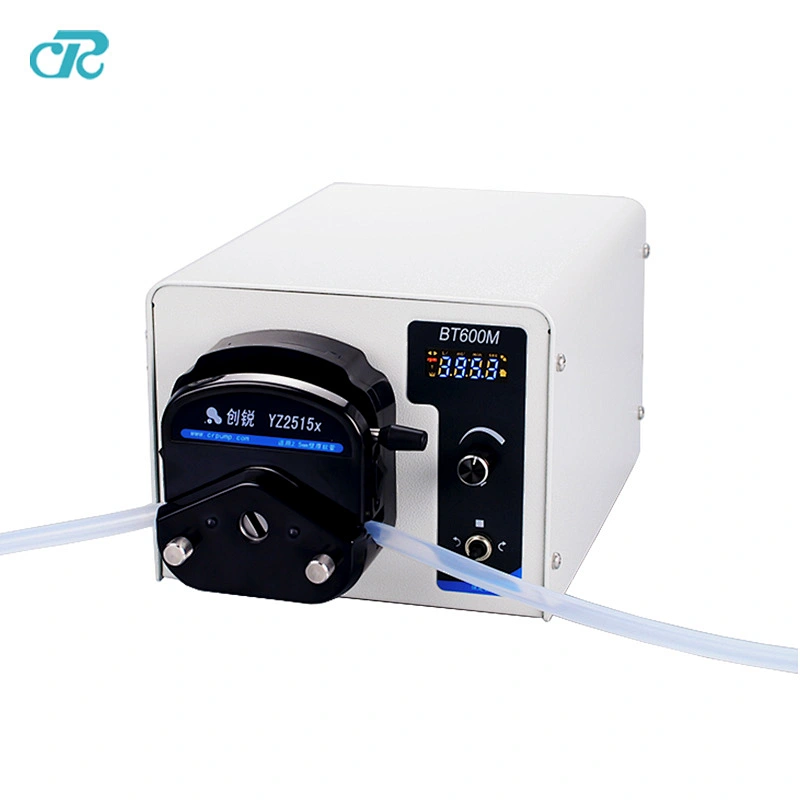

adjustable flow rate peristaltic pump with foot pedal

adjustable flow rate peristaltic pump with foot pedal

Model NO.: BT600M
Price:: US $ 530.00-700.00 / set
Minimum order quantity: 1 set
Supply Ability: 2000 set / Month
Country of Origin: Tianjin, Beijing, Guangzhou, Shanghai, etc.

Quantity:

Product Description

Place of Origin:CN;HEB
Pressure:Low Pressure
Structure:peristaltic pump
Usage:adjustable flow rate,transfer liuqid
Application:adjustable flow rate,transfer liuqid
Power:<50W
Fuel:Electric
Brand Name:Chuangrui
Model Number:BT600M
Theory:peristaltic pump
Pump Head:YZ1515x
Pump Housing Material:PPS/PESU
Roller Material:304 Stainless steel
Rotating speed:0.1~600rpm, reversible
Flow Rate Range:0.007~2280ml/min
Suitable Hose:13# 14# 19# 16# 25# 17# 18#
Display Mode:4-digit LED
Speed Contol Mode:Rotary Knob
Power Supply:AC220V±10% (Standard) / AC110V±10% (Optional)

Product Presentation

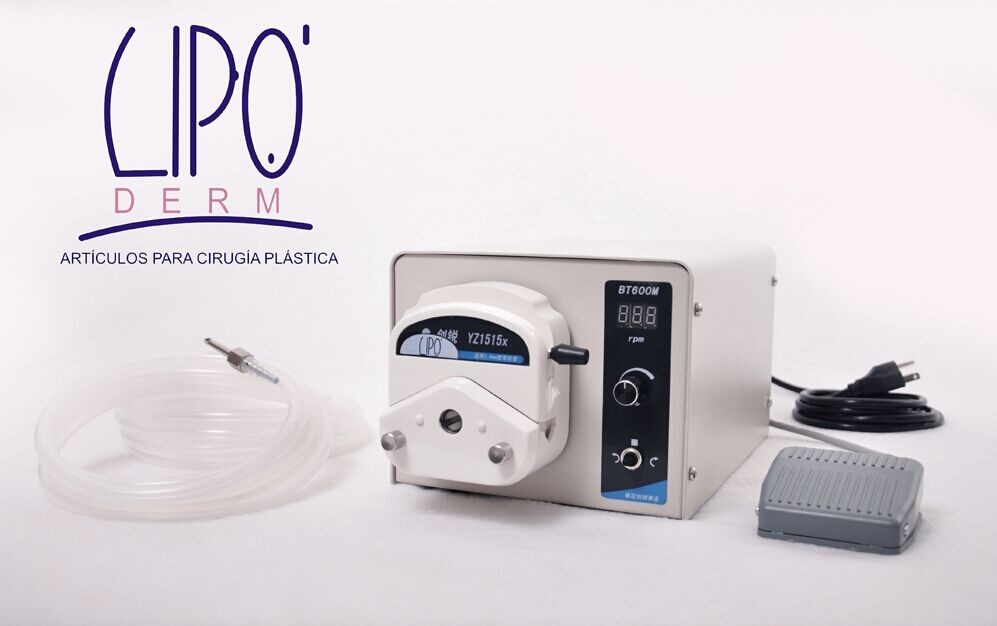

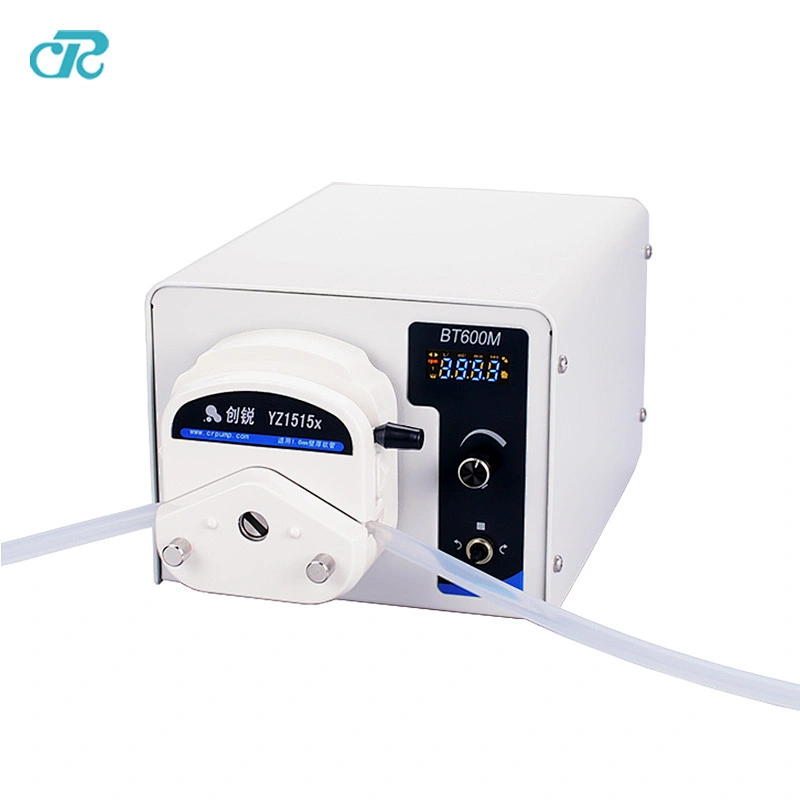

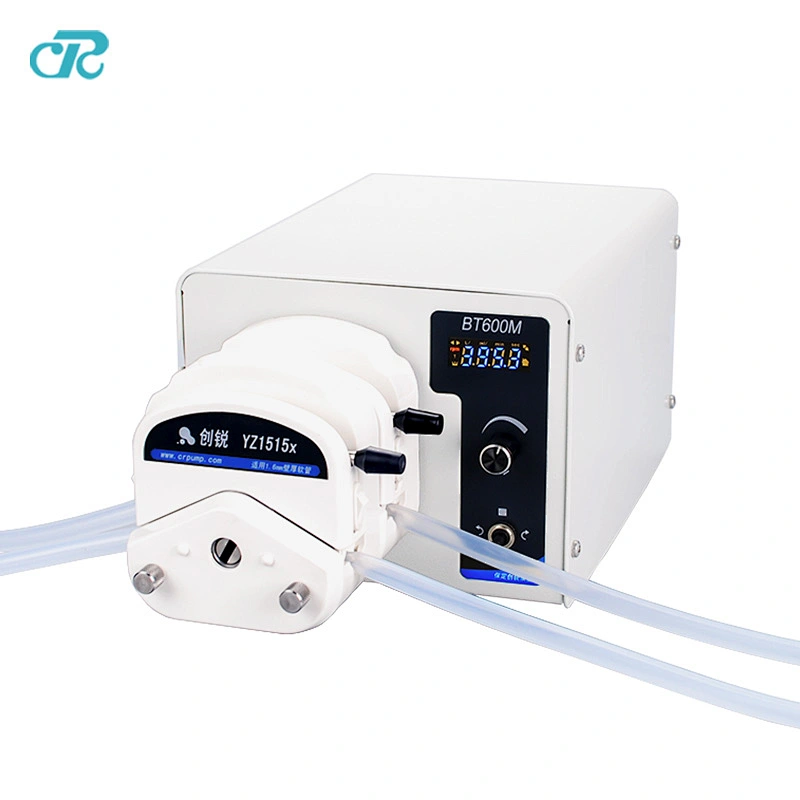

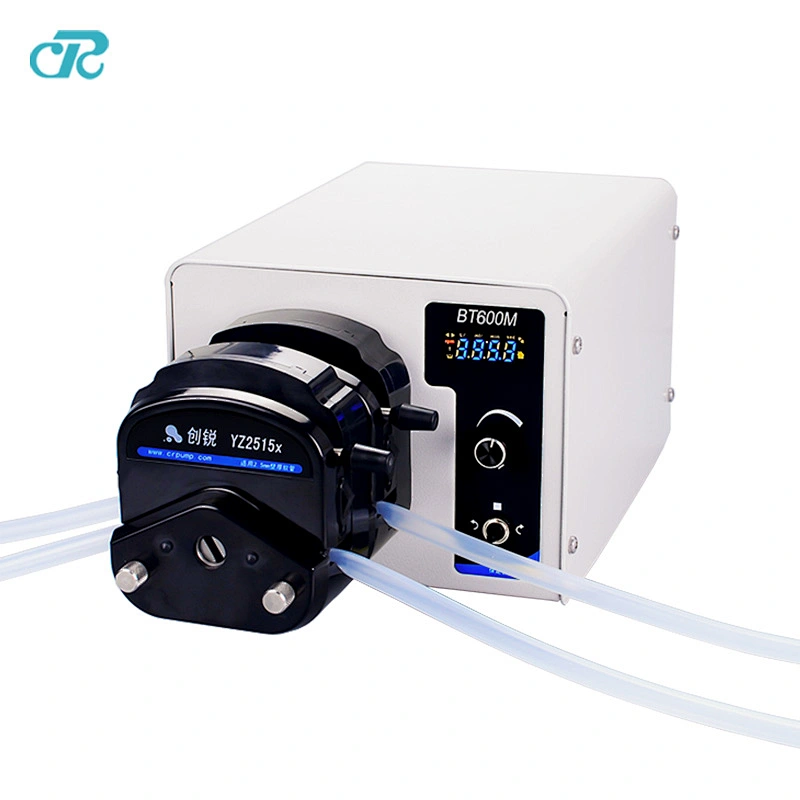

adjustable flow rate peristaltic pump with foot pedal

*This peristaltic infusion pump is special for Tumescent anesthesia

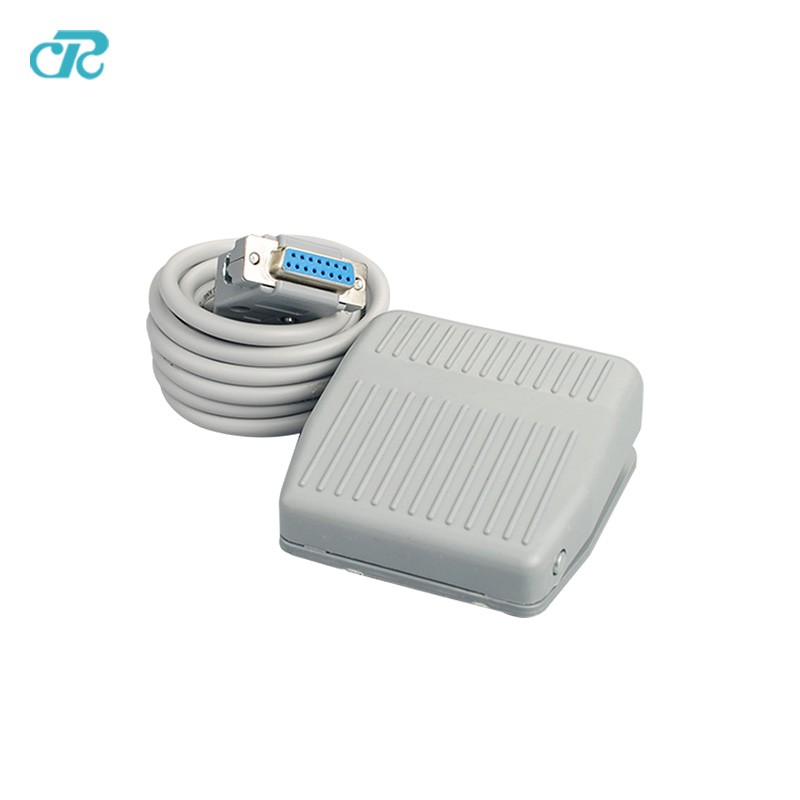

*With Foot pedal control .easy to operate
*Long life, digital rotary knob, easy to adjust the speed ,
*FULL SPEED button available for filling in & emptying out the tubing.

4-LED Display

*Memory function available in case of power off and it will continue the work once the power was restarted.

*Long-range control is available through the DB15 interface of the drive: speed control, start-stop control, direction control.

*Good cost performance.

Features of peristaltic pumps:

1. Non-pollution
2. No need cleaning
3. Low shear force
4. Maintenance convenient
5. Wide application

Technical Parameters

Speed range	0.1~600rpm, reversible
Speed resolution	0.1rpm
Flow rate range	0.007~2280ml/min
Flow accuracy	<0.5%
Speed control mode	Digital knob to adjust the speed
Display mode	4-LED display double mode-speed and flow rate
Power supply	AC220V±10% (Standard) / AC110V±10% (Optional)
Power	<50W
External control interface	Start/Stop, Direction, Speed control (Optional) RS485 serial communication
Work environment	Temperature 0 to 40℃, relative humidity<80%, no condensation
Drive size	254184150 (mm)
Drive weight	4.7kg
IP rate	IP31

Tube	ID(mm)	Wall thickness(mm)	OD(mm)	Speed(rpm)	Flow rate(ml/min)
13#	0.8	1.6	4	0.1-600	0.007-42
14#	1.6	1.6	4.8	0.1-600	0.027-162
19#	2.4	1.6	5.6	0.1-600	0.051-306
16#	3.1	1.6	6.3	0.1-600	0.082-492
25#	4.8	1.6	8	0.1-600	0.17-1020
17#	6.4	1.6	9.6	0.1-600	0.29-1740
18#	7.9	1.6	11.1	0.1-600	0.38-2280

BT300FC/YZ1515x

For bottle filling

Max Flow : 0.007-1140 ml/min

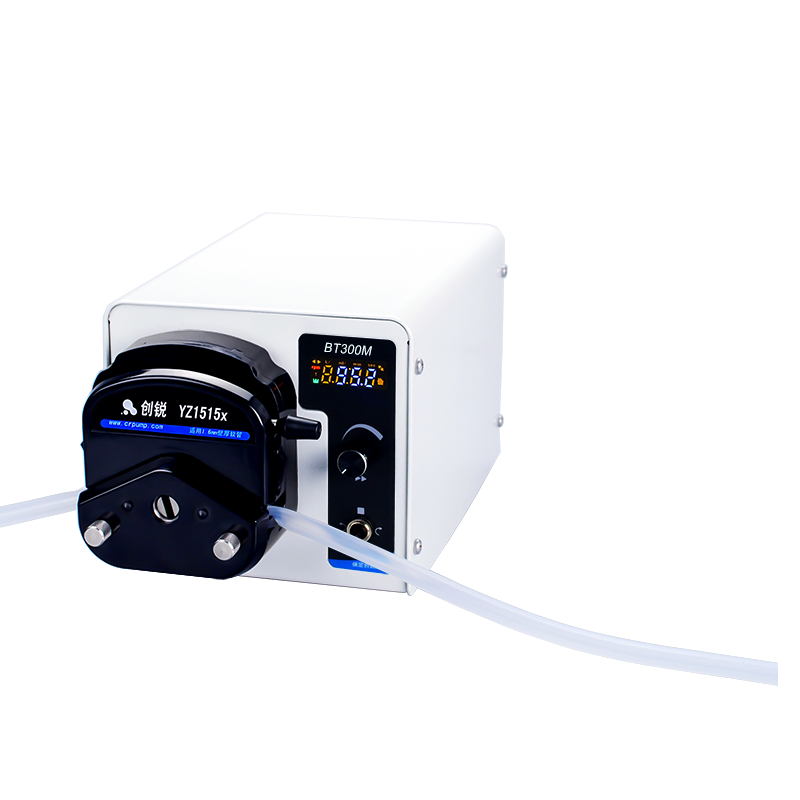

BT300M/YZ1515x

For constant transfer
Max Flow : 0.007-1140 ml/min

BT300LC/YZ1515x

For constant transfer
Max Flow : 0.007-1140 ml/min

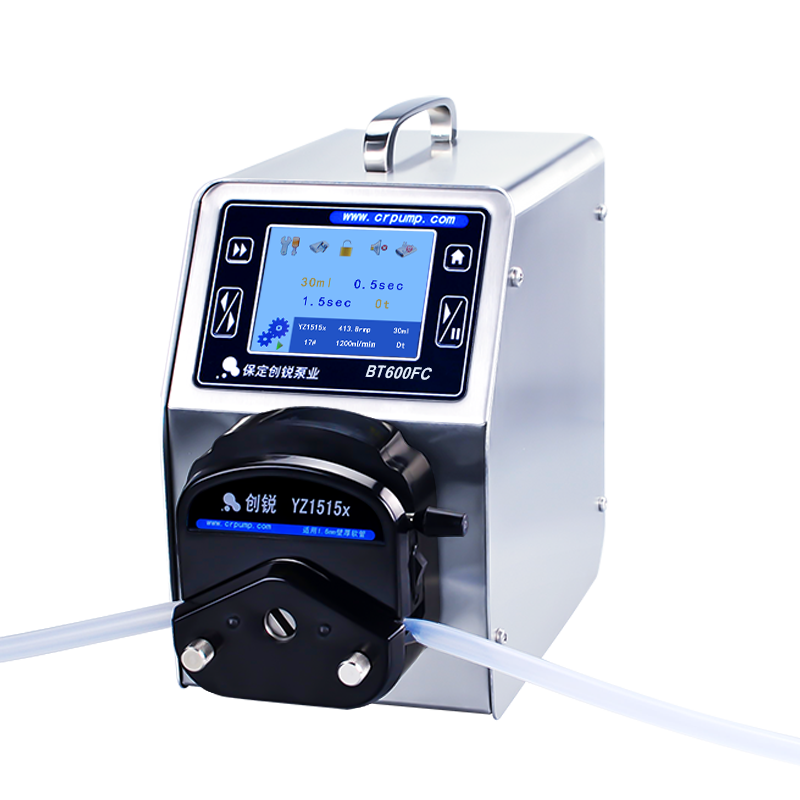

BT600FC/YZ1515x

For bottle filling
Max Flow : 0.007-2280 ml/min

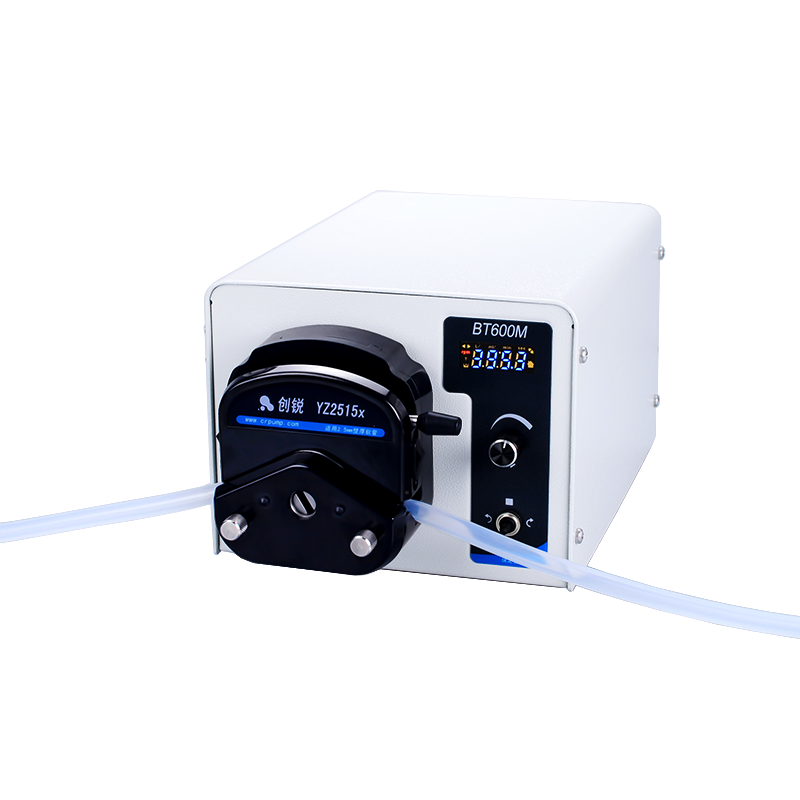

BT600M/YZ1515x

For constant transfer

Max Flow : 0.007-2280 ml/min

BT600LC/YZ1515x

For constant transfer

Max Flow : 0.007-2280 ml/min

Order Guide

Dear All,

Welcome to our website, wish you have a nice day and will get the harvest from us.

In order to help you choose the most suitable pump, pls kindly help us to confirm the following details in first, tks in advance!

1. What's the application of the pump? Bottle filling or constant transfer?

2.What kind of liquid you will transfer? Does it corrosive? Does it can flow as water?

3.For constant transfer, what's flowrate you need?(ml/min)

4. For bottle filling, what's your bottle's volume? (ml) How many bottles you want to filling in 1 min?

Pls kindly inform us the above answers or most details if u can, and then we will choose the best pump and tube for u.

Thanks & best regards,

Warranty

1 year warranty & lifetime maintenance.

Our company provide oversea customers 1 year warranty (do not include the silicone tube) and life time repair. Within the 1 year warranty,not man-made cause damage, our company will provide free repair service. If beyond the warranty time, our company will only pay the maintenance cost.

Package & Delivery

Package

We use strong carton and will put foam to ensure the goods avoid damage during delivery.

Delivery

Air express such as EMS, DHL, TNT, UPS etc. If you would like any other's, please contact us.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes!

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7~15days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test, etc. Payment can be made through T/T, paypal, Western Union, etc.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express ( DHL, Fedex, etc.). 100 or more, mostly by air or by sea.

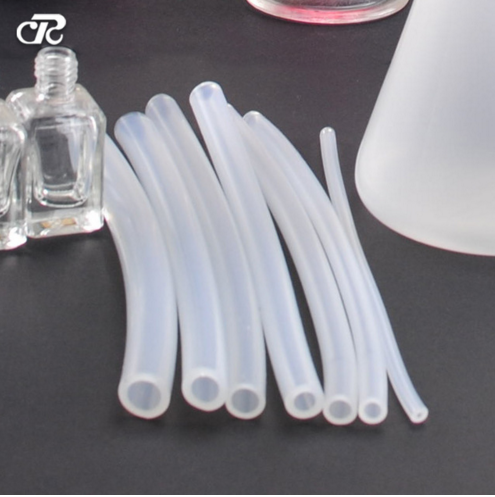

Question 5: Can I buy the tube separately?

Answer: Of course Yes. For the silicon tube 15meter per roll. Or you can buy 1 or 2 meters. No problem.
