Quick Details

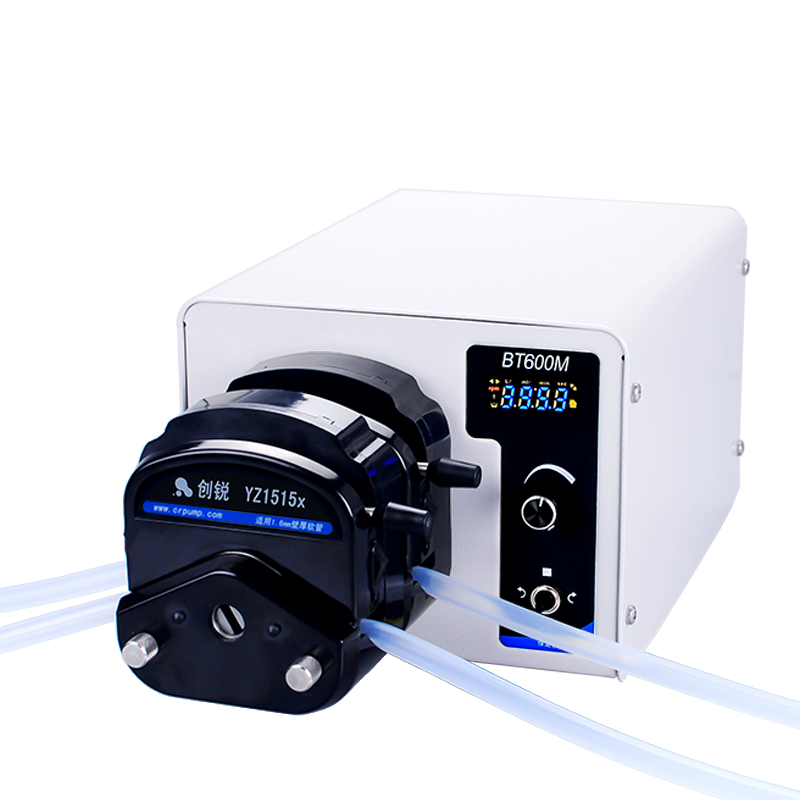

Model Number: BT600M/YZ1515x Speed:0.1-600rpm

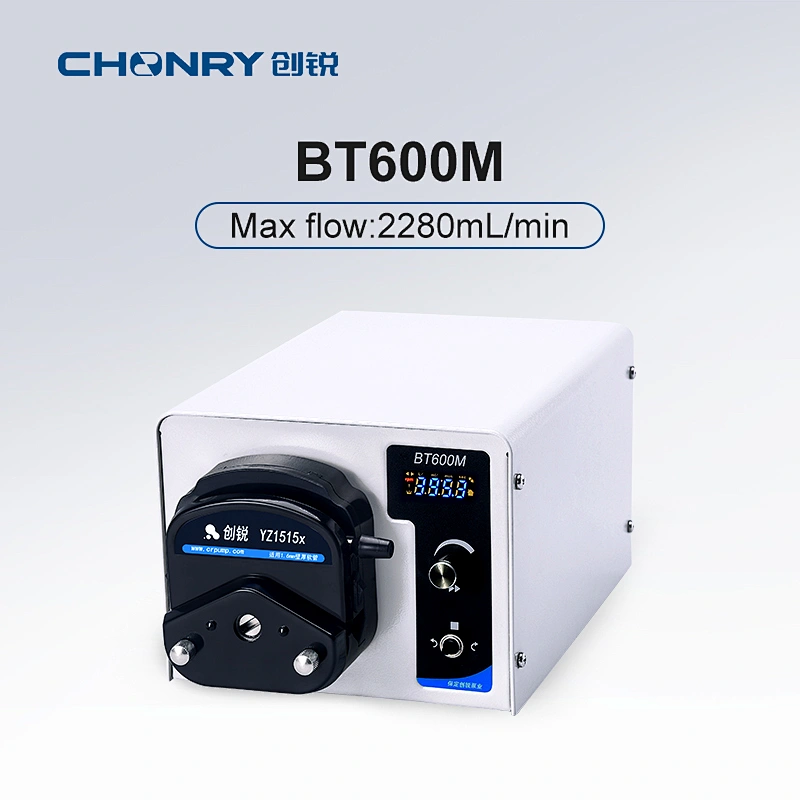

Speed Resolution:0.1rpm Flowrate:0.007-2280 ml/min
Flow Accuracy:<0.5% Theory: Peristaltic Pump

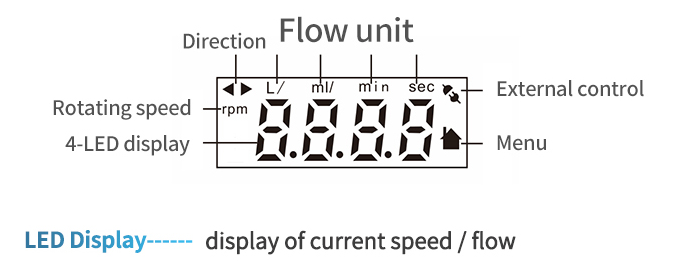

Display mode:4-LED display Power supply:AC220V±10% (standard); or AC110V±10% (optional)
Certification: CE TUV Place of Origin: Hebei, China

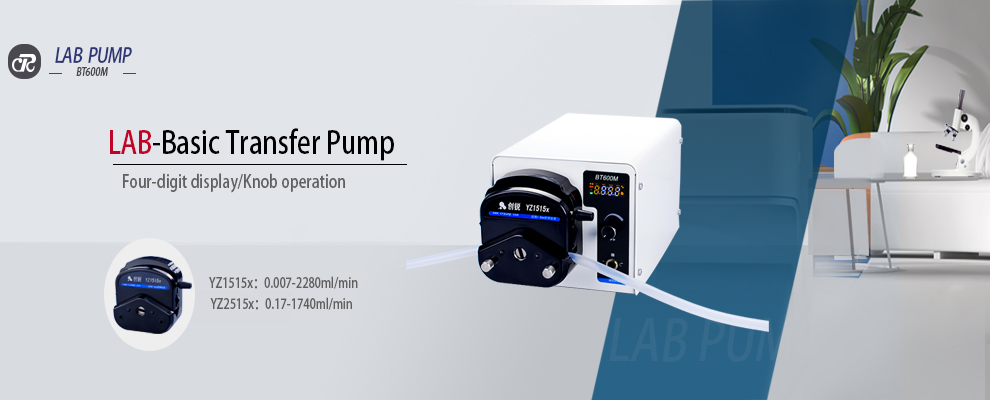

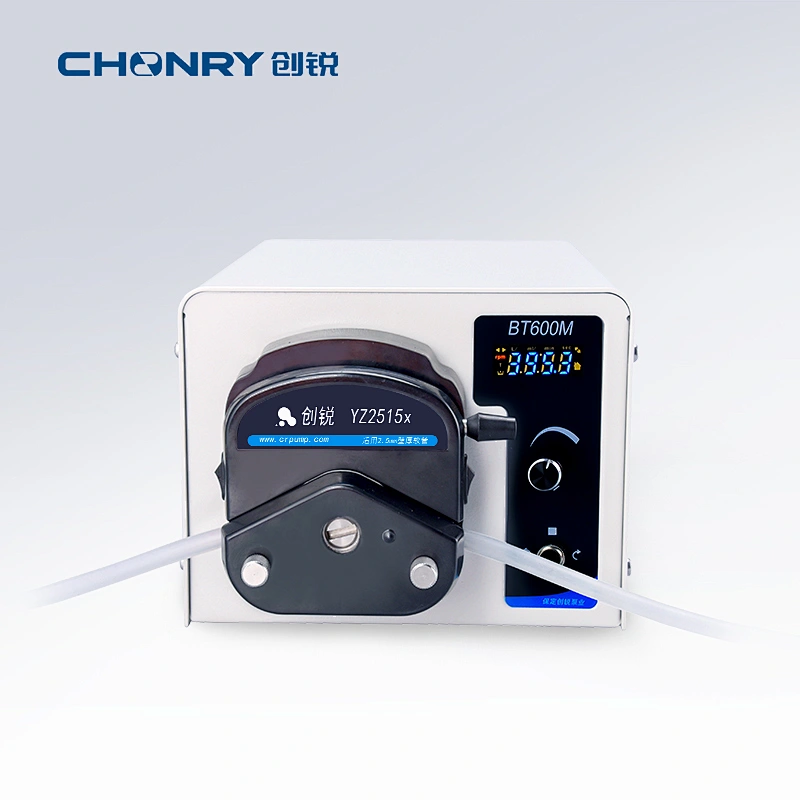

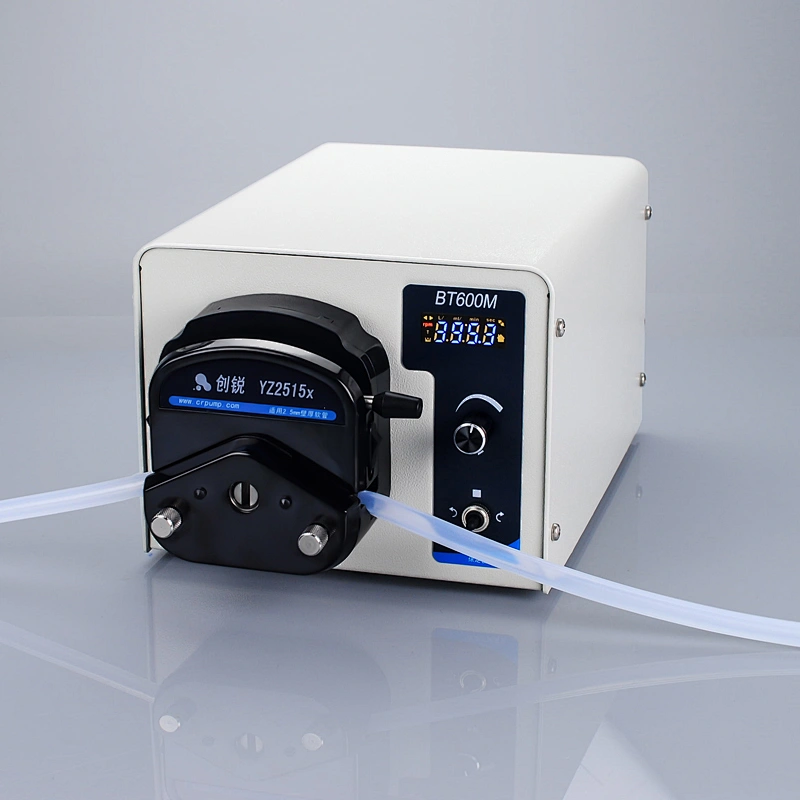

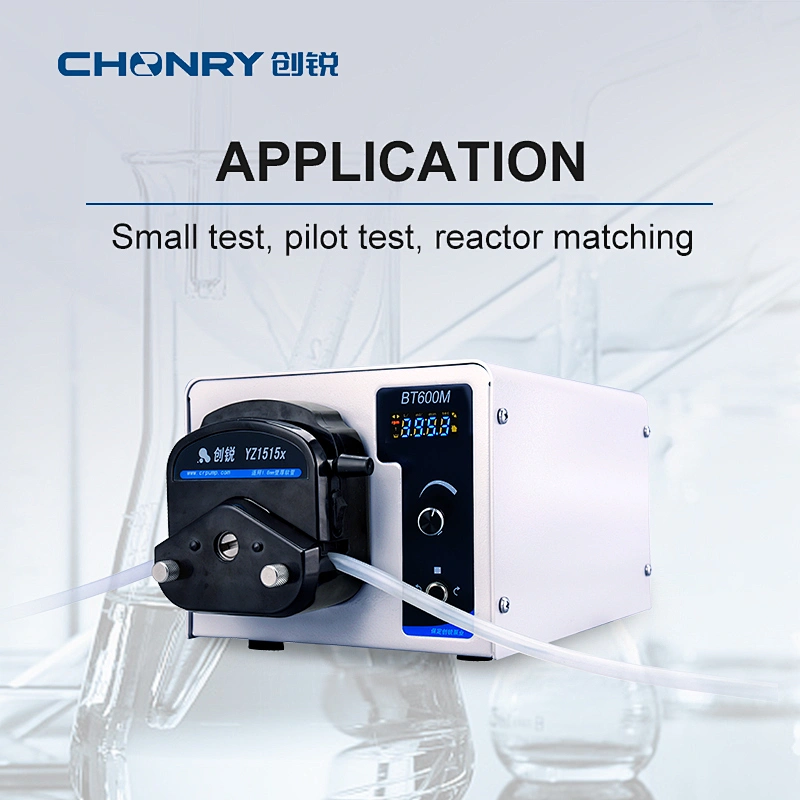

Basic Transfer Peristaltic Pump
Peristaltic Pump BT600M has excellent repeatability as Laboratory Peristaltic Pumps, as a LAB Peristaltic Pump, it can match various pump heads, to realize different pump head and drive combinations. The transfer peristaltic pump will not touch the liquid, ensuring the pollution-free operation, and the low shear force will not damage the carrier cells. it is an ideal tool for aggressive fluids. The constant flow peristaltic pump has a good self-priming ability, can be idling, can prevent backflow, has no valves and seals, and is simple to maintain.
Kindly reminder:
All the data in the Above chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

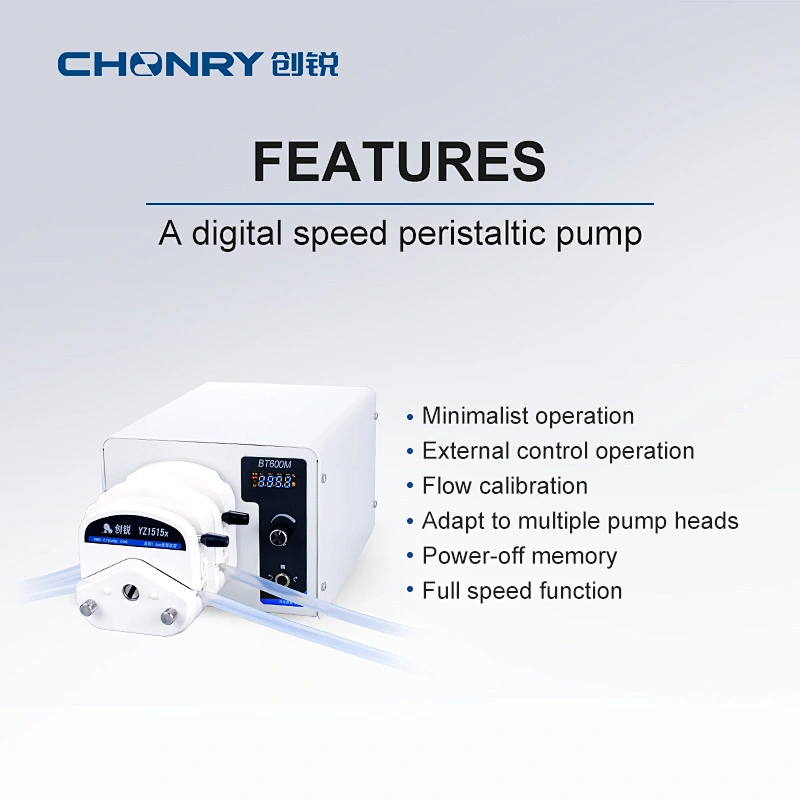

· Storage function, external control function, power-off memory, calibration function, full speed function, Suckback function.
· Data will be stored in time after power off. When the power supply restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
· One button to control full-speed operation, it can finish the quick cleaning, filling and emptying tubes, etc.
·The pump can set the suck back speed and Angle, Which can avoid the liquid dripping.

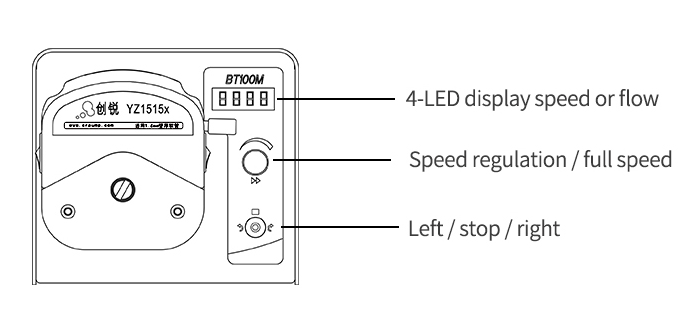

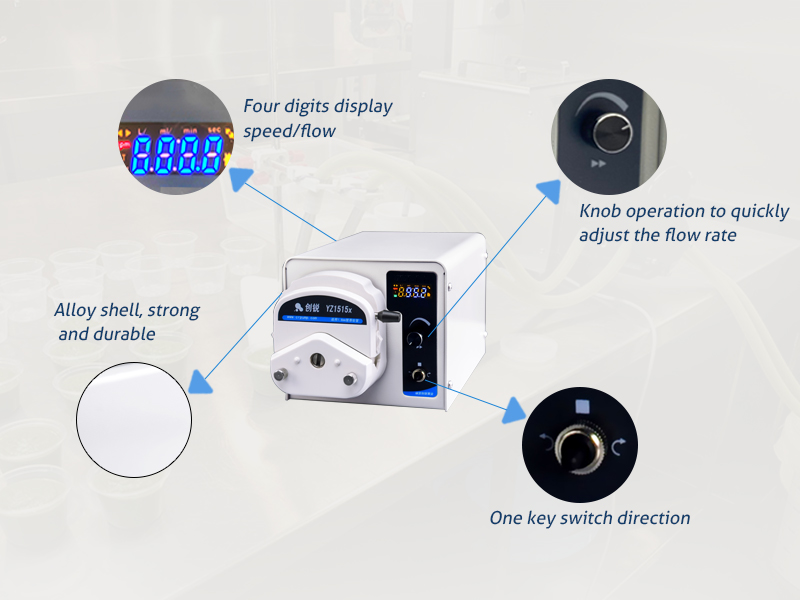

·Flexible control mode: rotary encoder knob and external control mode
·The pump adopts a Two-way high-torque motor, that can support the multiple pump head in series to meet different flow requirements. (Max channels:2 )
·Multiple external control mode selection: support RS485 / MODBUS communication protocol, analog control (0-5V,0-10V,4-20mA…) footswitch control, provide customized communication protocol services. For more details pls contact cr@crpump.com
FAQ for CR peristaltic pump order
Question 1: Can I order a custom peristaltic pump with my own design & logo?Answer: Definitely yes. contact us at cr@crpump.com
Question 2: Can I order a sample first before mass production? How can I place a sample order?
Answer: Surely you can order a sample first. And there will be some sample cost, which charged based on your design. We will begin the sample production after receive your payment. And we will take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while the freight cost is yours.
Question 3: How soon can I get a sample made? How can I make payment?
Answer: For a simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc.
Payment can make through T/T/ Credit Card or PayPal.
Question 4: How can I get my peristaltic pump if I place the order to you?
Answer: the pumps will ship to you by express(DHL, FedEx, etc.) If with a bulk order then it mostly ships by air or by sea.
Question 5: Can I buy the silicon tube separately?
Answer: Of course Yes. for the silicone tube, the standard package is 15 meters per roll. MOQ:5 M
We have professional support teams to assist with any queries you may have.
please do not hesitate to contact us with any specific questions. contact us at cr@crpump.com
