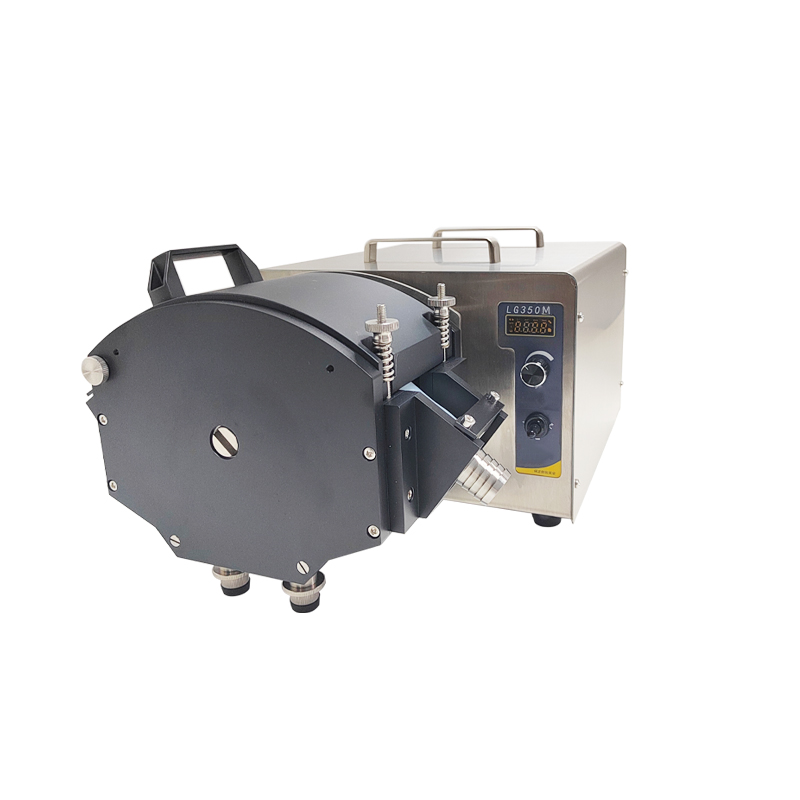

Chuangrui Large Flow Rate Liquid Constant Transfer Peristaltic Pump
Chuangrui Large Flow Rate Liquid Constant Transfer Peristaltic Pump

Chuangrui Large Flow Rate Liquid Constant Transfer Peristaltic Pump

Model NO.
LG350M
Price:
US $ 2000.00-2000.00
Type:peristaltic pump
Maximum Head:5--10m
Maximum Flow Rate:33L/min
Quantity:

      Quick Details
Warranty:                                  1 year
Customized support:               OEM, ODM, OBM
Brand Name:                             CR
Model Number:                         LG350M
Place of Origin:                         Hebei, China
Application:                               Liquid Constant Transfer
Horsepower:                              None
Power Source:                           Electric
Pressure:                                   Low Pressure
Structure:                                  peristaltic pump
Cable Length:                           none
Outlet Size:                               Max 25.4mm
Voltage:                                     AC220V or AC110V
Model:                                       LG350M
Pump head:                              KZ50
Speed Range:                           0.1-350 rpm
Flow range:                              10-33L/min
Display Mode:                          4-LED
MOQ:                                       1 Piece
Usage:                                      Liquid transfer peristaltic pump
Power:                                        <1000W

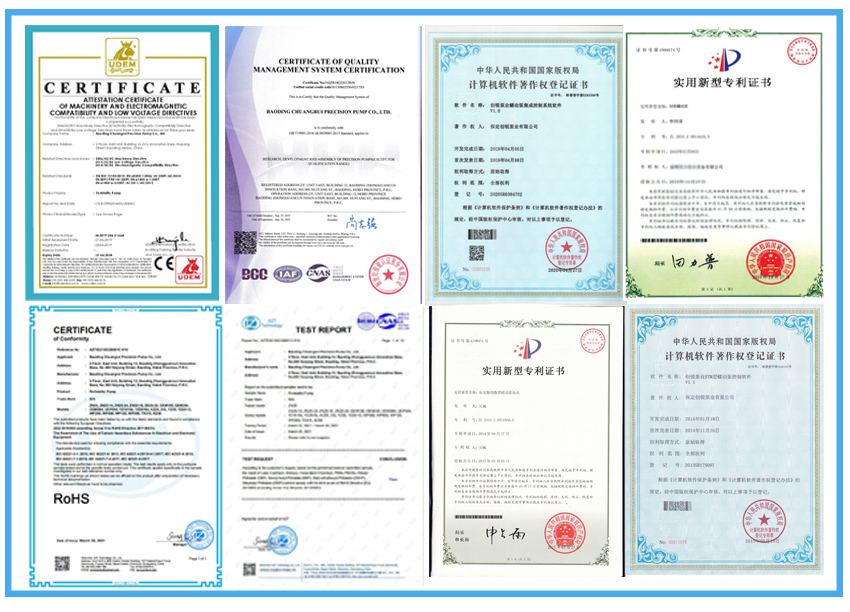

Certification:                             ce, ISO9001

Packaging & Delivery

Selling Units:                           Single item
Single package size:                72X37X47 cm
Single gross weight:                30.000 kg

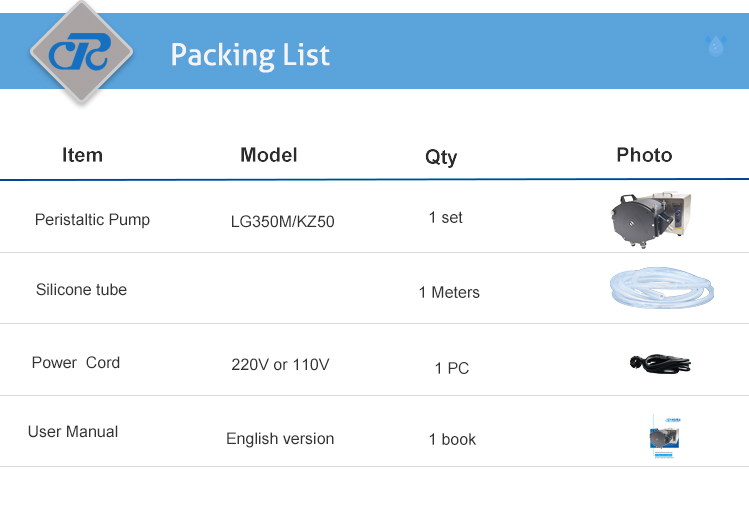

Package Type:                          1. The package contains a peristaltic pump and its accessories.
                                                   2. Carton and foam packaging can protect the safety of the product during transportation.
                                                   3. If you have special packaging needs, please contact us in time.
Lead Time:
Quantity(Pieces)1 - 3>3
Est. Time(days)10To be negotiated

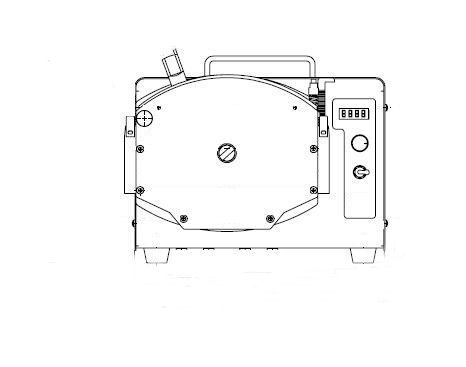

Large Flow Rate Industrial peristaltic pump

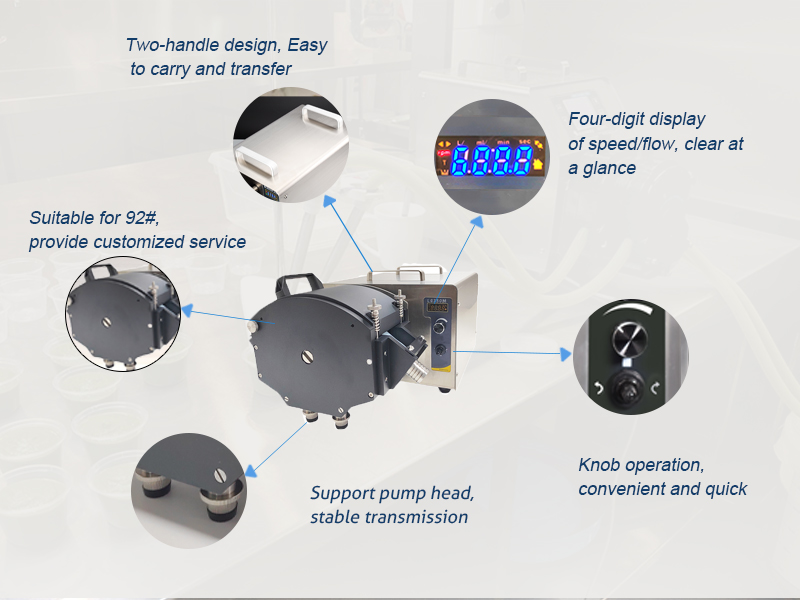

peristaltic pump LG350M is a liquid constant transfer pump. that can run with KZ50 pump heads, with flow rate from 10-33000ml/min. Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad,which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V, and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs
are designed clearly so that it is easy to operate for customers.


Model
LG350M/KZ50
Channel
Max Flow
33 L/min
External control
support
Model
LG350M
Speed Range
0.1-350 rpm
speed resolution
0.1 rpm
Flow range
Max 33L/min

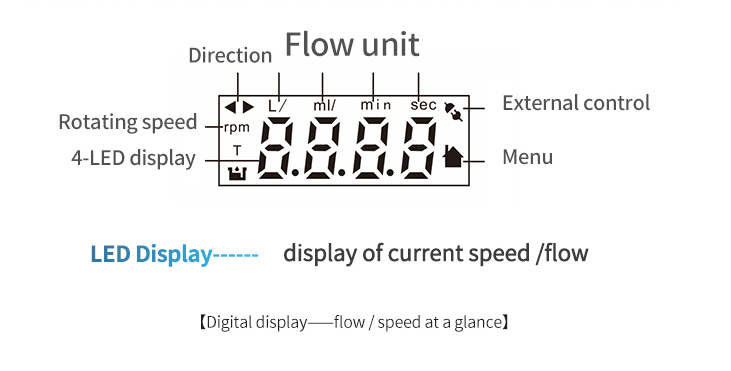

Display Mode
4-LED
Motor Type
servo motor
Suchback speed
10-300 rpm
Power supply
AC220V or AC110V
Tube Model
Wall Thickness
(mm)
92#
25.4
4.8
33000
The above data is for reference only.
Kindly reminder:
All the data in the Below chart is based on the water.
If your liquid is viscous or corrosive, then this selection guide is not suitable for you.
