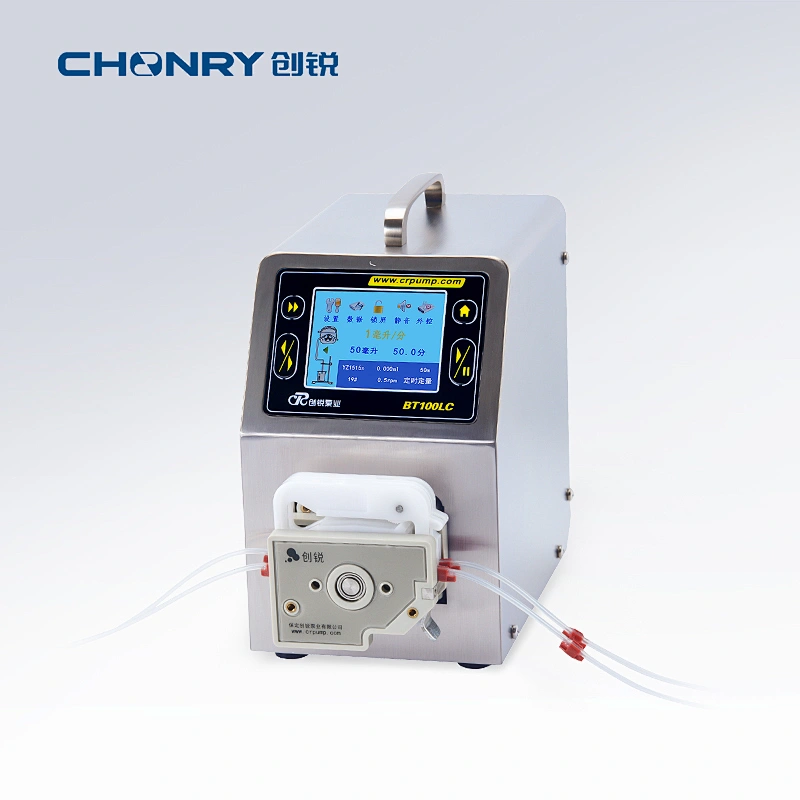

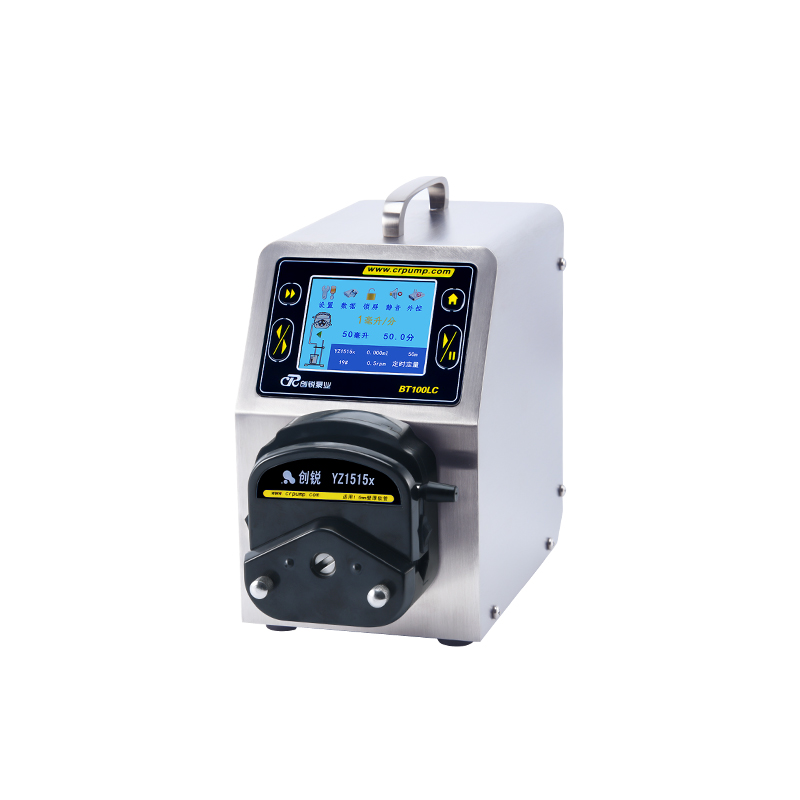

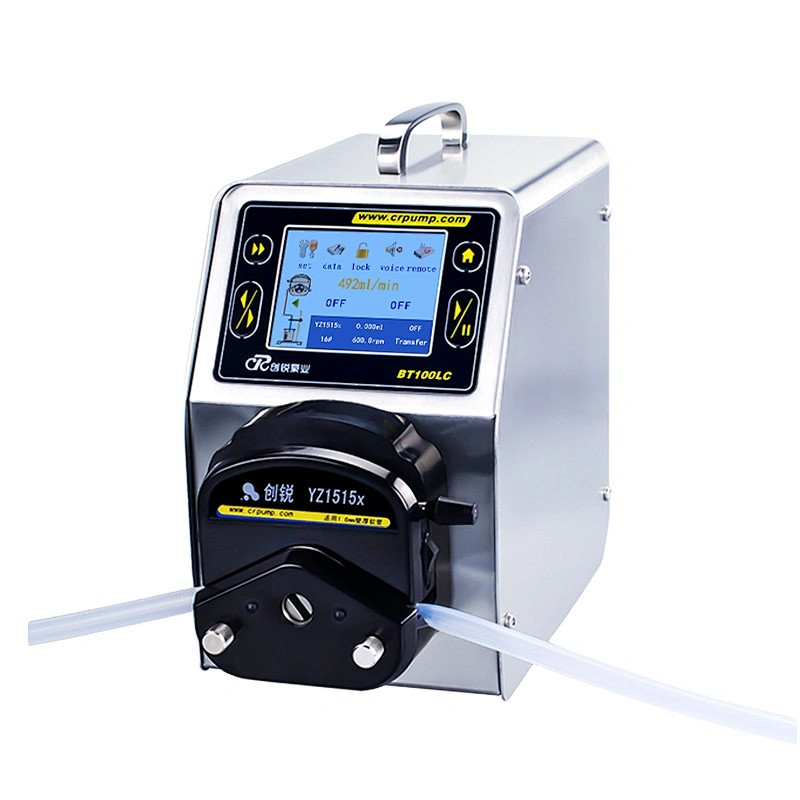

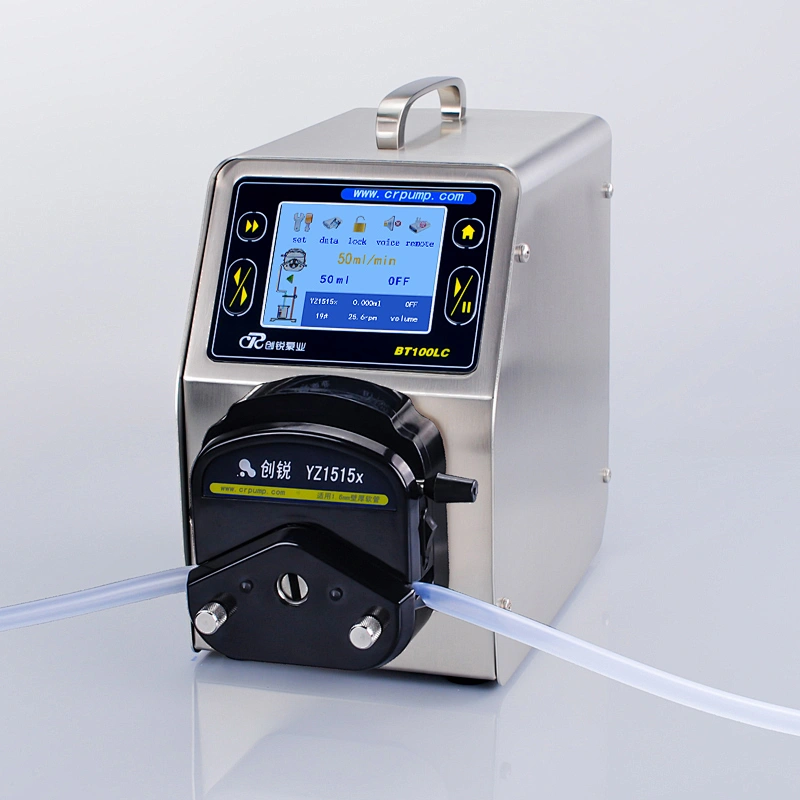

Touch Screen Control Peristaltic Pump Liquid Transfer Machine

Quick Details

Warranty:                             1 year, 1 year

Customized support:           OEM, ODM, OBM

Brand Name:                        Chuangrui

Model Number:                    BT100LC

Place of Origin:                    China

Application:                          Liquid Transfer Machine

Horsepower:                        None

Power Source:                      Electric

Pressure:                              Low Pressure

Structure:                             peristaltic pump

Cable Length:                      none

Outlet Size:                          Max 7.9mm

Voltage:                                 AC220V or AC110V

Power:                                 <50W

Pump:                                  BT100LC

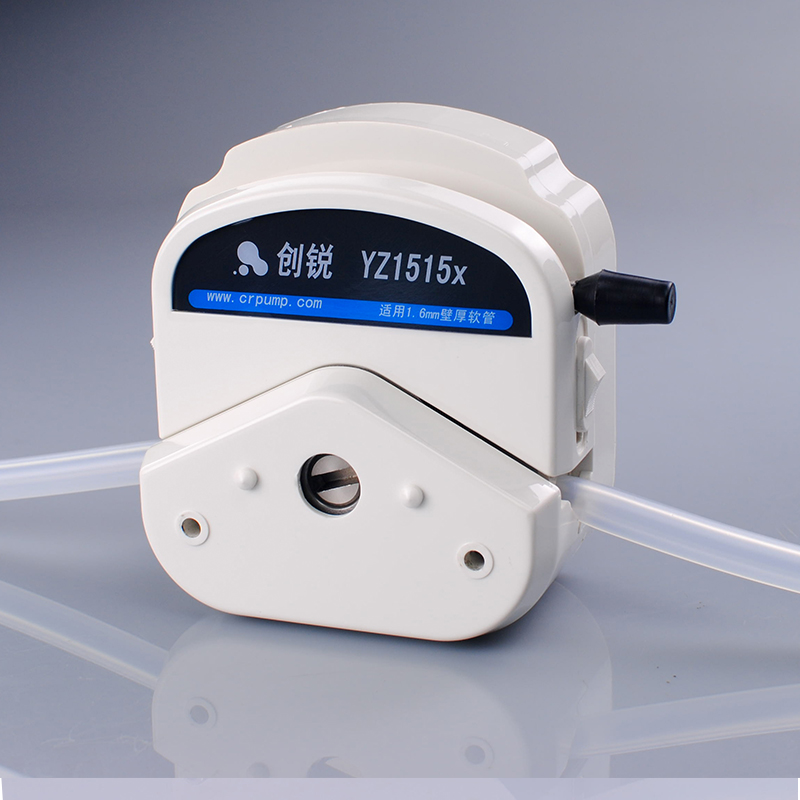

Pump head:                         YZ1515X

Speed:                                 0.1-100rpm

Flow rate:                            Max 380ml/min

Display Mode:                    LCD(English and Chinese optional)

Control Method:                Touch screen + keypad

MOQ:                                  1 set

Certification:                       ce

Packaging & Delivery

Selling Units:                     Single item

Single package size:          37X26X36 cm

Single gross weight:          6.000 kg

Package Type:                   1. The peristaltic pump is carton with plastic foam.
                                            2. The peristaltic pump can also be packed strictly according
                                              to the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	5	To be negotiated

Product Description

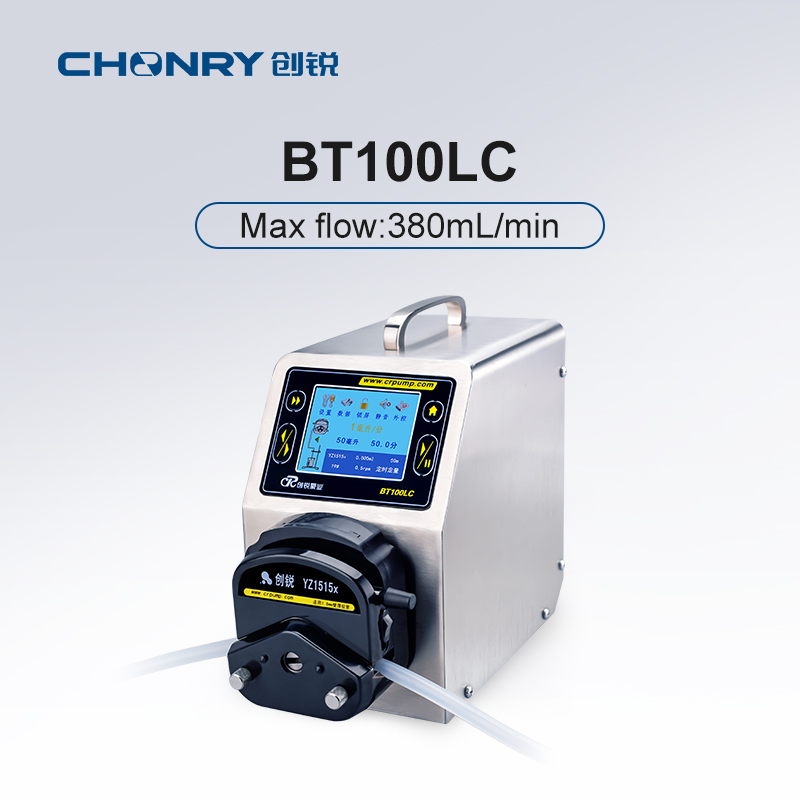

Model: BT100LC/YZ1515x

Speed range: 0.1-100 rpm Flow range : 0.007-380ml/min Max Number of Channel: 2 Power supply: AC 110V or AC 220V Ideal lab transfer pump

With touch screen setting

With Calibration function to ensure the precise

Support foot pedal Control

CE certified product based on request.








Four working modes









Parameter   Model : BT100LC/YZ1515x
Speed	0.1-100rpm
Speed resolution	0.1rpm
Flow rate	0.007-380ml/min
Control Method	Touch screen + keypad
Display Mode	LCD（English and Chinese optional）
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes

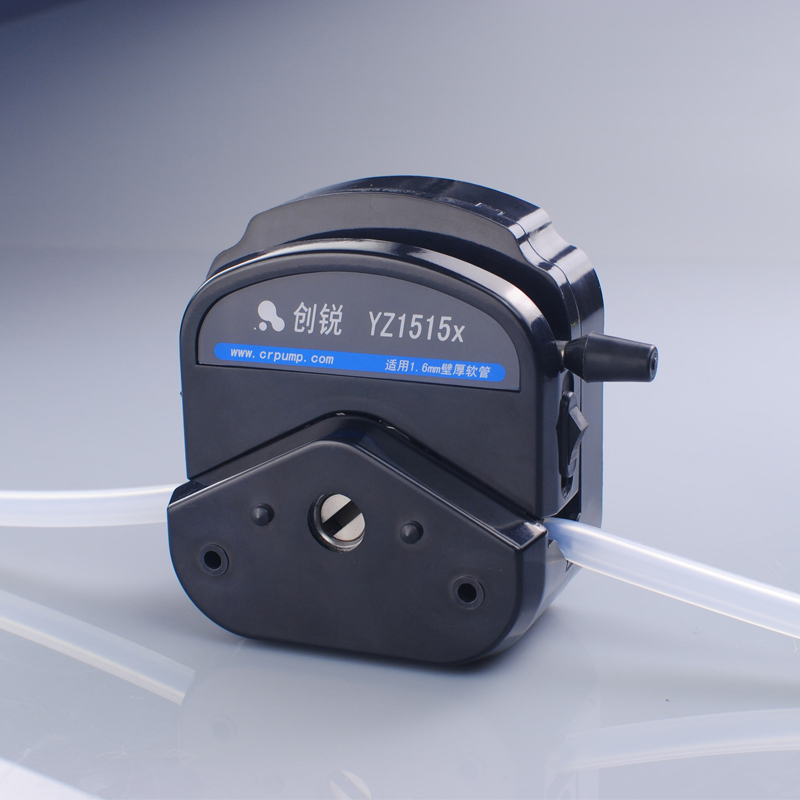

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow range(ml/min)
18#	7.9	11.1	Silicon tube	0.38-380
17#	6.4	9.6	Silicon tube	0.29-290
25#	4.8	8	Silicon tube	0.17-170
16#	3.2	6.4	Silicon tube	0.082-82
19#	2.4	5.6	Silicon tube	0.051-51
14#	1.6	4.8	Silicon tube	0.027-27
13#	0.8	4	Silicon tube	0.007-7







Order guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What's your bottle's volume? ( )ml 2, How many channels you need? ( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted:  The defaulted model we will send is 100LCB21  or 100LCB11.
Order number	Model	Pump head	Power supply	Channel number	Flow range with 18# tube
100LCB21	BT100LC	YZ1515x(black)	AC220V	1	0.38-380ml/min
100LCB11			AC110V	1
100LCB22			AC220V	2
100LCB12			AC110V	2

Packing list
1	Pump :BT100LC/YZ1515x(black)
2	Silicon tube: 18# 2 meters
3	Power plug
4	User manual
Weight	8 KG
CTN MEAS	36*25*36CM

Why choose this transfer pump?

·1.Storage function-user data storage function:(9 sets of data) .
·2.External control function-Multiple mode selection: communication mode, analog mode，foot switch control.Provide customized services.
·3.Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
·4.Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the system will automatically carry out flow calibration to ensure the flow accuracy
5.Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc
6.Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.
7.lock screen function-lock screen design, error proof touch, application more secure.

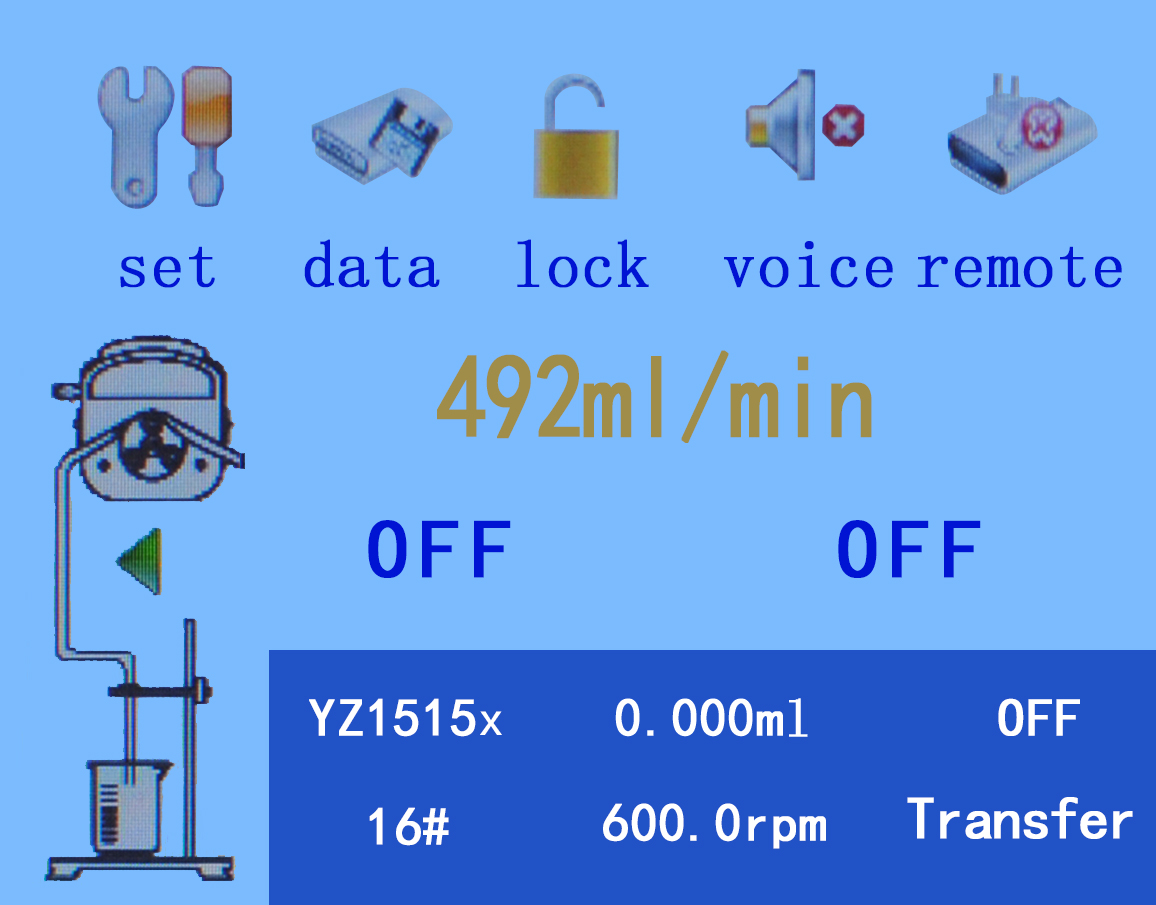

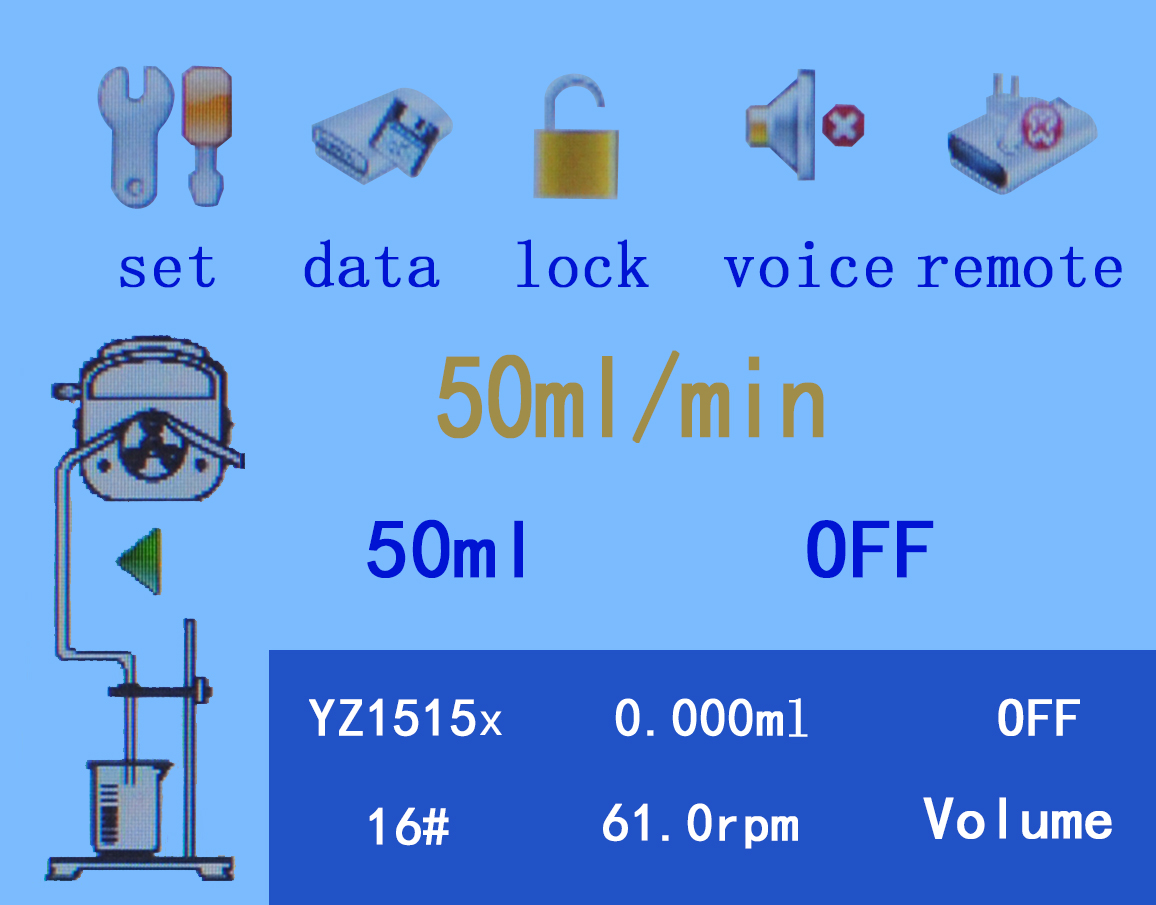

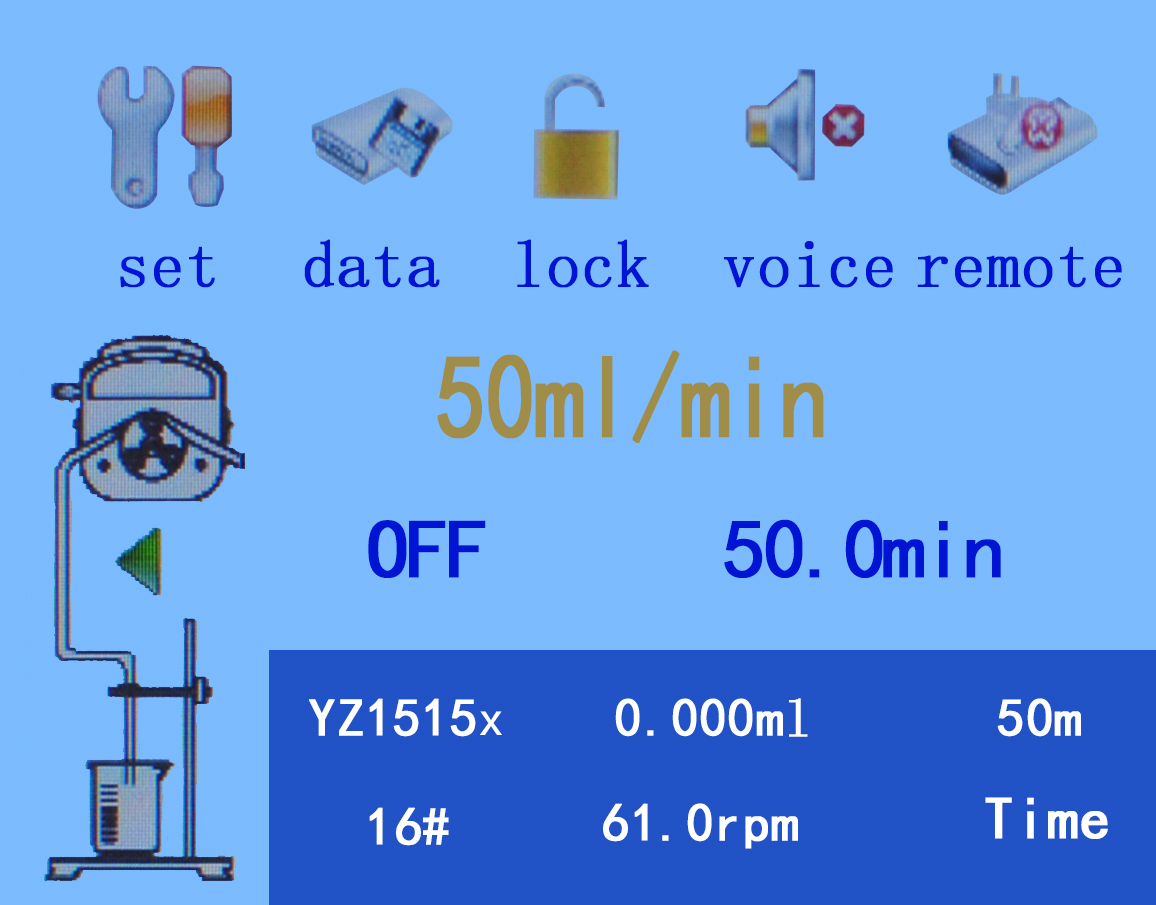

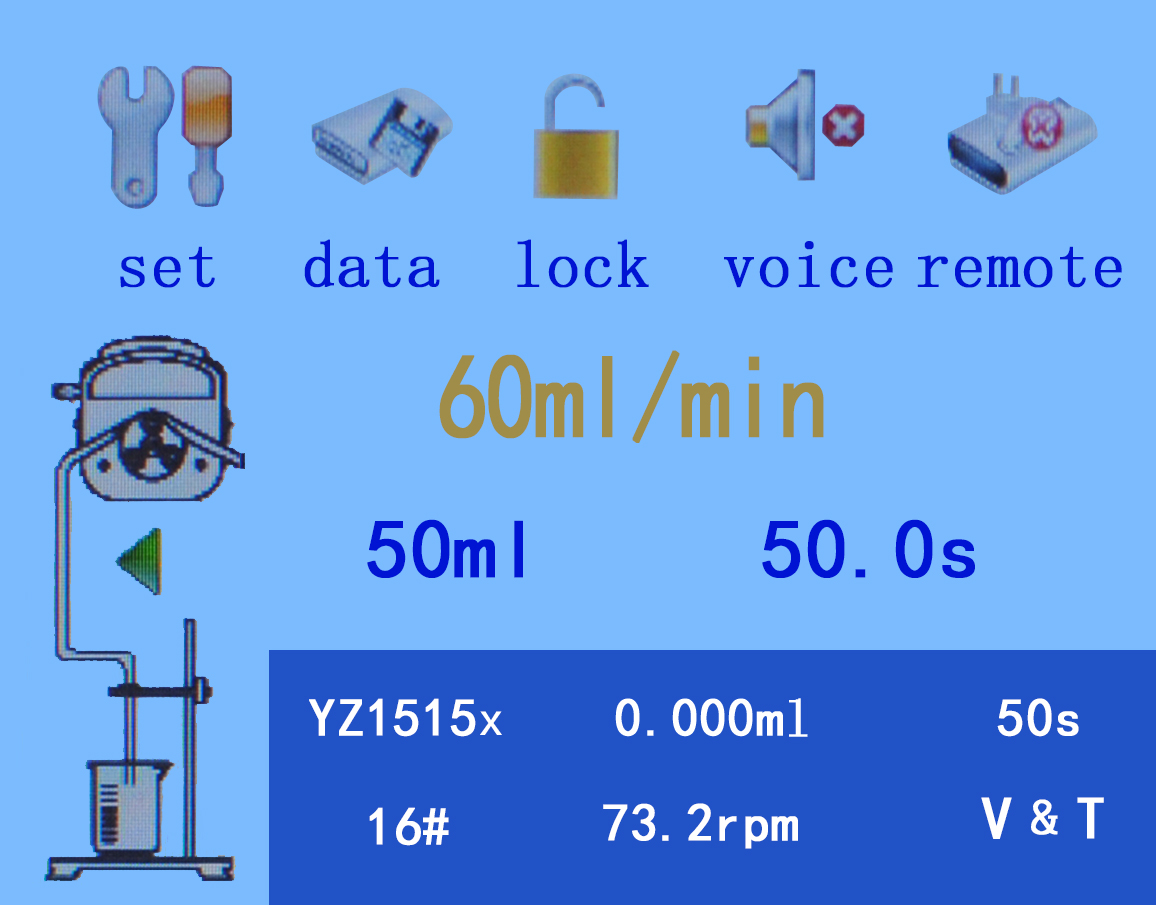

8.Display function-real-time animation of the operation interface shows the running state and working parameter.

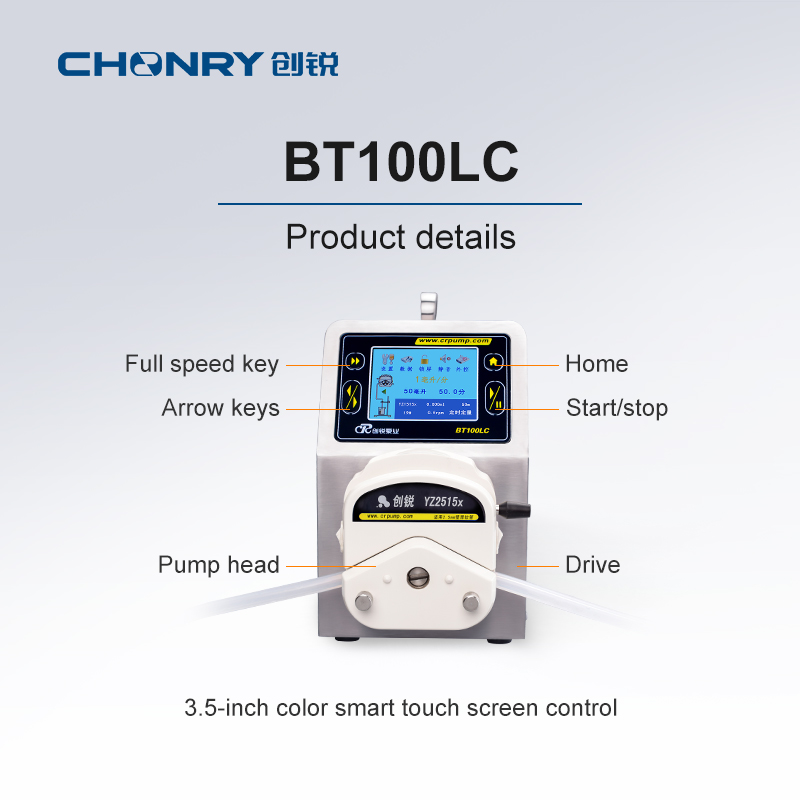

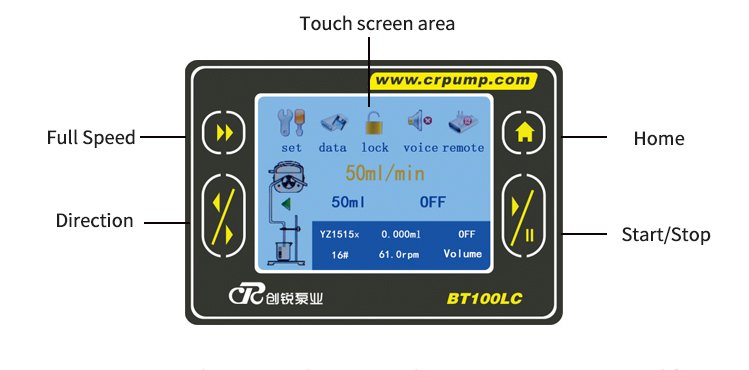

9.Touch-screen function-3.5-inch color LCD screen, (English and Chinese optional) , touch-screen operation, intuitive and intelligent.
10.Whole housing design-stainless steel housing，sturdy and durable , multi-face seamless whole housing design, Long service life, high cost performanc

Application

Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; bio pharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.

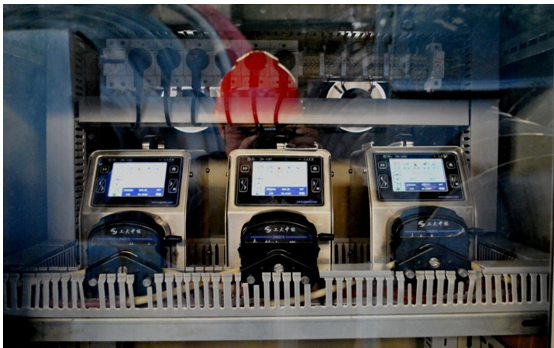

Typical application for dosing machine

Peristaltic pump for quantitative addition Which with touch screen can set the quantitative/ time you want to transfer. Support foot pedal easy control.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.


Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.


Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
