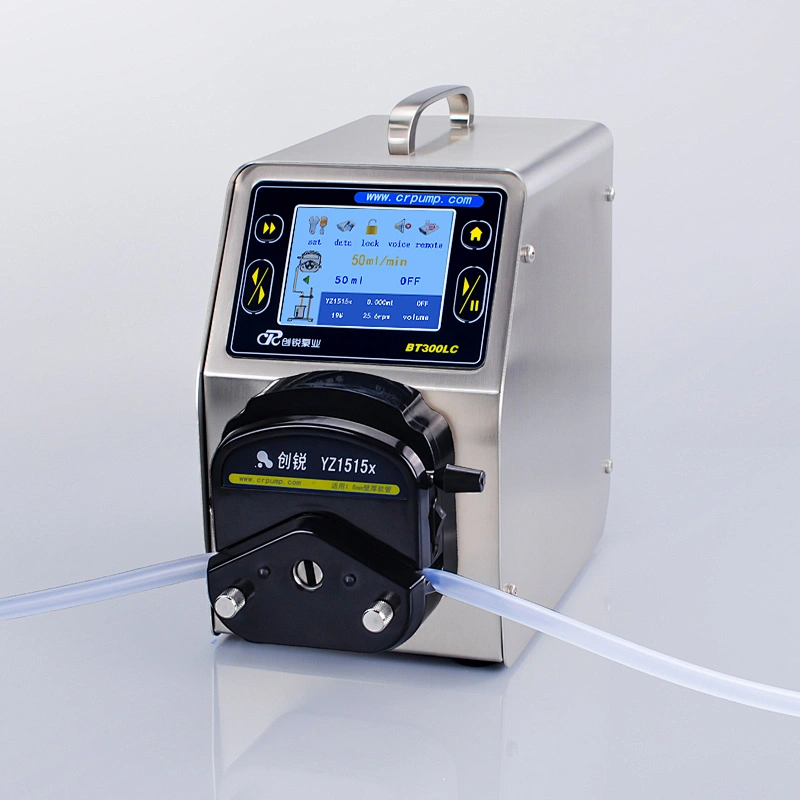

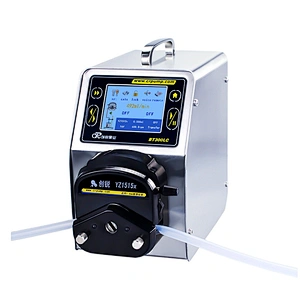

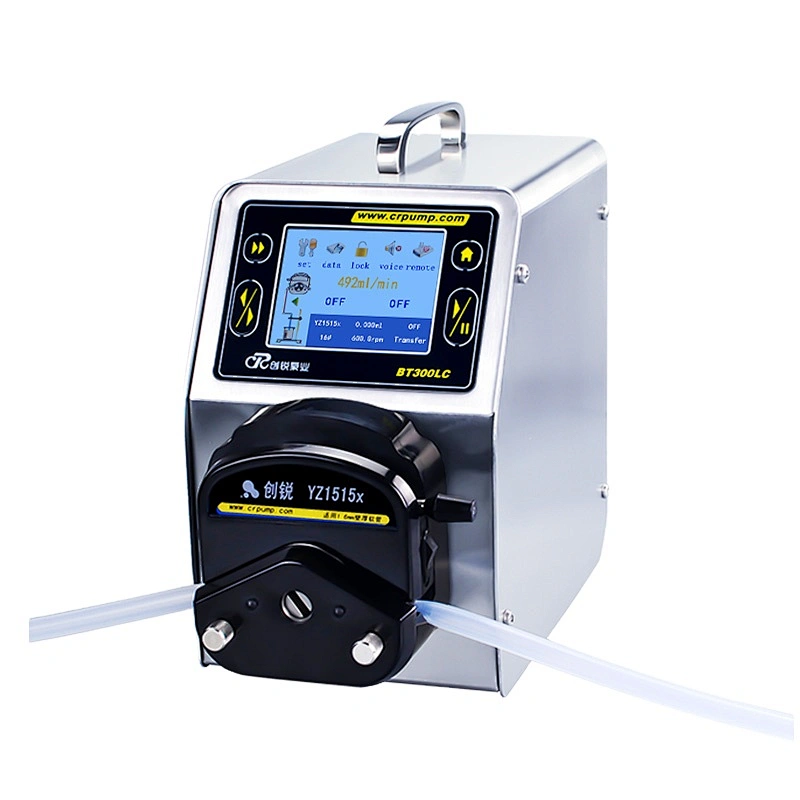

chuangrui Transfer Liquid Dosing Peristaltic Pump

Quick Details

Warranty:                             1 year, 1 year

Customized support:           OEM, ODM, OBM

Brand Name:                        Chuangrui

Model Number:                    BT300LC

Place of Origin:                    China

Application:                          Liquid Transfer Machine

Horsepower:                        None

Power Source:                      Electric

Pressure:                              Low Pressure

Structure:                             peristaltic pump

Cable Length:                      none

Outlet Size:                          Max 7.9mm

Voltage:                                 AC220V or AC110V

Power Source:                     Electric

Pump:                                  BT300LC

Pump head:                         YZ1515X

Speed resolution:                0.1rpm

Flow rate:                            0.007-1140 ml/min

Display Mode:                    LCD(English and Chinese optional)

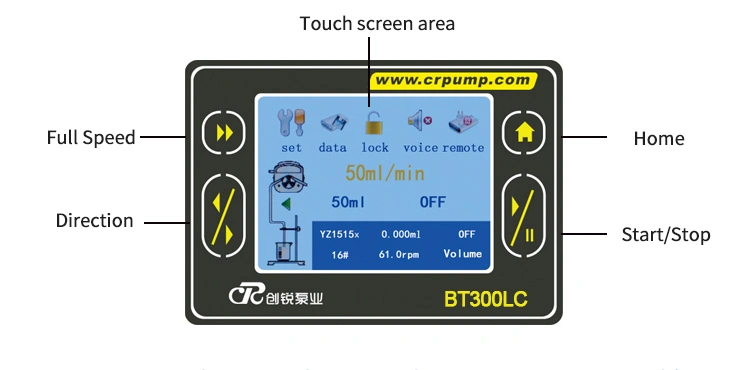

Control Method:                Touch screen + keypad

MOQ:                                  1 set

Certification:                       ce,ISO

Packaging & Delivery

Selling Units:                     Single item

Single package size:          37X26X36 cm

Single gross weight:          6.000 kg

Package Type:                   1. The peristaltic pump is carton with plastic foam.
                                            2. The peristaltic pump can also be packed strictly according
                                              to the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	5	To be negotiated

Product Description

Model: BT100LC/YZ1515x

Speed range: 0.1-100 rpm Flow range : 0.007-380ml/min Max Number of Channel: 2 Power supply: AC 110V or AC 220V Ideal lab transfer pump

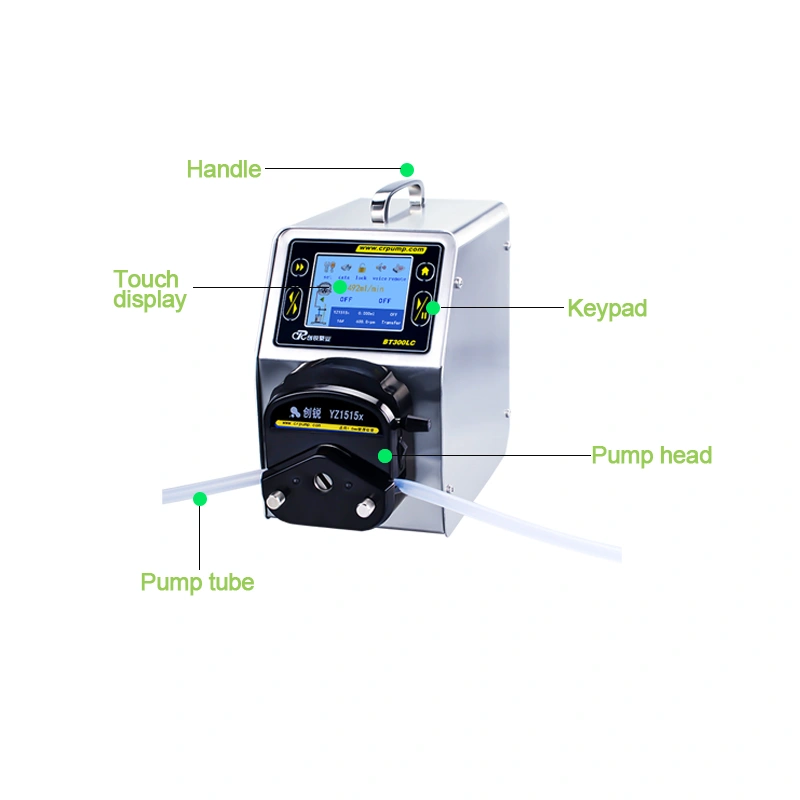

With touch screen setting

With Calibration function to ensure the precise

Support foot pedal Control

CE certified product based on request.








Four working modes









The peristaltic pump hose, has one substantial benefit: accurate dispensing or metering without risk of cross-contamination. Peristaltic metering pumps became ideal for a wide range of industries and applications because of this advantage.For example, in medical or laboratory devices, peristaltic pumps can be used for processing of sterile fluids, dialysis,filtration, or bio-processing, Our model BT300LC peristaltic infusion pump is very popular in hospital, it has high accuracy as it’s also stepper Motor Peristaltic Pump. In food, agriculture, or disinfection processes, they can be used for dispensing food or
beverages, vitamins or chemicals. It also can be used for wastewater treatment or other environmental application such as condensate removal in gas analysis. So if you want variable peristaltic pump with high flow/medium flow/micro flow, choose
Chuangrui brand is the best choice.

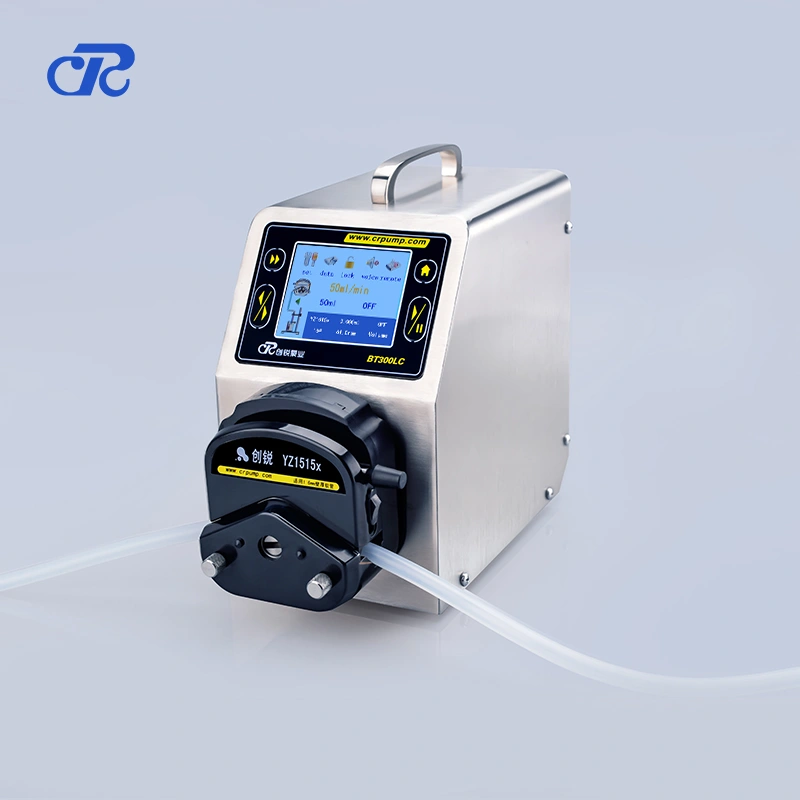

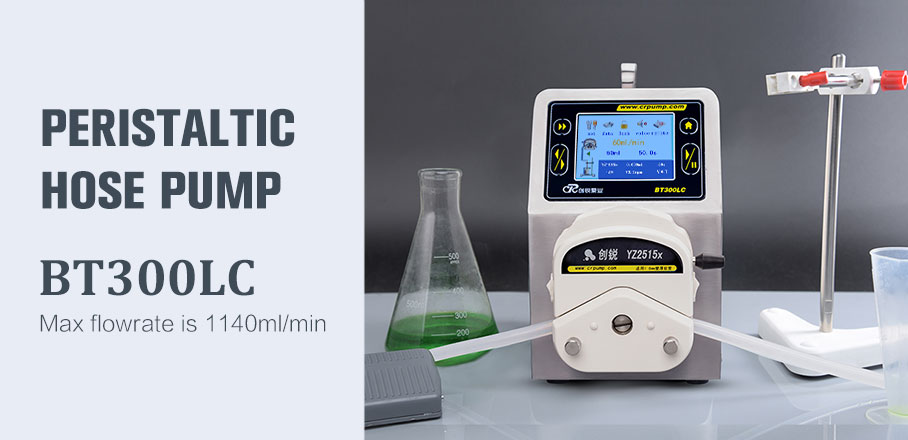

Parameter   Model : BT300LC/YZ1515x
Speed	0.1-300rpm
Speed resolution	0.1rpm
Flow rate	0.007-1140ml/min
Control Method	Touch screen + keypad
Display Mode	LCD（English and Chinese optional）
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface	RS232 and RS485, support MODBUS protocol mode
Foot pedal	Yes

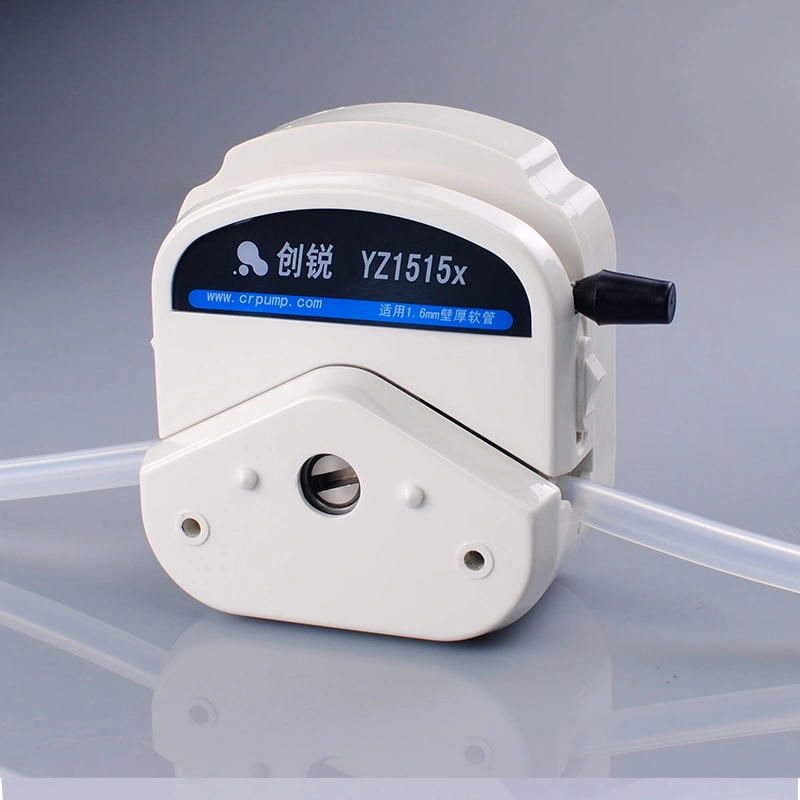

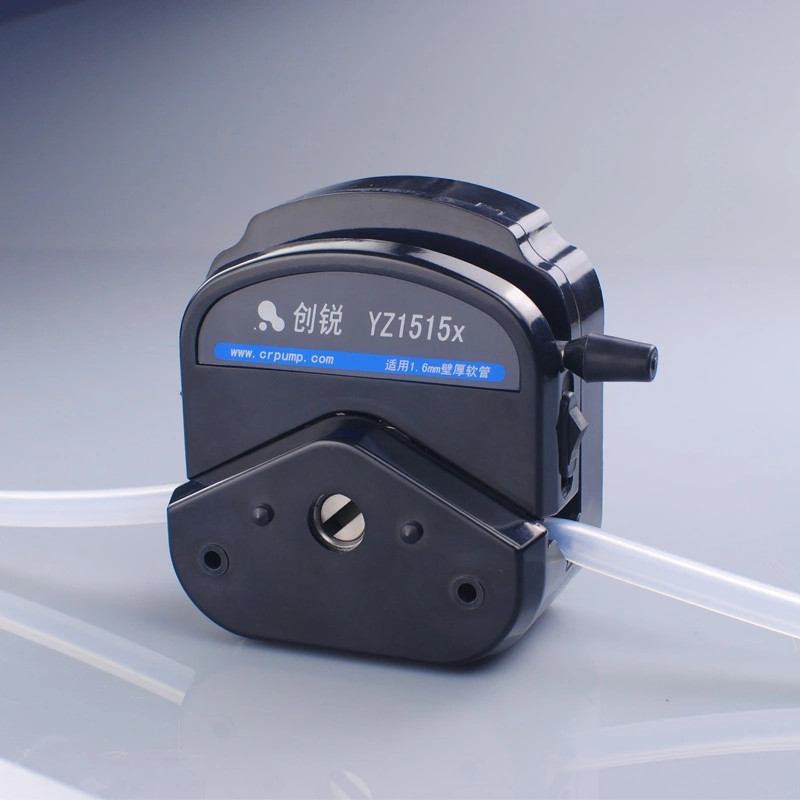

Tube specifications for the pump head YZ1515x(black is defaulted) Noted : The standard tube which will come with the pump is model 18#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow range(ml/min)
18#	7.9	11.1	Silicon tube	0.38-1140
17#	6.4	9.6	Silicon tube	0.29-870
25#	4.8	8	Silicon tube	0.17-510
16#	3.2	6.4	Silicon tube	0.082-246
19#	2.4	5.6	Silicon tube	0.051-153
14#	1.6	4.8	Silicon tube	0.027-81
13#	0.8	4	Silicon tube	0.007-21







Order guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What's your bottle's volume? ( )ml 2, How many channels you need? ( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted:  The defaulted model we will send is 100LCB21  or 100LCB11.
Order number	Model	Pump head	Power supply	Channel number	Flow range with 18# tube
300LCB21	BT300LC	YZ1515x(black)	AC220V	1	0.38-1140ml/min
300LCB11			AC110V	1
300LCB22			AC220V	2
300LCB12			AC110V	2

Packing list
1	Pump :BT300LC/YZ1515x(black)
2	Silicon tube: 18# 2 meters
3	Power plug
4	User manual
Weight	8 KG
CTN MEAS	36*25*36CM

Why choose this transfer pump?

·1.Storage function-user data storage function:(9 sets of data) .
·2.External control function-Multiple mode selection: communication mode, analog mode，foot switch control.Provide customized services.
·3.Memory function-data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.
·4.Calibration function-intelligent flow calibration: after setting the target flow, input the actual flow value, and the system will automatically carry out flow calibration to ensure the flow accuracy
5.Full speed function-one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc
6.Suckback function-By setting Suckback angle and Suckback speed to prevent liquid dripping and ensure fluid accuracy.
7.lock screen function-lock screen design, error proof touch, application more secure.

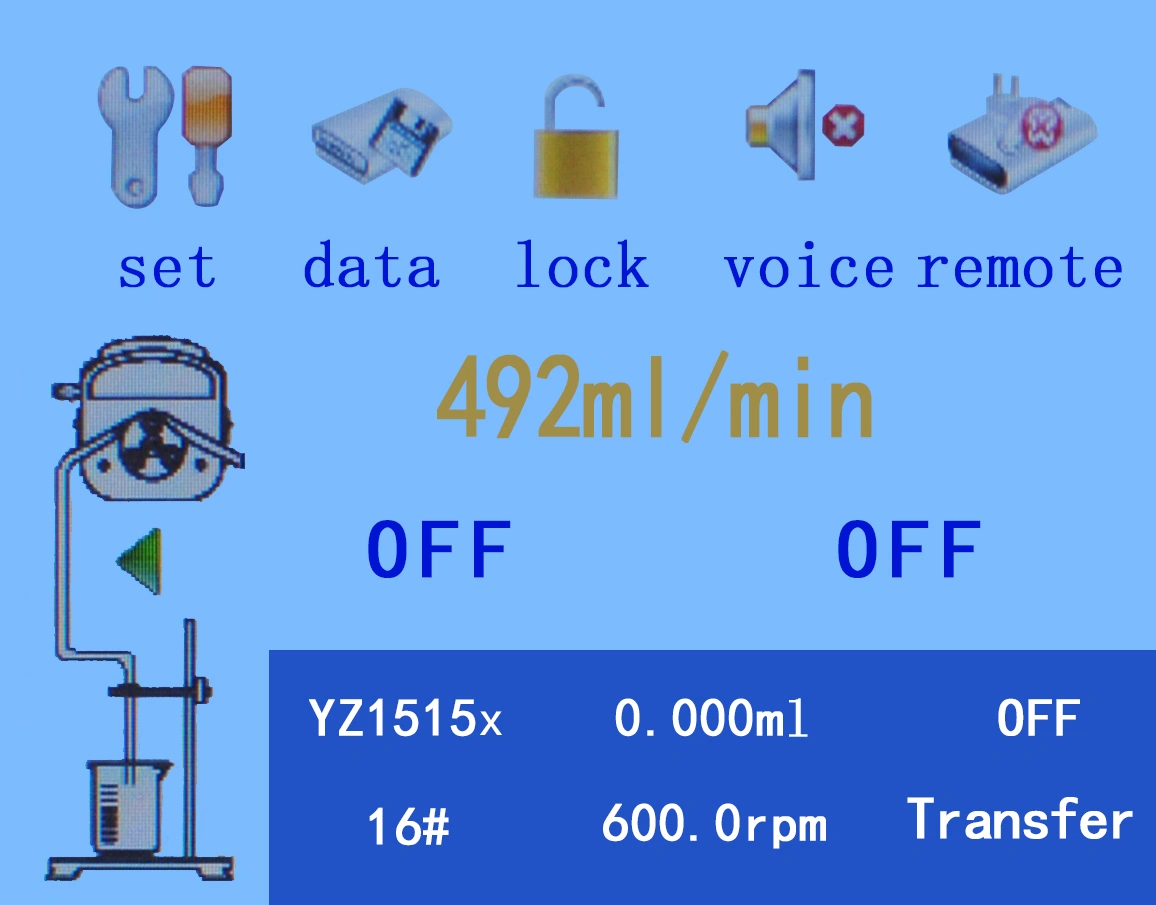

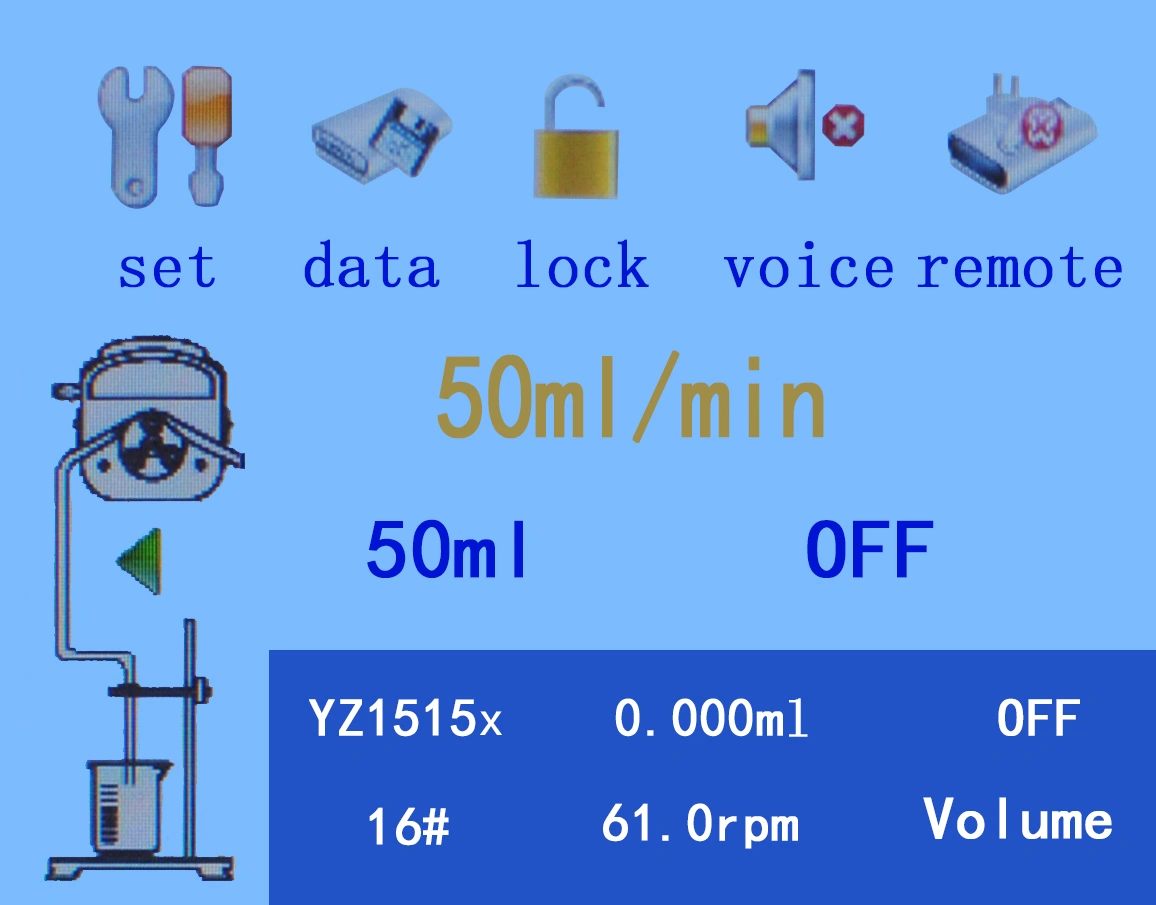

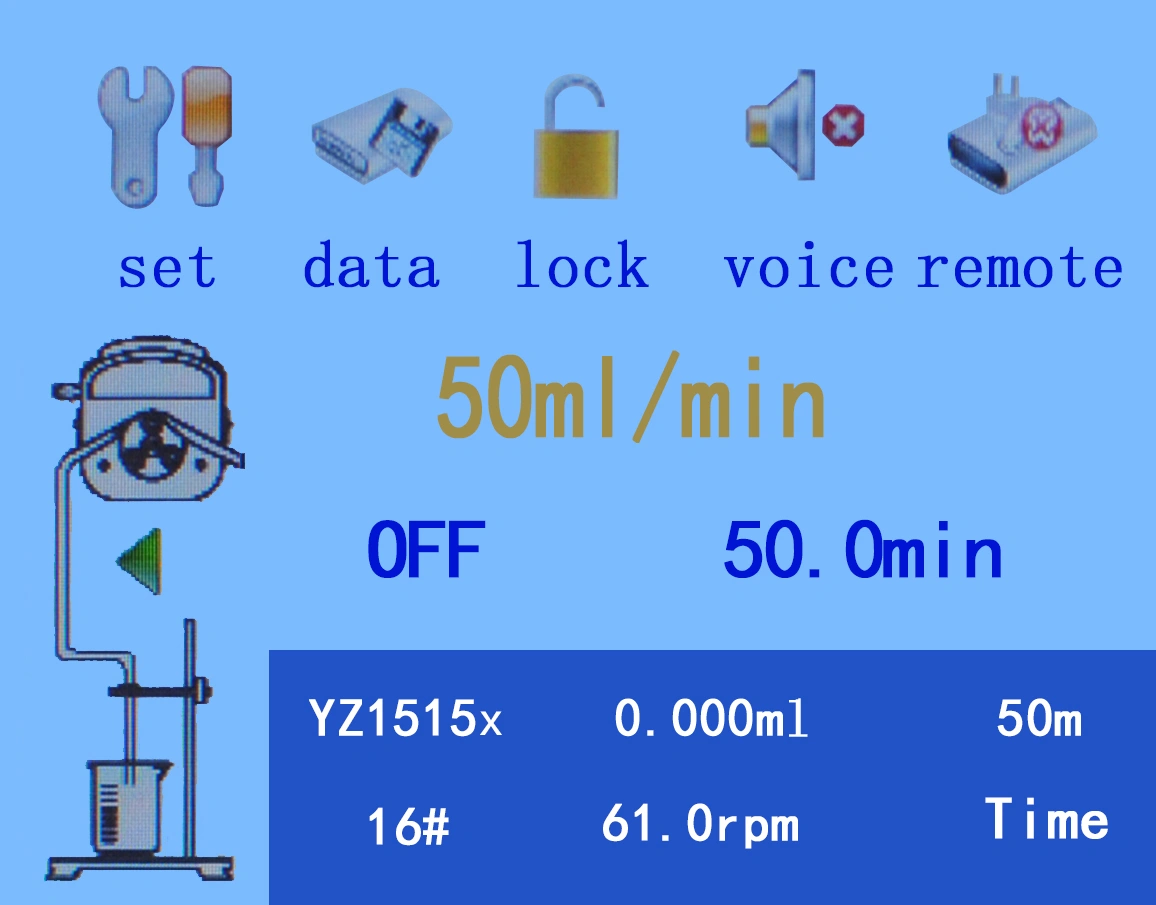

8.Display function-real-time animation of the operation interface shows the running state and working parameter.
9.Touch-screen function-3.5-inch color LCD screen, (English and Chinese optional) , touch-screen operation, intuitive and intelligent.
10.Whole housing design-stainless steel housing，sturdy and durable , multi-face seamless whole housing design, Long service life, high cost performanc

Application

Peristaltic pumps are widely used in laboratories and scientific research institutions; chemical industry; construction industry; mining, metallurgy industry; paper industry; paint industry; food and beverage industry; ceramic industry; water treatment industry; bio pharmaceutical industry; agricultural hydroponics industry; Equipment industry; industrial washing machine matching; packaging machinery industry, etc.

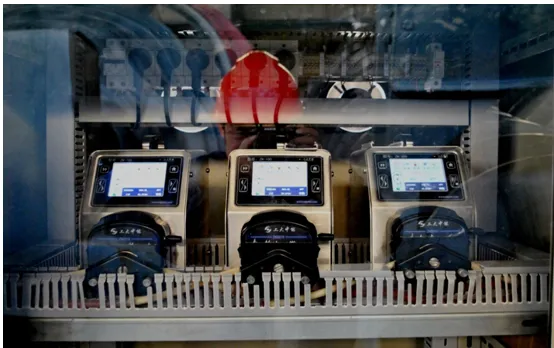

Typical application for dosing machine

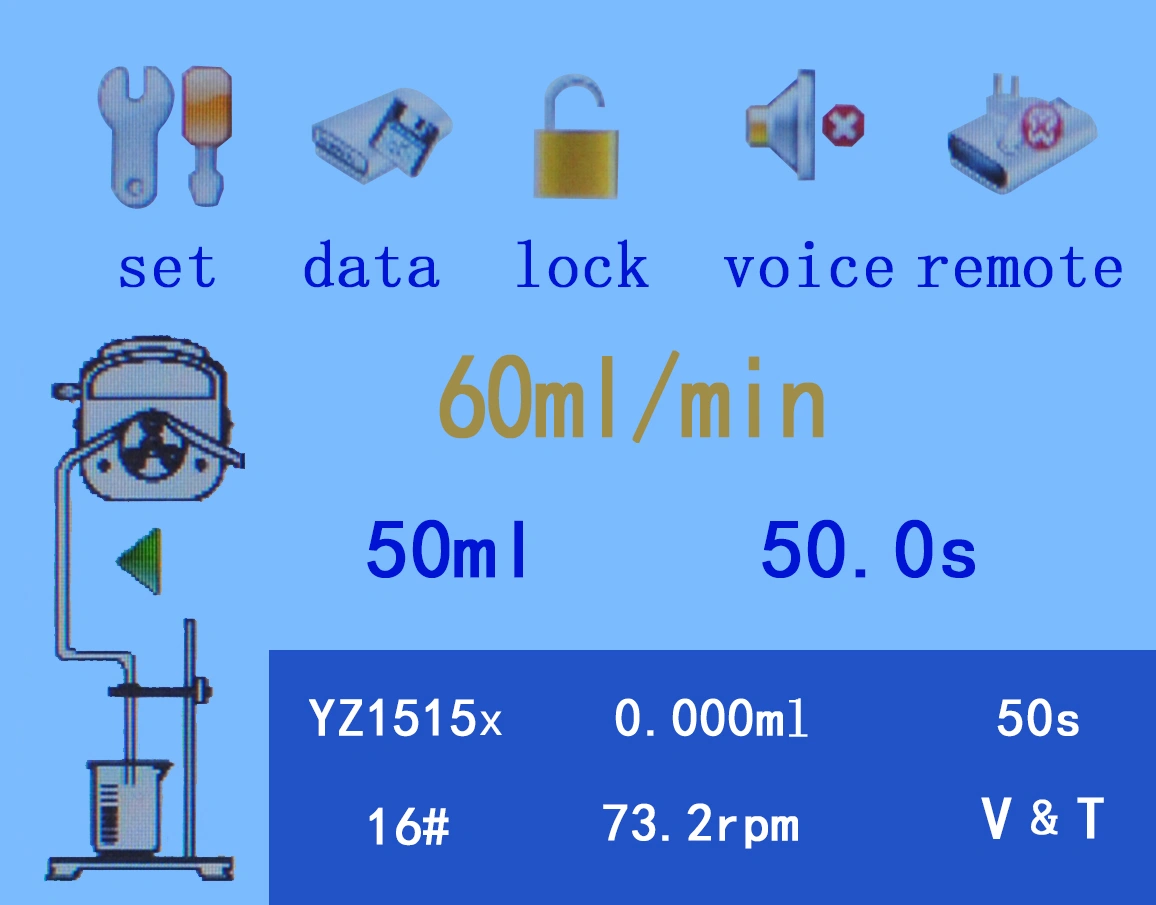

Peristaltic pump for quantitative addition Which with touch screen can set the quantitative/ time you want to transfer. Support foot pedal easy control.

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.


Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.


Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why Choose Us

Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
