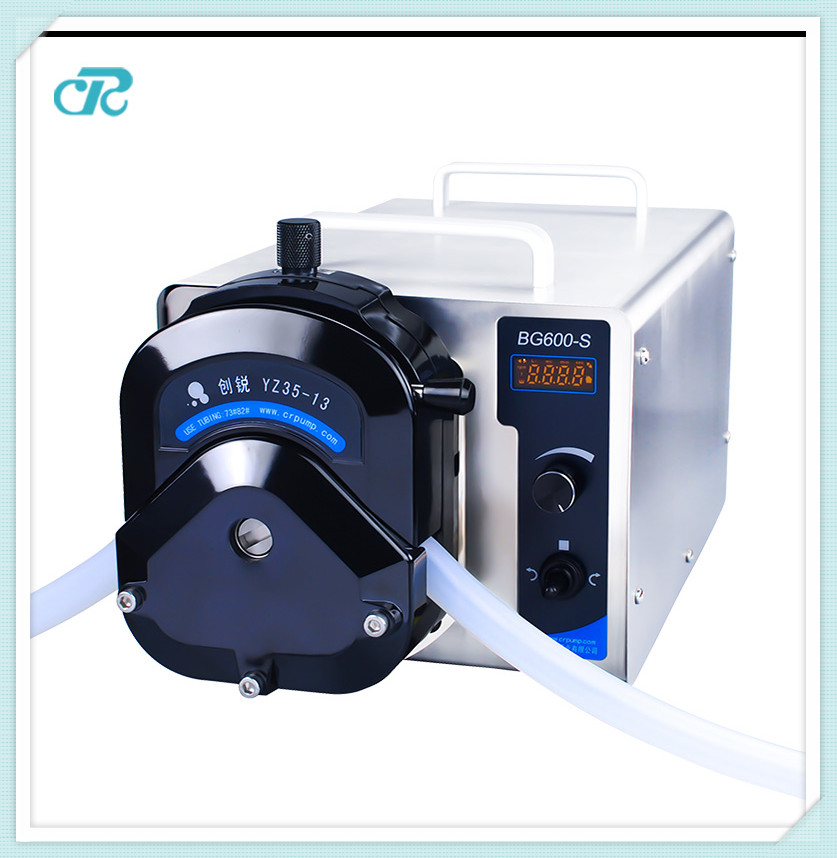

- Model:BG600-S
- Pump head:YZ35-13
- Speed:0.1-600rpm
- Flow rate:Max 12L/min
- Display Mode:4-LED
- Control Method:Knob
- MOQ:1 Set
- Customized support:OEM
- Customized support:ODM
- Customized support:OBM
- Application:Mining industry
- Power Source:Electric
- Structure:Peristaltic Pump
- Place of Origin:CN
- Warranty:1 year
- Brand Name:Chuangrui
- Horsepower:none
- Pressure:low pressure
- Cable Length:other
- Outlet Size:Max 13mm
- Voltage:AC220V or AC110V
- Power:<500W
- Certification:ce
- Certification:ISO9001
Product Description
Application Of Peristaltic Pump In Mining Industry
Metal smelting is the process of extracting elemental metal from ore. Except for physical methods, metal smelting is a process that transforms the metal from a combined state to a free state. Most metals are extracted chemically. The essence of smelting these metals is to use reducing agents to cause the ore to undergo a reduction reaction.
The main function of the peristaltic pump is to inject reagents such as reducing agents. It has the following advantages:
1. High precision: The required reagent volume can be set to ensure the accuracy of the reagent injected, and the calibration function can increase the accuracy of the reagent.
2. Low shear force: suitable for conveying shear-sensitive liquids without destroying reagents.
3. No pollution: the fluid only contacts the pump tube, not the pump body.
4. Convenient maintenance: no need to disassemble and flush, only need to replace the peristaltic pump tube.
5. Good air-tightness: It has good self-priming ability and can be idling to prevent backflow.
1. High precision: The required reagent volume can be set to ensure the accuracy of the reagent injected, and the calibration function can increase the accuracy of the reagent.
2. Low shear force: suitable for conveying shear-sensitive liquids without destroying reagents.
3. No pollution: the fluid only contacts the pump tube, not the pump body.
4. Convenient maintenance: no need to disassemble and flush, only need to replace the peristaltic pump tube.
5. Good air-tightness: It has good self-priming ability and can be idling to prevent backflow.
BG600-S/YZ35-13
About Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose Technical Parameters
Hose | ID* Wall thickness | Flow rate(ml/min) | Speed |
73# | 9.6*3.3mm | 7400 | 600rpm |
82# | 13*3.3mm | 12000 |
Send Message
Related Products
Model NO. BT600M
Model NO. BT100M
Model NO. BT100LC
Model NO. BT300LC

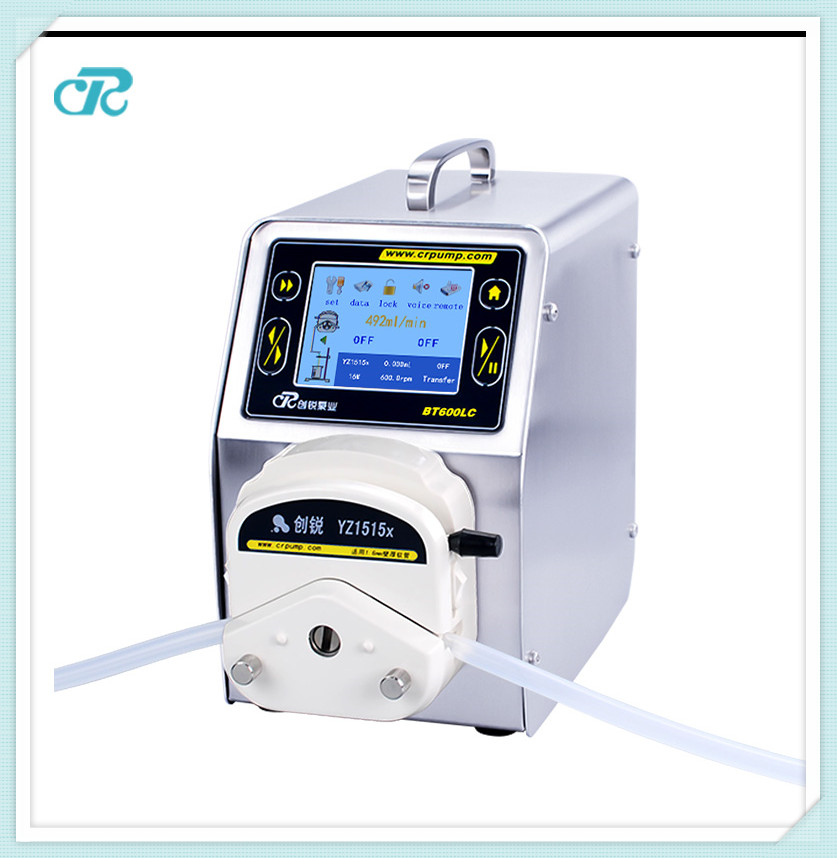

Model NO. BT600LC
