- Customized support:OEM
- Customized support:ODM
- Customized support:OBM
- Power Source:Electric
- Place of Origin:CN
- Warranty:1 year
- Application:Resin Wet Packed Column
- Horsepower:None
- Pressure:Low Pressure
- Structure:Peristaltic Pump
- Cable Length:none
- Outlet Size:Max 7.9mm
- Voltage:AC220V or AC110V
- Power:<50W
- Certification:ce
- Certification:ISO9001
Product Description
Application of peristaltic pump in resin wet packed column
Since the peristaltic pump can provide a constant flow rate, the resin can be uniformly settled in the column, and the columnar resin particles are uniformly arranged on the column by the peristaltic pump. There are no special requirements for the pump.General piping can be used, but it is best to control the flow rate at a lower level to make the column evenly packed.
Pour some water into the column before packing, then pour the resin solution (not too thin) into the column, cover the column cover, and wait for a while to precipitate. After the resin is completely precipitated, the peristaltic pump is started to discharge excess water on the resin. When the liquid surface is about 4 cm away from the resin layer, the sample liquid is pumped
through the peristaltic pump. If you drain the water, the sample liquid will puncture the resin layer when it drops from above, causing the sample liquid to leak.
Advantage of CR peristsaltic pump.
CR Peristaltic pump are easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing CR Peristaltic pump with high precision.The calibration function can ensure the filling accuracy for each dose .The suckback function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop. CR peristaltic pump are non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.CR peristasltic pump are easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameter ).CR peristaltic pump with good sealing: It has good self-priming ability and can be idling to prevent backflow.CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
Since the peristaltic pump can provide a constant flow rate, the resin can be uniformly settled in the column, and the columnar resin particles are uniformly arranged on the column by the peristaltic pump. There are no special requirements for the pump.General piping can be used, but it is best to control the flow rate at a lower level to make the column evenly packed.
Pour some water into the column before packing, then pour the resin solution (not too thin) into the column, cover the column cover, and wait for a while to precipitate. After the resin is completely precipitated, the peristaltic pump is started to discharge excess water on the resin. When the liquid surface is about 4 cm away from the resin layer, the sample liquid is pumped
through the peristaltic pump. If you drain the water, the sample liquid will puncture the resin layer when it drops from above, causing the sample liquid to leak.
Advantage of CR peristsaltic pump.
CR Peristaltic pump are easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing CR Peristaltic pump with high precision.The calibration function can ensure the filling accuracy for each dose .The suckback function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop. CR peristaltic pump are non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.CR peristasltic pump are easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameter ).CR peristaltic pump with good sealing: It has good self-priming ability and can be idling to prevent backflow.CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

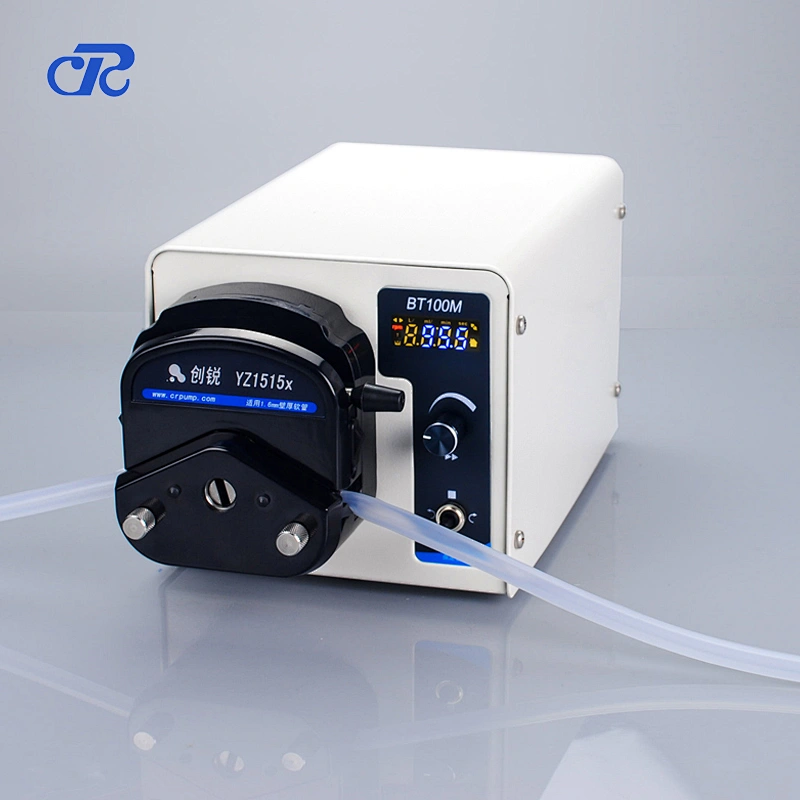

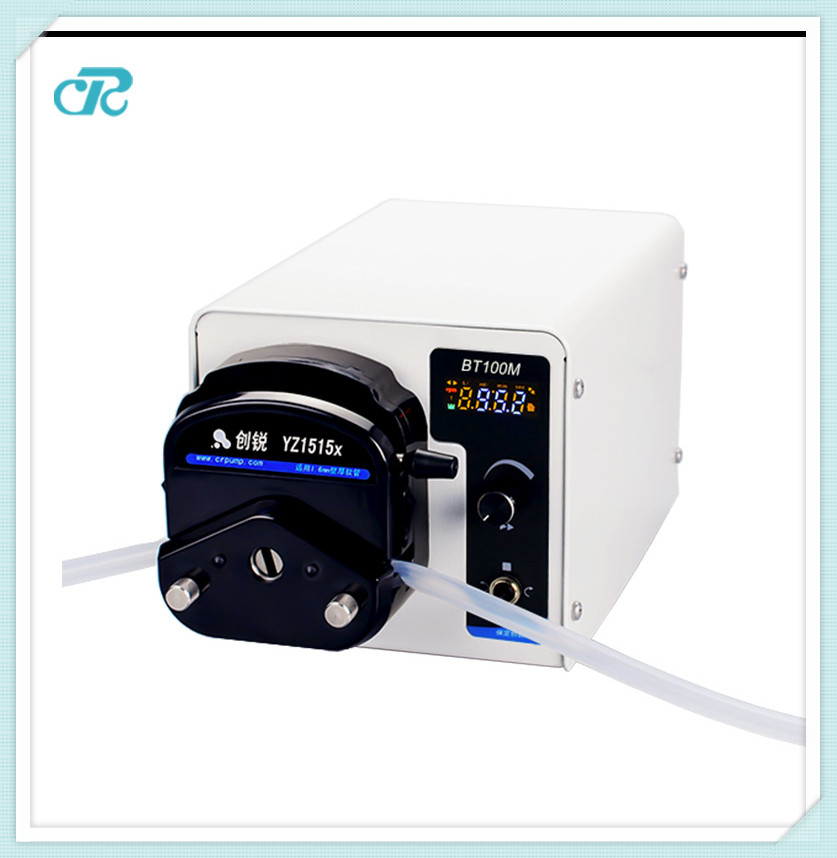

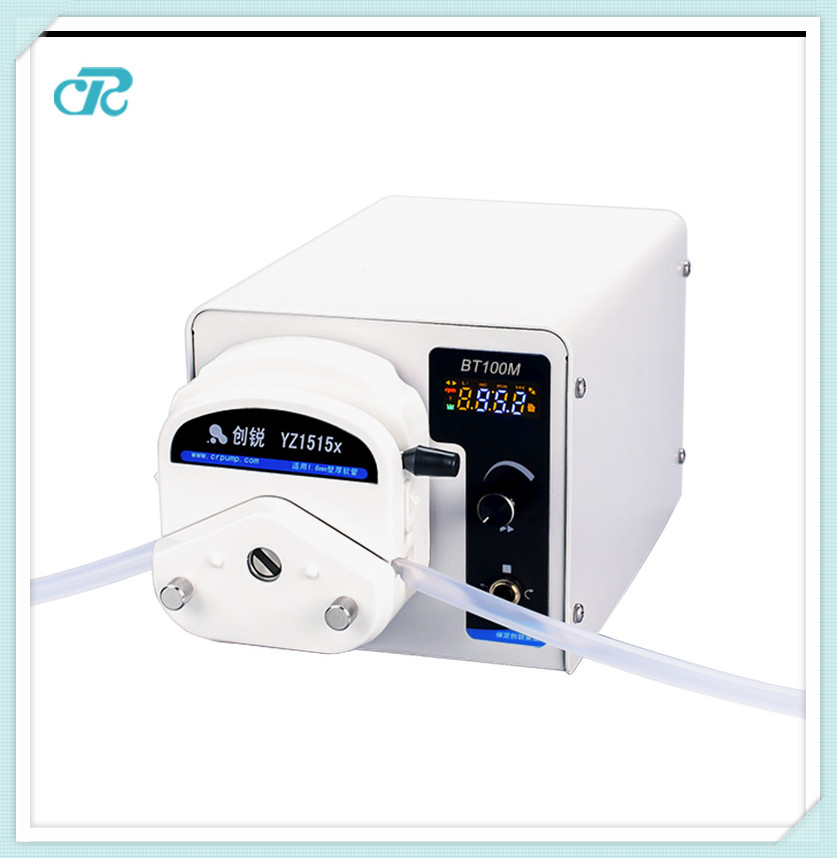

BT100M/YZ1515X
About Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose Technical Parameters
Hose | ID* Wall thickness | Flow rate（ml/min） | Speed |
13# | 0.8*1.6mm | 7 | 100rpm |
14# | 1.6*1.6mm | 27 | |
19# | 2.4*1.6mm | 51 | |
16# | 3.1*1.6mm | 82 | |
25# | 4.8*1.6mm | 170 | |
17# | 6.4*1.6mm | 290 | |
18# | 7.9*1.6mm | 380 |
Send Message
Related Products
Model NO. BT600M
Model NO. BT100M

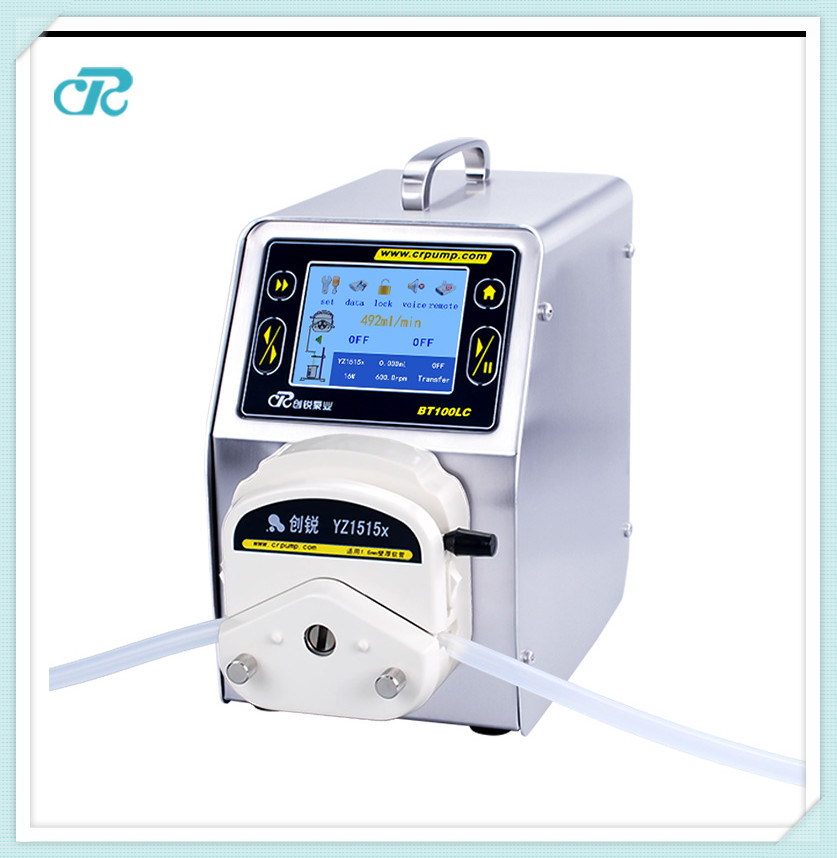

Model NO. BT100LC
