Chuangrui Digital Industrial Liquid Transfer Peristaltic Pump With Good Quality

Chuangrui Digital Industrial Liquid Transfer Peristaltic Pump With Good Quality

Model NO.: BG600-S

Quantity:

Product Description

Model:BG600-S
Pump Head:YZ35-13
Rotating speed:0.1~600rpm, reversible
Max flowrate:12000ml/min
Display Mode:4-digit LED
Operating:Knob
Warranty:1 Year
MOQ:1 Set
Customized support:OEM
Customized support:ODM
Customized support:OBM
Application:Automotive Industry
Application:Food and Beverage Industry
Application:Machining
Application:Mining industry
Application:Pharmaceutical industry
Application:Washing and Cleaning
Application:Wastewater Transport and Flood Control
Application:wastewater treatment
Application:Water Distribution
Application:Water Treatment Solutions
Power Source:Electric
Place of Origin:CN;HEB
Warranty:1 year
Brand Name:Chuangrui
Model Number:BG600-S
Horsepower:none
Pressure:low pressure
Structure:peristaltic pump
Cable Length:none
Outlet Size:Max 13mm
Voltage:AC220V or AC110V

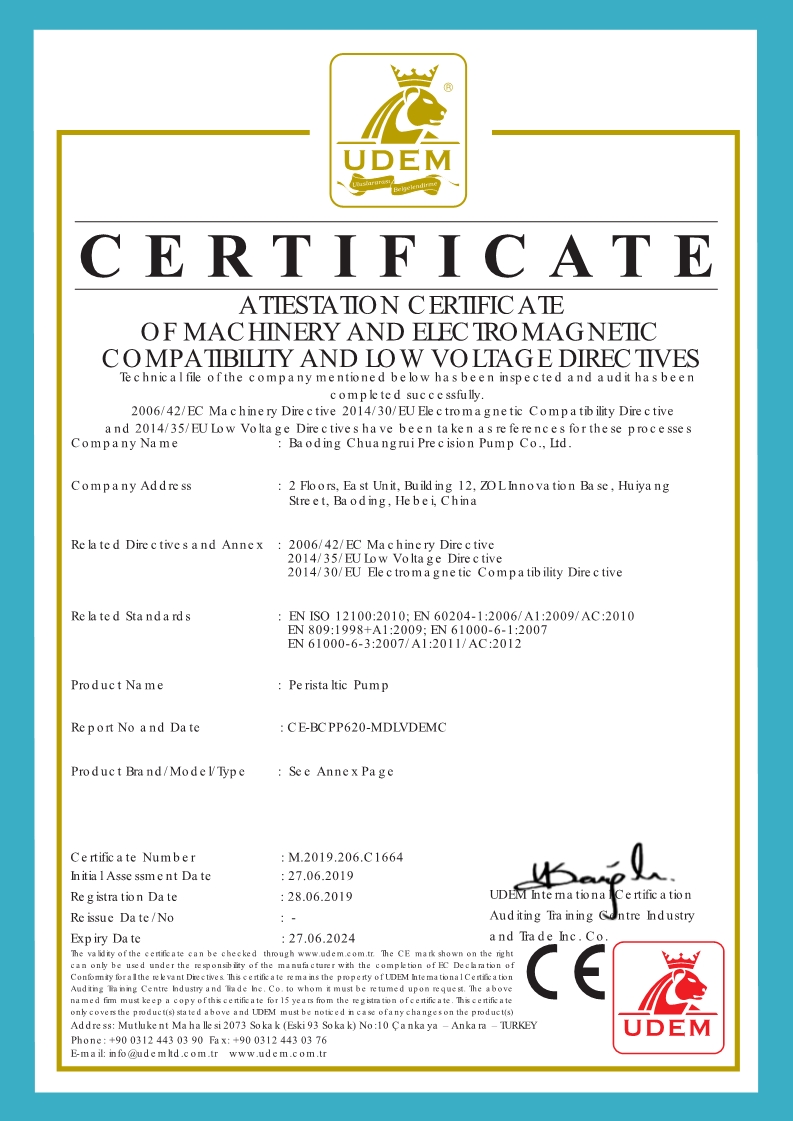

Certification:ce

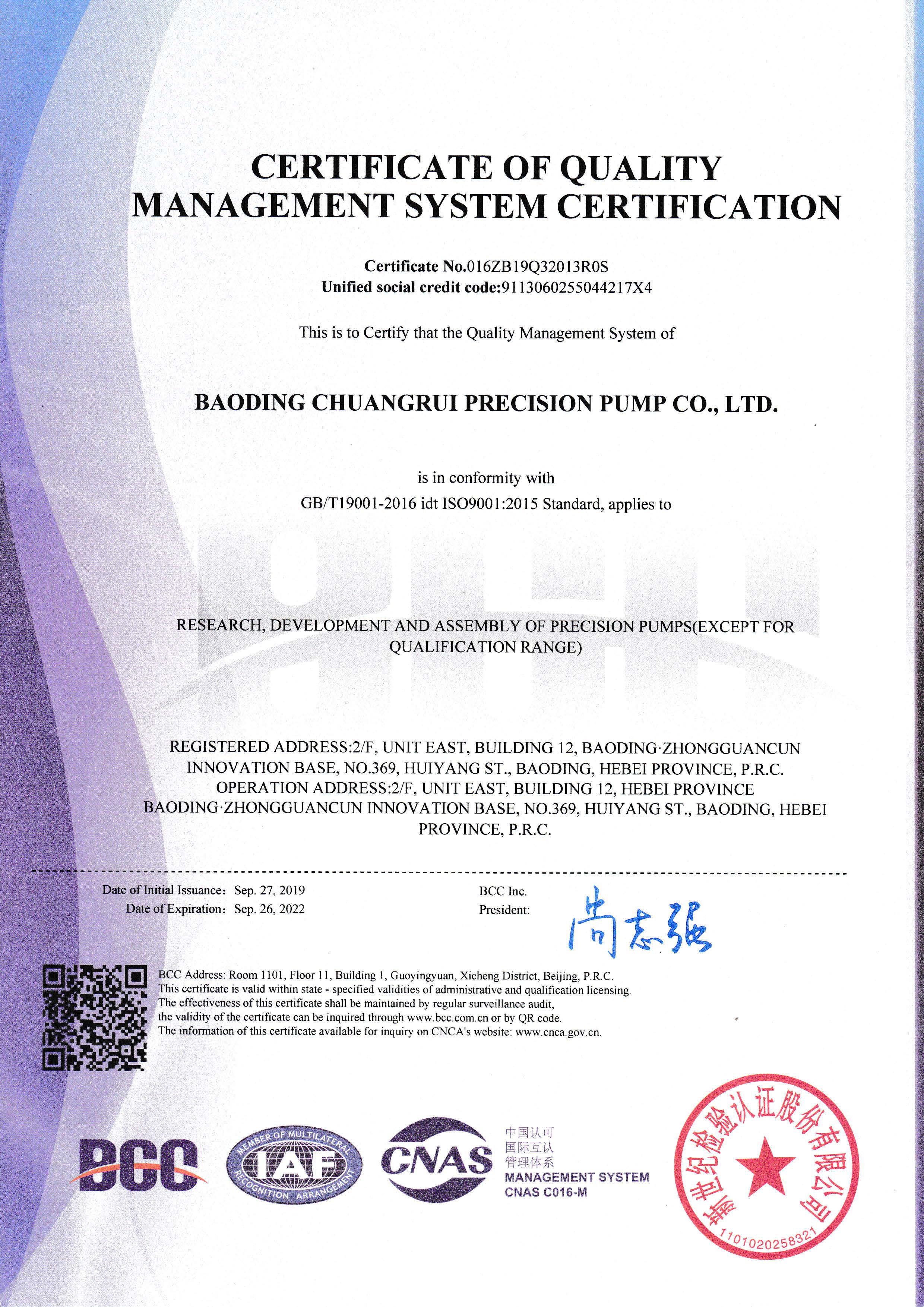

Certification:ISO9001

Product Description

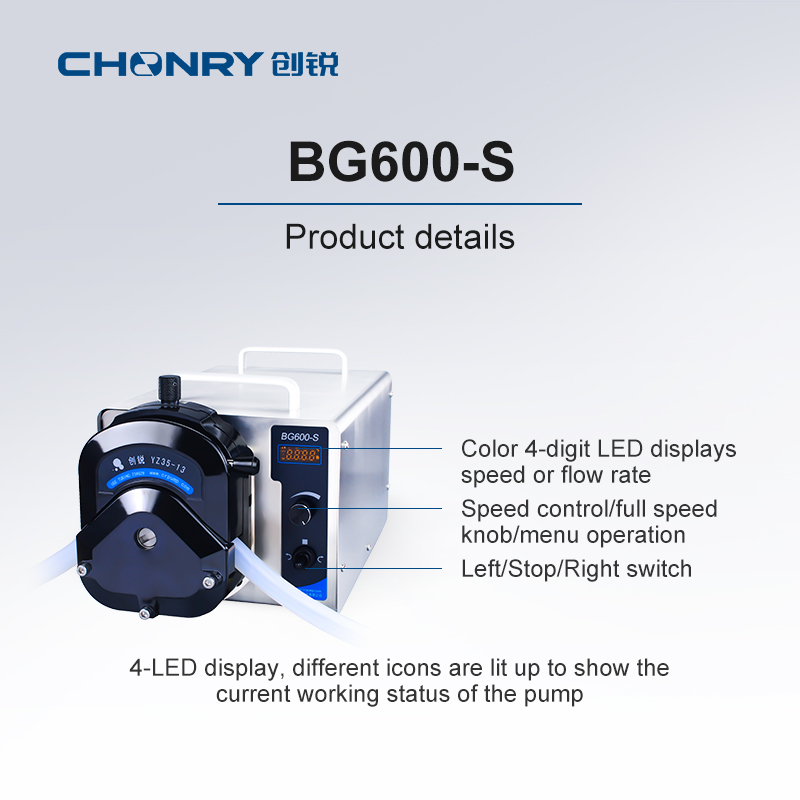

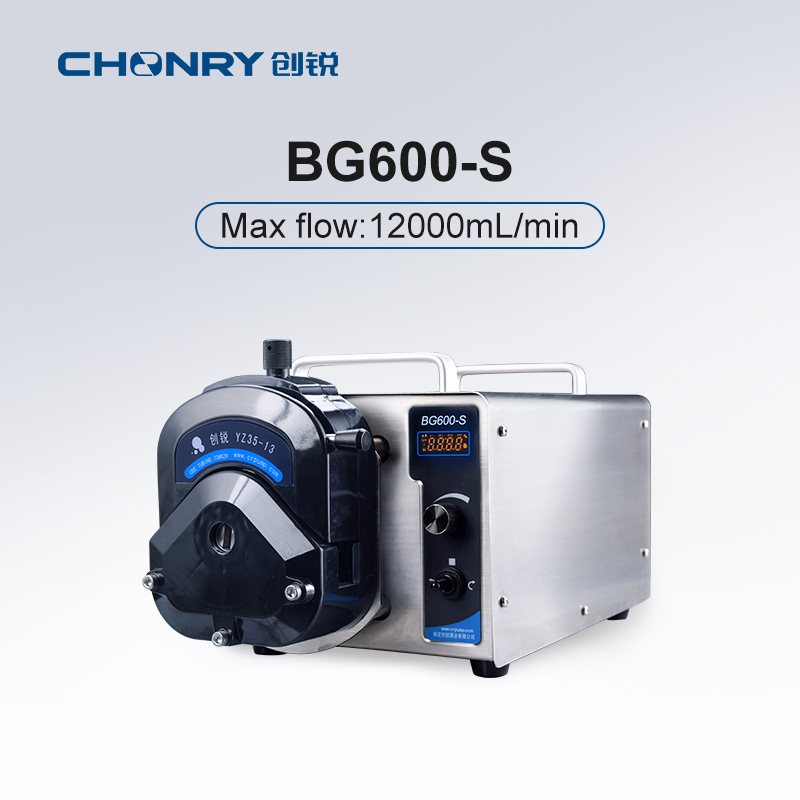

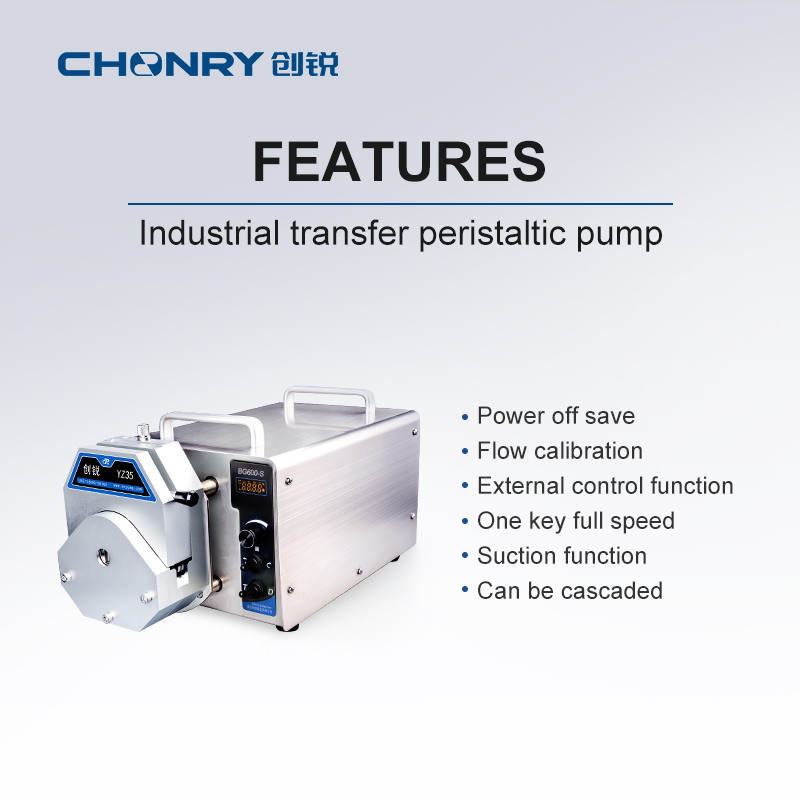

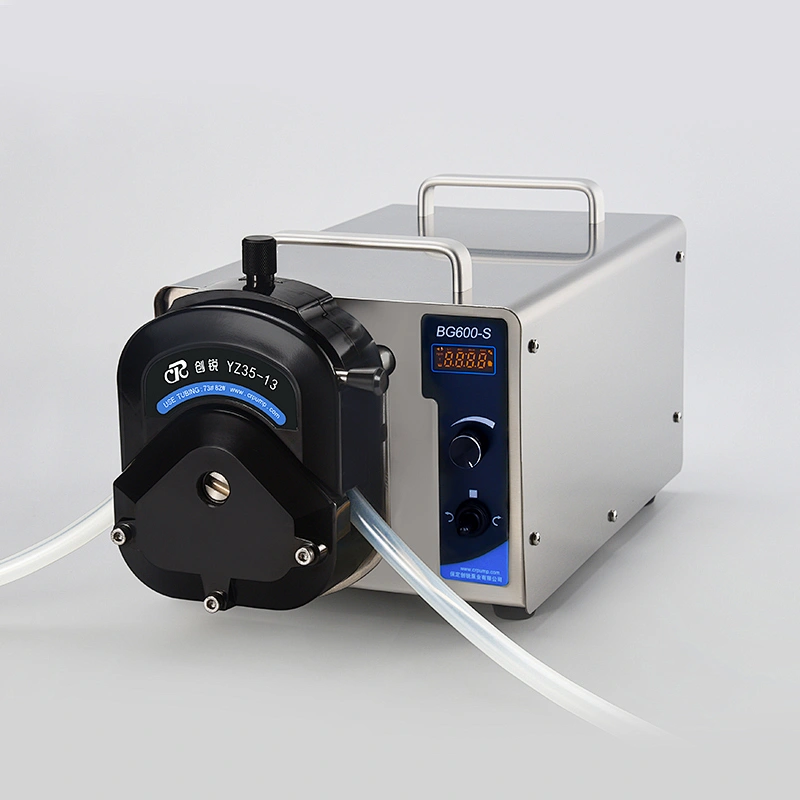

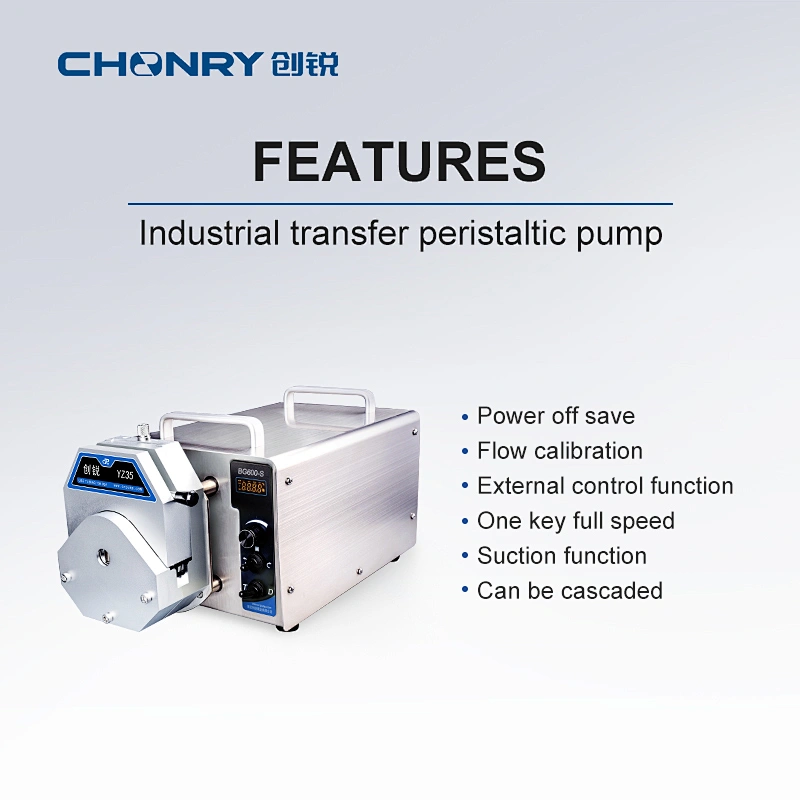

High volume peristaltic pump BG600-S is a digital peristaltic pump with a max flowrate of 12000ml/min, this pump usually used with YZ35 and YZ35-13 pump head, as a large peristaltic pump, can transmit viscous liquids, it’s the first choice for industrial production. Four-digit LED displays the current speed or flow rate, with higher flow accuracy, long life, knob control, and simple operation.This pump is widely used for sewage treatment, gem grinding, mining flotation, distillation extraction, etc.

Model: BG600-S/YZ35-13

Speed range: 0.1-600 rpm Max Flow : 1.3-12000 ml/min Max Number of Channel: 2 Power supply: AC110V or AC220V Basic type liquid constant peristaltic pump with Flow reversible 304sss housing prolong pump life time. Good electromagnetic compatibility, ensure stable and reliable operation CE certified product based on request.

Peristaltic pump application for mining additive feeding

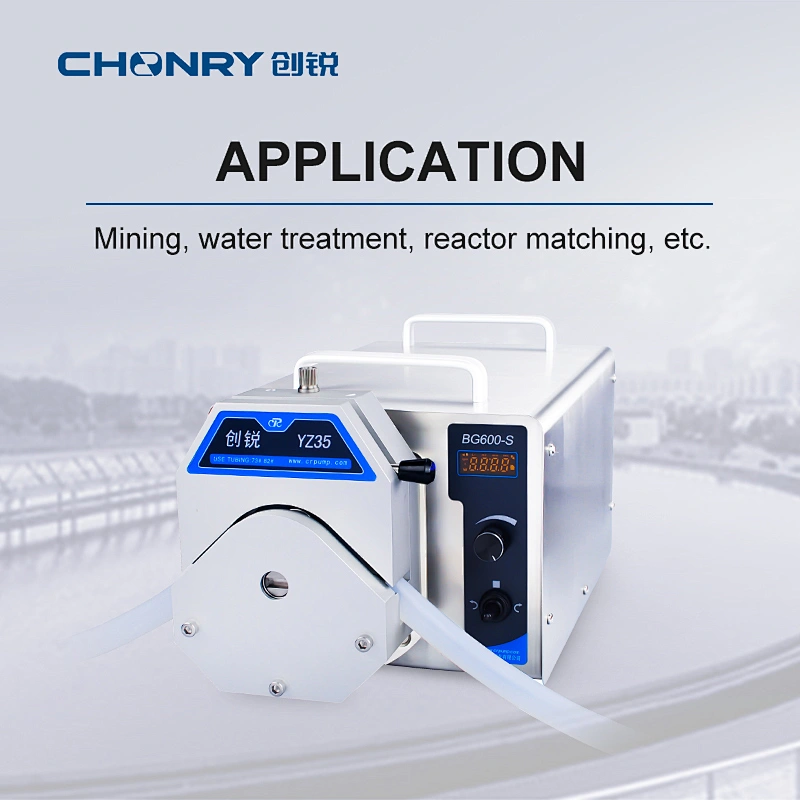

Lithium mining with BG600-S/YZ35(ALUM)

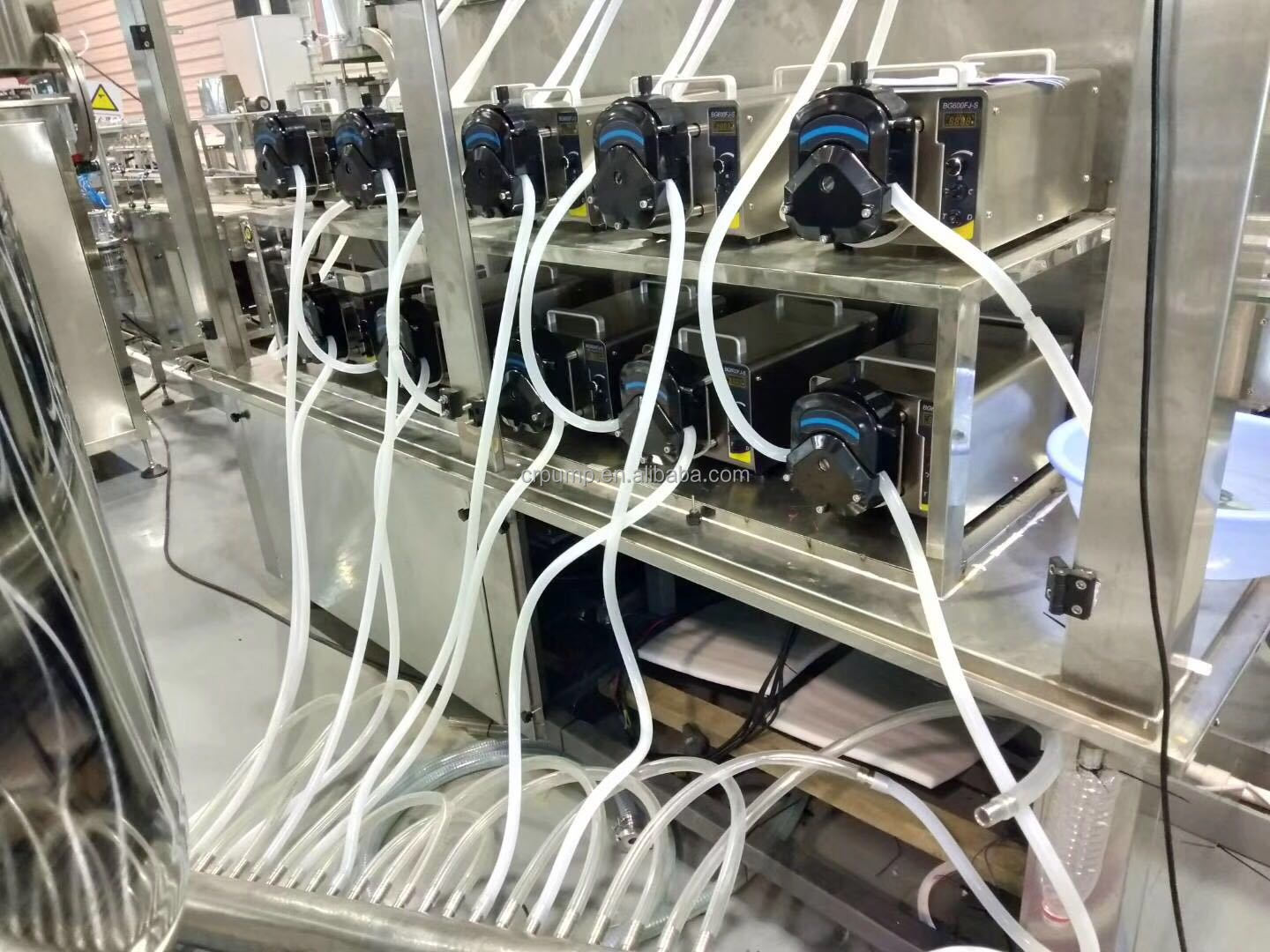

Peristaltic pump application for liquid packing

Liquid packing with BG600-S/YZ35-13(pps)

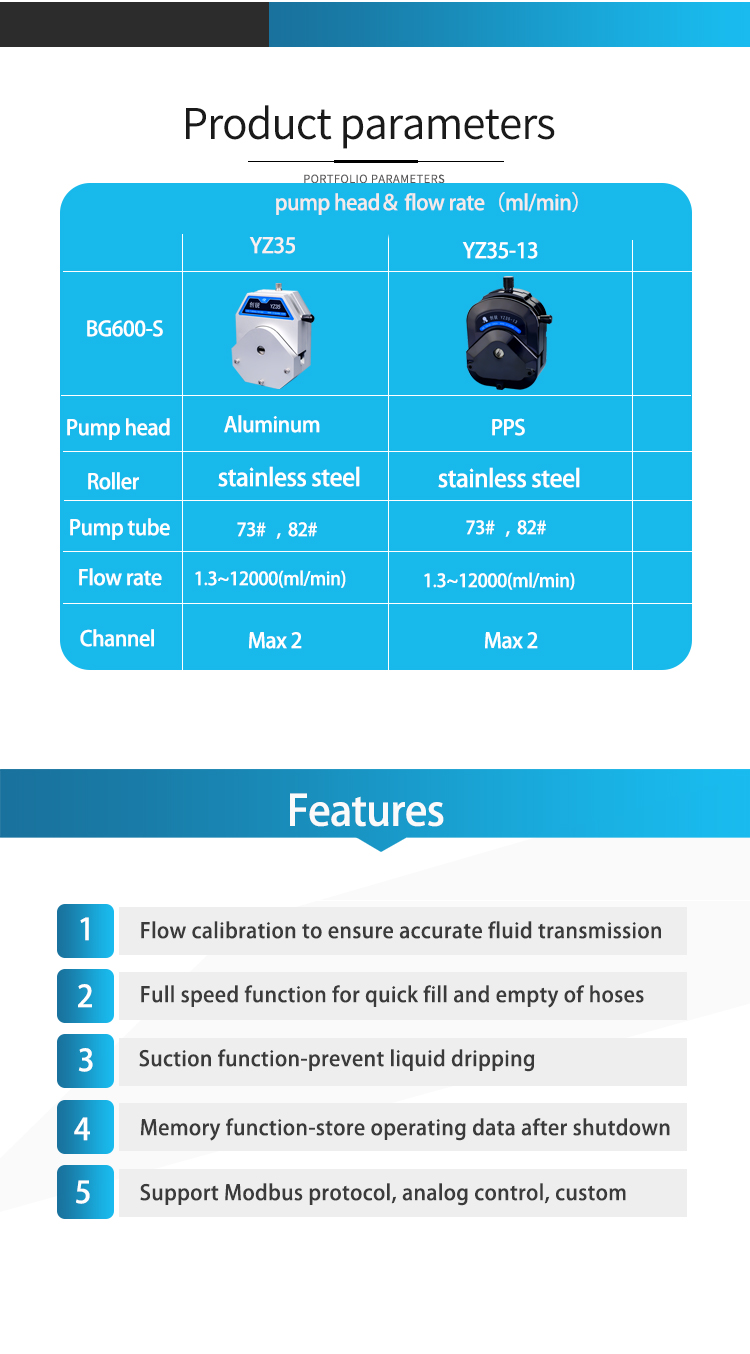

Parameter Model : BG600-S/YZ35-13 Noted : The rpm display is the defaulted mode. If you need flow display, pls contact our sales to customized the program.
		Model	BT100M/YZ1515x
0.1Speed	0.1-600rpm
Speed resolution	0.1rpm
Max Flow rate	12000ml/min
Display	4-LED display
Speed control model	Rotary encoded switch control speed
Power supply	AC220V±10%(standard) or AC110V±10%(optional)
External control	Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )

Tube specifications for the pump head YZ35-13 (black is defaulted) Noted : The standard tube which will come with the pump is model 82#, If you need other tube model , pls contact our sales in advance.
Tube model	ID(mm)	OD(mm)	Standard material	Flow with 600rpm(ml/min)
73#	9.6	16.2	Silicon tube	7400
82#	13	19.6	Silicon tube	12000

Why choose this model for your application?

1, Easy operate only need to power on, then you can use it 2, Easy load pump head, you can install and change the tube fast. 3, If you want to change the flow, only need to rotate the control knob on the panel. 4, Easy to control the direction by the switch on the panel 5, 4-Led display the current speed and work status 6, Support Multiple channels work, Which can meet your application to transfer several liquids at the same time.

Order guide

How to choose the suitable pump for your application ?Can you first to confirm some details as below :

1, What’s Flow rate you need ? ( )ml/min 2, How many channels you need?( ) 3,What kind of liquid you will dose ?is it corrosive ? ( )

Noted: The defaulted model we will send is BG600YZ3B21 or BG600YZ3B11.
Order number	Model	Pump head	Power supply	Channel number	Max Flow
BG600YZ3B21	BG600-S	YZ35-13 (black)	AC220V	1	12000ml/min
BG600YZ3B11			OEM201-1			AC110V	1
BG600YZ3B22			OEM201-1			AC220V	2
BG600YZ3B12			OEM201-1			AC110V	2

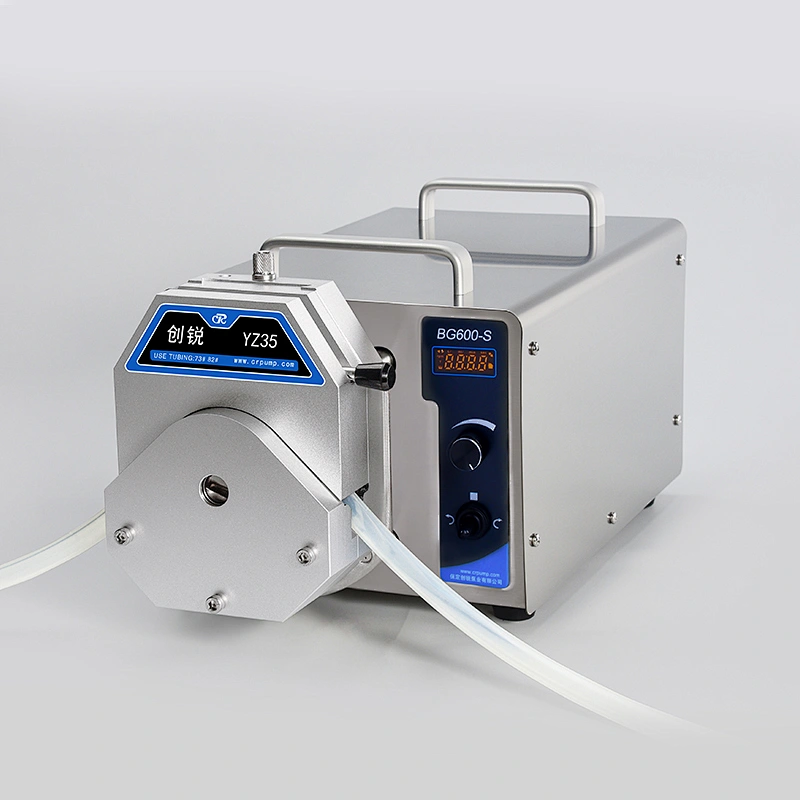

BG600YZ3A21	BG600-S	YZ35 (Aluminum alloy)	AC220V	1	12000 ml/min
BG600YZ3A11						AC110V	1
BG600YZ3A22						AC220V	2
BG600YZ3A12						AC110V	2

Packing list
1	Pump order number : BG600YZ3B21
2	Silicon tube: 82# 2 meters
3	Power plug
4	User manual
Weight	18KG

Product Description

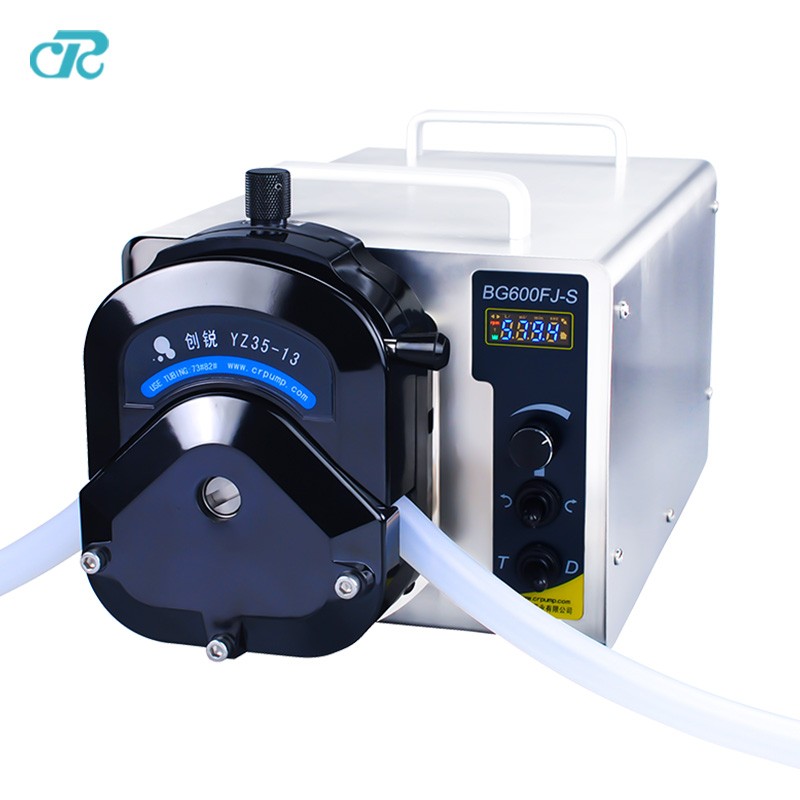

BG600FJ-S/YZ35-13

flow range : 1.3-12000 ml/min

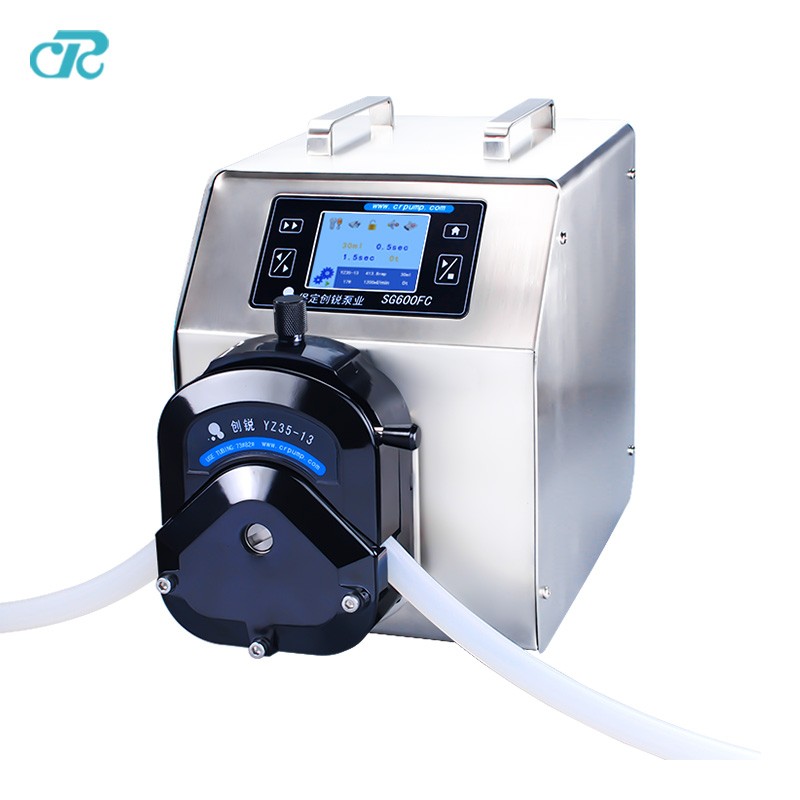

SG600FC/YZ35-13

Flow range : 1.3-12000 ml/min

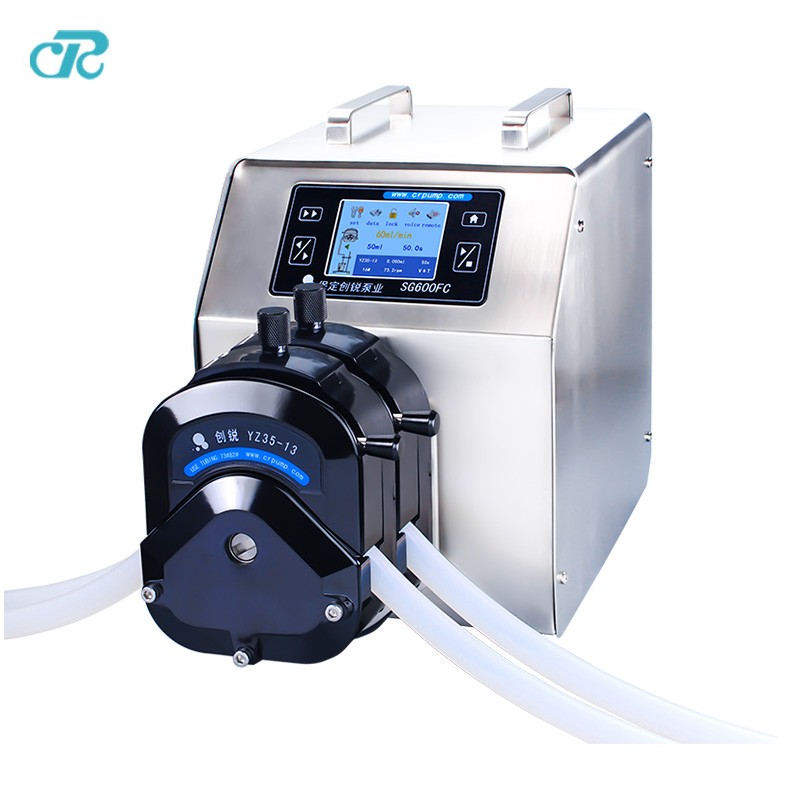

SG600FC/2*YZ35-13

Flow range : 1.3-24000 ml/min

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd.Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump.Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids

About shipping

Fast and safe delivery

1.The package contains a peristaltic pump and its accessories.

2.foam and carton packaging can protect the safety of the peristaltic pump during transportation.

3.If you have other packaging needs, please contact our sales staff in time.

Things To Note

Hi, My dear customer ,Good day!
Here are some tips for your reference before purchase our pumps.
1, About Delivery time :
For standard pump less than 10 sets the delivery time is 3-5 days after get your payment.
For customized pump ,the production time is about 7-15 days.
For bulk purchase, Pls contact our customer service staff to get the exact delivery time.
2, About Power supply and power plug:
For standard pump is AC220V or AC110V ,which produce based on your local power supply standard.
For the power plug, we have most of the power plug types based on different counties' requirement.
PS :The power supply and power plug will based on your shipping country's standard(defaulted). If you have different requirement,Pls contact our sales .
3, About the flowrate :
All the flowrate we showed are test based on water,Only for your reference.
4,About Return Policy and after sale service:
a . Before purchasing, please carefully understand the product (peristaltic pump) function details. If you are not sure about the product function, please contact our customer service staff for detailed communication and confirmation before purchasing. Our technical staff will give you detailed information. Answer to ensure that you find the most suitable product.
b . After receiving the goods, if the packaging is damaged due to express delivery and the product is also damaged due to gravity,such as shell deformation, pump head damage, etc., please send the damaged packaging photos and product photos to our customer service staff within three days.Our company will negotiate compensation with the express as soon as possible and provide you with a solution within three working days.
c . If there is a problem with the product due to the quality of the product within one year after receipt (the warranty period),please feel free to contact our customer service staff, we will provide you with a solution within three days of receiving your information.
d . If the product has exceeded the warranty period and the product cannot be used due to improper operation by the customer,please contact our customer service staff. We only charge the cost of the accessories and the courier fee. And the customer service staff will answer your questions free of charge and assist you with repairs in the form of text, pictures or videos.
5,About Warranty:
1 Year warranty and lifetime matainence.(Do not including the Consumables such as tubing and connectors.etc.）
