- Place of Origin:CN
- Certification:ce
- Brand Name:chuangrui
- Model Number:BT600M
- Structure:Variable Speed peristaltic pump
- Certification:TUV
- Model:BT600M/YZ1515X*2
- Speed Range:0.1-600 rpm
- Speed Resolution:0.1 rpm
- Flow rate:Max 2280ml/min/head
- Motor Type:Stepper motor
- Display Mode:4-LED
- Control Method:Rotary encoded knob
- Warranty:1 Year
- Application:transfer
- Power:<50W

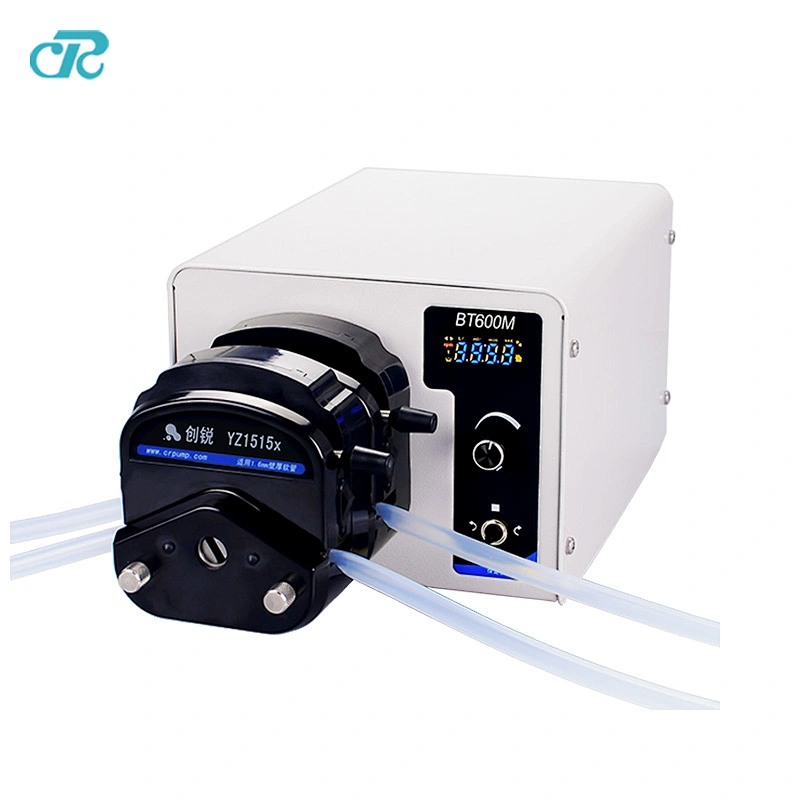

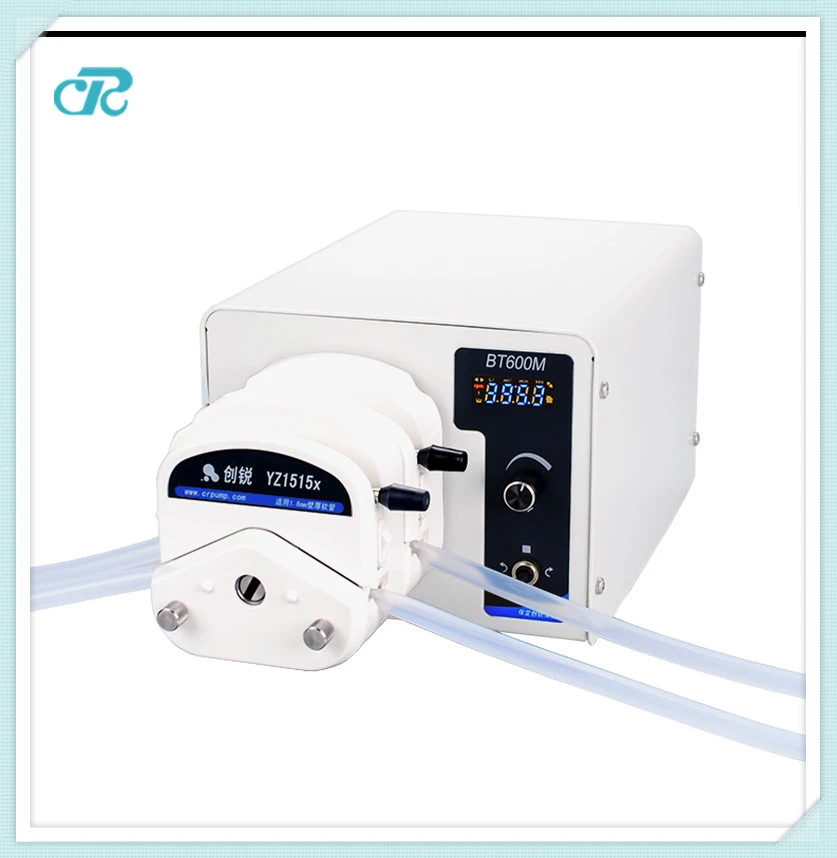

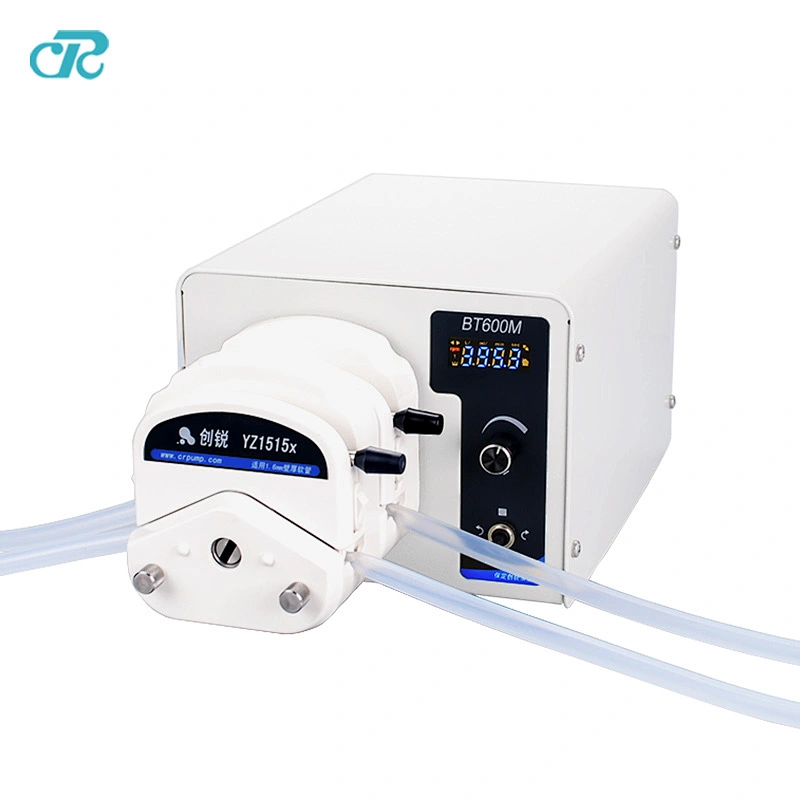

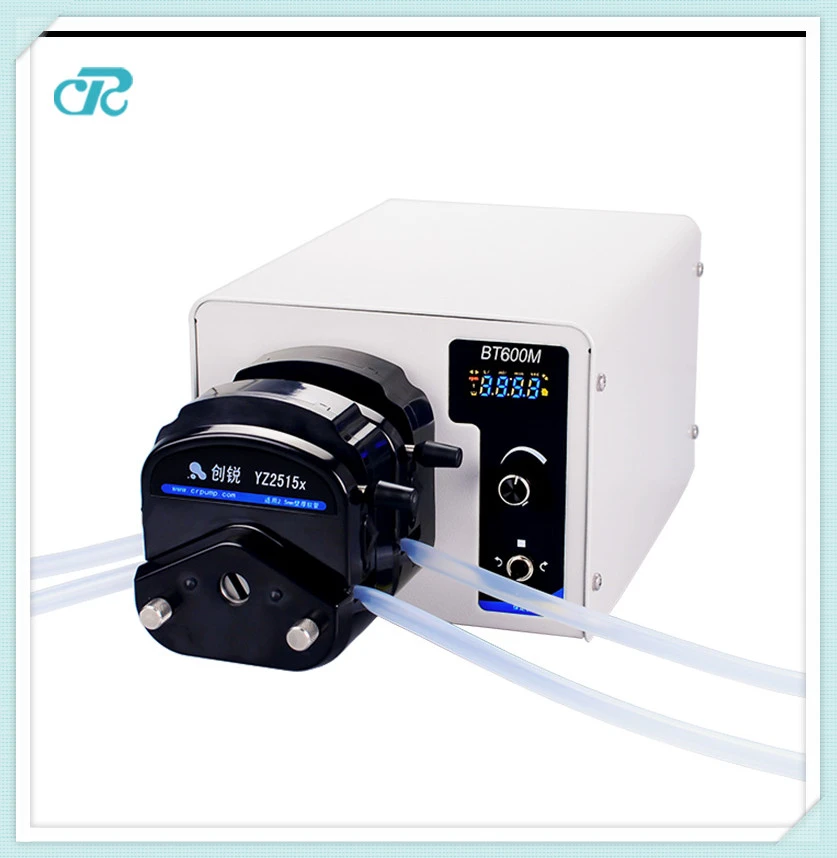

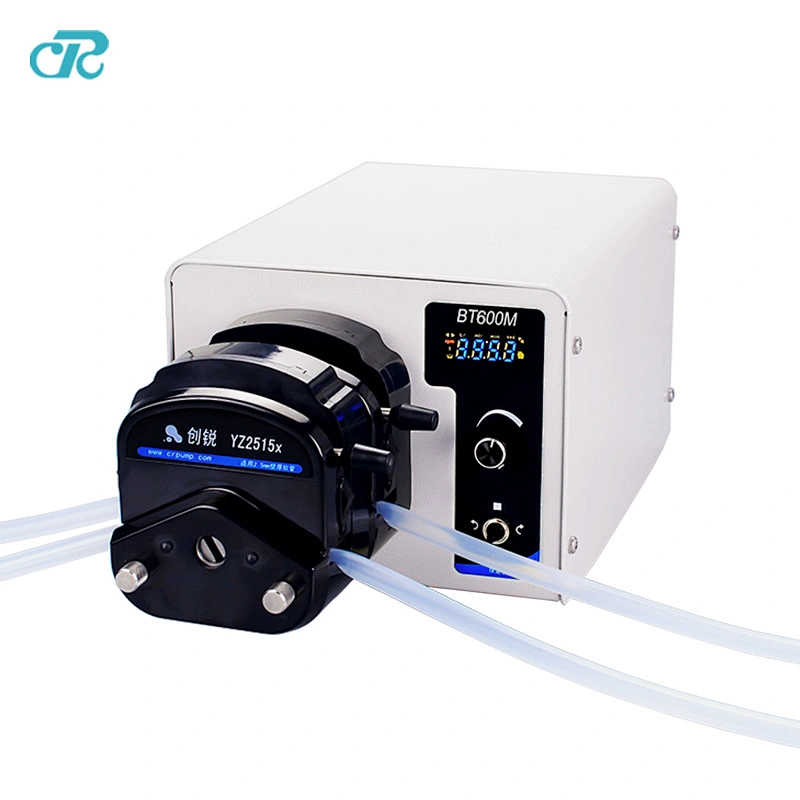

Dual Head Variable Speed Digital Display Peristaltic Pump
Peristaltic pump BT600M Flow range is 0.007~2280ml/min/head.(Note: There will be a small amount of flow difference between the two pump heads.) Flow speeds can be adjusted either by hand through switching knobs, instead of the traditional way of membrane keypad, which reduces obviously the failure rate, or by automatic control through the external controller interface, with three available modes: 0-5V, 0-10V and 4-20mA. Memory function is also available in the product in case of power off. Besides, switching knobs are designed clearly so that it is easy to operate for customers. FULL SPEED button available for filling in & emptying out. Good capability price rate. Not suitable when used in the open air.
Parameter
| Model | BT600M | Display Mode | 4-LED |
| Speed Range | 0.1-600 rpm | Control Method | Rotary encoded knob |
| speed resolution | 0.1 rpm | Motor Type | Stepper motor |
| Flow range | 0.007-2280 ml/min | External control Start & stop, direction control, speed control ( Analog control :0-5v, 0-10v, 4-20mA optionl ) RS232 and RS485 Communication interface, support MODUBUS Communication Protocol | |
| Environment Temperature | 0-40℃ | ||
| Relatively Humidity | <80% | ||
| Power consumption | <50w | ||
| Power supply | AC220V or AC110V | ||
2. With liquid calibration function to ensure the high accuracy for the transfer.
3. This constant peristaltic pump can be installed by YZ1515x/YZ2515x pump heads.
4. With both-way large torque low power motor. It can be connected with several pump heads to meet different applications.
5. Long life digital rotary knob easy to operate high control precision and ensure to transfer the high precision fluid.
6. FULL SPEED button is available to fill in & empty out the tubing.
7. Memory function available in case of power off and it will continue working once the power was restarted.
8. Long-range control is available through the DB15 interface of the drive: speed control start-stop control direction control.
9. With RS485 communication interface supports MODBUS communication protocol. And communication protocols customized is available.
Dear All ,
Welcome to our website ,we are peristaltic pump manufacturer .wish you have a nice day and will get the harvest from us .=))
To help you choose the suitable peristaltic pump. could you help me to confirm some details as below :
1,what's the application of the peristaltic pump ? bottle filling pump orconstant transfer pump?
2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?
3, for constant transfer ,what's flowrate you need? ml/min
4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?
Pls send these answers or most details to us, then we will help u to choose the best peristaltic pump and silicon tube .
Thanks for your time .
Baoding chuangrui precision pump Co., Ltd Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump ..

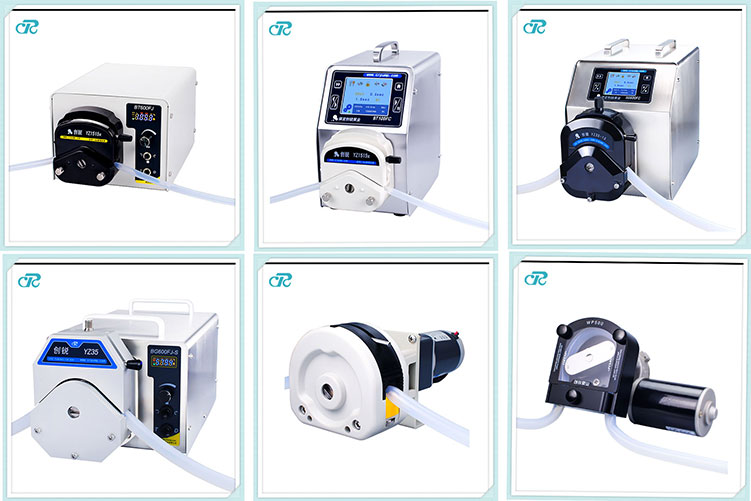

With 10 years professional experience of peristaltic pump/peristaltic hose pump/lab peristaltic pump/industrial peristaltic pump/peritaltic dosing pumpemical dosing pump/peristaltic filling pump/dispensing peristaltic pump/OEM peristlatic pump/ liquid transfer pump etc. . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, filling pump & system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.Our professional team can insure fluent communication, as well as perfect after-sale serviceChuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
