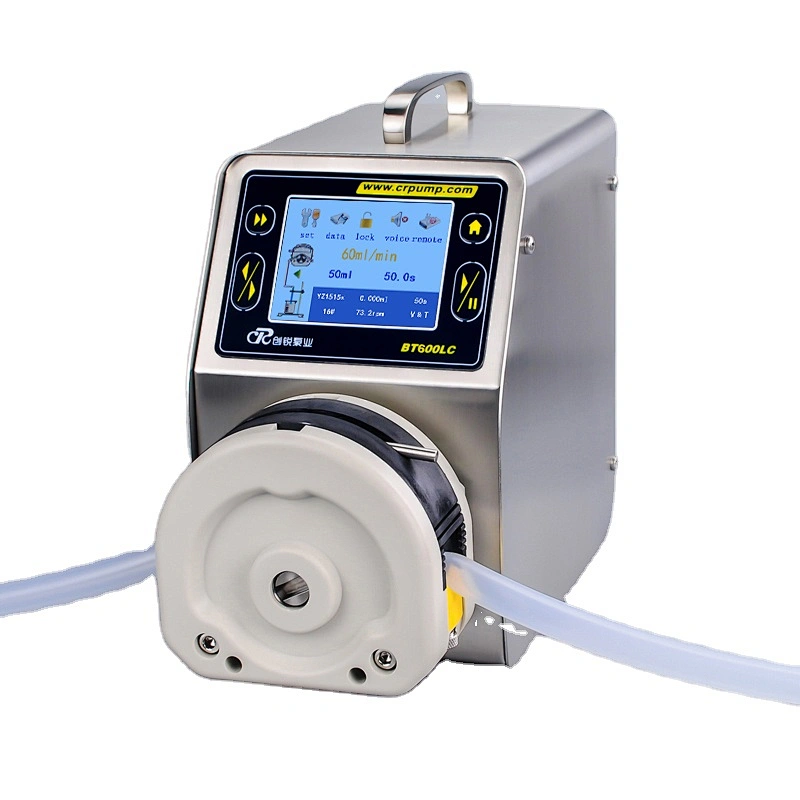

Application Of Peristaltic Pump In The Reaction Kettle

Warranty:                                 1 Year, 1 year

Customized support:              OEM, ODM

Brand Name:                           Chuangrui

Model Number:                       BT600LC-S/KZ25

Place of Origin:                       Hebei, China

Application:                             Food and Beverage Industry, Pharmaceutical industry,
                                                 Wastewater Transport and Flood Control, wastewater treatment,
                                                 Water Treatment Solutions, Reaction Kettle

Horsepower:                           <100 W

Power Source:                          Electric

Pressure:                                  Low Pressure

Structure:                                 peristaltic pump

Cable Length:                          other

Outlet Size:                              Max 9.6mm

Voltage:                                   AC220V or AC110V, 110V/ 220V

Power:                                    <500W

Model:                                     BT600LC-S/KZ25

Speed range:                          0.1-600 rpm

Flow range:                            10-6000 ml/min

Theory:                                   Peristaltic pump

Name:                                     peristaltic dosing pump

Function:                                Liquid handling

Certification:                           ce

Packaging & Delivery

Selling Units:                         Single item

Single package size:              37X26X36 cm

Single gross weight:              8.500 kg

Package Type:                       1. The package contains a peristaltic pump and its accessories.
                                                2. Carton and foam packaging can protect the safety of the product during transportation.
                                                3. If you have special packaging needs, please contact us in time.

Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	7	To be negotiated



Product Description

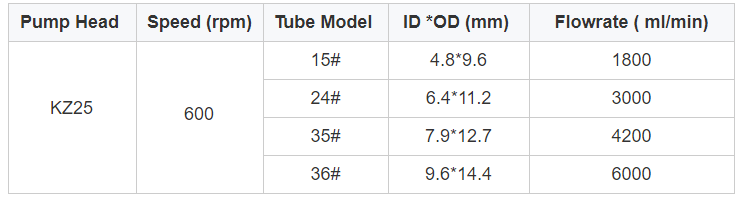

Model	BT600FC-S/KZ25
Speed range	0.1-600 rpm
Flow range	10-6000 ml/min
Channel	1  channel is standard 2 channels is optional;
Power supply	AC220V (standard) AC110V (optional)
Production time	3-5 workdays

Product Intoduction

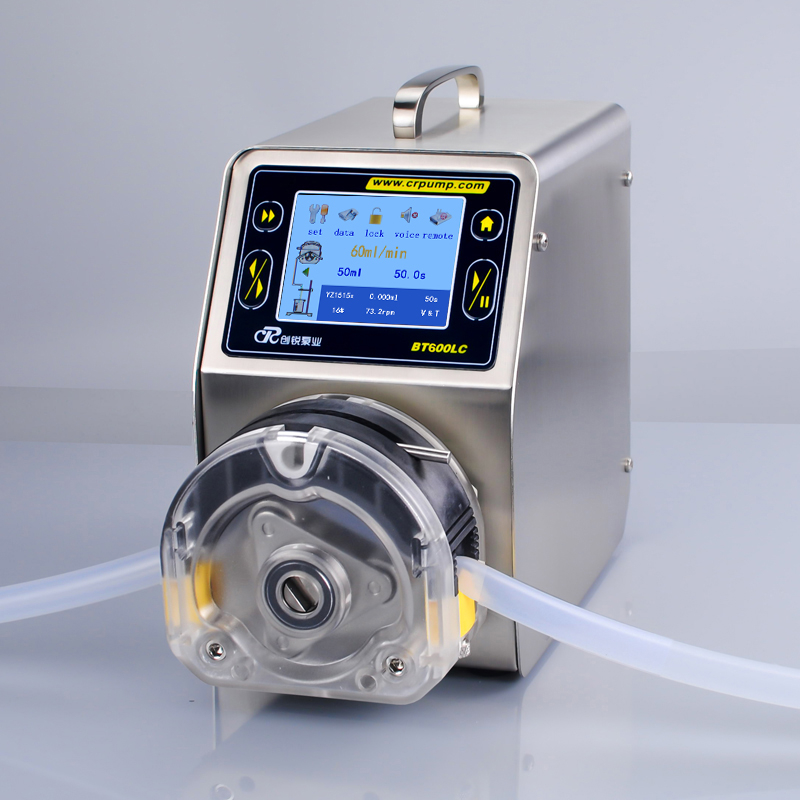

CR intelligent peristaltic pump BT600LC-S with 4 work mode : transfer /timer /quantitative/timing quantitative

1. This intelligent programmable peristaltic pump BT600LC can be installed by YZ1515x, YZ2515x, pump heads.

2. With both-way large torque, low power motor. It can be connected with several pump heads to satisfy the different demands of

flow rates.

3. Long life, Touch screen control, easy to operate,

4. 3.5 -inch color LCD display in English and Chinese version

5. Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.

Technical Parameters

Speed Resolution : 0.1 rpm

Display Mode: Touch Screen

Four work Mode : Transport mode, Timer mode, Quantitative mode, Regular Quantitative Mode

Timing Range : 0.1s~9999min

Quantitative Range :0.001ml~9999L

Suction Angle : 10°~720°(1° stepping)

External Control : Start & stop, Direction, Speed ( 0-5V, 0-10V, 4-20mA, 0~10kHz )

Communication Protocol : RS485

Power Consumption : <50W

Work Environment : 0-40℃

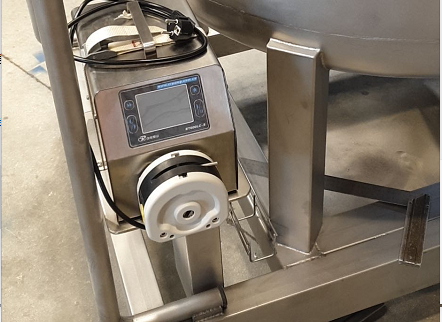

Application Of Peristaltic Pump In The Reaction Kettle

The chemical reaction has a certain degree of danger, which requires the experimenter to have a certain experimental quality and operational level. When adding reaction raw materials to the reactor, the precise operation is also required, and the operator is labor-intensive. The use of peristaltic pump feeding can replace a large number of manual operations in traditional experimental methods, greatly reduce the labor intensity of experimental personnel, and improve the efficiency of experimental and scientific research results.
The peristaltic pumps are respectively connected to the raw material pots containing different raw materials, and the operating status of each peristaltic pump is adjusted to achieve
Application advantages of peristaltic pump in the chemical reaction process Using a peristaltic pump instead of human hands to feed the reactor during the chemical reaction process has the following advantages
1) It flows in the hose without contacting the pump body, which avoids the pollution of raw materials by the pump body and reduces the influence of impurities during chemical reactions. At the same time, the mechanical components of the pump body will not be damaged due to the corrosiveness of the raw materials.
2) When the peristaltic pump is started, there is no need to irrigate the pump. It has a strong self-priming ability and can
generate enough vacuum suction to suck the raw material from the raw material pot into the hose so that the installation position of the peristaltic pump can be changed by adjusting the length of the hose flexible
3) The peristaltic pump has a simple structure and strong adaptability, which is suitable for transporting high viscosity and high specific gravity reaction liquid.

4) The pump body has special requirements such as no leakage and no sealing, which eliminates the loss and pollution caused by the leakage of chemical reaction materials. The pressure roller itself acts as a valve when the pump is stopped to prevent backflow.
5) The peristaltic pump is sensitive and stable in suction and discharge. It can be controlled for continuous pumping of chemical raw materials and can also be used for automated management.
6) The peristaltic pump has high flow accuracy and is easy to achieve micro and ultra micro liquid pumping, liquid addition, and dripping. It is accurate, simple, and reliable in the delivery and preparation of various raw materials.
7) Each raw material pot is independently controlled by a peristaltic pump, the pumping of each raw material does not interfere with each other, and it is easy to synthesize solutions of various proportions.
