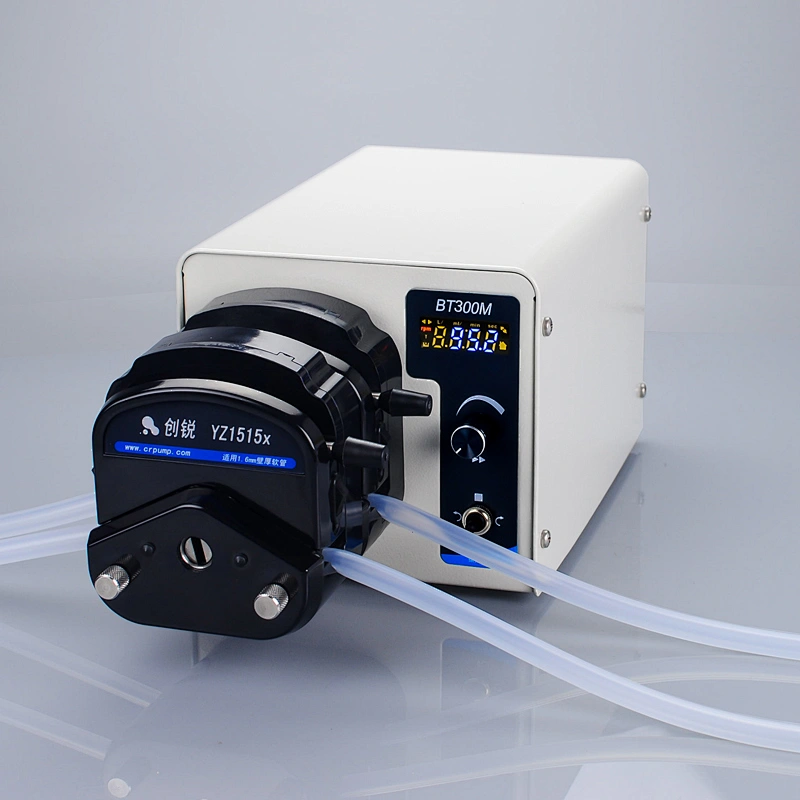

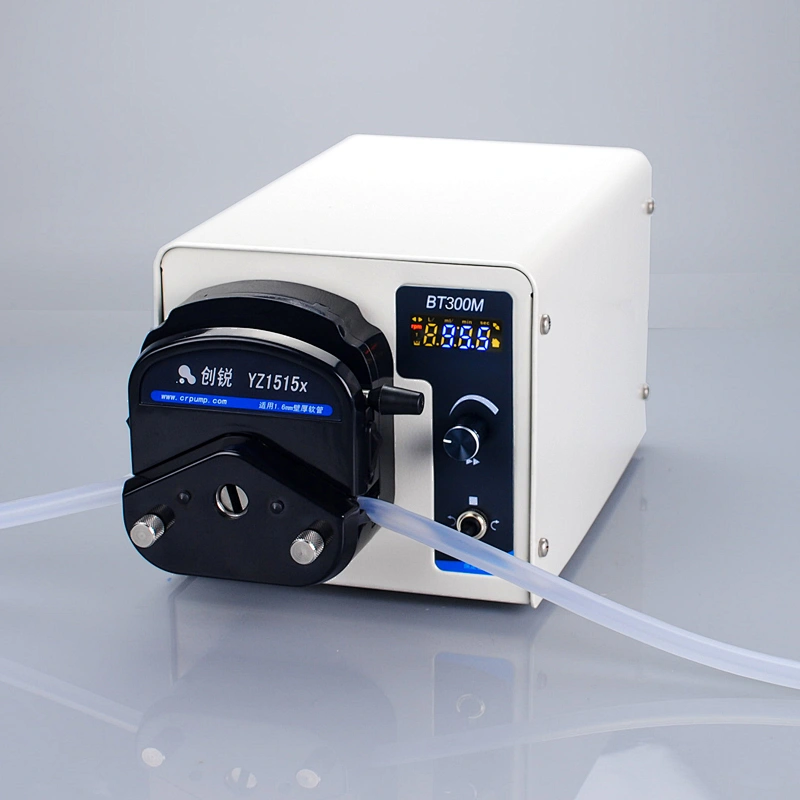

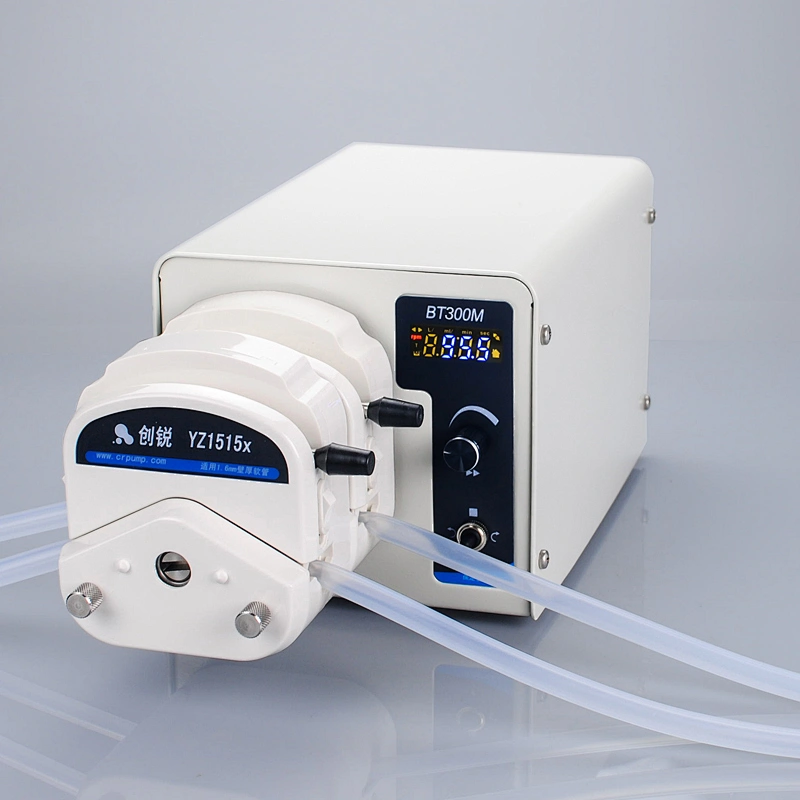

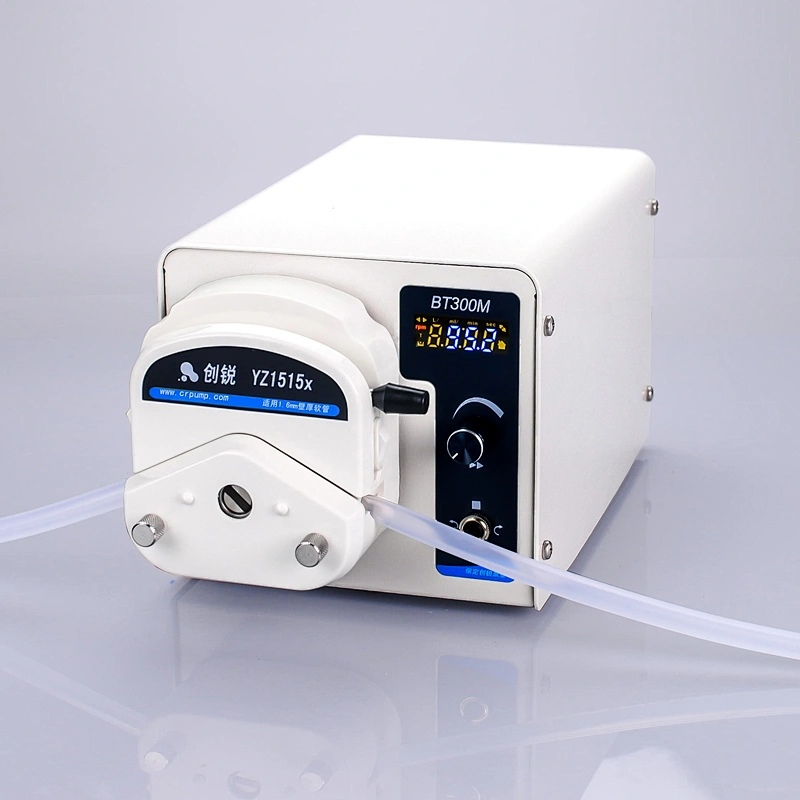

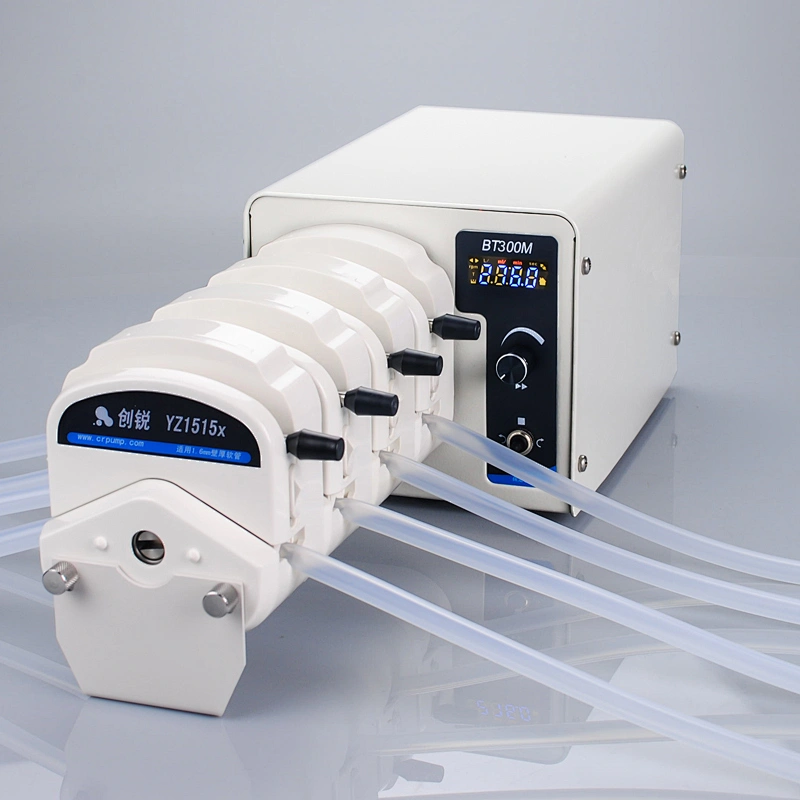

Model NO.
BT300M/YZ1515x
* Drive Model: BT300M
* Pump Head :YZ1515x,YZ2515x, ZN series,DG series
* Speed range : 0.1-100 rpm（reversible）
* Flow range : 0.007~380ml/min
* Max channels :2
* Remote control : optional
Quantity:

Parameter

ModelBT300MDisplay Mode4-LED
Speed Range0.1-300 rpmControl MethodRotary encoded knob
speed resolution0.1 rpmMotor TypeStepper motor
Flow range0.007-1140 ml/minExternal control
Start & stop, direction control, speed control
( Analog control :0-5v, 0-10v, 4-20mA optionl )
RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Environment Temperature0-40℃
Relatively Humidity<80%
Power consumption<50w
Power supplyAC220V or  AC110V

Tube:

Tube
ID mm
OD mm
Max speed(rpm )
Max flowrate (ml/min)
For YZ1515x
13#
0.8
4.0
300
21
14#
1.6
4.8
300
81
19#
2.4
5.6
300
153
16#
3.1
6.3
300
246
25#
4.8
8.0
300
510
17#
6.4
9.6
300
870
18#
7.9
11.1
300
1140

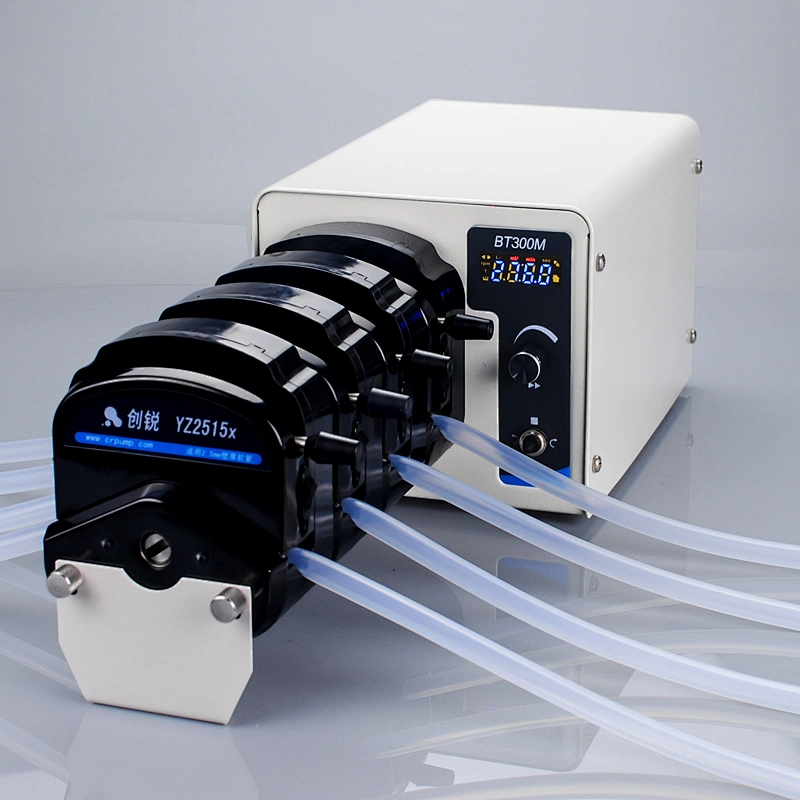

For YZ2515x
15#
4.8
9.8
300
510
24#
6.4
11.4
300
870
