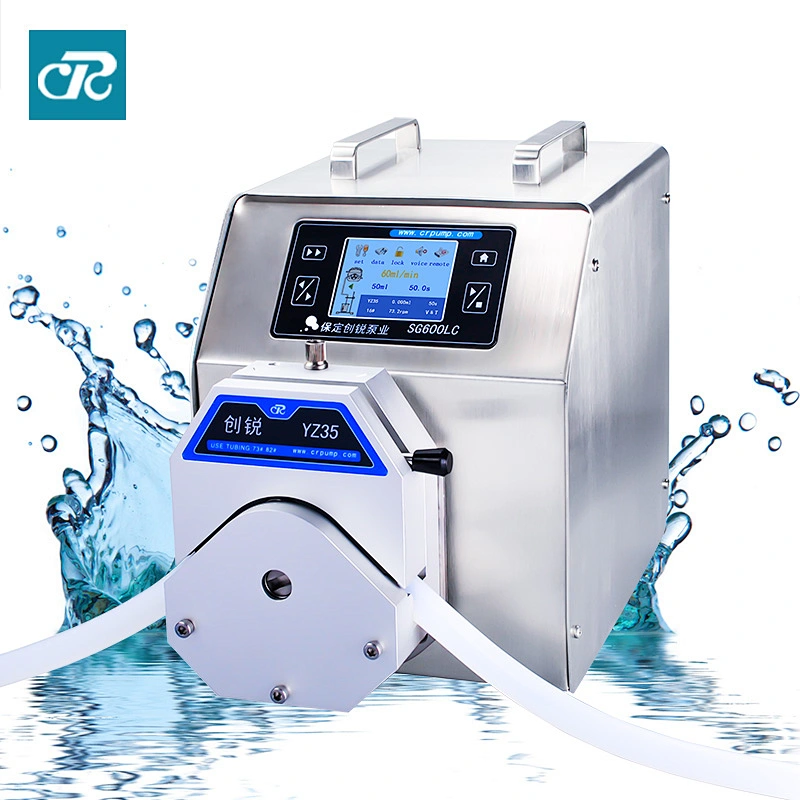

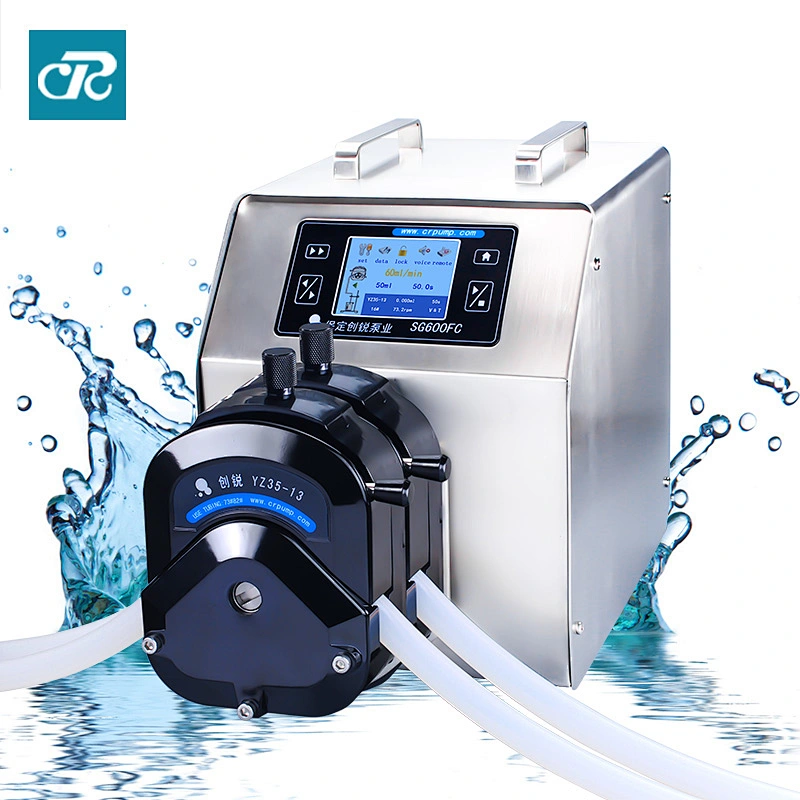

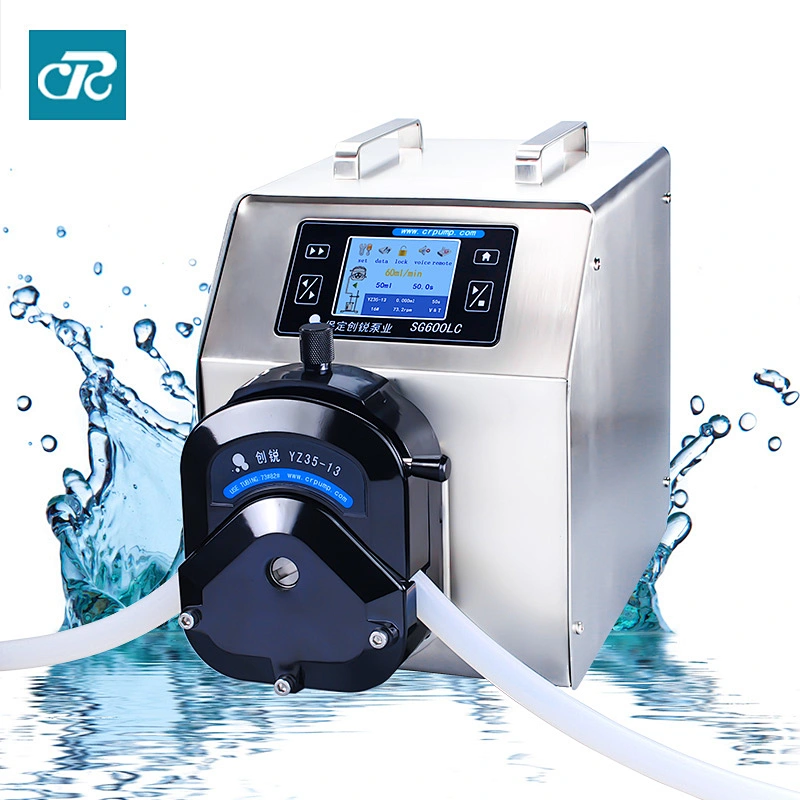

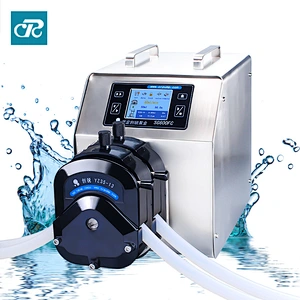

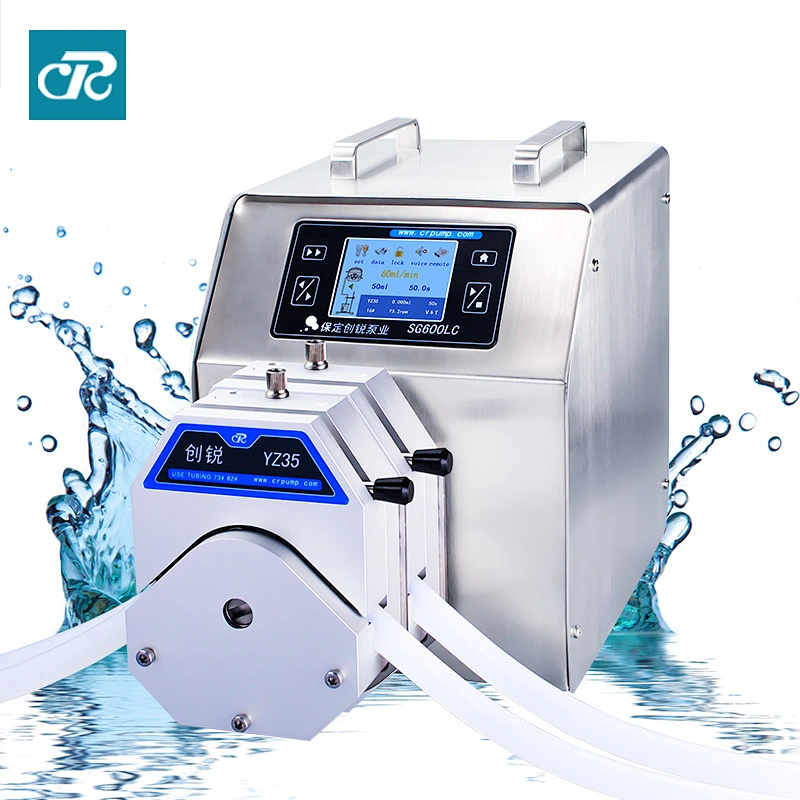

Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min
Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min

Industry Touch Screen Transfer Peristaltic Pump Flow Range: 1.3-12000ml/min

Model NO.
SG600LC/YZ35
* Drive Model: SG600LC
* Pump Head:YZ35-13,YZ35
* Speed range : 0.1-600 rpm（reversible）
* Flow range : 1.3~12000ml/min
* Max channels :2
* Remote control : optional
* Foot pedal : optional
Quantity:
ModelSG600LC/YZ35-13   YZ35Display ModeLCD
Speed Range0.1-600 rpmControl Methodtouch screen+keypad
speed resolution0.1 rpmSuckback angle10°~720° (1° Stepping)
Max Flow12000ml/minSuchback speed10-300 rpm
Filling Accuracy<±1%Motor TypeStepper motor
Environment Temperature0-40℃External control
Start & stop, direction control, speed control
( Analog control :0-5v, 0-10v, 4-20mA optionl )
RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Relatively Humidity<80%
Power consumption<400w
Power supplyAC220V or  AC110V

Tube parameter

TubeID(mm)Wall thickness
(mm) 		OD
(mm)		Speed
(rpm)		Flow rate
(ml/min)
73#9.63.316.20.1-6001.3-7400
82#133.319.60.1-6002-12000
