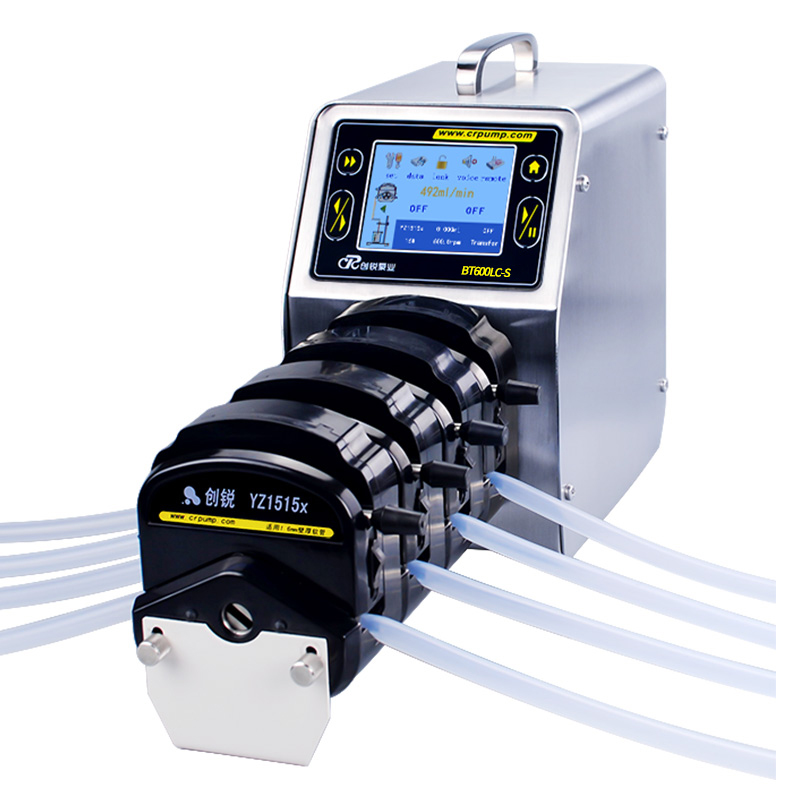

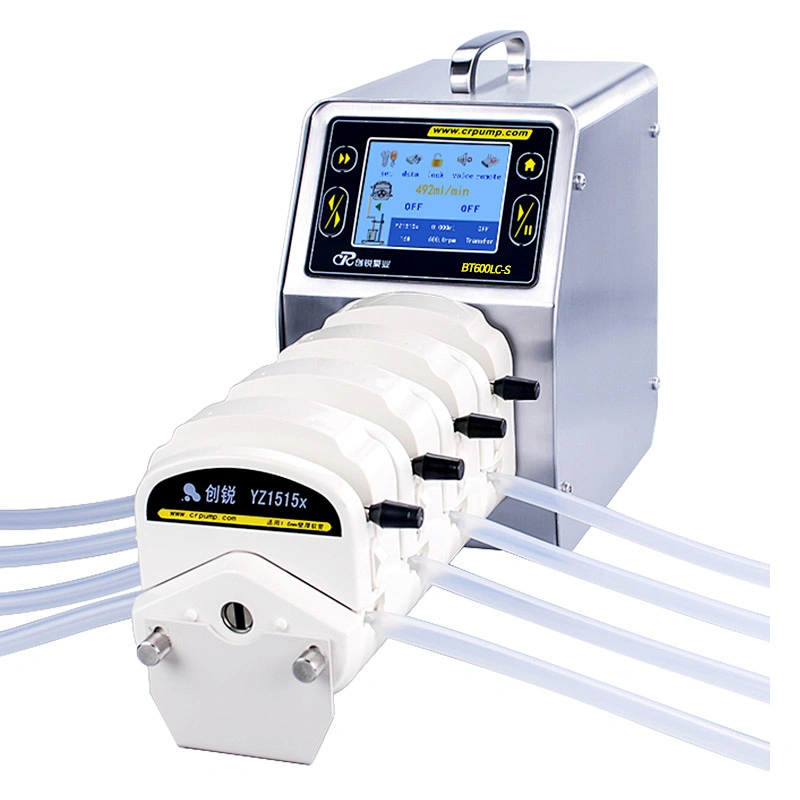

Intelligent Multi-Channel Mining Flotation Metering Peristaltic Pump

Intelligent Multi-Channel Mining Flotation Metering Peristaltic Pump

Model NO.: BT600LC-S
Price:: US $ 850.00-1200.00

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year

Customized support: OEM, ODM, OBM

Brand Name: CR

Model Number: BT600LC-S

Place of Origin: Hebei, China

Application: Automotive Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Machining, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions

Horsepower: None

Power Source: Electric

Pressure: Low Pressure

Structure: Peristaltic Pump

Cable Length: other

Outlet Size: Max 7.9mm

Voltage: AC220V or AC110V

Power: <50W

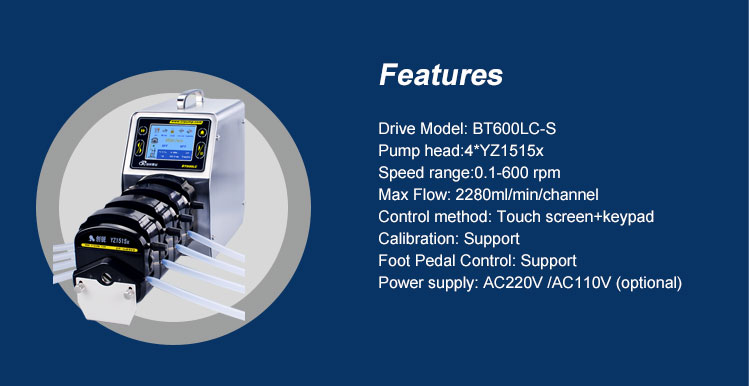

Model: BT600LC-S

Pump head: YZ1515X

Speed range: 0.1-600 rpm

Max flow: 2280 ml/min/channel

Display Mode: LCD(English and Chinese optional)

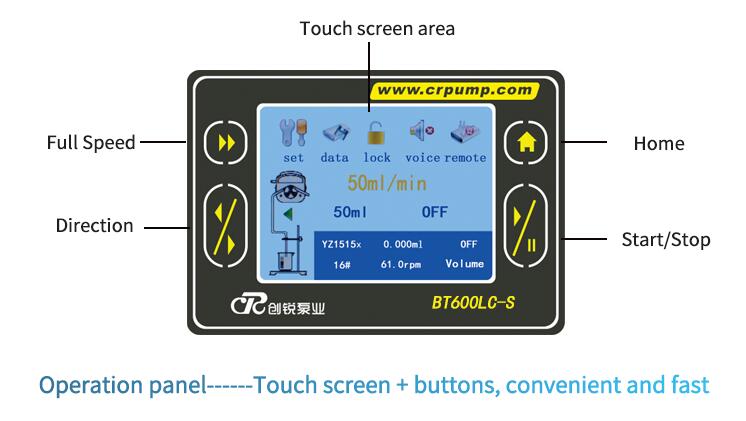

Control Method: Touch screen + keypad

MOQ: 1 set

Certification: ce, Coc, TUV

Supply Ability

Supply Ability 3000 Set/Sets per Month

Packaging & Delivery

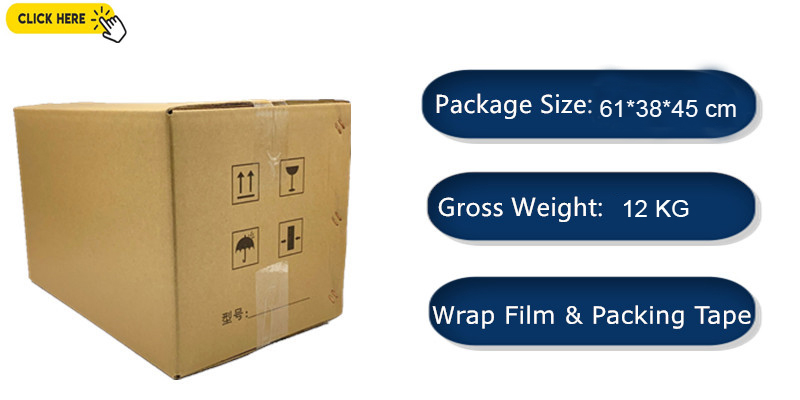

Packaging Details 1. The peristaltic pump is carton with plastic foam. 2. The peristaltic pump can also be packed strictly according to the customer's requirements.

Port Beijing, Xingang, Guangzhou, Qingdao

Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	5	To be negotiated

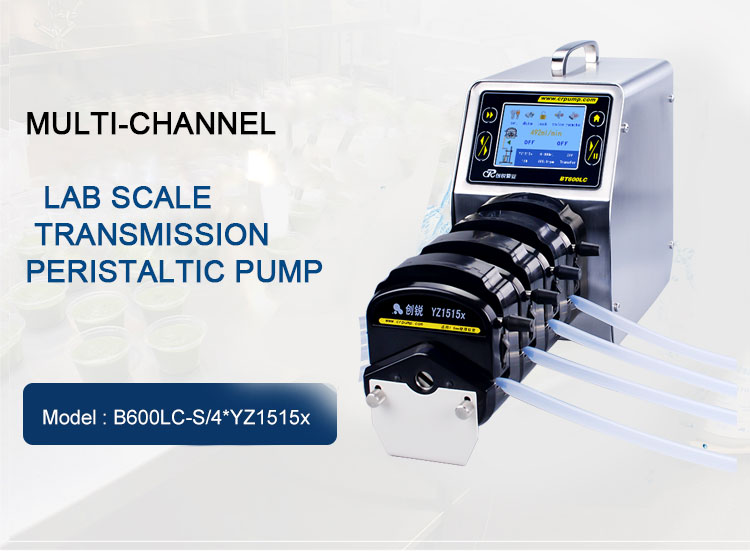

Intelligent Multi-Channel Mining Flotation Metering Peristaltic Pump

The touch screen peristaltic pump, has one substantial benefit: accurate dispensing or metering without risk of cross-contamination. Peristaltic metering pumps became ideal for a wide range of industries and applications because of this advantage.
For example, in medical or laboratory devices, PLC control transfer peristaltic pump can be used for processing of sterile fluids, dialysis, filtration, or bio-processing, Our model BT600LC peristaltic infusion pump is very popular in hospital, it has high accuracy as it’s also high precision peristaltic pump. In food, agriculture, or disinfection processes, they can be used for dispensing food or beverages, vitamins or chemicals. It also can be used for wastewater treatment or other environmental application such as condensate removal in gas analysis. So if you want high precision peristaltic pump with high flow/medium

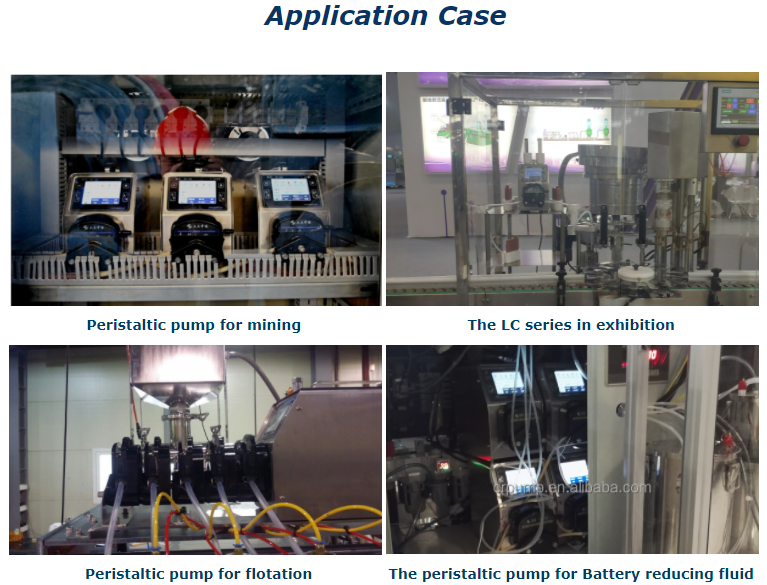

flow/micro flow, choose Chuangrui brand is the best choice.Typical Case:

Mollusk breeding/color masterbatch production/pharmaceutical factory, laboratory quantitative delivery of liquid/ plant wax transmission, etc

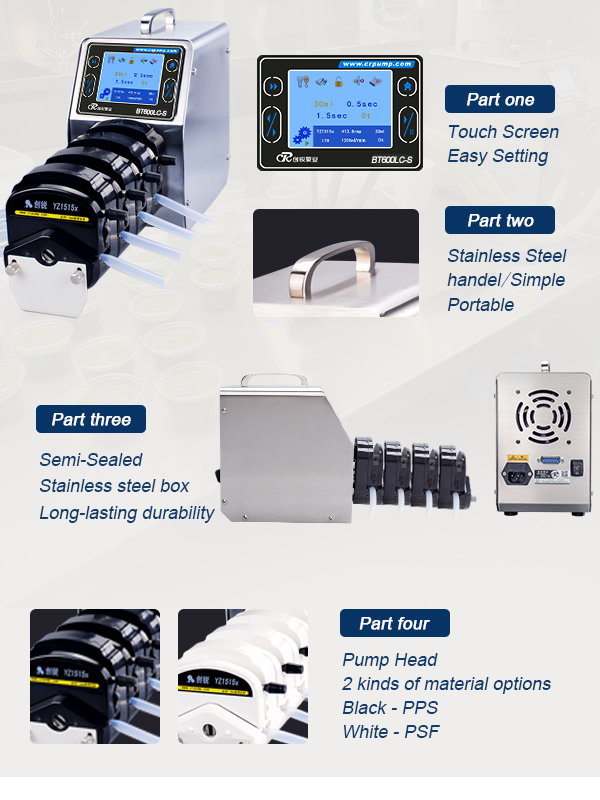

Detailed Images

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID(mm)	Max Speed (rpm)	Max Flow Rate (ml/min/channel)
13#	0.8	600	42
14#	1.6	600	162
19#	2.4	600	306
16#	3.1	600	492
25#	4.8	600	1020
17#	6.4	600	1740
18#	7.9	600	2280
