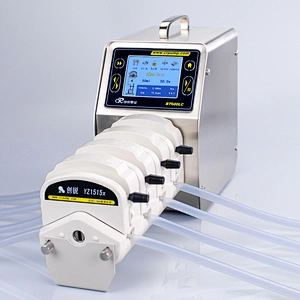

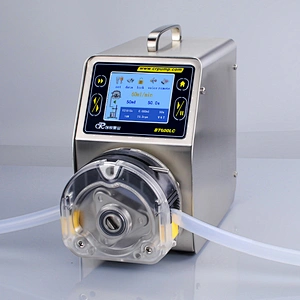

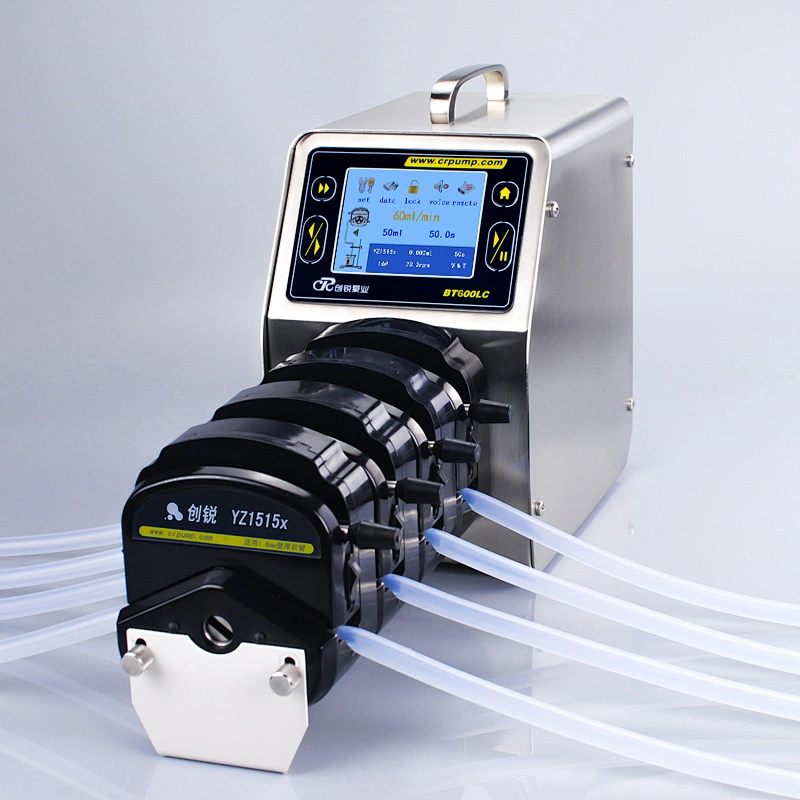

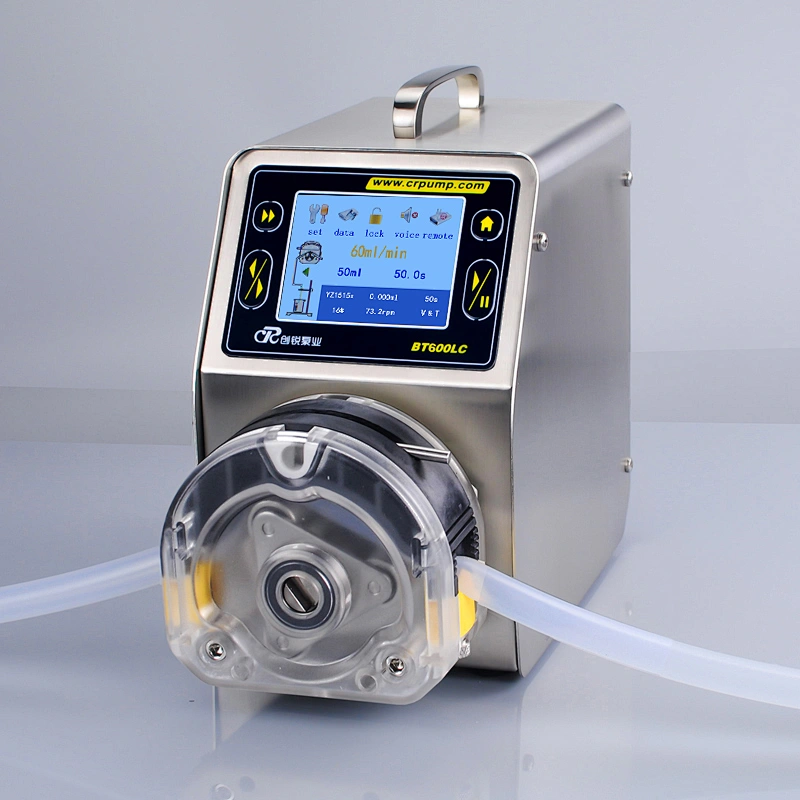

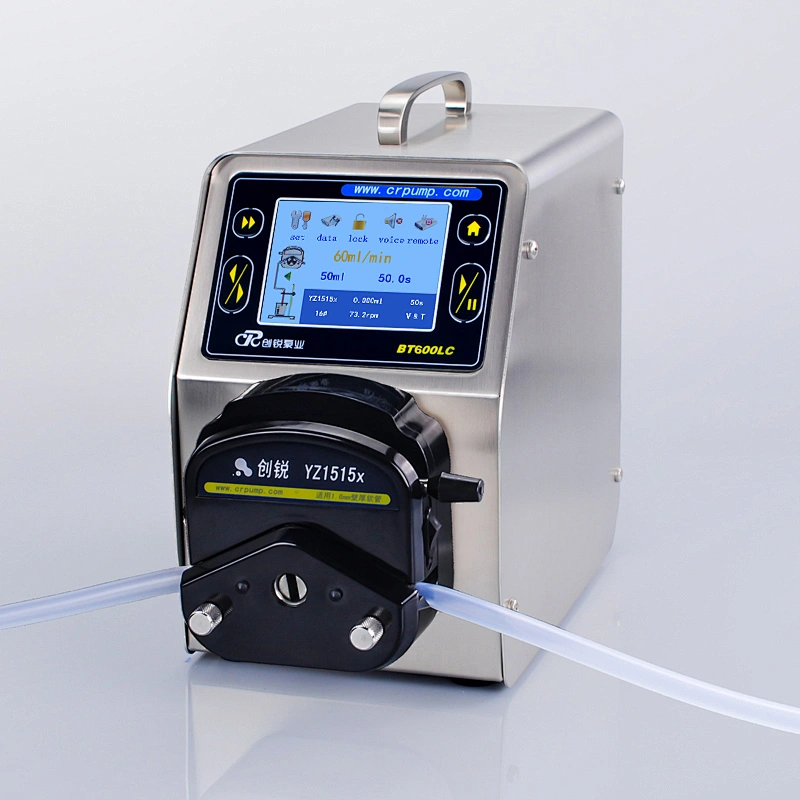

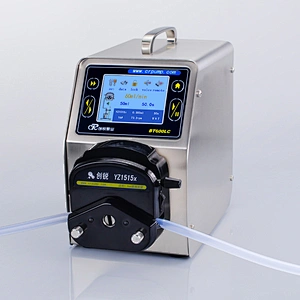

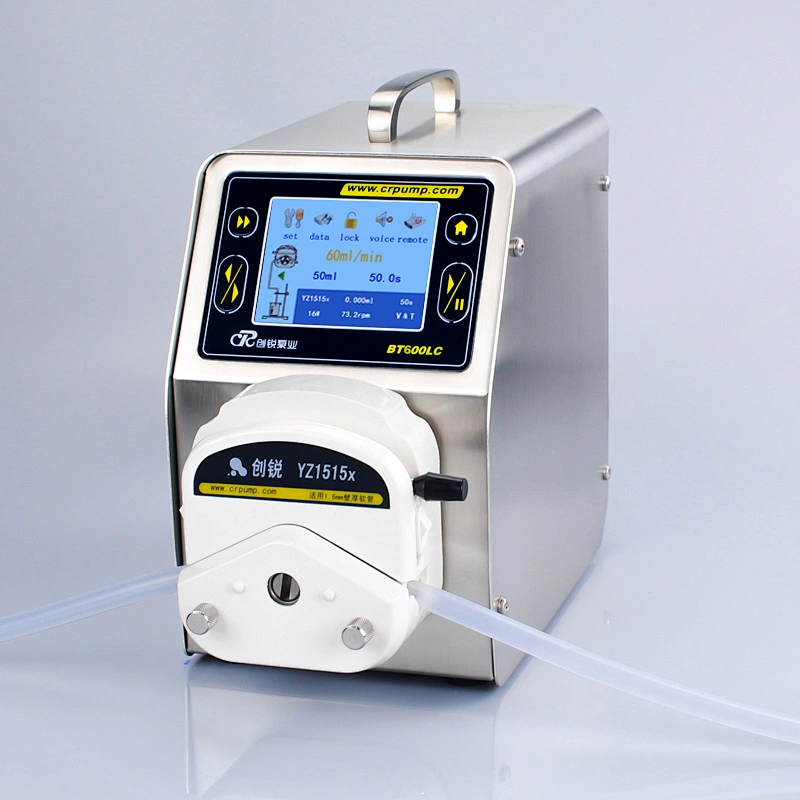

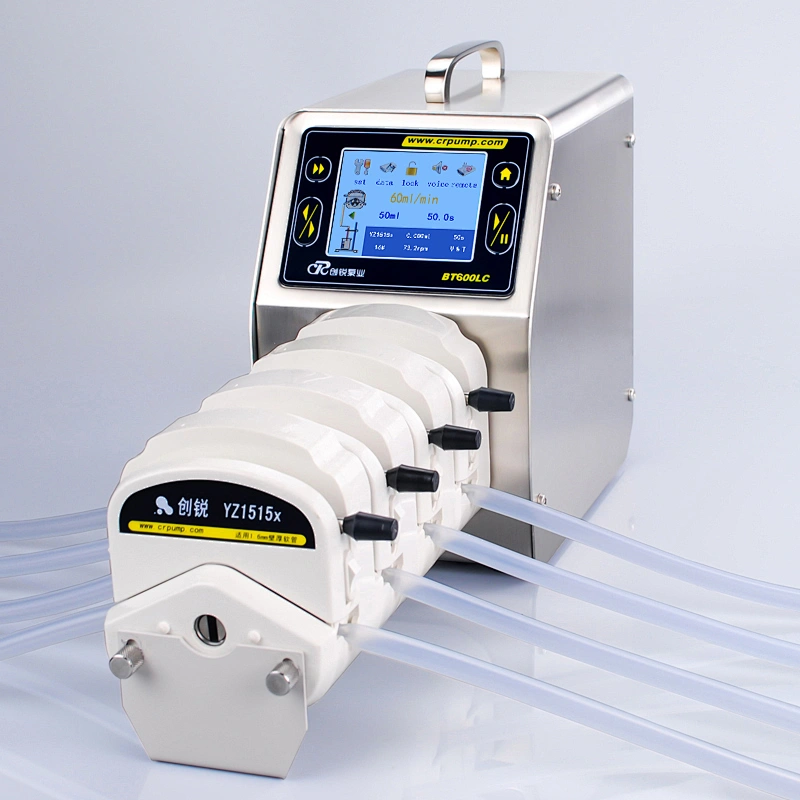

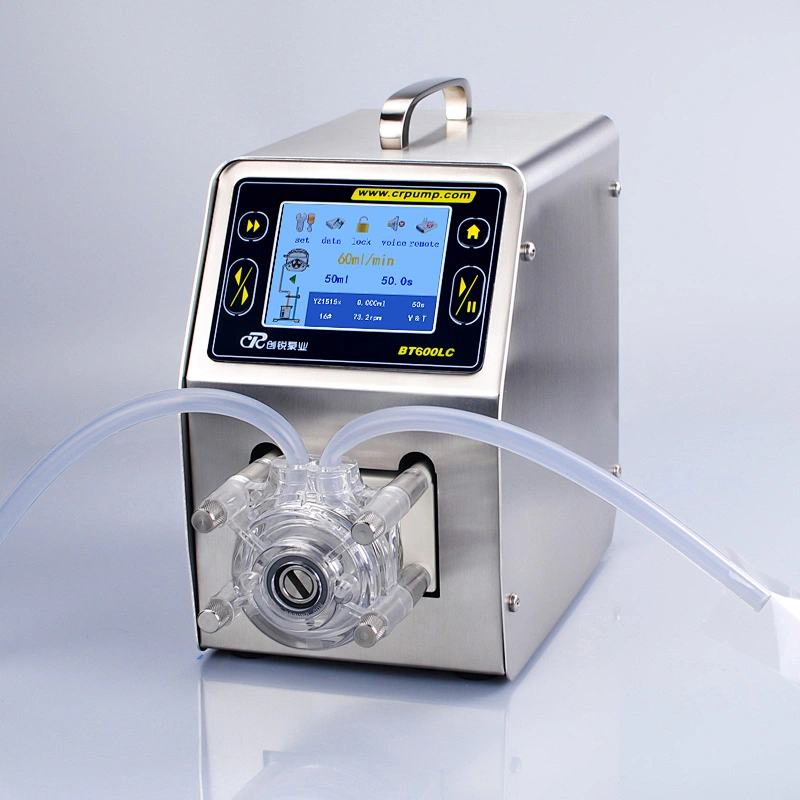

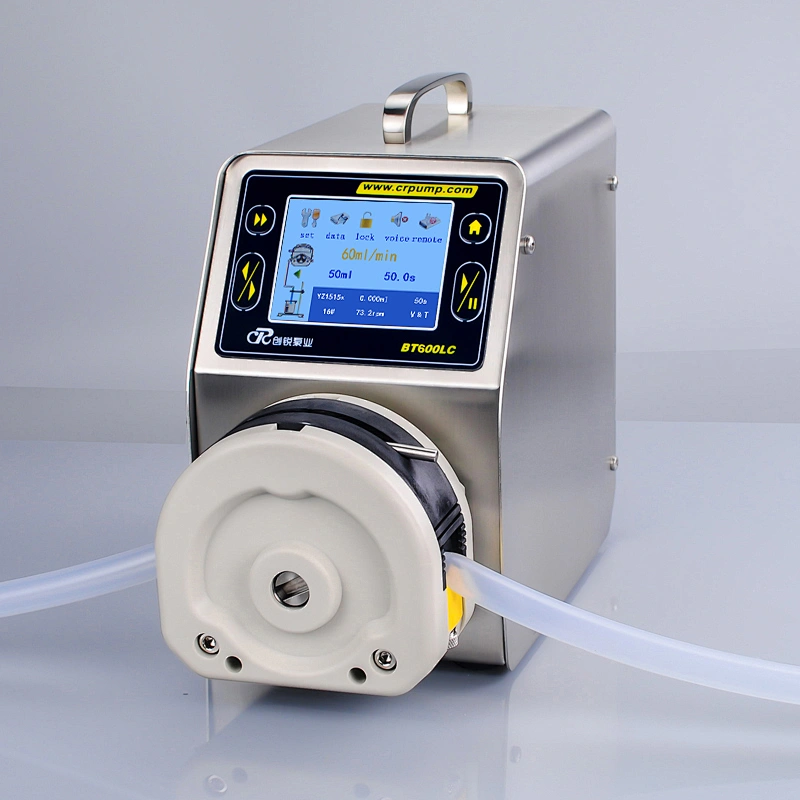

Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min
Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min

Touch Screen Transfer Peristaltic Pump Flow Range: 0.007~2280ml/min

Model NO.
BT600LC/YZ1515x
* Drive Model: BT600LC
* Pump Head:YZ1515x,YZ2515x, ZN series
* Speed range : 0.1-600 rpm（reversible）
* Flow range : 0.007~2280ml/min
* Max channels :2
* Remote control : optional
* Foot pedal : optional
Quantity:

Parameter


ModelBT600LCDisplay ModeLCD
Speed Range0.1-600 rpmControl Methodtouch screen+keypad
speed resolution0.1 rpmSuckback angle10°~720° (1° Stepping)
Max Flow0.007-2280ml/minSuchback speed10-300 rpm
Filling Accuracy ≤±0.5%Motor TypeStepper motor
Environment Temperature0-40℃External control
Start & stop, direction control, speed control
( Analog control :0-5v, 0-10v, 4-20mA optionl )
RS232 and RS485 Communication interface, support MODUBUS Communication Protocol
Relatively Humidity<80%
Power consumption<50w
Power supplyAC220V or  AC110V

Suitable pump head & Flow reference  (ml/min)
  Pump head YZ1515xZN15YZ2515xZN25DG1~12（6）DG1~12（10）
Tube13/14/19/16/25/17/18#15#,24#0.5*0.8,1*1,2*1,2.4*0.8,3*1
BT100LC0.007~3800.17~2900.002~360.0015~27
BT300LC0.007~11400.17~870————
BT600LC0.007~22800.17~1740————
