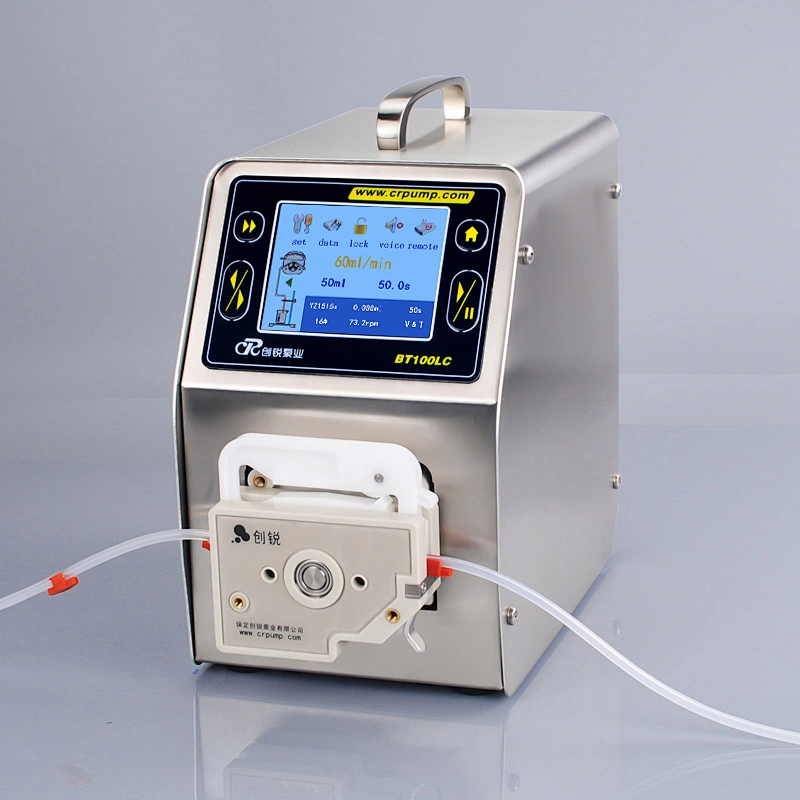

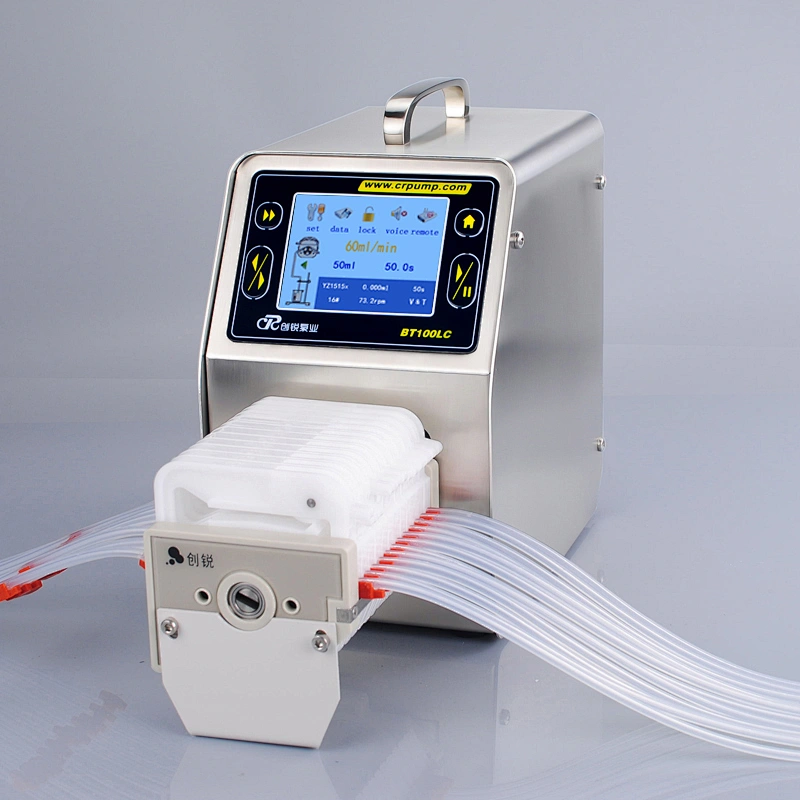

Touch Screen Transfer Peristaltic Pump Micro Flow Range: 0.0015-36.6ml/min
Touch Screen Transfer Peristaltic Pump Micro Flow Range: 0.0015-36.6ml/min
Touch Screen Transfer Peristaltic Pump Micro Flow Range: 0.0015-36.6ml/min
Touch Screen Transfer Peristaltic Pump Micro Flow Range: 0.0015-36.6ml/min
Touch Screen Transfer Peristaltic Pump Micro Flow Range: 0.0015-36.6ml/min

Touch Screen Transfer Peristaltic Pump Micro Flow Range: 0.0015-36.6ml/min

Model NO.
BT100LC/DG
* Drive Model: BT100LC
* Pump Head:YZ1515x,YZ2515x, ZN series,DG series
* Speed range : 0.1-100 rpm（reversible）
* Flow range : 0.0015~36ml/min
* Max channels :2
* Remote control : optional
* Foot pedal : optional
Quantity:
★Technical Parameter
Drive model
BT100LC
Speed
0.1-100rpm is reversible
Power consumption
<50W
Speed resolution
0.1rpm
Display
LCD screen
Drive dimension
212*135*240(mm)
Speed control mode
Touch screen control
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
Work environment
Temperature 0-40℃, relative humidity, no condensation
Timing range
0.1s-9999min
Quantitative range
0.001ml-9999L
External control
Start&stop, direction control, speed control(0-5v,0-10v,4-20mA optional)
Communication Interface
RS232 and RS485, support MODBUS protocol mode
Suction angle
10°-720°(1°stepping)
Tube for peristaltic pump head  DG head with 6 rollers
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
0.5*0.8
0.5
0.8
2.4
0.002-2
1*1
1
1
3
0.006-6
2*1
2
1
4
0.019-19
2.4*0.8
2.4
0.8
4
0.0245-24.5
3*1
3
1
5
0.0366-36.6
Tube for peristaltic pump head DG head with 10 rollers
Tube
ID(mm)
Wall thickness(mm)
OD(mm)
Flow rate(ml/min)
0.5*0.8
0.5
0.8
2.4
0.0015-1.5
1*1
1
1
3
0.004-4
2*1
2
1
4
0.013-13
2.4*0.8
2.4
0.8
4
0.0178-17.8
