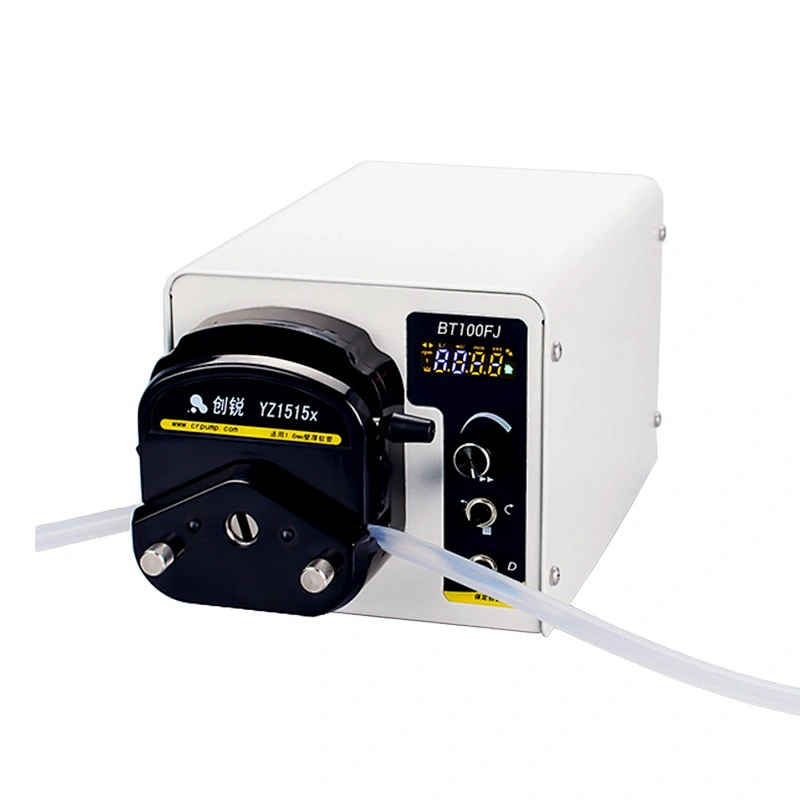

Chuangrui High Precision Dosing Dispensing Peristaltic Pump

Warranty:                           1 year, 1 Year

Customized support:        OEM, ODM, OBM

Brand Name:                      Chuangrui

Model Number:                  BT100FJ/YZ1515x

Place of Origin:                  Hebei, China

Application:                       Water Distribution

Horsepower:                      none

Power Source:                    Electric

Pressure:                            0.14mpa

Structure:                           peristaltic pump

Cable Length:                    other

Outlet Size:                        Max 7.9mm

Voltage:                             110V or 220V

Power:                               <50W

Model:                               BT100FJ

Pump head:                       YZ1515X

Speed:                               0.1-100rpm

Flowrate:                           0.007-380ml/min

Display:                             4-LED

Tube:                                 13# 14# 19# 16# 25# 17# 18#

MOQ:                                 1 Set

Certification:                      ce

Packaging & Delivery

Selling Units:                     Single item

Single package size:         40X25X25 cm

Single gross weight:         6.000 kg

Package Type:                   Chuangrui High Precision Dosing Dispensing Peristaltic Pump
                                             1. The peristaltic pump is carton with plastic foam.
                                             2. The peristaltic pump can also be packed strictly according to
                                                the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	10	To be negotiated

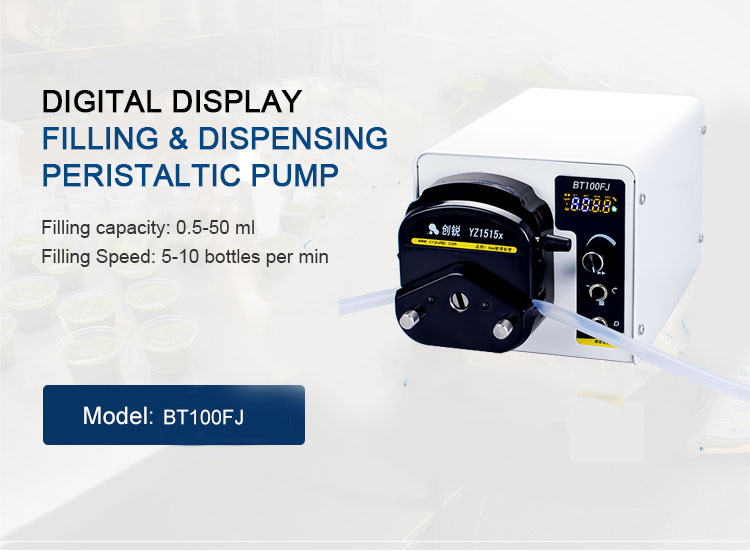

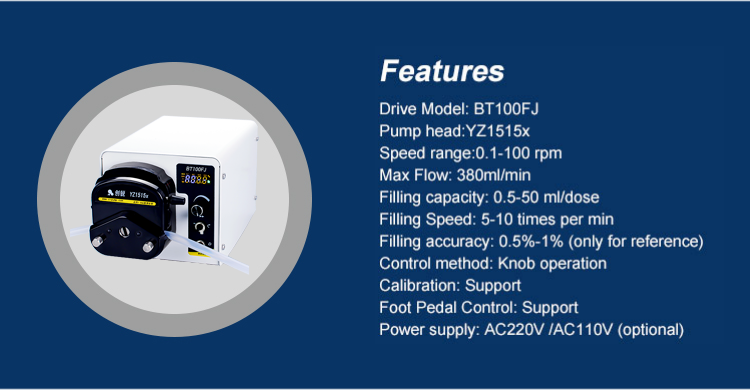

Filling & Dispensing Peristaltic Pump



The working principle of a Basic Dispensing Peristaltic Pump is like a snake swallowing an egg. The hose is constantly squeezed through the roller to make the hose generate pressure and push the liquid forward. Our designers make the Peristaltic pump head and hose fit perfectly by designing precise roller size and pump head structure. So as to achieve the purpose of accurate liquid metering transmission or filling. The Basic Dispensing Peristaltic Pump motor uses a high-precision stepping motor with precise operating speed and angle, combined with the interactive interface carefully designed by our electronic engineers for customers, so that customers can achieve reliable liquid quantitative transmission or filling through simple operating steps.
Typical Case:

Essential oil filling/glue filling/Nail polish filling/Medium filling/Lab scale vials/Vessels filling/E-liquid filling etc.

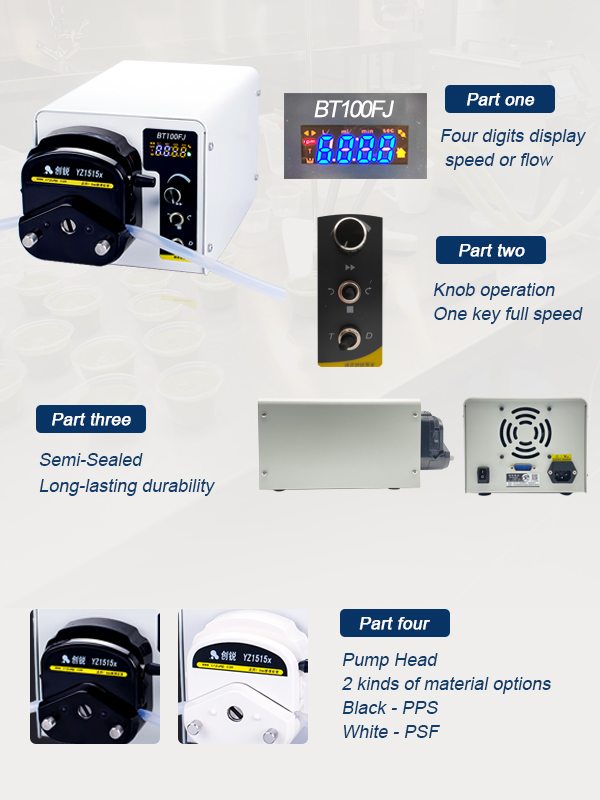

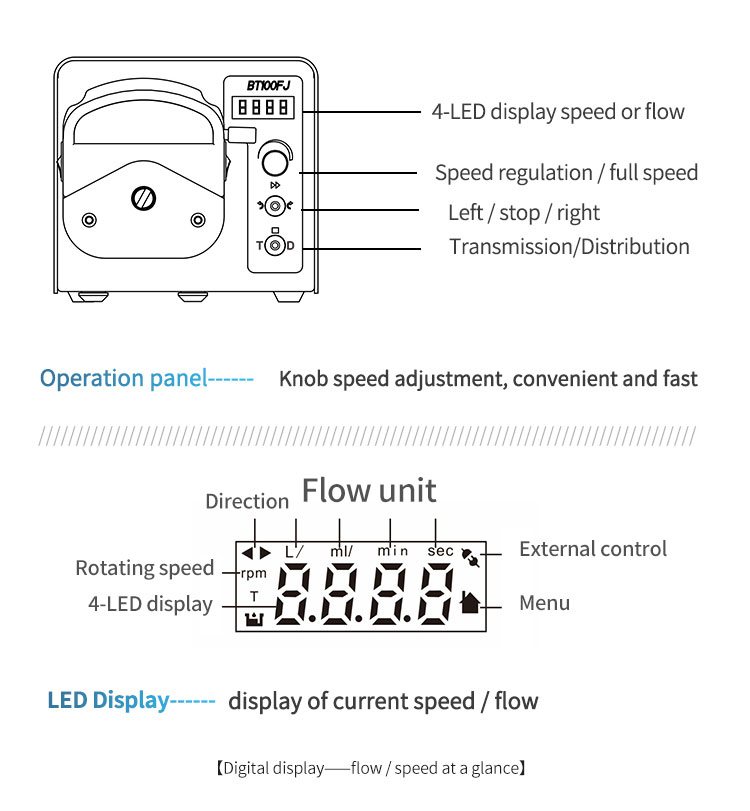

Detailed Images

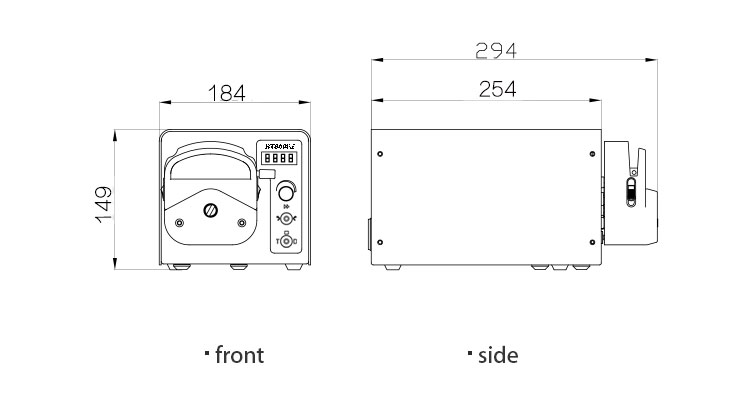

Dimension

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID (mm)	Max Speed (rpm)	Max Flow Rate  (ml/min)	Suggest Capacity(ml)
13#	0.8	100	7	0.5-1
14#	1.6	100	27	1-2
19#	2.4	100	51	2-5
16#	3.1	100	82	3-10
25#	4.8	100	170	5-20
17#	6.4	100	290	8-30
18#	7.9	100	380	10-40

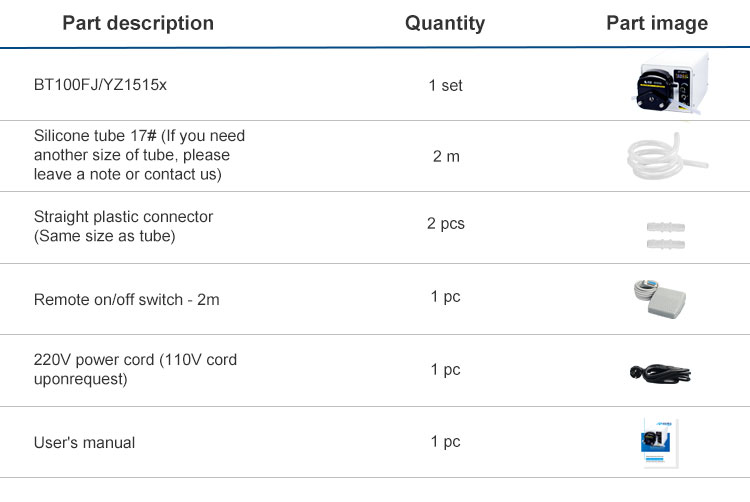

Packing List

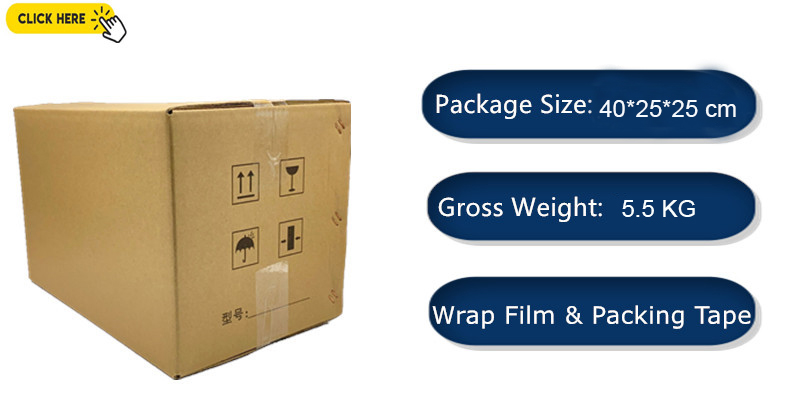

Package Details

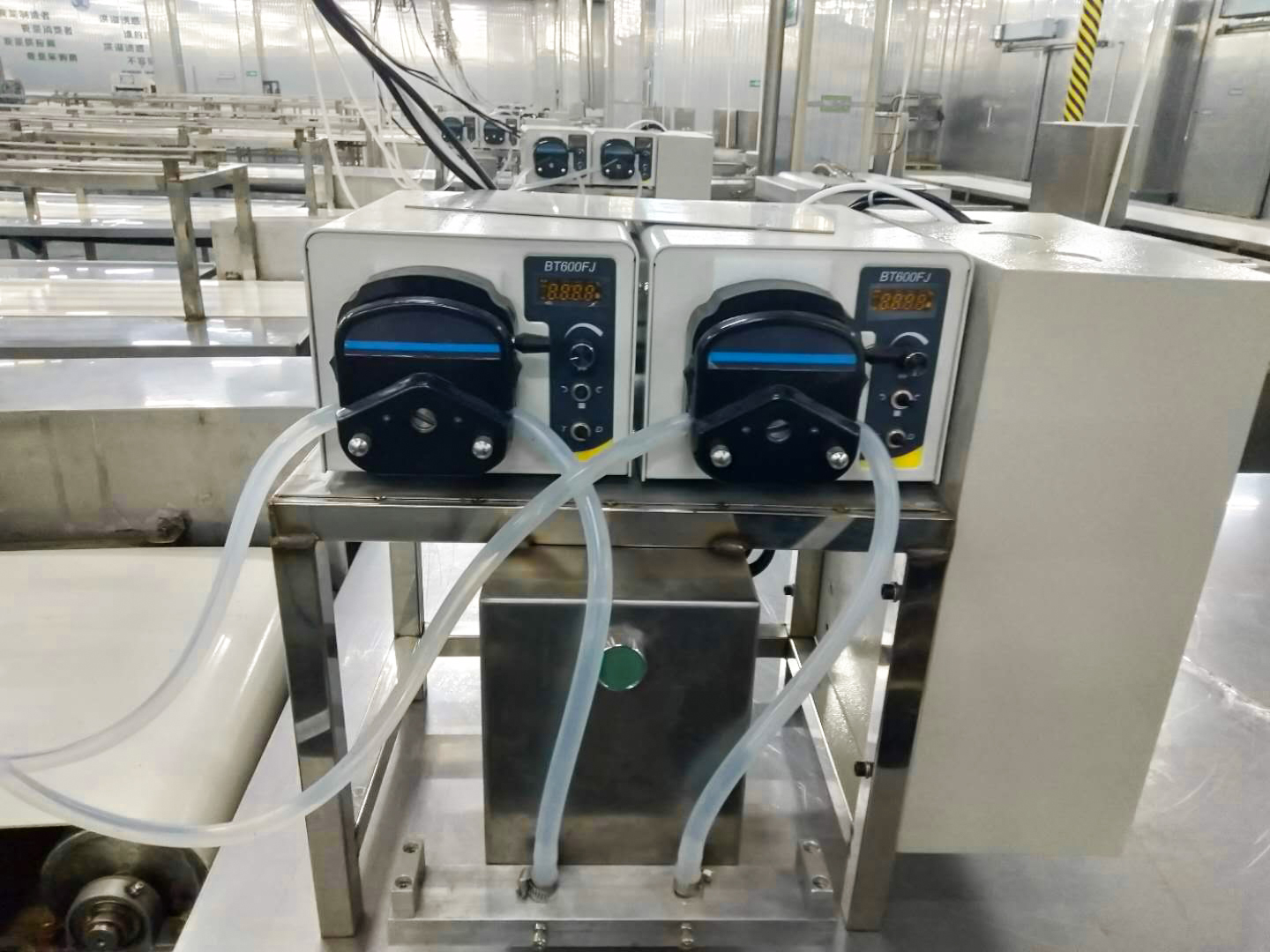

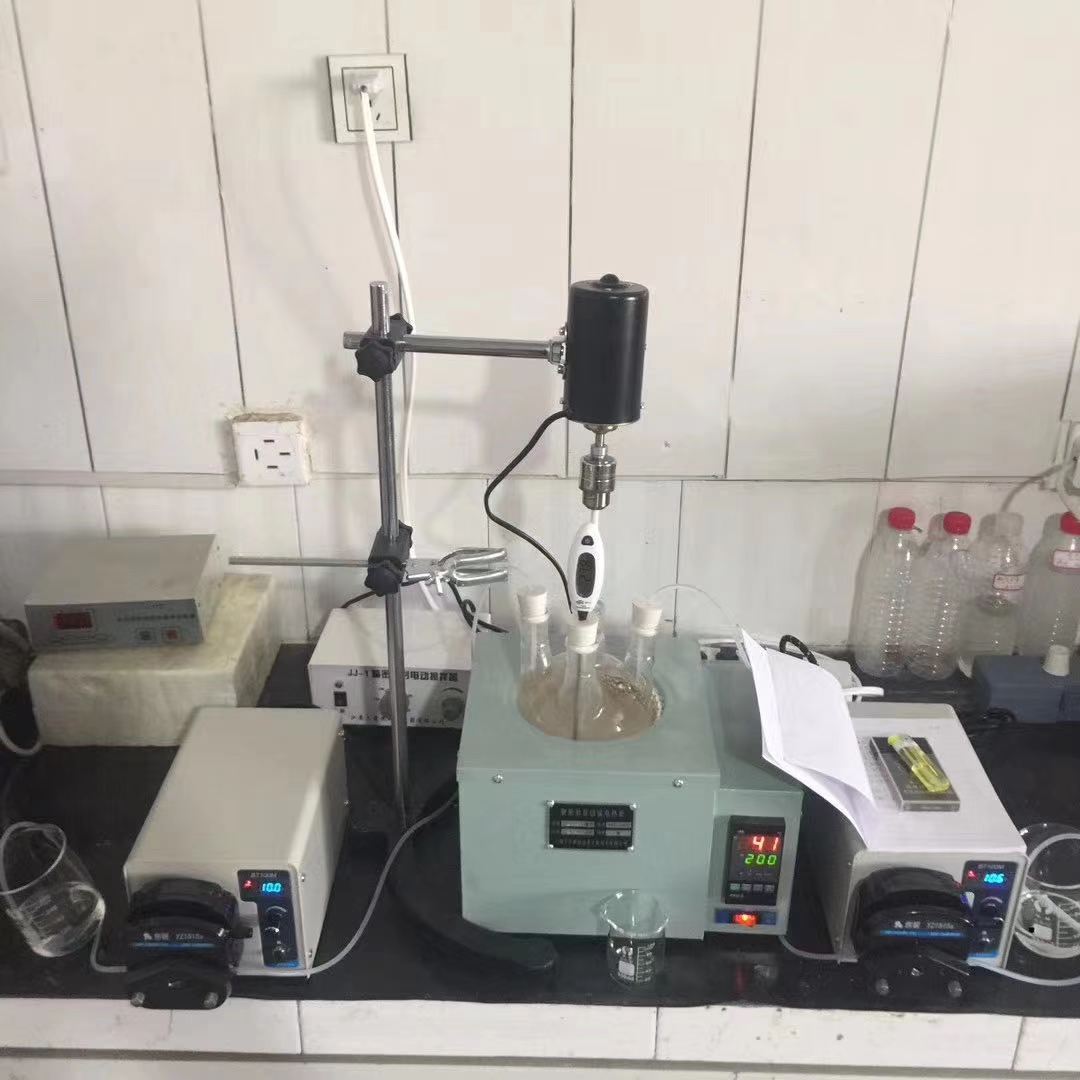

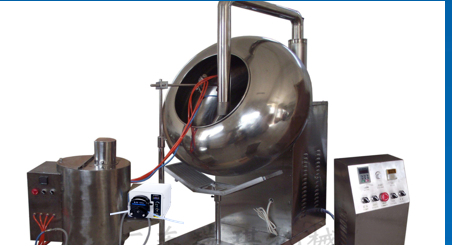

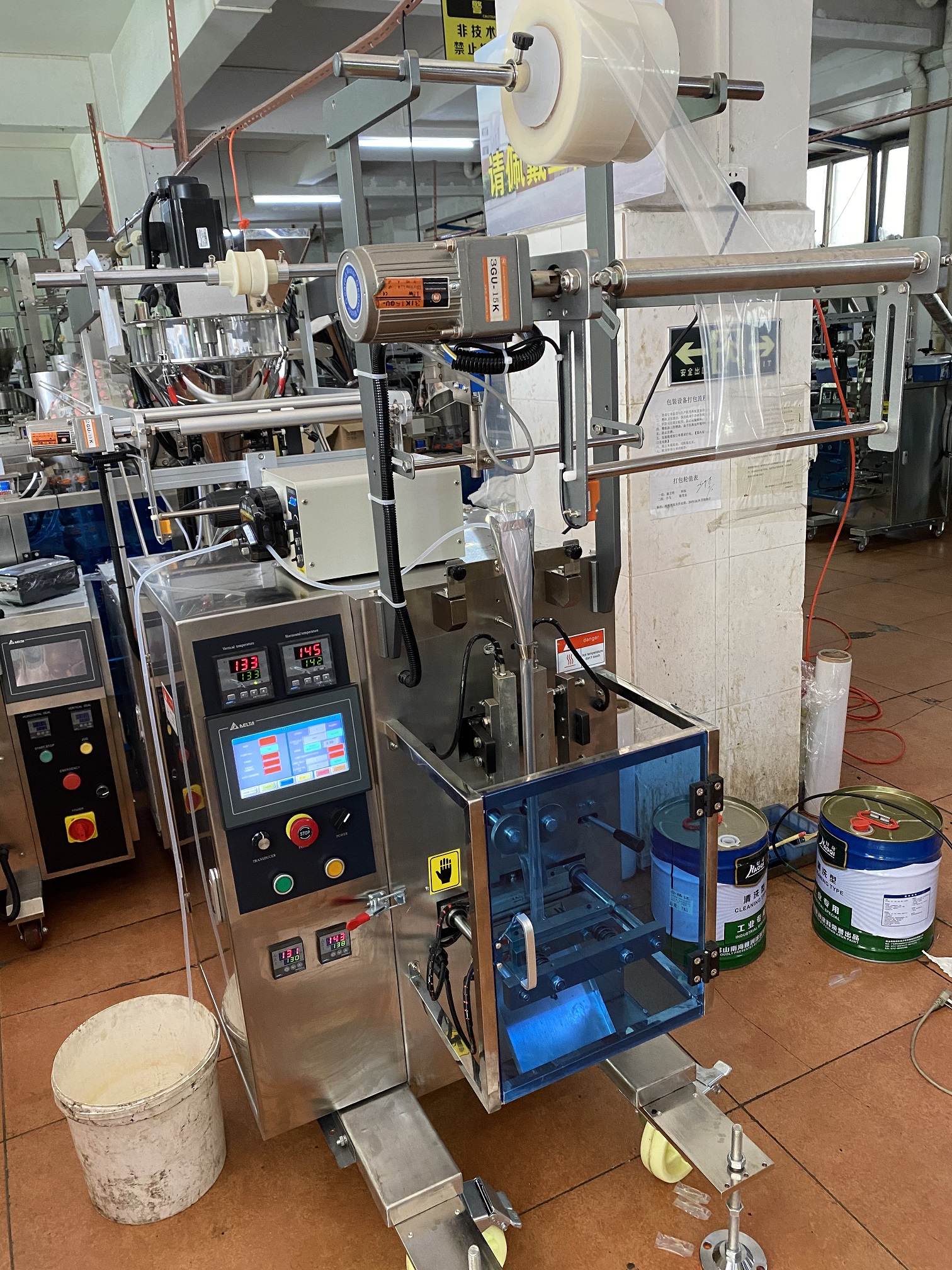

Application Case


Certification

Customer Visit
