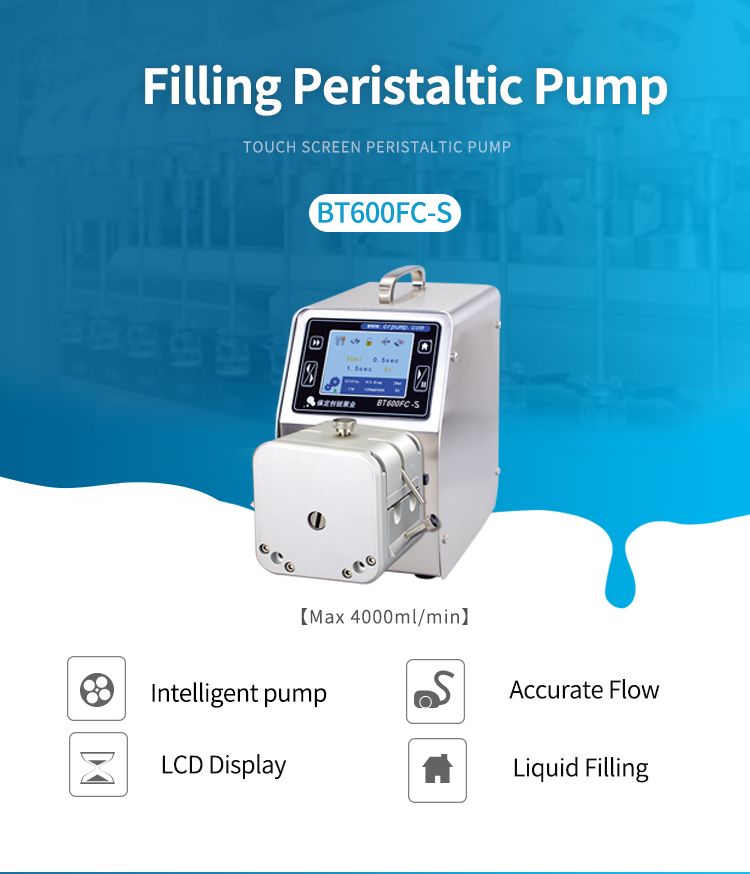

Chuangrui Liquid Filling Peristaltic Pump Water Metering Peristaltic Pump

Model NO.: BT600FC-S
Price:: US $ 1000.00-1500.00

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year

Customized support: OEM, ODM, OBM

Brand Name: CR

Model Number: BT600FC--S/LP25-6

Place of Origin: Hebei, China

Application: Water Metering Peristaltic Pump

Horsepower: None

Power Source: Electric

Pressure: Low Pressure, Low Pressure

Structure: peristaltic pump

Cable Length: none

Outlet Size: Max 14.4mm

Voltage: AC220V or AC110V

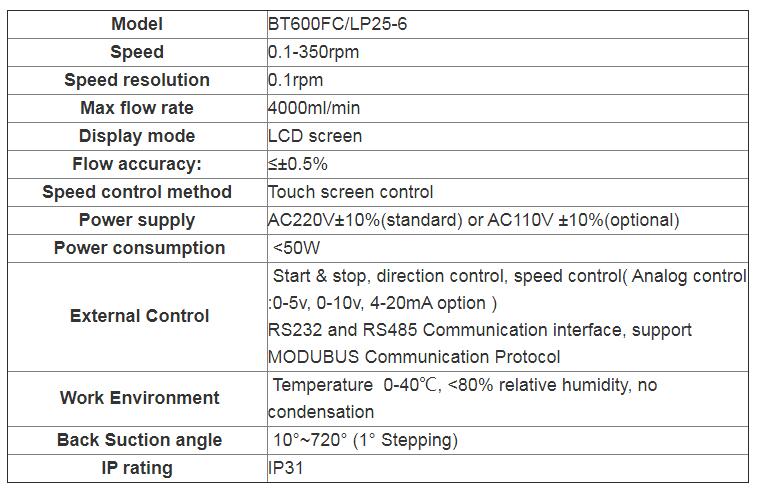

Model: BT600FC/LP25

Speed: 0.1-350rpm

Max Flow Rate: 4000ml/min

Display mode: LCD screen

Flow accuracy: ≤±0.5%

Speed control method: Touch screen control

Power supply: AC220V±10%(standard) or AC110V ±10%(optional)

MOQ: 1 Piece

Supply Ability

Supply Ability 1000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details 1, The package contains a peristaltic pump and its accessories, instruction manual, etc. 2, Carton and foam packaging protects the peristaltic pump during transport

Port Tianjin,Shanghai,Guangzhou

Lead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	10	To be negotiated

Product Description

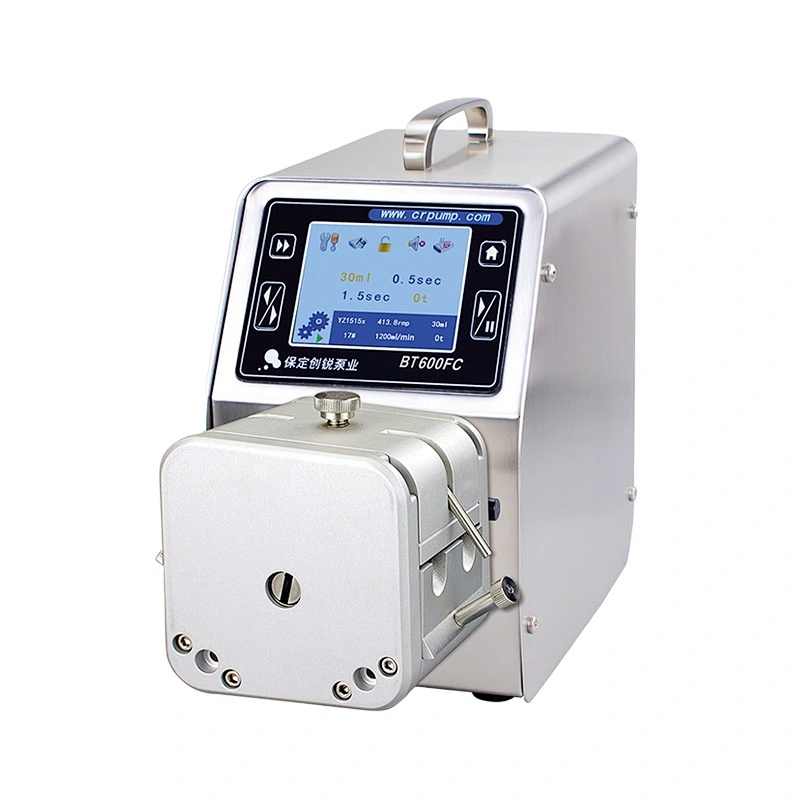

Chuangrui Liquid Filling Peristaltic Pump Water Metering Peristaltic Pump

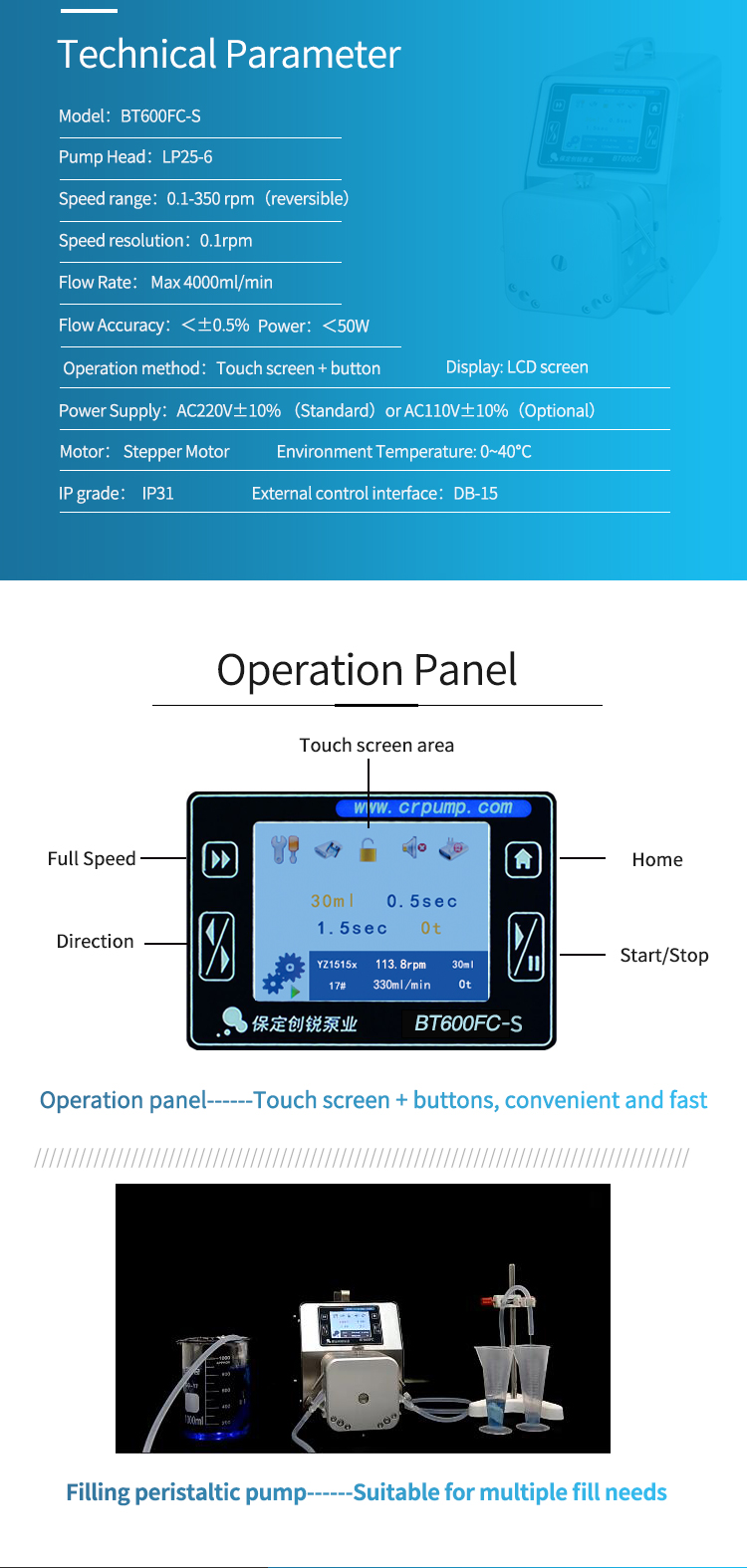

Specification

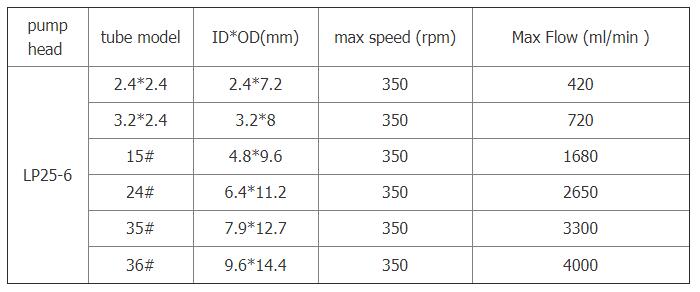

About Peristaltic Pump Hoses, Peristaltic Pump Tubes, Rubber Hose Technical Parameters

Hose	*ID Wall thickness**
15#	4.8*2.4mm
24#	6.4*2.4mm
35#	7.9*2.4mm
36#	9.6*2.4mm

Guide

In order to give our costomers the most suitable configuration of peristaltic pump, may I know some details as below:

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

4, for constant transfer ,what's flowrate you need? ml/min

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Why Choose Us

Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
