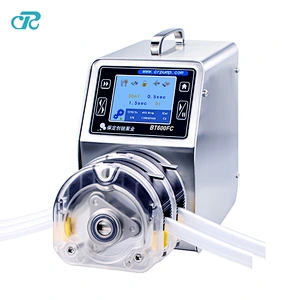

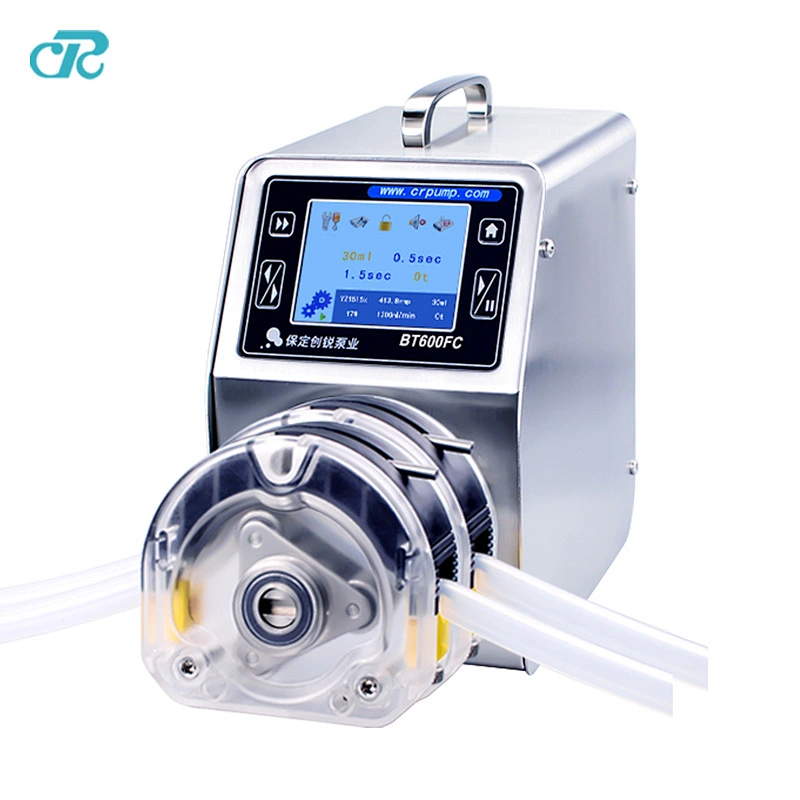

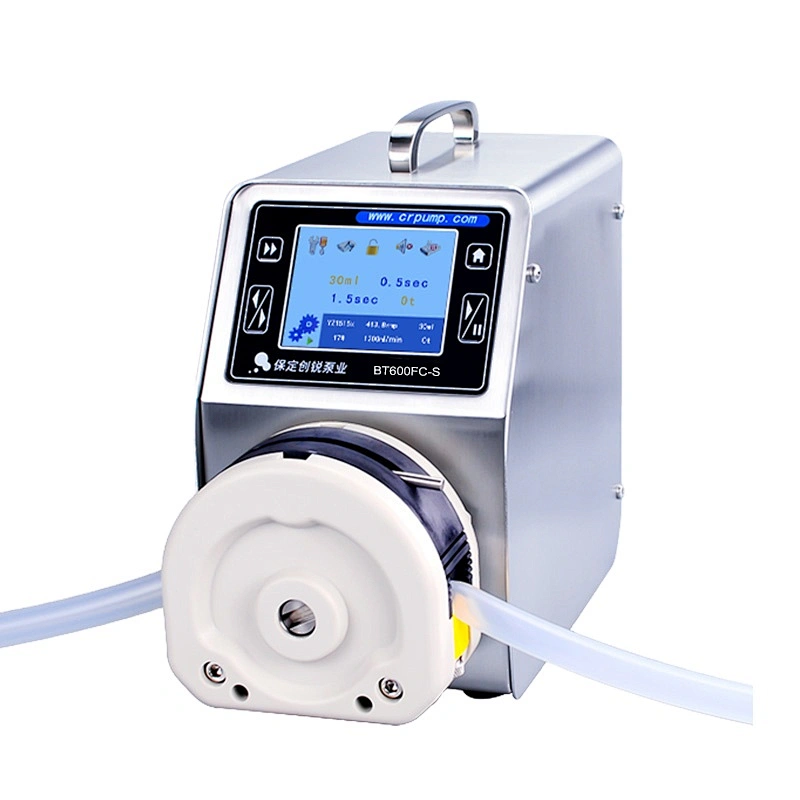

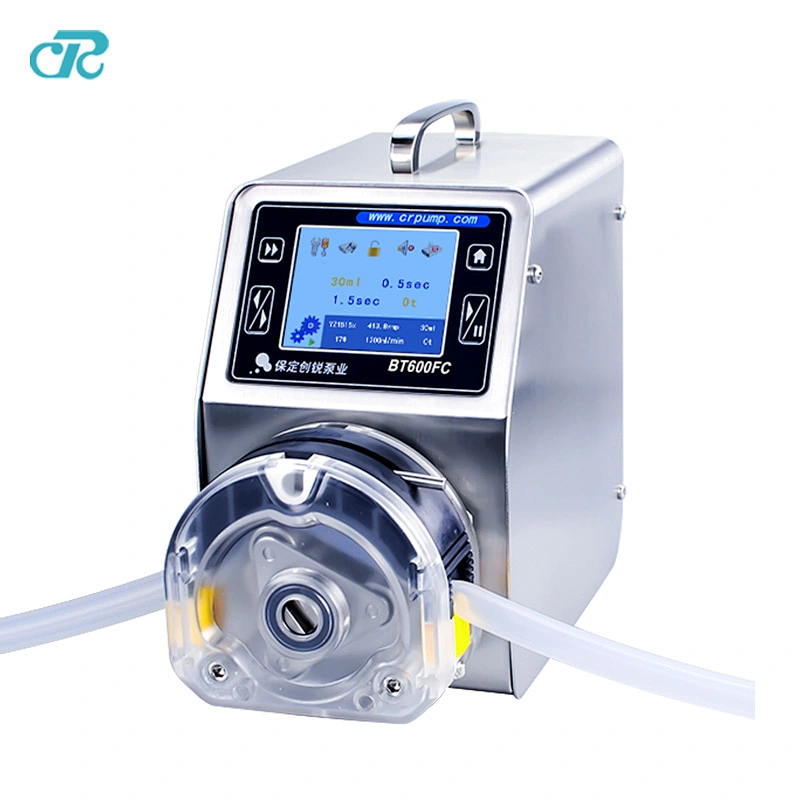

Chuangrui Touch Screen LCD Display Bottle Filling Peristaltic Pump

Chuangrui Touch Screen LCD Display Bottle Filling Peristaltic Pump

Model NO.: BT600FC-S
Price:: US $ 900.00-1500.00

Quantity:

Product Description

Quick Details

Warranty: 1 years

Customized support: OEM, ODM, OBM

Brand Name: Chuangrui

Model Number: BT600FC-S

Place of Origin: Hebei, China

Application: liquid filling/transfer, bottle filling/ transfer

Horsepower: <500W

Power Source: Electric

Pressure: Low pressure

Structure: Peristaltic pump

Cable Length: other

Outlet Size: Max 14.4mm

Voltage: AC220V or AC110V

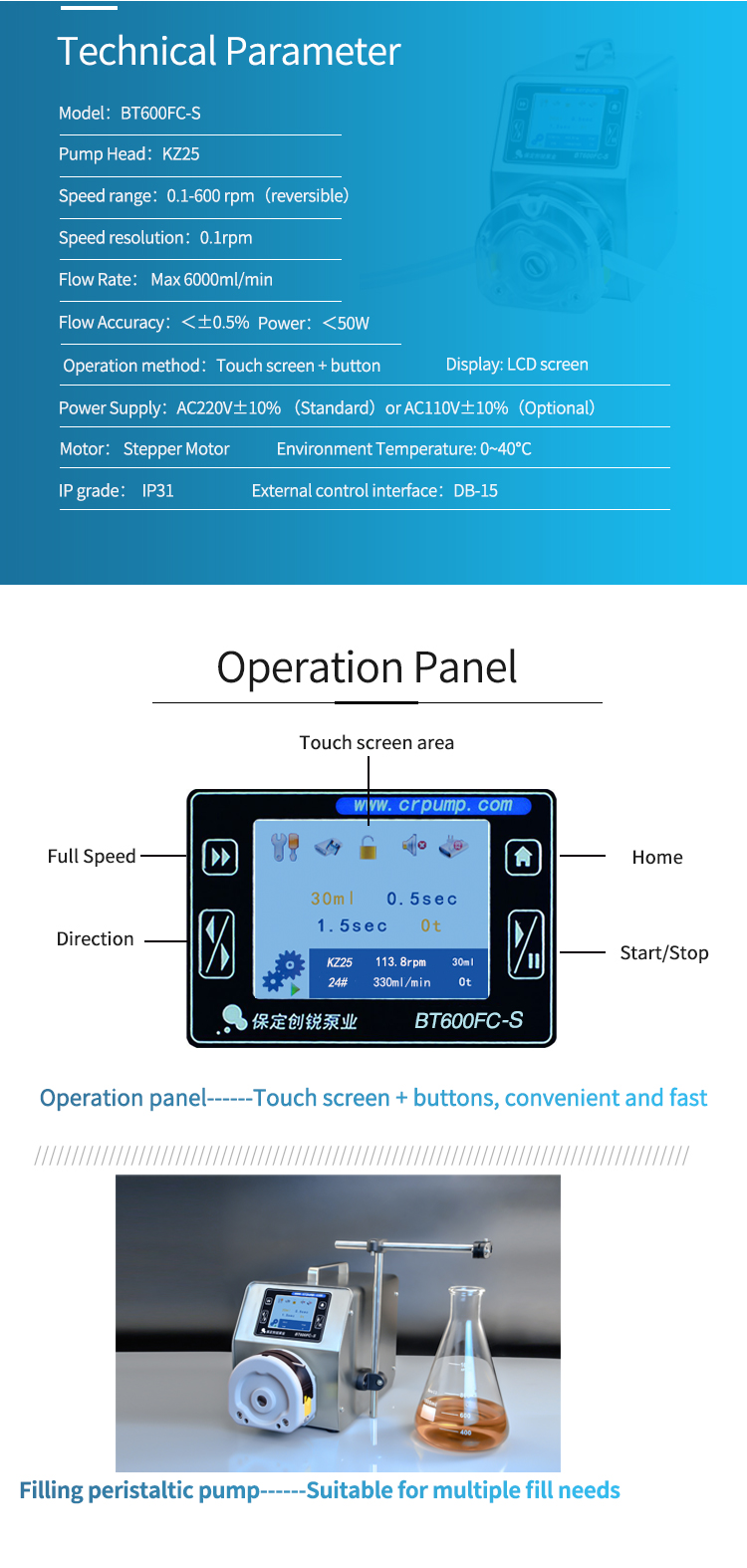

Model: BT600FC-S

Pump head: KZ25

Max Speed: 600rpm

Max Flowrate: 6000ml/min

Power supply: AC220v/110v±10%

Display: Touch screen control

Tube: 15# 24# 35# 36#

Usage: Liquid Transfer/filling pump

MOQ: 1 Set

Certification: ce, TUV, ISO9001

Supply Ability

Supply Ability 1000 Set/Sets per Month

Packaging & Delivery

Packaging Details 1. The peristaltic pump is a carton with plastic foam. 2. The peristaltic pump can also be packed strictly according to the customer's requirements.

Port Beijing, Xingang, Guangzhou, Qingdao

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

Product Description

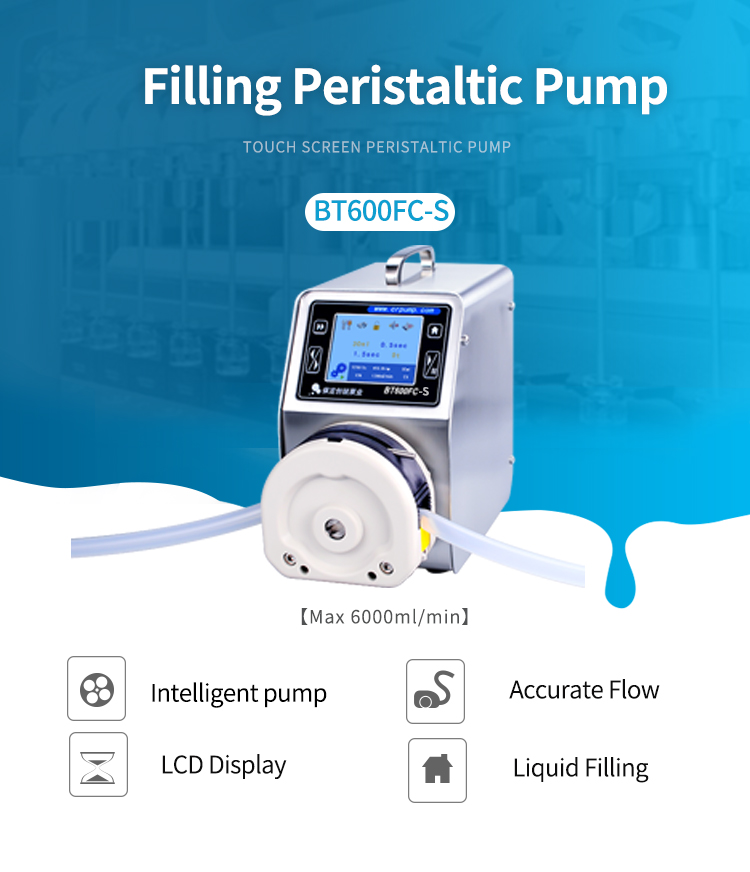

Chuangrui Touch Screen LCD Display Bottle Filling Peristaltic Pump

1. Automatic Filling Peristaltic Pump BT600FC can be installed by KZ25 pump heads.etc..
2. With both-way large torque,high power motor. It can be connected with several pump heads to satisfy the different demands of
flow rates.
3. Long life, Touch screen control, easy to operate,
4. Color LCD display in English and Chinese version(Customizable language)
5. Has RS485 communication interface, supports MODBUS communication protocol. And communication protocols customized is available.

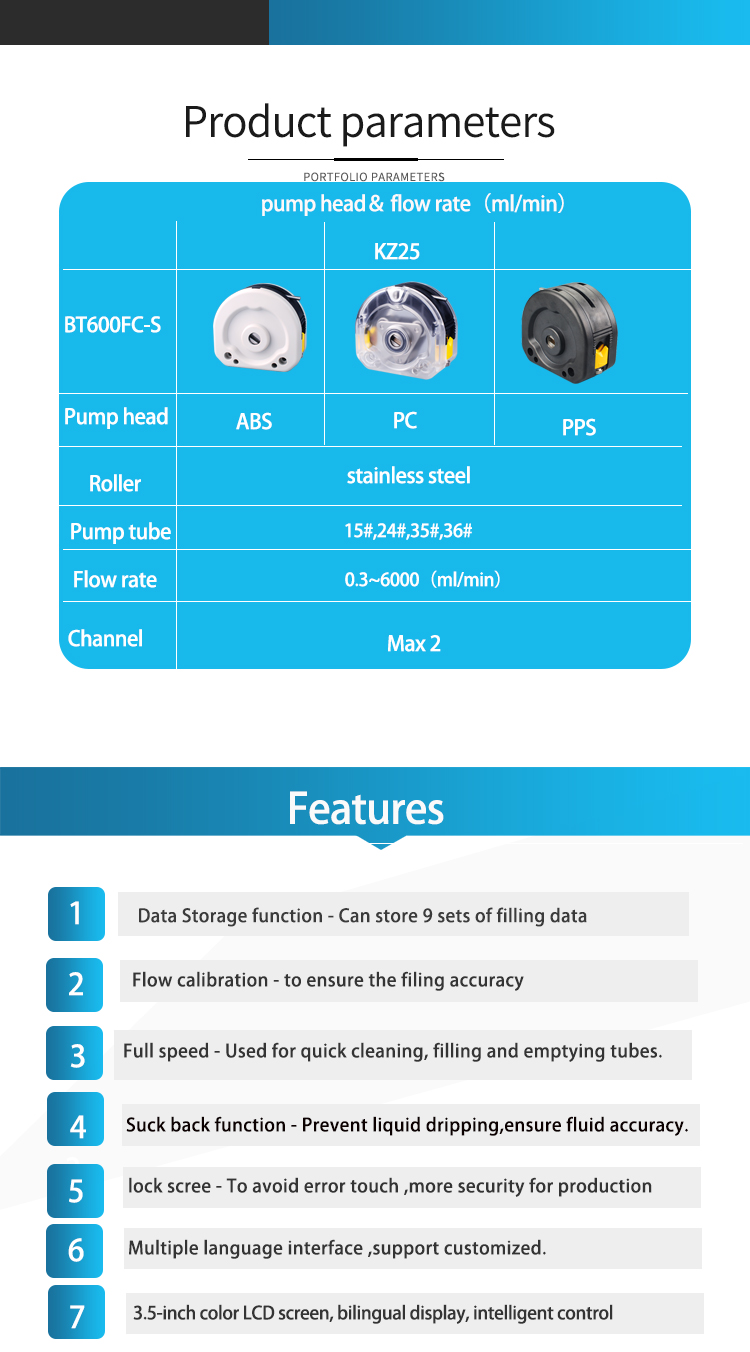

Tube For pump head MODEL :KZ25
Tube	ID(mm)	Wall thickness(mm)	OD(mm)	Flow rate ml/min
15#	4.8	2.4	9.6	0.3—1800
24#	6.4	2.4	11.2	0.5—3000
35#	7.9	2.4	12.7	0.7—4200
36#	9.6	2.4	14.4	1—6000

Product Description

In order to give our costomers the most suitable configuration of peristaltic pump, may I know some details as below:

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?

4, for constant transfer ,what's flowrate you need? ml/min

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .
