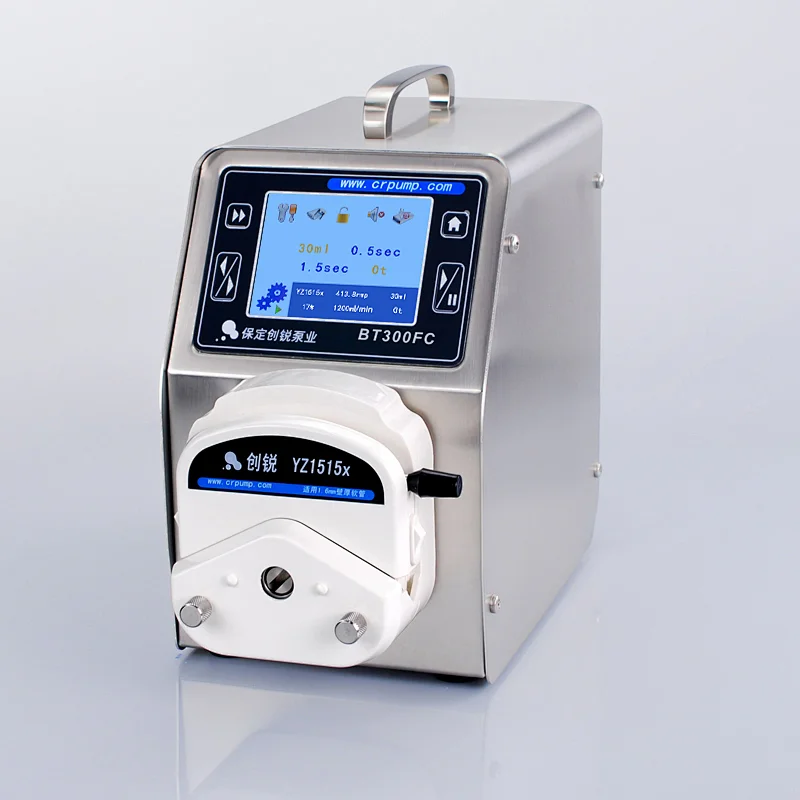

Liquid Fruit Juice Bottle Filling Machine Supporting Peristaltic Pump

Warranty:                       1 years, 1 Year

Customized support:     OEM, ODM, OBM

Model Number:             BT300FC

Place of Origin:              China

Application:                    Filling Machine Supporting

Horsepower:                  Other

Power Source:                Electric

Pressure:                         Low Pressure

Structure:                        Peristaltic Pump

Outlet Size:                     Max 7.9mm

Voltage:                          AC 220V or AC 110V

Power:                            <50W

Model:                            BT300FC

Pump Head:                   YZ1515x

Rotating Speed:              0.1-300rpm

Flow rate:                        0.007-1140ml/min

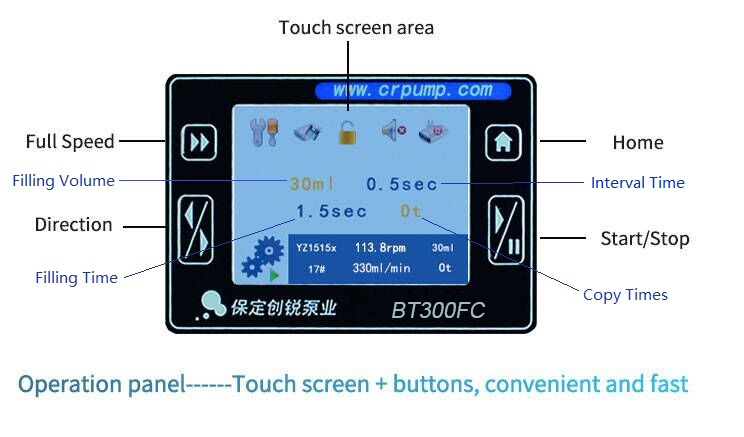

Control method:             Touch screen + keypad

Display:                           color LCD display

MOQ:                              1 Set

Certification:                   ce

Packaging & Delivery

Selling Units:                  Single item

Single package size:       37X26X36 cm

Single gross weight:       6.000 kg

Package Type:                1. The peristaltic pump is carton with plastic foam.
                                         2. The peristaltic pump can also be packed strictly according to the
                                         customer's requirements.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	5	To be negotiated

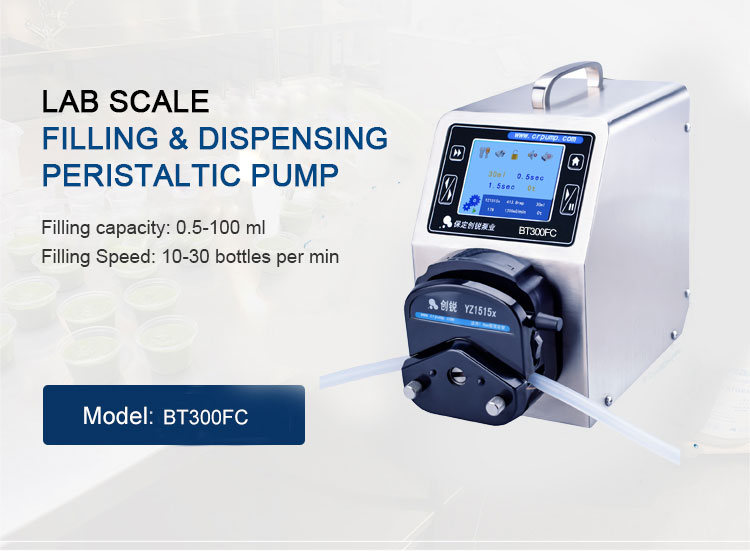

Liquid Fruit Juice Bottle Filling Machine Supporting Peristaltic Pump



Lab scale Filling & Dispensing Peristaltic Pump is a simple operating dispensing pump that can set the Filling volume/Filling time/ Pause time/ Copy number on the touch screen directly. No need to count the tube flow and time. Like the auto smart camera replaced the traditional camera. Which can improve your work efficiency. This pump with compact structure and Desktop design that is suitable for manual semi-auto & small batch filling. Typical Case:

Essential oil filling/glue filling/Nail polish filling/Medium filling/Lab scale vials/Vessels filling/E-liquid filling etc.

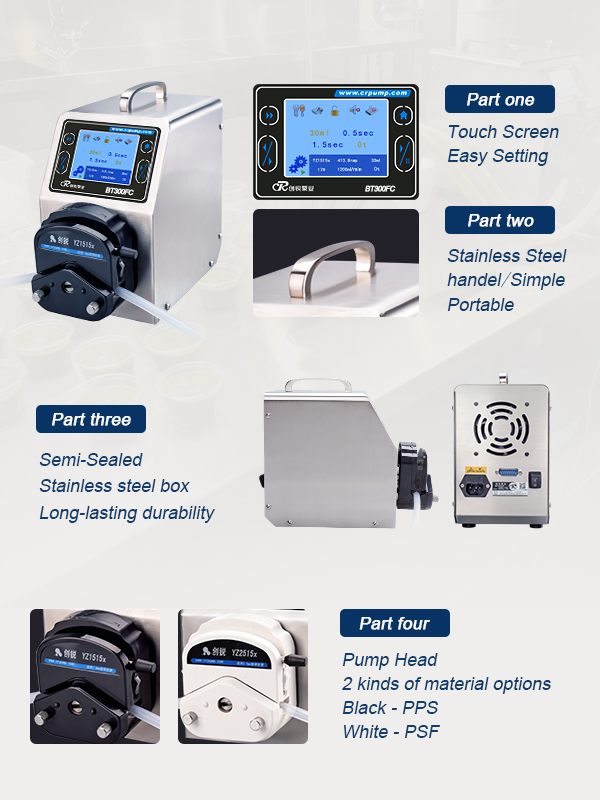

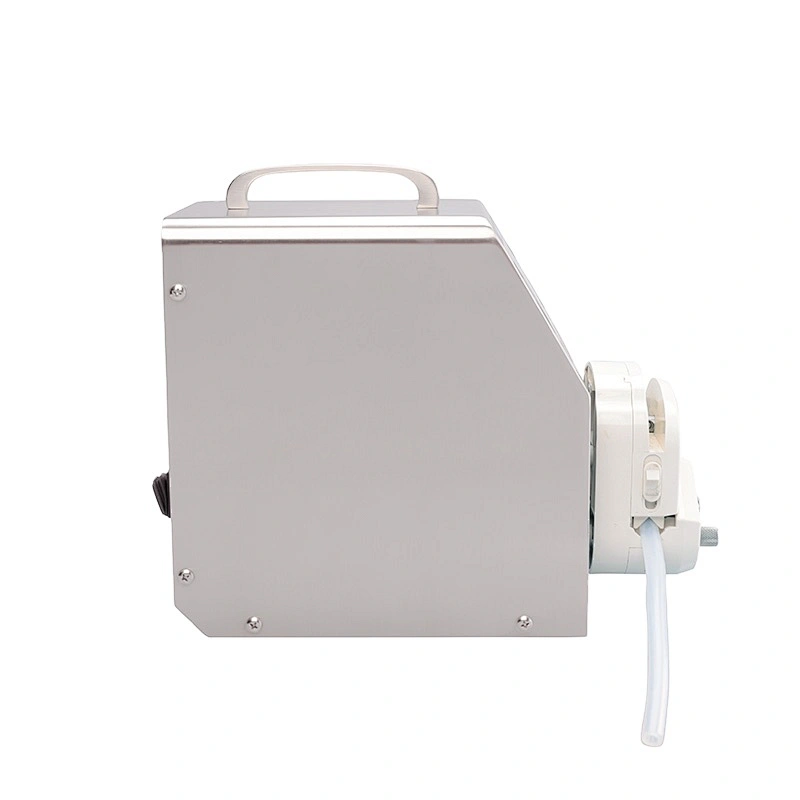

Detailed Images

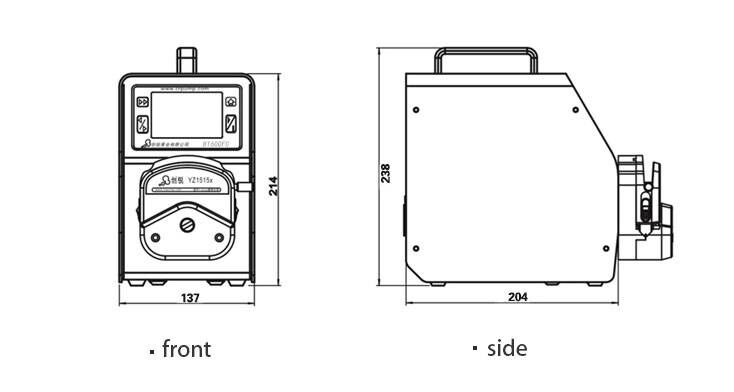

Dimension

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID (mm)	Max Speed (rpm)	Max Flow Rate  (ml/min)	Suggest Capacity(ml)
13#	0.8	300	21	0.5-3
14#	1.6	300	81	1-5
19#	2.4	300	153	2-10
16#	3.1	300	246	5-20
25#	4.8	300	510	5-40
17#	6.4	300	870	10-50
18#	7.9	300	1140	20-100

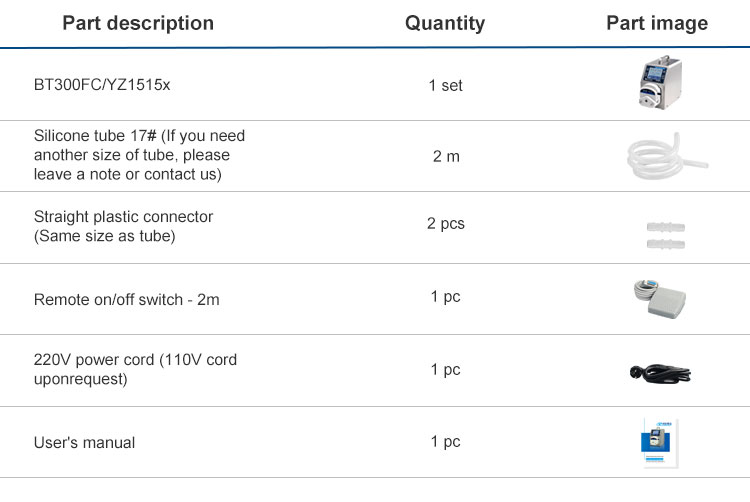

Packing List

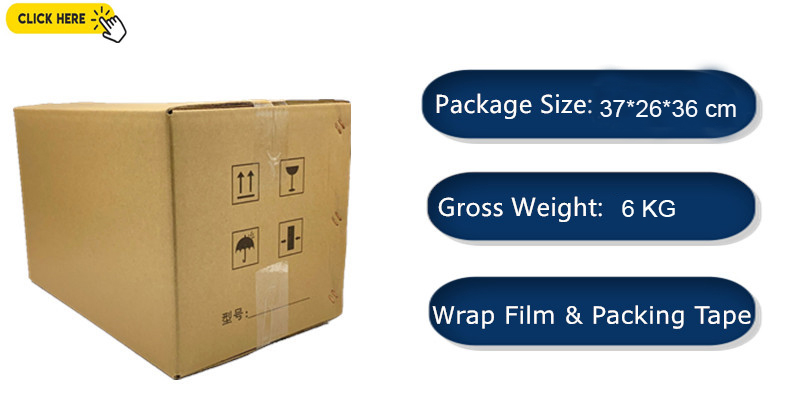

Package Details

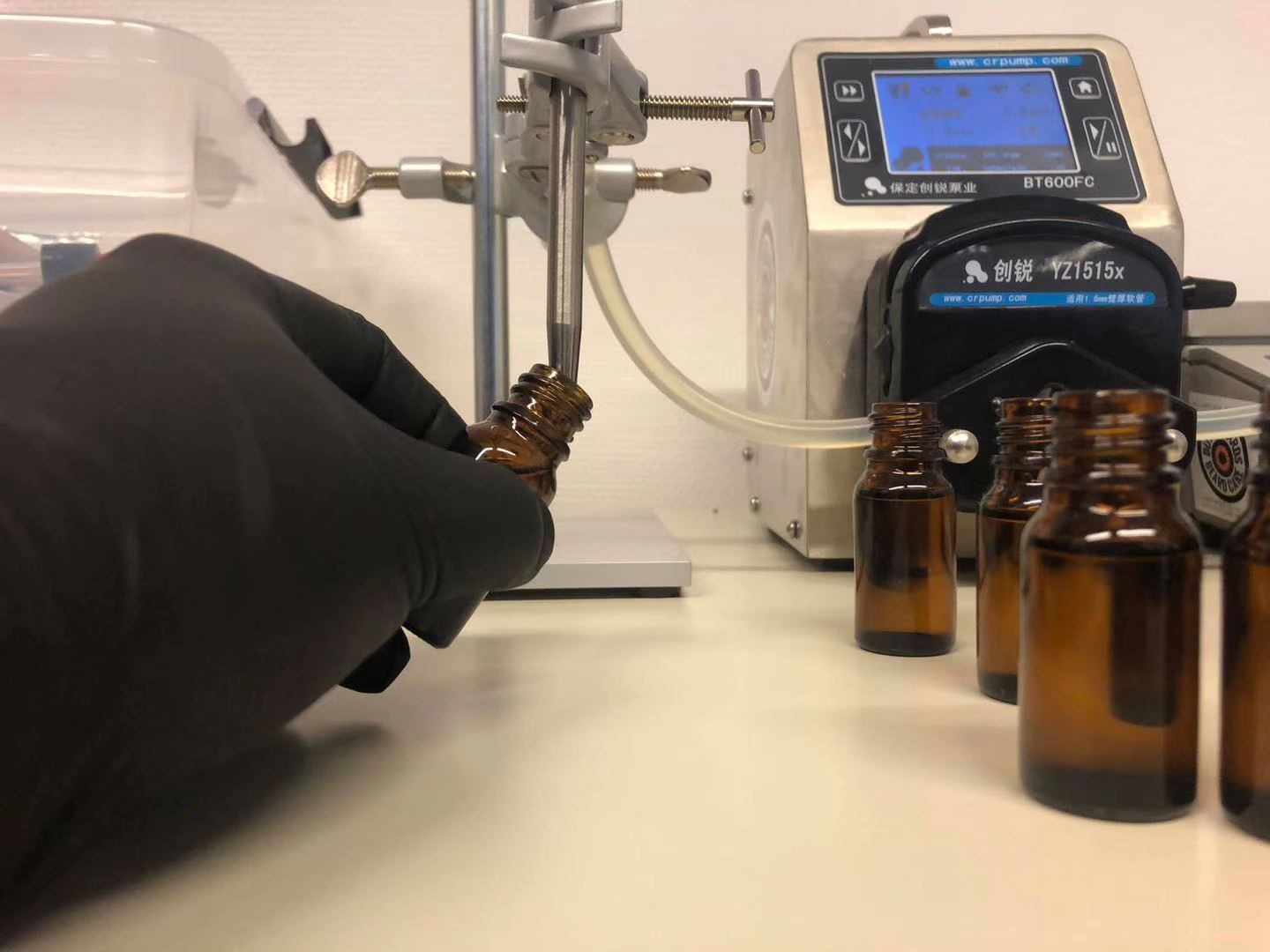

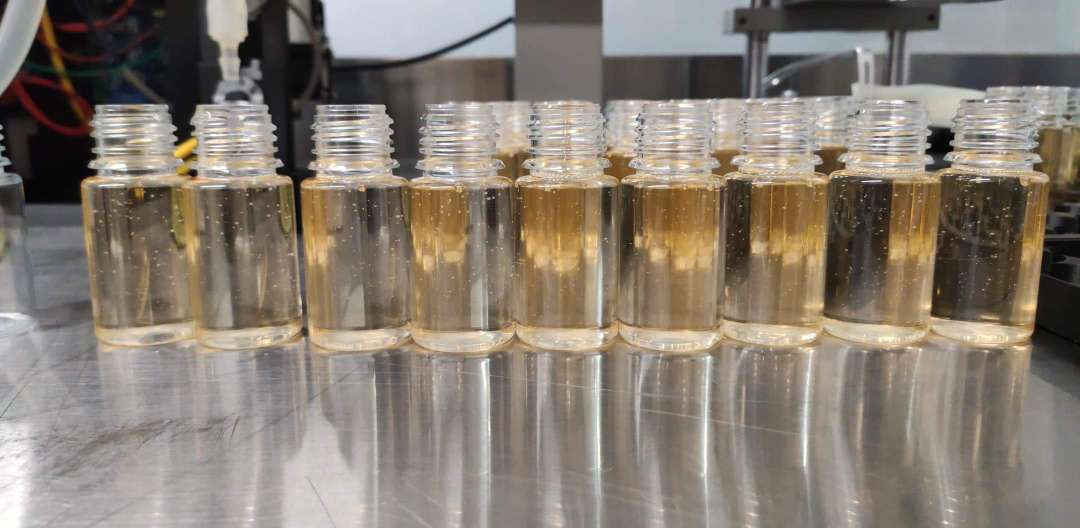

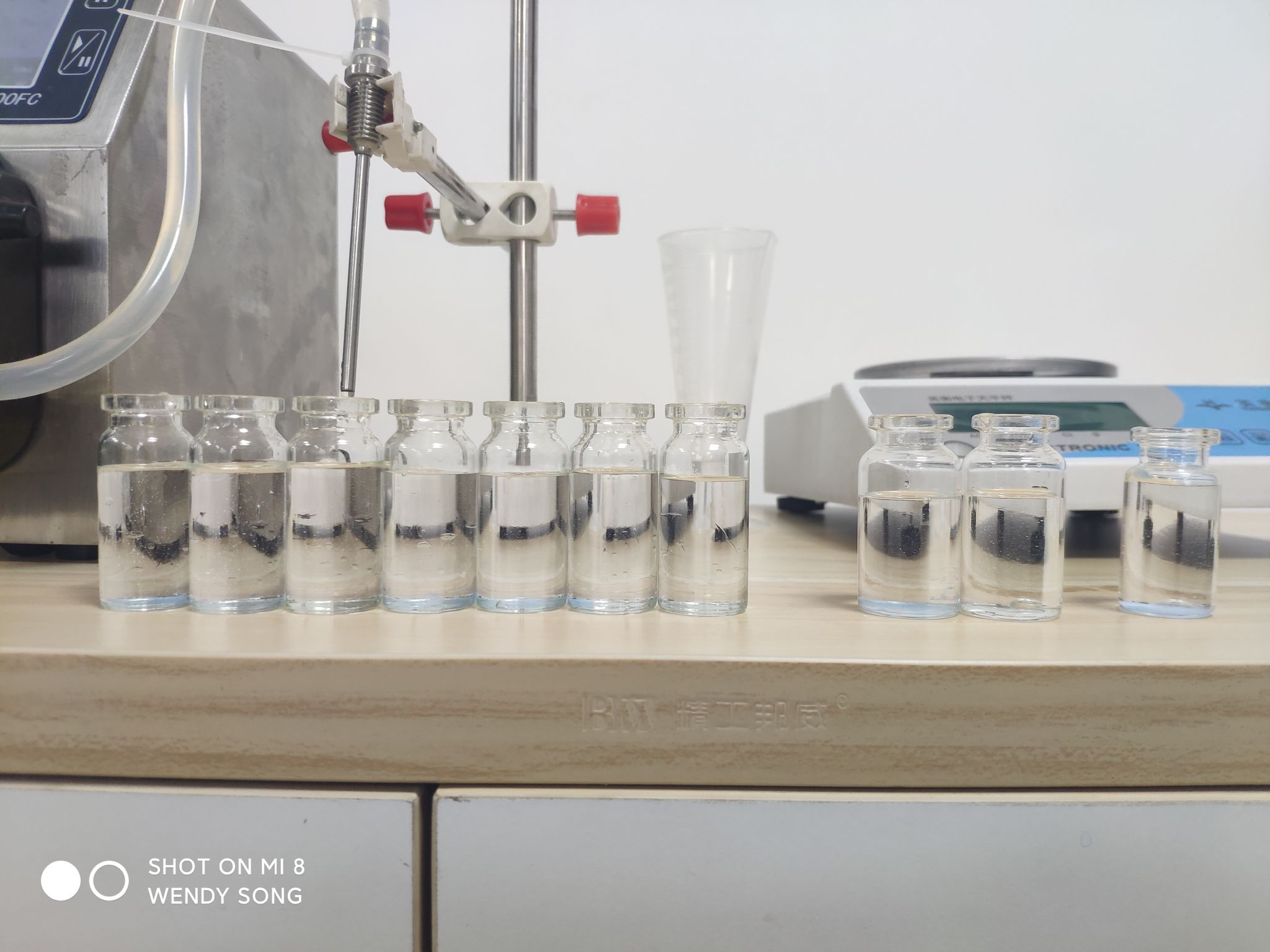

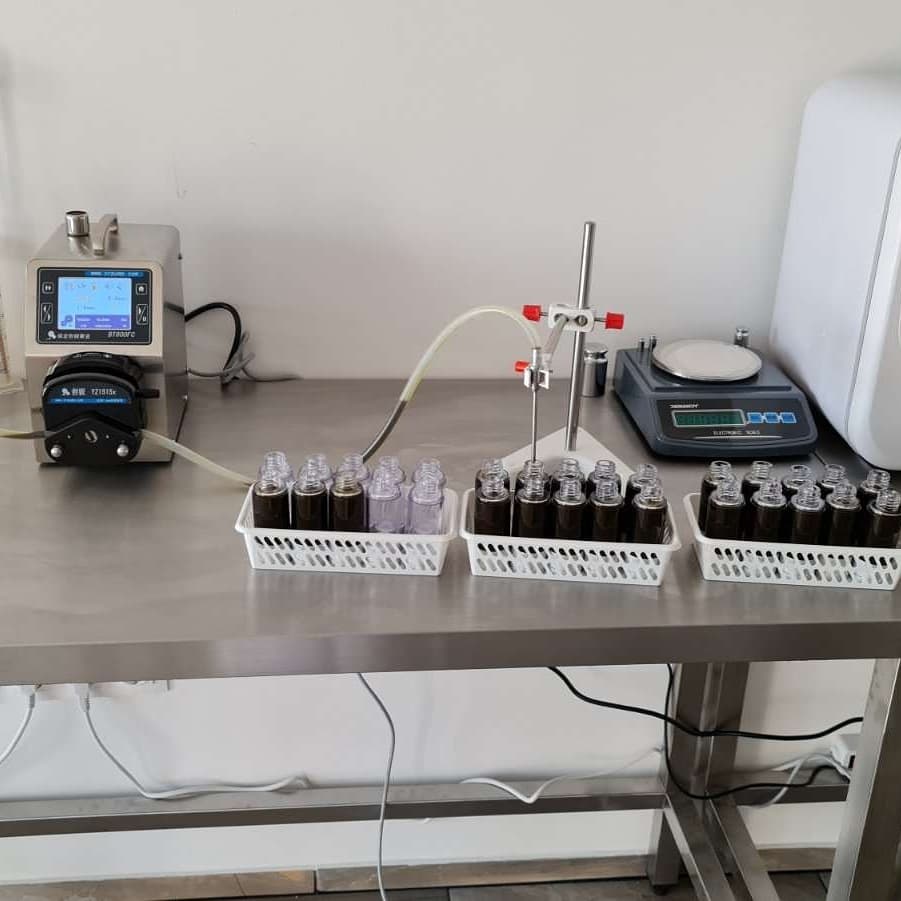

Application Case
