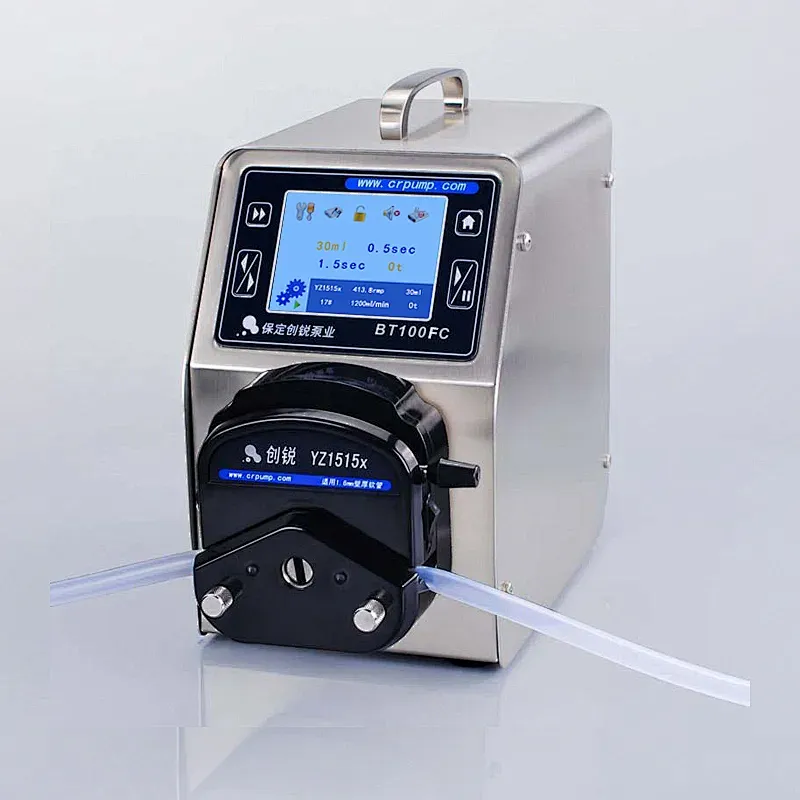

High Accuracy Food Grade Dispensing Peristaltic Pump With Filling Nozzles

Warranty:                             1 year, 1 Year

Customized support:          OEM, ODM, OBM

Brand Name:                       Chuangrui

Model Number:                   BT100FC

Place of Origin:                   Hebei, China

Application:                        Automotive Industry, Food and Beverage Industry, Pharmaceutical industry, Washing and
                                            Cleaning, wastewater treatment, Water Distribution

Horsepower:                      <50W

Power Source:                     Electric

Pressure:                             low pressure

Structure:                            peristaltic pump

Cable Length:                     other

Outlet Size:                         MAX 7.9mm

Voltage:                              AC220V or AC110V

Power:                                50w

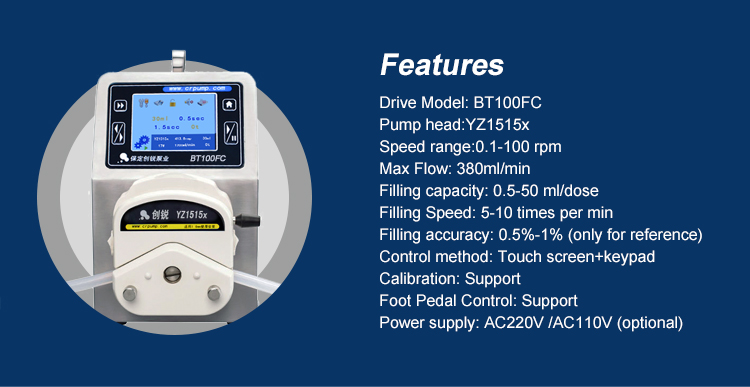

drive model:                       BT100FC

Pump head model:            YZ1515X

Speed:                                0.1-100rpm

Flowrate:                            0.007-380ml/min

Display Mode:                   LCD(English and Chinese optional)

Control Method:               Touch screen + keypad

MOQ:                                 1 Set

Certification:                     ce

Packaging & Delivery

Selling Units:                     Single item

Single package size:         37X26X36 cm

Single gross weight:         6.000 kg

Package Type:                   1. The peristaltic pump is carton with plastic foam.
                                            2. The peristaltic pump can also be packed strictly according to the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

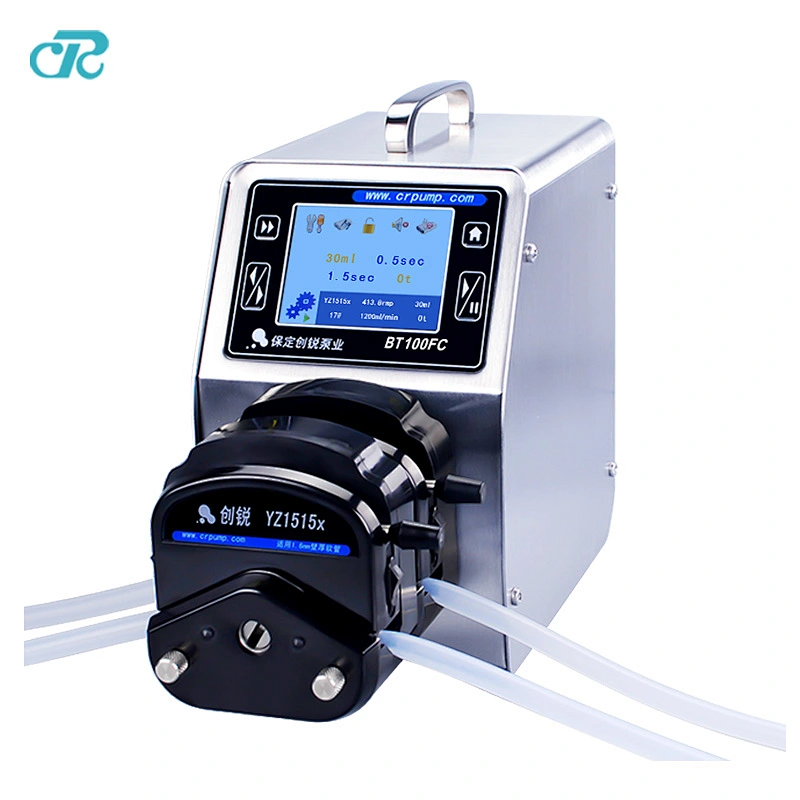

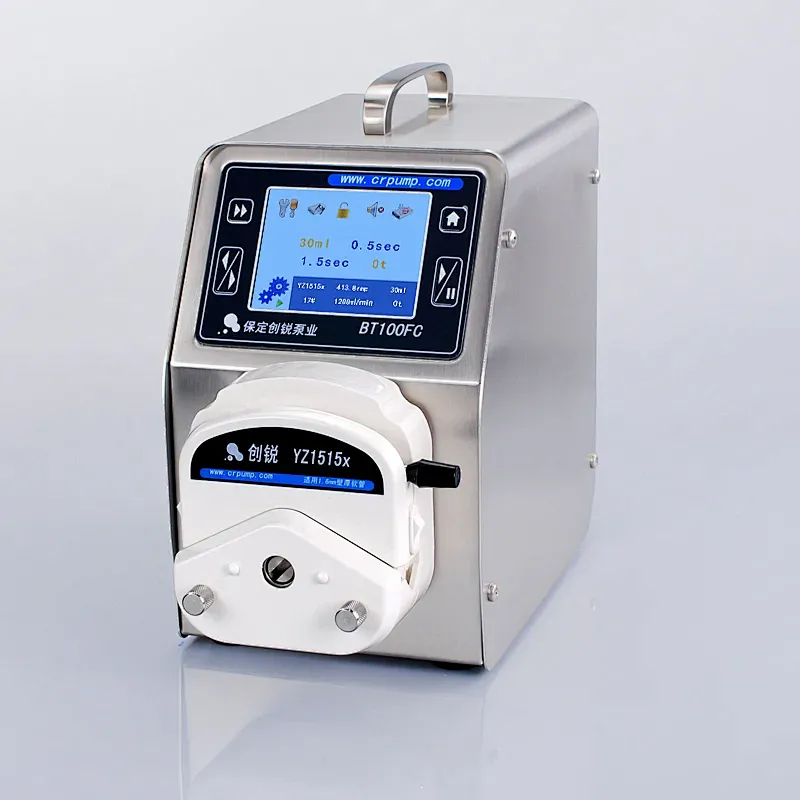

High Accuracy Food Grade Dispensing Peristaltic Pump With Filling Nozzles

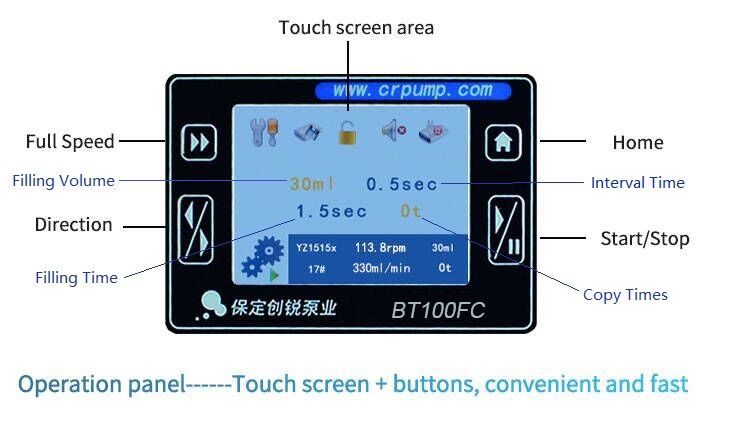

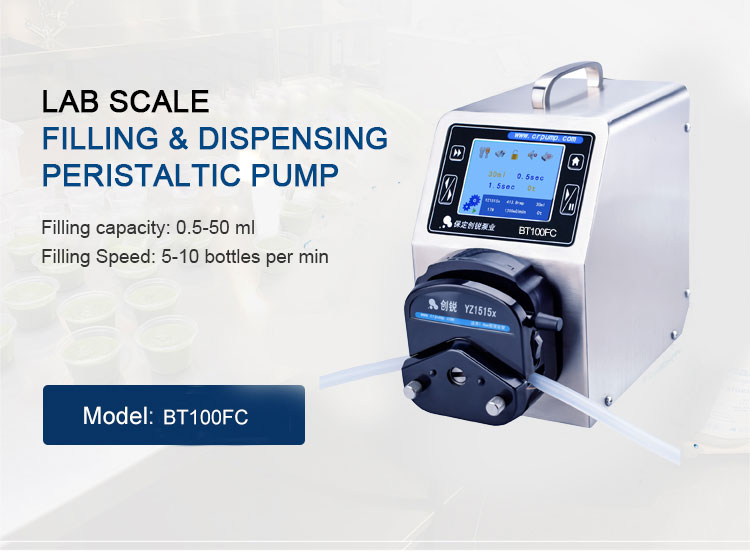

High accuracy food grade dispensing peristaltic pump with filling nozzles is a simple operating dispensing pump that can set the Filling volume/Filling time/ Pause time/ Copy number on the touch screen directly. No need to count the tube flow and time. Like the auto smart camera replaced the traditional camera. Which can improve your work efficiency. This pump with compact structure and Desktop design that is suitable for manual semi-auto & small batch filling.
Typical Case:

Essential oil filling/glue filling/Nail polish filling/Medium filling/Lab scale vials/Vessels filling/E-liquid filling etc.

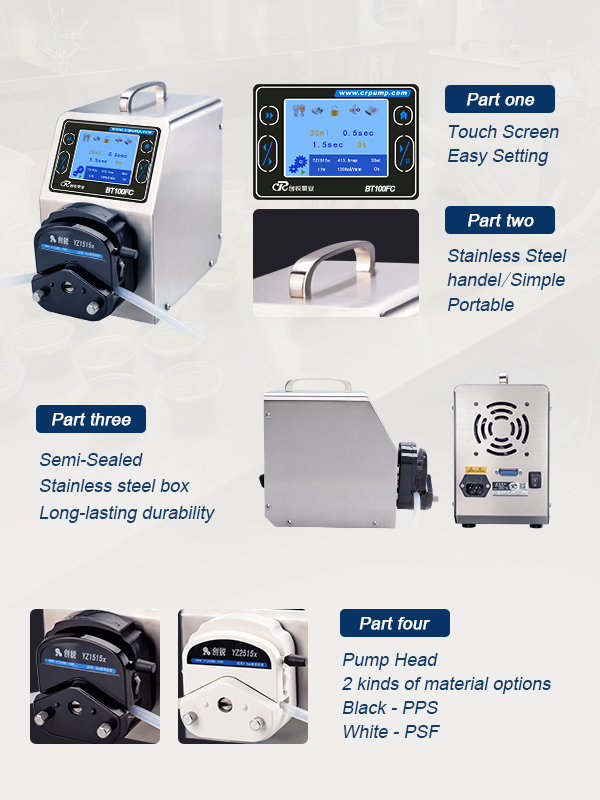

Detailed Images

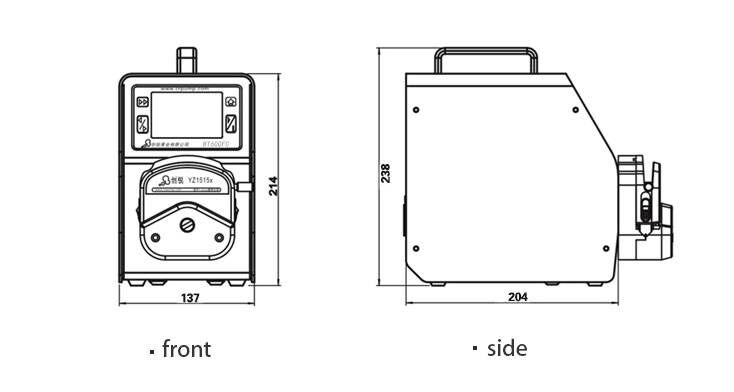

Dimension

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID (mm)	Max Speed (rpm)	Max Flow Rate  (ml/min)	Suggest Capacity(ml)
13#	0.8	100	7	0.5-1
14#	1.6	100	27	1-2
19#	2.4	100	51	2-5
16#	3.1	100	82	3-10
25#	4.8	100	170	5-20
17#	6.4	100	290	8-30
18#	7.9	100	380	10-40

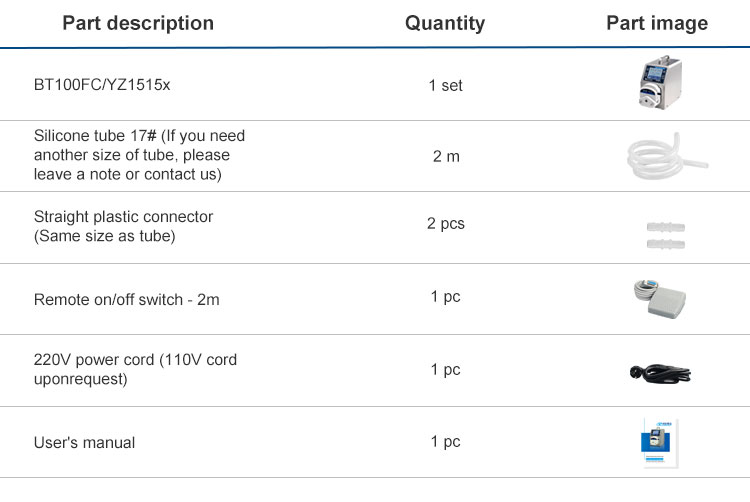

Packing List

Package Details

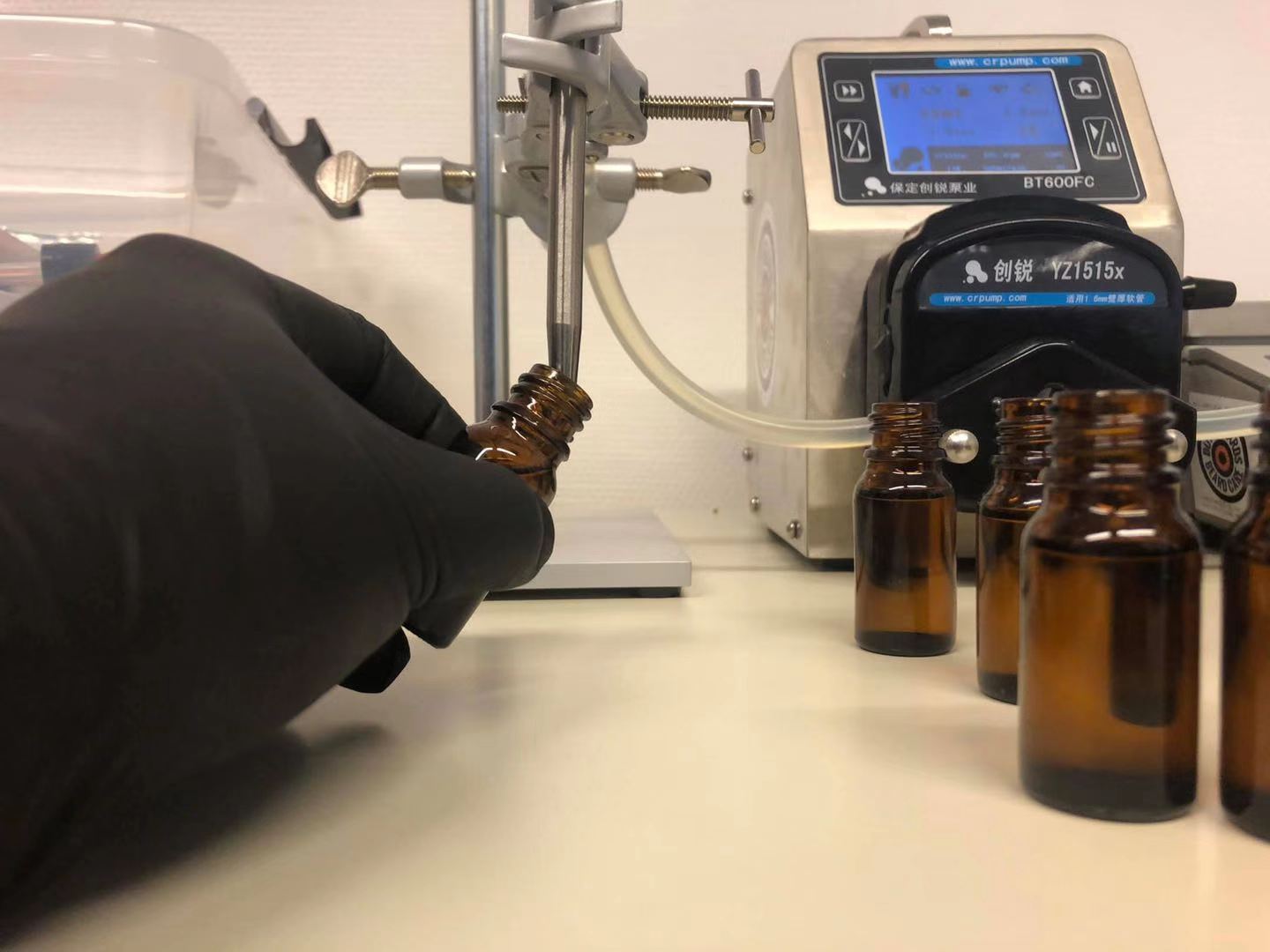

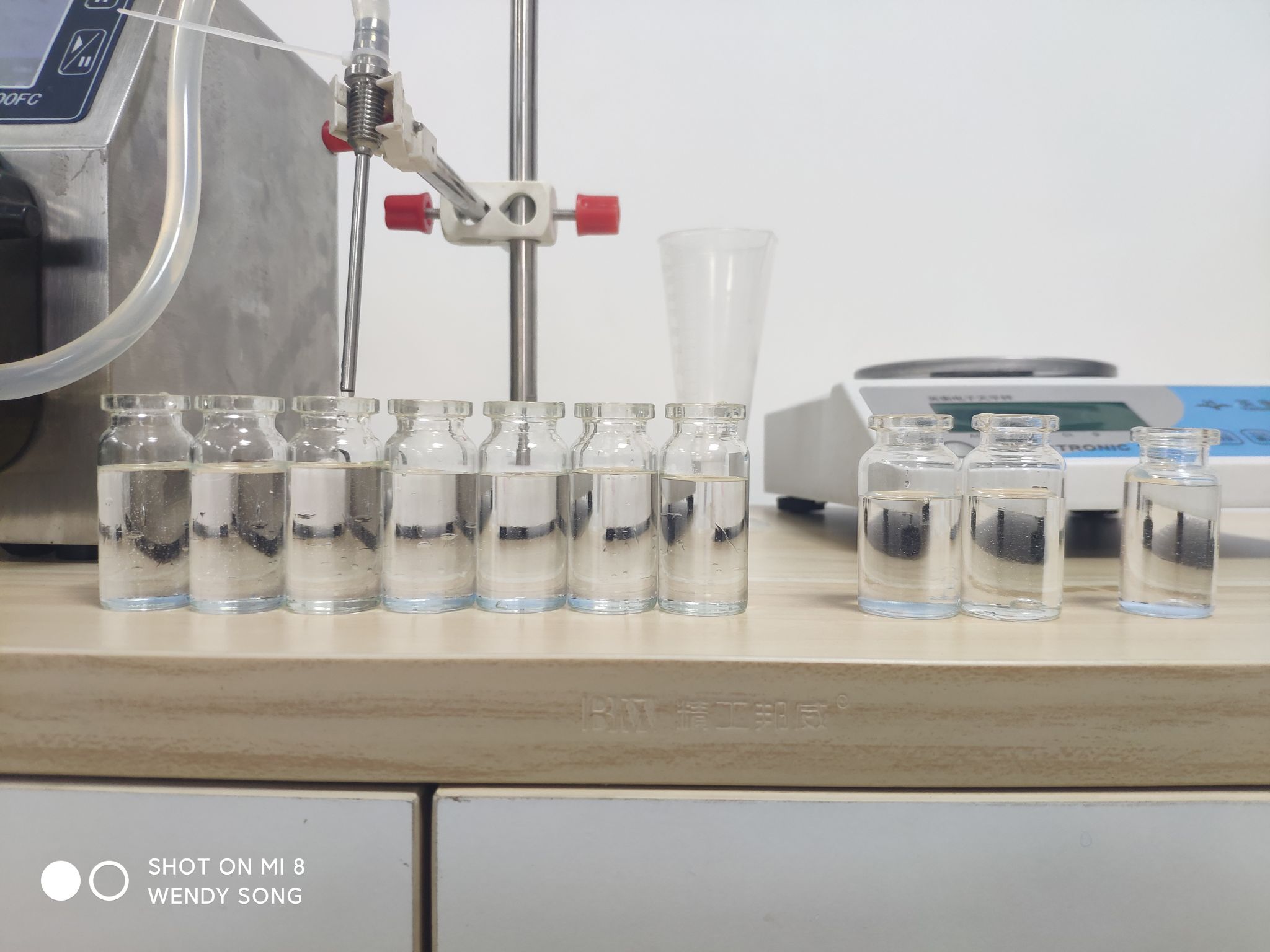

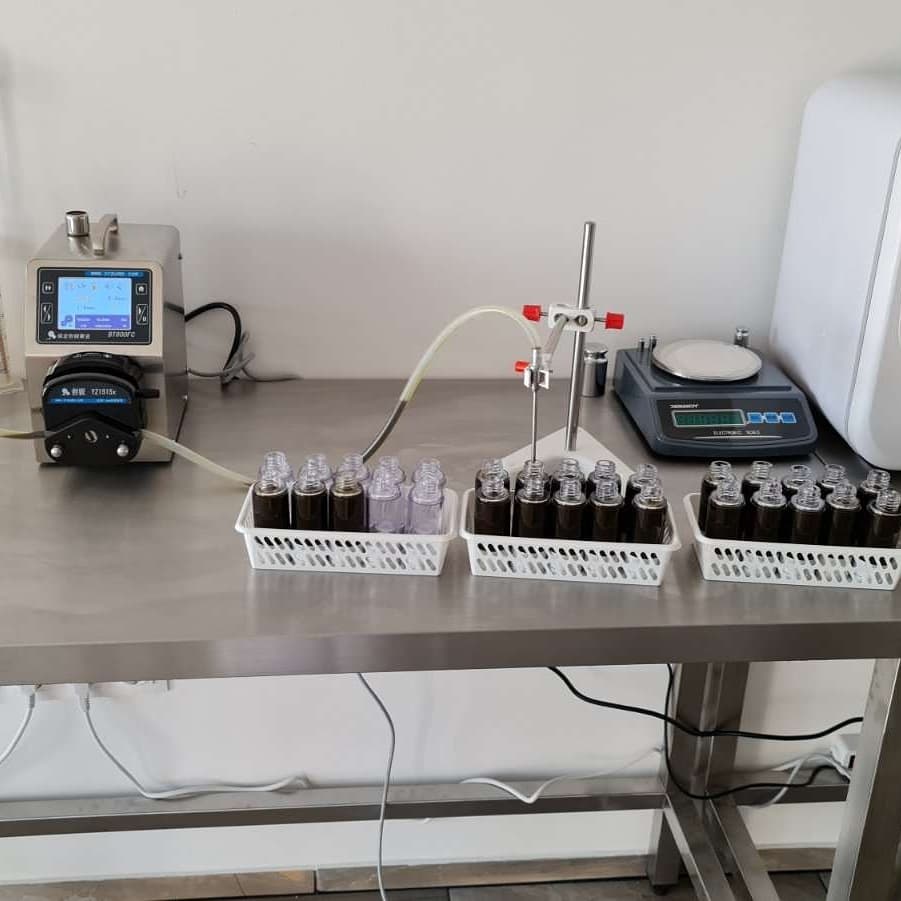

Application Case
