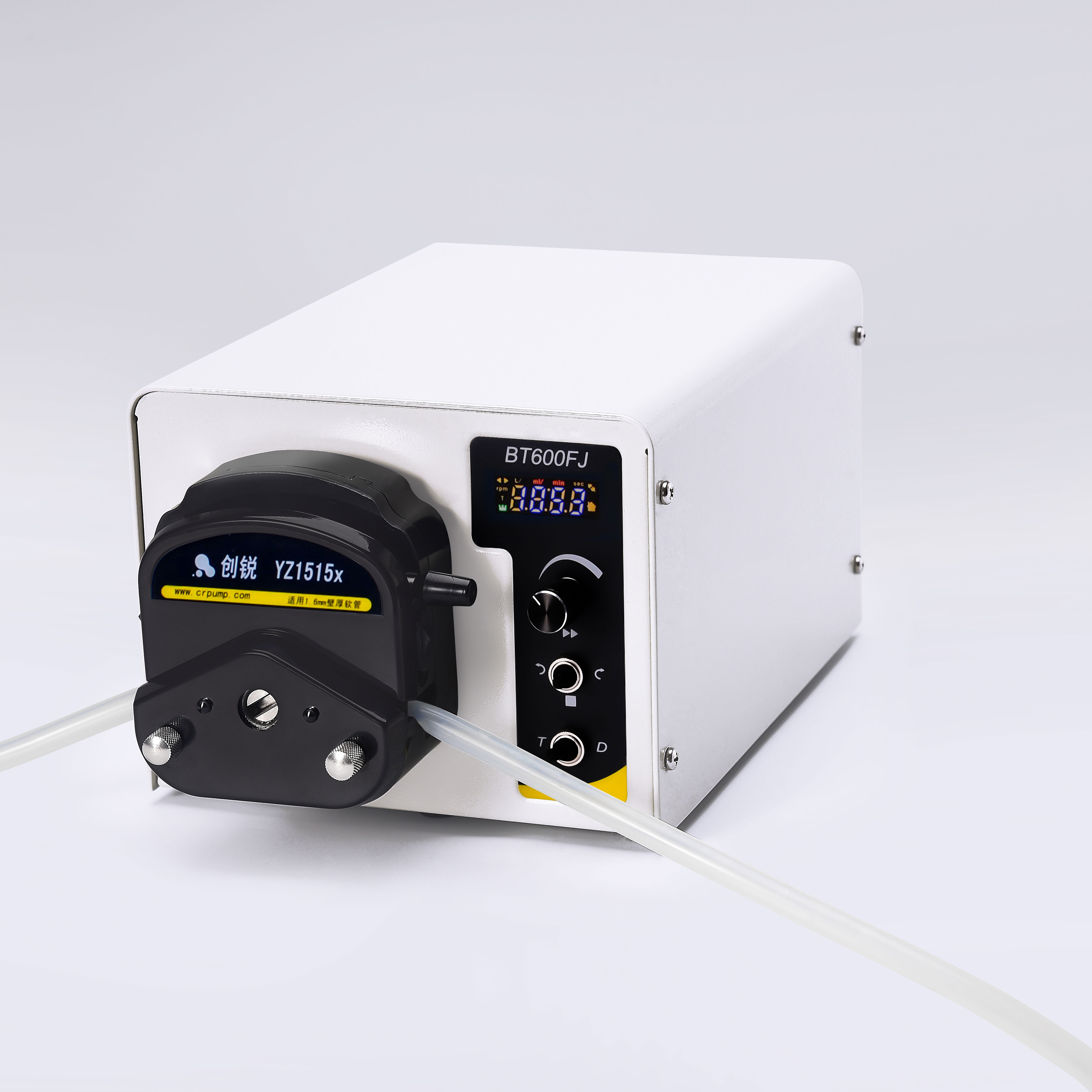

Dispensing Metering Distillation extraction Peristaltic Pump

Dispensing Metering Distillation extraction Peristaltic Pump

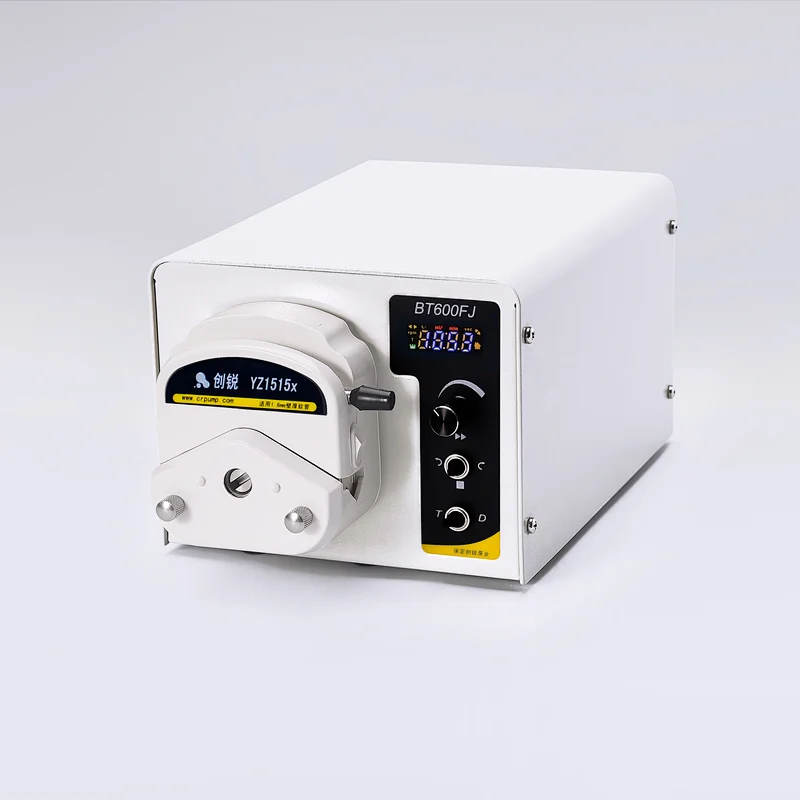

Model NO.: BT600FJ
Price:: US $ 550.00-550.00

Type:Peristaltic pump
Maximum Head:5--10m
Maximum Flow Rate:2280ml/min

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year Warranty(except Wearing Parts)

Customized support: OEM, ODM, OBM

Brand Name: Chuangrui

Model Number: BT600FJ/YZ1515x

Place of Origin: Hebei, China

Application: Food and Beverage Industry, Irrigation and Agriculture, Water Distribution, Water Treatment Solutions

Horsepower: None

Power Source: Electric

Pressure: Low pressure

Structure: Peristaltic Pump

Cable Length: none

Outlet Size: Max 7.9mm

Voltage: AC220V/110V

Power: <50W

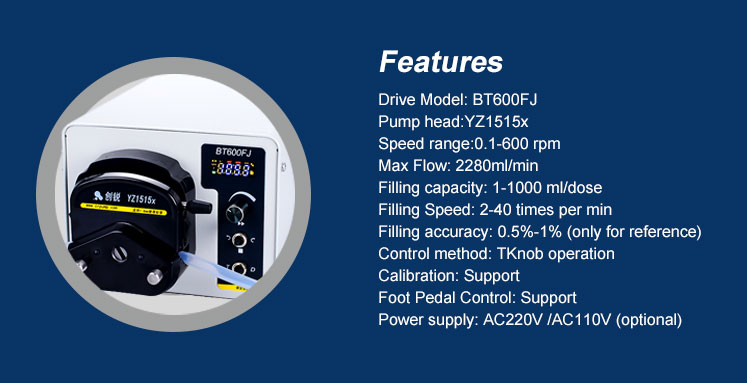

Model: BT600FJ

Applicable pump head: Yz1515x

Rotating speed: 0.1~600rpm

Flowrate range: 0.007~2280ml/min

Foot pedal: Yes

Certification: ce

Supply Ability

Supply Ability 2000 Piece/Pieces per Month Dispensing Vegetable Glycerin Metering Peristaltic Pump

Packaging & Delivery

Packaging Details 1.1 set of peristaltic tubing pump/carton 2.Carton with plastic foam, make sure the peristaltic tubing pump is safe during shipping.

Port Tianjin ,Beijing ,Shanghai ,Guangzhou etc...

ead Time:

Quantity(Pieces)	1 - 3	>3
Est. Time(days)	7	To be negotiated

Dispensing Metering Distillation extraction Peristaltic Pump

The working principle of a Basic Dispensing Peristaltic Pump is like a snake swallowing an egg. The hose is constantly squeezed through the roller to make the hose generate pressure and push the liquid forward. Our designers make the Peristaltic pump head and hose fit perfectly by designing precise roller size and pump head structure. So as to achieve the purpose of accurate liquid metering transmission or filling. The Basic Dispensing Peristaltic Pump motor uses a high-precision stepping motor with precise operating speed and angle, combined with the interactive interface carefully designed by our electronic engineers for customers, so that customers can achieve reliable liquid quantitative transmission or filling through simple operating steps.

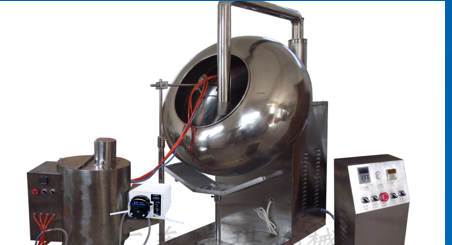

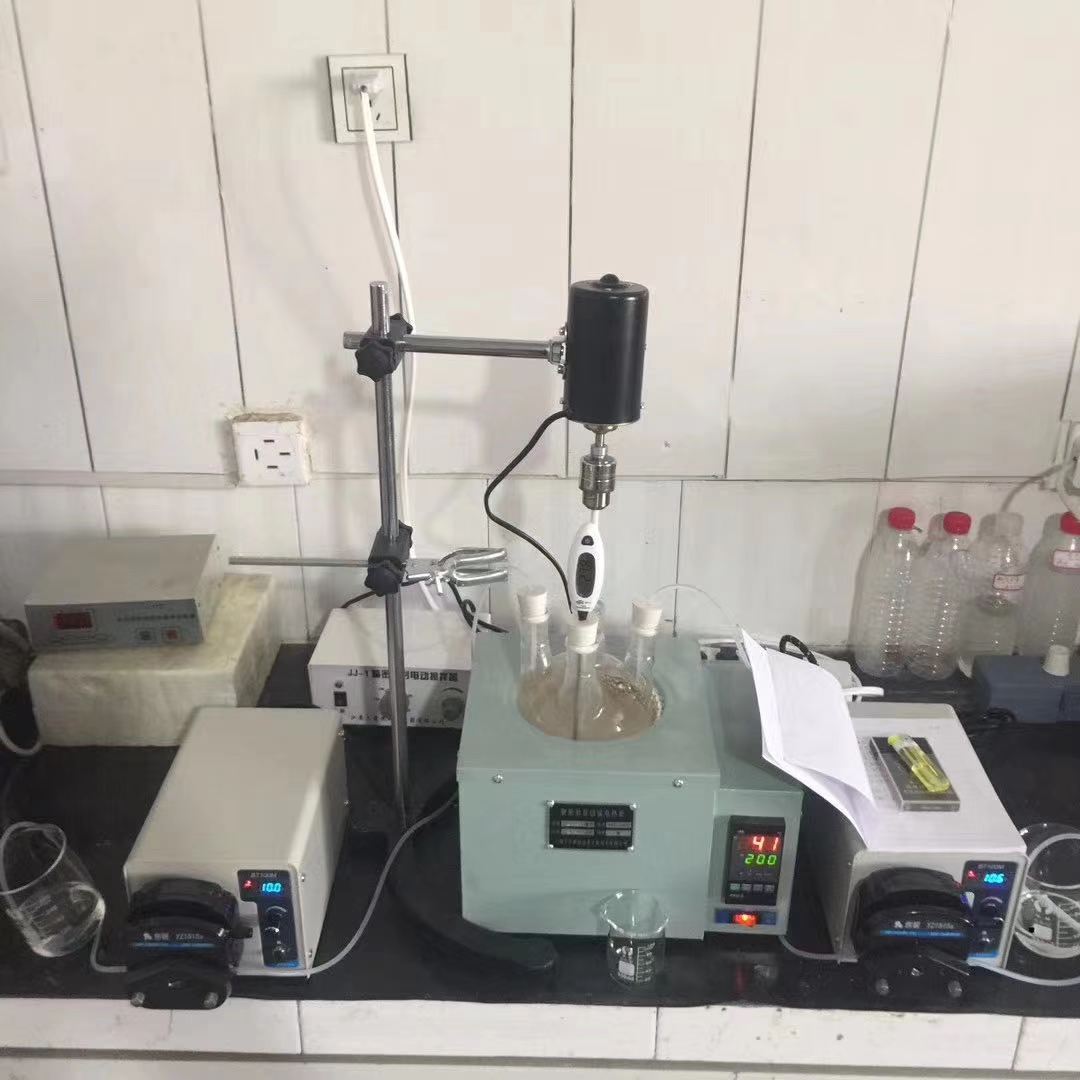

Typical Case:

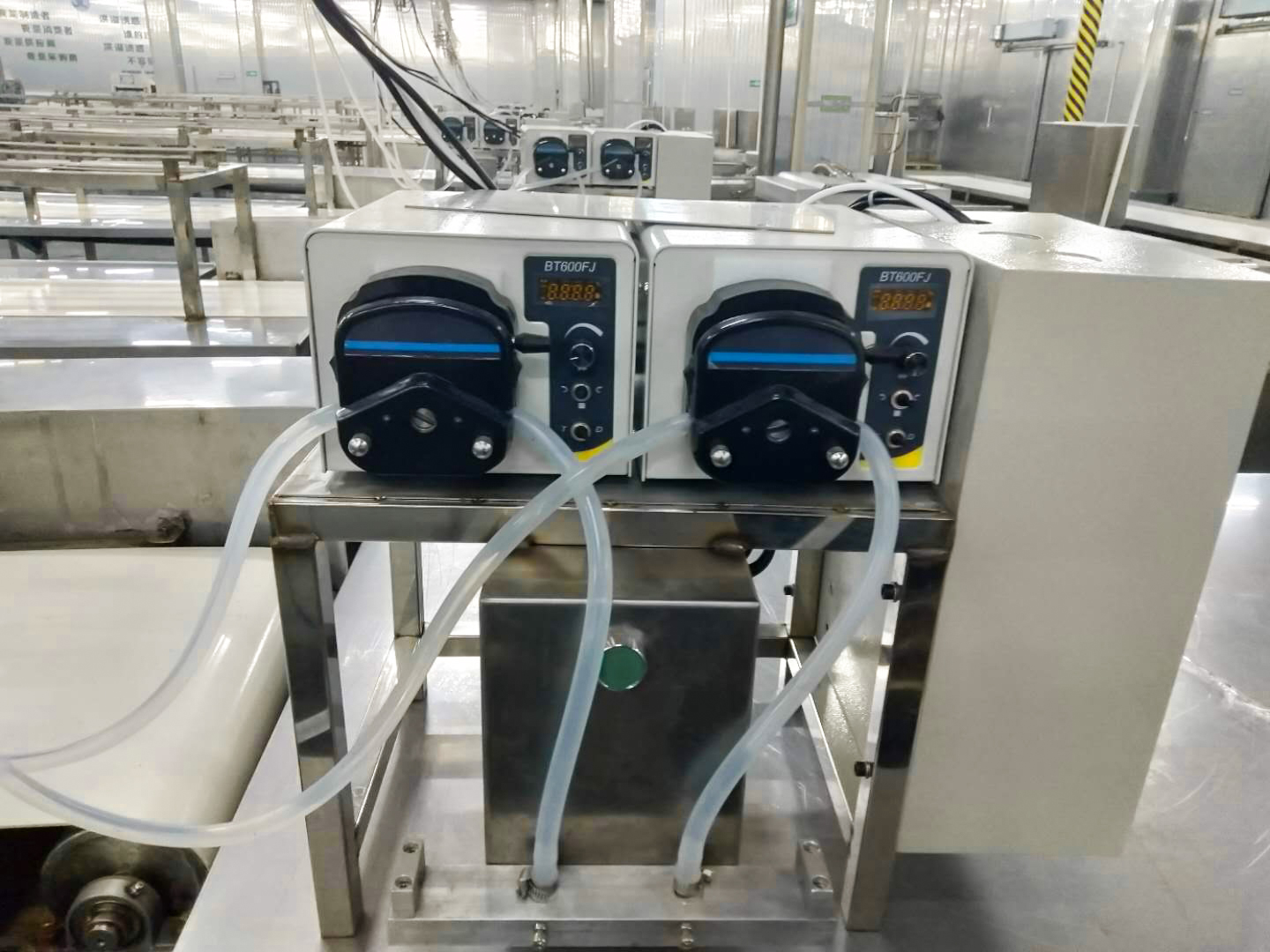

Essential oil filling/glue filling/Nail polish filling/Medium filling/Lab scale vials/Vessels filling/E-liquid filling etc.

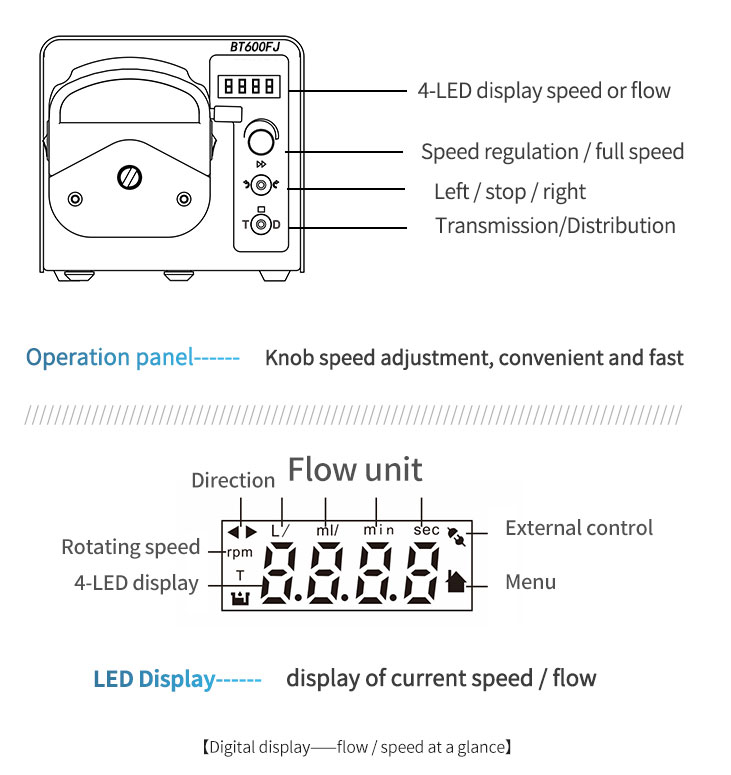

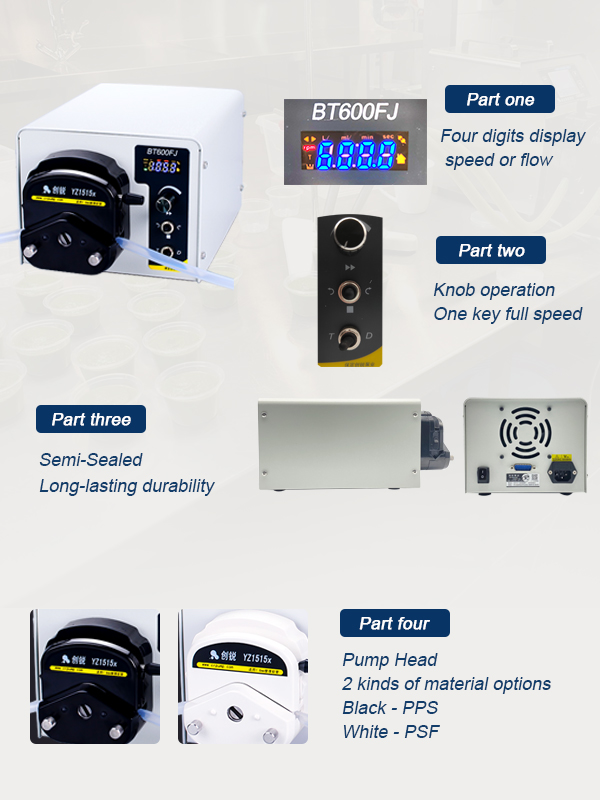

Detailed Images

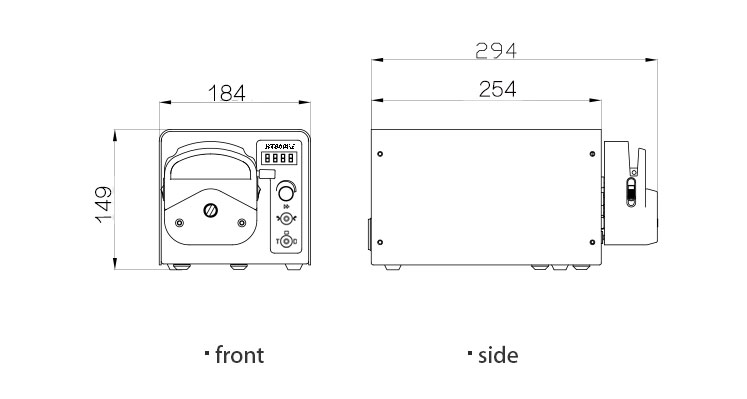

Dimension

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID (mm)	Max Speed (rpm)	Max Flow Rate (ml/min)	Suggest Capacity(ml)
13#	0.8	600	42	0.5-5
14#	1.6	600	162	1-10
19#	2.4	600	306	2-20
16#	3.1	600	492	5-50
25#	4.8	600	1020	5-80
17#	6.4	600	1740	10-100
18#	7.9	600	2280	20-200
