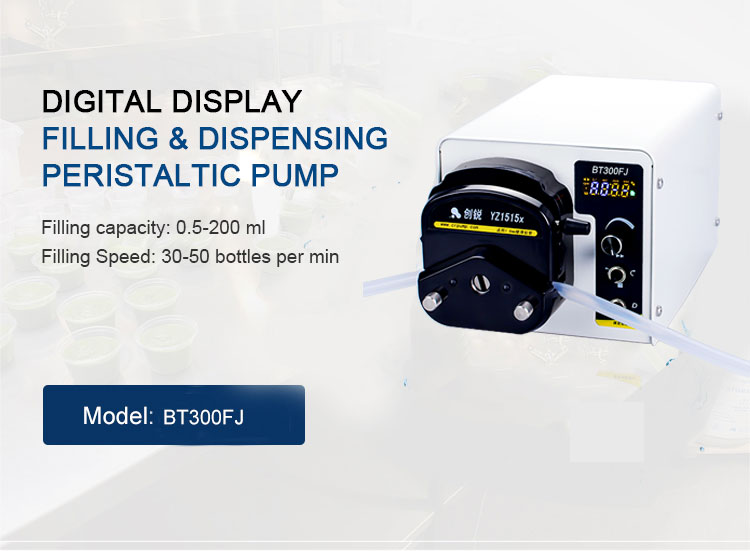

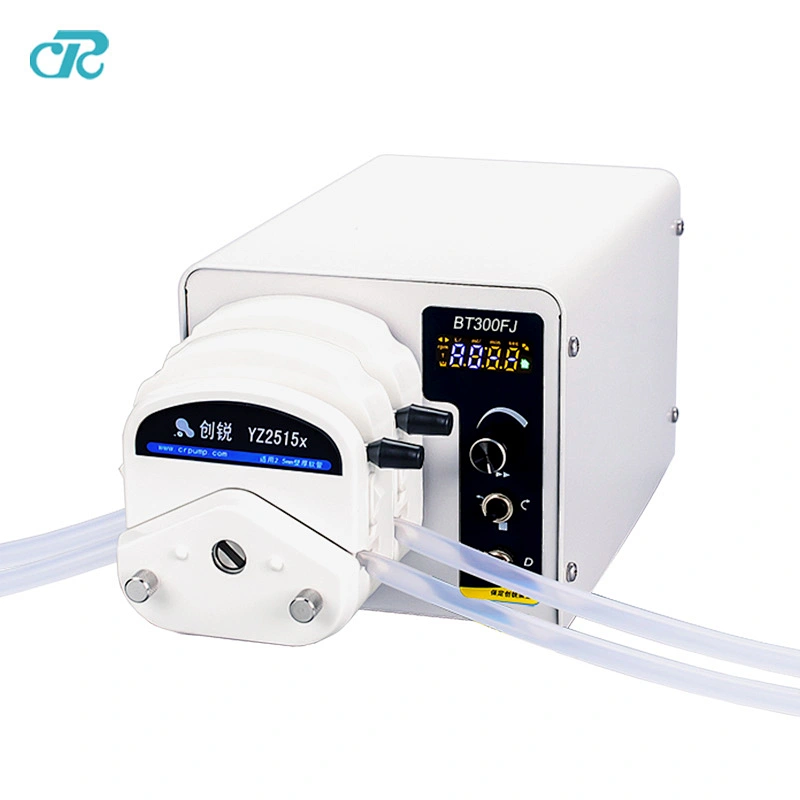

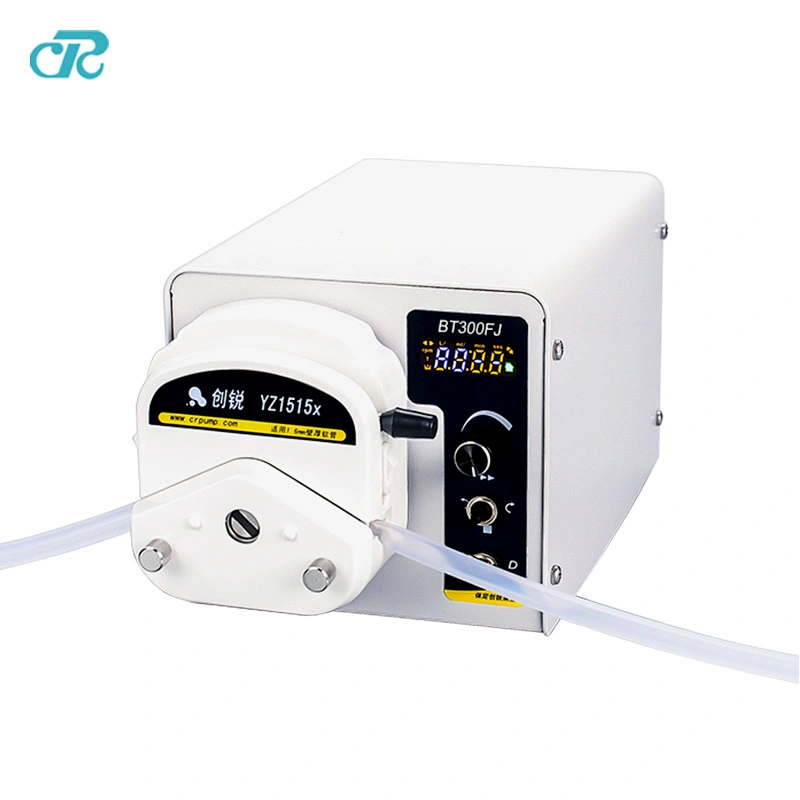

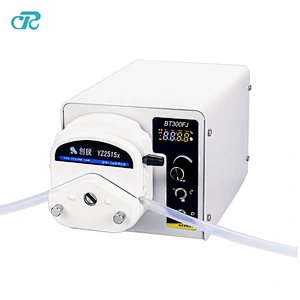

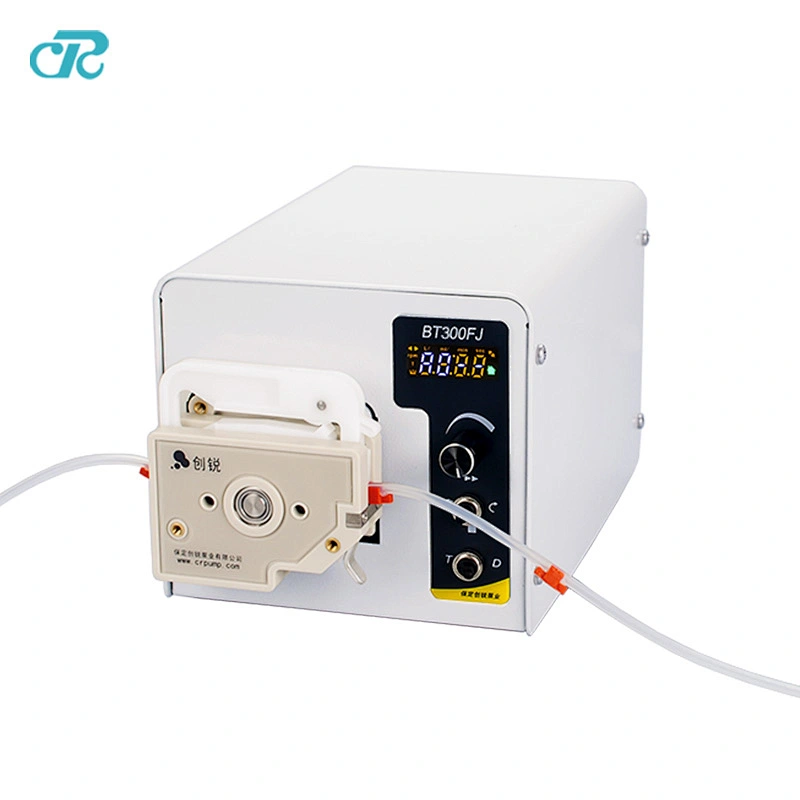

Digital Distribution Type Peristaltic Dosing Pump

Digital Distribution Type Peristaltic Dosing Pump

Model NO.: BT300FJ
Price:: US $ 400.00-400.00

Type:peristaltic pump
Maximum Head:5~10 m
Maximum Flow Rate:1140ml/min

Quantity:

Product Description

Quick Details

Warranty: 1 year, 1 Year

Customized support: OEM, ODM, OBM

Brand Name: CR

Model Number: BT300FJ

Place of Origin: Hebei, China

Application: Water Distribution

Horsepower: None

Power Source: Electric

Pressure: Low Pressure

Structure: Peristaltic Pump

Cable Length: none

Outlet Size: Max 7.9mm

Voltage: AC220V or AC110V

Power: <50W

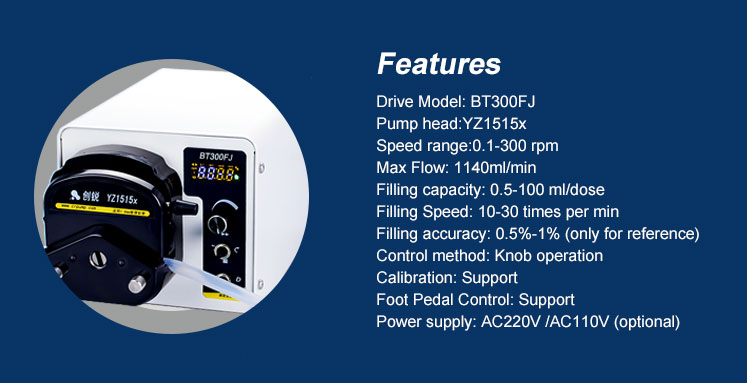

Drive Model: BT300FJ

Pump Head: YZ1515X

Speed Range: 0.1~300rpm

Flow Range: 0.007~1140ml

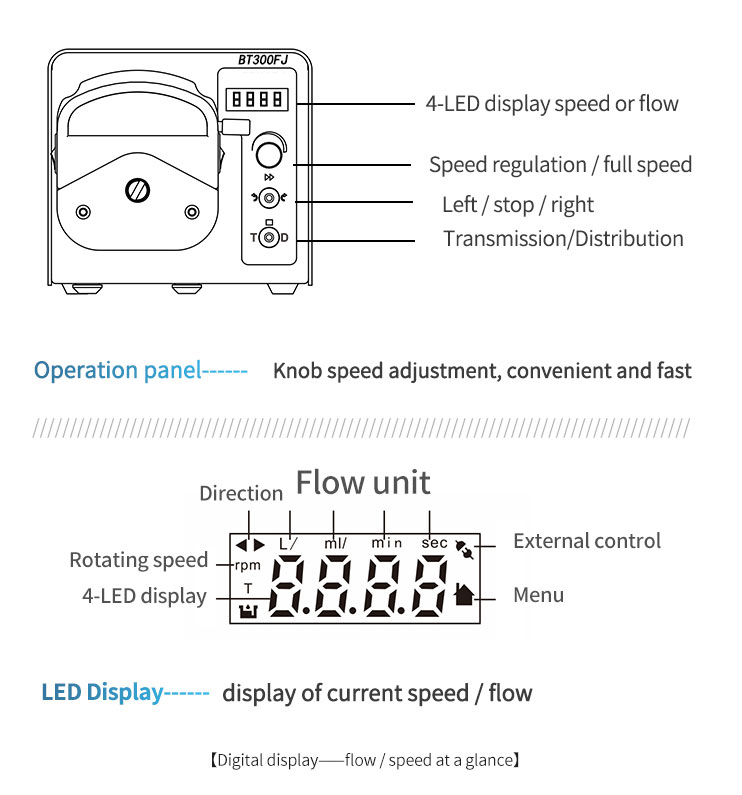

Display Mode: Display Mode

Control Method: Knob

MOQ: 1 Set

Supply Ability

Supply Ability 3000 Set/Sets per Month

Packaging & Delivery

Packaging Details 1 set in one carton box

Port Beijing

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

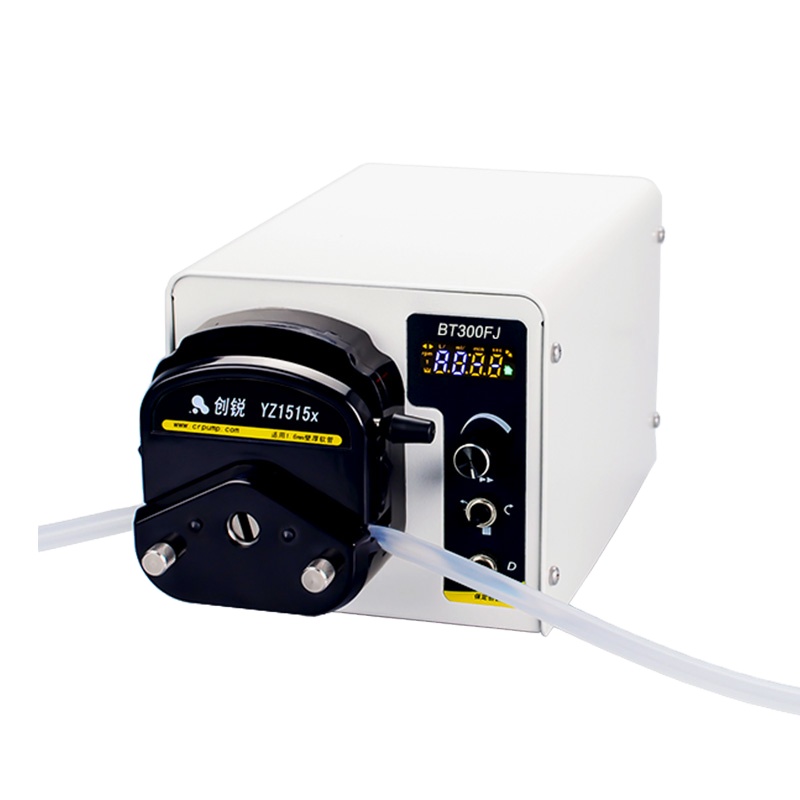

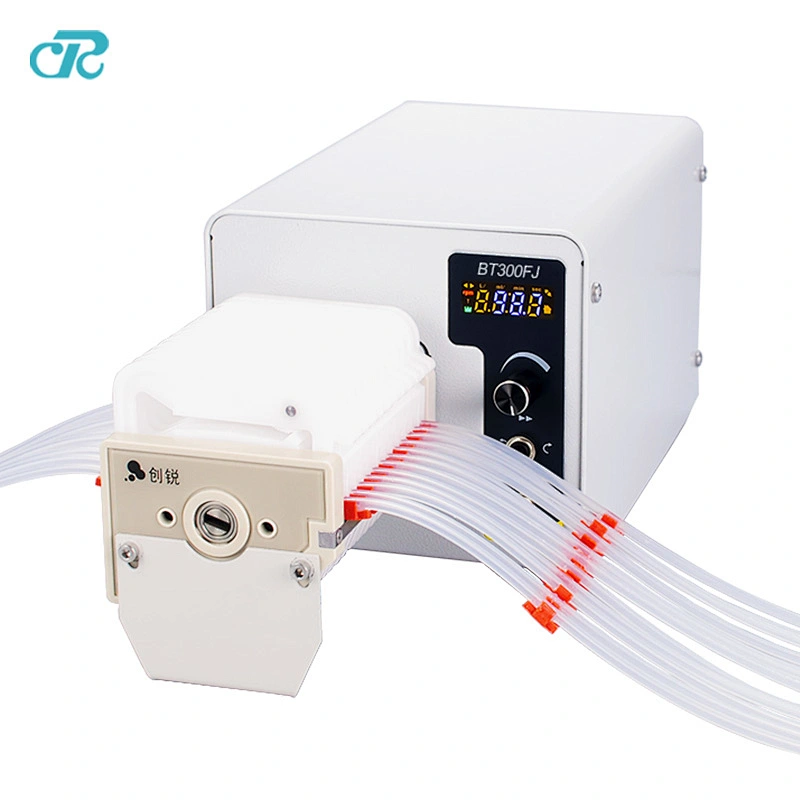

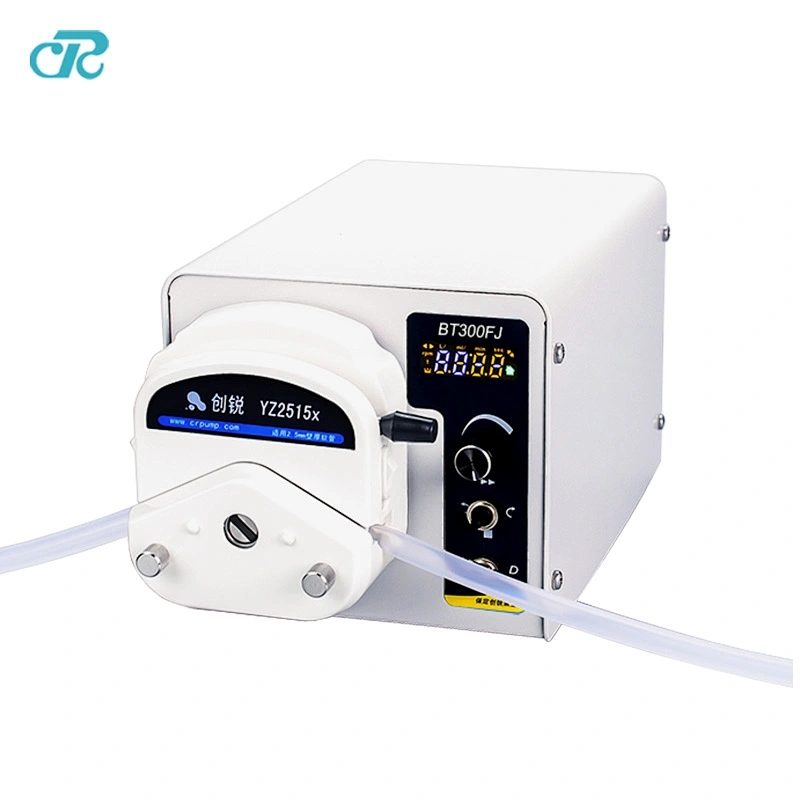

Digital Distribution Type Peristaltic Dosing Pump

The working principle of a Basic Dispensing Peristaltic Pump is like a snake swallowing an egg. The hose is constantly squeezed through the roller to make the hose generate pressure and push the liquid forward. Our designers make the Peristaltic pump head and hose fit perfectly by designing precise roller size and pump head structure. So as to achieve the purpose of accurate liquid metering transmission or filling. The Basic Dispensing Peristaltic Pump motor uses a high-precision stepping motor with precise operating speed and angle, combined with the interactive interface carefully designed by our electronic engineers for customers, so that customers can achieve reliable liquid quantitative transmission or filling through simple operating steps.Typical Case:

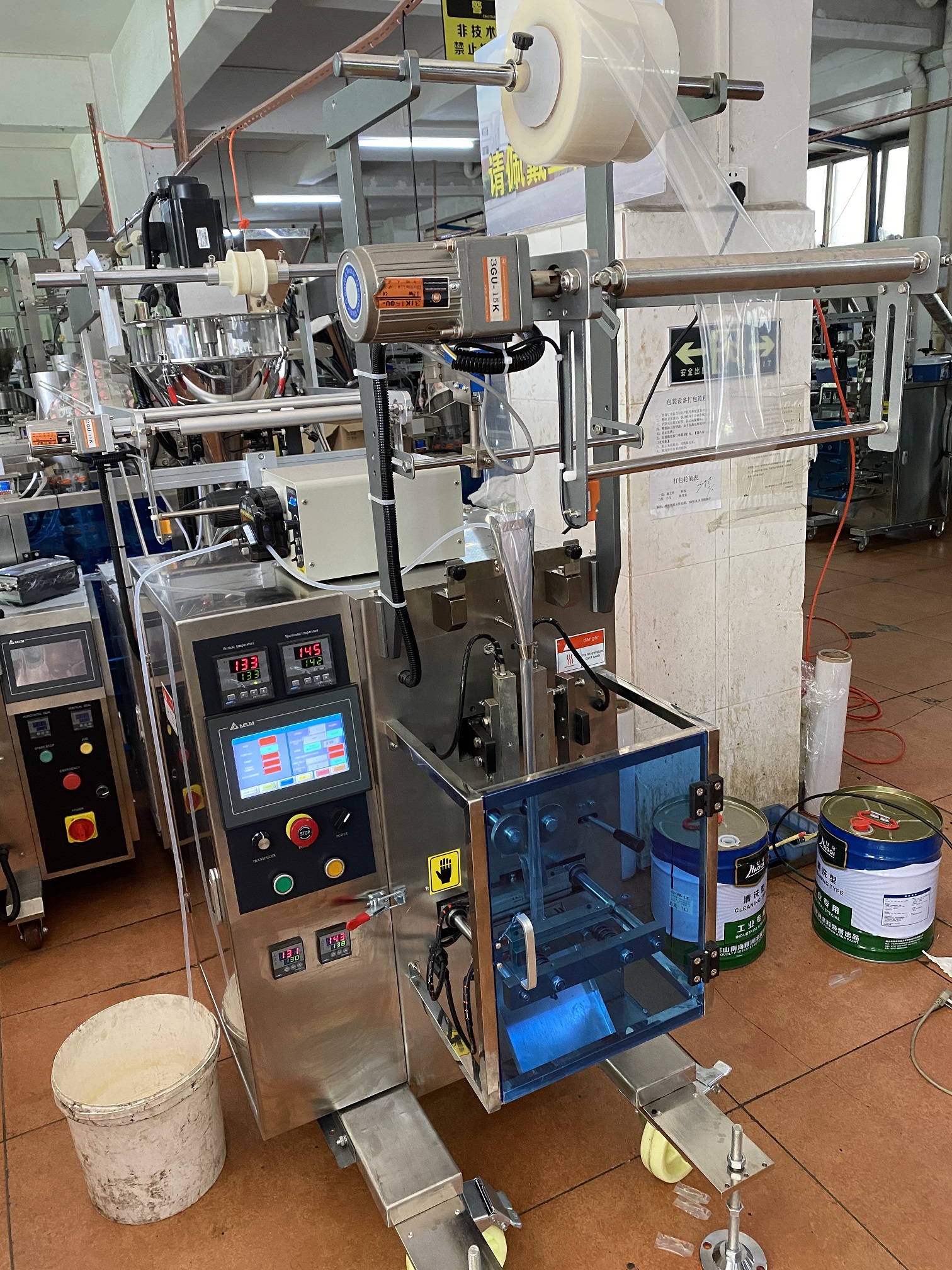

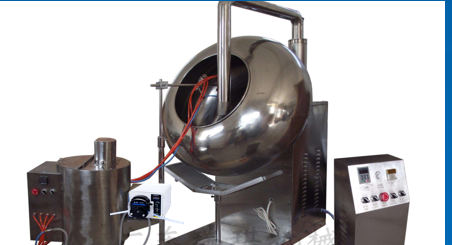

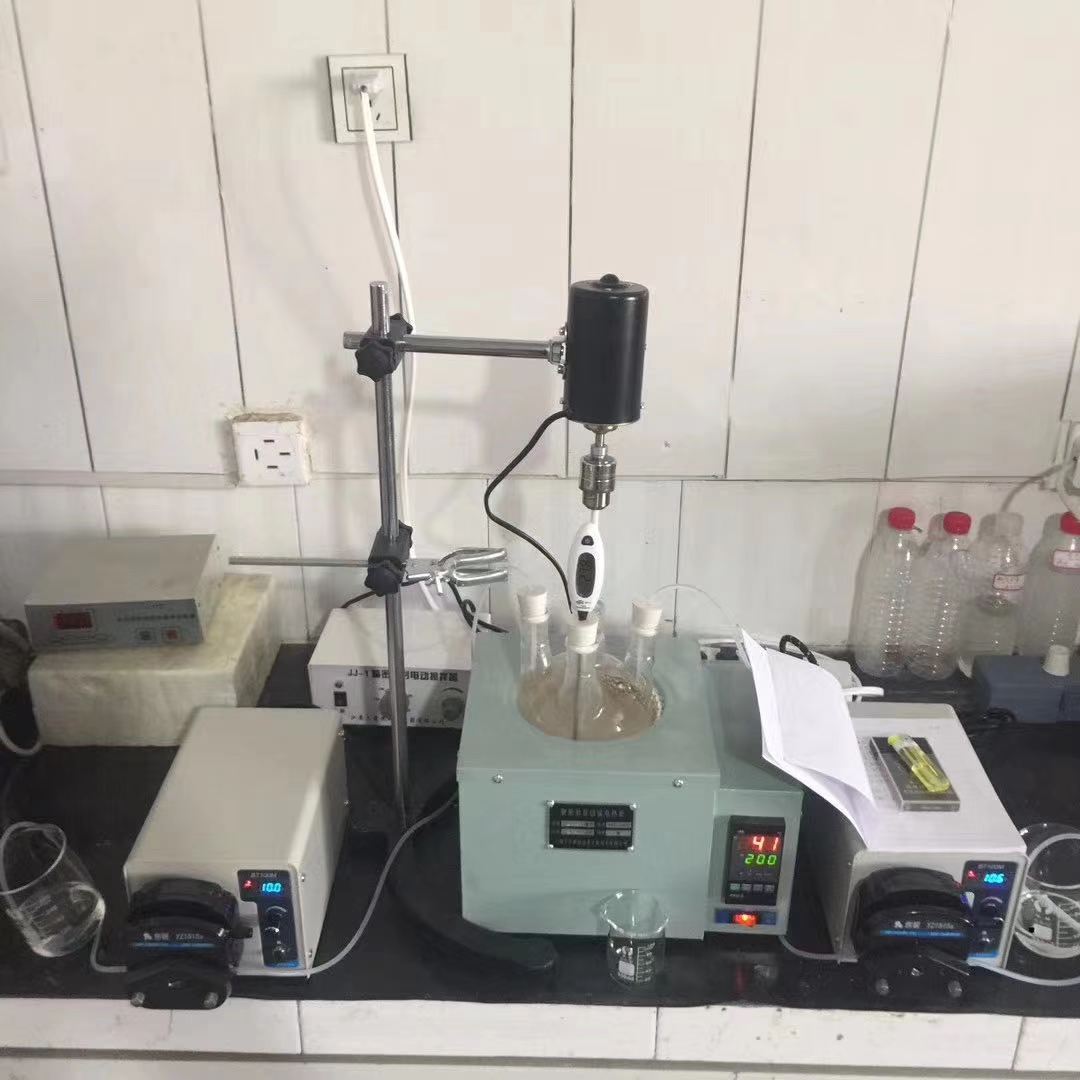

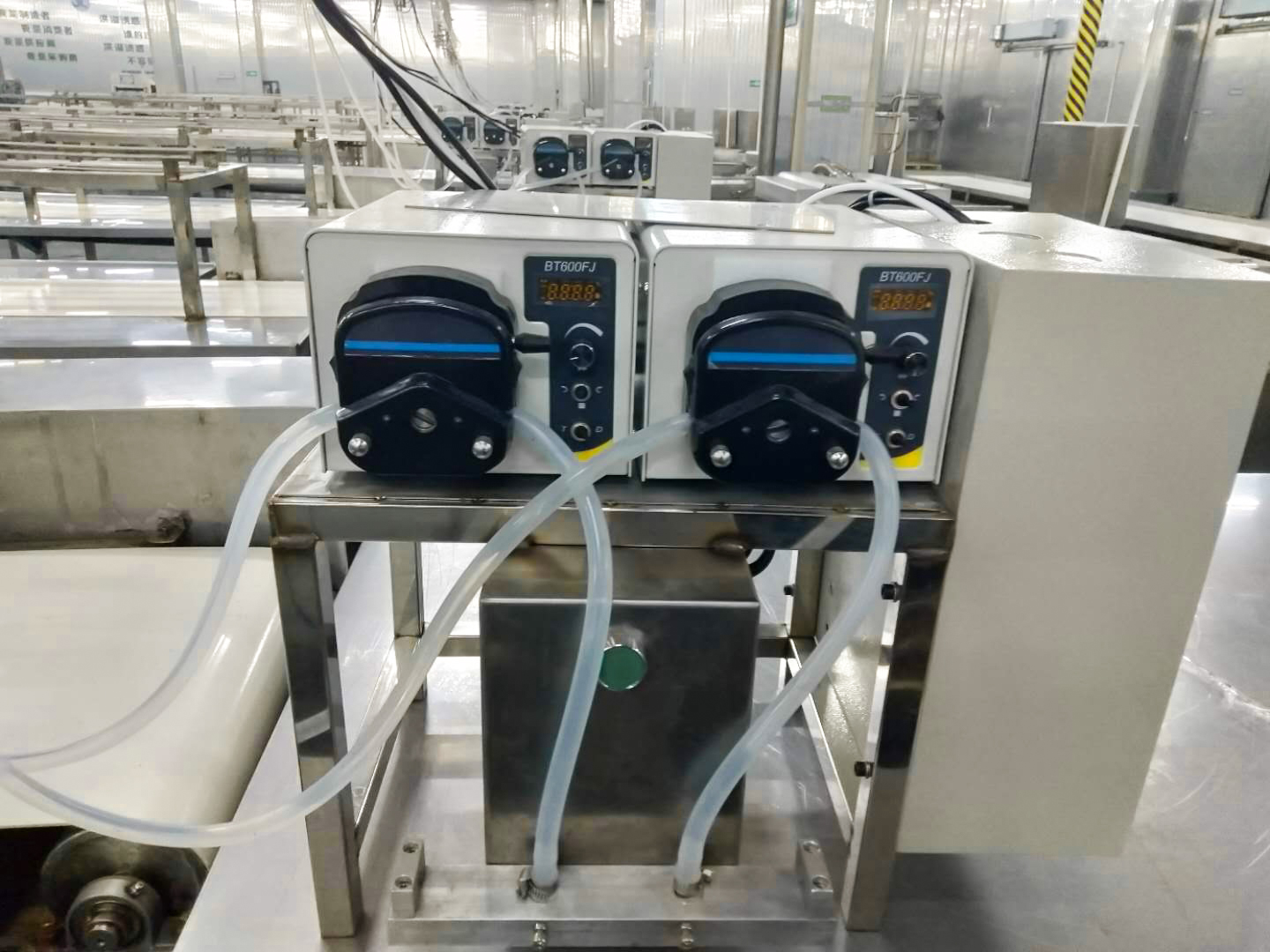

Essential oil filling/glue filling/Nail polish filling/Medium filling/Lab scale vials/Vessels filling/E-liquid filling etc.

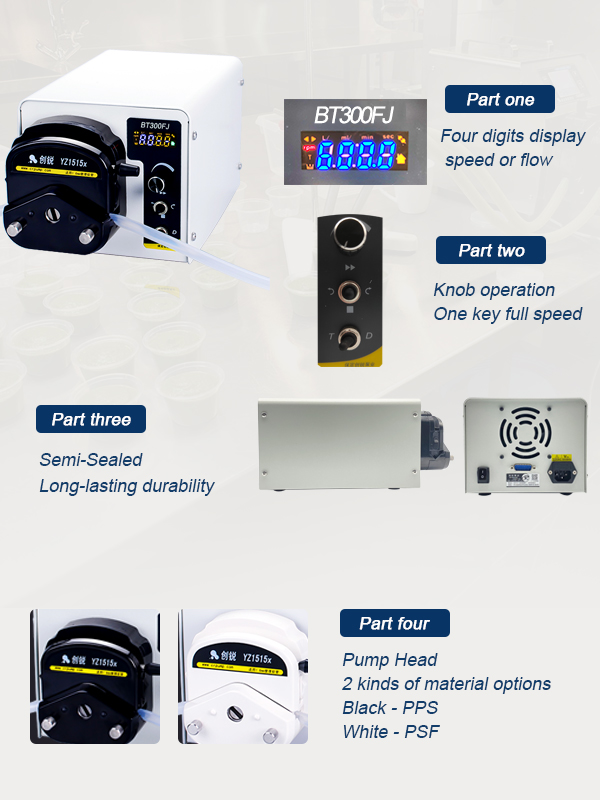

Detailed Images

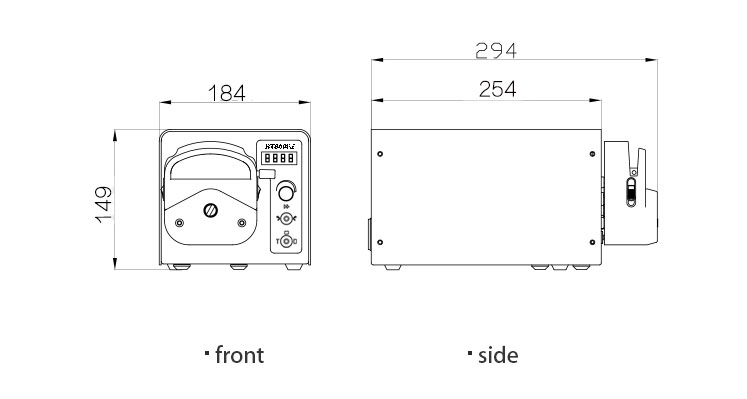

Dimension

Tube parameter

Kindly reminder:All the data in the Below chart is based on the water. If your liquid is viscous or corrosive, then this selection guide is not suitable for you.Please contact us, we will help you with better selection.

TUBE	ID (mm)	Max Speed (rpm)	Max Flow Rate (ml/min)	Suggest Capacity(ml)
13#	0.8	300	21	0.5-3
14#	1.6	300	81	1-5
19#	2.4	300	153	2-10
16#	3.1	300	246	5-20
25#	4.8	300	510	5-40
17#	6.4	300	870	10-50
18#	7.9	300	1140	20-100
