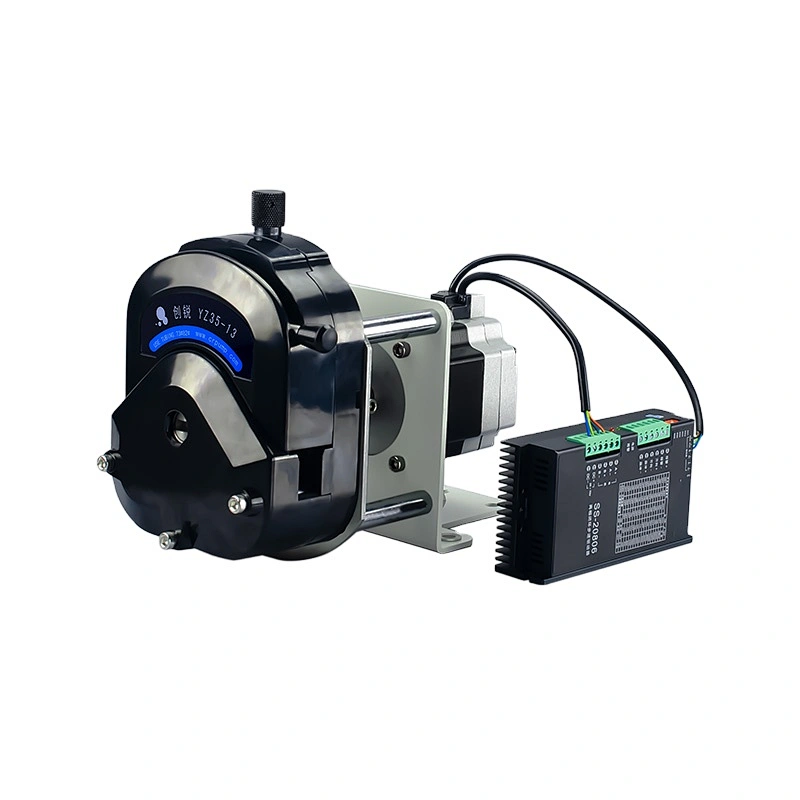

12L User Pulse control Driver Programmable Automotive Industry Flow Stepper motor Peristaltic Pump

Model NO.: UCP300

Type:peristaltic pump
Maximum Head:5--10m
Maximum Flow Rate:12000ml/min

Quantity:

Product Description

Quick Details

Warranty: 1 year

Customized support: OEM, ODM, OBM

Brand Name: Chuangrui

Model Number: UCP300/YZ35-13

Place of Origin: Hebei, China

Application: Automotive Industry, Biofuel Industry, Mining industry, Industrial Peristaltic Pump

Horsepower: Other

Power Source: Electric

Pressure: Low Pressure

Structure: Peristaltic Pump

Cable Length: other

Outlet Size: Max 12mm

Voltage: Other

Theory: peristaltic pump

Model: UCP300

Pump head: YZ35-13

Flowrate: 0.27-12000ml/min

Max speed: 600rpm

Pump head material: PPS

Roller material: 304 stainless steel

IP rate: IP31

Tube: 73# 82#

Certification: ce, TUV, ISO9001

Packaging & Delivery

Packaging Details: 1. The package contains a peristaltic pump and its accessories.
2, foam and carton packaging can protect the safety of the peristaltic pump during transportation.
3. If you have other packaging needs, please contact our sales staff in time.

Port Tianjin,Shanghai,Guangzhou

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated

Product Description

Chuangrui liquid handling pump

The UCP300 stepper motor peristaltic pump have superb features built-in and flexible design to meet specific customer needs.

Flexible rotor assembly, occlusion can be adjusted automatically, which give this OEM peristaltic pump powerful functions.

Order guide

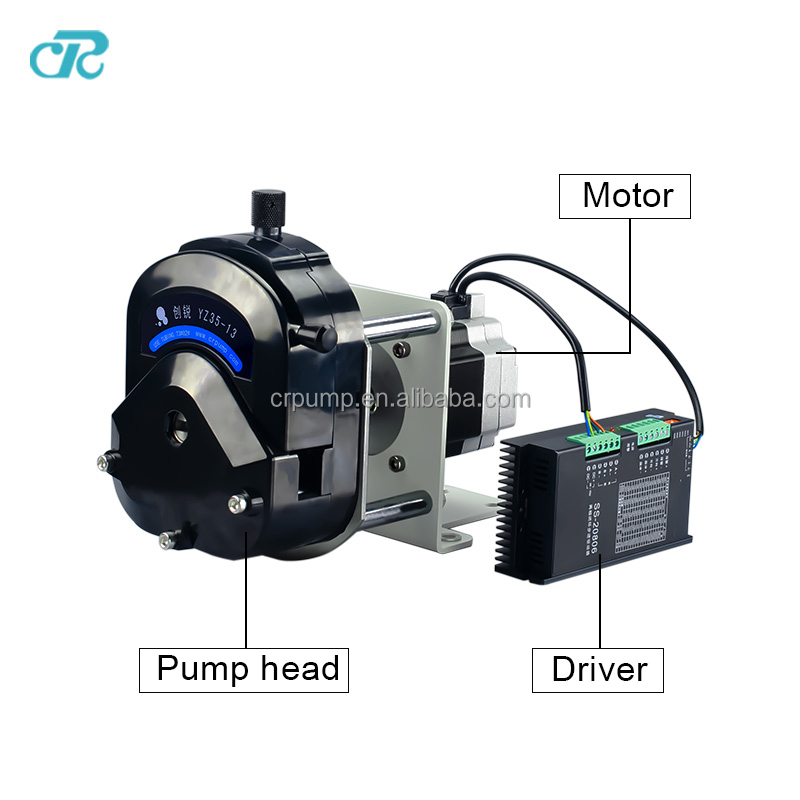

stepper motor peristaltic dosing pump

The peristaltic pump suitable for wall thickness 3.3mm Silicon tube, Pharmed bpt etc. material
tube, flow range up to12000 ml/min. The shell of pump head is made of PPS material and the roller is made of 304 SSS material. The roller has high strength, better wear resistance, strong chemical corrosion resistance, and it can be disinfected at high temperature .

Order list for the small peristaltic pump UCP300. Noted: 1.The defaulted model we will send is UCP300A 2.Defaulted channel number is 1 ,If you need multiple pls contact us 3, The defaulted pump head material is pps (black) 4, Support multiple channels customized, more info ,pls contact us.
Order Number	Model	Pump head	Motor	Driver	Control method	Tube model	Max Flow (ml/min)
UCP300A	UCP300	YZ35-13	NEMA34	NO	User control	82#	12000
UCP300B	UCP300	YZ35	NEMA34	NO	User control	82#	12000
UCP300C	UCP300	YZ35-13	NEMA34	806 DRIVER	User control	82#	12000
UCP300D	UCP300	YZ35	NEMA34	806 DRIVER	User control	82#	12000

Tube specifications for the pump YZ35-13 YZ35
Tube model	ID(mm)	OD(mm)	Max flow (ml/min)	Standard material	Optional material
82#	12.7	19.3	12000	Silicon tube	pharmed BPT/Norprene A-60-F..etc.
73#	9.6	16.2	7400	Silicon tube	pharmed BPT/Norprene A-60-F..etc.

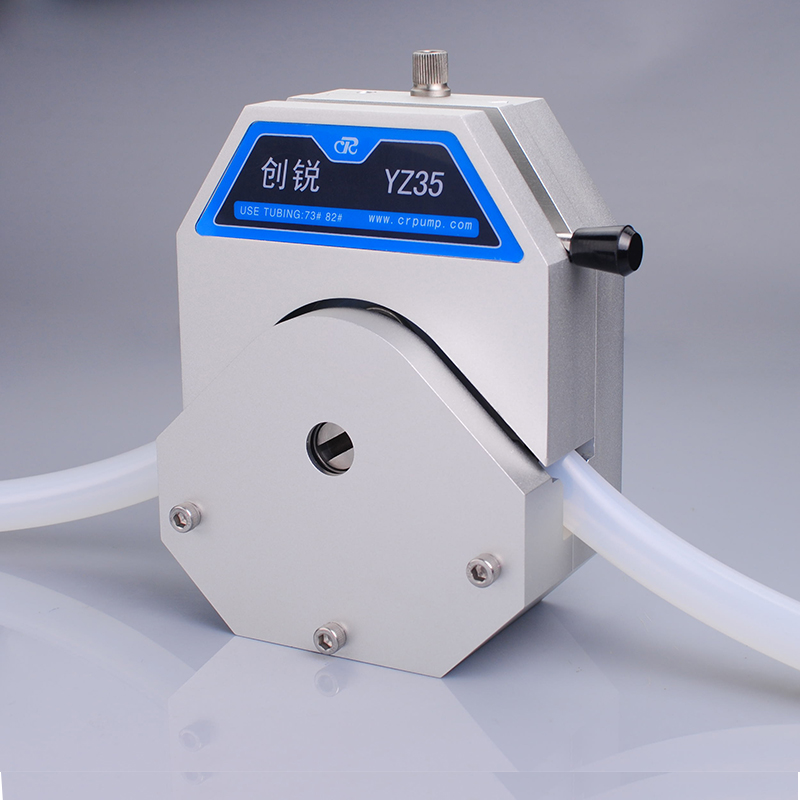

Pump head with Aluminum alloy

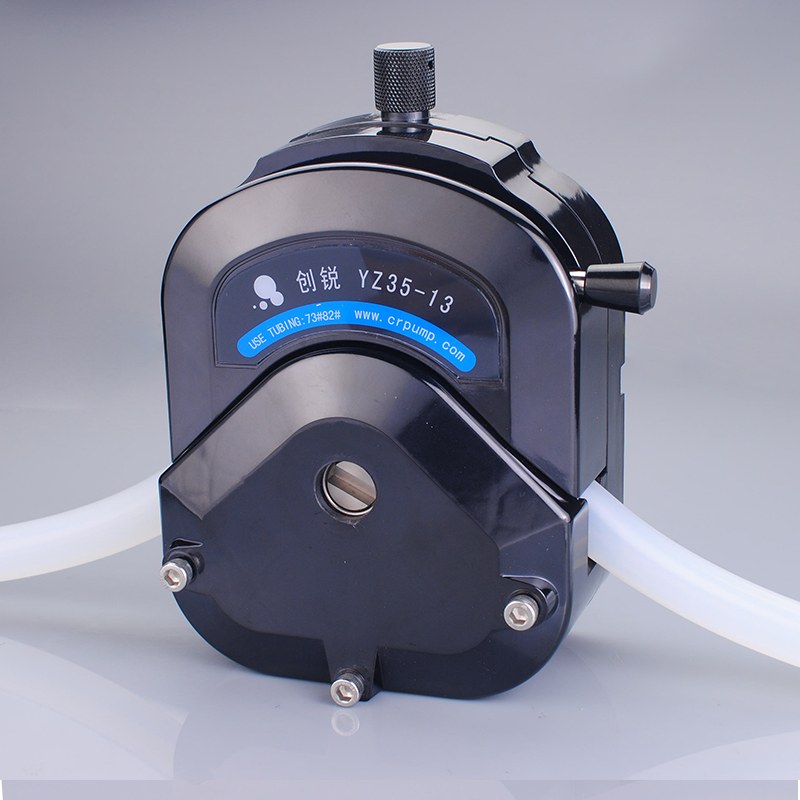

Pump head with PPS material (Black)

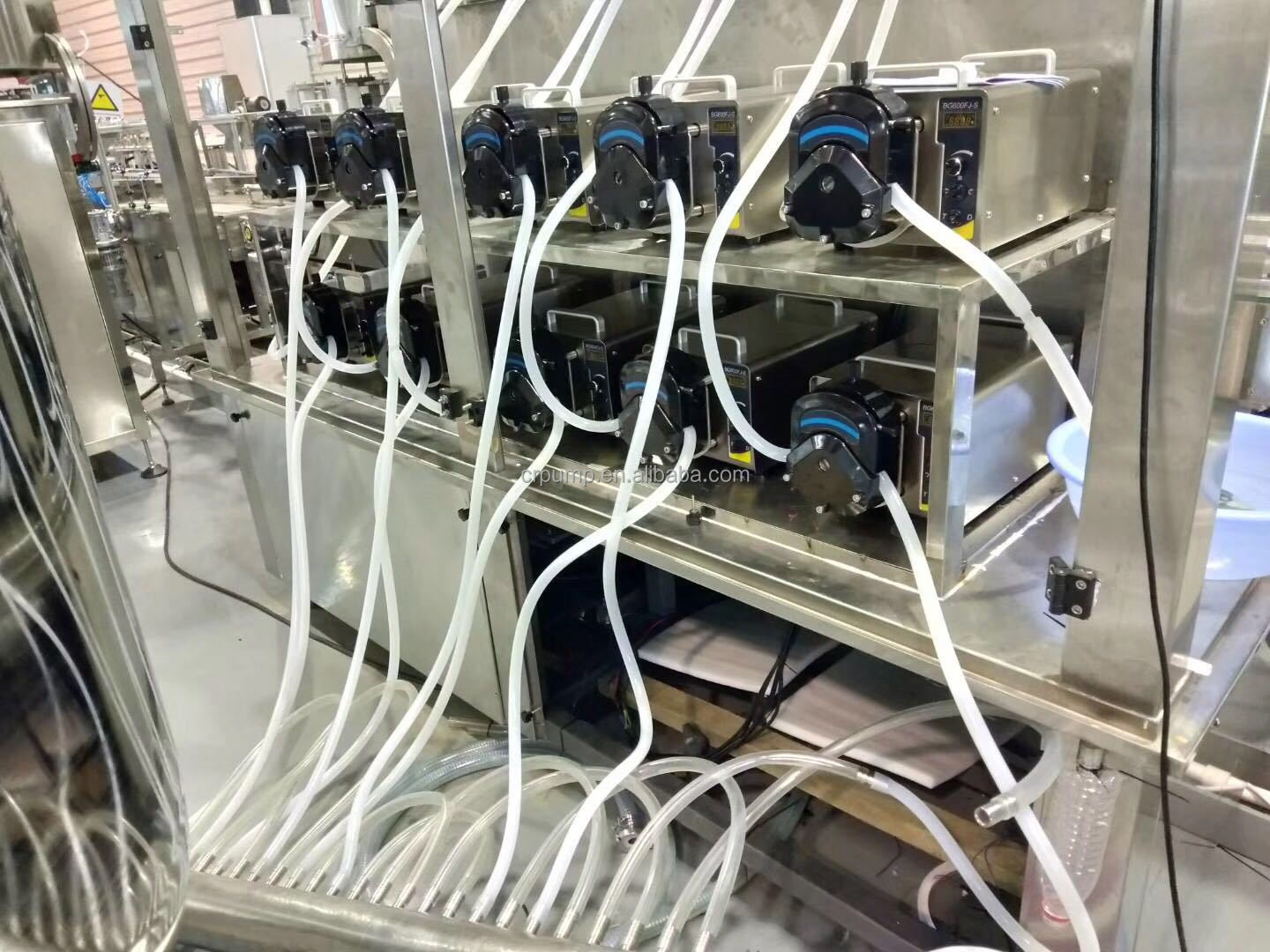

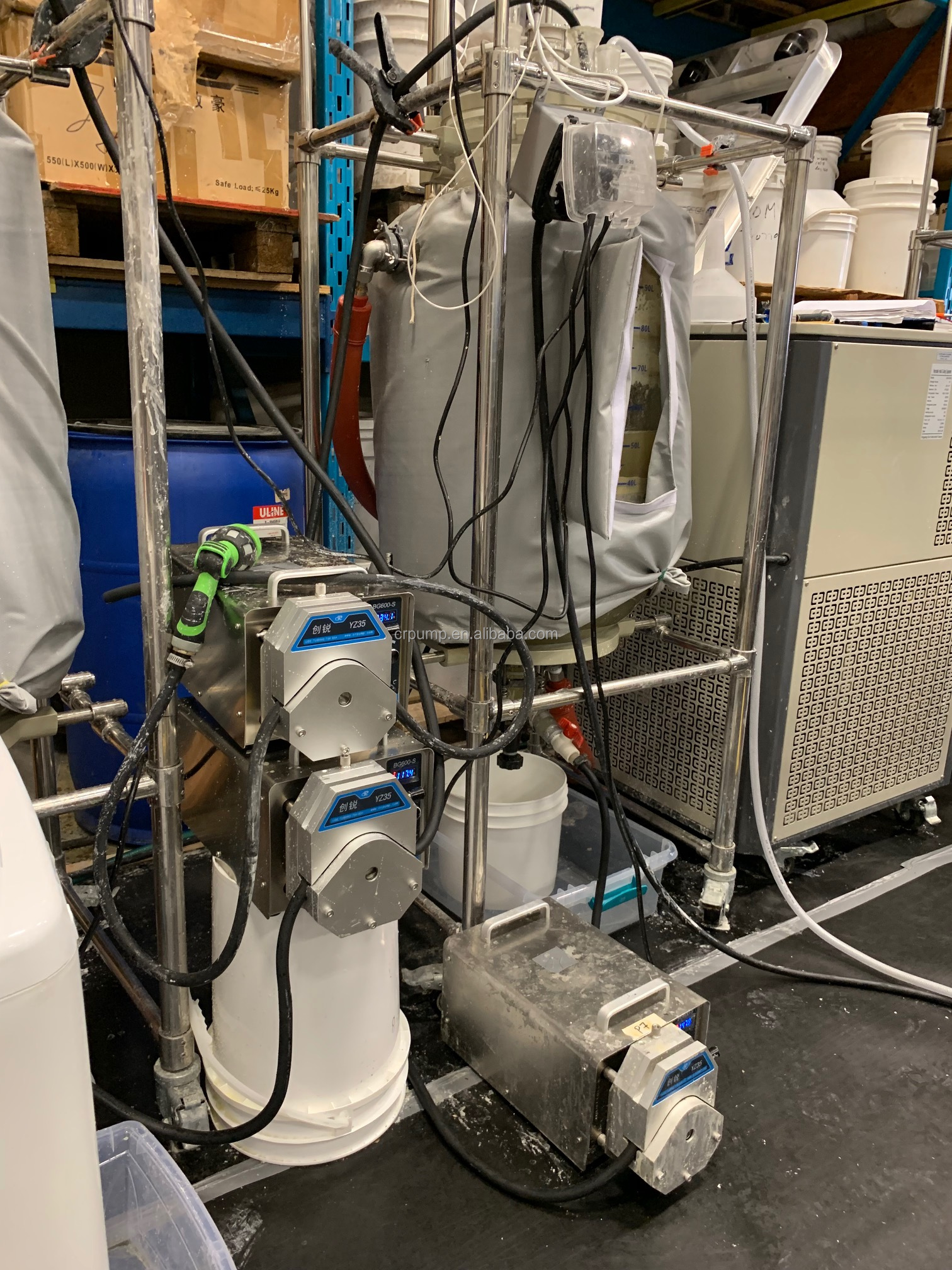

Application For additive feeding

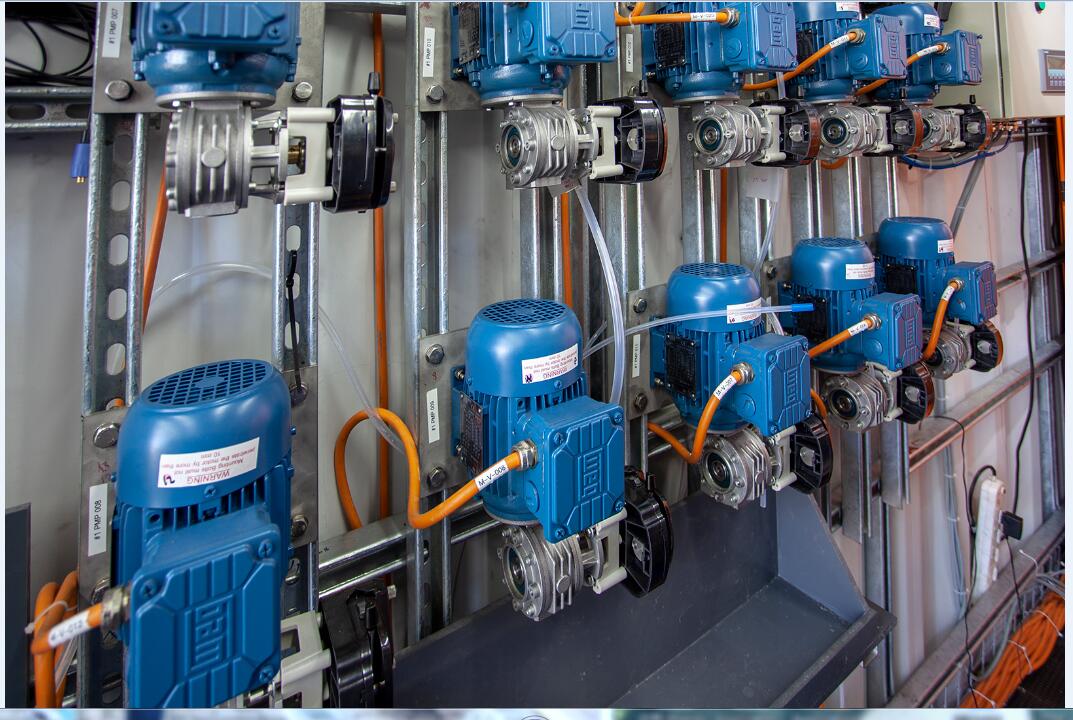

Application For waste water application

Order Guide

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ? bottle filling or constant transfer ?

2,what kind of liquid you will transfer ?does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4,for bottle filling ,what's your bottle's volume? ml How many bottles you want to filling in 1 min ?

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

FAQ

We have professional support teams to assist with any queries you may have.
Some frequently asked questions can be found below, however please do not hesitate to contact us with any specific questions.

Question 1: Can I order custom peristaltic pump with my own design & logo?

Answer: Definitely yes.

Question 2: Can I order a sample first before mass production? How can I place a sample order?

Answer: Surely you can order a sample first. And there will be some sample cost, charged based on your design. We will make the sample pump for you after payment received and take pictures for your reference once finished. If you want to see the actual sample, we can send the sample to you while freight cost is yours.

Question 3: How soon can I get a sample made? How can I make payment?

Answer: For simple design sample, it generally takes about 7-15 days to get samples made. While it will take a longer time for design, make a mold, assemble, actual test. etc. Payment can be made through T/T, paypal or Western Union.

Question 4: How can I get my peristaltic pump if I place the order to you?

Answer: That depends on the quantity your ordered. 1 to 100 pieces, the pumps will be shipped to you by express(DHL, Fedex, etc.); 100 or more, mostly by air or by sea.

Question 5: Can I buy the tube separately?

Answer: Of course Yes. for the silicone tube 15 meters per roll, or you can buy 1 or 2 meters. No problem.
