Small Flow OEM Peristaltic Pump Flue Gas Analysis Fermentation Tanks Detergent

Warranty:                                            1 year

Customized support:                         OEM, ODM, OBM

Model Number:                                  OEM206/WP300

Place of Origin:                                  Hebei, China

Application:                                        Metal and Equipment Manufacturers, wastewater treatment,
                                                            Water Treatment Solutions, Washing Machine

Horsepower:                                      Other

Power Source:                                   Electric

Pressure:                                            Low Pressure

Structure:                                           Peristaltic Pump

Cable Length:                                    other

Outlet Size:                                        Max 7.9mm

Voltage:                                             AC220, DC12V DC24V

Power:                                               6W

Theory:                                              peristaltic pump

Model:                                               OEM206

Pump head:                                       WP300

Max flow:                                          1000 ml/min

MOQ:                                                 1 Set

Certification:                                    ce, ISO9001

Packaging & Delivery

Selling Units:                                   Single item

Single package size:                       15X15X10 cm

Single gross weight:                       1.000 kg

Package Type:                                1. The peristaltic pump is carton with plastic foam.
                                                         2. The peristaltic pump can also be packed strictly according to the customer's requirements.

Lead Time:

Quantity(Sets)	1 - 10	>10
Est. Time(days)	5	To be negotiated

Video Description

Product Description

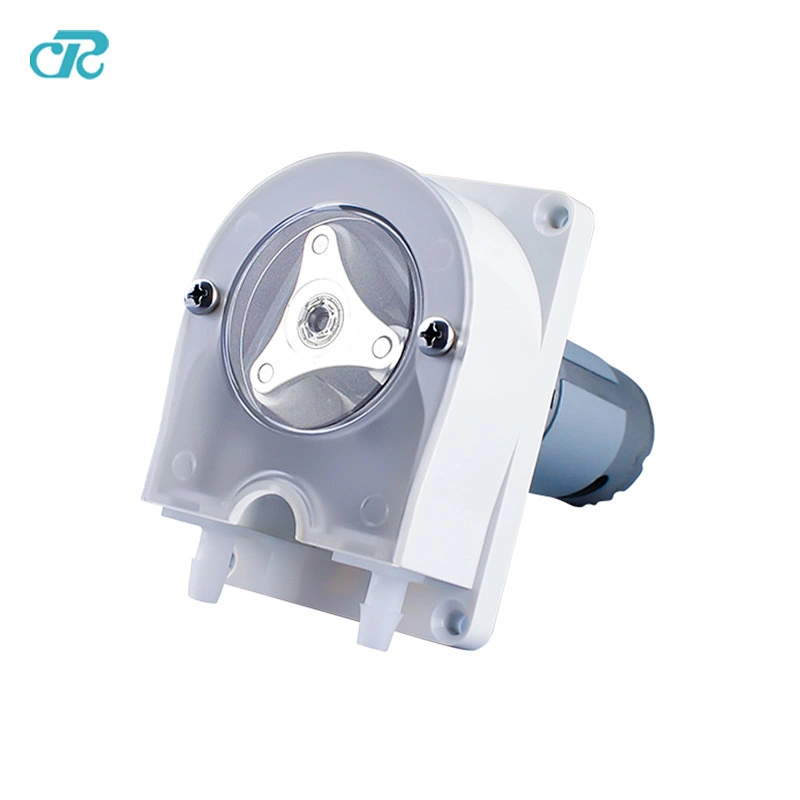

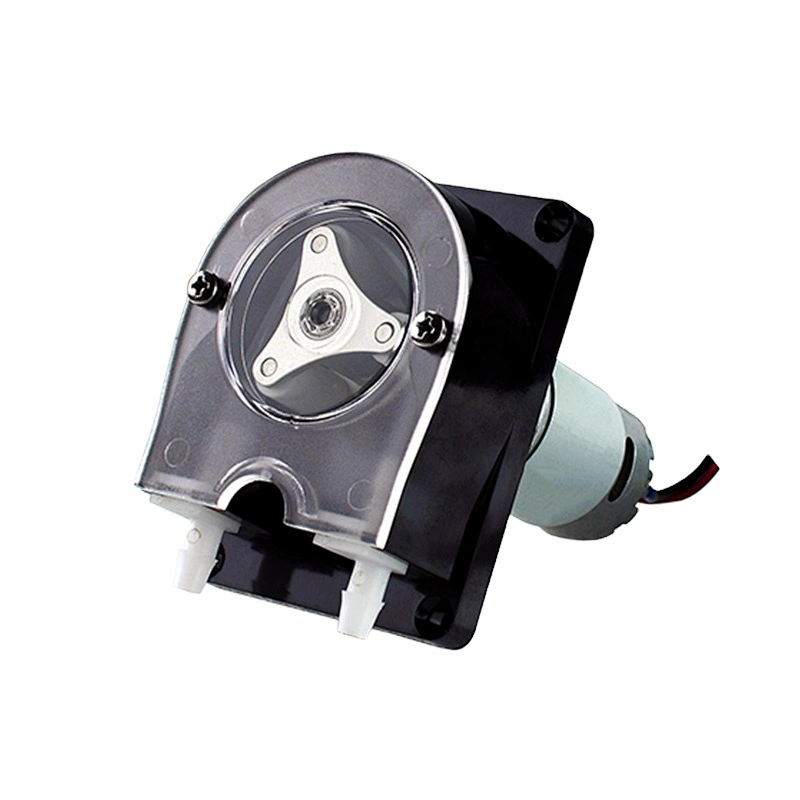

small peristaltic pump

 Custom mounting brackets available.
- Ideal for fluid transfer application which require high accuracy and repeatability.
- Pump head is compact and simple in design with same side tubing entry/exit.
- Perfect for space-limited applications.
- Pump heads are compact and easy to integrate into your OEM applications.
- Call for more information on our OEM services.








Specifications

Order number	Model	Pump head	Motor Voltage	Motor speed	Flow with tube 18#
20624125	OEM206-1	WP300-3	DC24V	125rpm	400 ml/min
20624300	OEM206-1	WP300-3	DC24V	300 rpm	1000 ml/min
20612300	OEM206-1	wp300-3	DC12V	300 rpm	1000 ml/min

Tube model	ID(mm)	OD(mm)	Max Flow with 125 rpm(ml/min)	Max Flow with 300 rpm(ml/min)
18#	7.9	11.2	400	1000
17#	6.4	9.6	300	750
25#	4.8	8	200	500
14#	1.6	4.8	20	50



Noted: The default order number is 20624300 with silicon tube 18# 1 meter

If you need other model pump or tube pls contact our sales .

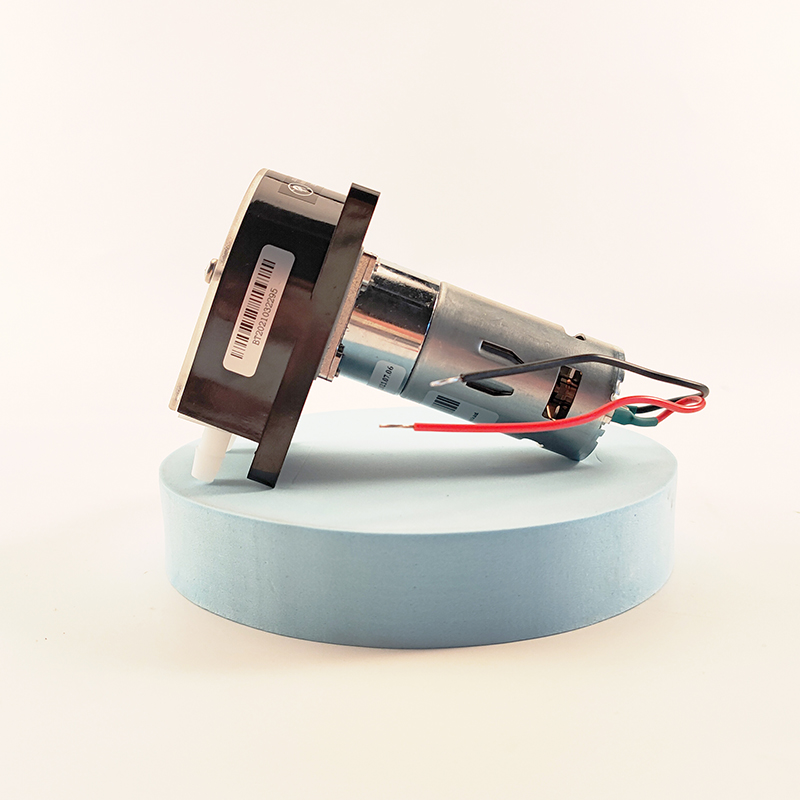

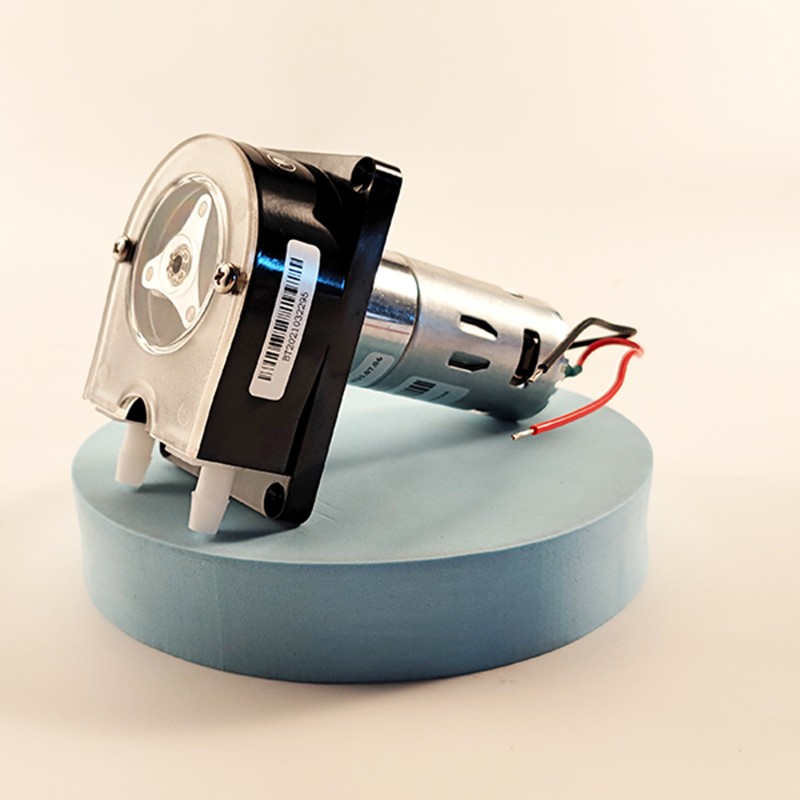

Small size, compact and robust design.
Trouble-free continuous tube loading in seconds.
Reliable performance without any operator adjustments.
Automatic tube stretch for high accuracy and repetitive flow.
Three roller pump head, low pulsation.

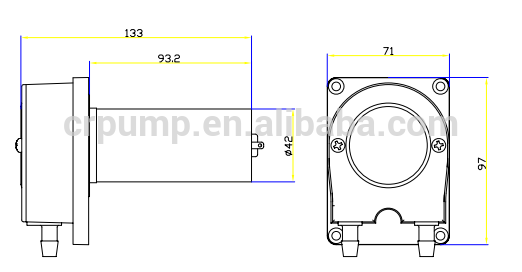

Small dimension

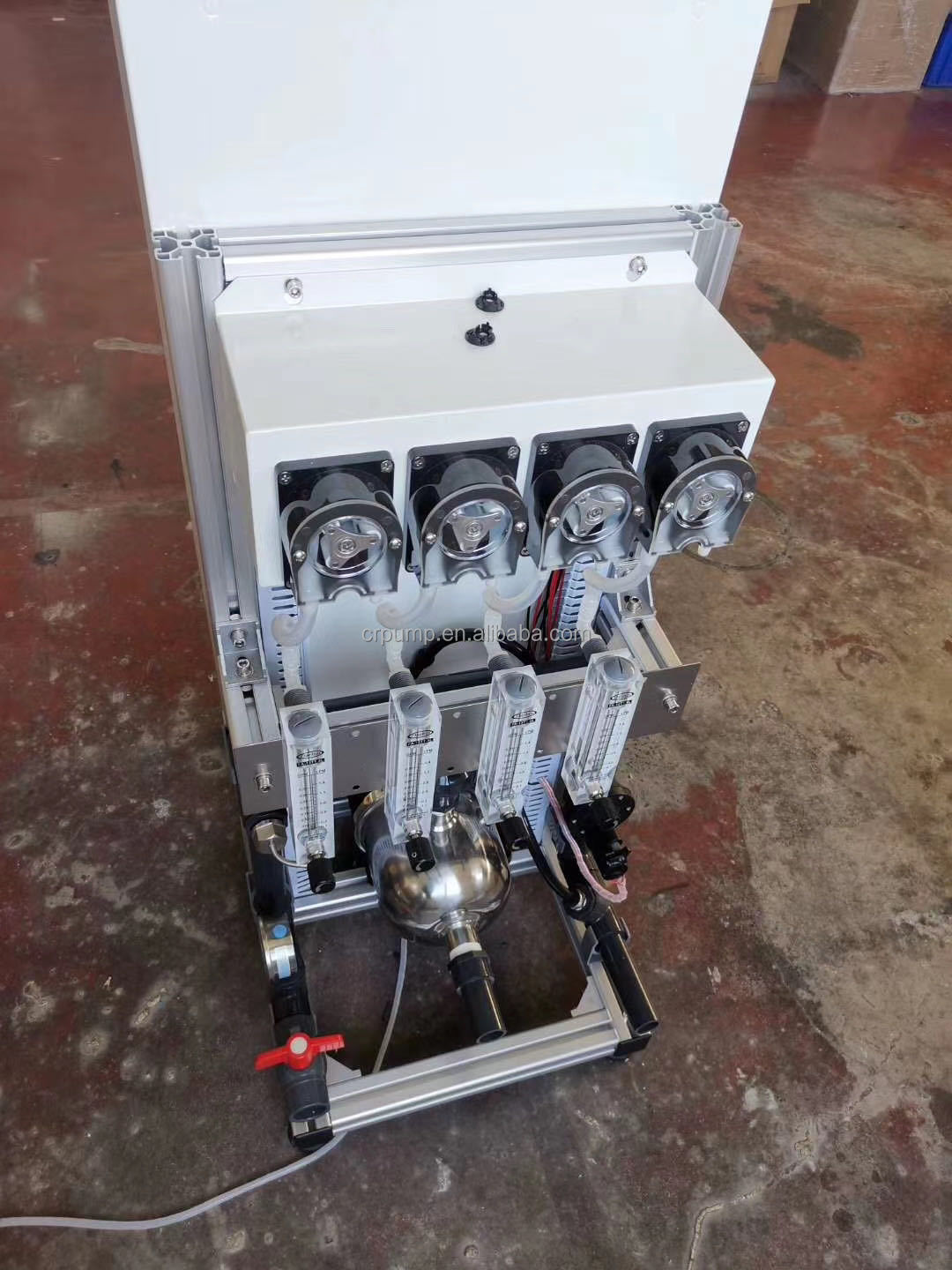

Compact structure design, simple installation design, and good working performance, widely used in various liquid processing equipment
The OEM206 pumps have superb features built-in and flexible design to meet specific customer needs.
Typical Application

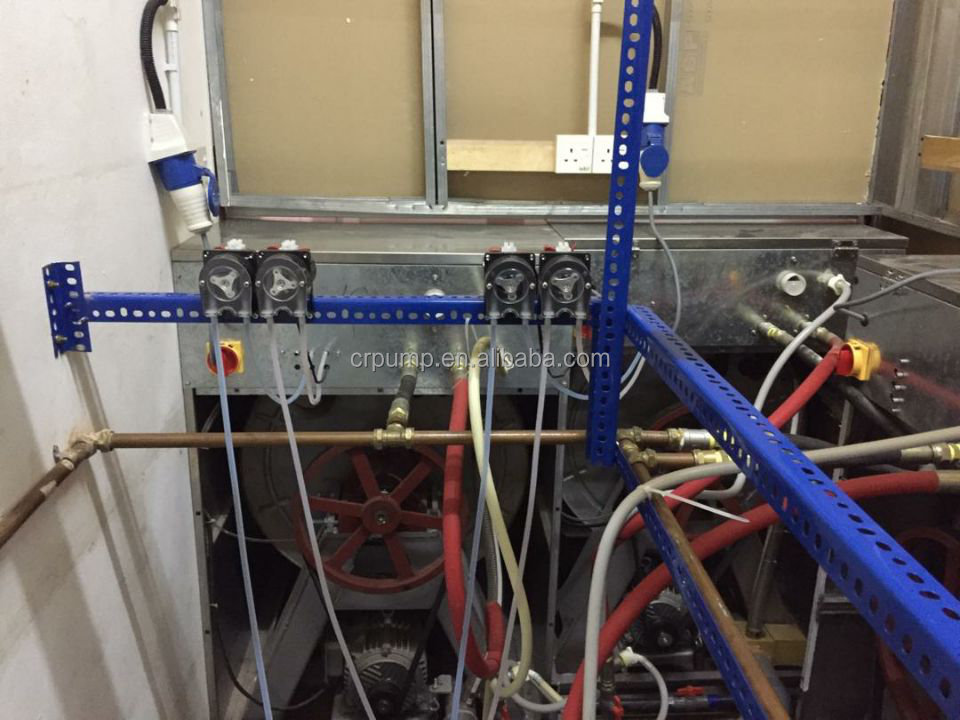

* Washing machine matching
*COD water treatment
* Detergent Liquid Transferring

Order guide OEM

Dear All ,

Welcome to our website ,wish you have a nice day and will get the harvest from us .=))

To help you choose the suitable pump. can you help me to confirm some details as below :

1,what's the application of the pump ?bottle filling or constant transfer ?

2,what kind of liquid you will transfer ? does it corrosive ? does it can flow as water ?

3,for constant transfer ,what's flowrate you need? ml/min

4, for bottle filling ,what's your bottle's volume ? ml How many bottles you want to filling in 1 min ?


5, For the OEM pump. pls tell me the model no. you want ? Thanks

Pls send these answers or most details to us, then we will help u to choose the best pump and tube .

Thanks for your time .

Contact :Chuangrui
Why Choose Us

Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
We aim to “Produce CR pump to the easier life.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
