Quick Details
- Warranty:1 year, 1 year Customized support:OEM, ODM, OBM
- Brand Name:Chuangrui Model Number:OEM208/KZ25, OEM208/KZ25
- Place of Origin:Hebei Application:Milk Vending Machine, milk vending machine Integrated in machine, transfer liquid
- Horsepower:None Power Source:Electric
- Pressure:Low Pressure Structure:peristaltic pump
- Cable Length:none Outlet Size:Max 9.6mm
- Voltage:DC12V or DC24V Max speed:600 rpm
- Flowrate:Max 6000ml/min Tube:15# 24# 35# 36# optional
- Motor power:DC12V/24V MOQ:1 Set
Packaging & Delivery
- Selling Units:Single item
- Single package size: 29X19X19 cm
- Single gross weight:3.500 kg

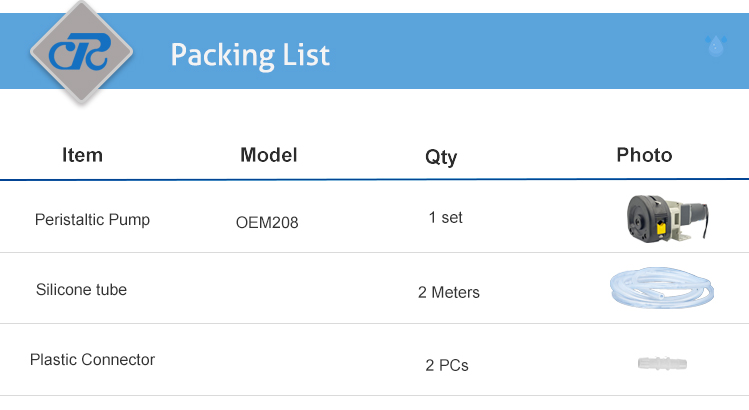

- Package Type:1. The package contains a peristaltic pump and its accessories. 2. Carton and foam packaging can protect the safety of the product during transportation. 3. If you have special packaging needs, please contact us in time.

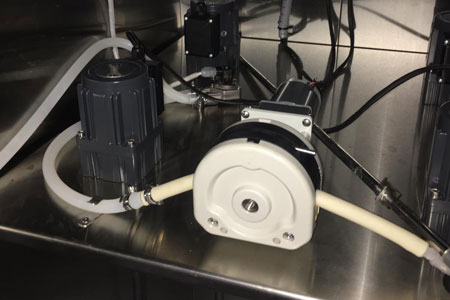

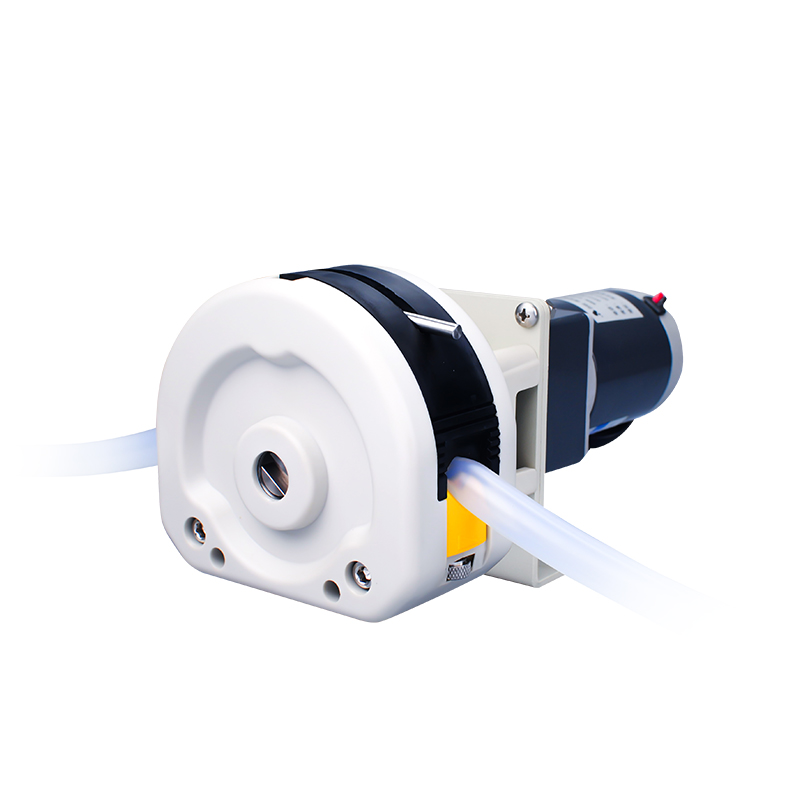

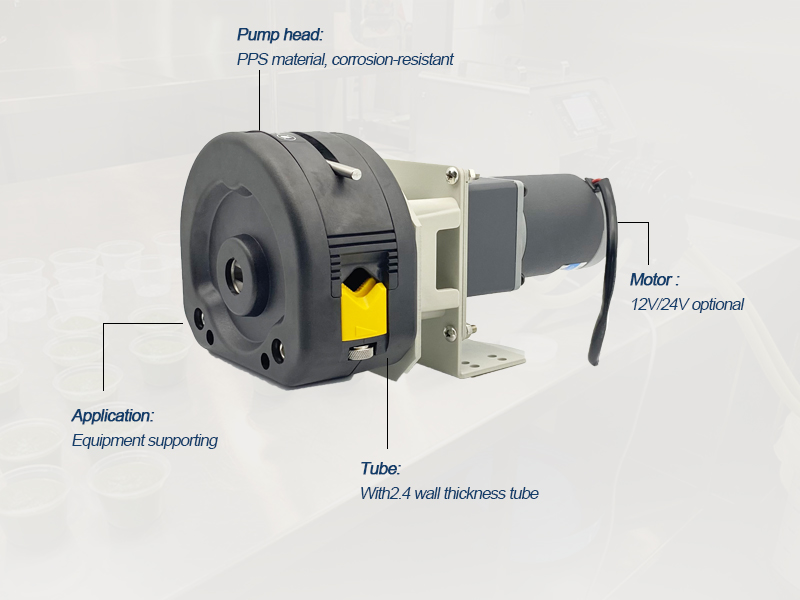

The OEM peristaltic pump model OEM208/KZ25 with Compact structure design, simple installation design, and good working performance, widely used in various liquid processing equipmentCustomize mounting brackets available. Ideal for fluid transfer applications.OEM208 with 4 different tube size options and with adjustable speed motor speeds. It is one of the top selling OEM pumps. You will often find these peristaltic tubing pumps in vending machines, soft serve ice cream machines, printers and other ink machines.
Tube Model ID (mm) Wall Thickness (mm) Max Flow (ml/min) Speed（rpm） 15# 4.8 2.4 1800 600 24# 6.7 2.4 3000 600 35# 7.9 2.4 4200 600 36# 9.6 2.4 6000 600 Kindly reminder:All the data in the Above chart is based on the water.If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

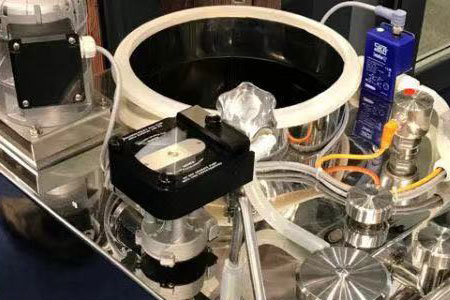

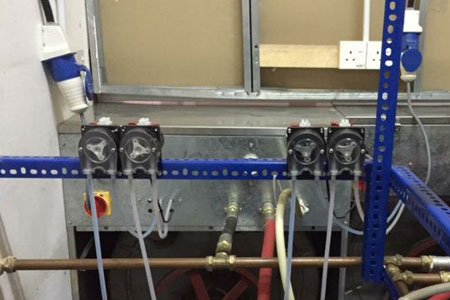

Application：Vending machineModel：OEM208Flow：Max 6L/minApplication：Vending machineModel：OEM210
Flow：Max 3.4L/min
Application：LaundrymachineModel：OEM206
Flow：Max 1L/min

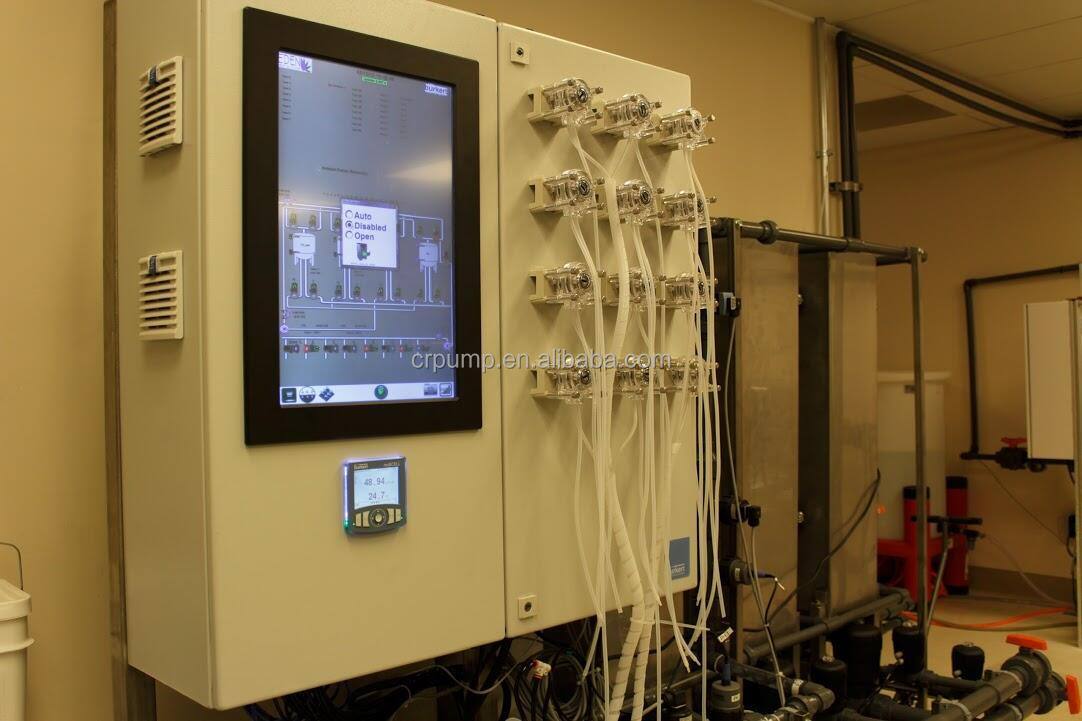

Application：Automatic mixing machineModel：OEM204
Flow：Max 1.7L/min
Baoding Chuang Rui Precision Pump Co., Ltd. Started production of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.
