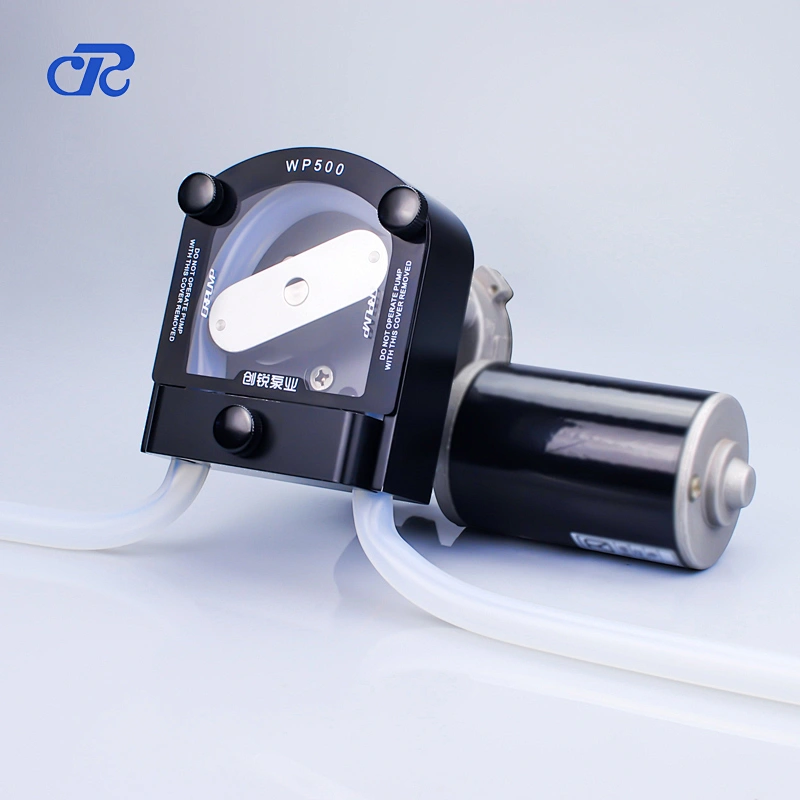

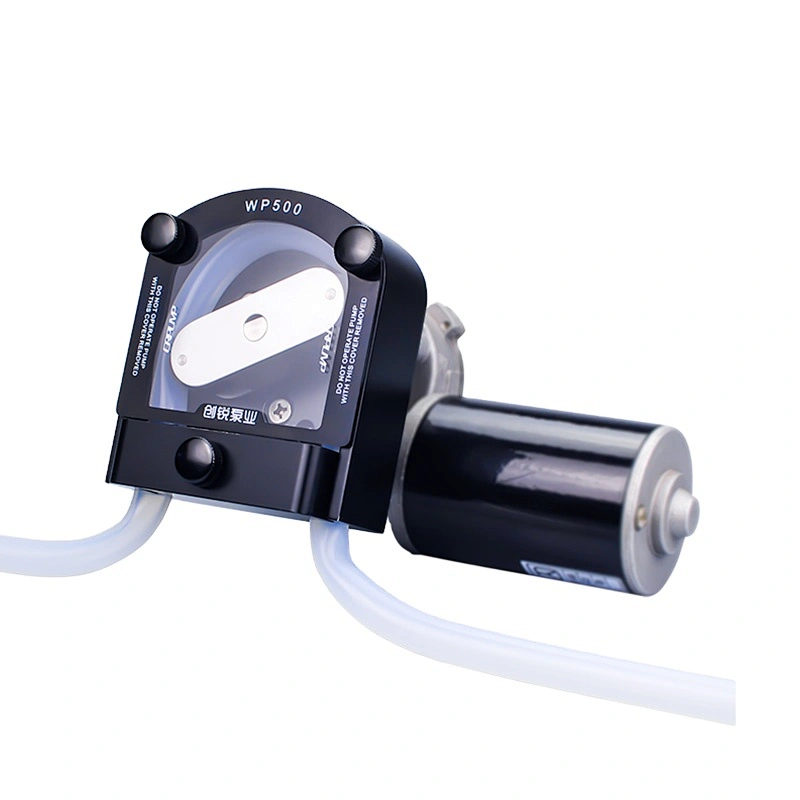

OEM Peristaltic Pump For Vending Machine Mini Peristaltic Pump 5L/min

Warranty:1 year                                                 Customized support:OEM, ODM, OBM
Brand Name:ChuangRui                                    Model Number:OEM210

Place of Origin:Hebei, China                             Application:For Vending Machine

Horsepower:Other                                             Power Source:Electric

Pressure:Low Pressure                                       Structure:Gear Motor Peristaltic Pump

Cable Length:other                                             Outlet Size:Max 13mm

Voltage:DC12V or DC24V                                   Pump head:WP500

Roller:2 roller                                                     Flowrate:Max 5000ml/min

Motor:DC12V/24v                                             Tube:73#

Roller material:304 stainless steel                     MOQ:1 Set

Certification:ce

Packaging & Delivery

Selling Units:Single item
Single package size: 30X20X20 cm

Single gross weight:3.000 kg

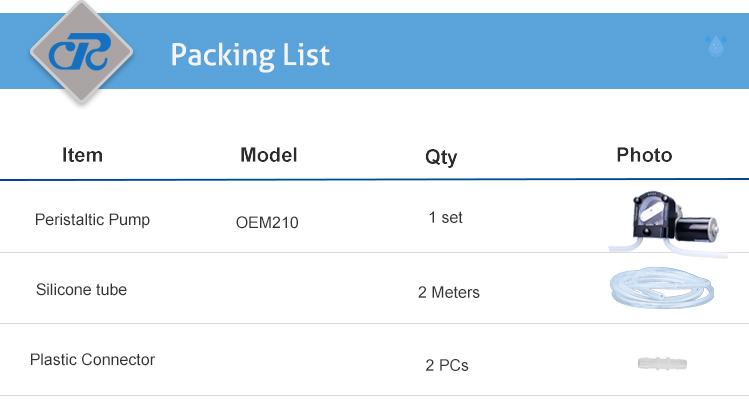

Package Type:1. The package contains a peristaltic pump and its accessories.
                       2. foam and carton packaging can protect the safety of the peristaltic pump during transportation.
                       3. If you have other packaging needs, please contact our sales staff in time.

Lead Time:

Quantity(Sets)	1 - 3	>3
Est. Time(days)	7	To be negotiated



Customized OEM Peristaltic Pump

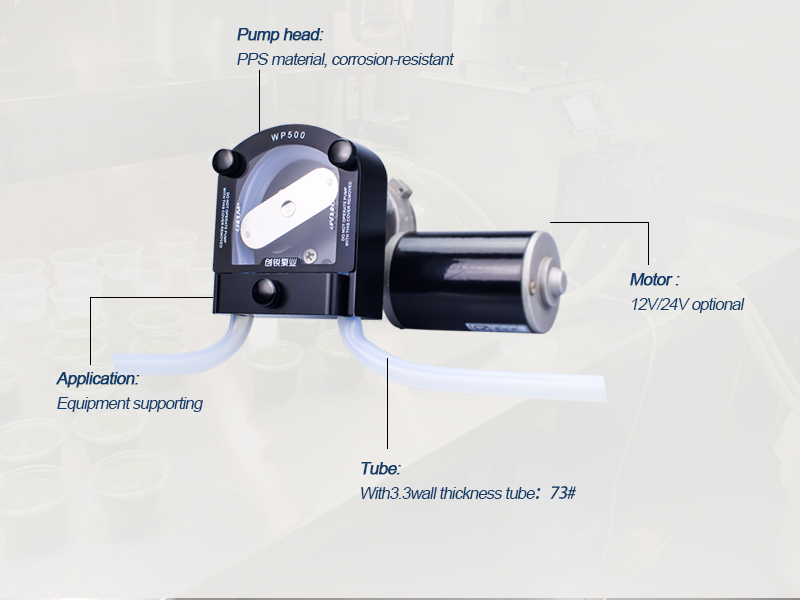

L-shaped installation, compact structure, convenient installation
Motor: With DC worm gear motor . The Peristaltic pump motor's gears are heat-treated after
grinding.with wear resistance,long life,low noise .etc. Adhere to only metal gears ,gears are made of
metal material ,smooth transmission and high torque transmission Pump head: The pump head is made of
aluminum Electrophoretic spray paint, with smooth coating film, good water resistance and chemical resistance
The top cover is acrylic material Support customization into the customer's LOGO.
Pump tubing: Model : 73# ID 9.6 mm OD 16.2 mm

Model	OEM210
Channel	1
Speed range	Max 300rpm
Max Flow	5000ml/min
Motor	DC 12V or 24V （Optional）





Motor	Tube	ID (mm)	Wall Thickness (mm)	Max Flow (ml/min)	Speed（rpm）
DC 24V	73#	9.6	3.3	3400	265
DC 12V				5000	300

Kindly reminder:

All the data in the Above chart is based on the water.

If your liquid is viscous or corrosive, then this selection guide is not suitable for you.

Contact us, we will help you with better selection.

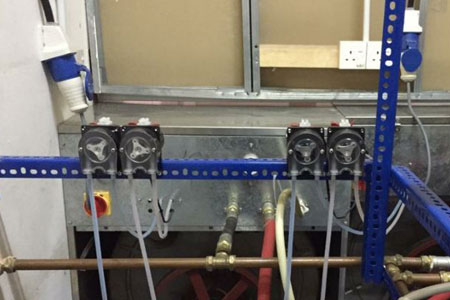

 Application：Laundrymachine

Model：OEM206
Flow：Max 1L/min
More details

Application：Vending machine

Model：OEM210
Flow：Max 3.4L/min
More detail





Baoding Chuang Rui  Precision Pump Co., Ltd. Started production  of the peristaltic pump from 2006 . We are a innovative company focus on research and development, production and marketing of peristaltic pump.
With 10 years professional experience of Peristaltic pump Tubing pump Liquid handling pump . Now we independent research and development of more than 30 series, over 200 kinds of products. We not only produce the standard peristaltic pump, Peristaltic pump filling system , but also focus on the ideal OEM design and customization. According to the actual needs of customers to produce the ideal OEM peristaltic pump .Widely used in various industries of pharmaceutical industry, fine chemical industry, environmental protection, biochemical industry, laboratory & research application etc.
We are confident that we can offer the top quality and service for our customers. And we are trying our best to be the top one in our peristaltic pump field.
Our professional team can insure fluent communication, as well as perfect after-sale service.
Chuang Rui make sure that our factory can supply peristaltic pump of best price, high quality, so you will be full of confidence for your market expansion.

CR Peristaltic pump is easy to maintenance
replaceable tubes allow you to switch from one liquid to another in the shortest amount of time.
No need to rinse and disassemble after the flushable product, you only need to replace the peristaltic pump tubing
CR Peristaltic pump with high precision
The calibration function can ensure the filling accuracy for each dose. The suck-back function prevents liquid (reverse): in the dispense mode, after the end of the direct cycle, the return stroke is initiated to prevent the liquid from flowing out of the pump tube during the stop.
CR peristaltic pump is non-pollution: the fluid only contacts the pump tube and does not touch the pump body;
CR Peristaltic pump is Versatility
CR peristaltic pump can be used with a variety of products and can be used in a variety of industries.
CR peristaltic pump is easy to work
After the power is turned off and on, the control system maintains the current settings (pump head tubing model and other parameters).
CR peristaltic pump with good sealing: It has the good self-priming ability and can be idling to prevent back flow.
CR peristaltic pump with Low shear: ideal for conveying shear sensitive, aggressive fluids
